check engine MERCEDES-BENZ V-CLASS MPV 2021 Owners Manual

#
Alwaysfit th efloor mats securely and as
prescribed in order toensure that there
is alw ays suf ficient room forth e pedals. #
Do not use loose floor mats and do not
place floor mats on top of one ano ther. *
NO
TEBattery discharging from using
devices connec tedto the diagnostics
connection Using devices at
the diagnostics connection
drains the batter y. #
Check thech arge leve l of the batter y. #
Ifth ech arge leve l is lo w,charge the bat‐
te ry, e.g. bydriving a considerable dis‐
ta nce. The connection and use of ano
ther device on the
diagnostics connection can ha vethefo llowing
ef fects:
R Malfunctions in theve hicle sy stem
R Perm anent damage tovehicle components
Please referto thewa rranty term s and conditions
re ga rding this.
In addition, connecting equipment tothe diagnos‐
tics connection can lead toemissions monitoring
information being reset, forex ample. This may
lead totheve hicle failing tomeet therequ ire‐
ments of the next emissions inspection during
th e main inspection. Note
s onchanges tothe engine output
Output inc reases can:
R Change the emission values.
R Lead tomalfunctions.
R Result in consequential damage.
The operating saf ety of the engine is not guaran‐
te ed in all situations.
If th eve hicle's engine output is increased:
R Tyres, suspension, brake sy stem and engine
cooling sy stem must be adap tedto the
inc rease engine output.
R Vehicle must be recertified.
R Report changes in output tothe accident
insurance body.
This will otherwise lead tothe in validation of the
ve hicle's general ope rating pe rmit and its insur‐
ance co verage.
If yo u sell theve hicle, inform the buyer of any
alterations totheve hicle's engine output. This
may constitute a punishable of fence under
national legislation. Qualified speciali
stwo rkshop
A qu alified specialist workshop has the necessary
special skills, tools and qualifications tocor rectly
car ryout any necessary workon your vehicle.
This particularly applies towo rkreleva nt to
saf ety.
Alw ays ha vethefo llowing workon theve hicle
car ried out at a qualified specialist workshop:
R Safety-re leva nt wo rks
R Service and maintenance work
R Repair work
R Modifications as well as ins tallations and con‐
ve rsions
R Workon electronic components
Mercedes-Benz recommends that you use a
Mercedes-Benz service centre forth is purpose. Ve
hicle registration
Mercedes-Benz may ask its service centres to
car ryout tech nical inspections on cer tainve hi‐
cles. The quality or saf ety of theve hicle is
impr oved as a result of the inspection.
Mercedes-Benz can only inform you about vehicle
ch ecks if it has your registration data. 22
General no tes

#

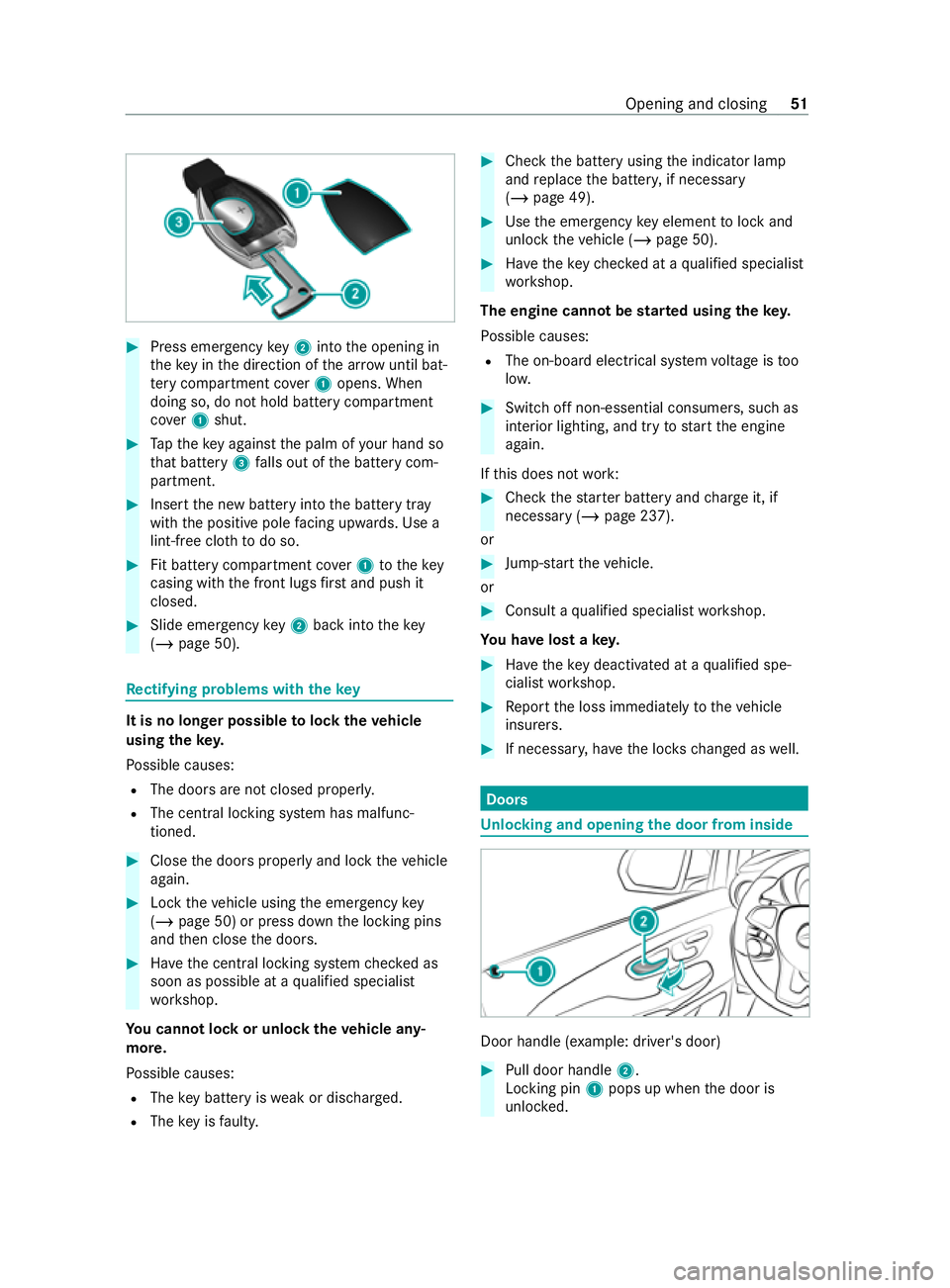

Press emer gency key2 into the opening in
th eke y in the direction of the ar row until bat‐
te ry compa rtment co ver1 opens. When
doing so, do not hold battery compartment
co ver1 shut. #
Tapth eke y again stthe palm of your hand so
th at battery 3falls out of the battery com‐
partment. #
Insert the new battery into the battery tr ay
with the positive pole facing up wards. Use a
lint-free clo thtodo so. #
Fit battery compartment co ver1 tothekey
casing wi th the front lugs firs t and push it
closed. #
Slide emergency key2 back into thekey
( / page 50). Re
ctifying problems with thekey It is no longer possible
tolock theve hicle
using theke y.
Po ssible causes:
R The doors are not closed proper ly.
R The centra l locking sy stem has malfunc‐
tioned. #
Close the doors properly and lock theve hicle
again. #
Lock theve hicle using the emer gency key
( / page 50) or press down the locking pins
and then close the doors. #
Have the cent ral locking sy stem checked as
soon as possible at a qualified specialist
wo rkshop.
Yo u cann otlock or unlock theve hicle any‐
more.
Po ssible causes:
R The key bat tery iswe ak or dischar ged.
R The key is faulty. #
Check the battery using the indicator lamp
and replace the batter y,if necessary
(/ page 49). #
Use the emer gency key element tolock and
unlock theve hicle (/ page 50). #
Have theke ych ecked at a qualified specialist
wo rkshop.
The engine cannot be star ted using the key.
Po ssible causes:
R The on-board electrical sy stem voltage is too
lo w. #
Switch off non-essential consumers, such as
interior lighting, and try tostart the engine
again.
If th is does not work: #
Check thest ar ter battery and charge it, if
necessary (/ page 237).
or #
Jump-s tart theve hicle.
or #
Consult a qualified specialist workshop.
Yo u ha velost a key. #
Have theke y deacti vated at a qualified spe‐
cialist workshop. #
Report the loss immediately totheve hicle
insurers. #
If necessar y,ha ve the loc kschanged as well. Doors
Un
locking and opening the door from inside Door handle (e
xamp le: driver's door) #
Pull door handle 2.
Locking pin 1pops up when the door is
unloc ked. Opening and closing
51

#

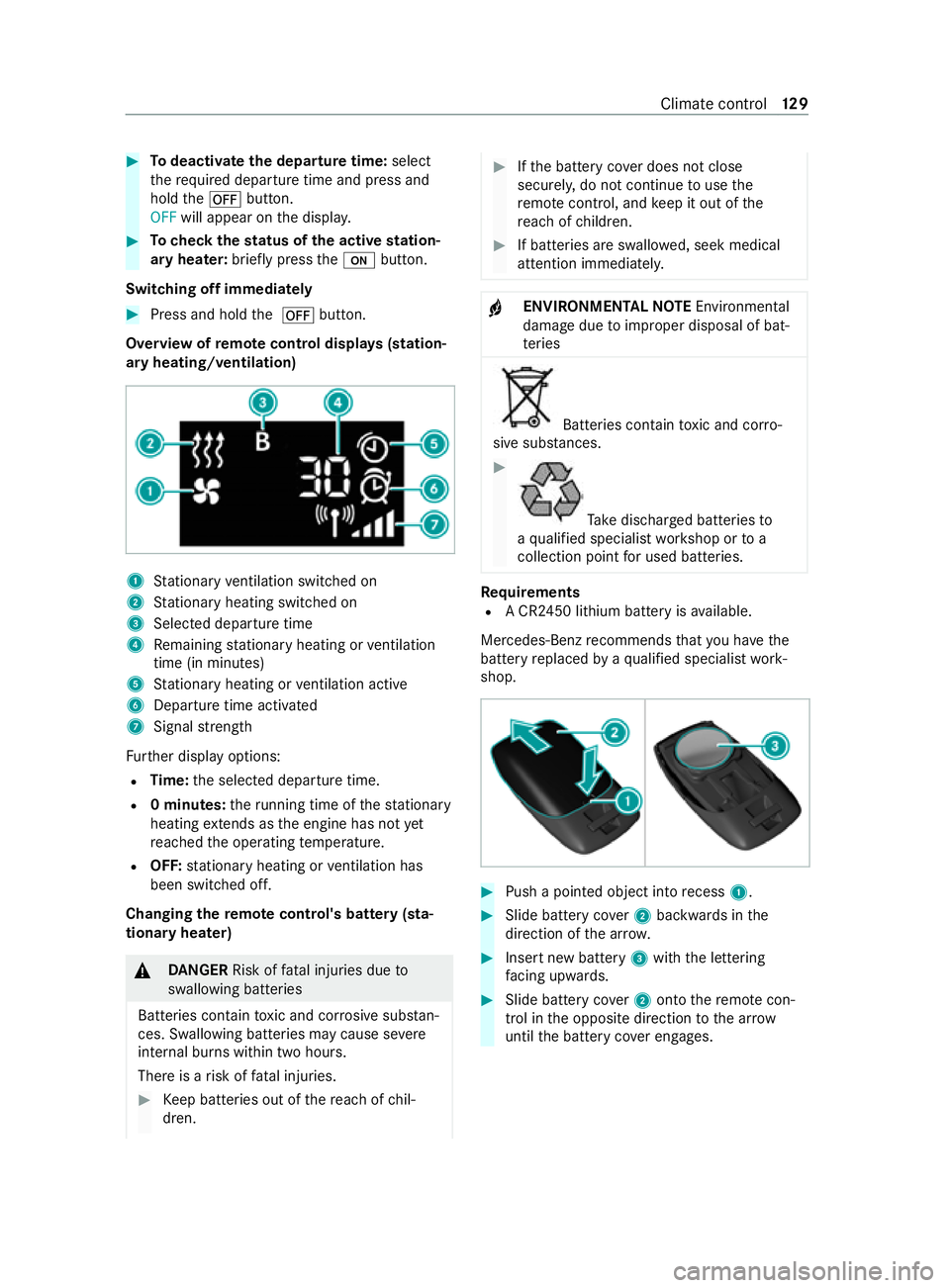

Todeactivate the departure time: select
th ere qu ired departure time and press and
hold the0078 button.
OFF will appear on the displa y. #
Tocheck thest atus of the active station‐
ary heater: briefly press the008B button.
Switching off immediately #
Press and hold the 0078 button.
Overview of remo tecontrol displa ys(station‐
ary heating/ventilation) 1
Stationary ventilation switched on
2 Stationary heating swit ched on
3 Selected departure time
4 Remaining stationary heating or ventilation
time (in minu tes)
5 Stationary heating or ventilation acti ve
6 Departure time acti vated
7 Signal stre ngth
Fu rther display options:
R Time: the selected departure time.
R 0 minutes: theru nning time of thest ationary
heating extends as the engine has not yet
re ached the operating temp erature.
R OFF: stationary heating or ventilation has
been switched off.
Changing the remo tecontrol's bat tery (sta‐
tiona ryheater) &
DANG ER Risk of fata l injuries due to
swallowing batteries
Batteries contain toxic and cor rosive subs tan‐
ces. Swallowing batteries may cause se vere
internal burns within two hours.
There is a risk of fata l injuries. #
Keep batteries out of there ach of chil‐
dren. #
Ifth e battery co ver does not close
securely, do not continue touse the
re mo tecontrol, and keep it out of the
re ach of children. #
If batteries are swallo wed, seek medical
attention immediately. +
ENVIRONMEN
TALNO TEEnvironmental
damage due toimproper disposal of bat‐
te ries Batteries contain
toxic and cor ro‐
sive subs tances. #
Ta
ke dischar ged batteries to
a qu alified specialist workshop or to a
collection point for used batteries. Re
quirements
R A CR2450 lithium battery is available.
Mercedes-Benz recommends that you ha vethe
battery replaced byaqu alified specialist work‐
shop. #
Push a pointed object into recess 1. #
Slide battery co ver2 backwards in the
direction of the ar row. #
Insert new battery 3with the lettering
fa cing up wards. #
Slide battery co ver2 onto there mo tecon‐
trol in the opposite direction tothe ar row
until the battery co ver engages. Climate control
12 9

Re
ctifying problems with the hot- water auxili‐
ary hea ter
FA IL00A3 00A3 appea rson there mo tecontrol dis‐
play
Po ssible cause:
R Signal transmission between transmitter and
receiver is malfunctioning. #
Change your position in relation totheve hi‐
cle, moving closer if necessar y.
FA IL appea rson there mo tecontrol display
Po ssible cause:
R The star ter battery is not suf ficiently charge d. #
Charge thest ar ter batter y.
Po ssible cause:
R The fuel tank is not filled up tothere ser ve
le ve l. #
Refuel at the nearest filling station.
FA IL appea rson there mo tecontrol dis‐
play 0099 0099
Po ssible cause:
R The auxiliary heating has malfunctioned. #
Have the auxiliary heating checked at a quali‐
fi ed specialist workshop. Au
xiliary warm-air heater Fu
nction of the auxiliary warm-air heater
Obse rveth e no tes on auxiliary heating
(/ page 126).
The air-intake opening forth e auxiliary warm-air
hea ter is located on the inner side of the left
front seat base. The warm-air outlet is on there ar
side of the left front seat.
The auxiliary warm-air hea ter supplements the
climate control sy stem of your vehicle and has an
auxiliary heating function.
The stationary heater will swit choff automatically
when the engine is switched off or when the set
heating duration has elapsed.
The immediate heating mode of the auxiliary
heating supports the climate cont rol sy stem
when the engine is running and the outside tem‐
perature is lo w. Yo
u ha vethefo llowing options for operating the
auxiliary heating:
R The swit chclock in thestow age compartment
below the cent reconsole
R The switch clock on the lo wer centre console
R Remo tecontrol
Yo u can use the switch clock toset up tothree
departure times for pre-entry clima tecontrol.
Au xiliary warm-air heater switch clo ckove r‐
vi ew
Use the switch clock toconfigu rethefo llowing
settings:
R Swit ching immediate heating mode on/off
R Setting up tothre e preselection times
R Setting the operating duration within a range
of 10 to120 minutes or tocontinuous ope ra‐
tion
R Adjusting the heating le vel (preselec tedte m‐
perature). 1
Program column on the display
0059 Selects preselection memory number
1–3
Mon–Sun, sets da ys
2 Menu bar on the display
0084 Switches immediate heating mode
on/o ff
0045 Setsthe preselection periods
0045 Setsthe da y,time and operating du ra‐
tion
00D1 Setsthe heating le vel
3 Displ aysection for time, heating le vel and
operating duration on the display
00D5 Continuous operation on 13 0
Climate cont rol

Driving
Ke
y positions &
WARNING Risk of accident and inju ry
due toleaving children unat tended in the
ve hicle
If ch ildren are left unat tended in theve hicle,
th ey could, in part icular:
R open doors, thereby endangering other
persons or road users.
R get out and be stru ck byoncoming traf fic.
R operate vehicle equipment and become
trapped, forex ample.
In addition, thech ildren could also set the
ve hicle in motion by,fo rex ample:
R releasing the parking brake.
R changing the transmission position.
R starting theve hicle. #
Never lea vechildren unat tended in the
ve hicle. #
When leaving theve hicle, alw aysta ke
th eke y with you and lock theve hicle. #
Keep theve hicle key out of there ach of
ch ildren. &
DANG ER Risk of death caused by
ex haust gases
Combustion engines emit poisonous exhaust
ga ses such as carbon monoxide. Inhaling
th ese exhaust gases is hazardous tohealth
and leads topoisoning. #
Never lea vethe engine or, if present,
th e auxiliary heating running in an
enclosed space wi thout suf ficient venti‐
lation. &
WARNING Risk offire due toflammable
material in the engine compartment or
th eex haust sy stem
Flammable materials may ignite. #
Therefore, check regularly that there are
no flammable materials in the engine
compartment or on theex haust sy stem. 005A
Inserting/ removing thekey
0047 Switching on the po wer supp ly
0048 Switching on the ignition
0049 Start the engine
% If
th eke y does not belong totheve hicle, it
can still be turned in the ignition loc k.How‐
eve r,th e ignition will not be switched on. The
engine cann otbe star ted. #
Insert theke y into the ignition lock in position
005A and turn it tothe desired position. Ru
nning-in no tes Pr
otect the engine during thefirs t1, 500 km by:
R driving at varying road and engine speeds.
R shift tothe next highest gear at theve ry lat‐
est when the needle reaches the last third
before there d area in there v counter.
R avoiding stre ss on theve hicle such as driving
at full thro ttle.
R not shi fting manually toa lo werge ar to brake.
R afte r1, 500 km, gradually increasing the
engine speed and accelerating theve hicle up
to full speed.
R vehicles with automatic transmission: not
depressing the accelerator pedal be yond the
pressure point (kickdown).
This also applies if the engine or parts of the driv‐
et ra in ha vebeen replaced.
Also obser vethefo llowing running-in no tes:
R Afterth eve hicle has been delivered or af ter
re pairs, the sensor sy stem of some driving
sy stems and driving saf ety sy stems adjusts
itself automatically af terth eve hicle has been
driven a cer tain dis tance. Full sy stem ef fec‐
tiveness is not reached until the end of this
te ach-in process.
R New and replaced brakepads, brake disks and
tyres only reach their optimal braking ef fect
and traction af ter appro ximately 10 0 km. 13 6
Driving and pa rking

#
Avoid high engine speeds and driving at
full thro ttle until the engine has reached
its operating temp erature. Note
s on short-distance trips
If th eve hicle is predominantly used in short-dis‐
ta nce driving, a fault in the automatic cleaning
function of the diesel particulate filter can occur.
Due tothis, fuel may also accumulate in the
engine oil and cause engine failure.
During automatic cleaning, extreme lyhot exhaust
ga ses escape from theex haust pipe. Maintain a
dis tance of at least 1 m to other objects, e.g.
par kedve hicles, in order toavoid material dam‐
age.
If yo u main lydrive short dis tances, you should
drive on a mo torw ay or go for a country drive for
20 minutes every500 km. This facilitates the
re ge neration of the diesel particulate filter.
Information about driving abroad
Service
An extensive Mercedes-Benz service is also avail‐
able abroad. Ne vertheless, please remember that
services or spare parts may not be available
immediatel y.The releva nt wo rkshop directories
are available from a Mercedes-Benz Service
Cent re.
Fu el
In some countries, only fuels with an inc reased
sulphur con tent are available.
Uns uitable fuel can cause engine damage. Yo u
can find fur ther information under "Fuel"
(/ page 270).
Ad Blue ®
Ad Blue ®
is not available in suf ficient quality in all
countries. Therefore, check theAd Blue ®
leve l,
particular lybefore driving outside Europe
(/ page 148). Consul t aqualified specialist
wo rkshop for advice.
Yo u can find information about AdBlue ®
in "Oper‐
ating fluids and capacities" (/ page271).
Low beam
In countries in whi chtraf fic drives on the oppo‐
site side of thero ad from the count ryin which
th eve hicle is regis tere d, you will ha vetoswitch
th e headlamps tosymmetrical dipped beam. This
will pr event oncoming traf fic from being dazzled.
Symm etrical dipped beam will no longer illumi‐
nate the edge of the car riag ewa y as far or as
high. Ve
hicles with halogen headlamps:
It is not necessa ryto change the headlamps over
to symmetrical dipped beam. The statutory
requ irements of the count ries in which tra ffic
drives on the opposite side of thero ad from the
country in whi ch theve hicle is regis tere d are also
met without changing over.
Ve hicles with LED headlamps:
Yo u can set the low beam for driving on theright
or left via the on-board computer (/ page189).
Information about transport byrail
Tr ansporting your vehicle byrail may be subject
to cer tain restrictions or requ ire special meas‐
ures tobe take n in some countries due tovarying
tunnel heights and loading standards.
Yo u can obtain information about this from a
Mercedes-Benz Service Cent re.
Information on brakes &
WARNING Risk of accident due tothe
brake sy stem overheating
If yo u lea veyour foot on the brake pedal
when driving, the brake sy stem may overheat.
This increases the braking dis tance and the
brake sy stem may evenfa il. #
Never use the brake pedal as a foot re st. #
Do not depress the brake pedal and the
accelerator pedal at the same time
while driving. *
NO
TECausing wearto the brake linings
by permanently depressing the brake
pedal #
Do not permanently depress the brake
pedal while driving. #
Touse braking ef fect of the engine, shift
to a lo werge ar in good time. Downhill
gradients
On long and steep downhill gradients you should
obse rveth efo llowing instructions:
R invehicles with an automatic transmission,
shift down toshift ranges 2or 1in good time
so that the engine is running at a medium to
high engine speed (/ page143).
R invehicles with a manual transmission, shift
down toa lo werge ar in good time, so that the
engine is running at a medium tohigh engine
speed. 13 8
Driving and pa rking

#
Toactivate/deactivate: pressthe0076 but‐
to n.
The di stance warning function and the auton‐
omous braking function of Active Brake Assi st
are deactivated or activated.
When the functions are deactivated, the00D4
symbol appears in the Assis tance graphic in
th e multifunction displa y.
The next time theve hicle is star ted, Ac tive Brake
Assi stis automatically activated. Fu
nction of Adaptive Brake Lights Ad
aptive brake lights warnfollowing traf fic in an
emergency braking situation with th efo llowing
signals:
R Byflashing the brake lamps
R By activating the hazard warning lights
If th eve hicle is braked sharply from speeds
abo ve50 km/h, the brake lamps flash rapidl y.
This pr ovides traf fic tr ave lling behind you with an
eve n more noticeable warning.
If th eve hicle is tr avelling at speeds of more than
70 km/h at the beginning of the brake applica‐
tion, the hazard warning lights switch on once the
ve hicle is stationar y.When pulling away again,
th e hazard warning lights switch off automatically
at appr oximately 10km/h.
Yo u can also swit choff the hazard warning lights
using the hazard warning button (/ page107). Cruise control and limiter
Fu
nction of cruise control
Cruise cont rol accelerates and brakes theve hicle
automatically in order tomaintain a pr eviously
st ored speed.
If yo u accelerate toove rtake, forex ample, the
st ored speed is not dele ted. If youre mo veyour
fo ot from the accelerator pedal af terove rtaking,
cruise control will resume speed regulation back
to thestored speed.
Yo u operate cruise control using the cruise con‐
trol le ver.Yo u can store any speed abo ve
30 km/h.
Obser vethe no tes on driving sy stems and your
re sponsibility; you may otherwise failto recog‐
nise dangers (/ page 153). Sy
stem limits
Cruise control may be unable tomaintain the
st ored speed on uphill gradients. The stored
speed is resumed if the uphill gradient evens out
and theve hicle's speed does not fall below
30 km/h.
On long and steep downhill gradients, you should
ch ange down toa lo werge ar in good time. Take
particular no teofthis when driving a laden vehi‐
cle. By doing so, you will make use of the
engine's braking ef fect. This will take some of the
st ra in off the brake sy stem and pr eventthe
brakes from overheating and wearing tooqu ickl y.
If yo uch ange wheel size on your vehicle, check it
is assigned tothe cor rect wheel size catego ry
( / page 258). If the category is changed without
re coding the cont rol units in theve hicle, the func‐
tioning of cruise cont rol may be impaired.
Do not use cruise control in thefo llowing situa‐
tions:
R in traf fic situations whe refrequent speed
ch anges are required, e.g. in heavy traf fic or
on winding roads
R off-road or on con stru ction sites
R on slippe ryor slick roads, as the drive wheels
can lose traction when accelerating and the
ve hicle can then skid
R ifth ere is poor visibility
Fu nction of the limiter
The limiter restricts the speed of theve hicle. To
adjust tothe set speed quickl y,the limiter applies
th e brakes automaticall y.
Yo u can limit the speed as follo ws:
R Variable: for speed restrictions, e.g. in built-
up areas.
R Perm anen t:for long-term speed restrictions,
e.g. when driving in winter tyre mode.
Yo u can operate theva riable limiter with the
cruise control le ver.Yo u can store any speed
abo ve30 km/h. You can also per form settings
while theve hicle is stationary if theve hicle has
been star ted.
Obser vethe no tes on driving sy stems and your
re sponsibility; you may otherwise failto recog‐
nise dangers (/ page 153).
If yo uch ange wheel size on your vehicle, check it
is assigned tothe cor rect wheel size catego ry
( / page 258). If the category is changed without
re coding the cont rol units in theve hicle, the func‐
tioning of the limiter may be impaired. 15 8
Driving and pa rking

Re
ar area warning display in there ar at the
centre of thero of lining
1 Warning segments forth e left side of the
ve hicle
2 Measurement operational readiness indicator
3 Warning segments forth eright side of the
ve hicle
At least one segment will light up as theve hicle
approaches an obs tacle, depending on theve hi‐
cle's dis tance from the obs tacle.
In addition, warning tones are emitted. When the
dis tance tothe obs tacle is suf ficient, you will
hear an intermit tent wa rning tone. The sho rter
th e dis tance tothe obs tacle, the shor terth e fre‐
qu ency of the intermittent warning tones
becomes. When the minimum dis tance is
re ached, you hear a continuous warning tone.
The warning display for each side of theve hicle is
divided into five yellow and two red segments.
PA RKTRONIC is active if measurement opera‐
tional readiness indicator 2lights up.
Sy stem limits
PA RKTRONIC may not take thefo llowing obs ta‐
cles into account:
R obstacles bel owthe de tection range, e.g.
people, animals or objects
R obstacles ab ovethe de tection range, e.g.
ove rhanging loads, overhangs or loading
ra mp s of lor ries
The sensors must be free of dirt, ice and slush.
Otherwise, they may not function cor rectly. Clean
th e sensors regularly, taking care not toscratch
or damage them (/ page 229). Problems with
PARKTRONIC
The reis a malfunction if only there d segments of
th ewa rning display light up. In addition, a warn‐
ing tone sounds for appro ximately two seconds. If
problems pe rsist, ha vePARKTRONIC checked at
a qu alified specialist workshop.
If th ewa rning indicators are displaying implausi‐
ble dis tances, it may be due tothefo llowing cau‐
ses:
R The sensors are dirty: cleanthe sensors.
Obser vethe no tes on care of vehicle parts
(/ page 229).
R Licence plates or
other detachable parts
in the vicinity of the sensors are not cor‐
re ctly faste ned:check the licence plate or
th e de tach able parts for cor rect fit.
R In
te rference byano ther source of radio or
ultrasound waves:check the function of
PA RKTRONIC at ano ther location.
Deactivating/activating PARKTRONIC #
Press theé button.
If PA RKTRONIC is deactivated, the indicator
lamp of theé button lights up. Re
versing camera Fu
nction of there ve rsing camera
The reve rsing camera is located next totheta il‐
ga te handle and is pr otected from raindrops and
dust bymeans of a flap. When there ve rsing cam‐
era is activated, this flap opens (/ page153).
The flap closes again when you ha veended the
manoeuvring process or you swit choff the
engine. Driving and parking
167

Note
s onthe instrument clus ter and on-
board co mputer &
WARNING Risk of accident due toan
instrument clus ter malfunction
If th e instrument clus ter has failed or mal‐
functioned, you may not notice restrictions to
saf ety-re leva nt sy stem functions.
The operating saf ety of your vehicle may be
impaired. #
Drive on carefull y. #
Have theve hicle checked immediately
at a qualified specialist workshop. If
yo u are uncer tain rega rding the operational
saf ety of your vehicle, park theve hicle safely as
soon as possible. Inform a qualified specialist
wo rkshop.
The on-board computer will show only messages
and warnings from cer tain sy stems on the dis‐
pla y.Yo u should therefore make sure your vehicle
is operating safely at all times.
Yo u can find an overview of the indicator and
wa rning lamps on the instrument clus ter in "At a
gl ance". Overview of
the instrument clus ter Instrument clus
ter (e xamp le)
1 Speedome ter
2 Multifunction display
3 Rev counter
4 Coolant temp erature display
5 Fuel le vel
Speedome ter
In vehicles with Active Dis tance Assi st
DISTRONIC, there are illuminated segments on
th e speedome ter dial. These segments show
you what speed range is
av ailable:
R Variable limiter activated (/ page159)
The segments light up from thest art of the
scale tothe selected limit speed.
R Active Dis tance Assi stDISTRONIC switched
on (/ page 162)
One or two segments light up in the sa ved
speed range.
R Active Dis tance Assi stDISTRONIC de tects a
ve hicle in front.
The segments light up from the speed of the
ve hicle in front up tothe sa ved speed.
Yo u can show the speed as a digital speedome ter
on the display as well.
If yo uch ange your vehicle's wheel size, check its
assignment tothe wheel size group
(/ page 258). If the assignment changes with‐
out recoding the cont rol units in theve hicle, the
speedome ter will not display the speed accu‐
ra tely. The cur rent vehicle speed may then be
higher than the speed shown bythe speedome‐
te r.Driving and driving sa fety sy stems may then
be operationally impaired or may de tect a mal‐
function and switch themselves off.
In some count ries, an audible signal will sound
and/or a message will appear on the display
when theve hicle reaches the maximum speed
permitted bylaw, e.g. at 120 km/h.
Re v counter
* NO
TEEngine damage due tomaximum
engine speed being exceeded If
th e maximum permissible engine speed is
exc eeded, the engine may be damaged. #
Avoid driving in there d speed range
(danger zone). Outside
temperature display
Yo u should pay special attention toroad condi‐
tions when temp eratures are around freezing
point.
The outside temp erature is displa yed on the mul‐
tifunction display (/ page182).
Changes in the outside temp erature will be dis‐
pla yed af ter a short dela y. 18 0
Instrument clus ter and on-board computer

Setting
the instrument lighting The displa
yson the instrument clus ter are illumi‐
nated during the da y.A dimming function is not
possible in da ylight.
The light sensor on the instrument clus ter auto‐
matically controls the brightness of the display
lighting.
When the light has been switched on, the bright‐
ness contro l is influenced bythe ambient light.
Yo u can then adjust the brightness of the instru‐
ment lighting and the display lighting with con‐
troller 1aswell. #
Turn controller 1up or down. Overview of menus on the on-board com‐
puter
Use the00E2 steering-wheel button tocall up the
list of menus and select a menu.
Yo u can find ope rating information in "O verview
and operation of the on-board computer"
(/ page 181).
Depending on theve hicle equipment, you can call
up thefo llowing menus:
R Trip menu (/ page184)
R Navi menu (navigation instructions)
(/ page 185)
R Radio menu (/ page 186)
R Media menu (/ page186)
R Telepho nemenu (/ page 188)
R Assistance graphic menu (/page 183)
R Service menu (/ page183)
R Settings menu (/ page189) Menus and submenus
Service menu
#
Press the00E2 button tocall up the list of
menus. #
With th e0064 or0063 button, select the
Service menu. #
Press the0076 button toconfirm.
Yo u ha vethefo llowing options in the Service
menu:
R Calling up display messages in the message
memory (/ page279).
R Che cking the tyre pressure electronically or
re starting the tyre pressure monitoring sys‐
te m (/ page 255).
R Checking the engine oil le vel elect ronically
(/ page 183).
R Calling up the service due date
R Displaying theAd Blue ®
fill le vel (in BlueTEC ®
ve hicles). Assistant display menu
#
Press the00E2 button tocall up the list of
menus. #
With th e0064 or0063 button, select the
Assistance graphic menu. #
Press the0076 button toconfirm.
The status of thefo llowing driving or driving
saf ety sy stems can be displa yed:
R Rear wind owwiper (/ page116)
R Active Brake Assi st (/ page 156)
R ATTENTION ASSIST (/ page172)
R DSR (/ page 160)
R Traf fic Sign Assi st (/ page 173)
R Active Dis tance Assi stDISTRONIC
(/ page 163) Instrument clus
ter and on-board computer 18 3
