•If the horn does not sound while attempting to reset any wheel, seek
service from your authorized dealer.
10. Perform Steps 8 and 9 on the right front tire, right rear tire and
finally the left rear tire. Training is complete after the horn sounds for
the last tire trained (left rear tire).
Turn the ignition to off. If two short horn beeps are heard, the reset
procedure was unsuccessful and must be repeated.
If after repeating the procedure and two short beeps are heard when the
ignition is turned to off, seek assistance from your authorized dealer.
Brakes - police
The police vehicle is equipped with heavy duty front disc brake pads to
meet the varying demands of different police service for fade resistance
and other performance requirements.
The police vehicle has standard anti-lock brakes and may be equipped
with traction control.
Brake fluid maintenance
Police pursuits involving hard braking result in very high temperatures in
the brake system, including the brake fluid. Over time, repeated
exposure to high brake temperatures can degrade brake fluid, potentially
reducing its boiling point. A lower boiling point could cause long brake
pedal travel and a loss of braking confidence during subsequent pursuit
driving. Ford recommends that police fleets replace the brake fluid at
every brake pad service interval. Brake fluid may be replaced more
frequently on vehicles involved in frequent high-speed pursuits with
heavy brake usage.
INTERIOR
Heavy duty seats - police
The front seat assemblies, including the seat adjustment mechanisms and
supports, are ruggedly designed and ensure working comfort. An
anti-stab plate is integrated into the seat back to reduce the risk of
officer injury. An adjustable power lumbar system is standard on the
driver’s seat.
Seat belt extenders
Some police departments have begun employing the use of seat belt
extenders to make the practice of buckling and unbuckling seat belts
easier for officers wearing hip mounted radios, side arms, etc.
Crown Victoria Severe Duty
281
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

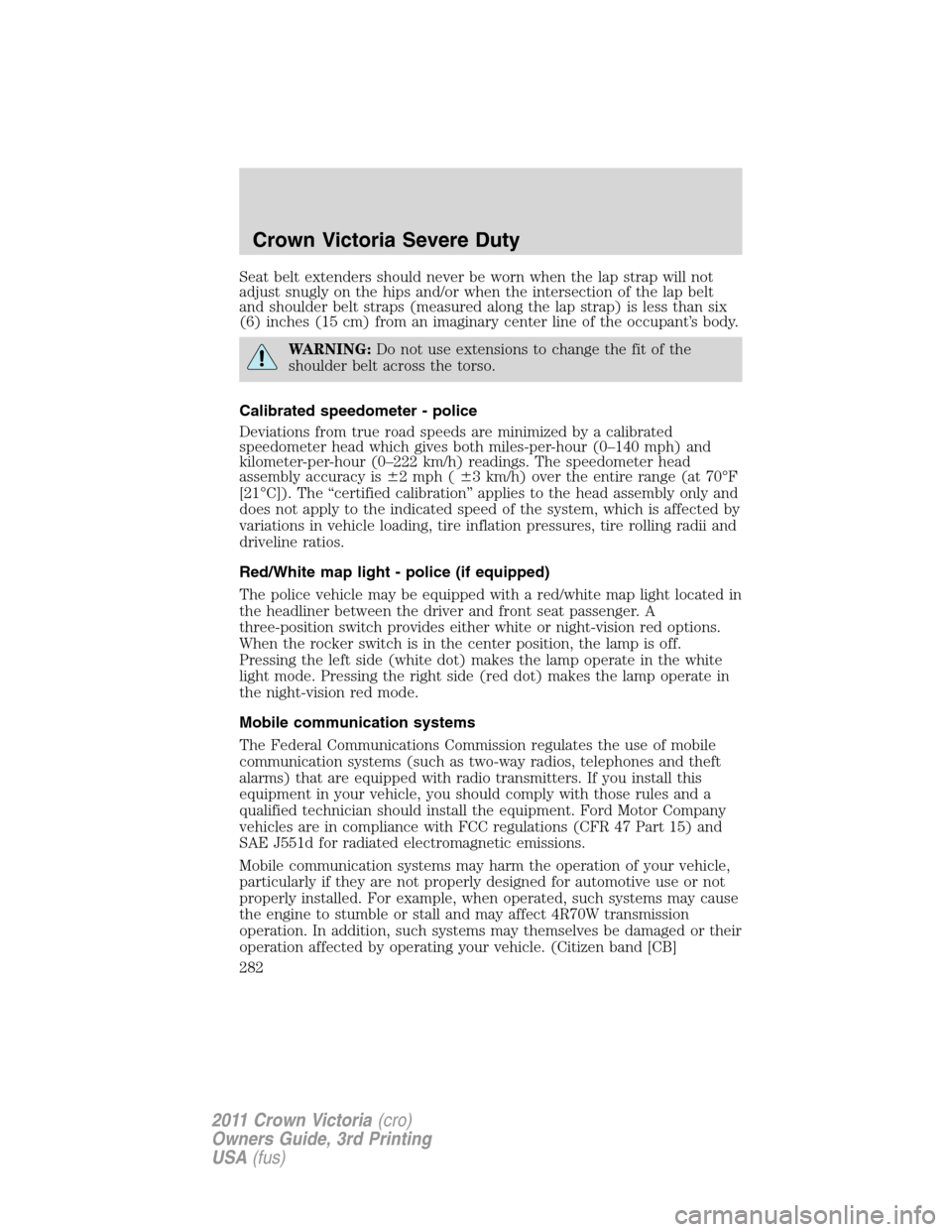

Seat belt extenders should never be worn when the lap strap will not
adjust snugly on the hips and/or when the intersection of the lap belt
and shoulder belt straps (measured along the lap strap) is less than six
(6) inches (15 cm) from an imaginary center line of the occupant’s body.
WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
Calibrated speedometer - police
Deviations from true road speeds are minimized by a calibrated
speedometer head which gives both miles-per-hour (0–140 mph) and
kilometer-per-hour (0–222 km/h) readings. The speedometer head
assembly accuracy is2 mph (3 km/h) over the entire range (at 70°F
[21°C]). The “certified calibration” applies to the head assembly only and
does not apply to the indicated speed of the system, which is affected by
variations in vehicle loading, tire inflation pressures, tire rolling radii and
driveline ratios.
Red/White map light - police (if equipped)
The police vehicle may be equipped with a red/white map light located in
the headliner between the driver and front seat passenger. A
three-position switch provides either white or night-vision red options.
When the rocker switch is in the center position, the lamp is off.
Pressing the left side (white dot) makes the lamp operate in the white
light mode. Pressing the right side (red dot) makes the lamp operate in
the night-vision red mode.
Mobile communication systems
The Federal Communications Commission regulates the use of mobile
communication systems (such as two-way radios, telephones and theft
alarms) that are equipped with radio transmitters. If you install this
equipment in your vehicle, you should comply with those rules and a
qualified technician should install the equipment. Ford Motor Company
vehicles are in compliance with FCC regulations (CFR 47 Part 15) and
SAE J551d for radiated electromagnetic emissions.
Mobile communication systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use or not
properly installed. For example, when operated, such systems may cause
the engine to stumble or stall and may affect 4R70W transmission
operation. In addition, such systems may themselves be damaged or their
operation affected by operating your vehicle. (Citizen band [CB]
Crown Victoria Severe Duty
282
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

transceivers, garage door openers and other transmitters whose power
output is 5 watts or less will not ordinarily affect your vehicle’s
operation.)
Because we have no control over the installation, design or manufacture
of such systems, Ford cannot assume responsibility for any adverse
effects or damage that may result if you use this equipment.
Malfunction of aftermarket electronic equipment should be resolved by
the equipment manufacturer.
Aftermarket equipment installation
Ford has developed aPolice Interceptor Modifier Guideto assist the
vehicle modifier in safely installing police equipment into the vehicle.
The guide provides detailed information on the location of key vehicle
components that must be untouched and warnings for other areas where
caution must be exercised. The Modifier Guide is available for
downloading, free of charge, from www.fleet.ford.com.
When installing aftermarket equipment, avoid using fasteners that are too
long for the application or are in an area which might damage vehicle
components, including wiring, brake lines, fuel tank and lines, powertrain
components, exhaust system and suspension.
Also, do not make electrical connections to vehicle electrical systems not
specifically designed for aftermarket equipment installations. Refer to the
“Wiring Diagram Manual” for electrical system information.
Do not install any components into the powertrain control module
(PCM) or PCM harness. Connecting into this system may affect engine
and transmission operation.
As an example: connection of aftermarket electrical equipment into the
brake light circuit or any other circuit which is connected to the PCM,
anti-lock brake computer, airbag system or any other vehicle system
which will cause vehicle malfunction.
WARNING:Contact during a crash with aftermarket equipment
in a vehicle can result in a personal injury.
WARNING:Installation of prisoner barriers may increase the
risk of injury to front seat occupants if the vehicle is impacted
from the rear at high speeds. This risk should be balanced, by the law
enforcement agency, against the risk of injury to the Officer associated
with prisoner transport.
Crown Victoria Severe Duty
283
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

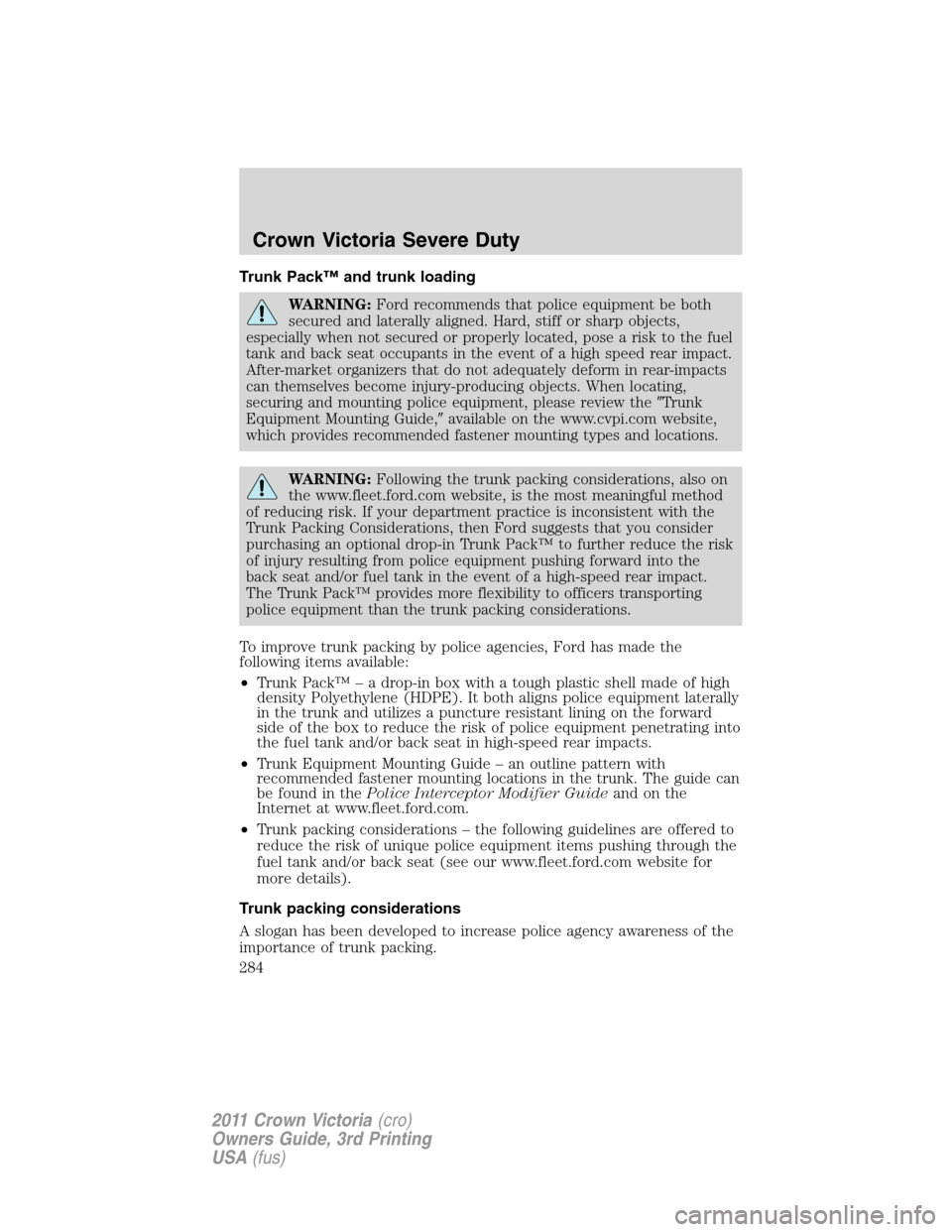

Trunk Pack™ and trunk loading
WARNING:Ford recommends that police equipment be both
secured and laterally aligned. Hard, stiff or sharp objects,
especially when not secured or properly located, pose a risk to the fuel
tank and back seat occupants in the event of a high speed rear impact.
After-market organizers that do not adequately deform in rear-impacts
can themselves become injury-producing objects. When locating,
securing and mounting police equipment, please review theTrunk
Equipment Mounting Guide,available on the www.cvpi.com website,
which provides recommended fastener mounting types and locations.
WARNING:Following the trunk packing considerations, also on
the www.fleet.ford.com website, is the most meaningful method
of reducing risk. If your department practice is inconsistent with the
Trunk Packing Considerations, then Ford suggests that you consider
purchasing an optional drop-in Trunk Pack™ to further reduce the risk
of injury resulting from police equipment pushing forward into the
back seat and/or fuel tank in the event of a high-speed rear impact.
The Trunk Pack™ provides more flexibility to officers transporting
police equipment than the trunk packing considerations.
To improve trunk packing by police agencies, Ford has made the
following items available:
•Trunk Pack™ – a drop-in box with a tough plastic shell made of high
density Polyethylene (HDPE). It both aligns police equipment laterally
in the trunk and utilizes a puncture resistant lining on the forward
side of the box to reduce the risk of police equipment penetrating into
the fuel tank and/or back seat in high-speed rear impacts.
•Trunk Equipment Mounting Guide – an outline pattern with
recommended fastener mounting locations in the trunk. The guide can
be found in thePolice Interceptor Modifier Guideand on the
Internet at www.fleet.ford.com.
•Trunk packing considerations – the following guidelines are offered to
reduce the risk of unique police equipment items pushing through the
fuel tank and/or back seat (see our www.fleet.ford.com website for
more details).
Trunk packing considerations
A slogan has been developed to increase police agency awareness of the
importance of trunk packing.
Crown Victoria Severe Duty
284
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

’LOAD SAFE’
L-Lateral S-Soft
O-Orientation A-and
A-and F-Fixed
D-Direction E-Equipment
Equipment categories and placement
It is recognized that a wide variety of equipment is carried in the trunks of
police vehicles as noted above. This section addresses the inherent risks of
various types of equipment in the event of a high-speed rear impact.
This information is divided into three categories:
•Carrying not recommended
•Carry with caution
•Low risk items
WARNING: Carrying not recommended – The following
items have been observed in police vehicles and should
not be transported in a vehicle trunk– containers with gasoline,
loose ammunition, loose flares, loose fire extinguisher(s), loose 4-point
lug wrench, loose crowbars, loose axes and other loose equipment with
potential puncture capability in high speed rear end collisions.
Carry with caution –These items will require special packing or
mounting consideration and possibly use of the Trunk Pack™ as an
additional level of safety. Examples include (with proposed orientation):
fire extinguisher (fixed), lug wrench 4–point (fixed - vertical), rolotape
measuring wheel (fixed - vertical), safety flares (lateral orientation – in a
container), stop stick (lateral - mount on deck lid inner panel), shovel
(lateral - place at rear of trunk), shotgun and rifle (lateral - store in
case), baton (lateral - place at rear of trunk), ammunition (container).
Flares should be placed in a protective storage container (preferably soft
sided plastic). Flares with spikes attached should be laterally oriented in
the trunk area.
1.Spare tire special considerations –The safest location for the
spare tire, jack and lug wrench is the production location on the forward
package shelf above the rear axle. If unable to mount there, the next
safest location for the spare tire is mounted vertically inside the Trunk
Pack™ using the J-bolt attachment device provided with the Trunk
Pack™. The jack and lug wrench should be stored in the rearward
compartment of the Trunk Pack™.
Crown Victoria Severe Duty
285
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

2.Electronic Equipment –The safest location for the electronic
equipment is on the trunk forward package shelf. Some equipment can
be mounted in the side shelf areas, but it must not protrude into the fuel
tank area in a crash (noted in Trunk Equipment Mounting Guide). The
optional Complete Police Prep Package is available to facilitate packaging
of electronic components with a sliding tray for the forward package
shelf and side compartments in the right and left shelf area. All
equipment should be located and mounted using theTrunk Equipment
Mounting Guidefor proper positioning of fasteners. This guide can be
accessed on the www.fleet.ford.com website. The sliding tray can also be
used, depending on size, to properly store parts with rigid and sharp
edges.
3.Ammunition –The safest location for ammunition is the forward
package shelf and on the side shelves. It is recommended that a plastic
storage container be utilized and mounted using theTrunk Mounting
Equipment Guidefor proper fastener locations. It is also recommended
that ammunition remain in the purchased container and be placed in a
safe storage container.
Low risk items –These items are soft in feel and pose a low risk of
trunk wall, rear seat area, and fuel tank puncture. Examples are: a soft
camera case, biohazard kit in plastic boxes, gloves, safety rope, tow
strap, traffic cones & sleeves, rain gear, riot gear (soft), emergency
blankets, bullet resistant vest, tie straps, cloth tape, garment bags, first
responder kit, Res-Q-Flo mask (placed in garment bag), fuses (plastic
container), briefcase, notebooks, spray bottles, helmet, and jumper
cables. It is not essential but recommended that the Trunk Pack™ can
be considered for organization of low risk items, especially if mixed with
“Carry With Caution”items.
BODY
Fire suppression system (if equipped)
Your vehicle may be equipped with an optional fire suppression system.
The fire suppression system is designed to help reduce the risk of injury
in high-speed rear impacts. The fire suppression system deploys
chemicals designed to slow the spread of fire or potentially extinguish a
fire, thereby providing more time for occupants to escape from a crashed
vehicle.
Crown Victoria Severe Duty
286
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

The fire suppression system is mounted beneath the vehicle and
attached to the frame above and forward of the fuel tank and rear axle.
The fire system control module is mounted inside the passenger
compartment centered underneath the rear seat cushion. The system is
designed to deploy automatically after sensing a high-speed/high-energy
rear end impact.
There is a covered manual activation switch mounted in a console on the
headliner between the visors that can be used by vehicle occupants to
manually deploy the system. The fire suppression system can be
manually deployed any time the key or engine is turned on by pushing
the button underneath the cover. The button can be accessed three
ways:
1. Pushing on the cover will release the cover latch, allowing the door to
swing open and expose the button;
2. The cover can be pulled open;
3. A firm strike on the cover (about 20 lb–ft [89 N•m] of force) will
deploy the system any time the key or engine is turned on.
In the event of a manual deployment, nozzles will deploy to near ground
level and the underbody of the vehicle will be covered with suppressant
fluid. The suppressant contains no hazardous materials (but may cause
minor skin or eye irritation) and can be readily cleaned up by flushing
the underbody with water (or soap and water). Manual deployment
should have no adverse affect on vehicle handling; however, caution
should be exercised in moving the vehicle as ground clearance will be
compromised by the deployed nozzles. Because of reduced ground
clearance, the vehicle should not be driven through an automatic car
wash with nozzles in the deployed condition.
The fire suppression system is a single use system - all major
components will have to be replaced in the event of a manual
deployment.
Crown Victoria Severe Duty
287
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

Figure A
The approved ISO symbol for fire suppression is shown in Figure A. This
symbol is printed on the manual activation switch and on the diagnostic
telltale on the instrument cluster.
The system automatically performs a diagnostic check self check and
momentarily lights the cluster lamp when the key is turned on. If the
diagnostic lamp stays on refer to the appropriate sections of the Ford
service manual for further diagnostic and service procedures.
The system is active any time the key or engine is turned on following
the diagnostic check.
The system has been designed and tested to withstand a 75 mph
(120 km/h) 50% off-set rear impact by Taurus-sized vehicle. However, in
some crashes, including very high-energy crashes, the fire suppression
system could be so damaged by the crash forces that it cannot deploy.
Like any vehicle component, the fire suppression system cannot
withstand any and all crashes. No vehicle can eliminate the risk of fires.
You should not consider the vehicle “fireproof” because it is equipped
with a fire suppression system.
Ballistic door panels (if equipped)
Your vehicle may be equipped with ballistic door panels on one or both
of the front doors. Doors equipped with a ballistic panel are marked with
a sticker on the interior door trim panel above the door handle indicating
“BALLISTIC PANEL”. Otherwise, doors with ballistic panels are visually
indistinguishable from standard doors. The ballistic panels are designed
to act as a shield for the officer at the scene of an altercation.
The door panels meet National Institute of Justice (NIJ) Level III
protection requirements. NIJ is the research, development, and
evaluation agency within the U. S. Department of Justice. The panels
have been tested and certified by a NIJ approved ballistic testing
laboratory, in accordance with the methodology included in NIJ Standard
0108.01 and Los Angeles Police Department (LAPD) Standard MTD
05-01E.
Crown Victoria Severe Duty
288
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

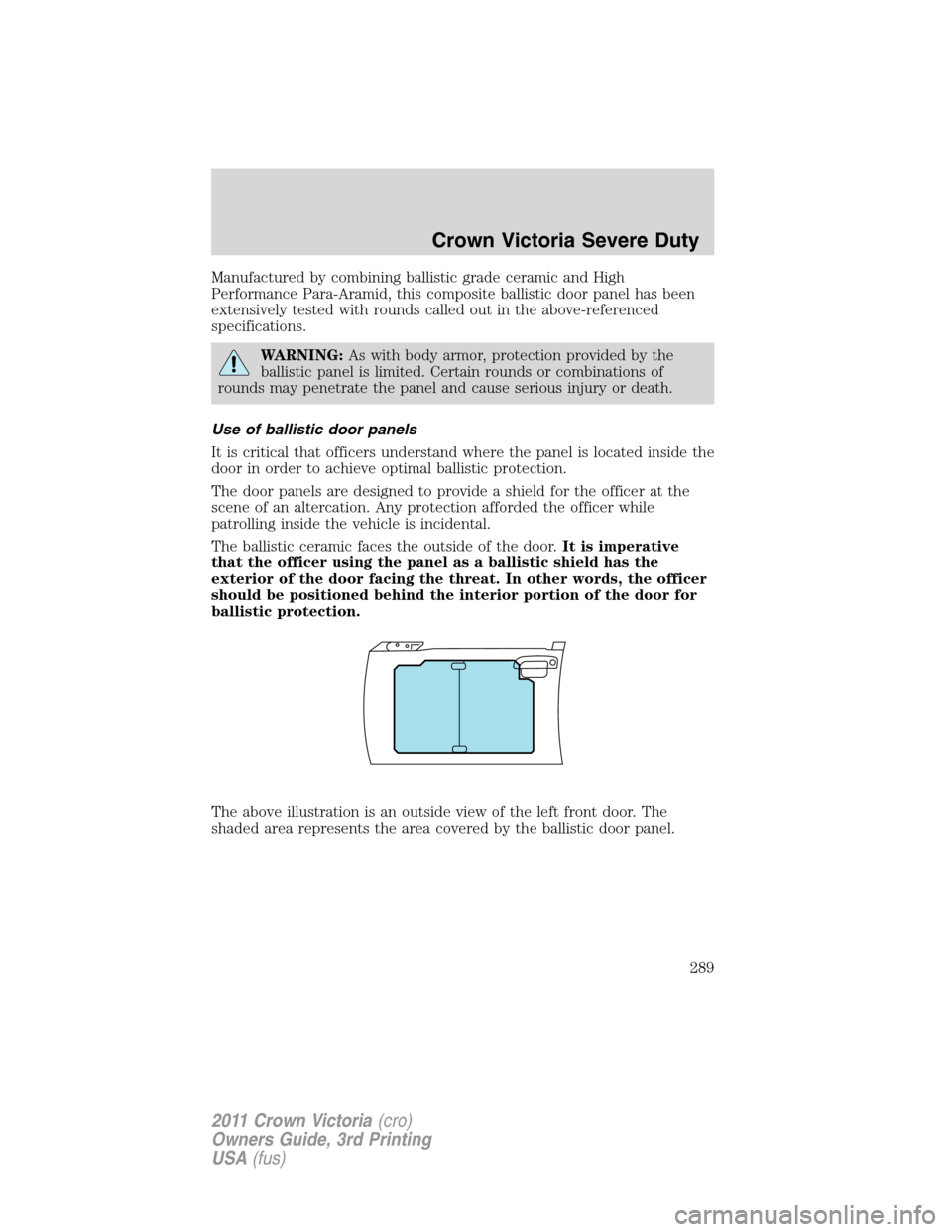

Manufactured by combining ballistic grade ceramic and High
Performance Para-Aramid, this composite ballistic door panel has been
extensively tested with rounds called out in the above-referenced
specifications.
WARNING:As with body armor, protection provided by the
ballistic panel is limited. Certain rounds or combinations of
rounds may penetrate the panel and cause serious injury or death.
Use of ballistic door panels
It is critical that officers understand where the panel is located inside the
door in order to achieve optimal ballistic protection.
The door panels are designed to provide a shield for the officer at the
scene of an altercation. Any protection afforded the officer while
patrolling inside the vehicle is incidental.
The ballistic ceramic faces the outside of the door.It is imperative
that the officer using the panel as a ballistic shield has the
exterior of the door facing the threat. In other words, the officer
should be positioned behind the interior portion of the door for
ballistic protection.
The above illustration is an outside view of the left front door. The
shaded area represents the area covered by the ballistic door panel.
Crown Victoria Severe Duty
289
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)

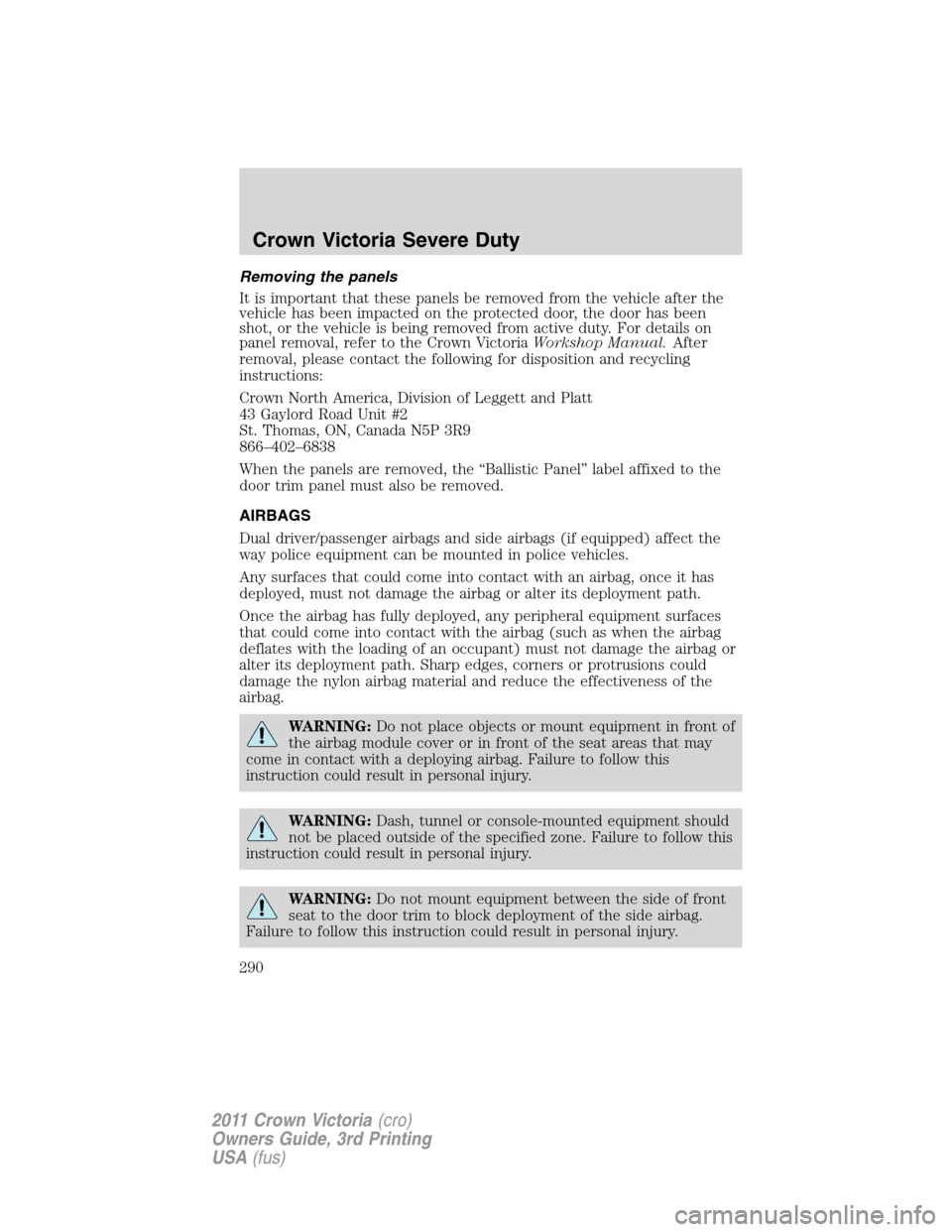

Removing the panels
It is important that these panels be removed from the vehicle after the
vehicle has been impacted on the protected door, the door has been
shot, or the vehicle is being removed from active duty. For details on
panel removal, refer to the Crown VictoriaWorkshop Manual.After
removal, please contact the following for disposition and recycling
instructions:
Crown North America, Division of Leggett and Platt
43 Gaylord Road Unit #2
St. Thomas, ON, Canada N5P 3R9
866–402–6838
When the panels are removed, the “Ballistic Panel” label affixed to the
door trim panel must also be removed.
AIRBAGS
Dual driver/passenger airbags and side airbags (if equipped) affect the
way police equipment can be mounted in police vehicles.
Any surfaces that could come into contact with an airbag, once it has
deployed, must not damage the airbag or alter its deployment path.
Once the airbag has fully deployed, any peripheral equipment surfaces
that could come into contact with the airbag (such as when the airbag
deflates with the loading of an occupant) must not damage the airbag or
alter its deployment path. Sharp edges, corners or protrusions could
damage the nylon airbag material and reduce the effectiveness of the
airbag.
WARNING:Do not place objects or mount equipment in front of
the airbag module cover or in front of the seat areas that may
come in contact with a deploying airbag. Failure to follow this
instruction could result in personal injury.
WARNING:Dash, tunnel or console-mounted equipment should
not be placed outside of the specified zone. Failure to follow this
instruction could result in personal injury.
WARNING:Do not mount equipment between the side of front
seat to the door trim to block deployment of the side airbag.
Failure to follow this instruction could result in personal injury.
Crown Victoria Severe Duty
290
2011 Crown Victoria(cro)
Owners Guide, 3rd Printing
USA(fus)
