28 % [SR31857( GV)03/95]Installing Safety Seats in the Front and
Rear Outboard Passenger Seating Positions
[SR31861( ALL)03/95]
For seating positions equipped with a dual
locking mode retractor, use the following
procedure.
[SR31865( ALL)03/95]
If you choose to install a child safety seat or
infant carrier in the front seating positions, move
vehicle seat as far back as possible.
*
[SR31870( ALL)04/95]
1. Position the child seat in the center of the
passenger seat.
*
[SR31875( ALL)04/95]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. Figure 1.
*
[SR31880( ALL)04/95]
half page art:0011238-B
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 32 of 329
29
*
[SR31885( ALL)04/95]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
*
[SR31890( ALL)04/95]
half page art:0011239-B
Routing the lap/shoulder belt
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 33 of 329
30
*
[SR31893( ALL)04/95]
4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. Figure 3. Make sure tongue is
latched securely to buckle by pulling on
tongue.
*
[SR31895( ALL)04/95]
half page art:0011240-B
Buckling the belt
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 34 of 329
31
*
[SR31900( ALL)04/95]
5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). Figure 4.
*
[SR31902( ALL)04/95]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
*
[SR31905( ALL)04/95]
half page art:0011241-A
Setting the retractor to automatic locking mode
*
[SR31910( ALL)04/95]
6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. Figures 5 and 6.
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 35 of 329
32
*
[SR31915( ALL)04/95]
half page art:0011242-A
*
[SR31920( ALL)04/95]
half page art:0011243-A
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 36 of 329
33
*
[SR31925( ALL)04/95]
7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR31930( ALL)04/95]
half page art:0011244-A
Checking that the seat is secure
*
[SR31935( ALL)04/95]

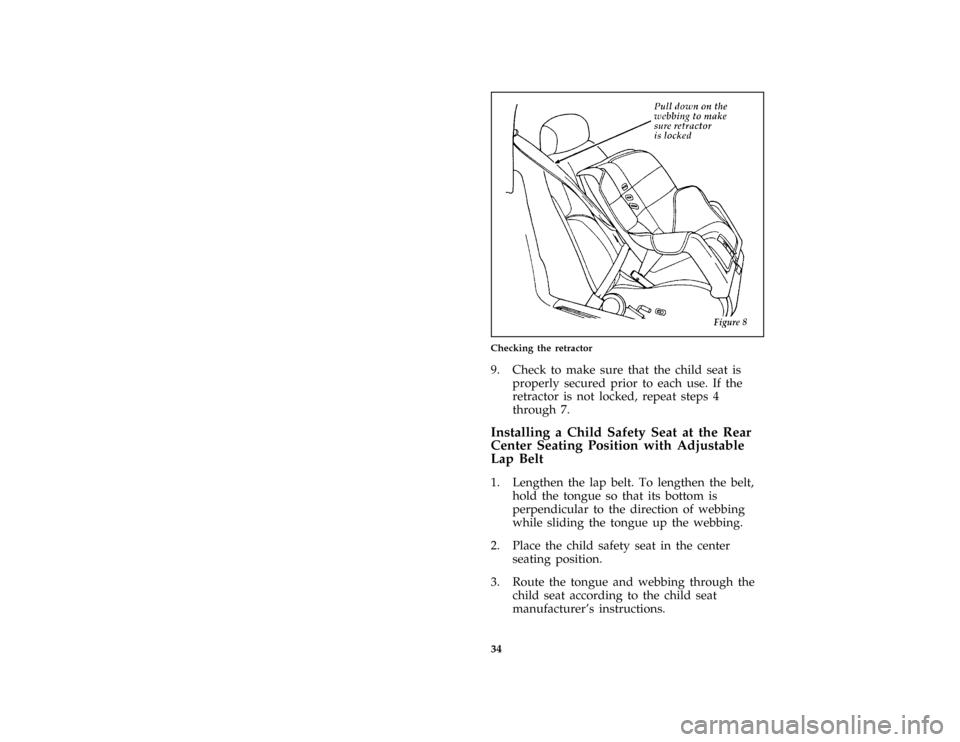

8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode,
Figure 8.
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 37 of 329
34
*
[SR31940( ALL)04/95]
half page art:0011245-B
Checking the retractor
*
[SR31945( ALL)04/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
% [SR32150( BCGV)03/95]
Installing a Child Safety Seat at the Rear
Center Seating Position with Adjustable
Lap Belt
[SR32160( BCGV)03/95]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue up the webbing.
[SR32170( BCGV)03/95]
2. Place the child safety seat in the center
seating position.
[SR32180( BCGV)03/95]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 38 of 329
35 [SR32190( BCGV)03/95]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR32200( BCGV)03/95]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SR32210( BCGV)03/95]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward direction to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different position.
%*
[SR38300( ALL)05/95]
Safety Belts for Children
*
[SR38400( ALL)05/95]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SR38500( ALL)05/95]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SR38600(MBCGV )05/95]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 39 of 329
36 [SR38800( GV)12/94]
RWARNING
If the shoulder belt cannot be properly
positioned, the child should sit in the
center rear seat and use the lap belt or, if
that seat is unavailable, in the center front
seat and use the lap belt.
*
[SR38830( ALL)04/95]
To improve the fit of lap and shoulder belts on
children who have outgrown child safety seats,
Ford recommends use of a belt-positioning
booster seat that is labelled as conforming to all
Federal motor vehicle safety standards.
Belt-positioning booster seats raise the child and
provide a shorter, firmer seating cushion that
encourages safer seating posture and better fit of
lap and shoulder belts on the child. A
belt-positioning booster should be used if the
shoulder belt rests in front of the child's face or
neck, or if the lap belt does not fit snugly on
both thighs, or if the thighs are too short to let
the child sit all the way back on the seat cushion
when the lower legs hang over the edge of the
seat cushion. You may wish to discuss the
specific needs of your child with your
pediatrician.
*
[SR38860( ALL)04/95]
RWARNING
Do not use a belt-positioning booster with
a lap-only belt.
*
[SR38900( ALL)05/95]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SR39000( ALL)05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
File:rcsrg.ex
Update:Tue Jan 30 08:09:22 1996
Page 40 of 329
37
Starting Your Grand
Marquis
*
[ST03400( ALL)03/95]
Ignition
%*
[ST03500( ALL)01/95]
Understanding the Positions of the Ignition
[ST03750( ALL)12/94]
quarter page art:0010035-B
The positions of the key in the ignition
%*
[ST03901( BCGV)03/95]
ACCESSORY allows some of your vehicle's
electrical accessories such as the radio and the
windshield wipers to operate while the engine is
not running.
% [ST04001( ALL)12/94]
LOCK locks the steering wheel. It also locks the
automatic transmission gearshift lever.
*
[ST04101( ALL)01/95]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
*
[ST04200( ALL)03/95]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
*
[ST04300( ALL)03/95]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
