Mercury Grand Marquis 1997 s Owners Manual

90 [CF27600( ALL)12/95]
one third page art:0011292-AThe turn signal lever
%*
[CF27700( ALL)01/96]
Turn Signals
*
[CF27800( ALL)01/96]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[CF27900( ALL)01/96]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
*
[CF28000( ALL)01/96]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
[CF28100( GV)12/95]
If your vehicle is equipped with cornering
lamps, they will automatically light on either the
right or left side (depending on the direction of
the turn), when the headlamps are ON.
%*
[CF28200( ALL)01/96]
High Beams
*
[CF28300( ALL)01/96]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

91
*
[CF28400( ALL)01/96]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
%*
[CF28700( ALL)01/96]
Flashing the Lights
*
[CF28800( ALL)01/96]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
%
*
[CF28900( ALL)01/96]
Windshield Wipers and Washer
*
[CF29000( ALL)04/96]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[CF29100( ALL)12/95]
Rotate the end of the lever away from you to
activate the wipers. The first seven detents are
interval wipe positions, the eighth detent is the
LO position and the ninth detent is the HI
position.
[CF29200( ALL)04/96]
To turn the wipers off, turn the knob toward
you to the OFF position.
%*
[CF29300( ALL)01/96]
Variable Interval Wipers
*
[CF29400( ALL)12/95]
In addition to two speed wipers, your vehicle
has wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
or more often in heavier rain.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

92 [CF29500( ALL)12/95]
one third page art:0011293-AThe variable interval wiper on the turn signal lever
[CF29600( ALL)04/96]
To set the interval wipers, turn the knob at the
end of the turn signal lever toward or away
from you until the wipers are going at the
desired interval.
*
[CF29700( ALL)01/96]
Windshield Washer
*
[CF29800( ALL)12/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if the wipers were OFF) or
returning to HI, LO, or the interval setting
selected.
*
[CF29900( ALL)03/96]
If the washer does not work, check the washer
fluid level and fill it if it is low. See the
Maintenance and Carechapter. If there is enough
fluid, consult your nearest Ford or
Lincoln-Mercury dealer.
*
[CF30000( ALL)08/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

93
*
[CF30100( ALL)01/96]
RWARNING
Always warm up the windshield with the
defroster before you use the washer fluid.
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision.
*
[CF30200( ALL)03/96]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[CF30300( ALL)03/96]
Hazard Flasher
[CF30400( ALL)05/96]
To alert other drivers to hazardous situations,
push in the hazard flasher on the top of the
steering column. The same control turns the
flashers off.
[CF30500( BCGV)05/96]

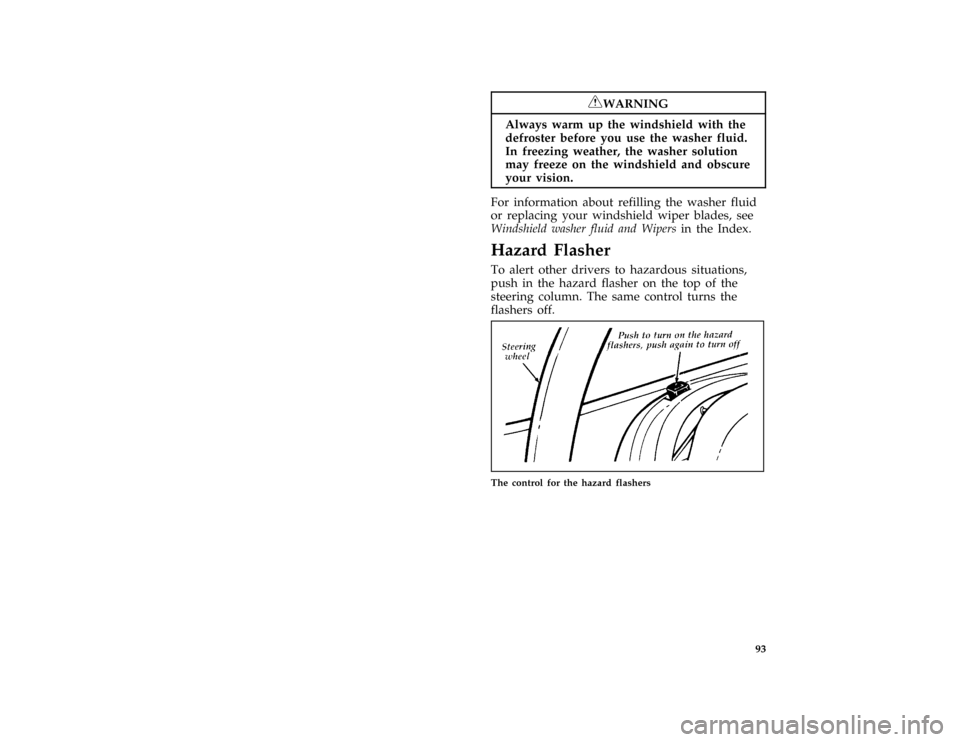

one third page art:0010216-B
The control for the hazard flashers
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

94
%*
[CF30700( ALL)05/96]
Horn
*
[CF30800( ALL)01/96]
To sound the horn, push the center pad area of
the steering wheel.
[CF31100( GV)12/95]

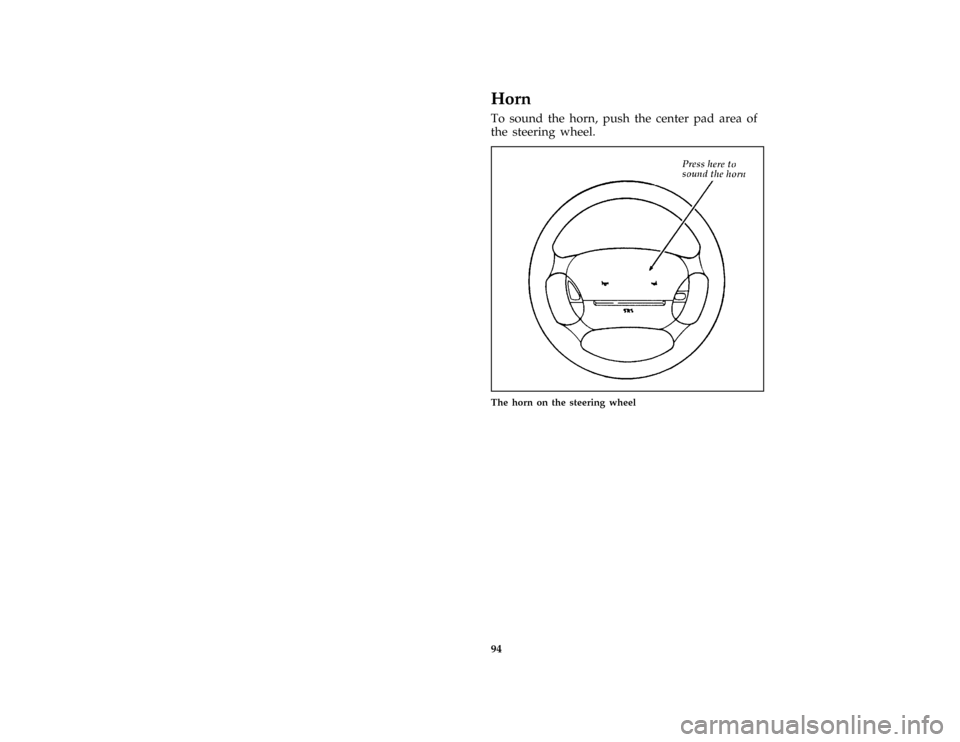

half page art:0010086-F
The horn on the steering wheel
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

95
%*
[CF31200( ALL)01/96]
Tilt Steering
*
[CF31300( ALL)02/96]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
[CF31500( GV)12/95]
half page art:0010459-D
The lever to tilt the steering wheel
*
[CF31600( ALL)01/96]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

96
%*
[CF31700( ALL)03/96]
Speed Control (If equipped)
[CF31760( GV)03/96]

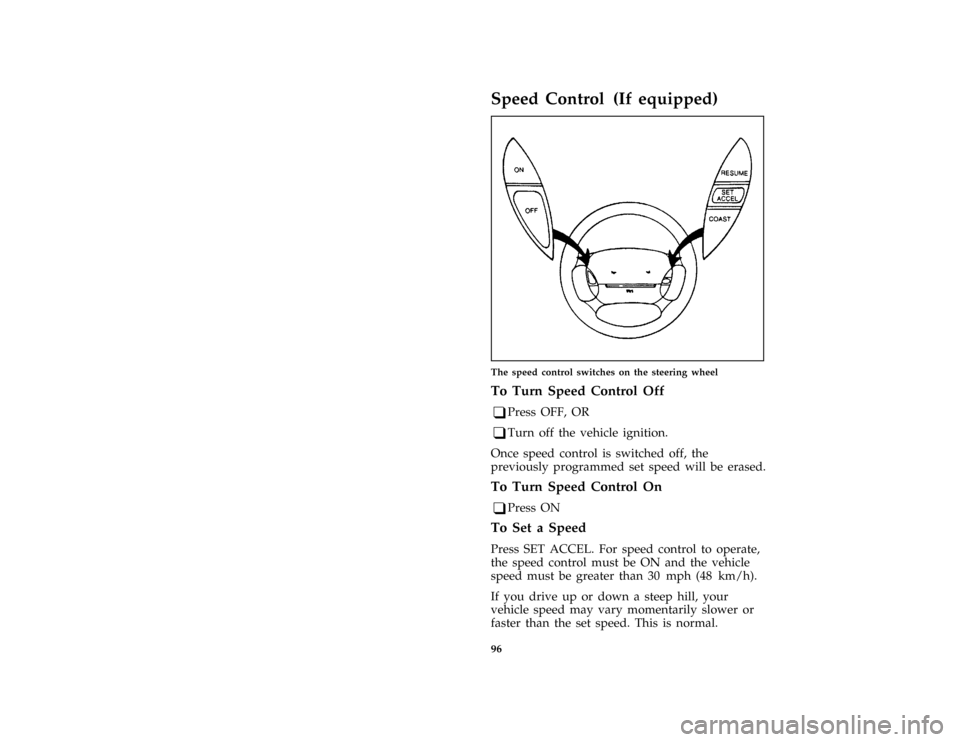

half page art:0010096-D
The speed control switches on the steering wheel
%*
[CF31800( ALL)05/96]
To Turn Speed Control Off
*
[CF31900( ALL)05/96]
q
Press OFF, OR
*
[CF32000( ALL)05/96]
q
Turn off the vehicle ignition.
*
[CF32100( ALL)05/96]
Once speed control is switched off, the
previously programmed set speed will be erased.
*
[CF32200( ALL)05/96]
To Turn Speed Control On
*
[CF32300( ALL)05/96]
q
Press ON
*
[CF32400( ALL)05/96]
To Set a Speed
*
[CF32500( ALL)05/96]
Press SET ACCEL. For speed control to operate,
the speed control must be ON and the vehicle
speed must be greater than 30 mph (48 km/h).
*
[CF32600( ALL)05/96]
If you drive up or down a steep hill, your
vehicle speed may vary momentarily slower or
faster than the set speed. This is normal.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

97
*
[CF32700( ALL)05/96]
Speed control cannot reduce the vehicle speed if
it increases above the set speed on a downhill. If
your vehicle speed is faster than the set speed
while driving on a downhill inj(Overdrive),
you may want to shift to the next lower gear to
reduce your vehicle speed.
[CF32850( BCGV)05/96]
If your vehicle slows down more than 10 mph
(16 km/h) below your set speed on an uphill,
your speed control will disengage. This is
normal. Pressing RESUME will re-engage it.
*
[CF32900( ALL)05/96]
RWARNING
To keep your vehicle under control, do
not use speed control in heavy traffic or
on roads that are winding, slippery, or
unpaved.
*
[CF33000( ALL)05/96]
To Set a Higher Set Speed
*
[CF33100( ALL)05/96]
q
Press and hold SET ACCEL. Release the
switch when the desired vehicle speed is
reached. OR
*
[CF33200( ALL)05/96]
q
Press and release SET ACCEL. Each press
will increase the set speed by 1 mph
(1.6 km/h). OR
*
[CF33300( ALL)05/96]
q
Accelerate with your accelerator pedal, then
press SET ACCEL.
*
[CF33400( ALL)05/96]
You may accelerate with the accelerator pedal at
any time during speed control usage. Releasing
the accelerator pedal will return your vehicle
speed to the previously programmed set speed.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

98
*
[CF33500( ALL)05/96]
To Set a Lower Set Speed
*
[CF33600( ALL)05/96]
q
Press and hold COAST. Release the switch
when the desired vehicle speed is reached.
OR
*
[CF33700( ALL)05/96]
q
Press and release COAST. Each press will
decrease the set speed by 1 mph (1.6 km/h).
OR
*
[CF33800( ALL)05/96]
q
Depress the brake pedal. When the desired
vehicle speed is reached, press SET ACCEL.
*
[CF33900( ALL)05/96]
To Disengage Speed Control
*
[CF34000( BCGV)05/96]
q
Depress the brake pedal.
*
[CF34100( ALL)05/96]
Disengaging the speed control will not erase the
previously programmed set speed.
*
[CF34200( ALL)05/96]
To Return to a Set Speed
[CF34300( ALL)04/96]
q
Press RESUME. For RESUME to operate, the
vehicle speed must be faster than 30 mph
(48 km/h).
[CF35500( ALL)03/96]
Map and Reading Lamps
*
[CF35600( ALL)12/95]
Your vehicle has two map lamps for the
passenger and the driver. To turn on the map
lamps, push the switch next to each lamp.
[CF36100( GV)12/95]

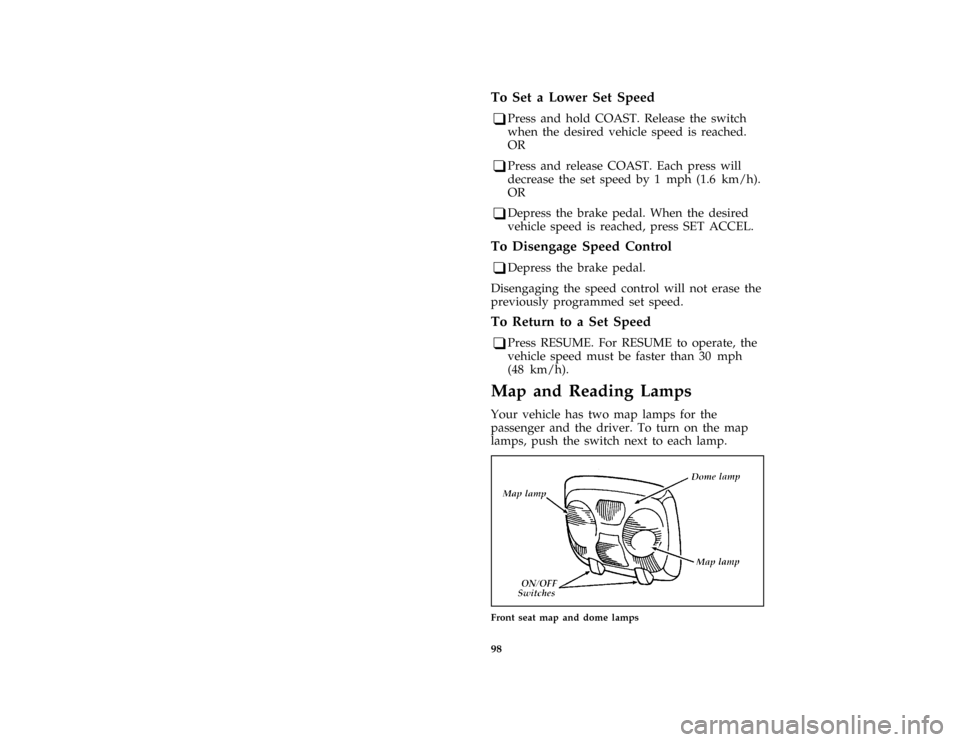

one third page art:0010209-B
Front seat map and dome lamps
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996

99
*
[CF36200( ALL)12/95]
The dual beam map lamps are located on each
side of the dome lamp. Each map lamp can be
turned on by the switches on the lamp.
% [CF36300( G )03/96]Rear Courtesy/Reading Lamps
(If equipped)
[CF36400( G )12/95]
Your vehicle may be equipped with a
courtesy/reading lamp located at the rear-center
of the headliner (roof). The right lamp is for the
right side passenger and the left lamp is for the
left side passenger.
[CF36500( G )12/95]
one third page art:0010480-C
Rear seat courtesy/reading lamps (optional)
*
[CF36600( G )01/96]
With the lens in the flat position, the
courtesy/reading lamp will illuminate when any
door is opened or when the headlamp dimmer
knob is rotated to the courtesy lamp position.
[CF36700( G )12/95]
With the lens in the rotated position and the key
in the ON or ACC position, the
courtesy/reading lamp will illuminate.
%
*
[CF38400( ALL)03/96]
Mirrors
[CF38600( ALL)04/96]
You can adjust your rearview mirror in any
direction. The special swivel bracket lets you
move the mirror up or down and from side to
side.
File:05rccfg.ex
Update:Mon Sep 23 08:32:35 1996
