The fuel pump shut-off switch is
located in the driver's foot well,
behind the kick panel. The reset
button for the fuel pump shut-off
switch is accessible through an
opening in the kick panel.
Use the following procedure to reset the fuel pump shut-off switch.
1. Turn the ignition to the OFF position.
2. Check the fuel system for leaks.
3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pushing in on the reset button.
4. Turn the ignition to the RUN position. Pause for a few seconds and
return the key to the OFF position.
5. Make a further check for leaks in the fuel system.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
136

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey Ð Ð Ð
3A Violet Violet Ð Ð Ð
4A Pink Pink Ð Ð Ð
5A Tan Tan Ð Ð Ð
7.5A Brown Brown Ð Ð Ð
10A Red Red Ð Ð Ð
15A Blue Blue Ð Ð Ð
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural Ð Ð Ð
30A Green Green Green Pink Pink
40A Ð Ð Orange Green Green
50A Ð Ð Red Red Red
60A Ð Ð Blue Ð Yellow
70A Ð Ð Tan Ð Brown
80A Ð Ð Natural Ð Black

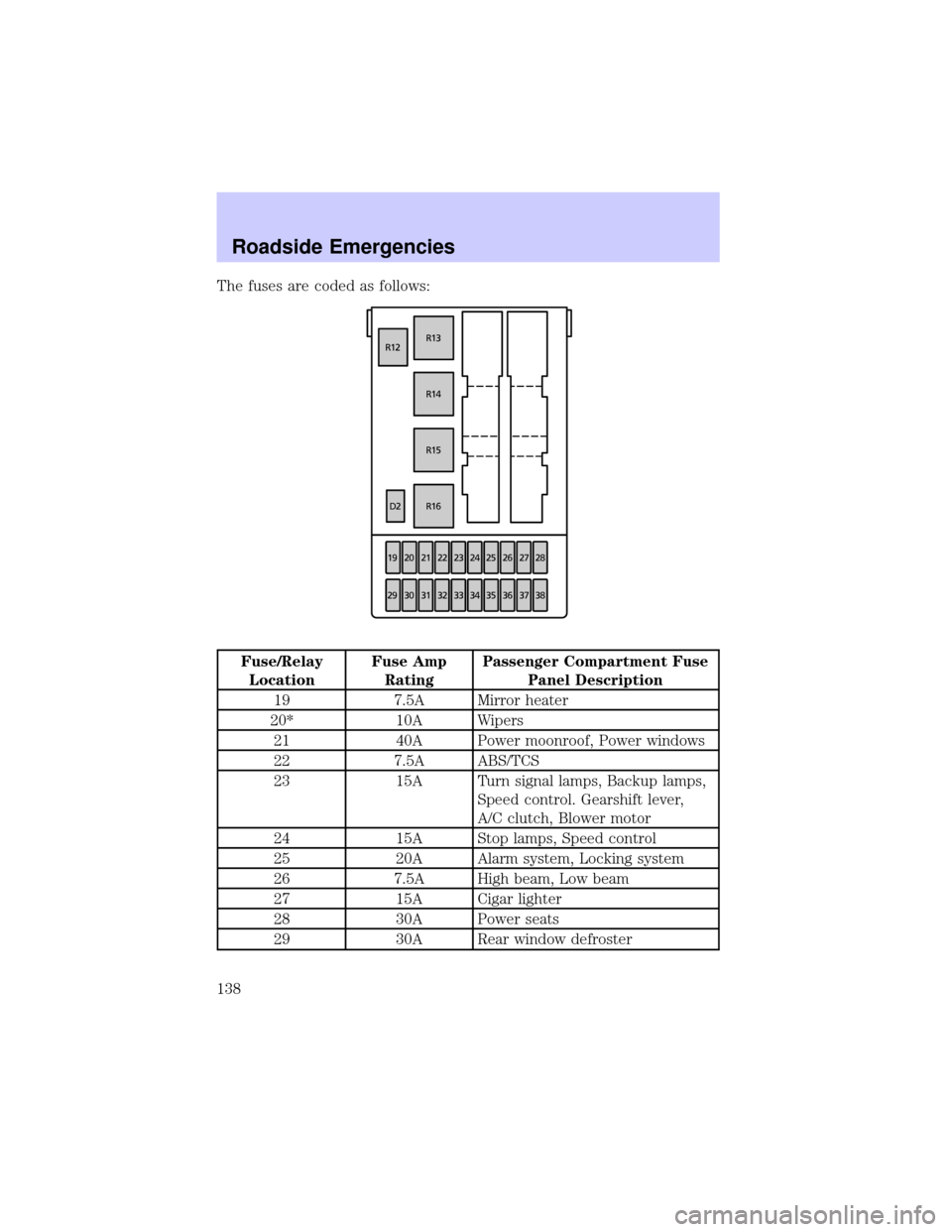

Passenger compartment fuse panel
To check or replace an fuse or a
relay, open the fuse box by pulling
down the lock release lever (1).
Roadside Emergencies
137

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
19 7.5A Mirror heater
20* 10A Wipers
21 40A Power moonroof, Power windows
22 7.5A ABS/TCS
23 15A Turn signal lamps, Backup lamps,
Speed control. Gearshift lever,
A/C clutch, Blower motor
24 15A Stop lamps, Speed control
25 20A Alarm system, Locking system
26 7.5A High beam, Low beam
27 15A Cigar lighter
28 30A Power seats
29 30A Rear window defroster
Roadside Emergencies
138

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
30 7.5A Engine management, Locking
system, Instrument cluster
31 7.5A Panel dimmer, License plate
lamps, Glove box lamp, Belt
minder module
32 Ð Not used
33 7.5A Left-side lamps
34 7.5A Power mirrors, Clock, Interior
lamps
35 7.5A Right-side lamps
36 15A Radio
37 30A Heater blower
38 7.5A Air bags
R12 Ð Courtesy lamps
R13 Ð Rear window defrost
R14 Ð Blower motor
R15 Ð Front wiper
R16 Ð Ignition
D2 Ð Reverse voltage protection
*Have these fuses replaced by your dealer or qualified technician.
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle's main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
Roadside Emergencies
139

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 Ð Not used
2 15A Alternator
3 20A Fog lamps
4 Ð Not used
5 Ð Not used
6 3A Engine management
7 20A Hazard lamps, Horn,
Multi-function switch
8 Ð Not Used
9 15A Fuel pump
10 Ð Not used
11 20A Daytime running lamps (Canada
only)
Roadside Emergencies
140

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
12 Ð Not used
13 20A HEGO sensors
14 Ð Not used
15 7.5A Right low beam
16 7.5A Left low beam
17 7.5A Right high beam
18 7.5A Left high beam, Instrument
cluster, Front fog lamps
39 Ð Not used
40* 20 Ignition, Engine management
41* 20 Engine management
42 40 Heater blower
43 Ð Not used
44 Ð Not used
45* 60 Main power supply to vehicle
electrical supply (Ignition relay)
46* Ð Not used
47* Ð Not used
48 Ð Not used
49* 60 Engine cooling fan
50 Ð Not used
51* 60 ABS
52* 60 Timer module, Courtesy lamp,
Rear window defrost, Fuses 25,
27, 28, 34 and 36
R1 Ð Fuel pump
R2 Ð Engine management
R3 Ð Air conditioning
R4 Ð Low beam
R5 Ð High beam
R6 Ð Horn
R7 Ð Starter
Roadside Emergencies
141

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
R8 Ð High speed engine cooling fan
R9 Ð Engine cooling fan
R10 Ð Not used
R11 Ð Daytime running lamps (Canada
only)
D1 Ð Starter relay
D2 Ð Air conditioning
* Have these fuses replaced by your dealer or qualified technician.
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may compromise the
integrity of your tires. The use of tire sealants may also affect your tire
pressure monitoring system (if equipped).
Temporary spare tire information
The temporary spare tire for your vehicle is labeled as such. It is smaller
than a regular tire and is designed for emergency use only.
If you use the temporary spare tire continuously or do not follow
these precautions, the tire could fail, causing you to lose control
of the vehicle, possibly injuring yourself or others.
When driving with the temporary spare tiredo not:
²use more than one temporary spare tire at a time
²exceed 80 km/h (50 mph) or drive further than 3 200 km (2 000
miles) total under any circumstances
²load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
²tow a trailer
²use tire chains
²drive through an automatic car wash, because of the vehicle's reduced
ground clearance
