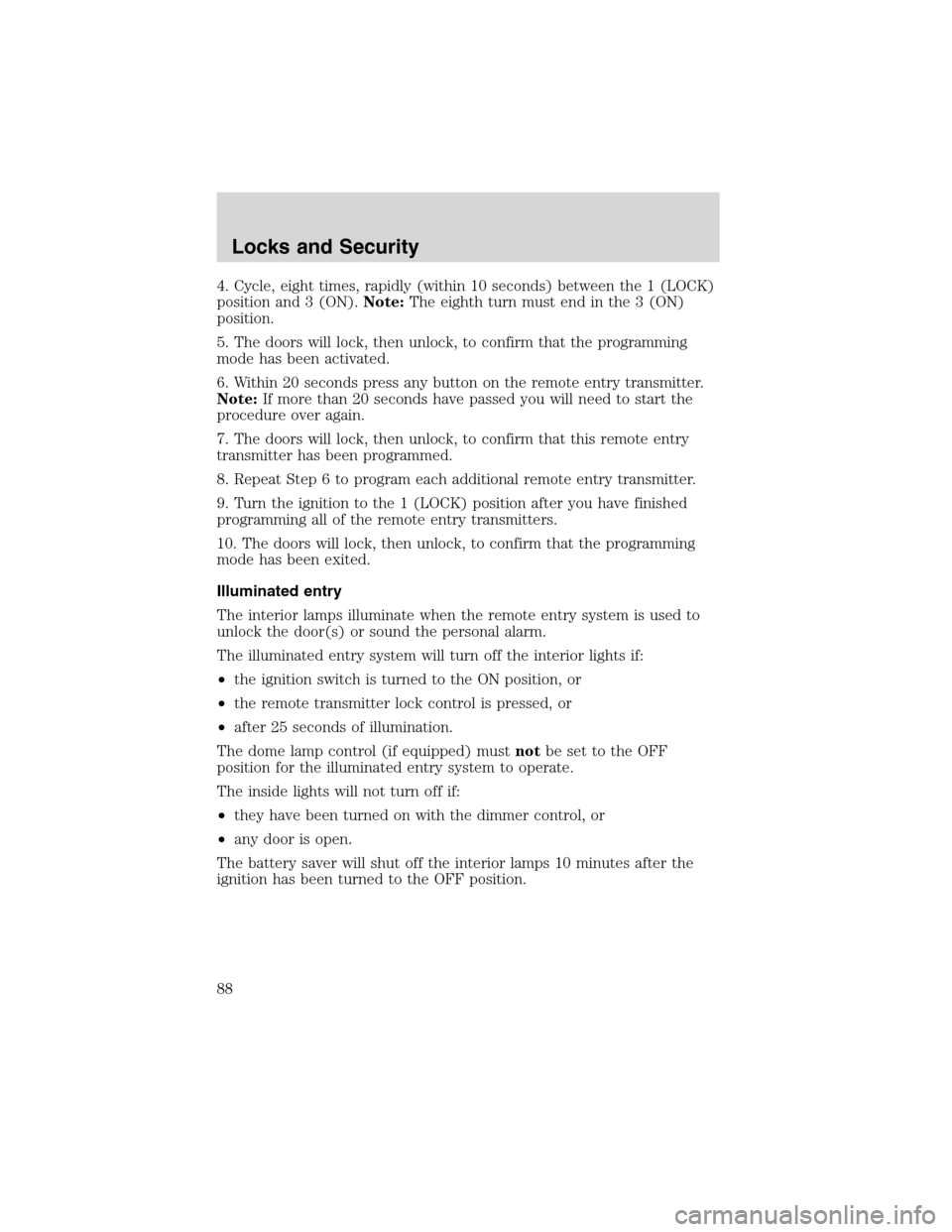

4. Cycle, eight times, rapidly (within 10 seconds) between the 1 (LOCK)
position and 3 (ON).Note:The eighth turn must end in the 3 (ON)
position.
5. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
6. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 1 (LOCK) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the ON position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the OFF
position for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 10 minutes after the
ignition has been turned to the OFF position.
Locks and Security
88

This feature will also automatically relock all the doors when:
•the ignition is running and any door is opened then closed, and
•you put the vehicle in motion by releasing the brake pedal.
To deactivate/reactivate the autolock feature using the keypad
Your vehicle comes with the autolock feature activated. To
deactivate/reactivate this feature:
1. Turn the ignition to the OFF position.
2. Close all the doors.
3. Enter the 5-digit entry code.
4. Press and hold the 3•4. While holding the 3•4 press the 7•8.
5. Release the 3•4.
6. Release the 7•8.
The horn will chirp once when the system has been successfully
deactivated.
The horn will chirp twice (one short and one long chirp) when the
system has been successfully reactivated.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to prevent the engine from being started
unless acoded key programmed to your vehicleis used. The use of
the wrong type of coded key may lead to a“no-start”condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
Locks and Security
91

9. Remove the newly programmed coded key from the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle’s engine and the theft indicator light will flash on and off, or stay
on for more than three seconds. If failure repeats, bring your vehicle to
your dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from step 1 for each additional key.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will help prevent your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
ARMING THE SYSTEM
When unauthorized entry occurs, the system will flash the headlamps
and/or parking lamps, and will chirp the horn.
The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Open any door, liftgate or liftgate window and press the power door
lock control to lock the doors.
•Press the
on the remote transmitter (doors opened or closed).
When you press the lock control twice within three seconds on your
remote entry transmitter, the horn will chirp once to let you know that
all doors/hood/liftgate and liftgate window are closed.Note:If any of
these are not closed, the horn will chirp twice to warn you that a
door/hood/liftgate or liftgate window is still open.
•Press 7•8 and the 9•0 controls on the keyless entry pad at the
same time to lock the doors (driver’s door must be closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes ARMED.
Each door/hood/liftgate or liftgate window is armed individually, and if
any are open, they must be closed for the system to enter the 20 second
countdown.
Locks and Security
94

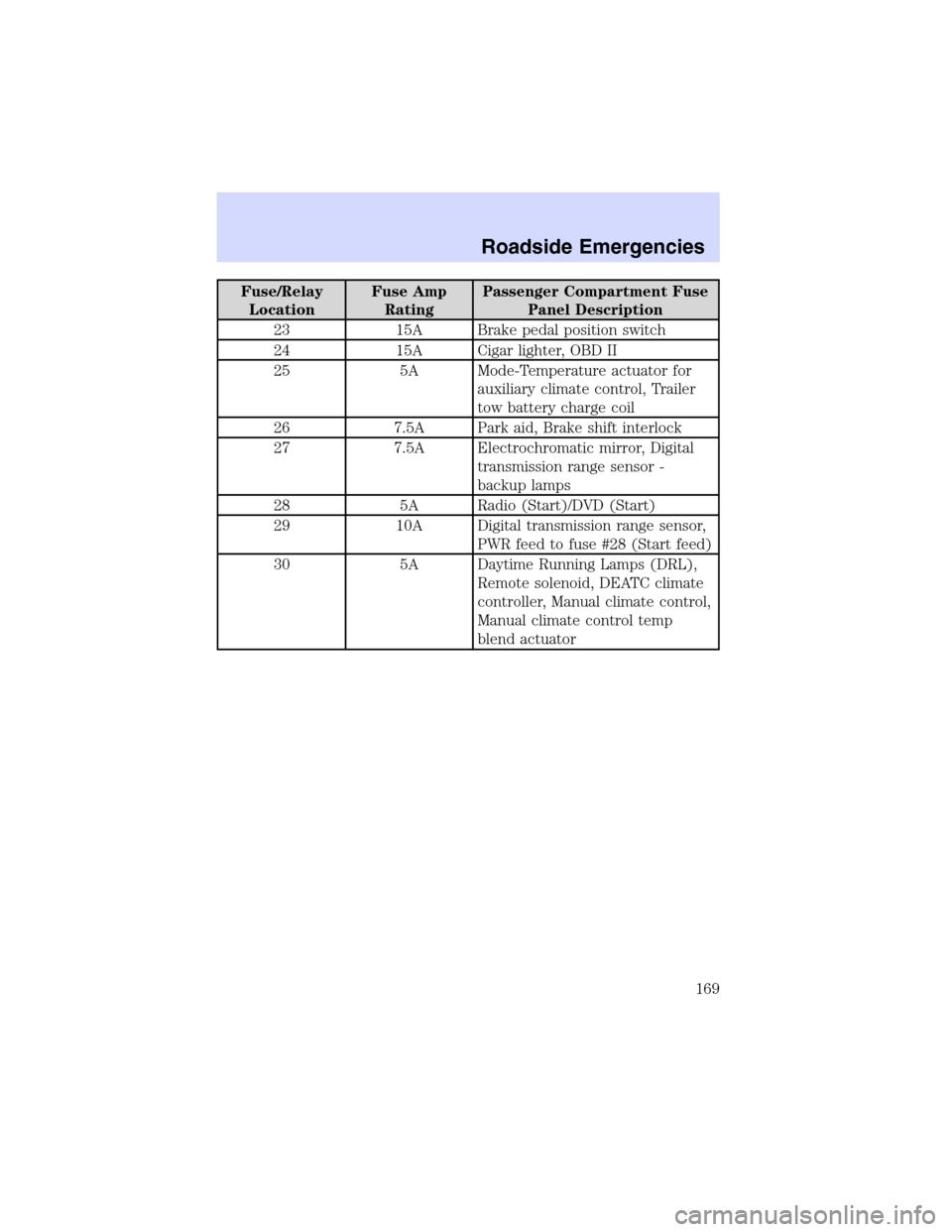

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
23 15A Brake pedal position switch
24 15A Cigar lighter, OBD II
25 5A Mode-Temperature actuator for
auxiliary climate control, Trailer
tow battery charge coil
26 7.5A Park aid, Brake shift interlock
27 7.5A Electrochromatic mirror, Digital
transmission range sensor -
backup lamps
28 5A Radio (Start)/DVD (Start)
29 10A Digital transmission range sensor,
PWR feed to fuse #28 (Start feed)
30 5A Daytime Running Lamps (DRL),
Remote solenoid, DEATC climate
controller, Manual climate control,
Manual climate control temp
blend actuator
Roadside Emergencies
169

Travel equipment
Ash cup
Cargo organizer
Cargo tray
Chrome wheels
Cellular phone holder
Daytime running lamps
Dog guard
DVD—Rear entertainment system
Engine block heater
Factory luggage rack adaptors (bike and ski)
First aid kit
Fog lamps
Highway safety kit
Hitch step
Interior mirror, electrochromic with compass (with and without
temperature display)
Luggage/Cargo basket
Moon roof deflector
Original equipment luggage rack cross bars
Raised cross-bars (for luggage rack rails)
Remote start systems
Running boards
Scuff plates
Seatback storage
Smoker’s package
Soft luggage cover
Tail lamp surrounds
Tire step
Trailer hitch (Class III)
Trailer hitch bars and balls
Trailer hitch mounted bike carrier
Accessories
253

Pedals (see Power adjustable
foot pedals) .................................56
Power adjustable foot pedals .....56
Power distribution box
(see Fuses) ...............................171
Power door locks ........................83
Power point .....................51, 53–54
Power steering ..........................147
fluid, checking and adding ....236
fluid, refill capacity ................244
fluid, specifications .........246, 248
Power Windows ...........................54
Preparing to drive your
vehicle ........................................148
R
Radio ................................17, 21, 25
Rear window defroster ...............36
Relays ................................166, 174
Remote entry system .................85
illuminated entry ......................88
locking/unlocking doors ...........95
opening the trunk .....................85
Reverse sensing system ...........153
Roadside assistance ..................163
Roof rack .....................................81
S
Safety Belt Maintenance ..........119
Safety belts (see Safety
restraints) ..........108, 110–113, 115
Safety Canopy ...................124, 126
Safety defects, reporting ..........199
Safety restraints ........108, 110–115belt minder .............................116
extension assembly ................115
for adults .........................111–113
for children .....................128–129
safety belt maintenance .........119
warning light and
chime ...............................115–116
Safety seats for children ..........131
Seat belts
(see Safety restraints) .............108
Seats ............................................97
child safety seats ....................131
heated ......................................101
memory seat .....................86, 100
Snowplowing .................................7
Spark plugs,
specifications .............243, 248–249
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................246, 248
Speed control ..............................56
Starting a flex fuel vehicle .......144
Starting your vehicle ........142, 144
jump starting ..........................183
Steering wheel
controls ......................................60
tilting .........................................49
T
Tilt steering wheel ......................49
Tire warning ..............................242
Tires ...........................176, 239, 242
changing ..........................176, 180
replacing ..................................180
snow tires and chains ............243
Index
260
