air filter Mercury Sable 2002 Owner's Manuals

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire warning
Introduction
9

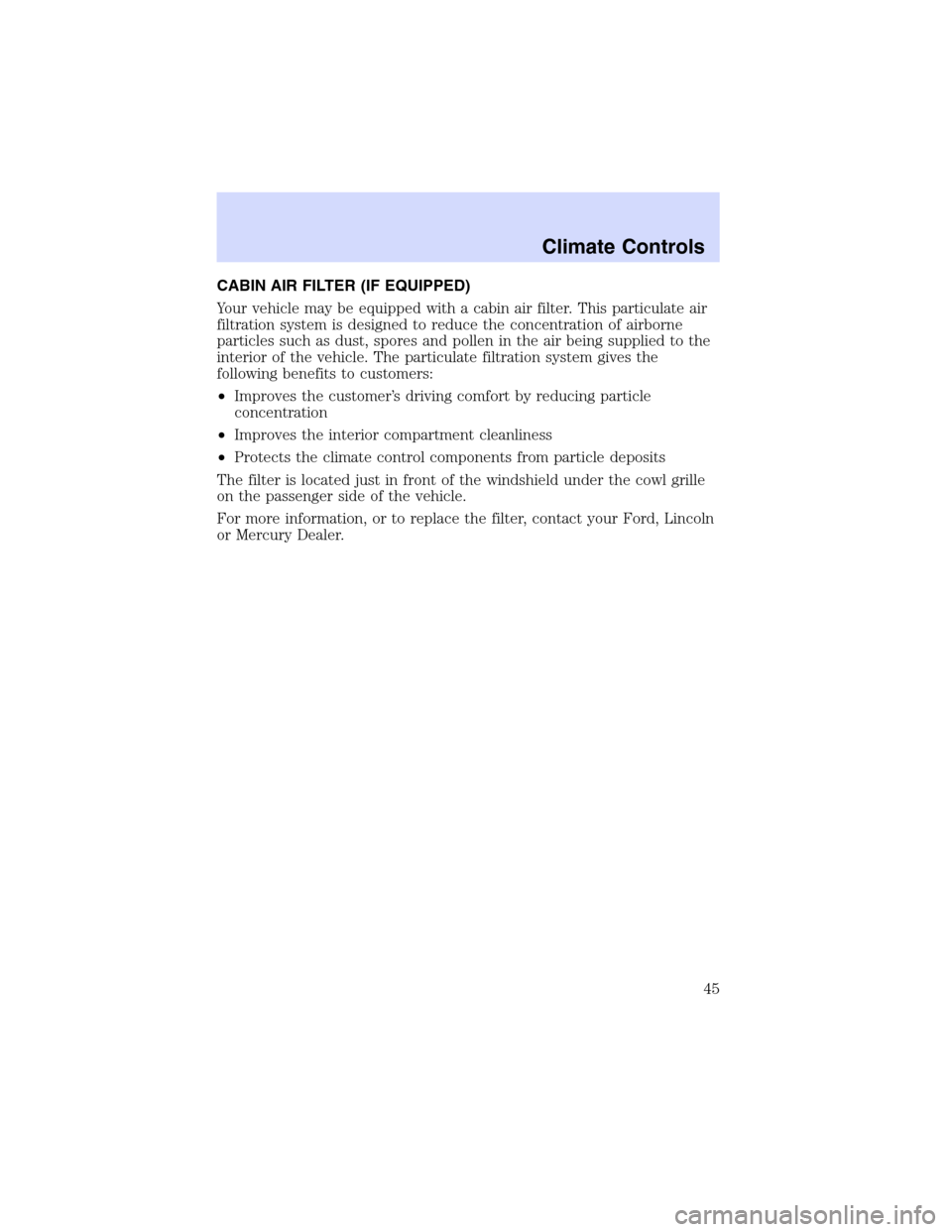

CABIN AIR FILTER (IF EQUIPPED)
Your vehicle may be equipped with a cabin air filter. This particulate air
filtration system is designed to reduce the concentration of airborne
particles such as dust, spores and pollen in the air being supplied to the
interior of the vehicle. The particulate filtration system gives the
following benefits to customers:
•Improves the customer’s driving comfort by reducing particle
concentration
•Improves the interior compartment cleanliness
•Protects the climate control components from particle deposits
The filter is located just in front of the windshield under the cowl grille
on the passenger side of the vehicle.
For more information, or to replace the filter, contact your Ford, Lincoln
or Mercury Dealer.
Climate Controls
45

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.0L V6 Vulcan engine
1. Automatic transmission fluid dipstick
2. Brake fluid reservoir
3. Air filter assembly
4. Battery
5. Engine oil filler cap
6. Engine oil dipstick
7. Engine coolant reservoir
8. Windshield washer fluid reservoir
9. Power steering fluid reservoir
(may be in either location shown)
Maintenance and Specifications
192

3.0L DOHC V6 Duratec engine
1. Automatic transmission fluid dipstick
2. Brake fluid reservoir
3. Air filter assembly
4. Battery
5. Engine oil dipstick
6. Engine oil filler cap
7. Engine coolant reservoir
8. Windshield washer fluid reservoir
9. Power steering fluid reservoir
Maintenance and Specifications
193

Cleaner air
Ford endorses the use of reformulated“cleaner-burning”gasolines to
improve air quality.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
affect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling, to allow the fuel system to pump the fuel from the tank to
the engine.
•The
indicator may come on. For more information on the
“Service Engine Soon”indicator, refer to theInstrument Cluster
chapter.
Fuel Filter
For fuel filter replacement, see your dealer or a qualified service
technician. Refer to the scheduled maintenance guide for the appropriate
intervals for changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,600 km (1,000
miles) of driving (engine break-in period). You will get a more accurate
measurement after 3,000 km–5,000 km (2,000 miles-3,000 miles).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theRefill capacities
section of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
Maintenance and Specifications
211

MOTORCRAFT PART NUMBERS
Component 3.0L V6 Vulcan
engine3.0L FFV V6
engine3.0L DOHC V6
Duratec engine
Air filter
element
1FA-1683 FA-1683 FA-1683
Fuel filter FG-1006 FG-1006 FG-1006
Battery
(standard)BXT-36R BXT-36R BXT-36R
Battery
(optional)BXT-36R N/A N/A
Oil filter FL-400-S FL-400-S FL-820-S
PCV valve EV-228 EV-228 EV-243
Spark plugs
2AWSF-32PP3AGSF-22PP3AWSF-32F
1Do not use oil-impregnated air filter elements. Failure to use the correct
air filter element may result in severe engine damage. The customer
warranty may be voided for any damage to the engine if the correct air
filter element is not used.
2Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
3If a spark plug is to be removed for inspection, it must be reinstalled in
the same cylinder. If a spark plug needs to be replaced, use only spark
plugs with the service part number suffix letter as shown on the engine
decal.
Maintenance and Specifications
224

A
Accessory delay ..........................45
Air bag supplemental restraint
system ..............................90–91, 94
and child safety seats ..............92
description ..........................91, 94
disposal ......................................96
driver air bag ................90, 93, 95
indicator light ...........................93
operation .......................90, 93, 95
passenger air bag .........90, 93, 95
side air bag ................................94
Air cleaner filter .......................180
Antifreeze
(see Engine coolant) ................159
Anti-lock brake system
(see Brakes) ..............................111
Anti-theft system ........................69
arming the system ....................69
disarming a triggered system ..69
Audio system (see Radio) ...15, 17
Automatic transaxle
fluid, adding ............................174
fluid, checking ........................174
fluid, refill capacities ..............181
fluid, specification ..................185
Automatic transmission
driving an automatic
overdrive .................................116
Auxiliary power point .................44
Axle
lubricant specifications ..........183
B
Battery .......................................157
acid, treating emergencies .....157
jumping a disabled battery ....135maintenance-free ....................157
replacement, specifications ...180
servicing ..................................157
BeltMinder ...................................85
Brakes ........................................110
anti-lock ...................................111
anti-lock brake system (ABS)
warning light ...........................111
fluid, checking and adding ....174
fluid, refill capacities ..............181
fluid, specifications .........183, 185
lubricant specifications ..183, 185
parking ....................................112
shift interlock ..........................113
Bulbs ............................................31
C
Capacities for refilling fluids ....181
Cargo area shade ........................56
Cargo cover .................................55
Cargo net .....................................55
CD changer .................................19
CD-single premium ...............15, 17
Cell phone use ............................52
Cellular telephone (see your
Cellular Phone Guide) ................52
Certification Label ....................187
Changing a tire .........................131
Child safety restraints ................97
child safety belts ......................97
Child safety seats ........................99
attaching with tether straps ..103
in front seat ............................100
in rear seat ......................100, 103
Cleaning your vehicle
engine compartment ..............144
Index
235
