Dome lamps and map lamps
•ON or
D: The dome light will
stay on.
•DOOR or middle position: The
dome light will only come on if a
door is opened.
•OFF or
: The lamp will not
come on at all.
With the control in the middle position, the dome lamp will illuminate
whenever a front door is opened. If either front door has been opened
from the outside, the lamp will remain on for 25 seconds after the door
is shut. If any other door has been opened from the inside, the lamp will
shut off immediately after the door is closed.
The map lamp controls
(if equipped) are located on the
dome lamp. Press the controls on
either side of each lens on each map
lamp to activate the lamps.
Rear dome lamp (if equipped)
The dome lamp lights when:
•any door is opened with the
control in the middle position.
•the instrument panel dimmer
switch is held up until the
courtesy lamps come on.
•any of the remote entry controls
are pressed and the ignition is
OFF.
•the lamp control is moved to the passenger side position.
With the ignition key in the ACC or ON position, the rear dome lamp can
be turned ON or OFF by sliding the control.
Lights
33

INTERIOR TRUNK CONTROL (IF EQUIPPED)
Press the remote trunk release
control on the instrument panel to
the left of the steering wheel.
LIFTGATE (WAGON ONLY)
You can open and close the liftgate and the liftgate window from outside
the vehicle. It cannot be opened from inside the cargo area.
•To open the liftgate window,
unlock the liftgate (with the key,
the power door locks or the
remote entry key fob) and push
the key lock cylinder.
•To open the liftgate, unlock the
liftgate and pull up on the handle
under the license plate lamp
shield.
To lock the liftgate and the liftgate window, press the lock button down
on the inside of the liftgate, use the key, the power door locks, or the
remote entry key fob.
The liftgate and liftgate window should be closed before driving your
vehicle. If not, possible damage may occur to the liftgate lift cylinders
and attaching hardware.
Driver Controls
56

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The remote entry system allows you
to:
•lock or unlock all vehicle doors,
•open the trunk or the liftgate,
and
•sound the panic alarm.
If there is a problem with the
remote entry system make sure to
takeALL remote entry
transmitterswith you to the
dealership, this will aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors and the liftgate (wagon).
The remote entry system comes with an illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the ON position. If the dome lamp control is in theoffposition
the illuminated entry feature will not work.
The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
The battery saver feature will turn off the interior lamps 10 minutes after
the ignition is turned to the OFF position.
Locking the doors
1. Pressand release to lock all the doors and liftgate (wagon), turn
off the interior lamps (if they were on) and arm the anti-theft system.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:the doors will lock again,
and the horn will chirp once.
Locks and Security
62

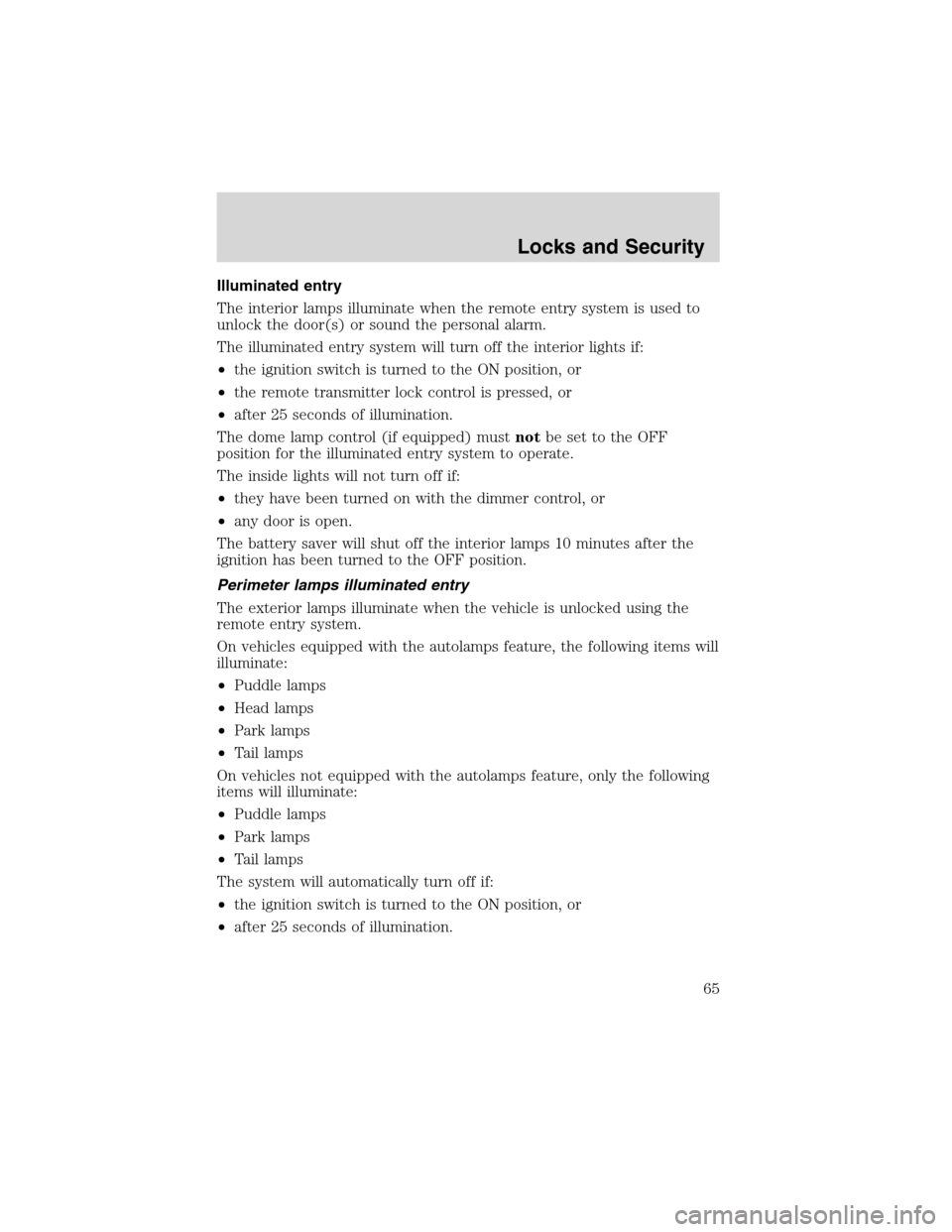

Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the ON position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the OFF
position for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 10 minutes after the
ignition has been turned to the OFF position.
Perimeter lamps illuminated entry
The exterior lamps illuminate when the vehicle is unlocked using the
remote entry system.
On vehicles equipped with the autolamps feature, the following items will
illuminate:
•Puddle lamps
•Head lamps
•Park lamps
•Tail lamps
On vehicles not equipped with the autolamps feature, only the following
items will illuminate:
•Puddle lamps
•Park lamps
•Tail lamps
The system will automatically turn off if:
•the ignition switch is turned to the ON position, or
•after 25 seconds of illumination.
Locks and Security
65

Relock
The autolock feature repeats when the following conditions are met:
•any door, except the driver’s door, is opened then closed while the
engine is running, and
•you put the vehicle in motion.
To deactivate/reactivate the autolock feature using the power door
unlock control
You must complete steps 1-7 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.
1. Turn the ignition key to RUN.
2. Press the power door unlock control three times.
3. Turn the ignition key from RUN to OFF.
4. Press the power door unlock control three times.
5. Turn the ignition back to RUN. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to OFF. The horn will chirp once to confirm the
procedure is complete.
Pressing the power door unlock control again will toggle the
Autolock/Relock states.
Turn ignition to OFF to exit programming.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to prevent the engine from being started
unless acoded key programmed to your vehicleis used. The use of
the wrong type of coded key may lead to a“no-start”condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Locks and Security
68

7. Within twenty seconds of removing the previously programmed coded
key, insert the unprogrammed key (new/valet key) into the ignition.
8. Turn the ignition from the 3 (OFF) position to the 4 (ON) position.
Keep the ignition in the 4 (ON) position for at least one second.
9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out. If the key was not successfully programmed, it will not start
your vehicle’s engine and the theft indicator light will flash on and off
rapidly. If failure repeats, bring your vehicle to your dealer to have the
new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from step 1 for each additional key.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will help prevent your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
headlamps and/or parking lamps and will sound the horn.
The system is ready to arm whenever key is removed from the ignition.
Either of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Press the 7•8 and the 9•0 on the keyless entry keypad
(if equipped) at the same time.
•Open a door and press the power door lock control to lock all the
doors.
Locks and Security
71

Note:The hood, each door and the liftgate (wagon) arm individually,
and if any of them are open, they must be closed in order to be armed.
When you press the
control on the remote entry transmitter twice
within three seconds:
•the horn will chirp twice to indicate the hood, each door and the
liftgate (wagon) are closed.
•the horn will chirp twice to indicate that either the hood, a door or
the liftgate (wagon) is still open.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors by using the keyless entry pad.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the RUN position.
•Press the
control on the remote entry transmitter. This will only
shut the horn off when the alarm is sounding; the alarm system will
still be armed.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, liftgate (wagon) or the hood is opened without using the
key or the remote entry transmitter.
•The trunk is forced open.
Locks and Security
72

Jump-starting your vehicle ......140
K
Keyless entry system .................66
Keys
positions of the ignition .........109
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................34
cargo lamps ...............................30
daytime running light ...............29
fog lamps ...................................29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....30
interior lamps ...............32–33, 35
replacing
bulbs .................. 34–35, 38–40, 43
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................56
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........114
speed control ............................54
Load limits .................................121
GAWR ......................................121
GVWR ......................................121
trailer towing ..........................121
Locks
childproof ..................................60
doors ..........................................60
Lubricant specifications ...198, 200
Lumbar support, seats ...............74
M
Mirrors ...................................47–48automatic dimming rearview
mirror ........................................48
heated ........................................51
side view mirrors (power) .......50
Moon roof ....................................54
Motorcraft parts ................182, 196
O
Octane rating ............................180
Oil (see Engine oil) ..................167
Overdrive ...................................118
P
Parking brake ............................115
Parts (see Motorcraft parts) ....196
Pedals (see Power adjustable
foot pedals) .................................51
Power adjustable foot pedals .....51
Power distribution box (see
Fuses) ........................................133
Power door locks ........................60
Power point .................................47
Power steering ..........................116
fluid, checking and adding ....188
fluid, refill capacity ................197
fluid, specifications .........198, 200
Power Windows ...........................47
R
Radio ......................................16, 18
Rear window defroster ...............28
Relays ........................................135
Remote entry system
illuminated entry ......................65
Index
210

locking/unlocking doors ...........60
opening the trunk .....................63
Roadside assistance ..................127
Roof rack .....................................59
S
Safety Belt Maintenance ............91
Safety belts (see Safety
restraints) ..................77, 79–82, 84
Safety defects, reporting ..........155
Safety restraints ..............77, 79–85
belt minder ...............................87
extension assembly ..................90
for adults .............................80–82
for children .........................97–98
lap belt ......................................84
safety belt maintenance ...........91
warning light and chime ....86–87
Safety seats for children ..........101
Seat belts (see Safety
restraints) ....................................77
Seats ............................................73
child safety seats ....................101
cleaning ...................................159
Servicing your vehicle ..............162
Spare tire (see Changing the
Tire) ...........................................136
Spark plugs,
specifications .....................196, 200
Specification chart,
lubricants ...........................198, 200
Speed control ..............................51
Starting a flex fuel vehicle .......112
Starting your vehicle .......109–110,
112
jump starting ..........................140Steering wheel
tilting .........................................46
T
Tilt steering wheel ......................46
Tires ...........................136, 191–193
changing ..........................136–137
checking the pressure ............193
replacing ..................................194
rotating ....................................193
snow tires and chains ............195
tire grades ...............................193
treadwear ................................192
Towing .......................................123
recreational towing .................126
trailer towing ..........................123
wrecker ....................................145
Traction control ........................115
Transaxle
fluid, refill capacities ..............197
lubricant specifications ..........200
Transmission .............................117
fluid, checking and adding
(automatic) .............................190
lubricant specifications ..........198
Trunk ...............................57, 59–60
remote release ....................56, 63
Turn signal ..................................32
V
Vehicle dimensions ...................200
Vehicle Identification Number
(VIN) ..........................................203
Vehicle loading ..........................121
Ventilating your vehicle ...........113
W
Warning chimes .........................115
Index
211
