Mercury Villager 1996 Owner's Manuals

Features
163
[FV14500(ALL)09/93]
Using Power Seats (If equipped)
[FV14600(ALL)04/94]
If your vehicle has power front seats, you can adjust your seat
in several directions. The driver's seat can be adjusted in six
directions and the passenger's seat can be adjusted in four
directions. The controls are located on the side of the seat
closest to the door. The seat can be adjusted even without the
key in the ignition.
[FV14700(ALL)04/95]
13-1/2 pica
art:0040105-B

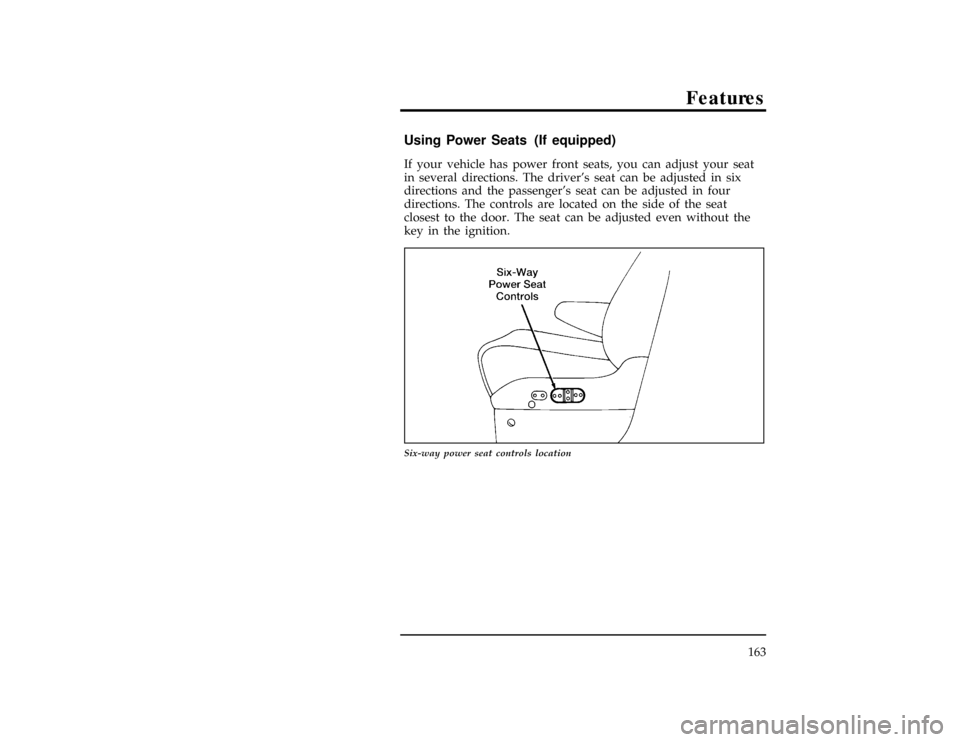

Six-way power seat controls location
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

164
[FV14900(ALL)06/95]
10-1/2 pica
art:0040125-C
Six-way power seat controls
[FV15000(ALL)09/93]
Power Lumbar Support (If equipped Ð driver's seat)
[FV15100(ALL)01/93]
The controls for the driver's seat power lumbar support are on
the side of the seat next to the door. This feature provides
built-in support for the driver's lower back.
[FV15200(ALL)04/95]
13-1/2 pica
art:0040106-B
Power lumbar support controls location
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
165
[FV15300(ALL)01/93]
To inflate the lumbar support pad, push the raised end of the
switch. To deflate the lumbar support pad, push the indented
end of the switch.
%*
[FV15310(ALL)04/95]
Cleaning the Seats
*
[FV15320(ALL)05/95]
Leather
*
[FV15330(ALL)05/95]
For routine cleaning, wipe the surface with a soft, damp cloth.
For more thorough cleaning, wipe the surface with a leather and
vinyl cleaner or a mild soap.
%*
[FV15340(ALL)04/95]
Fabric
*
[FV15350(ALL)05/95]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[FV15360(ALL)04/95]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

166
*
[FV15400(ALL)01/95]
Storage Compartments
*
[FV15500(ALL)09/93]
Underseat Storage Compartment (If equipped)
[FV15600(ALL)01/93]
The underseat storage compartment is located underneath the
front passenger seat. It can be opened by pulling it toward the
instrument panel.
[FV15700(ALL)02/95]
24 pica art:0040107-C

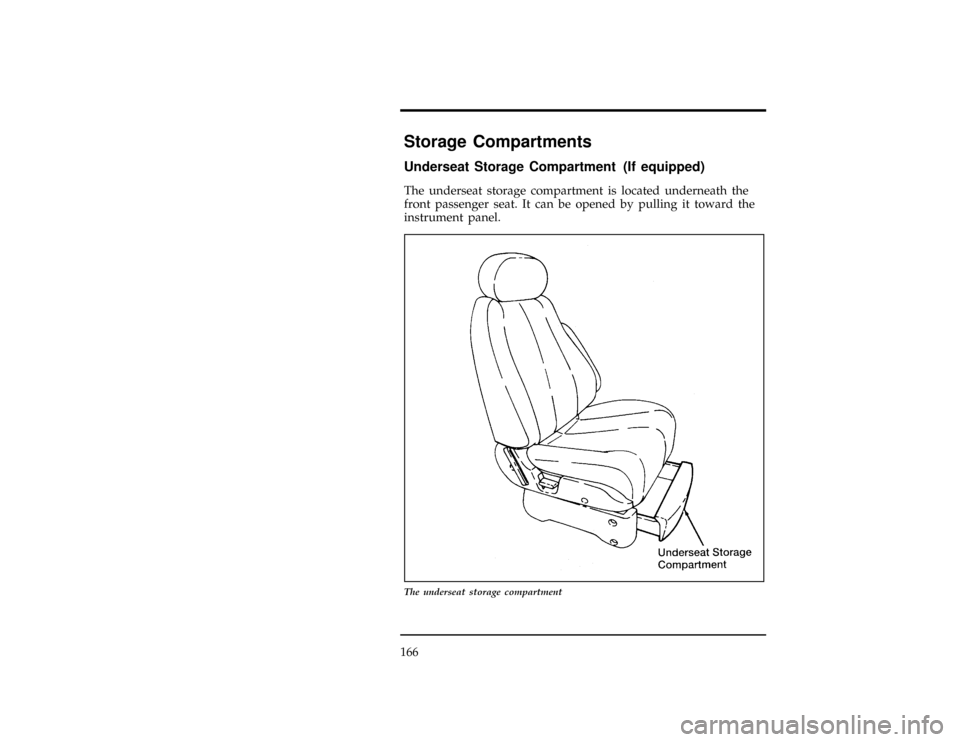

The underseat storage compartment
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
167
[FV16100(ALL)02/95]
Coin Tray
[FV16200(ALL)02/95]
The slide-out coin tray is located in the instrument panel for
your convenience. It is located below the radio controls.
[FV16300(ALL)02/95]
13-1/2 pica
art:0040115-D
Coin tray
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

168
[FV16800(ALL)01/93]
Front Seat Cupholders
[FV16900(ALL)01/93]
The front seat cupholders are located on the side of the
passenger's seat. Find the indented ledge and pull it down,
away from the side of the seat, toward the driver's seat. When
the cupholder is not in use, push the cupholders into the cover
and lift the cover into its fully stored position.
[FV17000(ALL)02/95]
24 pica art:0040116-D

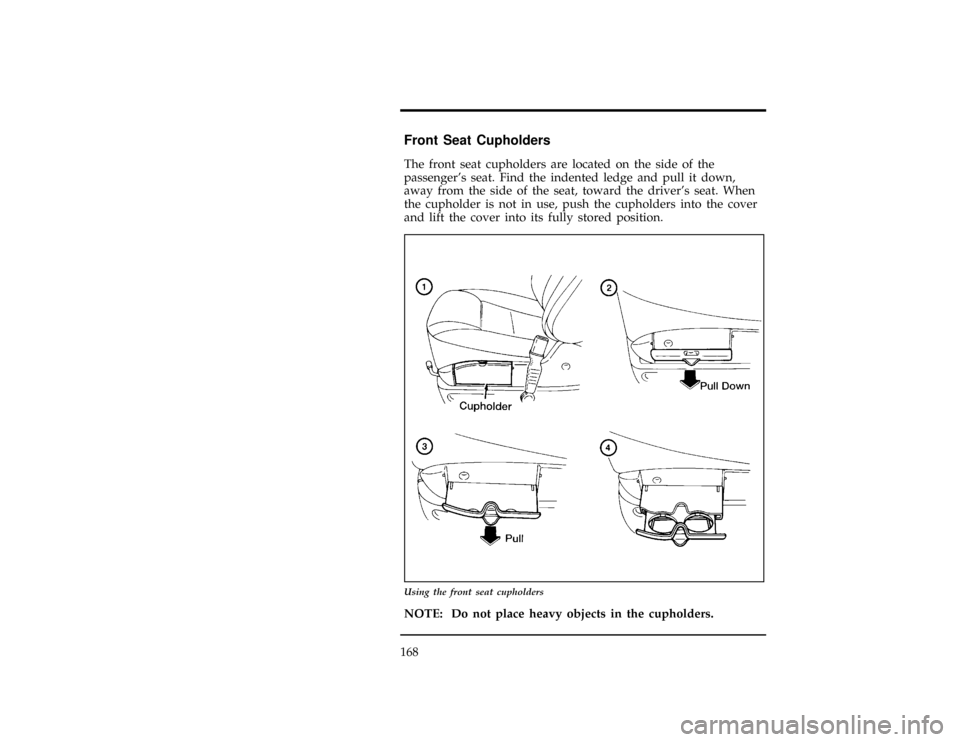

Using the front seat cupholders
*
[FV17100(ALL)06/94]
NOTE: Do not place heavy objects in the cupholders.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
169
[FV17200(ALL)01/93]
Rear Seat Cupholders (available on some models)
[FV17300(ALL)04/94]
Your vehicle may also have rear seat cupholders built into the
side panels.
[FV17400(ALL)04/94]
RWARNING
Objects stored on the ledges below the rear side
windows can become dangerous projectiles during a
sudden stop or collision. Put small objects only in the
storage compartments.
[FV17425(ALL)06/95]
Third Row Seat Storage Compartment (If equipped)
[FV17450(ALL)06/95]
Your vehicle may come equipped with a folding
cupholder/storage tray/storage compartment built into the
passenger's side of the third row seat. Find the indented ledge
on the right of the cupholder and pull it up to reveal the
storage compartment.
[FV17460(ALL)06/95]
Power Point Electrical Outlet (If equipped)
[FV17470(ALL)06/95]
Your vehicle may be equipped with a 12 volt power point
outlet located just below the rear seat audio controls. The power
point can be used in place of the cigarette lighter for optional
electrical accessories.
[FV17480(ALL)06/95]
NOTE: Do not plug the cigarette lighter into the power point
electrical outlet. Use the cigarette lighter.
*
[FV17500(ALL)01/95]
Mirrors
*
[FV17600(ALL)05/95]
RWARNING
Make sure you can see clearly through the rearview
mirror at all times. Do not allow anything to block your
vision. If you can't see through the mirror, you could be
involved in an accident and injure yourself or others.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

170
*
[FV18100(ALL)01/93]
Side View Mirrors
*
[FV18200(ALL)01/93]
Close your door and adjust the driver's seat to the most
comfortable position before you adjust the side view mirrors.
*
[FV18400(ALL)12/93]
NOTE: Be careful. The convex side view mirror on the right
makes objects appear smaller and farther away than
they actually are. Use the inside rearview mirror (or
look behind you) to determine the actual size and
distance of objects that appear in the convex mirror.
*
[FV18500(ALL)09/93]
Dual Electric Remote Controlled Mirrors (If equipped)
[FV18600(ALL)01/93]
If you have power side view mirrors, you can adjust them in
any direction by using the mirror controls on the instrument
panel. This switch operates with the ignition in ON or ACC.
[FV18700(ALL)01/93]
The mirror control switch is on the instrument panel to the left
of the steering wheel.
*
[FV18800(ALL)08/91]
To adjust the remote controlled side mirrors:
[FV18900(ALL)01/93]1.
Select the right or left mirror by rotating the selector switch
to R or L.
*
[FV19000(ALL)01/93]2.
Move the control knob in the direction you want to move
the mirror.
[FV19100(ALL)01/93]3.
Return the selector switch to the middle position to keep the
mirror in place.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

Features
171
[FV19200(ALL)02/95]
17-1/2 pica
art:0040110-D
Dual electric remote controlled mirrors switch
[FV19250(ALL)02/95]
Heated mirror feature (if equipped)
[FV19275(ALL)02/95]
Both power mirrors are heated whenever the rear window
defroster is turned on. Do not remove ice from the mirrors with
a scraper or you could damage them.
*
[FV20100(ALL)09/93]
Cargo Net (If equipped)
*
[FV20200(ALL)01/93]
The cargo net is designed to hold your cargo upright between
the third row bench seat and the liftgate to prevent it from
moving around the cargo area.
*
[FV20300(ALL)05/95]
To install the cargo net:
*
[FV20400(ALL)01/93]
Attach the loops on the four corners of the net to the four
retainers on the cargo area rear quarter panels. Pull on the net
to be sure that it is fastened securely.
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996

172
*
[FV20500(ALL)01/93]
RWARNING
Be sure to secure all four loops into the retainers. The
cargo restrained in the net must not exceed 50 lbs.
(22.5 kg) or the net may not stay secured.
*
[FV20600(ALL)01/93]
To remove the cargo net, remove the loops from the four
retainers.
[FV20700(ALL)09/93]
24 pica art:0040113-B

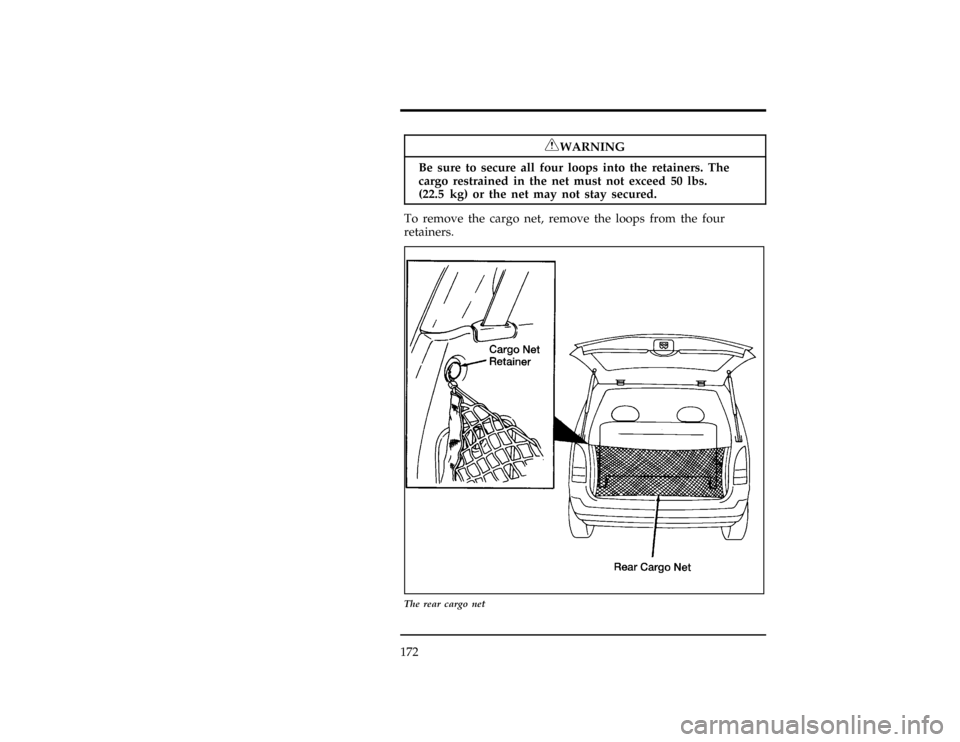

The rear cargo net
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
