150
*
[SS13350(ALL)05/96]
RWARNING
The air bag will inflate only once. The system is
designed to function on a one-time-only basis. If the air
bag is inflated, THE AIR BAG WILL NOT FUNCTION
AGAIN AND MUST BE REPLACED IMMEDIATELY. If
the air bag is not replaced, this will increase the risk of
injury in a subsequent collision.
*
[SS13360(ALL)05/96]
The Air Bag Supplemental Restraint System consists of:
*
[SS13370(ALL)05/96]
n
driver and passenger air bag modules (which include the
inflators and air bags),
*
[SS13380(ALL)05/96]
n
one or more impact and safing sensors,
*
[SS13390(ALL)05/96]
n
a system diagnostic module,
*
[SS13400(ALL)05/96]
n
a readiness light and tone,
*
[SS13410(ALL)05/96]
n
and the electrical wiring which connects the components.
*
[SS13420(ALL)05/96]
The diagnostic module monitors its own circuits, the air bag
electrical system, the air bag readiness light, the air bag power
and the air bag inflators.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
151
[SS13423(ALL)05/96]
half page art:0040264-A

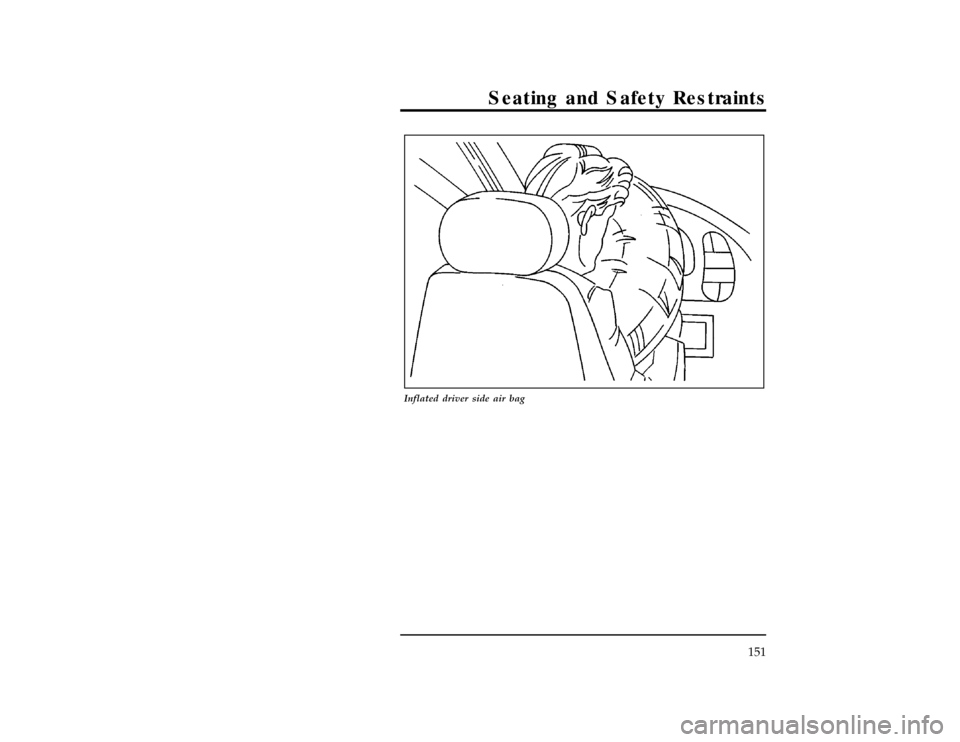

Inflated driver side air bag
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

152
[SS13426(ALL)05/96]
half page art:0040297-A

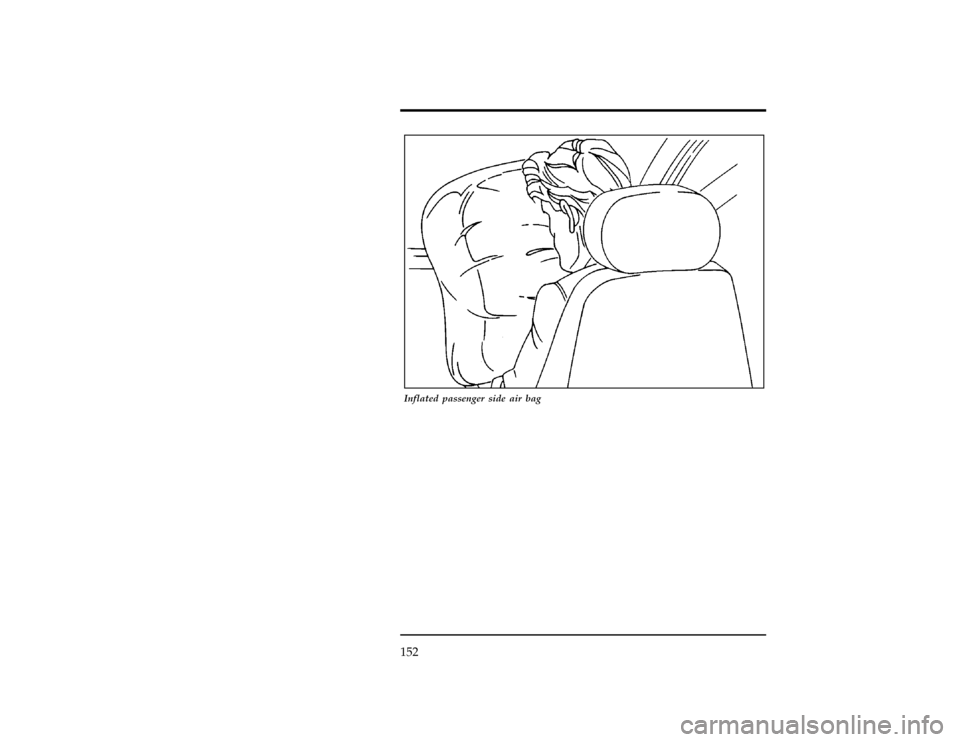

Inflated passenger side air bag
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
153
*
[SS13430(ALL)05/96]
Determining If System Is Operational
*
[SS13440(ALL)05/96]
The Air Bag Supplemental Restraint System uses a readiness
light and a tone to indicate the condition of the system. The
readiness light is in the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for approximately
six (6) seconds and then turn off. This indicates that the system
is operating normally. NOTE: Routine maintenance of the air
bag system is not required.
%*
[SS13450(ALL)05/96]
A problem with the system is indicated by one or more of the
following:
*
[SS13460(ALL)05/96]
n
the readiness light will either flash or stay lit,
*
[SS13470(ALL)05/96]
n
the readiness light will not light immediately after ignition is
turned on,
%*
[SS13480(ALL)05/96]
n
a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
*
[SS13500(ALL)05/96]
If any of these things happen, even intermittently, have the Air
Bag Supplemental Restraint System serviced at your Ford or
Lincoln-Mercury dealer immediately. Unless serviced, the system
may not function properly in the event of a collision.
*
[SS13525(ALL)05/96]
Disposal of Air Bags and Air Bag Equipped Vehicles
*
[SS13550(ALL)05/96]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bags MUST BE
disposed of by qualified personnel.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

154
%*
[SS13970(ALL)01/96]
Safety Restraints for Children
*
[SS13980(ALL)01/96]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
*
[SS13990(ALL)05/96]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SS14000(ALL)01/96]
RWARNING
To prevent the risk of injury, make sure children sit
where they can be properly restrained.
*
[SS14100(ALL)05/96]
RWARNING
It is extremely dangerous to ride in a cargo area, inside
or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed. Do not allow people to ride in any area of your
vehicle that is not equipped with seats and safety belts.
Be sure everyone in your vehicle is in a seat and using a
safety belt properly.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
155
[SS14150(ALL)01/96]
RWARNING
Whenever possible, put children in one of the rear seats
in your vehicle. Accident statistics indicate that children
are safer when properly restrained in the rear seats than
in the front seats.
*
[SS14901(ALL)05/96]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SS14920(ALL)05/96]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SS14930(ALL)05/96]
RWARNING
Do not leave children, unreliable adults, or pets
unattended in your vehicle.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

156
%*
[SS15100(ALL)01/96]
Safety Seats for Children
*
[SS15200(ALL)01/96]
Use a safety seat that is recommended for the size and weight
of the child. Always follow the safety seat manufacturer's
instructions when installing and using the safety seat.
*
[SS15300(ALL)01/96]
Ford recommends the use of a child safety seat having a top
tether strap. Install the child safety seat in a seating position
which is capable of providing a tether anchorage. For more
information on top tether straps seeAttaching Safety Seats With
Tether Strapsin this chapter.
[SS15320(ALL)05/96]
When installing a child safety seat, be sure to use the correct
safety belt buckle for that seating position, make sure the
tongue is securely fastened in the buckle and there is tension in
the belt. For a shoulder/lap belt combination with a sliding
tongue, make sure the retractor is in the automatic locking
mode. For more information, seeUsing the Automatic Locking
Mode Retractor to Secure a Child Safety Seatlater in this chapter.
*
[SS15321(ALL)05/96]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
157
*
[SS15325(ALL)05/96]
RWARNING
Rear-facing child seats or infant carriers should never be
placed in the front seats.
*
[SS15327(ALL)03/96]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
[SS15330(ALL)01/96]
The passenger side quick-release second row bucket seat is
adjustable along a track and may be adjusted very close to the
front passenger seat to allow easier entry and exit to third row
seats.
[SS15335(ALL)01/96]
RWARNING
The quick-release seat must be adjusted to the rearmost
position when using an untethered forward-facing child
safety seat.
[SS15340(ALL)01/96]
RWARNING
The third row seat must be adjusted to the rearmost
position when using an untethered forward facing child
safety seat.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

158
*
[SS15350(ALL)05/96]
RWARNING
Always keep the buckle release button pointing upward
and away from the child seat, with the tongue between
the child seat and the release button as shown in the
following illustration.
*
[SS15360(ALL)05/96]
RWARNING
Failure to follow all instructions on the proper use of
child seats or the vehicle restraint systems can result in
serious injury or death in the event of a sudden stop or
collision.
[SS15420(ALL)01/96]
17-1/2 pica
art:0040316-A
Safety belt buckle placement for child seats
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
159
[SS18250(ALL)01/96]
Using the Automatic Locking Mode
Retractor to Secure a Child Safety Seat
[SS19770(ALL)04/96]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for the front passenger seat and rear outer seats. The
automatic locking modemust be usedwhen installing a child
seat or infant carrier in the front passenger seat or rear outer
seats.
[SS19790(ALL)01/96]
To install a child safety seat or infant carrier, follow these steps:
[SS19830(ALL)01/96]1.
Position the child seat or infant carrier in the vehicle seat. If
you are using the moveable third row seat in the third row
position, the passenger side second row bucket seat, or the
front passenger seat, slide the seat to the rearmost position.
[SS19840(ALL)01/96]2.
Follow the child seat or infant carrier manufacturer's
instructions. Route the safety belt through the child seat or
infant carrier and insert the safety belt tongue into the
buckle until you hear and feel the latch engage. Be sure to
follow the child safety seat manufacturer's instructions for
belt routing.
