Mercury Villager 1997 Owner's Manuals

130
[SS00190(ALL)01/96]
Rear Seat Cupholders (available on some models)
[SS00192(ALL)01/96]
Your vehicle may also have rear seat cupholders built into the
side panels.
[SS00194(ALL)01/96]
RWARNING
Objects stored on the ledges below the rear side
windows can become dangerous projectiles during a
sudden stop or collision. Put small objects only in the
storage compartments.
[SS00196(ALL)01/96]
Third Row Seat Storage Compartment (If equipped)
[SS00198(ALL)01/96]
Your vehicle may come equipped with a folding
cupholder/storage tray/storage compartment built into the
passenger's side of the third row seat. Find the indented ledge
on the right of the cupholder and pull it up to reveal the
storage compartment.
[SS00200(ALL)01/96]
Power Point Electrical Outlet (If equipped)
[SS00202(ALL)01/96]
Your vehicle may be equipped with a 12 volt power point
outlet located just below the rear seat audio controls. The power
point can be used in place of the cigarette lighter for optional
electrical accessories.
[SS00204(ALL)05/96]
NOTE: Do not plug the cigarette lighter into this power point
electrical outlet. Use the cigarette lighter.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
131
%*
[SS00600(ALL)02/96]
Important Safety Belt Information
*
[SS00700(ALL)05/96]
The use of safety belts helps to restrain you and your
passengers in case of a collision. In most states and in Canada,
the law requires their use.
*
[SS00800(ALL)02/96]
Safety belts provide best restraint when:
*
[SS00900(ALL)02/96]
n
the seatback is upright
*
[SS01000(ALL)02/96]
n
the occupant is sitting upright (not slouched)
*
[SS01100(ALL)02/96]
n
the lap belt is snug and low on the hips
*
[SS01200(ALL)02/96]
n
the shoulder belt is snug against the chest
*
[SS01300(ALL)02/96]
n
the knees are straight forward
*
[SS01400(ALL)02/96]
To help you remember to fasten your safety belt, a warning
light may come on and a chime may sound. SeeSafety Belt
Warning Light and Chimein theInstrumentationchapter.
*
[SS01900(ALL)02/96]
See the following sections in this chapter for directions on how
to properly use these safety belts. Also seeSafety Restraints for
Childrenin this chapter for special instructions about using
safety belts for children.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

132
*
[SS02000(ALL)02/96]
RWARNING
Always drive and ride with your seatback upright and
the lap belt snug and low across the hips.
*
[SS02050(ALL)05/96]
RWARNING
Each seating position in your vehicle has a specific safety
belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the
shoulder belt on the outside shoulder only. Never wear
the shoulder belt under the arm. 2) Never swing it
around your neck over the inside shoulder. 3) Never use
a single belt for more than one person.
*
[SS02100(ALL)01/96]
RWARNING
Never drive or ride with a twisted or jammed safety belt.
If you cannot untwist or unjam the safety belt, see the
nearest qualified technician immediately.
*
[SS02200(ALL)05/96]
RWARNING
Children should always ride with the seatback in the
fully upright position.
*
[SS02700(ALL)02/96]
RWARNING
Lock the doors of your vehicle before driving to lessen
the risk of the door coming open in a collision.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
133
%*
[SS10000(ALL)02/96]
Combination Lap and Shoulder Belts
[SS10050(ALL)01/96]
While your vehicle is in motion, the combination lap and
shoulder belt adjusts to your movement. However, if you brake
hard, turn hard, or if your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt locks and helps to
reduce your forward movement.
*
[SS10200(ALL)01/96]
After you get into your vehicle, close the door and lock it. Then
adjust the seat to the position that suits you best.
[SS10400(ALL)01/96]
To fasten the belt, pull the combination lap and shoulder belt
from the retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt is not twisted.
If it is, remove the twist. Insert the belt tongue into the proper
buckle until you hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by pulling on tongue.
[SS10420(ALL)01/96]
10-1/2 pica
art:0040315-A
Fastening the front seat combination lap and shoulder belt
[SS10430(ALL)01/96]
NOTE: Be sure to read and understandImportant Safety Belt
Informationat the beginning of this chapter.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

134
[SS10450(ALL)01/96]
7-1/2 pica art:0040314-A

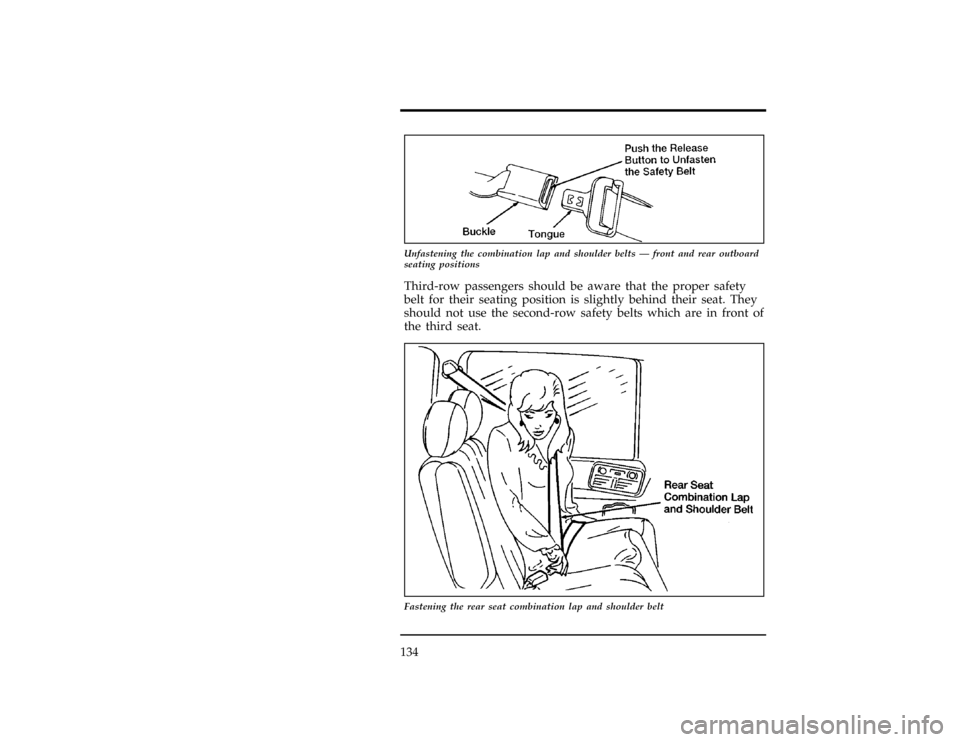

Unfastening the combination lap and shoulder belts Ð front and rear outboard
seating positions
[SS10500(ALL)01/96]
Third-row passengers should be aware that the proper safety
belt for their seating position is slightly behind their seat. They
should not use the second-row safety belts which are in front of
the third seat.
[SS10600(ALL)01/96]
17-1/2 pica
art:0040004-A
Fastening the rear seat combination lap and shoulder belt
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
135
*
[SS10800(ALL)01/96]
To tighten the lap portion of the belt, pull up on the shoulder
belt until it fits you snugly. The belt should rest as low on your
hips as possible.
[SS10850(ALL)01/96]
The passenger seated near the sliding door in the
three-passenger bench seat can route the safety belt webbing
under the guide located on the head restraint. This safety belt
guide is designed to help keep the safety belt webbing properly
positioned across the passenger's chest for maximum comfort.
This guide is only needed when the two-passenger second row
bench seat is removed and the three-passenger bench seat is
moved up to the second-row position.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

136
[SS10900(ALL)01/96]
27-1/2 pica
art:0040029-A

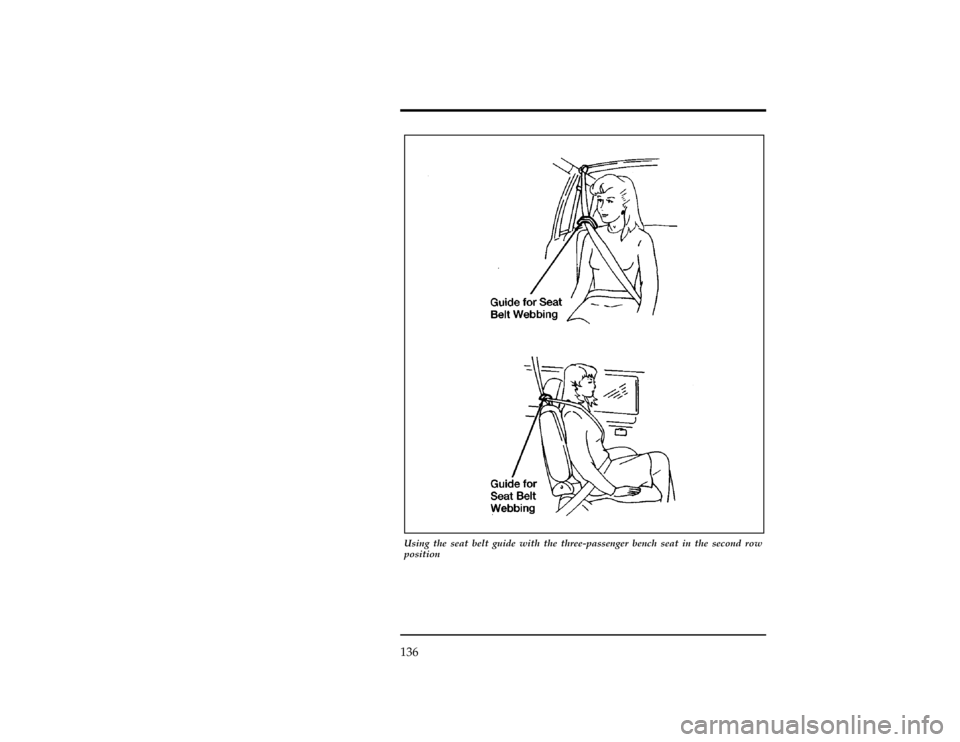

Using the seat belt guide with the three-passenger bench seat in the second row
position
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
137
[SS11100(ALL)01/96]
NOTE: The second row two-passenger bench seat has a
unique safety restraint system. If your vehicle has the
two-passenger bench seat it is very important that the
unique safety belt system is used properly. Please
readAuxiliary safety restraint system for the second
row bench seatin this section, which explains the
unique safety belt system. Be sure that you
understand it before anyone rides in the
two-passenger bench seat.
[SS11115(ALL)01/96]
Passenger Outboard Lap/Shoulder Belts
[SS11117(ALL)01/96]
All seats except the driver's seat and the third seat middle
position are equipped with a dual locking mode retractor on the
shoulder belt portion of the lap/shoulder safety belt. (The
driver's seat has only a vehicle sensitive locking mode and the
third seat middle position has a lap belt without a retractor
Ðdescription follows.)
[SS11125(ALL)01/96]
Dual Locking Mode Retractors Operate in Two Ways:
*
[SS11130(ALL)02/96]
Vehicle sensitive (emergency) locking mode
*
[SS11140(ALL)01/96]
In this operating mode, the shoulder belt retractor will allow the
occupant freedom of movement, locking tight only on hard
braking, hard cornering or impacts of approximately 5 mph
(8 km/h) or more.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

138
%*
[SS11150(ALL)02/96]
Automatic locking mode
*
[SS11160(ALL)01/96]
In this operating mode, the shoulder belt retractor will be
automatically locked and will remain locked when the
combination lap/shoulder safety belt is buckled, and does not
allow the occupant freedom of movement. This mode provides
the following:
*
[SS11163(ALL)01/96]
n
A tight lap/shoulder belt on the occupant.
*
[SS11165(ALL)01/96]
n
Child safety seat installation.
*
[SS11180(ALL)05/96]
RWARNING
Rear-facing child seats or infant carriers should never be
placed in the front seats.
*
[SS11190(ALL)01/96]
This modemust be usedwhen installing a child safety seat on
the front passenger seat and rear outboard seats where dual
locking retractors are provided.
*
[SS11200(ALL)01/96]
To switch the retractor from the emergency locking mode to the
automatic locking mode, perform the following steps:
*
[SS11210(ALL)02/96]1.
Buckle the lap/shoulder combination belt.
*
[SS11220(ALL)01/96]2.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and, when allowed to retract,
a clicking sound is heard. At this time, the belt retractor is in
the automatic locking mode (child restraint mode).
*
[SS11230(ALL)02/96]3.
A clicking sound will continue to be heard as the belt is
allowed to retract. This indicates that the retractor is in the
automatic locking mode.
File:06vxssn.ex
Update:Thu Jun 6 10:54:22 1996

Seating and Safety Restraints
139
*
[SS11240(ALL)05/96]
NOTE: When the combination lap/shoulder belt is unbuckled
and allowed to retract completely, the retractor will
switch to the vehicle sensitive (emergency) locking
mode. See the detailed instructions underSafety Seats
for Childrenin this chapter.
%*
[SS11250(ALL)01/96]
Shoulder Belt Height Adjustment
*
[SS11260(ALL)05/96]
Driver and right front passenger
*
[SS11270(ALL)01/96]
You can adjust the shoulder belt height to one of five (5)
positions.
[SS11280(ALL)05/96]
To adjust the belt down, pinch the release button and slide the
adjuster down. To adjust the belt up, pinch the release button
and slide the adjuster up.
*
[SS11285(ALL)05/96]
Make sure the adjuster is firmly in one of the five positions. The
belt should be adjusted up or down until the belt rests across
the middle of your shoulder.
[SS11288(ALL)01/96]
10-1/2 pica
art:0040317-A
The shoulder belt height adjuster
