stop start MINI COOPER 2009 User Guide

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
127

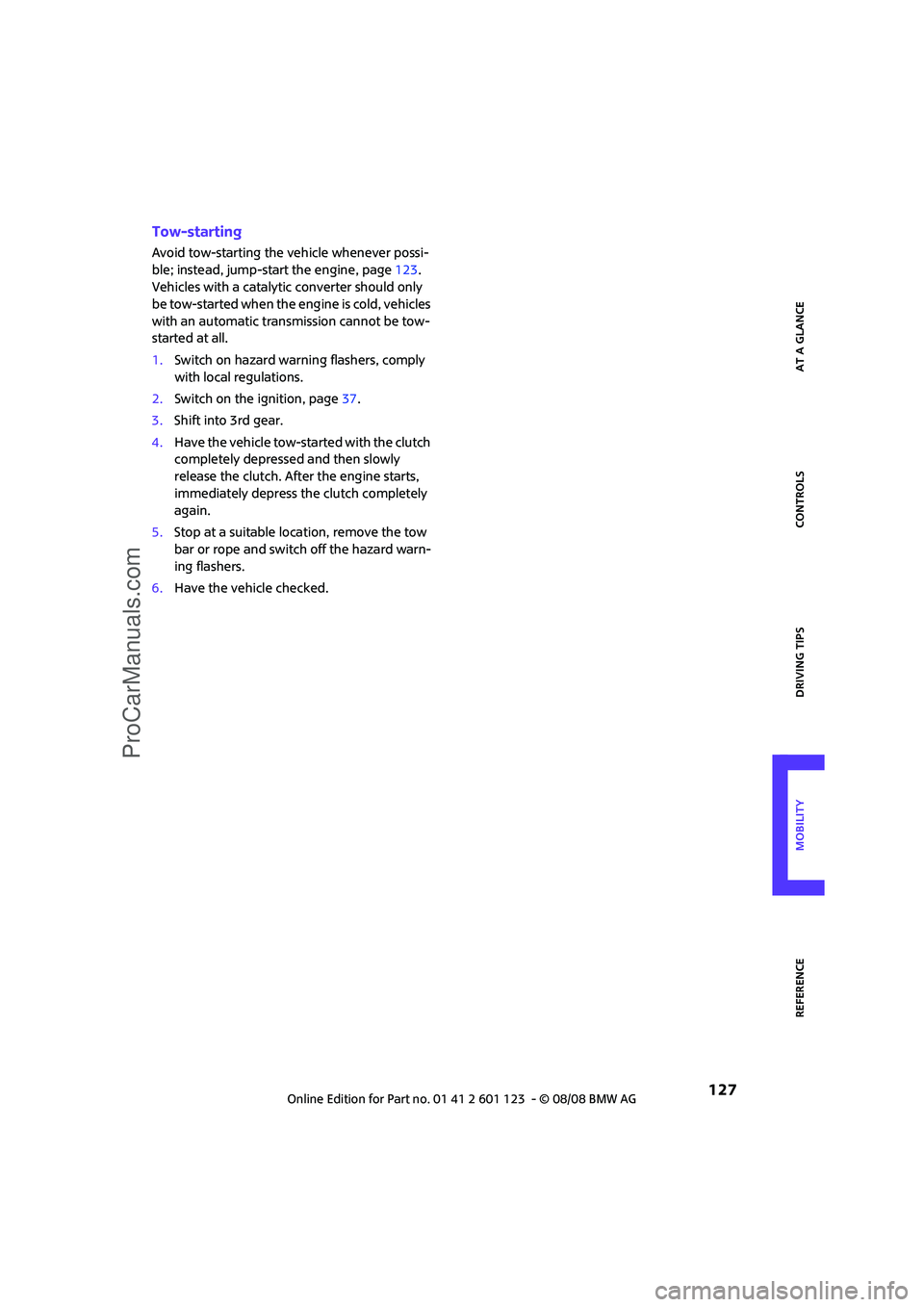

Tow-starting
Avoid tow-starting the vehicle whenever possi-
ble; instead, jump-start the engine, page123.
Vehicles with a catalytic converter should only
be tow-started when the engine is cold, vehicles
with an automatic transmission cannot be tow-
started at all.
1.Switch on hazard warning flashers, comply
with local regulations.
2.Switch on the ignition, page37.
3.Shift into 3rd gear.
4.Have the vehicle tow-started with the clutch
completely depressed and then slowly
release the clutch. After the engine starts,
immediately depress the clutch completely
again.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
ProCarManuals.com

Indicator and warning lamps
130
Window washer fluid level too low Add washer fluid as soon as possible,
page44.
Lights up in yellow:
The engine will start the next time the
start/stop button is touched, possibly
without the brake or clutch being
depressed
Remote control malfunctioning or, in
cars with convenient access, not
detectedThe engine cannot be started. Have
the remote control checked, if neces-
sary.
Battery in remote control discharged Use the remote control for a longer
journey or, in cars with convenient
access, replace the battery.
Belt tensioners and/or airbag system
failedHave the system checked immedi-
ately. Fasten the safety belts anyway.
Power steering failed You can continue your journey, but
moderate your speed and exercise
due caution. Steering response will be
markedly different. Have the system
checked without delay.
Lights up:
Emergency calling system failed or
malfunctioningHave the system checked as soon as
possible.
Lights up in red:
Engine malfunction
Stop the car and switch off the
engine. You cannot continue your
journey. Contact your MINI Dealer.
Lights up in yellow:
Full engine power no longer available You can continue your journey, but
moderate your speed and exercise
due caution. Have the engine
checked as soon as possible.
12Cause What to do
ProCarManuals.com

Indicator and warning lamps
132
Indication in Canadian models
Parking brake applied
Indication in US models
Lights up in red:
Brake fluid level too low Brake pedal travel may be markedly
longer. Stop immediately. Contact the
nearest MINI Dealer.
Lights up in yellow:
Hill Start Assist failed. The car will not
be held in place after the brake is
releasedHave the system checked as soon as
possible.
Indication in Canadian models
Lights up in red:
Brake fluid level too low Brake pedal travel may be markedly
longer. Stop immediately. Contact the
nearest MINI Dealer.
Lights up in yellow:
Hill Start Assist failed. The car will not
be held in place after the brake is
releasedHave the system checked as soon as
possible.
Indication in US models
Brake pads worn Have the condition of the brake pads
checked without delay.
Indication in Canadian models
Brake pads worn Have the condition of the brake pads
checked without delay.
12Cause What to do
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
135
Vehicles with Flat Tire Monitor*
Light up in yellow and red:
>Tire damageCarefully bring the car to a stop.
Observe the information starting on
page59.
>Flat Tire Monitor not initializedInitialize Flat Tire Monitor, page59.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicatedHave the system checked.
Vehicles with Tire Pressure Monitor
*
Light up in yellow and red:
There is a flat tire or substantial loss
in tire pressureCarefully bring the car to a stop.
Observe the information starting on
page61.
Vehicles with Tire Pressure Monitor
*
Light up in yellow:
Tire Pressure Monitor not initializedInitialize the Tire Pressure Monitor,
page62.
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
Tire Pressure Monitor failed. Punc-
tures are not indicatedHave the system checked. Observe
the information starting on page62.
12Cause What to do
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
137
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page37.
Lights up in red:
Electric steering wheel lock malfunc-
tioningThe engine can no longer be started. If
applicable, do not switch off the
engine. Contact your MINI Dealer.
Lights up in yellow:
Electric steering wheel lock engaged Move the steering wheel before start-
ing the engine.
Cruise control system failed Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failedHave the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page105.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI Dealer.
12Cause What to do
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
153
Securing the vehicle
– from inside22
– from outside19
Selector lever
– automatic transmission with
Steptronic40
Selector lever lock
– automatic transmission with
Steptronic, refer to
Shiftlock40
– overriding manually41
Selector lever positions
– automatic transmission with
Steptronic40
Service car, refer to Roadside
Assistance123
Service data in the remote
control107
Service Interval Display, refer
to Condition Based Service
CBS107
Service, refer to Roadside
Assistance123
Service requirement display,
refer to Condition Based
Service CBS107
Service requirements52
Settings
– clock, 12h/24h mode50
Shifting gears
– automatic transmission with
Steptronic40
– manual transmission39
Shiftlock
– automatic transmission, refer
to Changing selector lever
positions40
Side airbags64
Side turn signal indicator
– replacing bulb116
Side windows, refer to
Windows28
Signal horn, refer to Horn10
Sitting safely29
– airbags29
– safety belts29
– with head restraint29
Size, refer to Dimensions143Sliding/tilt sunroof
– refer to Glass sunroof,
electric27
Slot for remote control37
Smokers' package, refer to
Ashtray81
Snap-in adapter, refer to
Center armrest storage
compartment79
Snow chains102
Socket for Onboard Diagnosis
OBD107
Socket, refer to Connecting
electrical appliances81
Space-saver spare tire
– changing tires119
– inflation pressure94
Spare wheel, refer to Space-
saver spare tire119
Special oils, refer to Approved
engine oils105
Speed142
– with winter tires102
Speed control, refer to Cruise
control45
Speedometer12
Split rear seat backrest, refer to
Expanding the cargo bay86
Sport button59
Stability control, refer to
Driving stability control
systems56
Start/stop button37
– starting the engine38
– switching off the engine38
Starting assistance, refer to
Jump starting123
Starting, refer to Starting the
engine38
Starting the engine
– start/stop button37
Start-off assistance, refer to
– DSC57
– Hill Start Assist58
Status of this Owner's Manual
at time of printing4Steering wheel34
– adjustment34
– buttons on steering wheel11
– lock37
– shift paddles41
Steptronic, refer to Automatic
transmission with
Steptronic39
Storage area
– cargo bay86
Storage compartment, front
passenger side80
Storage compartments80
Storage space
– storage compartments80
Storing the vehicle112
Storing tires102
Stowage, refer to Storage
compartments80
Summer tires, refer to Wheels
and tires94
Switches, refer to Cockpit10
Switching off
– engine38
Switching off the engine
– start/stop button37
Switching the cooling function
on and off76
Symbols4
T
Tachometer47
Tail lamp, refer to Tail
lamps116
– replacing bulb116
Tail lamps116
– replacing bulbs in MINI116
Tailgate23
– convenient access26
– opening from outside23
– opening/closing23
– unlocking with remote
control21
Tank volume, refer to
Capacities144
Technical data142
Technical modifications4
ProCarManuals.com
