mirror controls MINI COOPER 2011 Owners Manual

AT A GLANCECockpit
10
Cockpit
Around the steering wheel: controls and displays
1Adjusting the exterior mirrors, folding them
in and out
*41
2
Parking lamps 78
Low beams 78
Automatic headlamp control
*78
Adaptive Light Control
*80
Turn signals 51
High beams 81
Headlamp flasher 51
Roadside parking lamps
*81
Computer
*57

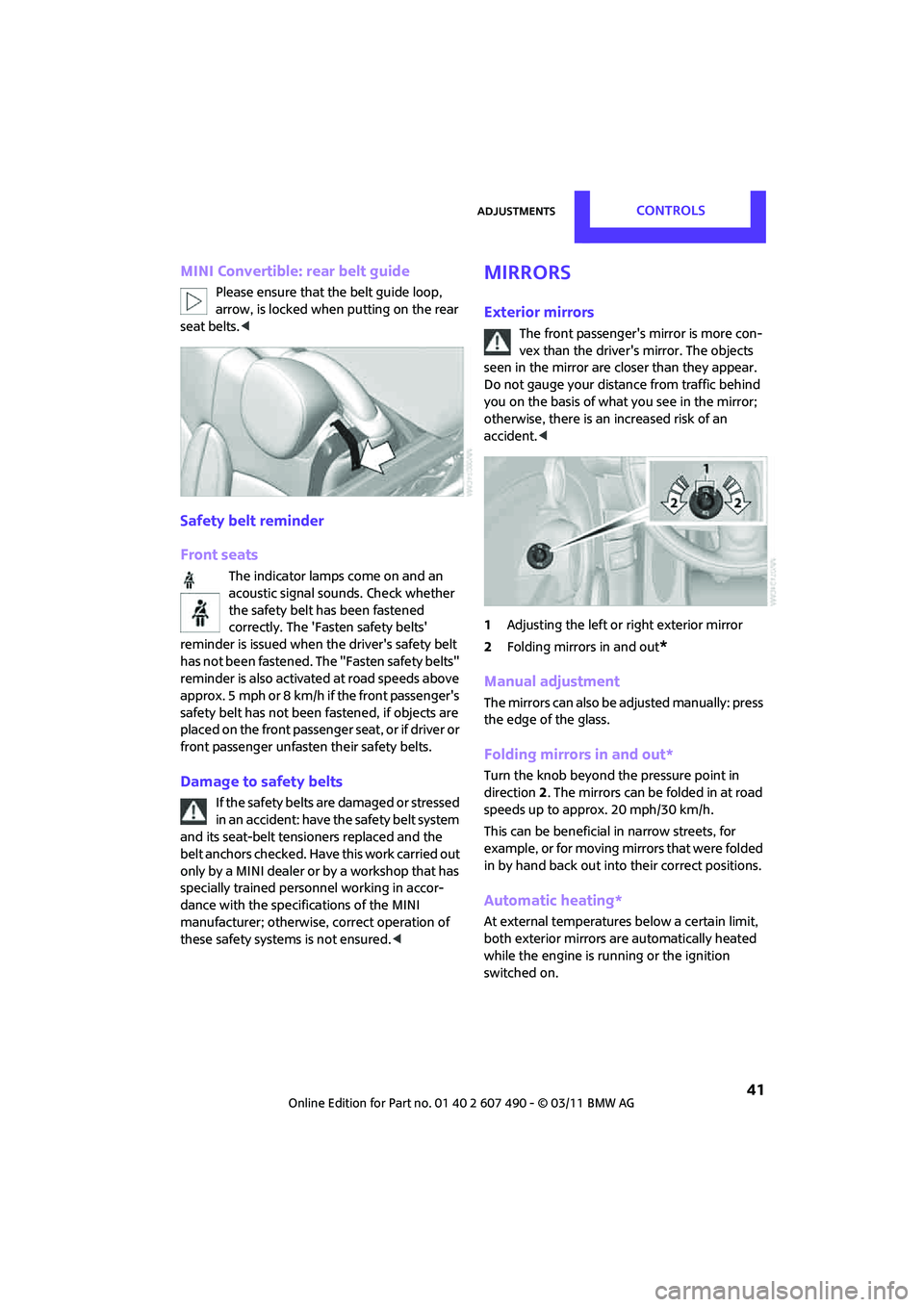

AdjustmentsCONTROLS
41
MINI Convertible: rear belt guide
Please ensure that the belt guide loop,
arrow, is locked when putting on the rear
seat belts.<
Safety belt reminder
Front seats
The indicator lamps come on and an
acoustic signal so unds. Check whether
the safety belt has been fastened
correctly. The 'Fasten safety belts'
reminder is issued when the driver's safety belt
has not been fastened. Th e "Fasten safety belts"
reminder is also activate d at road speeds above
approx. 5 mph or 8 km/h if the front passenger's
safety belt has not been fastened, if objects are
placed on the front passenger seat, or if driver or
front passenger unfasten their safety belts.
Damage to safety belts
If the safety belts are damaged or stressed
in an accident: have the safety belt system
and its seat-belt tensio ners replaced and the
belt anchors checked. Have this work carried out
only by a MINI dealer or by a workshop that has
specially trained personnel working in accor-
dance with the specifications of the MINI
manufacturer; otherwise, correct operation of
these safety systems is not ensured. <
Mirrors
Exterior mirrors
The front passenger's mirror is more con-
vex than the driver's mirror. The objects
seen in the mirror are closer than they appear.
Do not gauge your distance from traffic behind
you on the basis of what you see in the mirror;
otherwise, there is an increased risk of an
accident. <
1 Adjusting the left or right exterior mirror
2 Folding mirrors in and out
*
Manual adjustment
The mirrors can also be adjusted manually: press
the edge of the glass.
Folding mirrors in and out*
Turn the knob beyond the pressure point in
direction 2. The mirrors can be folded in at road
speeds up to approx. 20 mph/30 km/h.
This can be beneficial in narrow streets, for
example, or for moving mirrors that were folded
in by hand back out into their correct positions.
Automatic heating*
At external temperatures below a certain limit,
both exterior mirrors are automatically heated
while the engine is running or the ignition
switched on.

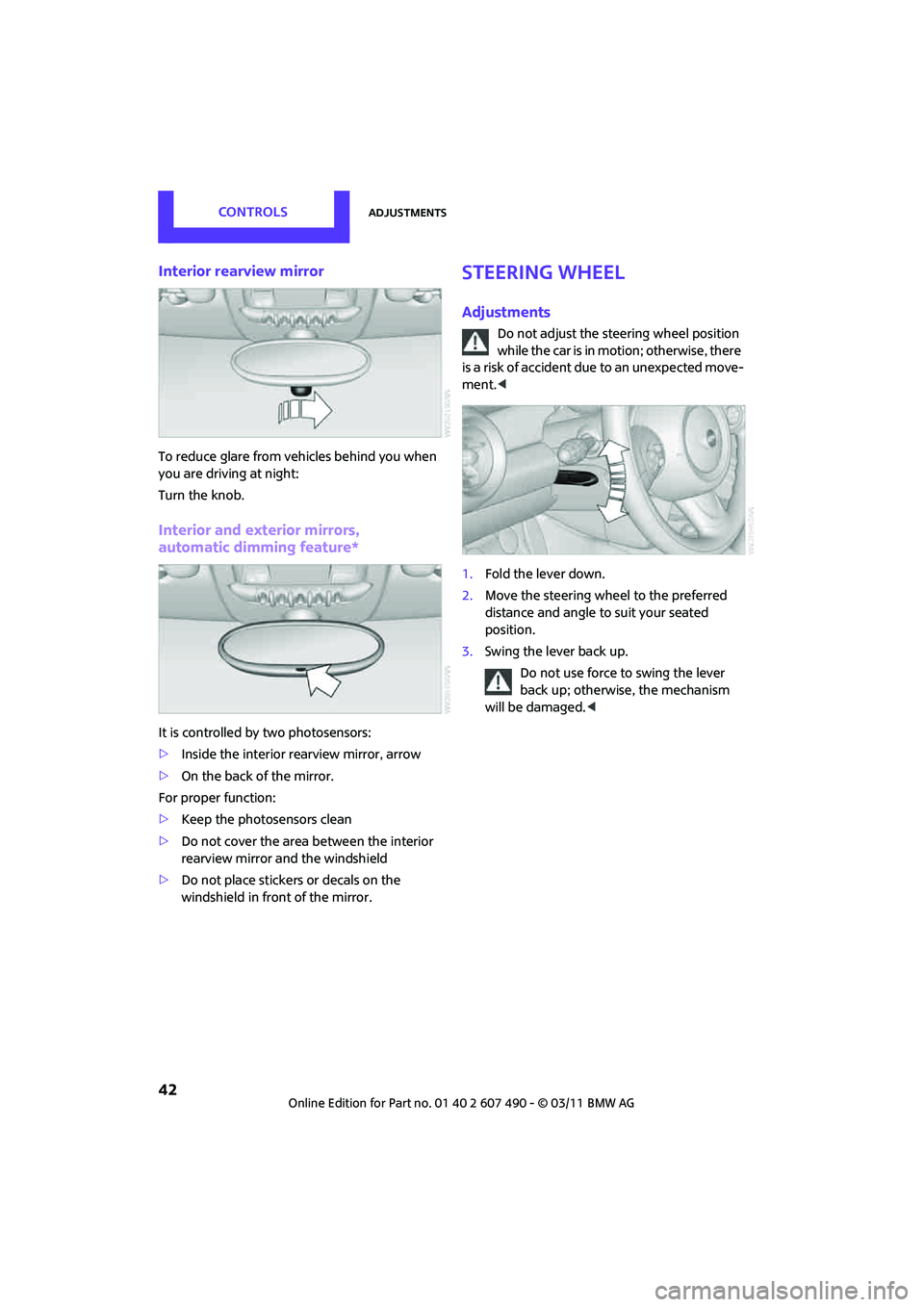

CONTROLSAdjustments
42
Interior rearview mirror
To reduce glare from vehicles behind you when
you are driving at night:
Turn the knob.
Interior and exterior mirrors,
automatic dimming feature*
It is controlled by two photosensors:
>Inside the interior rearview mirror, arrow
> On the back of the mirror.
For proper function:
> Keep the photosensors clean
> Do not cover the area between the interior
rearview mirror and the windshield
> Do not place stickers or decals on the
windshield in front of the mirror.
Steering wheel
Adjustments
Do not adjust the steering wheel position
while the car is in motion; otherwise, there
is a risk of accident du e to an unexpected move-
ment. <
1. Fold the lever down.
2. Move the steering wheel to the preferred
distance and angle to suit your seated
position.
3. Swing the lever back up.
Do not use force to swing the lever
back up; otherwise, the mechanism
will be damaged. <

CONTROLSDriving
52
Wiper system
1Switching on wipers
2 Switching off wipe rs or brief wipe
3 Activating/deactivating intermittent wipe or
rain sensor
*
4 Cleaning windshield and headlamps*
Switching on wipers
Press the lever upward, arrow 1.
The lever automatically returns to its initial
position when released.
Normal wiper speed
Press once.
The system switches to intermittent operation
when the vehicle is stationary.
Fast wiper speed
Press twice or press beyond the resistance point.
The system switches to normal speed when the
vehicle is stationary.
Intermittent wipe or rain sensor*
If the car is not equipped with a rain sensor, the
intermittent-wipe time is preset.
If the car is equipped with a rain sensor, the time
between wipes is contro lled automatically and
depends on the intensity of the rainfall. The rain
sensor is mounted on the windshield, directly in
front of the interior rearview mirror.
Activating intermittent wipe or rain
sensor
Press button, arrow 3.
This symbol is displayed in the
tachometer.
Deactivate the rain se nsor before entering
an automatic car wash. Failure to do so
could result in damage caused by undesired
wiper activation. <
Adjusting the sensitivity of the rain
sensor
1.Switch on the ignition, refer to page 46.
2. Briefly press the button in the turn signal
indicator repeatedly until "SET/INFO" is
displayed.
3. Press and hold the button until the display
changes.
4. Press the button as often as necessary until
the symbol and "SET" are displayed.

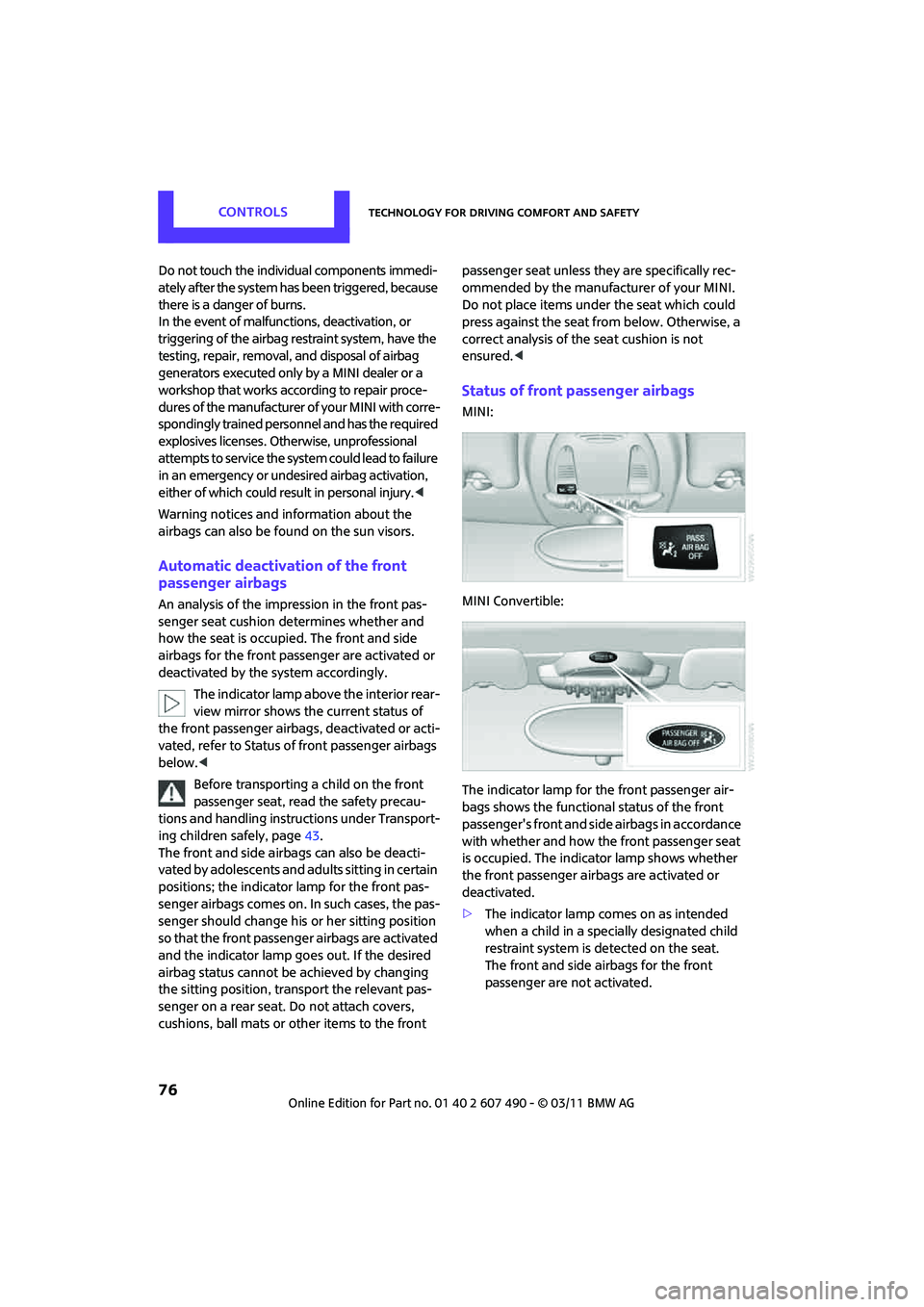

CONTROLSTechnology for driving comfort and safety
76
Do not touch the individual components immedi-
ately after the system has been triggered, because
there is a danger of burns.
In the event of malfunctions, deactivation, or
triggering of the airbag re straint system, have the
testing, repair, removal, and disposal of airbag
generators executed only by a MINI dealer or a
workshop that works acco rding to repair proce-
dures of the manufacturer of your MINI with corre-
spondingly trained person nel and has the required
explosives licenses. Otherwise, unprofessional
attempts to service the syst em could lead to failure
in an emergency or unde sired airbag activation,
either of which could resu lt in personal injury.<
Warning notices and information about the
airbags can also be found on the sun visors.
Automatic deactivation of the front
passenger airbags
An analysis of the impression in the front pas-
senger seat cushion de termines whether and
how the seat is occupied. The front and side
airbags for the front passenger are activated or
deactivated by the system accordingly.
The indicator lamp above the interior rear-
view mirror shows the current status of
the front passenger airbags, deactivated or acti-
vated, refer to Status of front passenger airbags
below. <
Before transporting a child on the front
passenger seat, read the safety precau-
tions and handling instructions under Transport-
ing children safely, page 43.
The front and side airbags can also be deacti-
vated by adolescents and ad ults sitting in certain
positions; the indicator lamp for the front pas-
senger airbags comes on. In such cases, the pas-
senger should change his or her sitting position
so that the front passeng er airbags are activated
and the indicator lamp goes out. If the desired
airbag status cannot be achieved by changing
the sitting position, transport the relevant pas-
senger on a rear seat. Do not attach covers,
cushions, ball mats or other items to the front passenger seat unless they are specifically rec-
ommended by the manufacturer of your MINI.
Do not place items unde
r the seat which could
press against the seat fr om below. Otherwise, a
correct analysis of th e seat cushion is not
ensured. <
Status of front passenger airbags
MINI:
MINI Convertible:
The indicator lamp for the front passenger air-
bags shows the functional status of the front
passenger's front and side airbags in accordance
with whether and how the front passenger seat
is occupied. The indica tor lamp shows whether
the front passenger airbags are activated or
deactivated.
> The indicator lamp co mes on as intended
when a child in a specially designated child
restraint system is detected on the seat.
The front and side airbags for the front
passenger are not activated.

Everything from A to ZREFERENCE
199
Indicator and warning lamps 13,173
– Tire Pressure Monitor TPM 73
Indicator lighting, refer to
Instrument lighting 82
Individual air distribution 86
Individual settings, refer to
Personal Profile 20
Inflation pressure monitoring, refer to Tire Pressure Monitor
TPM 72
Initializing
– Flat Tire Monitor FTM 70
– glass roof, electric 31
Instrument cluster, refer to Displays 12
Instrument lighting 82
Instrument panel, refer to Cockpit 10
Instrument panel, refer to Displays 12
Integrated key 20
Integrated universal remote control 89
Interior lamps 82
– remote control 23
Interior rearview mirror 42
– automatic dimming
feature 42
Interlock 49
Intermittent mode of the wipers 52
Internet page 4
J
Jacking points 167
Jets, refer to Window washer nozzles 53
Jumpering, refer to Jump- starting 169
Jump-starting 169
K
Key, refer to Keys/remote
controls 20
Keyless-Go, refer to Comfort Access 28
Keyless opening and closing,
refer to Comfort Access 28
Key Memory, refer to Personal Profile 20
Keypad dialing 124
Kickdown 49
– automatic transmission with
Steptronic 49
Knock control 133
L
Lamps, refer to Parking lamps/
Low beams 78
Lamps and bulbs, replacing bulbs 158
Lashing eyes, refer to Securing cargo 101
LATCH child restraint fixing
system 44
Leather care 155
LEDs light-emitting diodes 159
Length, refer to Dimensions 189
License plate lamp
– bulb replacement 162
Liftgate 26
– Comfort Access 29
– emergency operation 26
– manually releasing 26
– opening/closing 26
– opening from outside 26
– unlocking with remote
control 24
Light alloy wheels, care 155
Light-emitting diodes
LEDs 159
Lighter 93
– socket 93 Lighting
– lamps and bulbs
158
– of the instruments 82
– of vehicle, refer to Lamps 78
Light switch 78
Limit 185
Listening to test scan
– Radio MINI Boost CD 108
Load 100
Load securing equipment,
refer to Securing cargo 101
Lock buttons of doors, refer to
Locking 25
Locking
– adjusting confirmation signal 23
– from inside 25
– from outside 22
– without remote control, refer
to Comfort Access 28
Locking and unlocking doors
– confirmation signals 23
– from inside 25
– from outside 21
Longlife oils
– approved motor oils 149
Low beams 78
– automatic 78
– replacing bulb 159
Lower back suppo rt, refer to
Lumbar support 39
Luggage compartment
– emergency operation, refer
to
Manual unlocking 26
– increasing the capacity 99
– opening from the inside 26
Luggage compartment, refer to Cargo area 26
Luggage compartment lid,
refer to Liftgate 26
Luggage rack, re fer to Roof-
mounted luggage rack 102
Lumbar support 39
