width MINI Countryman 2012 Owner's Manual (Mini Connected)

Wheels and tiresMOBILITY
201
Tire identification marks
Knowledge of the labeling on the side of the tire
makes it easier to identify and choose the right
tires.
Tire size
Speed letter
Q = up to 100 mph/160 km/h
T = up to 118 mph/190 km/h
H = up to 131 mph/210 km/h
V = up to 150 mph/240 km/h
W = up to 167 mph/270 km/h
Y = up to 186 mph/300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of the
US Department of Transportation.
DOT code:
Uniform Tire Quality Grading
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Tread wear 200 Traction AA
Temperature A
DOT Quality Grades
Tread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades. <
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 γ) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, how-
ever, and may depart si gnificantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B, and C.
Those grades represent the tire's ability to stop
on wet pavement, as measured under con-
trolled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C
may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics. <
Temperature
The temperature grades are A, the highest, B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor labo ratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
e.g.
Nominal width in mm
Aspect
ratio in Ξ
Radial belt construction
Rim diameter in inches
Load rating,
(not on ZR tires)
Speed code letter,
(before the R on ZR tires)
225/45 R 17 91 V
For instance:
Manufacturer's code
for tire make
tire size and
tire design
Tire ageDOT xxxx xxx 1012
Online Edition for Part no. 01 40 2 914 849 - \251 07/12 BMW AG

CareMOBILITY
211
Care
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available because of, for example,
selected options or count ry version. This also
applies to safety related functions and systems.
Car-care products
Regular cleaning and care helps to maintain the
value of your MINI.
The manufacturer of your MINI recommends
using manufacturer-approved products to clean
and care for your vehicle.
Your MINI dealer would be pleased to advise
you on cleaning and care products and services
for your MINI.
The ingredients of original MINI Care
Products have been tested, and the
products have been tested in the laboratory and
in practice. They offer optimum care and protec-
tion for your vehicle.<
Do not use any cleansers containing
alcohol or solvents as these may cause
damage. <
Cleaning agents may contain hazardous
or health-damaging substances. Follow
the warning and hazard instructions on the
packaging. For interior cleaning, always open
the doors or windows of the vehicle.
Do not use any products that are not intended
for cleaning the vehicle. <
External care
Washing your vehicle
Especially during the winter months the
vehicle should be frequently washed. Dirt
and road salt can damage the vehicle.<
After washing the vehicle, apply the
brakes briefly to dry them; otherwise,
water can reduce braking efficiency over the
short term and the brake rotors can corrode. <
Car washes
Preference should be given to cloth car washes.
Do not use automatic high-pressure car
washes; otherwise, water may drip into
the vehicle around the windows. <
Before driving into the car wash, check if the
system is suitable for your MINI. Observe the
following points:
> Vehicle dimensions, page 233
> If necessary: fold in the outside mirrors,
page 42
> Maximum permissible tire width
Avoid car washes with tracks higher than
4 in/10 cm; otherwise, the chassis could
be damaged. <
Preparations for driving into the car wash:
> Unscrew the rod antenna.
> Deactivate the rain sensor to prevent
unintentional wiping.
> Deactivate rear window wiper and protect it
from damage. Ask the car wash operator
about measures that can be taken to protect
the wipers.
> Remove additional attachments, e.g.
spoilers or telephone antennas, if there is a
possibility that they could be damaged.
> Insert the remote control into the ignition
lock.
Online Edition for Part no. 01 40 2 914 849 - \251 07/12 BMW AG

Technical dataREFERENCE
233

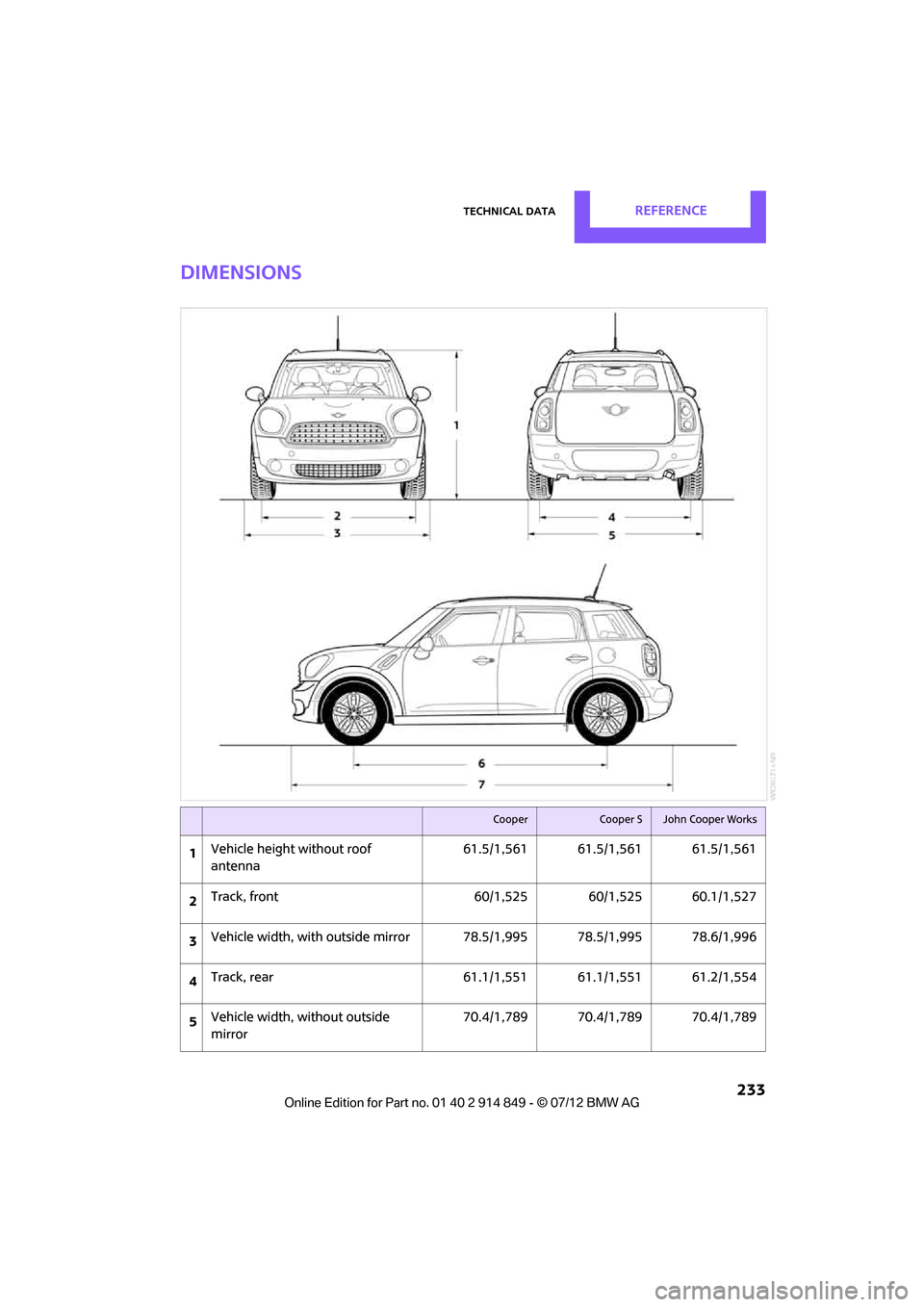

Dimensions
CooperCooper SJohn Cooper Works
1Vehicle height without roof
antenna 61.5/1,561 61.5/1,561 61.5/1,561
2 Track, front
60/1,525 60/1,525 60.1/1,527
3 Vehicle width, with outside
mirror 78.5/1,995 78.5/1,995 78.6/1,996
4 Track, rear
61.1/1,551 61.1/1,551 61.2/1,554
5 Vehicle width, without outside
mirror 70.4/1,789 70.4/1,789 70.4/1,789
Online Edition for Part no. 01 40 2 914 849 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
255
Telephone
– hands-free system166,178
– installation location, refer to Center armrest 94
– voice commands 178
Telephone receiving power, refer to Status
information 19
Temperature display
– setting the units 61
Temperature of coolant, refer to Coolant temperature 208
Temperature setting
– air conditioner 86
– automatic climate control 88
Tempomat, refer to Cruise
control 56
Tensioning straps, refer to Securing cargo 108
Text message 185
Third brake lamp, refer to Center brake lamp 219
Three-point safety belt 40
Tightening the lug bolts
– torque 223
Tightening torque, refer to Tightening lug bolts 223
Tire failure
– Flat Tire Monitor 74
– indicator/warning lamp 74
– MINI Mobility Kit 220
– run-flat tires 74
– Tire Pressure Monitor 75
Tire inflation pressure 196
– loss 74,75
Tire pressure monitoring, refer
to Flat Tire Monitor 73
Tire Pressure Monitor TPM 75
– limitations of system 75
– resetting system 76
– warning lamp 76
Tire Quality Grading 201Tires
– age
203
– breaking in 102
– changing, refe r to Changing
wheels 222
– condition 202
– damage 202
– inflation pressure 196
– inflation pressure loss 76
– minimum tread depth 202
– new tires 203
– pressure monitoring, refer to Flat Tire Monitor 73
– pressure monitoring, refer to Tire Pressure Monitor
TPM 75
– puncture 74
– size 201
– we ar

indicators, refer to
Minimum tread depth 202
– winter tires 204
– with emergency operation
properties 203
Tires with emergency operation properties, refer to
Run-flat tires 203
Tires with safety features, refer
to Run-flat tires 203
TMC station, refer to Traffic information 129
Tone
– middle setting 138
Tone during audio playback
– adjusting 137
Torque 232
– lug bolts 223
Tow bar 227
Tow fitting 227
– screw thread 227
Tow fittings for tow-starting and towing away 227
Towing 226
– car with automatic transmission 227
– methods 227 Tow rope
228
Tow-starting 226
TPM, refer to Tire Pressure Monitor 75
Track
– selecting on CD 147
Track width, refer to
Dimension 233
Traction control, refer to
– Dynamic Stability Control
DSC 70
Traffic bulletins
– categories 131
– filtering 131
Traffic congestion
– displaying traffic
information 129
– refer to Route, bypassing segments 126
Traffic information for navigation
– displaying 130
Traffic information in navigation
– screen display in the map
view 131
Transmission
– automatic transmission with
Steptronic 50
– manual transmission 50
– overriding selector lever lock for automatic transmission
with Steptronic 52
Transporting children safely 44
Transport securing devices, refer to Securing cargo 108
Tread depth, refer to Minimum tire tread 202
Treble, refer to Tone
control 137
Trip computer 60
Trip-dist a
n

ce counter, refer to
Trip odometer 59
Triple turn signal activation 53
Trip odometer 59
Online Edition for Part no. 01 40 2 914 849 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
256
Turning circle, refer to Dimensions 233
Turn signal 53
– front, replacing bulb 217
– indicator lamp 12,13
– rear, replacing bulb 218
– side, replacing bulb 218
Tying down load s, refer to
Cargo loading 108
U
Uniform Tire Quality Grading
UTQR 201
Units
– average fuel consumption 61
– temperature 61
Universal garage door opener, refer to Integrated universal
remote control 90
Universal remote control 90
Unlatching, refer to
Unlocking 33
Unlocking
– from inside 30
– from outside 27
– setting unlocking behavior 27
– tailgate 33
– without remote control, refer
to Comfort Access 32
Updating the navigation data 114
Upholstery, care 213
USB audio interface 150
USB interface 94
Using contact data 188
V
Vehicle
– battery223
– breaking in 102
– cargo loading 104
– dimensions 233
– identification number, refer to Engine compartment 205
– parking 49
– storage 214
– weight 234
Vehicle jack
– jacking points 222
Ventilation
– air conditioner 89
Ventilation, refer to Climate control 85
Vents, refer to Air vents 85
Vents, refer to Ventilation 89
Voice commands
– overview 21
– short commands 236
– telephone 178
Voice instructions for
navigation system 129
– repeating 129
– switching on/off 129
– volume 129
Voice phone book 179
Volume 136
– audio sources 136
– mobile phone 163,174
– voice instructions 129
Volume balance, tone setting 137
Volume of cargo area 234
W
Warning and indicator
lamps 13
Warning messages, refer to Check Control 65
Warning triangle 225
Washer/wiper system
– washer fluid 55
Washer fluid 55
– capacity of reservoir 55
Washer fluid reservoir 55
Waste tray, refer to Ashtray 97
Waterfall lighti ng, refer to
Ambient lighting 84
Water on roads, refer to
Driving through water 103
Waveband for radio 139
Wear indicators in tires, refer to
Minimum tread depth 202
Weights 234
Welcome lamps 81
Wheelbase, refer to Dimensions 233
Wheels, new 203
Wheels and tires 196
Width, refer to Dimensions 233
Windows 35
– closing 35
– convenience operation 28
– opening 35
– pinch protection system 36
– safety switch 36
Windows, indicator on Control Display 16
Window washer, refer to Washer fluid 55
Online Edition for Part no. 01 40 2 914 849 - \251 07/12 BMW AG
