GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-3
SEAT BELT TONE ALARM FUNCTION
If any of the following conditions is met with the igni-
tion switch at "ON" or "ST", the ETACS-ECU sounds
the tone alarm by using the driver's seat belt switch
signal and the vehicle speed signal sent from the
combination meter.
Sounds the tone alarm for six seconds when the
ignition switch is turned "ON" with the seat belt
switch on (the driver's seat belt is not fastened).
This is called "Timer function".
Sounds the tone alarm 12 cycles (after 0.5 sec-
onds) if any of the following conditions is met
when sixty seconds or more have elapsed since
the ignition switch is turned "ON". One cycle con-
sists of five-seconds "on" and then three-seconds
"off".
a. The vehicle speed has reached 8 km/h (5
mph) while the seat belt switch is turned on
(driver's seat belt is not fastened) with the
ignition switch "ON.
b. The seat belt switch has been turned on
(driver's seat belt has not been fastened) for
at least ten seconds while the ignition switch
has been turned "ON" and the vehicle speed
has been 8 km/h or more.
NOTE: Once the tone alarm has sounded 12
cycles, it does not sound again until the vehi-
cle speed reduces to 3 km/h (2 mph) or less
even if any of the following conditions is met.
The tone alarm stops sounding if the ignition
switch or the seat belt switch is turned off (the
driver's seat belt is fastened) while the timer
operation is active.
.
DOOR AJAR WARNING BUZZER
The buzzer is sounded 4 times by the ETACS-ECU
to warn the driver if any door is open when the igni-
tion is switched ON and the vehicle speed reaches 8
km/h or faster. The buzzer will continue to sound for
4 times even if the ignition, door status, or vehicle
speed requirements are not maintained.
.
MULTI CENTER DISPLAY OPERATION
TONE
The ETACS-ECU sounds the buzzer when the
buzzer signal is sent from the multi center display.
.
TURN-SIGNAL LAMP BUZZER
The ETACS-ECU sounds the buzzer in sync with the
turn-signal lamps or hazard warning lamps.
CENTRAL DOOR LOCKING SYSTEM
.
CENTRAL DOOR LOCKING SYSTEM
OPERATION

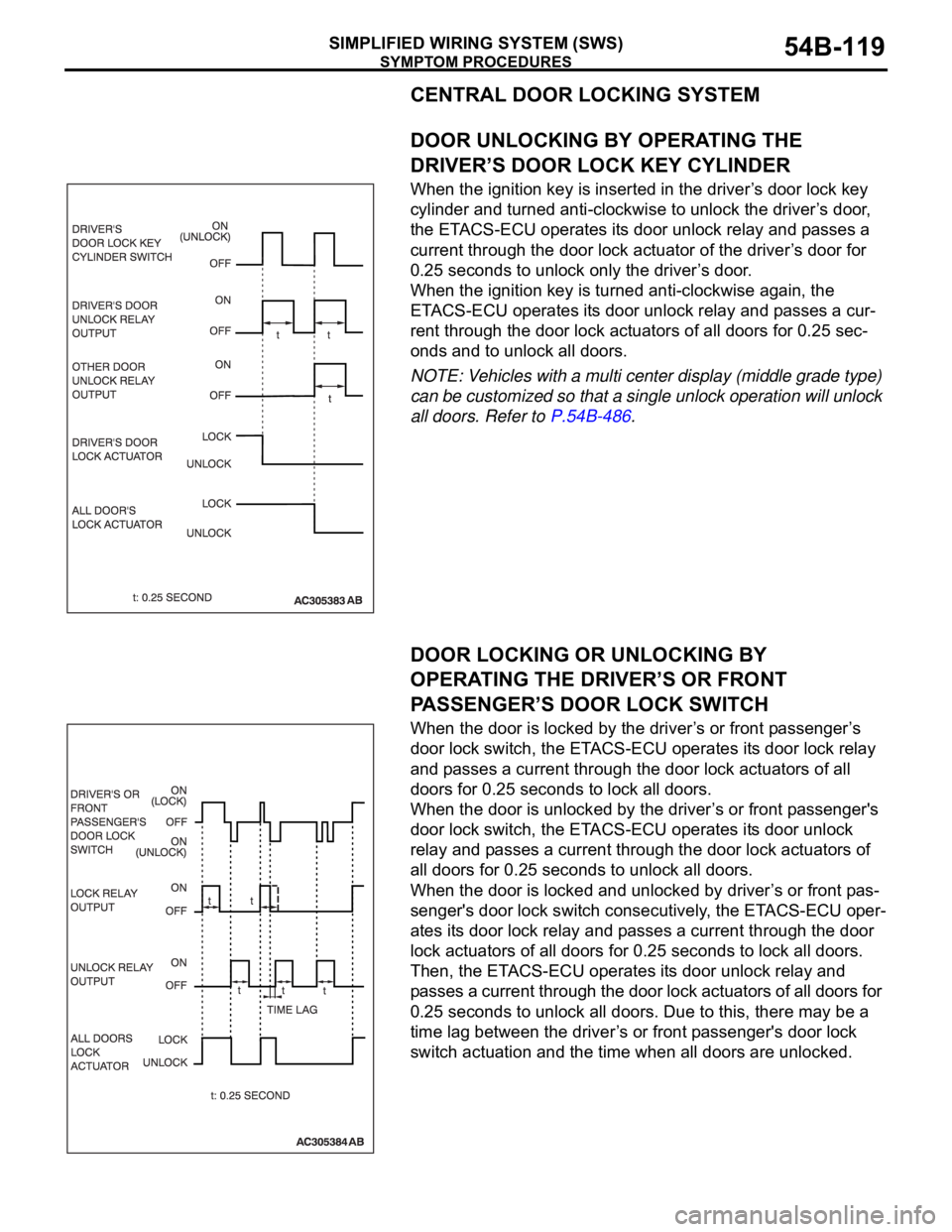

Door unlocking by operating the driver’s door lock
key cylinder:
When the ignition key is inserted in the driver’s
door lock key cylinder and turned clockwise to
unlock the driver’s door, the ETACS-ECU oper-
ates its door unlock relay and passes a current
through the door lock actuator of the driver’s door
for 0.25 seconds to unlock only the driver’s door.
When the ignition key is turned clockwise again,
the ETACS-ECU operates its door unlock relay
and passes a current through the door lock actu-
ators of all doors for 0.25 seconds and to unlock
all doors.
Door locking or unlocking by operating the driver’s or
front passenger’s door lock switch:
When the door is locked by the driver’s or front
passenger’s door lock switch, the ETACS-ECU
operates its door lock relay and passes a current
through the door lock actuators of all doors for
0.25 seconds to lock all doors.
When the door is unlocked by the driver’s or front
passenger's door lock switch, the ETACS-ECU
operates its door unlock relay and passes a cur-
rent through the door lock actuators of all doors
for 0.25 seconds to unlock all doors.
When the door is locked and unlocked by driver’s
or front passenger's door lock switch consecu-
tively, the ETACS-ECU operates its door lock
relay and passes a current through the door lock
actuators of all doors for 0.25 seconds to lock all
doors. Then, the ETACS-ECU operates its door
unlock relay and passes a current through the
door lock actuators of all doors for 0.25 seconds
to unlock all doors. Due to this, there may be a
time lag between the driver’s or front passenger's
door lock switch actuation and the time when all
doors are unlocked.

GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-4
.
FORGOTTEN KEY PREVENTION
FUNCTION
If the driver's door is locked while it is open and
when the key is still in the ignition key cylinder,
approximately 0.3 second later the ETACS-ECU
activates the unlock relay output for 0.25 second
to prevent the door from being locked with the
key inside the vehicle. In addition, if locking the
door was not prevented, a re-try current is sent
(an unlock relay output ON is sent for 0.25 sec-
ond up to 5 times including the first attempt).
If the passenger's door or driver's door are locked
while the passenger's door is open and when the
key is still in the ignition key cylinder, approxi-
mately 0.3 second later the ETACS-ECU acti-
vates the unlock relay output for 0.25 second to
prevent the door from being locked with the key
inside the vehicle. In addition, if locking the door
was not prevented, a re-try current is sent (an
unlock relay output ON is sent for 0.25 second up
to 5 times including the first attempt).
POWER WINDOW RELAY CONTROL
.
POWER WINDOW RELAY OPERATION
If the ignition switch is turned to "ON" or "ACC" posi-
tion, the power window relay is energized to activate
the power windows.
.
POWER WINDOW TIMER FUNCTION
Even after the ignition is switched off, the
ETACS-ECU keeps the power window relay acti-
vated for approximately 30 seconds, enabling raising
and lowering of the power windows by using the
power window switches. After approximately 30 sec-
onds, the power window relay is deactivated. During
this timed operation, if the driver or passenger doors
are opened, the power window relay is deactivated
from that moment.
KEYLESS ENTRY SYSTEM
.
KEYLESS ENTRY HAZARD ANSWER-
BACK FUNCTION
If the keyless entry transmitter is used to send a lock
signal to the ETACS-ECU, all doors, the liftgate, and
the glass hatch are locked and the hazard warning
lamps flash once. If an unlock signal is sent, the
driver's door is unlocked first, and if a second signal
is sent, all doors, the liftgate, and the glass hatch are
unlocked. Each time the unlock signal is sent, the
hazard warning lamps flash twice.
.
KEYLESS ENTRY HORN ANSWERBACK
FUNCTION
If the keyless entry transmitter is used to send 2 lock
signals to the ETACS-ECU, the first signal locks all
doors, while the second signal sounds the horn once.
.
TRUNK UNLOCK FUNCTION
Press the "TRUNK" button twice within 5 seconds
and the trunk lid will be unlocked.
.
TIMED LOCKING MECHANISM
After unlocking the doors with the keyless entry
transmitter, if no doors are opened or if the ignition
key is not inserted, the ETACS-ECU automatically
locks the doors in 30 seconds.
SUNROOF CONTROL
.
SUNROOF TIMER FUNCTION
The ETACS-ECU enables opening and closing of the
sunroof for 30 seconds after the ignition is switched
off. During this timed operation, if the driver's or front
passenger’s door is opened, the sunroof timer func-
tion is deactivated from that moment.
WINDSHIELD WIPERS AND WASHERS
.
LOW SPEED WIPER, HIGH SPEED WIPER
CONTROL
When the ignition switch in at the ACC or ON
position, and the windshield low speed wiper
switch of the column switch is turned ON, the
front-ECU turns ON the windshield wiper drive
signal, turns OFF (LO) the windshield wiper
speed relay, and operates the windshield wiper at
low speed.
When the windshield high speed wiper switch is
turned ON, the windshield wiper drive signal is
turned ON, the windshield wiper speed switching
relay is turned ON (HI), and the windshield wiper
is operated at high speed.
.

GENERAL DESCRIPTION
SIMPLIFIED WIRING SYSTEM (SWS)54B-5
INTERMITTENT CONTROL
ETACS-ECU uses the dial position of the variable
intermittent wiper control switch and the vehicle
speed signal sent by the combination meter to calcu-
late the interval to be sent to the front-ECU. The
front-ECU determines the intermittent time from the
input SWS data signal, and turns ON the windshield
wiper drive signal. When the wiper is at the STOP
position, the windshield wiper auto-stop signal goes
OFF to turn OFF the windshield wiper drive signal.
After the intermittent time from when the windshield
wiper drive signal turned ON, the windshield wiper
drive signal is turned ON again and the above opera-
tion is repeated.
.
MIST WIPER CONTROL
When the ignition switch is in the ACC or ON posi-
tion, and the windshield mist wiper switch of the col-
umn switch is turned ON, the front-ECU turns ON the
windshield wiper drive signal. At the same time, the
wiper speed switching relay is turned ON
(HIGH-SPEED). While the windshield mist wiper
switch is ON, the windshield wiper will operate at
high speed. Then, if the windshield mist wiper switch
is turned off, the wiper operates at low speed until it
stops at the predetermined park position.
When the windshield mist switch is turned on briefly,
the wiper operates once at low speed.
At the point the windshield mist switch is turned ON,
if the windshield wiper has been operating intermit-
tently, the same operations as the above will be per-
formed while the windshield mist wiper switch is ON.
After the windshield mist wiper switch goes OFF, the
intermittent operations will be set again after the
windshield wiper auto-stop signal last is turned ON.
.
WASHER CONTROL
When the ignition switch is in the ACC or ON posi-
tion, and the windshield washer switch of the column
switch is turned ON, the front-ECU turns ON the
windshield washer relay. The windshield wiper drive
signal is turned ON in 0.15 seconds until 2 seconds
after the windshield washer switch goes OFF to
operate the windshield wiper continuously. When the
windshield washer switch is turned ON, if the wind-
shield wiper is operating intermittently, intermittent
operations will be continued after continuous opera-
tions.
HEADLAMP
.
HEADLAMP AUTOMATIC SHUTDOWN
FUNCTION
Even if the lighting switch (tail lamp switch or
headlamp switch) is ON, the headlamps and tail
lamps will automatically go off in the following condi-
tions to prevent the battery from discharging:
When the ignition key is turned from "ON" to "LOCK"
(OFF) or "ACC" position with the lighting switch
turned ON, and this state continues for three min-
utes, the lamp will automatically be turned off. If the
driver's seat door is opened during these three min-
utes, the lamp will go off one second later.
.
HIGH-BEAM INDICATOR
At the same time that the high beams are illumi-
nated, the ETACS-ECU sends a signal to illuminate
the high-beam indicator via the CAN bus line. The
combination meter receives the transmitted signal
and turns the high-beam indicator on and off.
FLASHER TIMER
.
TURN-SIGNAL LAMP
The turn-signal lamp output (flashing signal) is
turned ON when the ignition switch is ON and the
turn-signal lamp switch is ON (LH or RH). If the front
turn-signal lamp or rear turn-signal lamp bulb has
burned out, the flashing speed increases to indicate
that the bulb has burned out.
.
HAZARD WARNING LAMP
Detects the signal where the hazard warning lamp
switch input changes from OFF to ON, and reverse
the flashing state according to this signal. The haz-
ard warning lamps toggle on and off whenever the
hazard warning lamp switch is operated.
.
TURN-SIGNAL INDICATORS
At the same time that the turn-signal lamps are illu-
minated, the ETACS-ECU sends a signal to illumi-
nate the turn-signal lamp indicator via the CAN bus
line. The combination meter receives the transmitted
signal and turns the turn-signal lamp indicator on and
off.

SWS DIAGNOSIS
SIMPLIFIED WIRING SYSTEM (SWS)54B-10
SWS DIAGNOSIS
GENERAL DESCRIPTION
BEFORE CARRYING OUT TROUBLESHOOTINGM1549014700710
Before carrying out troubleshooting, check the fol-
lowing two items.
Make sure that the ETACS-ECU, the junction
block (J/B), the front-ECU and the engine com-
partment relay box are connected securely.
Make sure that fuses and fusible links related to
relevant systems are not blown.
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
DIAGNOSTIC FUNCTIONM1549028900245
ON-BOARD DIAGNOSTICS
If an error occurs in the ECU or the SWS or CAN
communication line which performs the SWS or CAN
communication, the DTC is memorized in
ETACS-ECU. The DTCs have 11 items. The DTCs
are checked to connect diagnostic tool MB991958
(MUT-III sub assembly). The memorised DTCs are
not erased even if the ignition switch is turned to the
LOCK (OFF) position. The DTCs are erased to oper-
ate diagnostic tool MB991958 (MUT-III sub assem-
bly).NOTE:
*1: For vehicles that do not have a sunroof,
the diagnosis code is always sent but it does not indi-
cate a problem.
NOTE:
*2: The diagnosis code for the current prob-
lem is not sent.
NOTE:
*3: For vehicles that do not have a multi cen-
ter display (middle grade type), the diagnosis code is
always sent but it does not indicate a problem.
HOW TO CONNECT THE DIAGNOSTIC TOOL
(MUT-III)
Required Special Tools:
MB991958: DIAGNOSTIC TOOL (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: MUT-III USB Cable
MB991910: MUT-III Main Harness A DTC CODE TROUBLE CONTENT
001 or U1700 Malfunction of SWS communication line or ETACS-ECU
002 or U1701 Malfunction of column switch
003 or U1702 Malfunction of front-ECU
004
*1 or U1073Malfunction of sunroof-ECU
010
*2 or U1073Bus Off
011 or U1100 Engine ECU time-out
012 or U1101 A/T ECU time-out
013 or U1110 A/C-ECU time-out
014 or U1108 Combination meter time-out
015
*3 or U1111Multi center display unit time-out
021 or U1128 Failure information on combination meter

SYMPTOM PROCEDURES

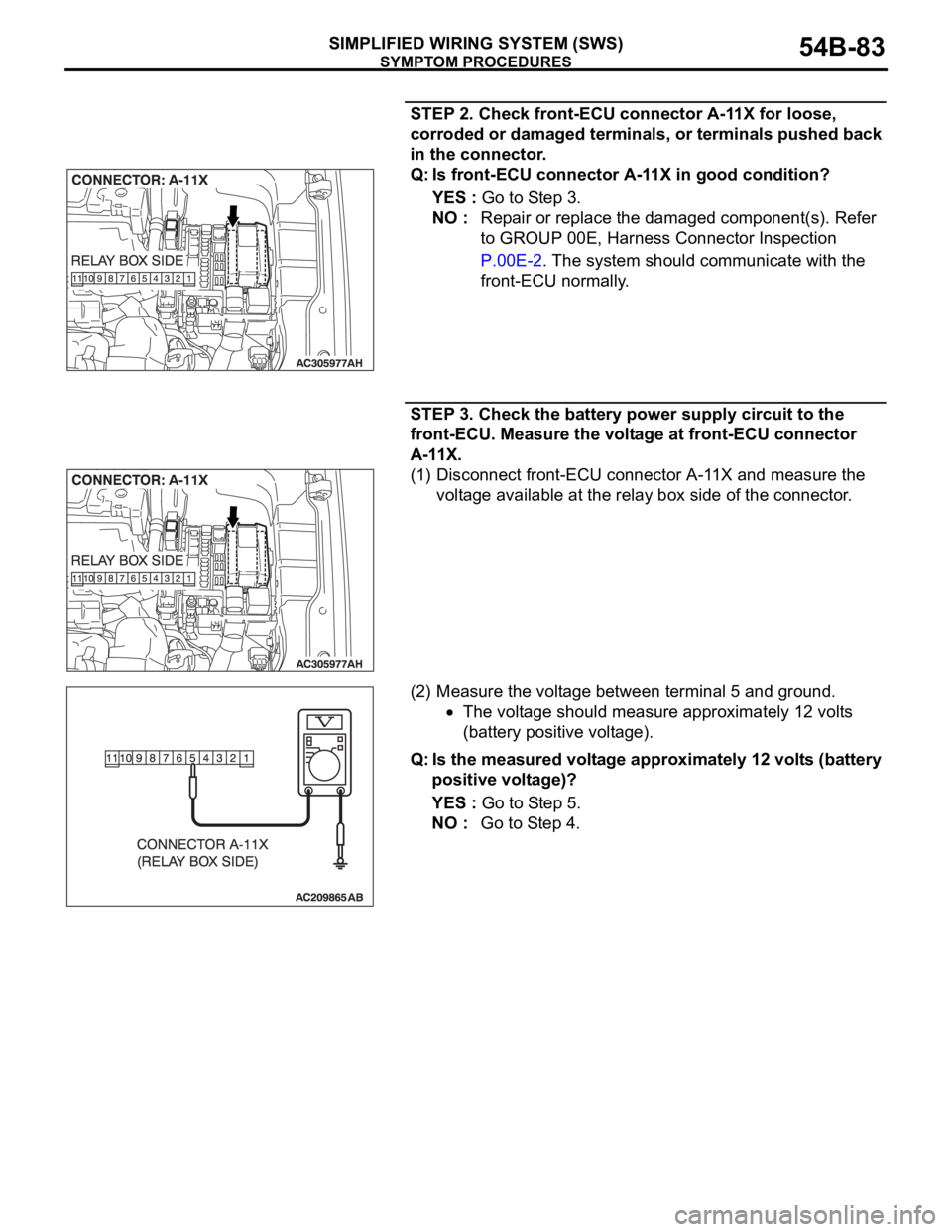

SIMPLIFIED WIRING SYSTEM (SWS)54B-83
STEP 2. Check front-ECU connector A-11X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is front-ECU connector A-11X in good condition?
YES : Go to Step 3.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. The system should communicate with the
front-ECU normally.
STEP 3. Check the battery power supply circuit to the
front-ECU. Measure the voltage at front-ECU connector
A-11X.
(1) Disconnect front-ECU connector A-11X and measure the
voltage available at the relay box side of the connector.
(2) Measure the voltage between terminal 5 and ground.
The voltage should measure approximately 12 volts
(battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Go to Step 5.
NO : Go to Step 4.

SYMPTOM PROCEDURES

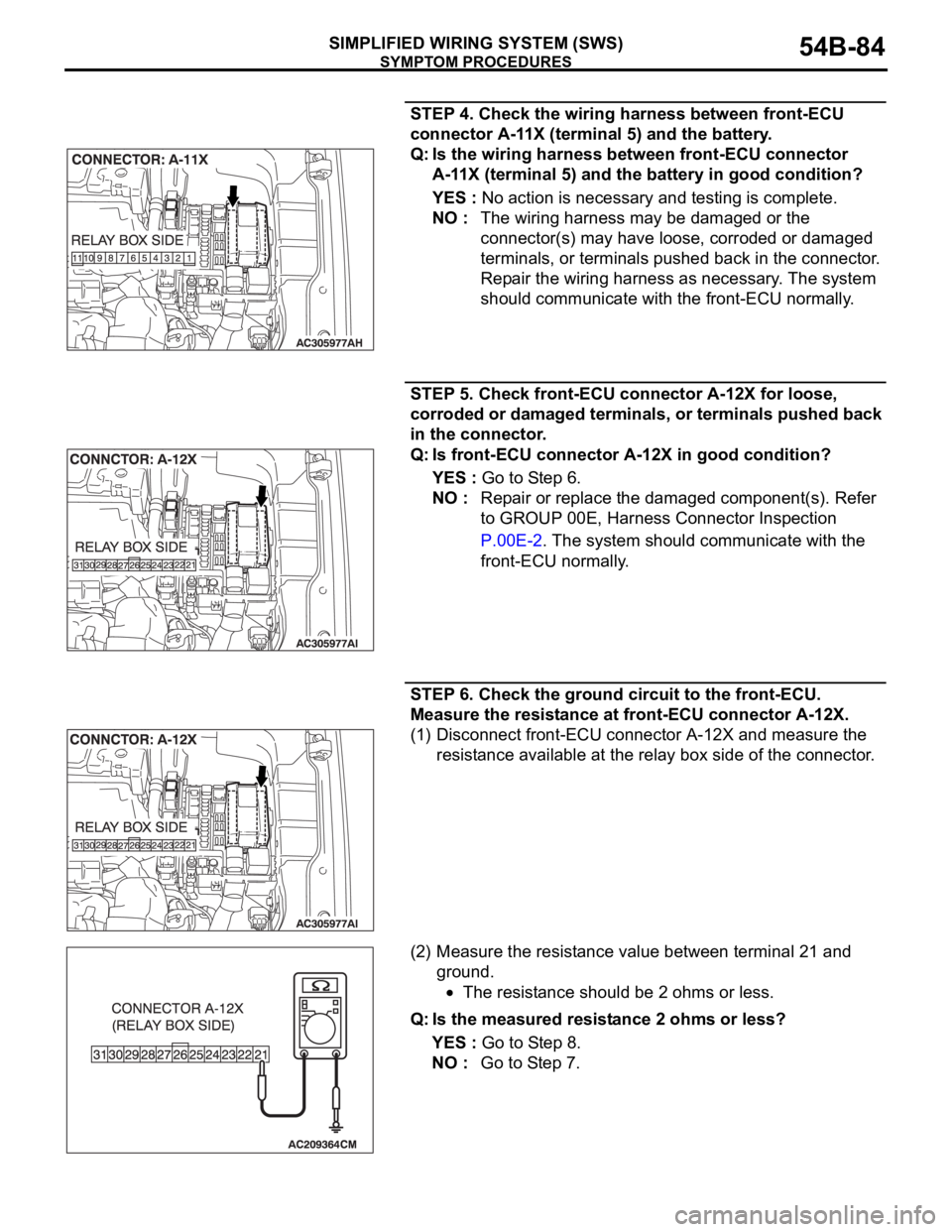

SIMPLIFIED WIRING SYSTEM (SWS)54B-84
STEP 4. Check the wiring harness between front-ECU
connector A-11X (terminal 5) and the battery.
Q: Is the wiring harness between front-ECU connector
A-11X (terminal 5) and the battery in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the front-ECU normally.
STEP 5. Check front-ECU connector A-12X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is front-ECU connector A-12X in good condition?
YES : Go to Step 6.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. The system should communicate with the
front-ECU normally.
STEP 6. Check the ground circuit to the front-ECU.
Measure the resistance at front-ECU connector A-12X.
(1) Disconnect front-ECU connector A-12X and measure the
resistance available at the relay box side of the connector.
(2) Measure the resistance value between terminal 21 and
ground.
The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 8.
NO : Go to Step 7.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-119
CENTRAL DOOR LOCKING SYSTEM
.
DOOR UNLOCKING BY OPERATING THE
DRIVER’S DOOR LOCK KEY CYLINDER
When the ignition key is inserted in the driver’s door lock key
cylinder and turned anti-clockwise to unlock the driver’s door,
the ETACS-ECU operates its door unlock relay and passes a
current through the door lock actuator of the driver’s door for
0.25 seconds to unlock only the driver’s door.
When the ignition key is turned anti-clockwise again, the
ETACS-ECU operates its door unlock relay and passes a cur-
rent through the door lock actuators of all doors for 0.25 sec-
onds and to unlock all doors.
NOTE: Vehicles with a multi center display (middle grade type)
can be customized so that a single unlock operation will unlock
all doors. Refer to P.54B-486.
.
DOOR LOCKING OR UNLOCKING BY
OPERATING THE DRIVER’S OR FRONT
PASSENGER’S DOOR LOCK SWITCH
When the door is locked by the driver’s or front passenger’s
door lock switch, the ETACS-ECU operates its door lock relay
and passes a current through the door lock actuators of all
doors for 0.25 seconds to lock all doors.
When the door is unlocked by the driver’s or front passenger's
door lock switch, the ETACS-ECU operates its door unlock
relay and passes a current through the door lock actuators of
all doors for 0.25 seconds to unlock all doors.
When the door is locked and unlocked by driver’s or front pas-
senger's door lock switch consecutively, the ETACS-ECU oper-
ates its door lock relay and passes a current through the door
lock actuators of all doors for 0.25 seconds to lock all doors.
Then, the ETACS-ECU operates its door unlock relay and
passes a current through the door lock actuators of all doors for
0.25 seconds to unlock all doors. Due to this, there may be a
time lag between the driver’s or front passenger's door lock
switch actuation and the time when all doors are unlocked.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-120
FORGOTTEN KEY PREVENTION FUNCTION
If the driver's door is locked while it is open
If the driver's door is locked while it is open and when
the key is still in the ignition key cylinder, approxi-
mately 0.3 second later the ETACS-ECU activates
the unlock relay output for 0.25 second to prevent
the door from being locked with the key inside the
vehicle.In addition, if locking the door was not prevented, a
re-try current is sent (an unlock relay output ON is
sent for 0.25 second up to 5 times including the first
attempt).
NOTE: The dotted line indicates that the system is
trying to turn on the unlock relay if the door cannot be
unlocked.
If the front passenger's door is open when it is locked with the driver's door switch

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-121
If the passenger's door or driver's door are locked
while the passenger's door is open and when the key
is still in the ignition key cylinder, approximately 0.3
second later the ETACS-ECU activates the unlock
relay output for 0.25 second to prevent the door from
being locked with the key inside the vehicle.In addition, if locking the door was not prevented, a
re-try current is sent (an unlock relay output ON is
sent for 0.25 second up to 5 times including the first
attempt).
NOTE: The dotted line indicates that the system is
trying to turn on the unlock relay if the door cannot be
unlocked.

SYMPTOM PROCEDURES

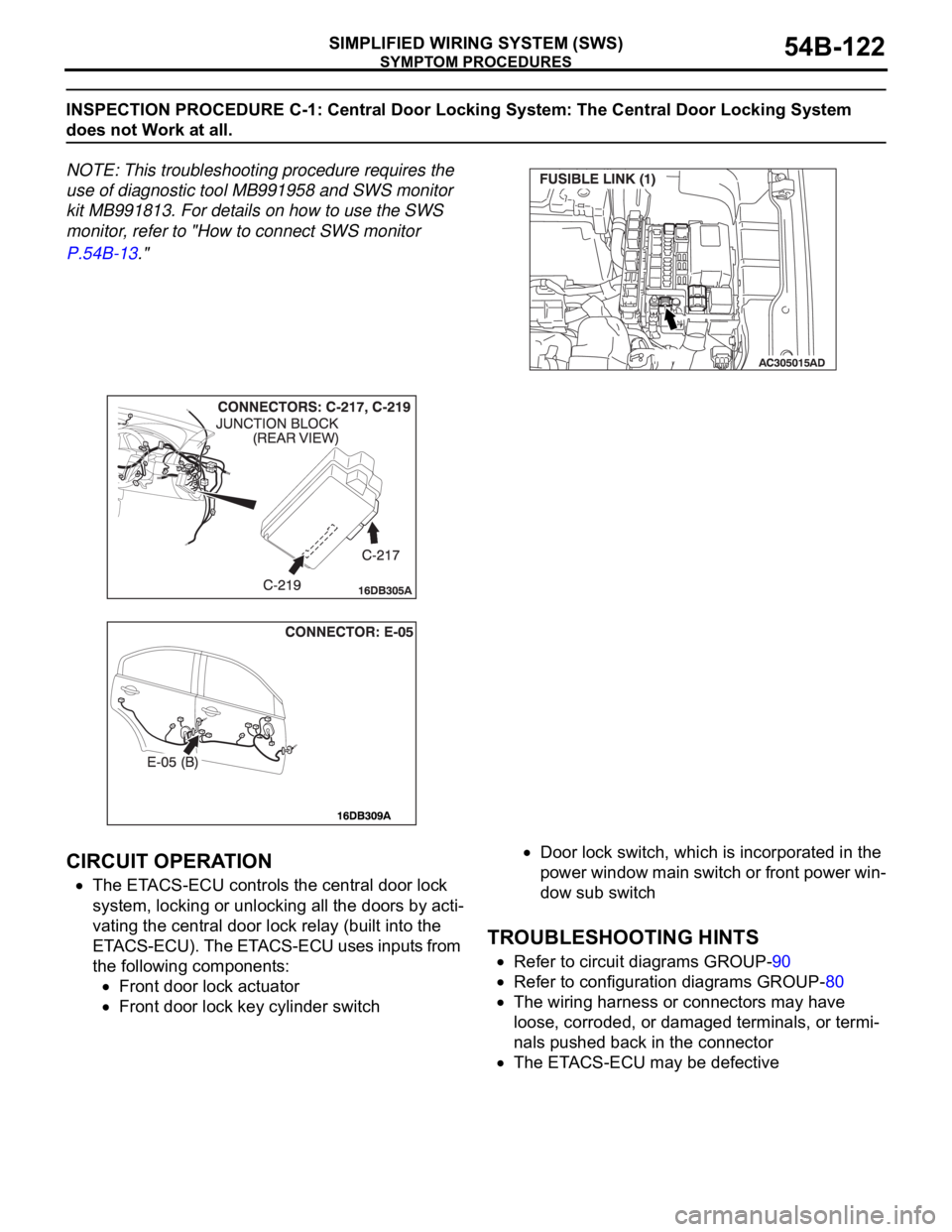

SIMPLIFIED WIRING SYSTEM (SWS)54B-122
INSPECTION PROCEDURE C-1: Central Door Locking System: The Central Door Locking System
does not Work at all.
NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor
P.54B-13."
.
CIRCUIT OPERATION
The ETACS-ECU controls the central door lock
system, locking or unlocking all the doors by acti-
vating the central door lock relay (built into the
ETACS-ECU). The ETACS-ECU uses inputs from
the following components:
Front door lock actuator
Front door lock key cylinder switch
Door lock switch, which is incorporated in the
power window main switch or front power win-
dow sub switch
.
TROUBLESHOOTING HINTS
Refer to circuit diagrams GROUP-90
Refer to configuration diagrams GROUP-80
The wiring harness or connectors may have
loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector
The ETACS-ECU may be defective
