MITSUBISHI ASX 2009 1.G Owners Manual

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-04
Vehicle performance.....................................................................9-06
Vehicle weight .............................................................................. 9-07
Engine specifications .................................................................... 9-10
Electrical system ........................................................................... 9-11
Tyres and wheels.......................................................................... 9-12
Fuel consumption ......................................................................... 9-13
Refill capacities ............................................................................ 9-14Specifications
9

Vehicle labeling
E01100102785
Vehicle identification number
The
vehicle identification number is stamped on
the bulkhead as shown in the illustration. Vehicle information code plate
The

vehicle information code plate is riveted as
shown in the illustration. The plate shows model code, engine model, trans-
mission model and body colour code, etc. Please use this number when ordering replacement
parts.
1- Model code
2-

Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code Vehicle identification number plate
(RHD vehicles only)
The

vehicle identification number is stamped on
the plate riveted to the left front corner of the vehi-
cle body. It is visible from outside of the vehicle
through the windscreen. Engine number
The

engine number is stamped on the engine cylin-
der block as shown in the illustrations.
Petrol-powered vehicles
1600 models *: Front of the vehicleSpecifications
9-02
9

1800 models, 2000 models*: Front of the vehicle
Diesel-powered vehicles *: Front of the vehicle Specifications
9-03 9

Vehicle dimensions
E011002022811 Front track
1,525 mm2 Overall width
1,770 mm3 Front overhang
870 mm4 Wheel base
2,670 mm5 Rear overhang
755 mm6 Overall length
4,295 mm7 Ground clearance (unladen) Petrol-powered vehicles
195 mmDiesel-powered vehicles
170 mm8
Overall height (unladen) Without roof rails
1,615 mm9 With roof rails
1,625 mm10 Rear track
1,525 mmSpecifications
9-04
9

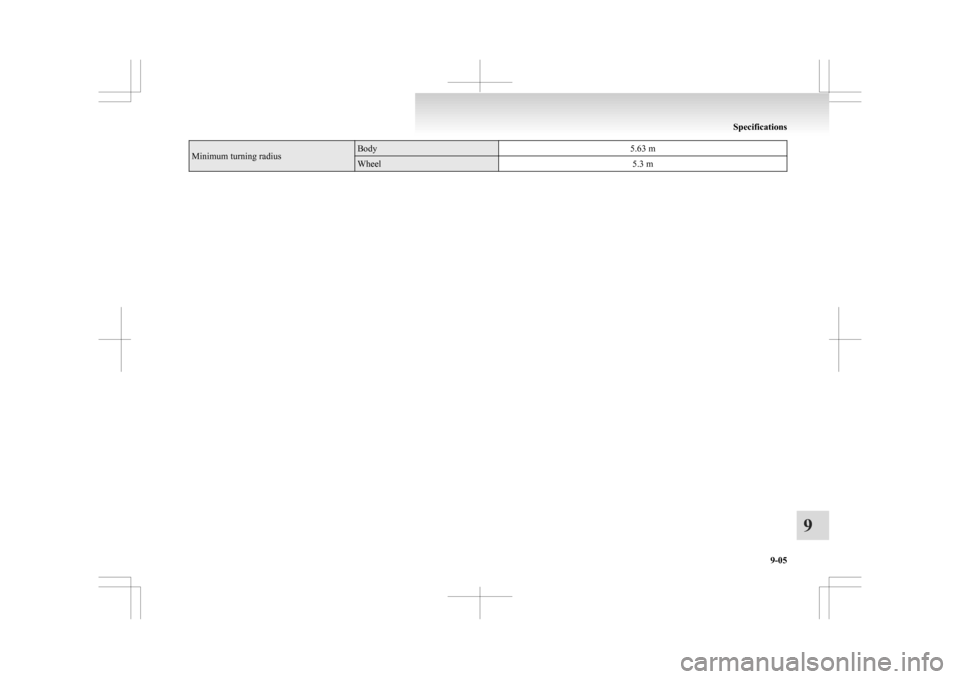

Minimum turning radius Body
5.63 mWheel
5.3 m Specifications
9-05 9

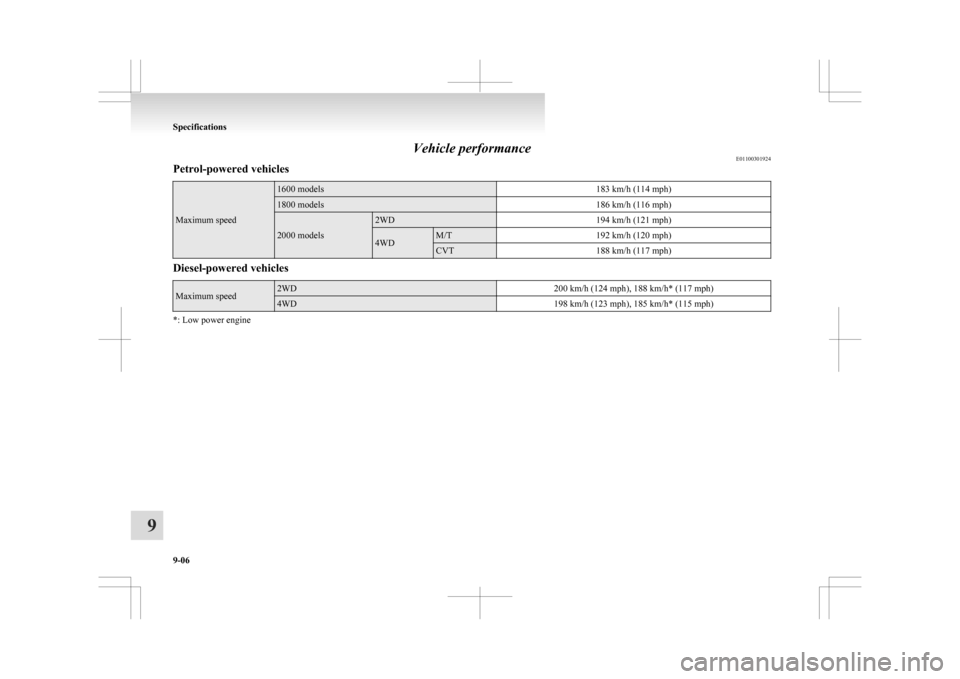

Vehicle performance
E01100301924
Petrol-powered vehicles Maximum speed 1600 models
183 km/h (114 mph)1800 models
186 km/h (116 mph)2000 models 2WD
194 km/h (121 mph) 4WD M/T
192 km/h (120 mph) CVT
188 km/h (117 mph)Diesel-powered vehicles
Maximum speed 2WD
200 km/h (124 mph), 188 km/h* (117 mph)4WD
198 km/h (123 mph), 185 km/h* (115 mph)*: Low power engineSpecifications
9-06
9

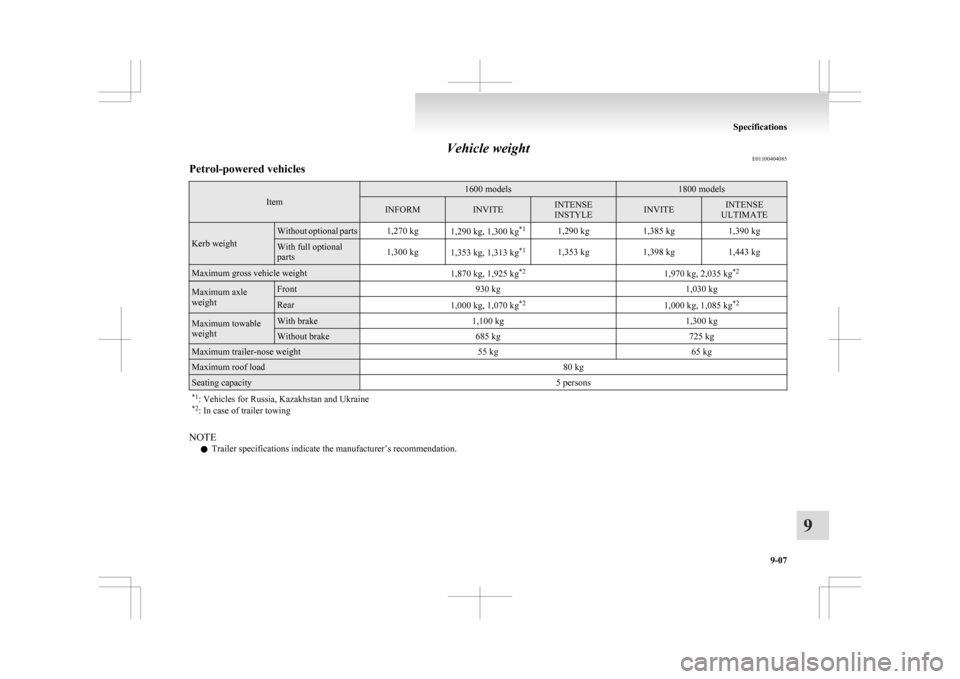

Vehicle weight
E01100404085
Petrol-powered vehicles Item 1600 models 1800 models
INFORM INVITE INTENSE
INSTYLE
INVITE INTENSE
ULTIMATE Kerb weight Without optional parts 1,270 kg
1,290 kg, 1,300 kg*1
1,290 kg 1,385 kg1,390 kg With full optional
parts
1,300 kg
1,353 kg, 1,313 kg *1
1,353 kg 1,398 kg1,443 kgMaximum gross vehicle weight
1,870 kg, 1,925 kg*2
1,970 kg, 2,035 kg*2Maximum axle
weight Front
930 kg 1,030 kgRear
1,000 kg, 1,070 kg*2
1,000 kg, 1,085 kg*2Maximum towable
weight With brake
1,100 kg 1,300 kgWithout brake
685 kg 725 kgMaximum trailer-nose weight
55 kg65 kgMaximum roof load
80 kgSeating capacity
5 persons
*1 : Vehicles for Russia, Kazakhstan and Ukraine
*2 : In case of trailer towing NOTE
l Trailer specifications indicate the manufacturer’s recommendation. Specifications
9-07 9

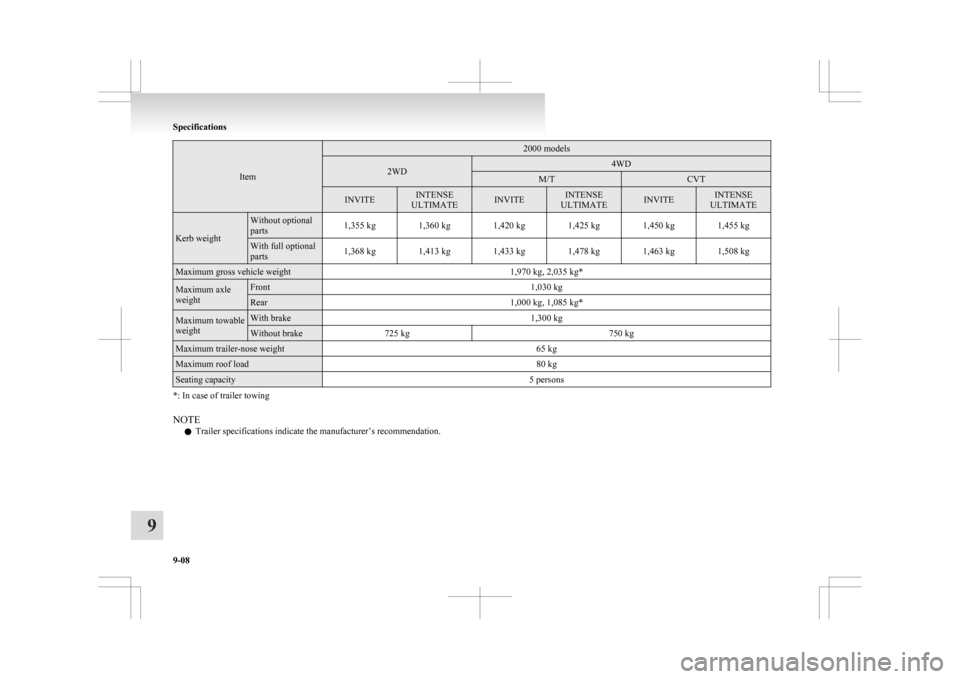

Item 2000 models
2WD 4WD
M/T CVT
INVITE INTENSE
ULTIMATE INVITE INTENSE
ULTIMATE INVITE INTENSE
ULTIMATE Kerb weight Without optional
parts
1,355 kg 1,360 kg 1,420 kg 1,425 kg 1,450 kg 1,455 kg With full optional
parts
1,368 kg 1,413 kg 1,433 kg 1,478 kg 1,463 kg 1,508 kgMaximum gross vehicle weight
1,970 kg, 2,035 kg*Maximum axle
weight Front
1,030 kgRear
1,000 kg, 1,085 kg*Maximum towable
weight With brake
1,300 kgWithout brake
725 kg 750 kgMaximum trailer-nose weight
65 kgMaximum roof load
80 kgSeating capacity
5 persons*: In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation. Specifications
9-08
9

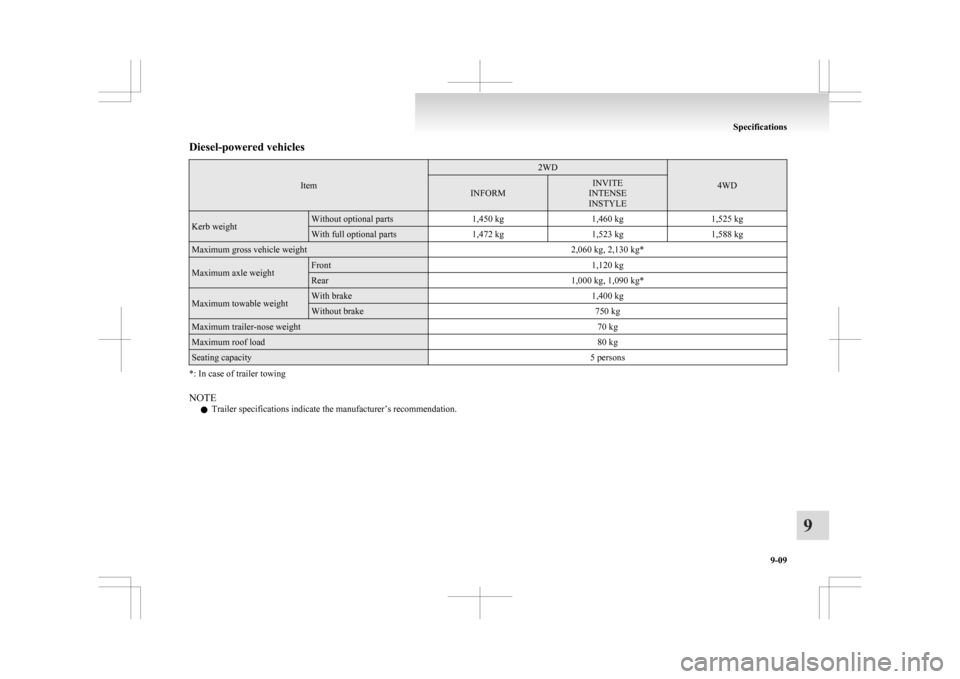

Diesel-powered vehicles
Item 2WD
4WD
INFORM INVITE
INTENSE
INSTYLE Kerb weight Without optional parts
1,450 kg1,460 kg1,525 kg With full optional parts
1,472 kg1,523 kg1,588 kgMaximum gross vehicle weight
2,060 kg, 2,130 kg*Maximum axle weight Front
1,120 kgRear
1,000 kg, 1,090 kg*Maximum towable weight With brake
1,400 kgWithout brake
750 kgMaximum trailer-nose weight
70 kgMaximum roof load
80 kgSeating capacity
5 persons*: In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation. Specifications
9-09 9

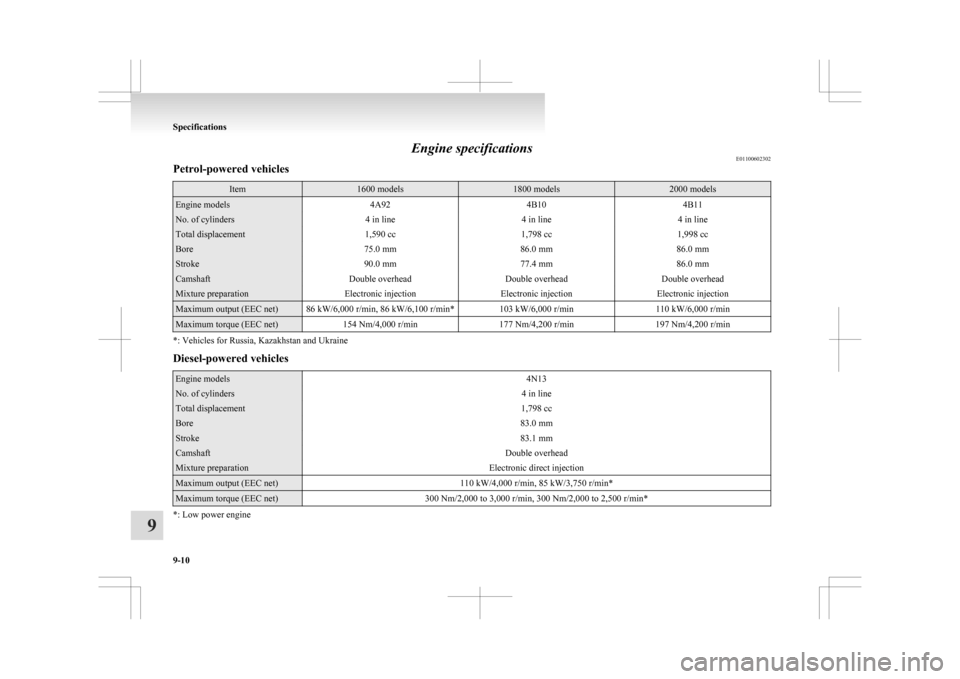

Engine specifications
E01100602302
Petrol-powered vehicles Item 1600 models 1800 models 2000 models
Engine models
4A924B104B11No. of cylinders
4 in line4 in line4 in lineTotal displacement
1,590 cc1,798 cc1,998 ccBore
75.0 mm86.0 mm86.0 mmStroke
90.0 mm77.4 mm86.0 mmCamshaft
Double overheadDouble overheadDouble overheadMixture preparation
Electronic injectionElectronic injectionElectronic injectionMaximum output (EEC net) 86 kW/6,000 r/min, 86 kW/6,100 r/min* 103 kW/6,000 r/min
110 kW/6,000 r/minMaximum torque (EEC net)
154 Nm/4,000 r/min177 Nm/4,200 r/min197 Nm/4,200 r/min*: Vehicles for Russia, Kazakhstan and Ukraine
Diesel-powered vehicles
Engine models
4N13No. of cylinders
4 in lineTotal displacement
1,798 ccBore
83.0 mmStroke
83.1 mmCamshaft
Double overheadMixture preparation
Electronic direct injectionMaximum output (EEC net)
110 kW/4,000 r/min, 85 kW/3,750 r/min*Maximum torque (EEC net)
300 Nm/2,000 to 3,000 r/min, 300 Nm/2,000 to 2,500 r/min**: Low power engineSpecifications
9-10
9
