6. Install a new battery with the + side (B) down.
Coin type battery
CR1616
- side
+ side 7. Close the remote control transmitter firmly.
8.

Place the remote control transmitter in the re-mote control switch case, then securely close
the remote control switch case.
9. Attach the screw (A) removed in step 2.
10. Check the keyless entry system to see that it works.
NOTE l You may purchase a replacement battery at
an electric appliance store.
l A MITSUBISHI MOTORS Authorized Serv-
ice Point can replace the battery for you if
you prefer. CAUTION
l
When
the remote control switch case is
opened, be careful to keep water, dust,
etc. out. Also, do not touch the internal
components. Keyless operation system*
E00305600470
The

keyless operation system allows you to lock
and unlock the doors and tailgate, start the engine
and change the operation mode simply by carrying
the keyless operation key with you.
The keyless operation key can also be used as the
keyless entry system remote control switch.
Refer to “Keyless operation system: Keyless entry
system” on page 1-18.

The driver should always carry the keyless opera-
tion key. This key is necessary for locking and un-
locking the doors and tailgate, starting the engine
and otherwise operating the vehicle, so before lock-
ing and leaving the vehicle, be sure to check that
you have the keyless operation key. WARNING
l People
with implantable cardiac pacemak-
ers or implantable cardiovascular-defib-
rillators should not go near the exterior
transmitters (A) or the interior transmit-
ters (B). The radio waves used by the key-
less operation system could adversely af-
fect implantable cardiac pacemakers or
implantable cardiovascular-defibrillators. WARNING
l When using electro-medical devices other
than implantable cardiac pacemakers or
implantable cardiovascular-defibrilla-
tors, contact the electromedical device
manufacturer ahead of time to determine
the affects of radio waves on the devices.
Electromedical device operations could
be affected by radio waves.
You can limit the possible operations of the
keyless
operation system in the following
ways. (The keyless operation system can be
used as a keyless entry system.) Consult a
MITSUBISHI MOTORS Authorized Service
Point. • You can limit operations to locking andunlocking the doors and tailgate. Locking and unlocking
1-07 1
OGWE12E1

• You can limit operations to starting the en-
gine.
• The keyless operation system can be disa- bled.

When keyless operation system operations
are modified, the transmitters operate as fol-
lows. • Only locking and unlocking doors or tail-gate: exterior and interior transmitters
• Only starting the engine: interior transmit- ter
NOTE l The keyless operation key uses an ultra-weak
electromagnetic wave. In the following ca-
ses, the keyless operation system may not op-
erate properly or may be unstable.
• When there is equipment nearby thatemits strong radio waves, such as: a pow-
er station, a radio/TV broadcasting sta-
tion or an airport.
• The keyless operation system is carried to- gether with a communications device
such as a cellular phone or radio set, or
with an electronic device such as a person-
al computer.
• The keyless operation key is touching or covered by a metal object.
• A keyless entry system is being used near- by.
• When the keyless operation key battery is worn out. • When the keyless operation key is placed
in an area with strong radio waves or noise.
In such cases, use the emergency key.
Refer to “To operate without using the
keyless operation function” on page
1-18.
l Because the keyless operation key receives
signals in order to communicate with the trans-
mitters in the vehicle, the battery continually
wears down regardless of keyless operation
key use. The battery life is 1 to 3 years, de-
pending on usage conditions. When the bat-
tery wears out, have it replaced at a
MITSUBISHI MOTORS Authorized Service
Point.
l Because the keyless operation key continual-
ly receives signals, strong radio wave recep-
tion could affect battery wear. Do not leave
the key near a TV, personal computer, or oth-
er electronic device.
Operating range of the keyless opera-
tion system E00305700367
If you are carrying the keyless operation key, enter
the

operating range of the keyless operation sys-
tem, and press the driver’s or front passenger’s
door lock/unlock switch, the tailgate LOCK switch
or the tailgate OPEN switch, the ID code for your
key is verified. You can only lock and unlock the doors and tail-
gate,

start the engine and change the operation
mode if the ID codes of your keyless operation key
and the vehicle match. NOTE
l If

the keyless operation key battery is wear-
ing out or there are strong electromagnetic
waves or noise present, the operating range
may become smaller and operation may be-
come unstable. Locking and unlocking
1-08
1
OGWE12E1

Operating range for locking and unlocking the
doors and tailgate
E00306200330
The
operating range is approximately 70 cm from
the driver’s and front passenger’s door lock/unlock
switches, the tailgate LOCK switch and the tailgate
OPEN switch. *: Forward direction
:
Operating range
NOTE l Locking

and unlocking are only possible
when the door or tailgate is operated while
the keyless operation key is being detected.
l Operation may not be possible if you are too
close to the front door, door window, or tail-
gate.
l Even if the keyless operation key is within
70 cm of the driver’s or front passenger’s
door lock/unlock switch, the tailgate LOCK
switch or the tailgate OPEN switch, if the
key is near to the ground or high up, the sys-
tem may not operate. l
If
the keyless operation key is within the op-
erating range, even someone not carrying the
key can lock and unlock the doors and tail-
gate by pressing the driver’s or front passen-
ger’s door lock/unlock switch, the tailgate
LOCK switch or the tailgate OPEN switch.
Operating range for starting the engine and chang-
ing the operation mode E00306300243
The operating range is the interior of the vehicle. *: Forward direction
:
Operating range
NOTE l Even

if it is within the operating range, if the
keyless operation key is in a small item hold-
er such as the glove box, on top of the instru-
ment panel, door pocket or in the luggage
area, it may be impossible to start the engine
and change the operation mode. l
If
you are too close to the door or door win-
dow, the engine may start even though the
keyless operation key is outside the vehicle.
To operate using the keyless operation
function E00305800746
Locking the doors and tailgate
When
you are carrying the keyless operation key,
if you press the driver’s or front passenger’s door
lock/unlock switch (A), or the tailgate LOCK
switch (B) within the operating range, the doors
and the tailgate are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors, Cen-
tral door locks, tailgate” on pages 1-21, 1-22 and
1-26.
Driver’s and front passenger’s door lock/unlock switches Locking and unlocking
1-09 1
OGWE12E1

Tailgate switchesNOTE
l For

vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors auto-
matically retract when all the doors and tail-
gate are locked using the keyless operation
function.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 4-10.
l With a vehicle that has a Dead Lock System,
pressing the driver’s or front passenger’s
door lock/unlock switch (A), or the tailgate
LOCK switch (B) two times in succession
causes the Dead Lock System to be set. (Re-
fer to “Setting the system” on page 1-23).
l The keyless operation function does not oper-
ate under the following conditions:
• The keyless operation key is inside the ve-hicle.
• A door or the tailgate is open or ajar.
• The operation mode is not in OFF.
l The tailgate OPEN switch (C) can be used to
confirm that the vehicle is locked properly.
Press the tailgate OPEN switch within approx-
imately 3 seconds of locking the vehicle. l
If
the tailgate OPEN switch is pressed 3 sec-
onds or more after the vehicle is locked, the
doors and the tailgate are unlocked.
l The time within which locking confirmation
is possible can be adjusted. For further infor-
mation, please contact your MITSUBISHI
MOTORS Authorized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad-
justment. Refer to the separate owner’s man-
ual for details.
Unlocking the doors and tailgate
When you are carrying the keyless operation key,
if you press the driver’s or front passenger’s door
lock/unlock switch (A), or the tailgate OPEN
switch (B) within the operating range, all the doors
and the tailgate are unlocked.
If the front room lamp switch is in the “DOOR” po-
sition or the rear room lamp switch (except for ve-
hicles equipped with the sunshade) is in the middle
(•) position at this time, the room lamp will turn on
for 15 seconds. The turn-signal lamps will blink
twice. If the driver’s or front passenger’s door lock/un-
lock
switch is pressed and any of the doors or tail-
gate is not opened within approximately 30 sec-
onds, relocking will automatically occur. Also refer
to “Locking and unlocking: Doors, Central door
locks, tailgate” on pages 1-21, 1-22 and 1-26.
Driver’s and front passenger’s door lock/unlock switches
Tailgate OPEN switch Locking and unlocking
1-10
1
OGWE12E1

NOTE
l For
vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors auto-
matically extend when all the doors and tail-
gate are unlocked using the keyless operation
function.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 4-10.
l Except for vehicles equipped with a Dead
Lock System, the keyless operation function
can be set so that only the driver’s door un-
locks when the driver’s door lock/unlock
switch is pressed.
If the keyless operation function is set to
work as described above, all the doors and
the tailgate unlock when the driver’s door
lock/unlock switch is pressed two times in
succession.
Refer to “Setting of door and tailgate unlock
function” on page 1-20.
l The keyless operation function does not oper-
ate under the following conditions:
• The keyless operation key is inside the ve-hicle.
• A door or the tailgate is open or ajar.
• The operation mode is not in OFF.
l The doors and the tailgate cannot be un-
locked by using the tailgate OPEN switch for
about 3 seconds after locking.
l The time within which locking confirmation
is possible can be adjusted. For further infor-
mation, please contact your MITSUBISHI
MOTORS Authorized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad-
justment. Refer to the separate owner’s man-
ual for details. l
The time between unlocking and automatic
locking can be adjusted. Consult a
MITSUBISHI MOTORS Authorized Service
Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad-
justment. Refer to the separate owner’s man-
ual for details.
Operation confirmation when locking and un-
locking
Operation can be confirmed as shown below. How-
ever, the room lamp will only illuminate if the
front room lamp switch is in the “DOOR” position
or the rear room lamp switch (except for vehicles
equipped with the sunshade) is in the middle (•) po-
sition.
When locking: The turn-signal lamps will blink once.
When unlock-
ing: The room lamp illuminates for
approximately 15 seconds, the
turn-signal lamps blink twice.
NOTE l Functions

can be modified as stated below.
For further information, please contact your
MITSUBISHI MOTORS Authorized Service
Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad-
justment. Refer to the separate owner’s man-
ual for details. • Set the confirmation function (blinking of
the
turn-signal lamps) to operate only
when the vehicle is locked or only when
the vehicle is unlocked.
• Disable the operation confirmation func- tion (blinking of the turn-signal lamps).
• Change the number of blinks for the oper- ation confirmation function (blinks of the
turn-signal lamps).
Operation of the Dead Lock System
With a vehicle that has a Dead Lock System, it is
possible to set the Dead Lock System using the driv-
er’s or front passenger’s door lock/unlock switch,
or the tailgate LOCK switch. (Refer to “Dead Lock
System” on page 1-23.)
Electronic immobilizer (Anti-theft
starting system) E00306400387
The electronic immobilizer has been designed to sig-
nificantly

reduce the possibility of vehicle theft.
The purpose of the system is to immobilize the ve-
hicle if an invalid start is attempted. A valid start
attempt can only be achieved (subject to certain con-
ditions) using a keyless operation system “regis-
tered” to the immobilizer system.
All of the keys provided with your new vehicle
have been programmed into the vehicle’s electron-
ics. Refer to “Engine switch” on page 1-12. Locking and unlocking
1-11 1
OGWE12E1

NOTE
l If
you lose one of the keyless operation keys,
contact a MITSUBISHI MOTORS Author-
ized Service Point as soon as possible.
To obtain a replacement or extra spare key,
take your vehicle and all remaining keys to
your MITSUBISHI MOTORS Authorized
Service Point. All the keys have to be re-reg-
istered in the immobilizer computer unit.
The immobilizer can register up to 4 differ-
ent keys.

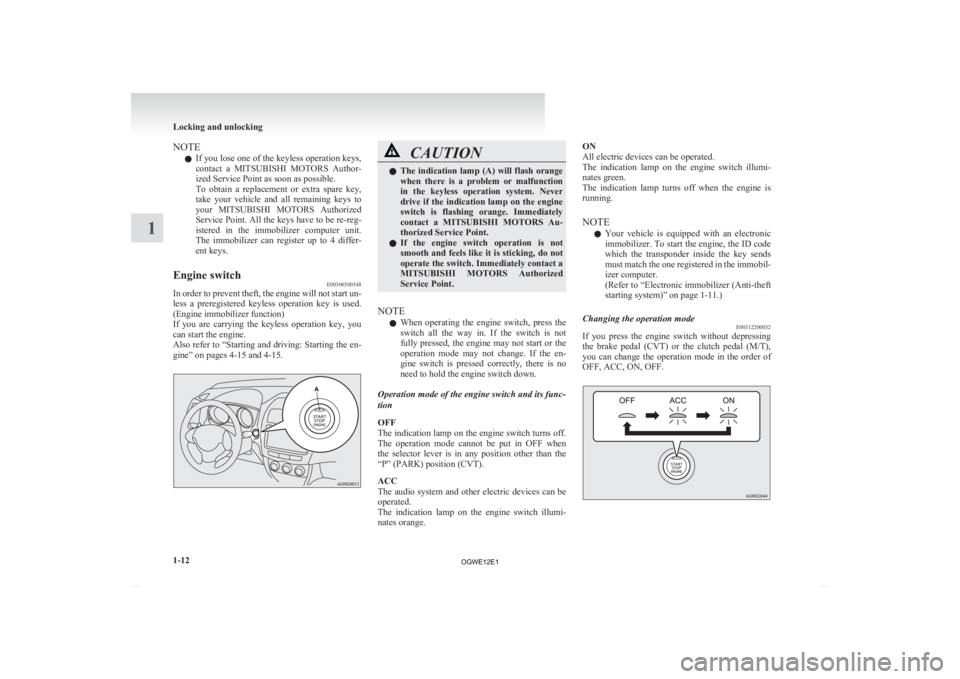

Engine switch E00306500548
In order to prevent theft, the engine will not start un-
less

a preregistered keyless operation key is used.
(Engine immobilizer function)
If you are carrying the keyless operation key, you
can start the engine.
Also refer to “Starting and driving: Starting the en-
gine” on pages 4-15 and 4-15. CAUTION
l
The
indication lamp (A) will flash orange
when there is a problem or malfunction
in the keyless operation system. Never
drive if the indication lamp on the engine
switch is flashing orange. Immediately
contact a MITSUBISHI MOTORS Au-
thorized Service Point.
l If the engine switch operation is not
smooth and feels like it is sticking, do not
operate the switch. Immediately contact a
MITSUBISHI MOTORS Authorized
Service Point.
NOTE l When

operating the engine switch, press the
switch all the way in. If the switch is not
fully pressed, the engine may not start or the
operation mode may not change. If the en-
gine switch is pressed correctly, there is no
need to hold the engine switch down.
Operation mode of the engine switch and its func-
tion
OFF
The indication lamp on the engine switch turns off.
The operation mode cannot be put in OFF when
the selector lever is in any position other than the
“P” (PARK) position (CVT).
ACC
The audio system and other electric devices can be
operated.
The indication lamp on the engine switch illumi-
nates orange. ON
All electric devices can be operated.
The

indication lamp on the engine switch illumi-
nates green.
The indication lamp turns off when the engine is
running.
NOTE
l Your vehicle is equipped with an electronic
immobilizer. To start the engine, the ID code
which the transponder inside the key sends
must match the one registered in the immobil-
izer computer.
(Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 1-11.)
Changing the operation mode E00312200032
If you press the engine switch without depressing
the

brake pedal (CVT) or the clutch pedal (M/T),
you can change the operation mode in the order of
OFF, ACC, ON, OFF. Locking and unlocking
1-12
1
OGWE12E1

CAUTION
l
When the engine is not running, put the
operation mode in OFF. Leaving the oper-
ation mode in ON or ACC for a long time
when the engine is not running may cause
the battery to be discharged, making it im-
possible to start the engine, lock and un-
lock the steering wheel.
l When the battery is disconnected, the cur-
rent operation mode is memorized. After
reconnecting the battery, the memorized
mode is selected automatically. Before dis-
connecting the battery for repair or re-
placement, make sure to put the opera-
tion mode in OFF.
Be careful if you are not sure which oper-
ation mode the vehicle is in when the bat-
tery is run down.
l The operation mode cannot be changed
from OFF to ACC or ON if the keyless op-
eration key is not detected to be in the ve-
hicle. Refer to “Keyless operation system:
Operating range for starting the engine
and changing the operation mode” on
page 1-09.
ACC power auto-cutout function E00312300033
After approximately 30 minutes has elapsed with
the

operation mode in ACC, the function automati-
cally cuts out the power for the audio system and
other electric devices that can be operated with that
mode.
When the engine switch is pressed while the opera-
tion mode is in ACC, the power is supplied again
to those devices. NOTE
l It is possible to modify functions as follows:
• The

time until the power cuts out can be
changed to approximately 60 minutes.
• The ACC power auto-cutout function can be deactivated.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the ad-
justment.
Refer to the separate owner’s manual for de-
tails.
Warning activation E00305900486
In order to prevent vehicle theft or the accidental op-
eration

of the keyless operation system, the buzzer
and the display on the information screen in the mul-
ti-information display are used to alert the driver.
If a warning is activated, always check the vehicle
and the keyless operation key. The warning is also
displayed if there is a fault in the keyless operation
system.
If any of the following warnings are activated,
please contact a MITSUBISHI MOTORS Author-
ized Service Point. There is a fault in the keyless opera-
tion system.
The battery in the keyless operation
system key has worn out.
Put the operation mode in OFF and
then start the engine again.
If

the warning is not cancelled, there
is a fault in the electronic immobiliz-
er (Anti-theft starting system).
Please contact a MITSUBISHI
MOTORS Authorized Service Point. In the following cases, a warning is activated, but it
can be cancelled if the correct actions are followed.
l The

ID codes for the keyless operation key
and vehicle do not match. You could be carrying another key-
less

operation key with a different
code, or the keyless operation key
could be outside the operating range.
Refer to “Keyless
operation key take-
out monitoring system” on page
1-14. l
Even
though you press the driver’s or front
passenger’s door lock/unlock switch, or the
tailgate LOCK switch, the doors and tailgate
are not locked. Locking and unlocking
1-13 1
OGWE12E1

Refer to “Key
lock-in prevention sys-
tem” on page 1-14. Refer to “Door

ajar prevention sys-
tem” on page 1-14. Refer to “Operation

mode OFF re-
minder system” on page 1-14. Keyless operation key take-out monitoring system
E00308000420When the vehicle is parked with the operation
mode

in any mode other than OFF, if you close the
door after opening any of the doors and taking the
keyless operation key out of the vehicle, a warning
displays and the buzzer sounds 4 times.
NOTE
l If you take the keyless operation key out of
the vehicle through a window without open-
ing a door, the keyless operation key take-
out monitoring system does not operate. l
It
is possible to change the setting to make
the keyless operation key take-out monitor-
ing system operate if you take the keyless op-
eration key out from the vehicle through a
window without opening a door. For further
information, please contact your
MITSUBISHI MOTORS Authorized Service
Point.
l Even if you have the keyless operation key
within the engine start operating range, if the
keyless operation key and vehicle ID codes
cannot be matched, for example due to the
ambient environment or electromagnetic con-
ditions, the warning may be activated.
Key lock-in prevention system E00308100391 When the operation mode is in OFF, if you close
all

the doors and the tailgate with the keyless oper-
ation key left in the vehicle and you try to lock the
doors and tailgate by pressing the driver’s or front
passenger’s door lock/unlock switch, or the tailgate
LOCK switch, a warning is issued with the warn-
ing display and the buzzer buzzing for approximate-
ly 3 seconds and you cannot lock the doors and tail-
gate. NOTE
l Make

sure you have the keyless operation
key with you before locking the doors. Even
if you leave the keyless operation key inside
the vehicle, it is possible that the doors will
lock depending on the surrounding environ-
ment and wireless signal conditions.
Door ajar prevention system E00308200347 When the operation mode is in OFF, if you try to
lock

the doors and tailgate by pressing the driver’s
or front passenger’s door lock/unlock switch, or the
tailgate LOCK switch with one of the doors or the
tailgate not completely closed, a warning is issued
with the warning display and the buzzer buzzing
for approximately 3 seconds and you cannot lock
the doors and tailgate.
Operation mode OFF reminder system E00308300348Locking and unlocking
1-14
1
OGWE12E1

When the operation mode is in any mode other
than
OFF, if you close all the doors and the tailgate
then try to lock the doors and tailgate by pressing
the driver’s or front passenger’s door lock/unlock
switch, or the tailgate LOCK switch, a warning is
issued with the warning display and the buzzer buzz-
ing for approximately 3 seconds and you cannot
lock the doors and tailgate.

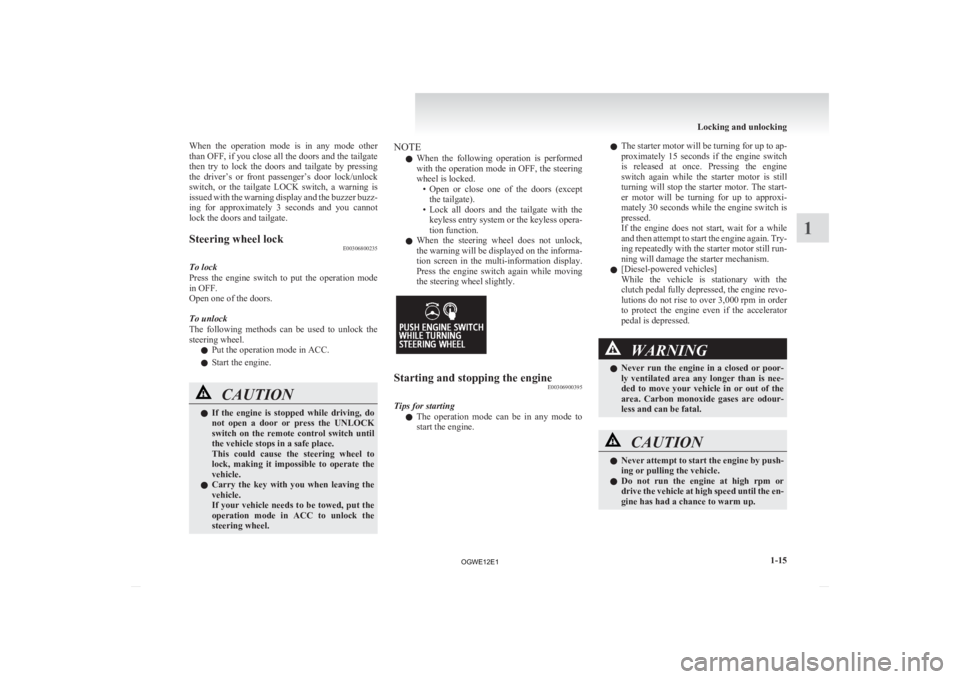

Steering wheel lock E00306800235
To lock
Press
the engine switch to put the operation mode
in OFF.
Open one of the doors.
To unlock
The following methods can be used to unlock the
steering wheel.
l Put the operation mode in ACC.
l Start the engine. CAUTION
l
If
the engine is stopped while driving, do
not open a door or press the UNLOCK
switch on the remote control switch until
the vehicle stops in a safe place.
This could cause the steering wheel to
lock, making it impossible to operate the
vehicle.
l Carry the key with you when leaving the
vehicle.
If your vehicle needs to be towed, put the
operation mode in ACC to unlock the
steering wheel. NOTE
l When

the following operation is performed
with the operation mode in OFF, the steering
wheel is locked. • Open or close one of the doors (exceptthe tailgate).
• Lock all doors and the tailgate with the keyless entry system or the keyless opera-
tion function.
l When the steering wheel does not unlock,
the warning will be displayed on the informa-
tion screen in the multi-information display.
Press the engine switch again while moving
the steering wheel slightly. Starting and stopping the engine
E00306900395
Tips for starting l The

operation mode can be in any mode to
start the engine. l
The
starter motor will be turning for up to ap-
proximately 15 seconds if the engine switch
is released at once. Pressing the engine
switch again while the starter motor is still
turning will stop the starter motor. The start-
er motor will be turning for up to approxi-
mately 30 seconds while the engine switch is
pressed.
If the engine does not start, wait for a while
and then attempt to start the engine again. Try-
ing repeatedly with the starter motor still run-
ning will damage the starter mechanism.
l [Diesel-powered vehicles]
While the vehicle is stationary with the
clutch pedal fully depressed, the engine revo-
lutions do not rise to over 3,000 rpm in order
to protect the engine even if the accelerator
pedal is depressed. WARNING
l Never
run the engine in a closed or poor-
ly ventilated area any longer than is nee-
ded to move your vehicle in or out of the
area. Carbon monoxide gases are odour-
less and can be fatal. CAUTION
l
Never
attempt to start the engine by push-
ing or pulling the vehicle.
l Do not run the engine at high rpm or
drive the vehicle at high speed until the en-
gine has had a chance to warm up. Locking and unlocking
1-15 1
OGWE12E1

Starting the engine (petrol-powered vehicles)
E00307000478
The starting procedure is as follows:
1.
Fasten the seat belt.
2. Make sure the parking brake is applied.
3. Depress and hold the brake pedal.
4. Fully depress the clutch pedal (M/T).
NOTE l On vehicles with the Auto Stop & Go
(AS&G) system, the starter will not operate
unless the clutch pedal is fully depressed
(Clutch interlock).
5. On vehicles equipped with M/T, place the gearshift lever in the “N” (Neutral) position.
On vehicles equipped with CVT, make sure
the selector lever is in the “P” (PARK) posi-
tion.
Vehicles with M/T Vehicles with CVT NOTE
l The

engine can only be started when the se-
lector lever is in the “P” (PARK) or “N”
(NEUTRAL) position (CVT).
For safety reasons, the engine should be star-
ted when the selector lever is in the “P”
(PARK) position in which the driving wheels
lock.
6. Press the engine switch.
7. Make sure that all warning lamps are func- tioning properly.
NOTE l Minor noises may be heard on engine start-
up. These will disappear as the engine warms
up.
Starting the engine (diesel-powered vehicles) E00308600077
1. Fasten the seat belt.
2.

Make sure the parking brake is applied.
3. Depress and hold the brake pedal.
4. Fully depress and hold the clutch pedal.
NOTE l On vehicles with the Auto Stop & Go
(AS&G) system, the starter will not operate
unless the clutch pedal is fully depressed
(Clutch interlock). 5. Place
the gearshift lever in the “N” (Neutral)
position. 6. Press the engine switch.
The
diesel preheat indication lamp will first
illuminate, and then after a short time go out,
indicating that preheating is completed. The
engine will start.
NOTE l If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
l Putting the operation mode in ON will also
start preheating the engine. When the engine
has not been started within about 5 seconds
after the diesel preheat indication lamp went
out, put the operation mode in OFF. Then, at-
tempt the engine start procedure to preheat
the engine again.
l Minor noises may be heard on engine start-
up. These will disappear as the engine warms
up. Locking and unlocking
1-16
1
OGWE12E1
