To close, press the switch (2).
Press
and hold the switch (2), the sunshade automat-
ically closes. Release the switch once the sunshade
starts moving automatically.
To stop the moving sunshade, press the switch (1),
(2) or (3).
Safety mechanism
If a hand or head is trapped in the closing sun-
shade, it will reopen automatically.
Nonetheless, make sure that nobody brings their
head or hand near the sunshade when opening or
closing.
The opened sunshade will become operational after
a few seconds. CAUTION
l
The
safety mechanism is cancelled just be-
fore the sunshade is fully closed. This al-
lows the sunshade to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunshade.
NOTE l The

safety mechanism can be activated if the
driving conditions or other circumstances
cause the sunshade to be subjected to a phys-
ical shock similar to that caused by a trapped
hand or head. Locking and unlocking
1-37 1
OGWE12E1

OGWE12E1

Seat...............................................................................................
2-02
Seat adjustment ............................................................................. 2-03
Front seat...................................................................................... 2-03
Rear seat ....................................................................................... 2-06
Head restraints .............................................................................. 2-07
Making a luggage compartment ................................................... 2-08
Seat belts ....................................................................................... 2-10
Pregnant women restraint ............................................................. 2-14
Seat belt pretensioner system and force limiter system ................2-14
Child restraint ............................................................................... 2-15
Seat belt inspection ....................................................................... 2-24
Supplemental restraint system (SRS) - airbag ..............................2-24Seat and seat belts
2
OGWE12E1

Seat
E004001017421-Front seat
l To adjust forward or backward
® p. 2-03
l To recline the seatback
® p. 2-04
l To adjust seat height (driver’s seat only)
® p. 2-05
l Armrest* ® p. 2-05
l Heated seats*
® p. 2-06
2-Rear seat l Armrest* ® p. 2-06
l Armrest through lid*
® p. 2-07Seat and seat belts
2-02
2
OGWE12E1

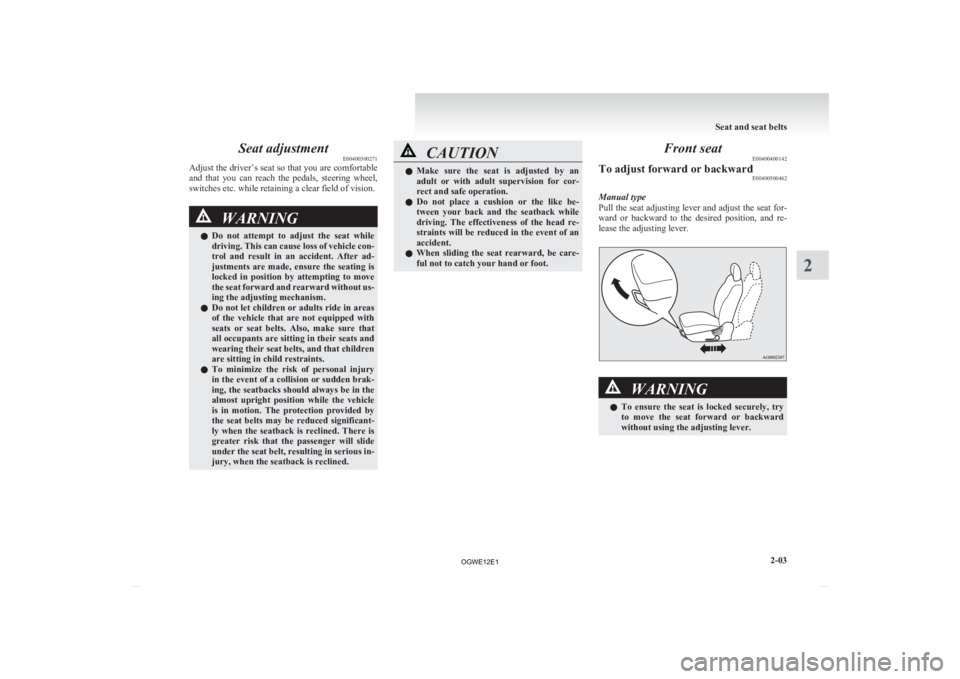

Seat adjustment
E00400300271
Adjust
the driver’s seat so that you are comfortable
and that you can reach the pedals, steering wheel,
switches etc. while retaining a clear field of vision. WARNING
l Do
not attempt to adjust the seat while
driving. This can cause loss of vehicle con-
trol and result in an accident. After ad-
justments are made, ensure the seating is
locked in position by attempting to move
the seat forward and rearward without us-
ing the adjusting mechanism.
l Do not let children or adults ride in areas
of the vehicle that are not equipped with
seats or seat belts. Also, make sure that
all occupants are sitting in their seats and
wearing their seat belts, and that children
are sitting in child restraints.
l To minimize the risk of personal injury
in the event of a collision or sudden brak-
ing, the seatbacks should always be in the
almost upright position while the vehicle
is in motion. The protection provided by
the seat belts may be reduced significant-
ly when the seatback is reclined. There is
greater risk that the passenger will slide
under the seat belt, resulting in serious in-
jury, when the seatback is reclined. CAUTION
l
Make
sure the seat is adjusted by an
adult or with adult supervision for cor-
rect and safe operation.
l Do not place a cushion or the like be-
tween your back and the seatback while
driving. The effectiveness of the head re-
straints will be reduced in the event of an
accident.
l When sliding the seat rearward, be care-
ful not to catch your hand or foot. Front seat
E00400400142
To adjust forward or backward E00400500462
Manual type
Pull
the seat adjusting lever and adjust the seat for-
ward or backward to the desired position, and re-
lease the adjusting lever. WARNING
l To
ensure the seat is locked securely, try
to move the seat forward or backward
without using the adjusting lever. Seat and seat belts
2-03 2
OGWE12E1

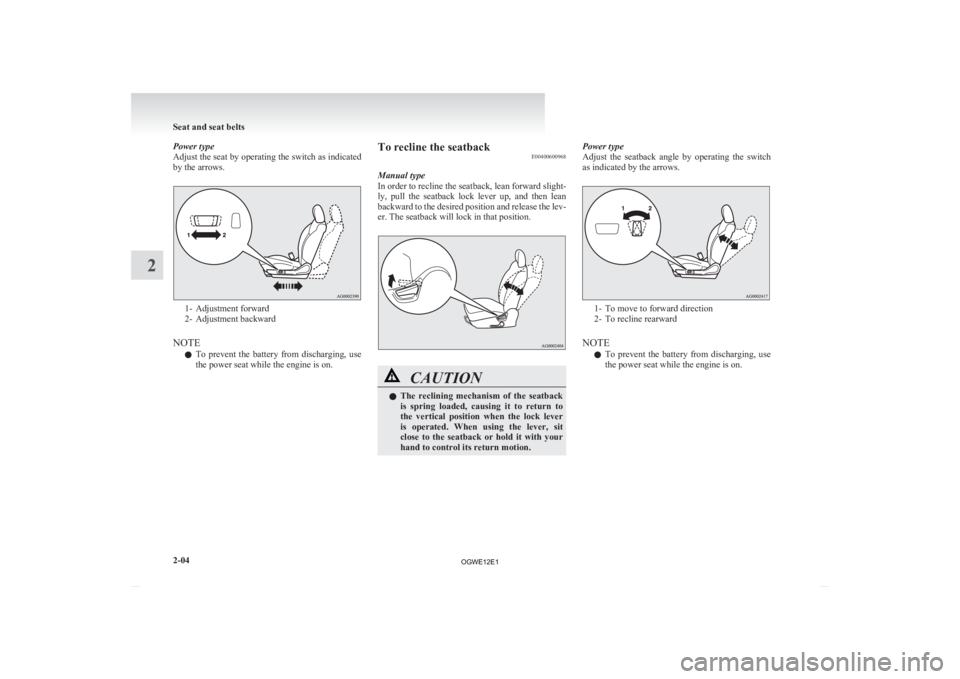

Power type
Adjust
the seat by operating the switch as indicated
by the arrows. 1- Adjustment forward
2-

Adjustment backward
NOTE l To prevent the battery from discharging, use
the power seat while the engine is on. To recline the seatback
E00400600968
Manual type
In

order to recline the seatback, lean forward slight-
ly, pull the seatback lock lever up, and then lean
backward to the desired position and release the lev-
er. The seatback will lock in that position. CAUTION
l
The
reclining mechanism of the seatback
is spring loaded, causing it to return to
the vertical position when the lock lever
is operated. When using the lever, sit
close to the seatback or hold it with your
hand to control its return motion. Power type
Adjust

the seatback angle by operating the switch
as indicated by the arrows. 1- To move to forward direction
2-

To recline rearward
NOTE l To prevent the battery from discharging, use
the power seat while the engine is on. Seat and seat belts
2-04
2
OGWE12E1

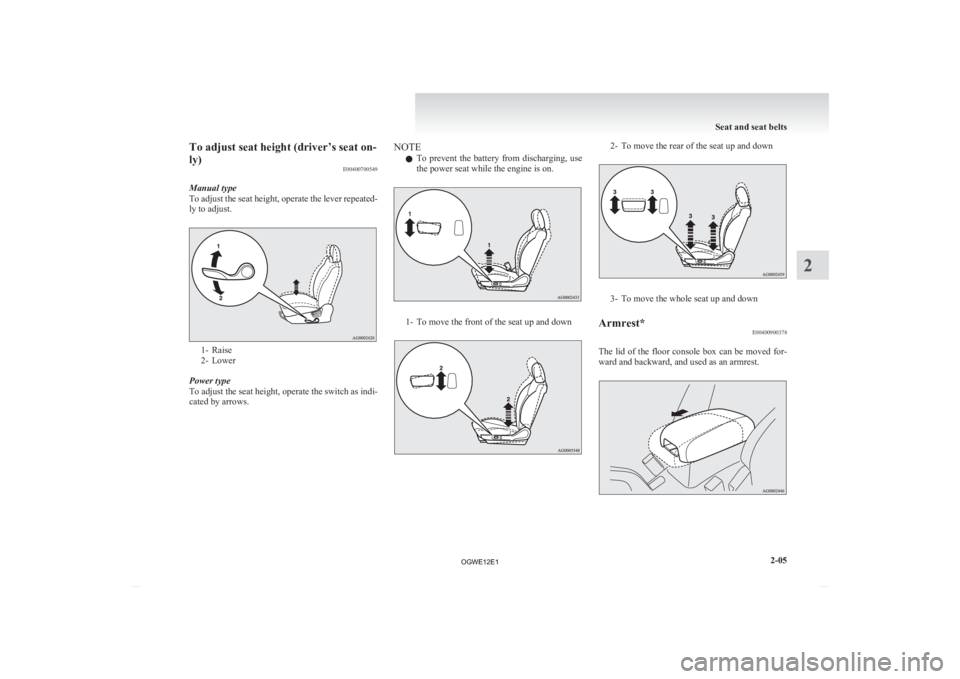

To adjust seat height (driver’s seat on-
ly)
E00400700549
Manual type
To
adjust the seat height, operate the lever repeated-
ly to adjust. 1- Raise
2-

Lower
Power type
To adjust the seat height, operate the switch as indi-
cated by arrows. NOTE
l To

prevent the battery from discharging, use
the power seat while the engine is on. 1- To move the front of the seat up and down 2- To move the rear of the seat up and down
3- To move the whole seat up and down
Armrest* E00400900378

The

lid of the floor console box can be moved for-
ward and backward, and used as an armrest. Seat and seat belts
2-05 2
OGWE12E1

Heated seats*
E00401101055
The
heated seats can be operated with the ignition
switch or the operation mode in ON. The indica-
tion lamp (A) will illuminate while the heater is on. 1 (HI) - Heater high (for quick heating).
2 - Heater off.
3 (LO) - Heater low (to keep the seat warm).
CAUTION
l
Switch off seat heaters when not in use.
l Operate

in the high position for quick heat-
ing. Once the seat is warm, set the heater
to low to keep it warm. Slight variations
in seat temperature may be felt while us-
ing the heated seats. This is caused by the
operation of the heater’s internal thermo-
stat and does not indicate a malfunction.
l If the following types of persons use the
heated seats, they might become too hot CAUTION
or receive minor burns (red skin, heat blis-
ters, etc.):
•

Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or sleep inducing medication (cold
medicine, etc.)
l Do not place heavy objects on the seat or
stick pins, needles, or other pointed ob-
jects into it.
l Do not use a blanket, cushion, or other ma-
terial with high heat insulation properties
on the seat while using the heater; this
might cause the heater element to overheat
l Do not use benzine, kerosene, petrol, alco-
hol or other organic solvents when clean-
ing the seats. Doing so could damage not
only the seat cover, but also the heater el-
ement.
l If water or any other liquid is spilled on
the seat, allow it to dry thoroughly before
attempting to use the heater.
l Turn the heater off immediately if it ap-
pears to be malfunctioning during use. Rear seat
E00401300412 WARNING
l When
a person sits in the rear seat, pull
up the head restraint to a height at which
it locks in position. Be sure to make this
adjustment before starting to drive. Seri-
ous injuries could otherwise be suffered
as the result of an impact.
Armrest* E00401700650
To use the armrest, fold it down.
To

return to the original position, push it backward
level with the seat. NOTE
l Do

not climb or sit on the armrest. Doing so
could damage the armrest.
l The top surface of the armrest contains a cup
holder for rear seat occupants.
Refer to “Cup holder” on page 5-68. Seat and seat belts
2-06
2
OGWE12E1

Armrest through lid*
E00414600028
Open
the lid to gain access to the luggage compart-
ment from the cabin. This feature is useful for car-
rying long objects while accommodating 2 passen-
gers in the rear seats.
Fold down the armrest. Then slide the knob (A)

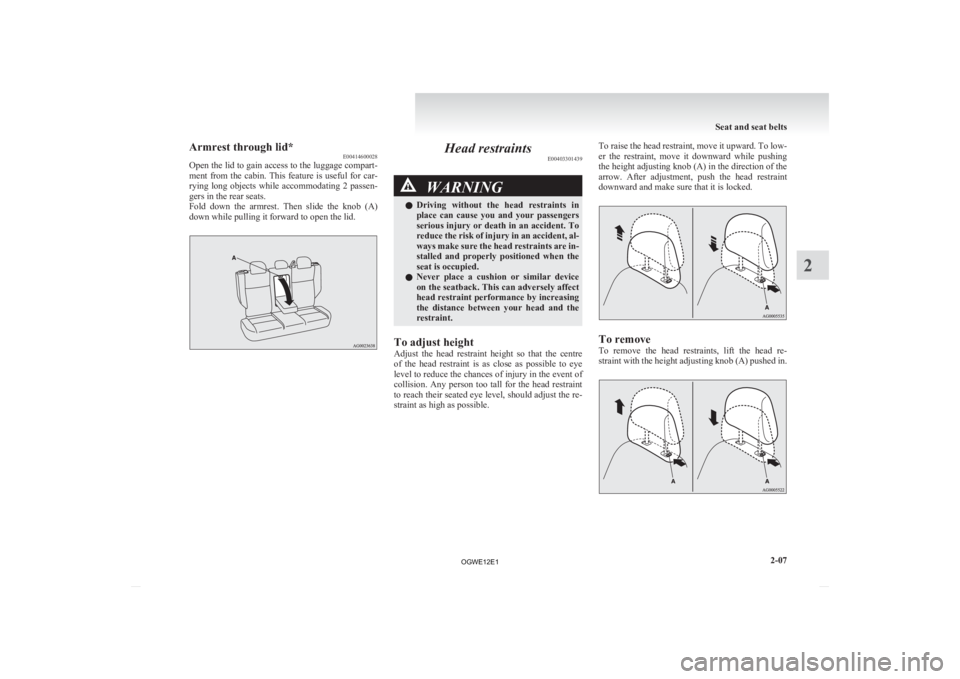

down while pulling it forward to open the lid. Head restraints
E00403301439 WARNING
l Driving
without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To
reduce the risk of injury in an accident, al-
ways make sure the head restraints are in-
stalled and properly positioned when the
seat is occupied.
l Never place a cushion or similar device
on the seatback. This can adversely affect
head restraint performance by increasing
the distance between your head and the
restraint.
To adjust height
Adjust
the head restraint height so that the centre
of the head restraint is as close as possible to eye
level to reduce the chances of injury in the event of
collision. Any person too tall for the head restraint
to reach their seated eye level, should adjust the re-
straint as high as possible. To raise the head restraint, move it upward. To low-
er

the restraint, move it downward while pushing
the height adjusting knob (A) in the direction of the
arrow. After adjustment, push the head restraint
downward and make sure that it is locked. To remove
To

remove the head restraints, lift the head re-
straint with the height adjusting knob (A) pushed in. Seat and seat belts
2-07 2
OGWE12E1

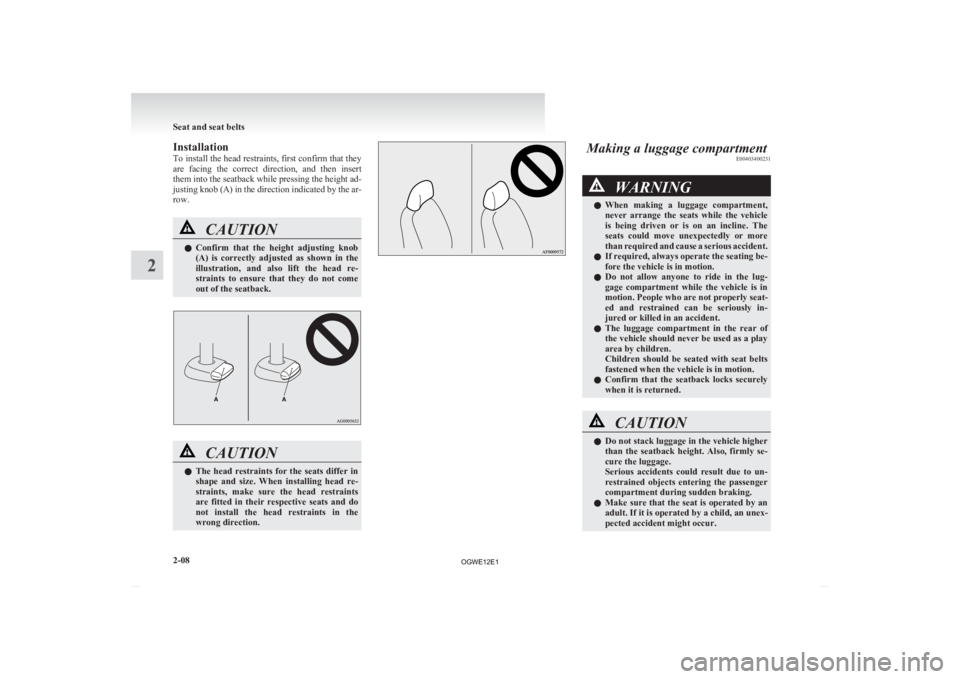

Installation
To
install the head restraints, first confirm that they
are facing the correct direction, and then insert
them into the seatback while pressing the height ad-
justing knob (A) in the direction indicated by the ar-
row. CAUTION
l
Confirm
that the height adjusting knob
(A) is correctly adjusted as shown in the
illustration, and also lift the head re-
straints to ensure that they do not come
out of the seatback. CAUTION
l
The
head restraints for the seats differ in
shape and size. When installing head re-
straints, make sure the head restraints
are fitted in their respective seats and do
not install the head restraints in the
wrong direction. Making a luggage compartment
E00403400231 WARNING
l When
making a luggage compartment,
never arrange the seats while the vehicle
is being driven or is on an incline. The
seats could move unexpectedly or more
than required and cause a serious accident.
l If required, always operate the seating be-
fore the vehicle is in motion.
l Do not allow anyone to ride in the lug-
gage compartment while the vehicle is in
motion. People who are not properly seat-
ed and restrained can be seriously in-
jured or killed in an accident.
l The luggage compartment in the rear of
the vehicle should never be used as a play
area by children.
Children should be seated with seat belts
fastened when the vehicle is in motion.
l Confirm that the seatback locks securely
when it is returned. CAUTION
l
Do
not stack luggage in the vehicle higher
than the seatback height. Also, firmly se-
cure the luggage.
Serious accidents could result due to un-
restrained objects entering the passenger
compartment during sudden braking.
l Make sure that the seat is operated by an
adult. If it is operated by a child, an unex-
pected accident might occur. Seat and seat belts
2-08
2
OGWE12E1
