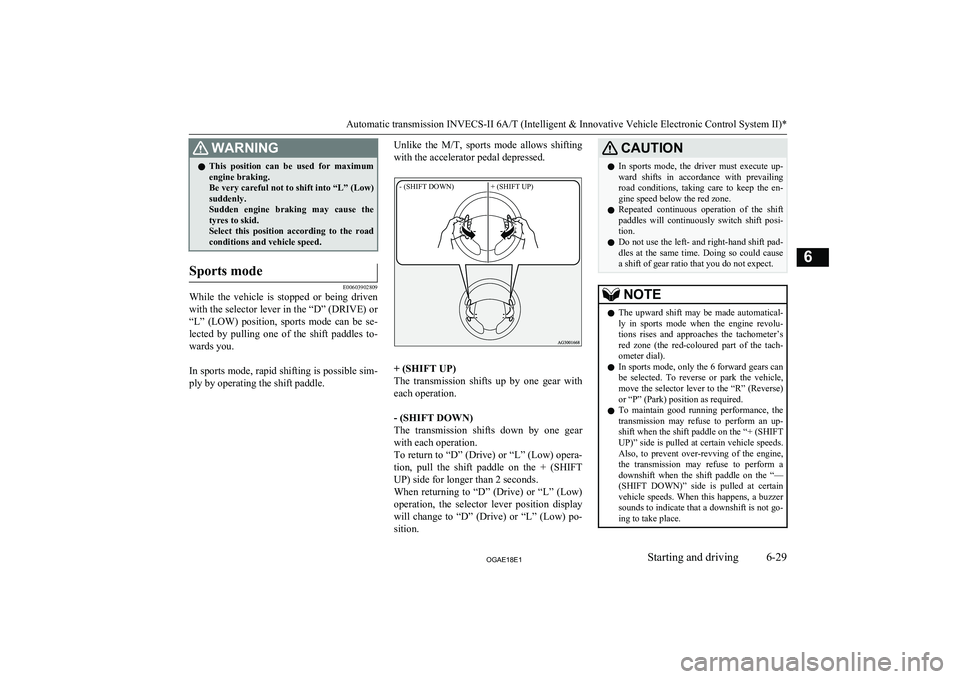

WARNINGlThis position can be used for maximum
engine braking.
Be very careful not to shift into “L” (Low) suddenly.
Sudden engine braking may cause the
tyres to skid.
Select this position according to the road conditions and vehicle speed.Sports mode
E00603902809
While the vehicle is stopped or being driven
with the selector lever in the “D” (DRIVE) or
“L” (LOW) position, sports mode can be se- lected by pulling one of the shift paddles to-wards you.

In sports mode, rapid shifting is possible sim-
ply by operating the shift paddle.
Unlike the M/T, sports mode allows shifting
with the accelerator pedal depressed.- (SHIFT DOWN)+ (SHIFT UP)
+ (SHIFT UP)
The transmission shifts up by one gear with
each operation.

- (SHIFT DOWN)
The transmission shifts down by one gear
with each operation.
To return to “D” (Drive) or “L” (Low) opera- tion, pull the shift paddle on the + (SHIFT UP) side for longer than 2 seconds.
When returning to “D” (Drive) or “L” (Low)
operation, the selector lever position display will change to “D” (Drive) or “L” (Low) po-sition.
CAUTIONl In sports mode, the driver must execute up-
ward shifts in accordance with prevailingroad conditions, taking care to keep the en-
gine speed below the red zone.
l Repeated continuous operation of the shift
paddles will continuously switch shift posi-
tion.
l Do not use the left- and right-hand shift pad-
dles at the same time. Doing so could cause a shift of gear ratio that you do not expect.NOTEl The upward shift may be made automatical-
ly in sports mode when the engine revolu-
tions rises and approaches the tachometer’s
red zone (the red-coloured part of the tach- ometer dial).
l In sports mode, only the
6 forward gears can
be selected. To reverse or park the vehicle, move the selector lever to the “R” (Reverse)
or “P” (Park) position as required.
l To maintain good running performance, the
transmission may refuse to perform an up- shift when the shift paddle on the “+ (SHIFTUP)” side is pulled at certain vehicle speeds.
Also, to prevent over-revving of the engine,
the transmission may refuse to perform a downshift when the shift paddle on the “—
(SHIFT DOWN)” side is pulled at certain vehicle speeds. When this happens, a buzzer
sounds to indicate that a downshift is not go- ing to take place.
Automatic transmission INVECS-II 6A/T (Intelligent & Innovative Vehicle Electronic Control System II)*
6-29OGAE18E1Starting and driving6

NOTElIn sports mode, downward shifts are made
automatically when the vehicle slows down.
When the vehicle stops, 1 st
gear is automati-
cally selected.
l When the selector lever is in the “D” (Drive)
position and sports mode is selected, the ve-
hicle will automatically return to “D” (Drive) operation if the vehicle is stopped.
l When the selector lever is in the “L” (Low)
position and sports mode is selected, the ve-
hicle will stay in sports mode and not return to “L” (Low) operation even if the vehicle is
stopped.
l When driving away on a slippery road, pull
the shift paddle on the “+ (SHIFT UP)” side.
This cause the transmission to shift into the
2 nd
gear which is better for smooth driving
away on a slippery road. Pull the shift pad- dle on the “— (SHIFT DOWN)” side to shift
back to the 1 st
gear.
l When the shift paddle is operated with the
selector lever in the “L” (Low) position, gear
is not shifted because the selectable shift

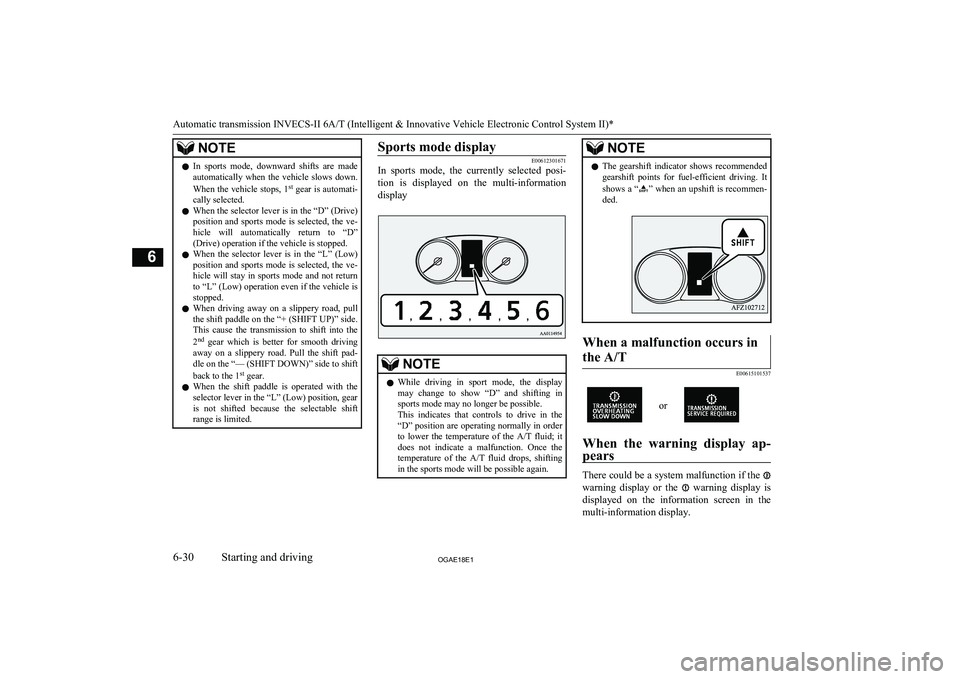

range is limited.Sports mode display
E00612301671
In sports mode, the currently selected posi-
tion is displayed on the multi-information
displayNOTEl While driving in sport mode, the display
may change to show “D” and shifting in sports mode may no longer be possible.
This indicates that controls to drive in the
“D” position are operating normally in order to lower the temperature of the A/T fluid; it
does not indicate a malfunction. Once the
temperature of the A/T fluid drops, shifting
in the sports mode will be possible again.NOTEl The gearshift indicator shows recommended
gearshift points for fuel-efficient driving. It
shows a “
” when an upshift is recommen-
ded.
When a malfunction occurs in
the A/T
E00615101537
or
When the warning display ap-
pears
There could be a system malfunction if the
warning display or the warning display is
displayed on the information screen in the
multi-information display.
Automatic transmission INVECS-II 6A/T (Intelligent & Innovative Vehicle Electronic Control System II)*
6-30OGAE18E1Starting and driving6

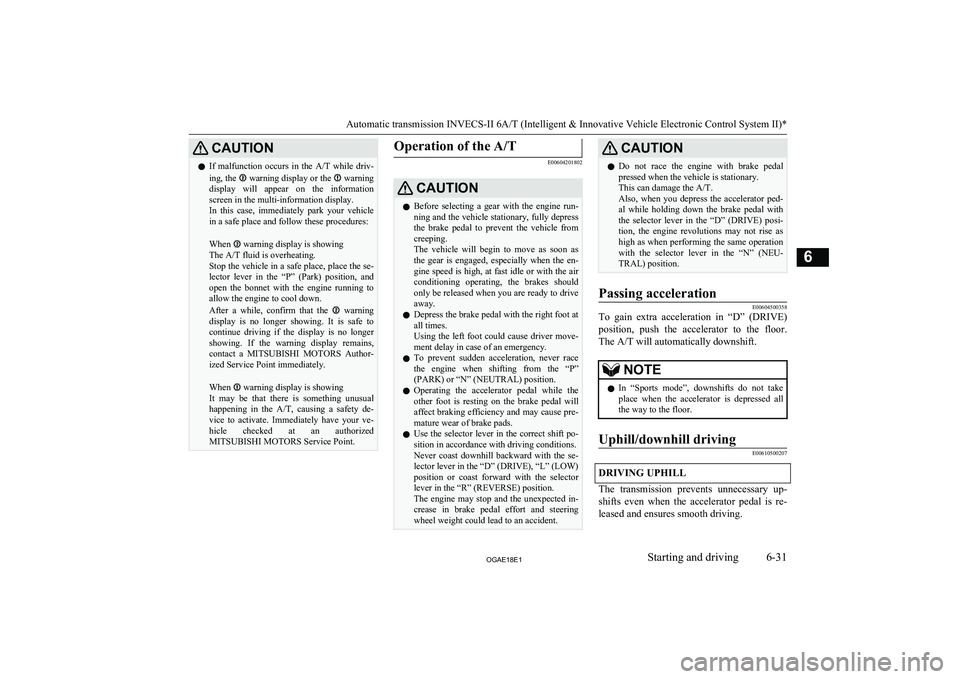

CAUTIONlIf malfunction occurs in the
A/T while driv-
ing, the warning display or the warning
display will appear on the information screen in the multi-information display.
In this case, immediately park your vehicle
in a safe place and follow these procedures:

When
warning display is showing
The A/T fluid is overheating.
Stop the vehicle in a safe place, place the se- lector lever in the “P” (Park) position, and open the bonnet with the engine running toallow the engine to cool down.
After a while, confirm that the
warning
display is no longer showing. It is safe to
continue driving if the display is no longer showing. If the warning display remains,contact a MITSUBISHI MOTORS Author-
ized Service Point immediately.

When
warning display is showing
It may be that there is something unusual happening in the A/T, causing a safety de-
vice to activate. Immediately have your ve-
hicle checked at an authorized MITSUBISHI MOTORS Service Point.
Operation of the A/T
E00604201802
CAUTIONl Before selecting a gear with the engine run-
ning and the vehicle stationary, fully depressthe brake pedal to prevent the vehicle from
creeping.
The vehicle will begin to move as soon as the gear is engaged, especially when the en-
gine speed is high, at fast idle or with the air conditioning operating, the brakes should
only be released when you are ready to drive
away.
l Depress the brake pedal with the right foot at
all times.
Using the left foot could cause driver move- ment delay in case of an emergency.
l To prevent sudden acceleration, never race
the engine when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
l Operating the accelerator pedal while the
other foot is resting on the brake pedal will affect braking efficiency and may cause pre-
mature wear of brake pads.
l Use the selector lever in the correct shift po-
sition in accordance with driving conditions.
Never coast downhill backward with the se-
lector lever in the “D” (DRIVE), “L” (LOW)
position or coast forward with the selector
lever in the “R” (REVERSE) position.
The engine may stop and the unexpected in- crease in brake pedal effort and steeringwheel weight could lead to an accident.CAUTIONl Do not race the engine with brake pedal
pressed when the vehicle is stationary.
This can damage the A/T.
Also, when you depress the accelerator ped- al while holding down the brake pedal withthe selector lever in the “D” (DRIVE) posi-
tion, the engine revolutions may not rise as high as when performing the same operation
with the selector lever in the “N” (NEU-
TRAL) position.Passing acceleration
E00604500358
To gain extra acceleration in “D” (DRIVE)
position, push the accelerator to the floor.The A/T will automatically downshift.
NOTEl In “Sports mode”, downshifts do not take
place when the accelerator is depressed all
the way to the floor.Uphill/downhill driving
E00610500207
DRIVING UPHILL
The transmission prevents unnecessary up-
shifts even when the accelerator pedal is re- leased and ensures smooth driving.
Automatic transmission INVECS-II 6A/T (Intelligent & Innovative Vehicle Electronic Control System II)*
6-31OGAE18E1Starting and driving6

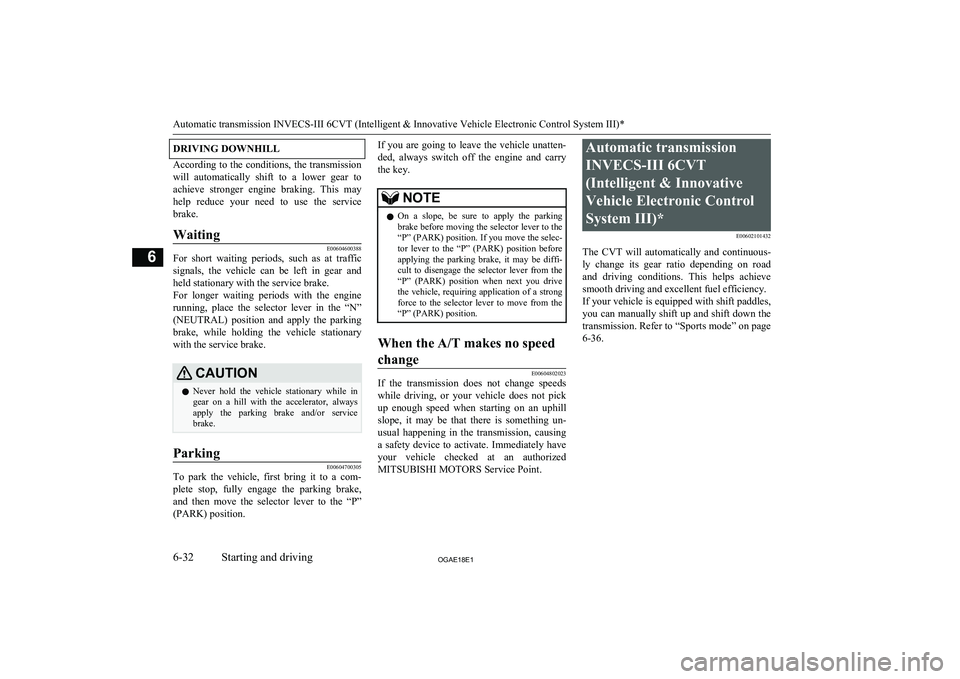

DRIVING DOWNHILL
According to the conditions, the transmission
will automatically shift to a lower gear to achieve stronger engine braking. This may
help reduce your need to use the service
brake.
Waiting
E00604600388
For short waiting periods, such as at traffic signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
CAUTIONl Never hold the vehicle stationary while in
gear on a hill with the accelerator, always
apply the parking brake and/or service
brake.Parking
E00604700305
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and carry the key.NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the A/T makes no speed
change
E00604802023
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. Immediately have
your vehicle checked at an authorized MITSUBISHI MOTORS Service Point.
Automatic transmission
INVECS-III 6CVT
(Intelligent & Innovative
Vehicle Electronic Control System III)* E00602101432
The CVT will automatically and continuous- ly change its gear ratio depending on road
and driving conditions. This helps achieve
smooth driving and excellent fuel efficiency.
If your vehicle is equipped with shift paddles, you can manually shift up and shift down the
transmission. Refer to “Sports mode” on page
6-36.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-32OGAE18E1Starting and driving6

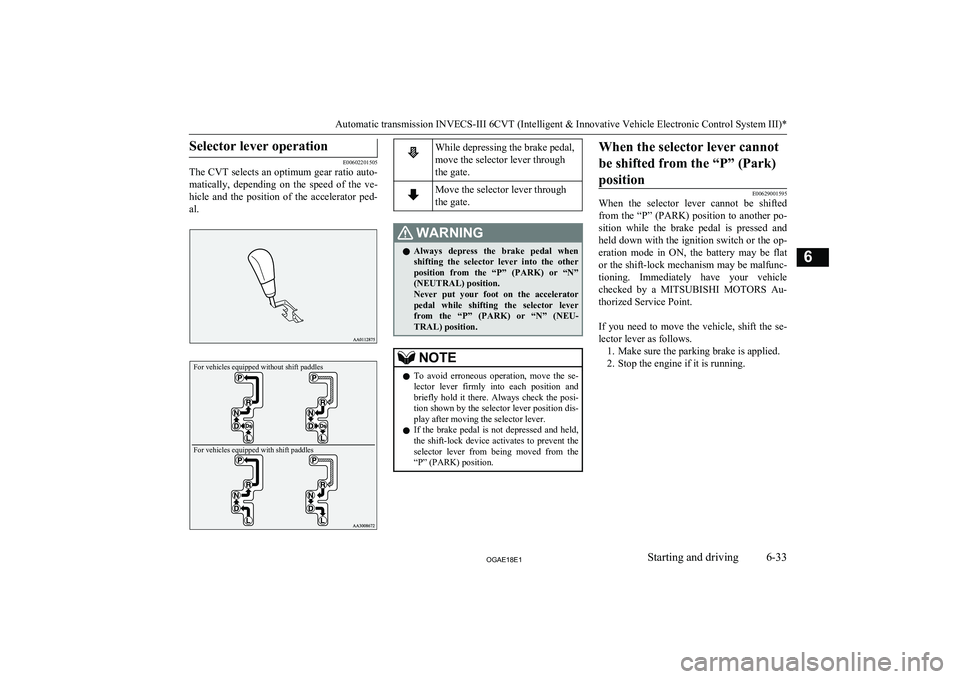

Selector lever operation
E00602201505
The CVT selects an optimum gear ratio auto-
matically, depending on the speed of the ve-hicle and the position of the accelerator ped-
al.
For vehicles equipped without shift paddlesFor vehicles equipped with shift paddlesWhile depressing the brake pedal,
move the selector lever through
the gate.Move the selector lever through
the gate.WARNINGl Always depress the brake pedal when
shifting the selector lever into the other position from the “P” (PARK) or “N”(NEUTRAL) position.
Never put your foot on the accelerator
pedal while shifting the selector lever from the “P” (PARK) or “N” (NEU-
TRAL) position.NOTEl To avoid erroneous operation, move the se-
lector lever firmly into each position and
briefly hold it there. Always check the posi- tion shown by the selector lever position dis-
play after moving the selector lever.
l If the brake pedal is not depressed and held,
the shift-lock device activates to prevent the selector lever from being moved from the “P” (PARK) position.When the selector lever cannot
be shifted from the “P” (Park)position
E00629001595
When the selector lever cannot be shifted
from the “P” (PARK) position to another po-
sition while the brake pedal is pressed and
held down with the ignition switch or the op- eration mode in ON, the battery may be flator the shift-lock mechanism may be malfunc-
tioning. Immediately have your vehicle checked by a MITSUBISHI MOTORS Au-
thorized Service Point.

If you need to move the vehicle, shift the se- lector lever as follows. 1. Make sure the parking brake is applied.
2. Stop the engine if it is running.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-33OGAE18E1Starting and driving6

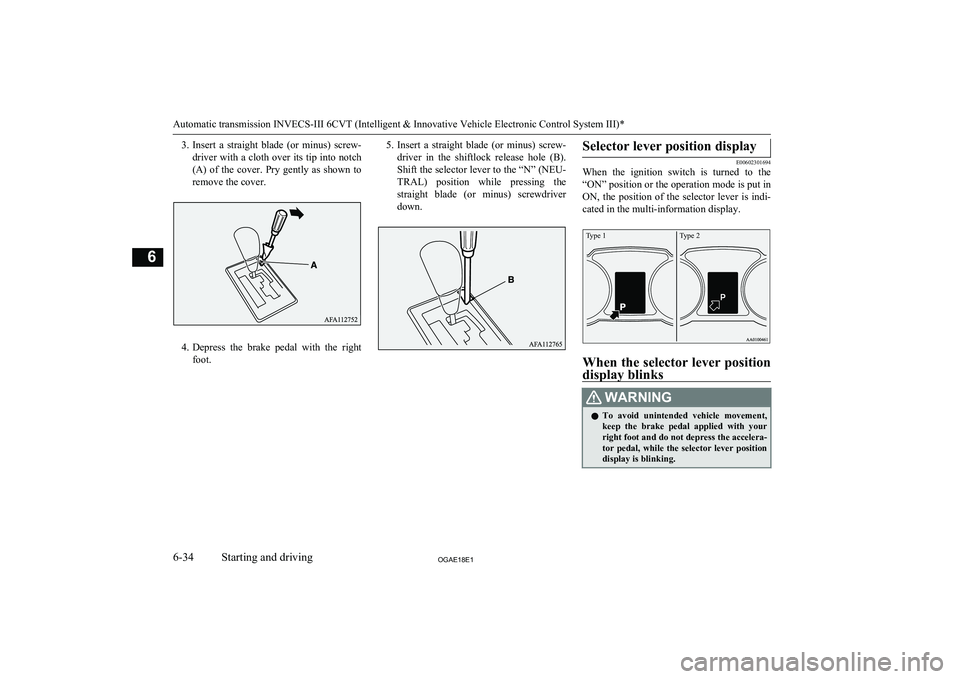

3.Insert a straight blade (or minus) screw-
driver with a cloth over its tip into notch (A) of the cover. Pry gently as shown to remove the cover.
4. Depress the brake pedal with the right
foot.
5. Insert a straight blade (or minus) screw-
driver in the shiftlock release hole (B).Shift the selector lever to the “N” (NEU-
TRAL) position while pressing the straight blade (or minus) screwdriver
down.Selector lever position display
E00602301694
When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, the position of the selector lever is indi-
cated in the multi-information display.
Type 1Type 2
When the selector lever position display blinks
WARNINGl To avoid unintended vehicle movement,
keep the brake pedal applied with your
right foot and do not depress the accelera- tor pedal, while the selector lever position
display is blinking.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-34OGAE18E1Starting and driving6

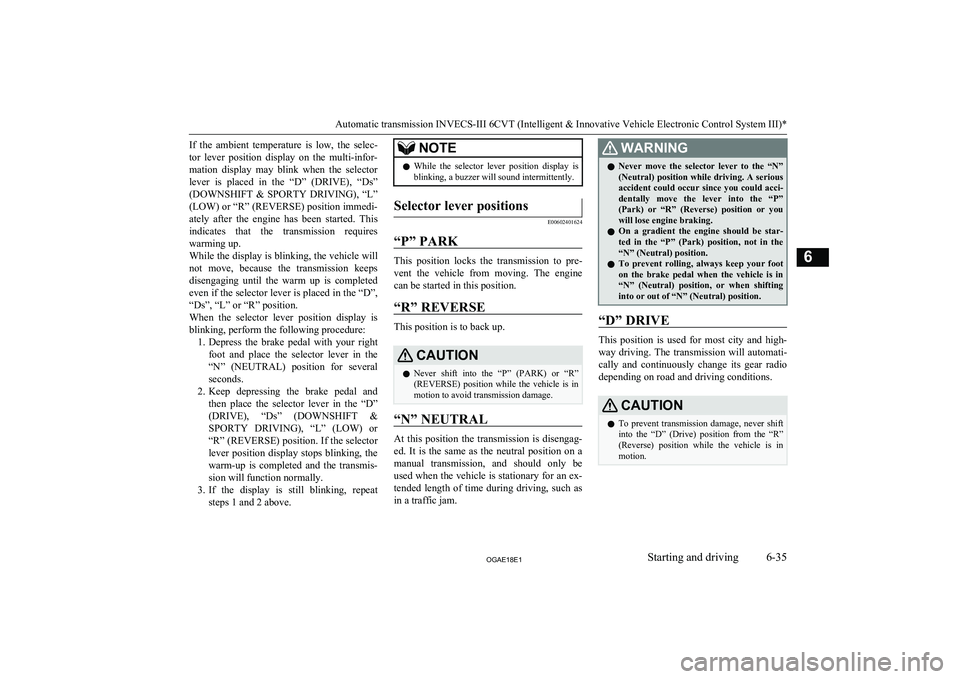

If the ambient temperature is low, the selec-
tor lever position display on the multi-infor- mation display may blink when the selector lever is placed in the “D” (DRIVE), “Ds”(DOWNSHIFT & SPORTY DRIVING), “L”
(LOW) or “R” (REVERSE) position immedi- ately after the engine has been started. This
indicates that the transmission requires
warming up.
While the display is blinking, the vehicle will
not move, because the transmission keeps disengaging until the warm up is completedeven if the selector lever is placed in the “D”,
“Ds”, “L” or “R” position.
When the selector lever position display is blinking, perform the following procedure: 1. Depress the brake pedal with your right
foot and place the selector lever in the
“N” (NEUTRAL) position for several seconds.
2. Keep depressing the brake pedal and
then place the selector lever in the “D”
(DRIVE), “Ds” (DOWNSHIFT & SPORTY DRIVING), “L” (LOW) or “R” (REVERSE) position. If the selector
lever position display stops blinking, the
warm-up is completed and the transmis-
sion will function normally.
3. If the display is still blinking, repeat
steps 1 and 2 above.NOTEl While the selector lever position display is
blinking, a buzzer will sound intermittently.Selector lever positions
E00602401624
“P” PARK
This position locks the transmission to pre-
vent the vehicle from moving. The engine
can be started in this position.
“R” REVERSE
This position is to back up.
CAUTIONl Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion to avoid transmission damage.
“N” NEUTRAL
At this position the transmission is disengag-
ed. It is the same as the neutral position on amanual transmission, and should only be used when the vehicle is stationary for an ex-
tended length of time during driving, such as
in a traffic jam.
WARNINGl Never move the selector lever to the “N”
(Neutral) position while driving. A seriousaccident could occur since you could acci-dentally move the lever into the “P”(Park) or “R” (Reverse) position or you
will lose engine braking.
l On a gradient the engine should be star-
ted in the “P” (Park) position, not in the
“N” (Neutral) position.
l To prevent rolling, always keep your foot
on the brake pedal when the vehicle is in
“N” (Neutral) position, or when shifting into or out of “N” (Neutral) position.
“D” DRIVE
This position is used for most city and high-
way driving. The transmission will automati-
cally and continuously change its gear radio depending on road and driving conditions.
CAUTIONl To prevent transmission damage, never shift
into the “D” (Drive) position from the “R” (Reverse) position while the vehicle is in motion.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-35OGAE18E1Starting and driving6

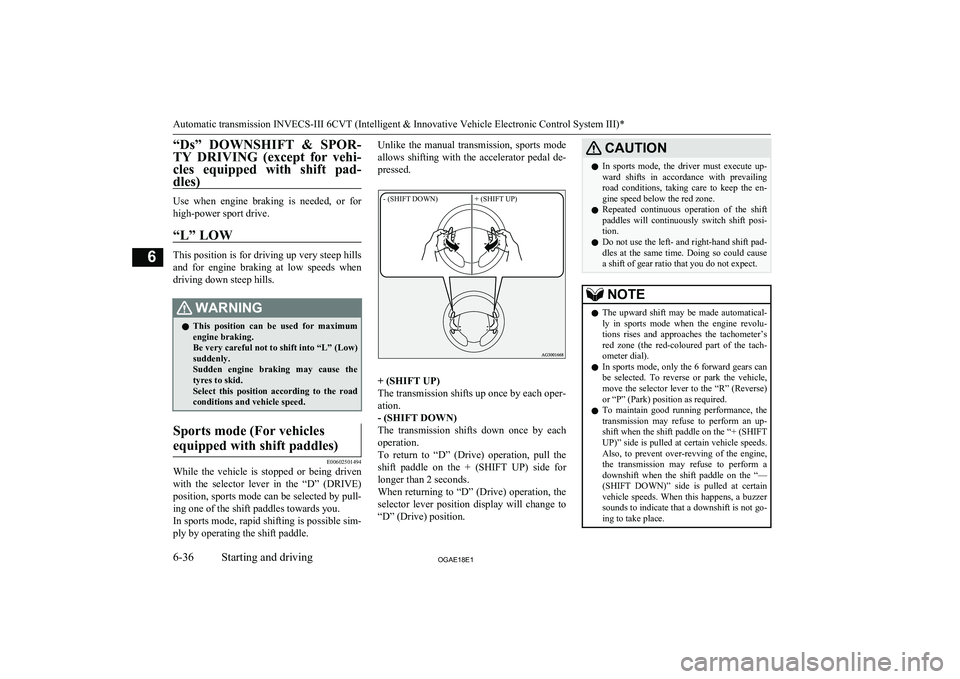

“Ds” DOWNSHIFT & SPOR-TY DRIVING (except for vehi- cles equipped with shift pad-
dles)
Use when engine braking is needed, or for
high-power sport drive.
“L” LOW
This position is for driving up very steep hills and for engine braking at low speeds when
driving down steep hills.
WARNINGl This position can be used for maximum
engine braking.
Be very careful not to shift into “L” (Low) suddenly.
Sudden engine braking may cause the
tyres to skid.
Select this position according to the road conditions and vehicle speed.Sports mode (For vehicles
equipped with shift paddles)
E00602501494
While the vehicle is stopped or being driven with the selector lever in the “D” (DRIVE)
position, sports mode can be selected by pull-
ing one of the shift paddles towards you.
In sports mode, rapid shifting is possible sim-
ply by operating the shift paddle.
Unlike the manual transmission, sports mode
allows shifting with the accelerator pedal de-
pressed.- (SHIFT DOWN)+ (SHIFT UP)
+ (SHIFT UP)
The transmission shifts up once by each oper-
ation.
- (SHIFT DOWN)
The transmission shifts down once by each
operation.
To return to “D” (Drive) operation, pull the
shift paddle on the + (SHIFT UP) side for longer than 2 seconds.
When returning to “D” (Drive) operation, the
selector lever position display will change to “D” (Drive) position.
CAUTIONl In sports mode, the driver must execute up-
ward shifts in accordance with prevailingroad conditions, taking care to keep the en-
gine speed below the red zone.
l Repeated continuous operation of the shift
paddles will continuously switch shift posi-
tion.
l Do not use the left- and right-hand shift pad-
dles at the same time. Doing so could cause a shift of gear ratio that you do not expect.NOTEl The upward shift may be made automatical-
ly in sports mode when the engine revolu-
tions rises and approaches the tachometer’s
red zone (the red-coloured part of the tach- ometer dial).
l In sports mode, only the 6 forward gears can
be selected. To reverse or park the vehicle, move the selector lever to the “R” (Reverse)
or “P” (Park) position as required.
l To maintain good running performance, the
transmission may refuse to perform an up- shift when the shift paddle on the “+ (SHIFTUP)” side is pulled at certain vehicle speeds.
Also, to prevent over-revving of the engine,
the transmission may refuse to perform a downshift when the shift paddle on the “—
(SHIFT DOWN)” side is pulled at certain vehicle speeds. When this happens, a buzzer
sounds to indicate that a downshift is not go- ing to take place.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-36OGAE18E1Starting and driving6

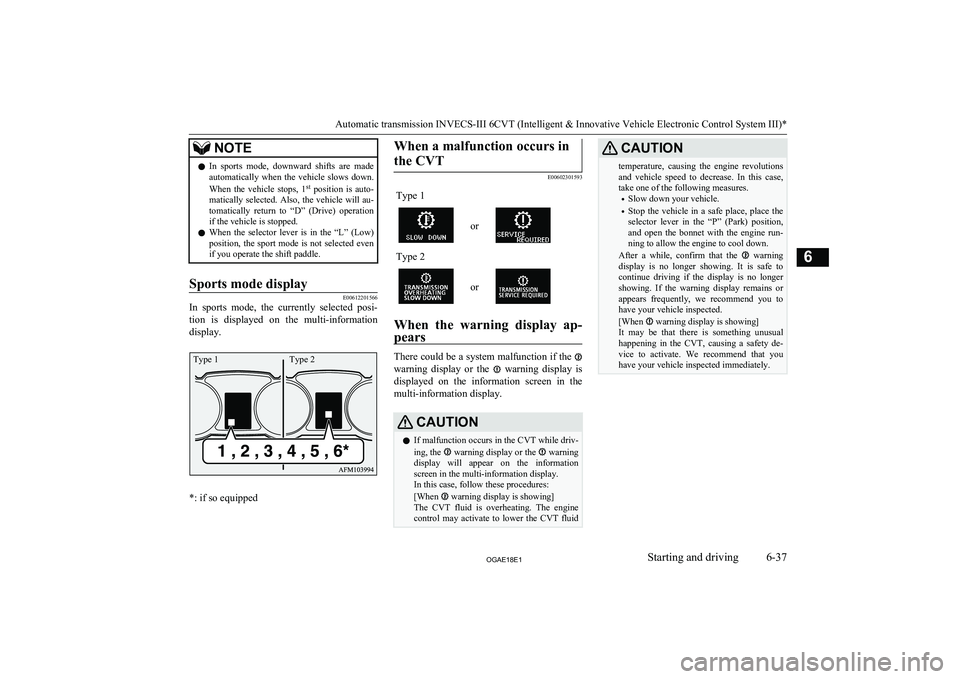

NOTElIn sports mode, downward shifts are made
automatically when the vehicle slows down.
When the vehicle stops, 1 st
position is auto-
matically selected. Also, the vehicle will au- tomatically return to “D” (Drive) operation
if the vehicle is stopped.
l When the selector lever is in the “L” (Low)
position, the sport mode is not selected even
if you operate the shift paddle.Sports mode display
E00612201566
In sports mode, the currently selected posi-
tion is displayed on the multi-information
display.
*: if so equipped
When a malfunction occurs in
the CVT
E00602301593
Type 1
or
Type 2
or
When the warning display ap-
pears
There could be a system malfunction if the
warning display or the warning display is
displayed on the information screen in the
multi-information display.
CAUTIONl If malfunction occurs in the CVT while driv-
ing, the warning display or the warning
display will appear on the information screen in the multi-information display.
In this case, follow these procedures:
[When
warning display is showing]
The CVT fluid is overheating. The engine control may activate to lower the CVT fluid
CAUTIONtemperature, causing the engine revolutions and vehicle speed to decrease. In this case,take one of the following measures.
• Slow down your vehicle.
• Stop the vehicle in a safe place, place the
selector lever in the “P” (Park) position,and open the bonnet with the engine run-
ning to allow the engine to cool down.
After a while, confirm that the
warning
display is no longer showing. It is safe to
continue driving if the display is no longer showing. If the warning display remains orappears frequently, we recommend you to have your vehicle inspected.
[When
warning display is showing]
It may be that there is something unusual happening in the CVT, causing a safety de-
vice to activate. We recommend that you have your vehicle inspected immediately.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-37OGAE18E1Starting and driving6 Type 1 Type 2

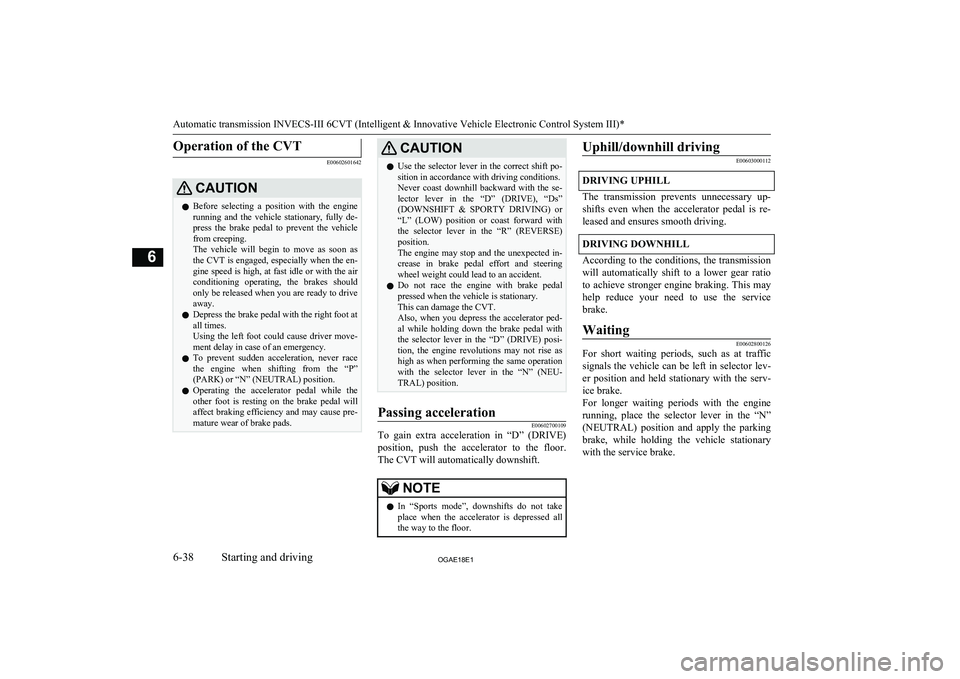

Operation of the CVT
E00602601642
CAUTIONlBefore selecting a position with the engine
running and the vehicle stationary, fully de-
press the brake pedal to prevent the vehicle from creeping.
The vehicle will begin to move as soon as the CVT is engaged, especially when the en-
gine speed is high, at fast idle or with the air conditioning operating, the brakes should
only be released when you are ready to drive
away.
l Depress the brake pedal with the right foot at
all times.
Using the left foot could cause driver move- ment delay in case of an emergency.
l To prevent sudden acceleration, never race
the engine when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
l Operating the accelerator pedal while the
other foot is resting on the brake pedal will affect braking efficiency and may cause pre-
mature wear of brake pads.CAUTIONl Use the selector lever in the correct shift po-
sition in accordance with driving conditions.
Never coast downhill backward with the se-
lector lever in the “D” (DRIVE), “Ds” (DOWNSHIFT & SPORTY DRIVING) or
“L” (LOW) position or coast forward with the selector lever in the “R” (REVERSE)position.
The engine may stop and the unexpected in-
crease in brake pedal effort and steering wheel weight could lead to an accident.
l Do not race the engine with brake pedal
pressed when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator ped- al while holding down the brake pedal withthe selector lever in the “D” (DRIVE) posi-
tion, the engine revolutions may not rise as high as when performing the same operation
with the selector lever in the “N” (NEU-
TRAL) position.Passing accelerationE00602700109
To gain extra acceleration in “D” (DRIVE)
position, push the accelerator to the floor.The CVT will automatically downshift.
NOTEl In “Sports mode”, downshifts do not take
place when the accelerator is depressed all
the way to the floor.Uphill/downhill driving
E00603000112
DRIVING UPHILL
The transmission prevents unnecessary up-
shifts even when the accelerator pedal is re- leased and ensures smooth driving.
DRIVING DOWNHILL
According to the conditions, the transmission
will automatically shift to a lower gear ratio to achieve stronger engine braking. This mayhelp reduce your need to use the service brake.
Waiting
E00602800126
For short waiting periods, such as at trafficsignals the vehicle can be left in selector lev-er position and held stationary with the serv-
ice brake.
For longer waiting periods with the engine running, place the selector lever in the “N”
(NEUTRAL) position and apply the parking
brake, while holding the vehicle stationary with the service brake.
Automatic transmission INVECS-III 6CVT (Intelligent & Innovative Vehicle Electronic Control System III)*
6-38OGAE18E1Starting and driving6
