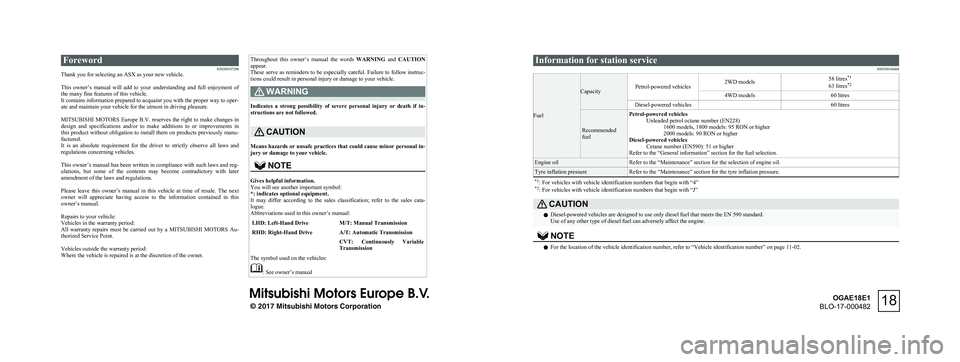

ForewordE09200107208
Thank you for selecting an ASX as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
NOTE
Gives helpful information.
You will see another important symbol:
*: indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata- logue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand DriveM/T: Manual TransmissionRHD: Right-Hand DriveA/T: Automatic Transmission CVT: Continuously Variable Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104660
Fuel
CapacityPetrol-powered vehicles2WD models58 litres*1
63 litres *24WD models60 litresDiesel-powered vehicles 60 litres
Recommended
fuel
Petrol-powered vehicles Unleaded petrol octane number (EN228)1600 models, 1800 models: 95 RON or higher
2000 models: 90 RON or higher
Diesel-powered vehicles Cetane number (EN590): 51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.*1 : For vehicles with vehicle identification numbers that begin with “4”
*2 : For vehicles with vehicle identification numbers that begin with “J”CAUTIONl Diesel-powered vehicles are designed to use only diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel can adversely affect the engine.NOTEl For the location of the vehicle identification number, refer to “Vehicle identification number” on page 11-02.
© 2017 Mitsubishi Motors Corporation18
OGAE18E1
BLO-17-000482
Page 3 of 514

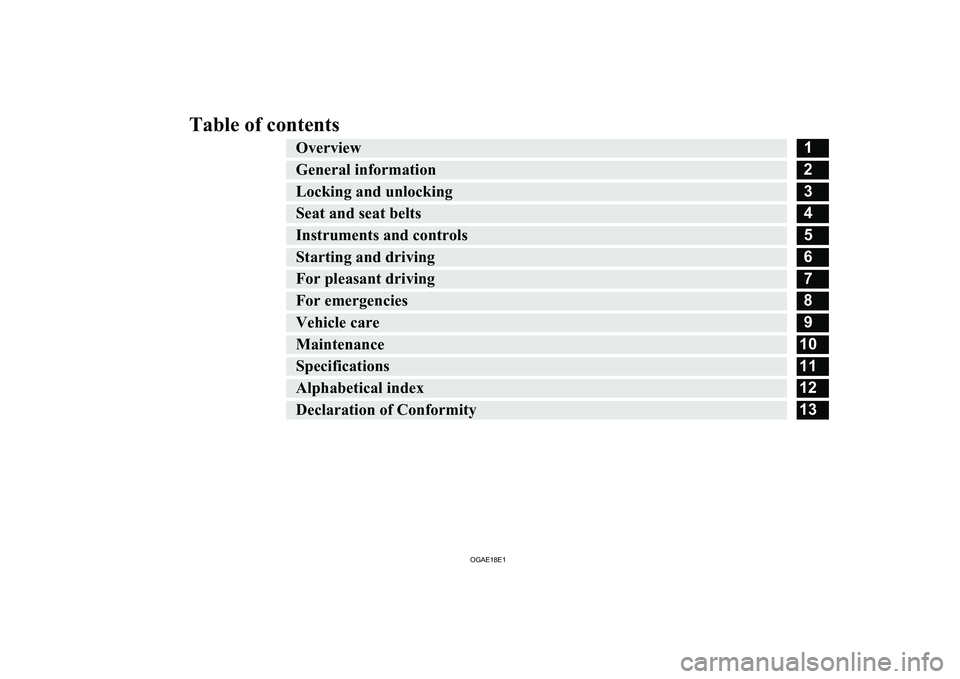

Table of contentsOverview1General information2Locking and unlocking3Seat and seat belts4Instruments and controls5Starting and driving6For pleasant driving7For emergencies8Vehicle care9Maintenance10Specifications11Alphabetical index12Declaration of Conformity13
OGAE18E1
Page 4 of 514
Instruments and controlsE001001091491. Combination headlamps and dipper switch p. 5-50Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58
2. Instruments p. 5-02
3. Shift paddles* p. 6-36
4. Windscreen wiper and washer switch p. 5-59 Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64
5. Engine switch* p. 3-13
6. Cruise control switch* p. 6-54
7. Ignition switch* p. 6-12
8. Supplemental restraint system (SRS) - driver’s knee airbag* p. 4-29
9. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-65
10. Tilt & Telescopic steering lever p. 6-08
11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Sonar switch* p. 6-79
14. Lane Departure Warning (LDW)* p. 6-68
15. FCM ON/OFF switch* p. 6-63
16. Headlamp levelling switch* p. 5-55
Instruments and controls
1-02OGAE18E1Overview1
Page 5 of 514
1. Instruments p. 5-02
2. Windscreen wiper and washer switch p. 5-59 Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64
3. FCM ON/OFF switch* p. 6-63
4. Headlamp levelling switch* p. 5-55
5. Lane Departure Warning (LDW)* p. 6-68
6. Sonar switch* p. 6-79
7. Cruise control switch* p. 6-54
8. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-65
9. Ignition switch* p. 6-12
10. Supplemental restraint system (SRS) - driver’s knee airbag* p. 4-29
11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Tilt & Telescopic steering lever p. 6-08
14. Engine switch* p. 3-13
15. Combination headlamps and dipper switch p. 5-50 Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58
16. Shift paddles* p. 6-36
Instruments and controls
1-03OGAE18E1Overview1
Page 6 of 514
1. Audio system* p. 7-11MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Key slot* p. 3-20
4. Side ventilators p. 7-02
5. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-76
6. Hazard warning flasher switch p. 5-57
7. Rear window demister switch p. 5-64
8. Drive mode selector* p. 6-39
9. Gearshift or selector lever p. 6-23, 6-26, 6-33
10. Parking brake lever p. 6-06
11. Cup holder p. 7-79
12. Ashtray* p. 7-71
13. Fuel tank filler door release lever p. 2-03
14. Bonnet release lever p. 10-03
15. Fuse box p. 10-19
16. Accessory Socket* p. 7-72 Cigarette lighter* p. 7-71
17. Auto Stop & Go (AS&G) OFF switch* p. 6-19
18. Heated seat switch* p. 4-06
19. USB input terminal* p. 7-67
20. Active stability control (ASC) OFF switch* p. 5-04
21. Multi-information meter switch p. 5-04
22. Air conditioning* p. 7-03
Instruments and controls
1-04OGAE18E1Overview1
Page 7 of 514
1. Audio system* p. 7-11MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Multi-information meter switch p. 5-04
3. USB input terminal* p. 7-67
4. Active stability control (ASC) OFF switch* p. 5-04
5. Accessory Socket p. 7-72
6. Auto Stop & Go (AS&G) OFF switch* p. 6-19
7. Heated seat switch* p. 4-06
8. Bonnet release lever p. 10-03
9. Fuel tank filler door release lever p. 2-03
10. Rear window demister switch p. 5-64
11. Air conditioning* p. 7-03
12. Drive mode selector* p. 6-39
13. Parking brake lever p. 6-06
14. Cup holder p. 7-79
15. Ashtray* p. 7-71
16. Gearshift or selector lever p. 6-23, 6-26, 6-33
17. Hazard warning flasher switch p. 5-57
18. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-76
19. Fuse box p. 10-19
20. Side ventilators p. 7-02
21. Key slot* p. 3-20
22. Centre ventilators p. 7-02
Instruments and controls
1-05OGAE18E1Overview1
Page 8 of 514

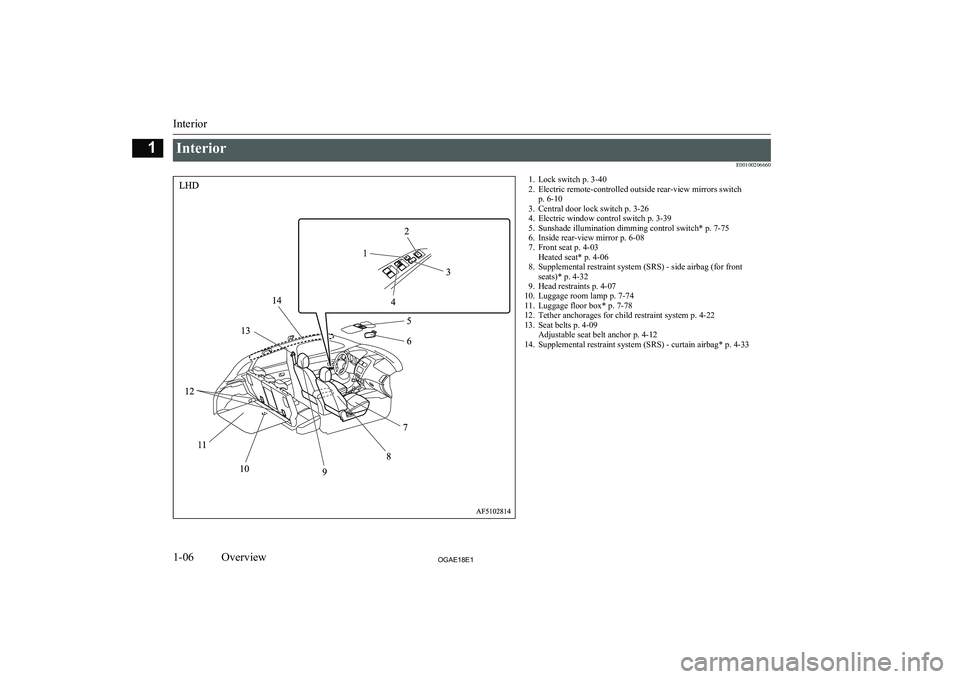

InteriorE001002066601. Lock switch p. 3-402. Electric remote-controlled outside rear-view mirrors switch p. 6-10
3. Central door lock switch p. 3-26
4. Electric window control switch p. 3-39
5. Sunshade illumination dimming control switch* p. 7-75
6. Inside rear-view mirror p. 6-08
7. Front seat p. 4-03 Heated seat* p. 4-06
8. Supplemental restraint system (SRS) - side airbag (for front seats)* p. 4-32
9. Head restraints p. 4-07
10. Luggage room lamp p. 7-74
11. Luggage floor box* p. 7-78
12. Tether anchorages for child restraint system p. 4-22
13. Seat belts p. 4-09 Adjustable seat belt anchor p. 4-12
14. Supplemental restraint system (SRS) - curtain airbag* p. 4-33
Interior
1-06OGAE18E1Overview1
Page 9 of 514

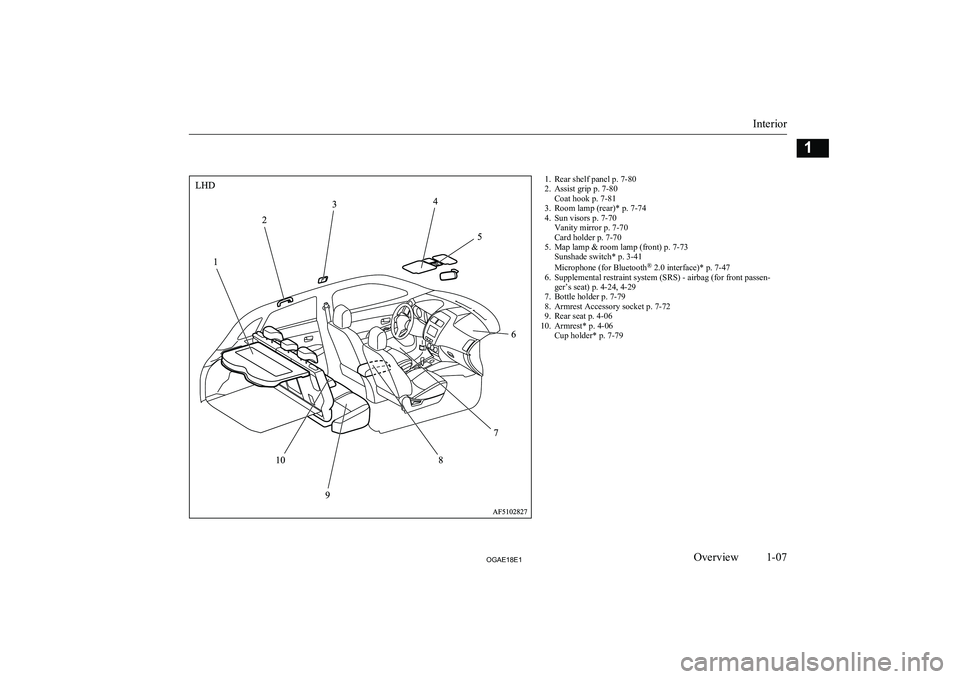

1. Rear shelf panel p. 7-80
2. Assist grip p. 7-80 Coat hook p. 7-81
3. Room lamp (rear)* p. 7-74
4. Sun visors p. 7-70 Vanity mirror p. 7-70
Card holder p. 7-70
5. Map lamp & room lamp (front) p. 7-73 Sunshade switch* p. 3-41
Microphone (for Bluetooth ®
2.0 interface)* p. 7-47
6. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-24, 4-29
7. Bottle holder p. 7-79
8. Armrest Accessory socket p. 7-72
9. Rear seat p. 4-06
10. Armrest* p. 4-06 Cup holder* p. 7-79
Interior
1-07OGAE18E1Overview1
Page 10 of 514

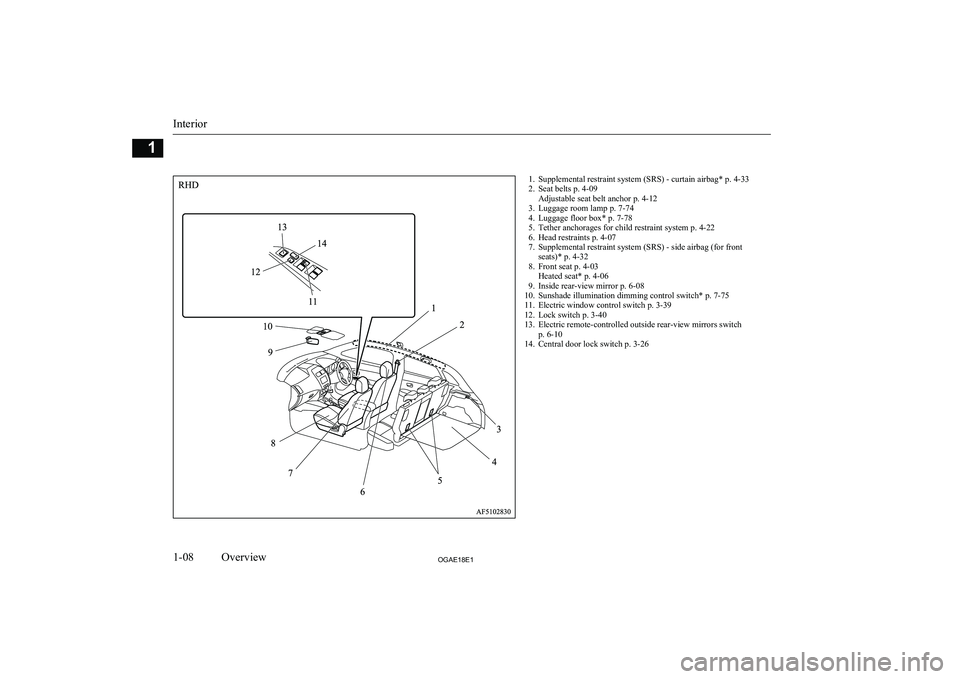

1. Supplemental restraint system (SRS) - curtain airbag* p. 4-33
2. Seat belts p. 4-09 Adjustable seat belt anchor p. 4-12
3. Luggage room lamp p. 7-74
4. Luggage floor box* p. 7-78
5. Tether anchorages for child restraint system p. 4-22
6. Head restraints p. 4-07
7. Supplemental restraint system (SRS) - side airbag (for front seats)* p. 4-32
8. Front seat p. 4-03 Heated seat* p. 4-06
9. Inside rear-view mirror p. 6-08
10. Sunshade illumination dimming control switch* p. 7-75
11. Electric window control switch p. 3-39
12. Lock switch p. 3-40
13. Electric remote-controlled outside rear-view mirrors switch p. 6-10
14. Central door lock switch p. 3-26
Interior
1-08OGAE18E1Overview1
