OGAE18E17

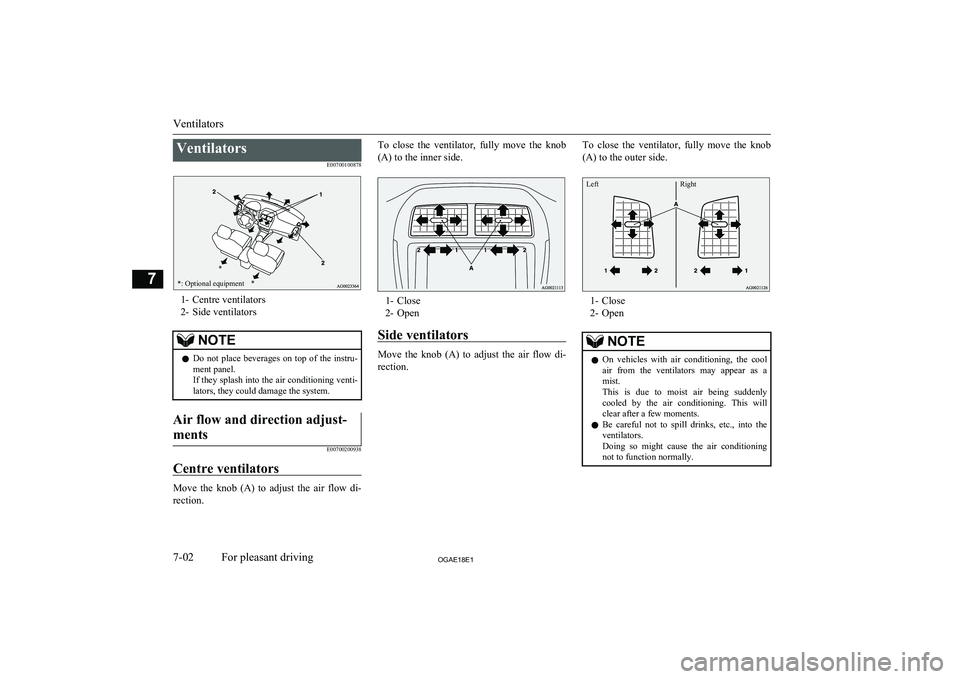

VentilatorsE00700100878
*: Optional equipment**
1- Centre ventilators
2- Side ventilators
NOTEl Do not place beverages on top of the instru-
ment panel.
If they splash into the air conditioning venti-
lators, they could damage the system.Air flow and direction adjust-
ments
E00700200938
Centre ventilators
Move the knob (A) to adjust the air flow di- rection.
To close the ventilator, fully move the knob
(A) to the inner side.
1- Close
2- Open
Side ventilators
Move the knob (A) to adjust the air flow di- rection.
To close the ventilator, fully move the knob
(A) to the outer side.LeftRight
1- Close
2- Open
NOTEl On vehicles with air conditioning, the cool
air from the ventilators may appear as a mist.
This is due to moist air being suddenly
cooled by the air conditioning. This will clear after a few moments.
l Be careful not to spill drinks, etc., into the
ventilators.
Doing so might cause the air conditioning not to function normally.
Ventilators
7-02OGAE18E1For pleasant driving7

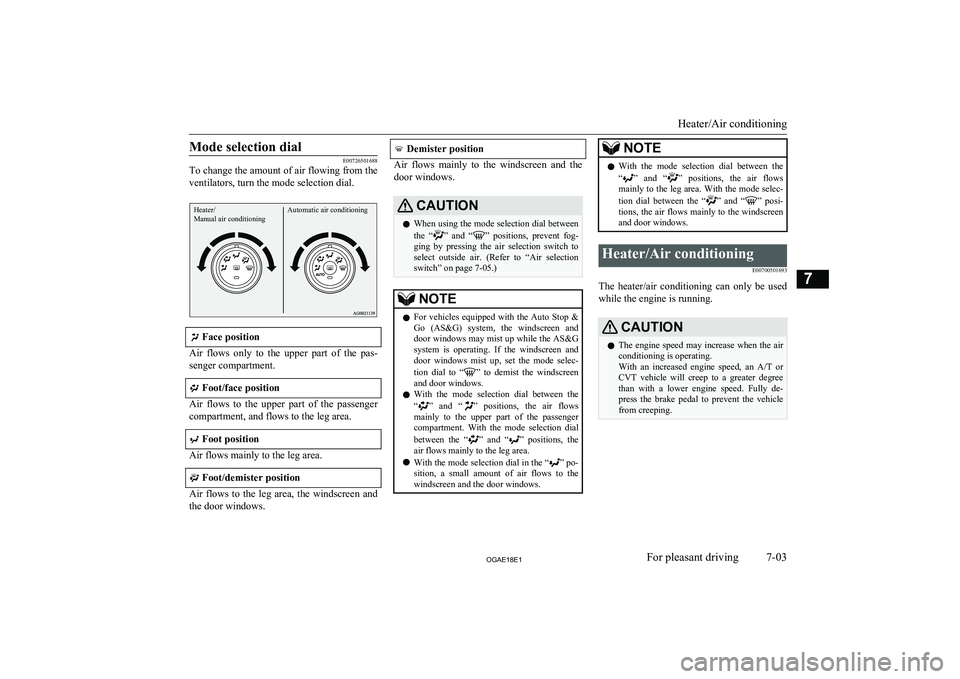

Mode selection dial
E00726501688
To change the amount of air flowing from the
ventilators, turn the mode selection dial.
Heater/
Manual air conditioningAutomatic air conditioning
Face position
Air flows only to the upper part of the pas-
senger compartment.
Foot/face position
Air flows to the upper part of the passenger
compartment, and flows to the leg area.
Foot position
Air flows mainly to the leg area.
Foot/demister position
Air flows to the leg area, the windscreen and
the door windows.
Demister position
Air flows mainly to the windscreen and the
door windows.
CAUTIONl When using the mode selection dial between
the “” and “” positions, prevent fog-
ging by pressing the air selection switch to
select outside air. (Refer to “Air selection
switch” on page 7-05.)NOTEl For vehicles equipped with the Auto Stop &
Go (AS&G) system, the windscreen and
door windows may mist up while the AS&G system is operating. If the windscreen and
door windows mist up, set the mode selec-
tion dial to “
” to demist the windscreen
and door windows.
l With the mode selection dial between the
“
” and “” positions, the air flows
mainly to the upper part of the passenger compartment. With the mode selection dial
between the “
” and “” positions, the
air flows mainly to the leg area.
l With the mode selection dial in the “
” po-
sition, a small amount of air flows to the windscreen and the door windows.
NOTEl With the mode selection dial between the
“” and “” positions, the air flows
mainly to the leg area. With the mode selec-
tion dial between the “
” and “” posi-
tions, the air flows mainly to the windscreen and door windows.
Heater/Air conditioning
E00700501693
The heater/air conditioning can only be usedwhile the engine is running.
CAUTIONl The engine speed may increase when the air
conditioning is operating.
With an increased engine speed, an A/T or
CVT vehicle will creep to a greater degree
than with a lower engine speed. Fully de-
press the brake pedal to prevent the vehicle
from creeping.
Heater/Air conditioning
7-03OGAE18E1For pleasant driving7

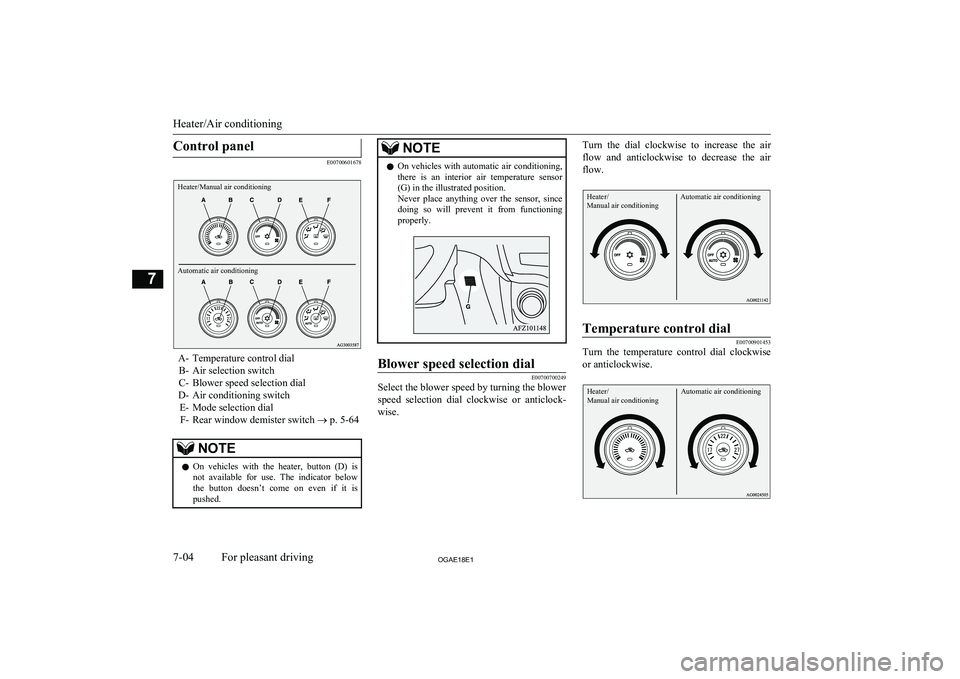

Control panel
E00700601678
Heater/Manual air conditioningAutomatic air conditioning
A- Temperature control dialB- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch E- Mode selection dialF- Rear window demister switch ® p. 5-64
NOTEl On vehicles with the heater, button (D) is
not available for use. The indicator below
the button doesn’t come on even if it is pushed.NOTEl On vehicles with automatic air conditioning,
there is an interior air temperature sensor
(G) in the illustrated position.
Never place anything over the sensor, since
doing so will prevent it from functioning
properly.Blower speed selection dial
E00700700249
Select the blower speed by turning the blower
speed selection dial clockwise or anticlock- wise.
Turn the dial clockwise to increase the air
flow and anticlockwise to decrease the air flow.Heater/
Manual air conditioningAutomatic air conditioning
Temperature control dial
E00700901453
Turn the temperature control dial clockwise
or anticlockwise.
Heater/
Manual air conditioningAutomatic air conditioning
Heater/Air conditioning
7-04OGAE18E1For pleasant driving7

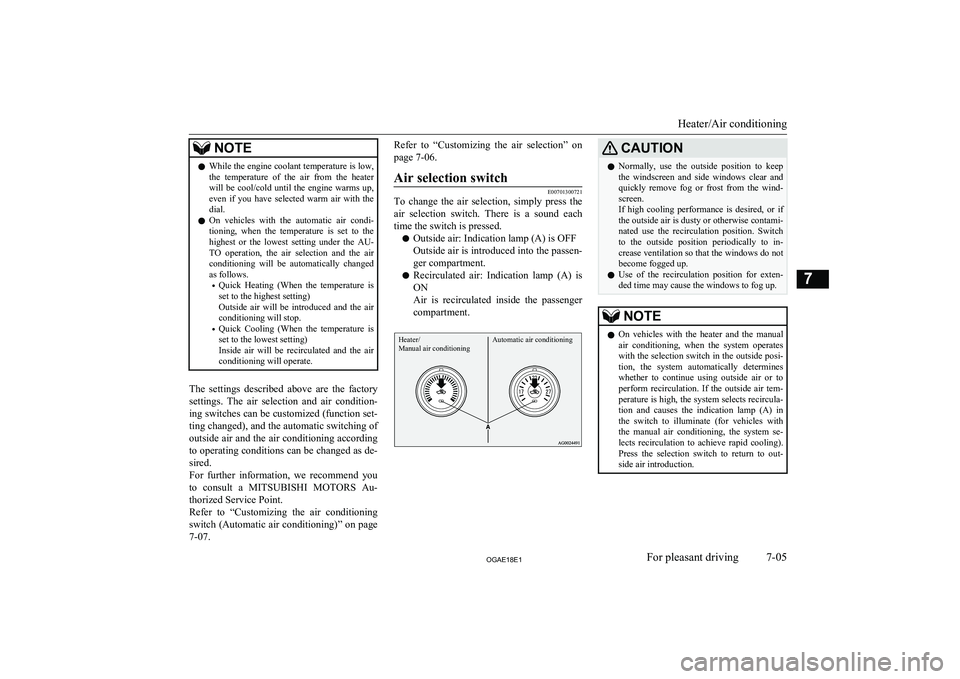

NOTElWhile the engine coolant temperature is low,
the temperature of the air from the heaterwill be cool/cold until the engine warms up, even if you have selected warm air with the
dial.
l On vehicles with the automatic air condi-
tioning, when the temperature is set to the highest or the lowest setting under the AU-
TO operation, the air selection and the air
conditioning will be automatically changed as follows.
• Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced and the air
conditioning will stop.
• Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioning will operate.
The settings described above are the factory
settings. The air selection and air condition-
ing switches can be customized (function set-
ting changed), and the automatic switching of outside air and the air conditioning according
to operating conditions can be changed as de- sired.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Customizing the air conditioning
switch (Automatic air conditioning)” on page 7-07.
Refer to “Customizing the air selection” on
page 7-06.Air selection switch
E00701300721
To change the air selection, simply press theair selection switch. There is a sound each
time the switch is pressed.
l Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen-
ger compartment.
l Recirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.
Heater/
Manual air conditioningAutomatic air conditioning
CAUTIONl Normally, use the outside position to keep
the windscreen and side windows clear and quickly remove fog or frost from the wind- screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami- nated use the recirculation position. Switch
to the outside position periodically to in- crease ventilation so that the windows do notbecome fogged up.
l Use of the recirculation position for exten-
ded time may cause the windows to fog up.NOTEl On vehicles with the heater and the manual
air conditioning, when the system operateswith the selection switch in the outside posi- tion, the system automatically determines
whether to continue using outside air or to
perform recirculation. If the outside air tem-
perature is high, the system selects recircula- tion and causes the indication lamp (A) in
the switch to illuminate (for vehicles with the manual air conditioning, the system se-
lects recirculation to achieve rapid cooling). Press the selection switch to return to out-
side air introduction.
Heater/Air conditioning
7-05OGAE18E1For pleasant driving7

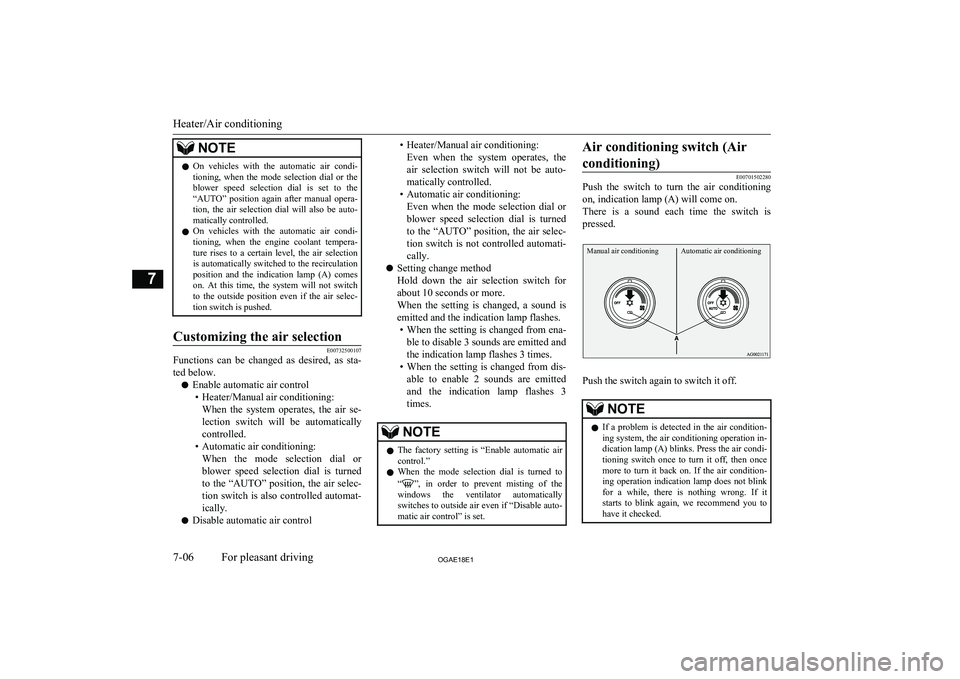

NOTElOn vehicles with the automatic air condi-
tioning, when the mode selection dial or the
blower speed selection dial is set to the “AUTO” position again after manual opera-tion, the air selection dial will also be auto- matically controlled.
l On vehicles with the automatic air condi-
tioning, when the engine coolant tempera-
ture rises to a certain level, the air selection is automatically switched to the recirculation
position and the indication lamp (A) comes on. At this time, the system will not switch
to the outside position even if the air selec-
tion switch is pushed.Customizing the air selection
E00732500107
Functions can be changed as desired, as sta-
ted below.
l Enable automatic air control
• Heater/Manual air conditioning: When the system operates, the air se-
lection switch will be automatically controlled.
• Automatic air conditioning: When the mode selection dial or
blower speed selection dial is turned
to the “AUTO” position, the air selec-
tion switch is also controlled automat- ically.
l Disable automatic air control
• Heater/Manual air conditioning:
Even when the system operates, theair selection switch will not be auto-
matically controlled.
• Automatic air conditioning: Even when the mode selection dial orblower speed selection dial is turned
to the “AUTO” position, the air selec-
tion switch is not controlled automati- cally.
l Setting change method
Hold down the air selection switch for about 10 seconds or more.
When the setting is changed, a sound is
emitted and the indication lamp flashes. • When the setting is changed from ena-
ble to disable 3 sounds are emitted and
the indication lamp flashes 3 times.
• When the setting is changed from dis-
able to enable 2 sounds are emitted and the indication lamp flashes 3times.NOTEl The factory setting is “Enable automatic air
control.”
l When the mode selection dial is turned to
“
”, in order to prevent misting of the
windows the ventilator automatically switches to outside air even if “Disable auto-matic air control” is set.
Air conditioning switch (Air
conditioning)
E00701502280
Push the switch to turn the air conditioning
on, indication lamp (A) will come on.
There is a sound each time the switch is pressed.
Manual air conditioningAutomatic air conditioning
Push the switch again to switch it off.
NOTEl If a problem is detected in the air condition-
ing system, the air conditioning operation in- dication lamp (A) blinks. Press the air condi-
tioning switch once to turn it off, then once more to turn it back on. If the air condition-
ing operation indication lamp does not blink for a while, there is nothing wrong. If it
starts to blink again, we recommend you to have it checked.
Heater/Air conditioning
7-06OGAE18E1For pleasant driving7

NOTElSometimes, for example after using a high-

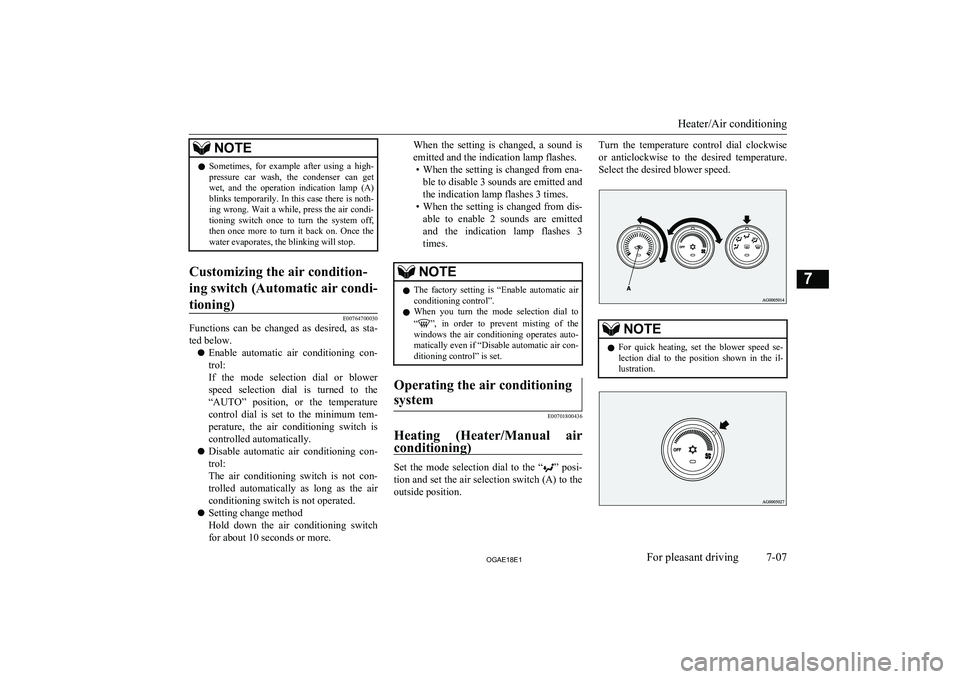

pressure car wash, the condenser can get wet, and the operation indication lamp (A)
blinks temporarily. In this case there is noth- ing wrong. Wait a while, press the air condi-
tioning switch once to turn the system off, then once more to turn it back on. Once the
water evaporates, the blinking will stop.Customizing the air condition-
ing switch (Automatic air condi- tioning)
E00764700030
Functions can be changed as desired, as sta- ted below.
l Enable automatic air conditioning con-
trol:
If the mode selection dial or blower
speed selection dial is turned to the “AUTO” position, or the temperature
control dial is set to the minimum tem-
perature, the air conditioning switch is controlled automatically.
l Disable automatic air conditioning con-
trol:
The air conditioning switch is not con-
trolled automatically as long as the air
conditioning switch is not operated.
l Setting change method
Hold down the air conditioning switch for about 10 seconds or more.
When the setting is changed, a sound is
emitted and the indication lamp flashes. • When the setting is changed from ena-
ble to disable 3 sounds are emitted and
the indication lamp flashes 3 times.
• When the setting is changed from dis-
able to enable 2 sounds are emitted and the indication lamp flashes 3times.NOTEl The factory setting is “Enable automatic air
conditioning control”.
l When you turn the mode selection dial to
“
”, in order to prevent misting of the
windows the air conditioning operates auto- matically even if “Disable automatic air con-
ditioning control” is set.
Operating the air conditioning
system
E00701800436
Heating (Heater/Manual air
conditioning)
Set the mode selection dial to the “” posi-
tion and set the air selection switch (A) to the outside position.
Turn the temperature control dial clockwise
or anticlockwise to the desired temperature.
Select the desired blower speed.NOTEl For quick heating, set the blower speed se-
lection dial to the position shown in the il-
lustration.
Heater/Air conditioning
7-07OGAE18E1For pleasant driving7

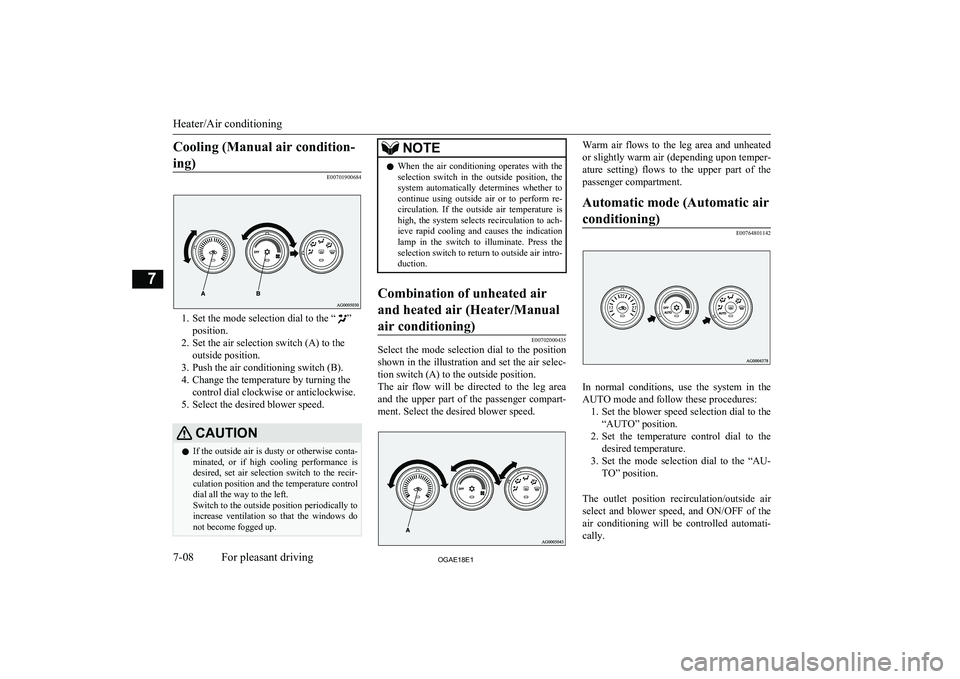

Cooling (Manual air condition-ing)
E00701900684
1. Set the mode selection dial to the “”
position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clockwise or anticlockwise.
5. Select the desired blower speed.
CAUTIONl If the outside air is dusty or otherwise conta-
minated, or if high cooling performance is
desired, set air selection switch to the recir- culation position and the temperature control
dial all the way to the left.
Switch to the outside position periodically to increase ventilation so that the windows donot become fogged up.NOTEl When the air conditioning operates with the
selection switch in the outside position, the
system automatically determines whether to continue using outside air or to perform re-
circulation. If the outside air temperature is high, the system selects recirculation to ach- ieve rapid cooling and causes the indication
lamp in the switch to illuminate. Press the
selection switch to return to outside air intro- duction.Combination of unheated air
and heated air (Heater/Manual air conditioning)
E00702000435
Select the mode selection dial to the position shown in the illustration and set the air selec- tion switch (A) to the outside position.The air flow will be directed to the leg area
and the upper part of the passenger compart-
ment. Select the desired blower speed.
Warm air flows to the leg area and unheated
or slightly warm air (depending upon temper-
ature setting) flows to the upper part of the
passenger compartment.Automatic mode (Automatic air
conditioning)
E00764801142
In normal conditions, use the system in the
AUTO mode and follow these procedures: 1. Set the blower speed selection dial to the
“AUTO” position.
2. Set the temperature control dial to the
desired temperature.
3. Set the mode selection dial to the “AU-
TO” position.
The outlet position recirculation/outside air
select and blower speed, and ON/OFF of the air conditioning will be controlled automati-cally.
Heater/Air conditioning
7-08OGAE18E1For pleasant driving7

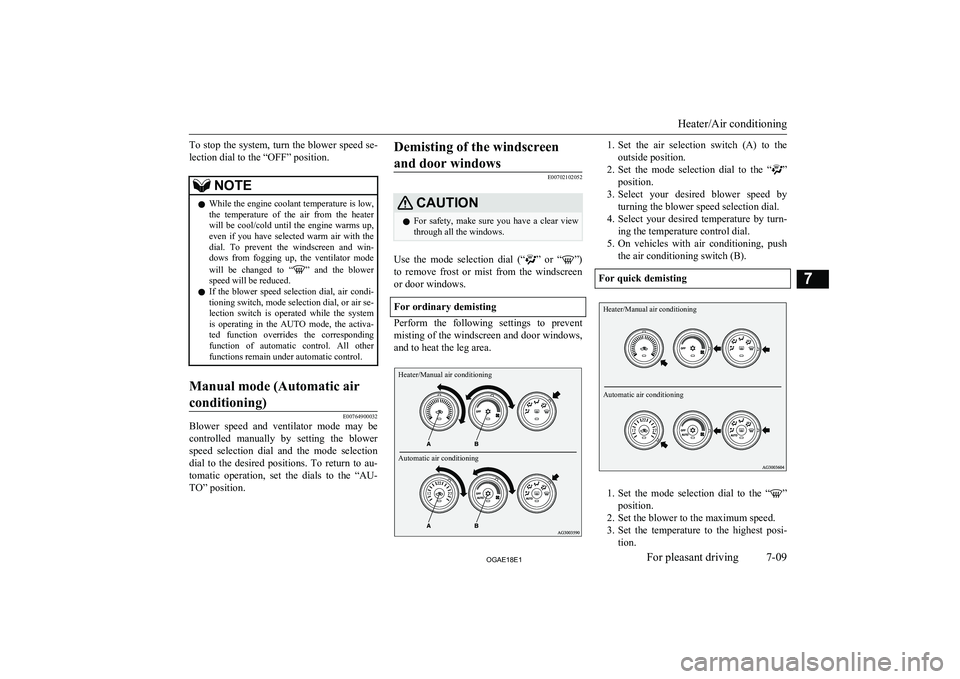

To stop the system, turn the blower speed se-lection dial to the “OFF” position.NOTEl While the engine coolant temperature is low,
the temperature of the air from the heaterwill be cool/cold until the engine warms up, even if you have selected warm air with the
dial. To prevent the windscreen and win-
dows from fogging up, the ventilator mode
will be changed to “
” and the blower
speed will be reduced.
l If the blower speed selection dial, air condi-
tioning switch, mode selection dial, or air se-
lection switch is operated while the system is operating in the AUTO mode, the activa-ted function overrides the corresponding
function of automatic control. All other
functions remain under automatic control.
Manual mode (Automatic air
conditioning)
E00764900032
Blower speed and ventilator mode may be
controlled manually by setting the blower speed selection dial and the mode selection
dial to the desired positions. To return to au-
tomatic operation, set the dials to the “AU- TO” position.
Demisting of the windscreen
and door windows
E00702102052
CAUTIONl For safety, make sure you have a clear view
through all the windows.
Use the mode selection dial (“” or “”)
to remove frost or mist from the windscreen or door windows.
For ordinary demisting
Perform the following settings to prevent
misting of the windscreen and door windows,
and to heat the leg area.
Heater/Manual air conditioningAutomatic air conditioning1. Set the air selection switch (A) to the
outside position.
2. Set the mode selection dial to the “
”
position.
3. Select your desired blower speed by
turning the blower speed selection dial.
4. Select your desired temperature by turn-
ing the temperature control dial.
5. On vehicles with air conditioning, push
the air conditioning switch (B).
For quick demisting
Heater/Manual air conditioningAutomatic air conditioning
1. Set the mode selection dial to the “”
position.
2. Set the blower to the maximum speed. 3. Set the temperature to the highest posi-
tion.
Heater/Air conditioning
7-09OGAE18E1For pleasant driving7

NOTElWhen the mode selection dial is in the “”
position, the system operates automatically
and outside air is set automatically.
l To demist effectively, direct the air flow
from the side ventilators towards the door
windows.
l On vehicles with air conditioning, do not set
the temperature control dial to the max. cool position. Cool air will blow against the win-
dow glasses and prevent demisting.
l For vehicles with the Auto Stop & Go
(AS&G) system, if the mode selection dial is
set to the demister position shown in the il- lustration, the AS&G system will not oper- ate and the engine will not stop automatical-

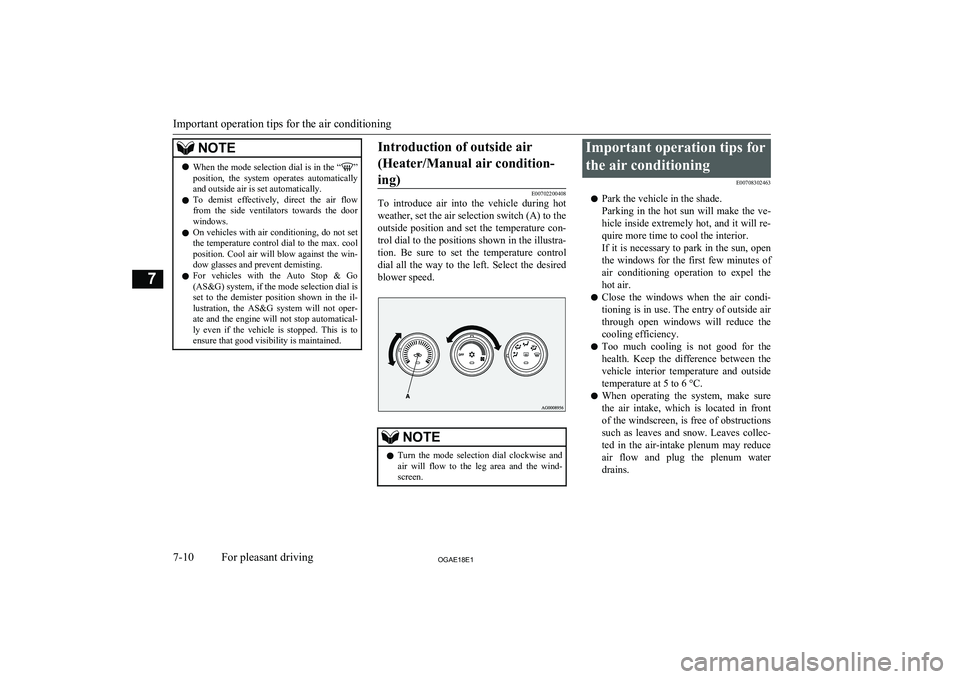

ly even if the vehicle is stopped. This is to ensure that good visibility is maintained.Introduction of outside air
(Heater/Manual air condition- ing)
E00702200408
To introduce air into the vehicle during hot
weather, set the air selection switch (A) to the
outside position and set the temperature con-
trol dial to the positions shown in the illustra- tion. Be sure to set the temperature control dial all the way to the left. Select the desiredblower speed.
NOTEl Turn the mode selection dial clockwise and
air will flow to the leg area and the wind-
screen.Important operation tips for
the air conditioning E00708302463
l Park the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open the windows for the first few minutes of
air conditioning operation to expel the
hot air.
l Close the windows when the air condi-
tioning is in use. The entry of outside air
through open windows will reduce the cooling efficiency.
l Too much cooling is not good for the
health. Keep the difference between the
vehicle interior temperature and outside
temperature at 5 to 6 °C.
l When operating the system, make sure
the air intake, which is located in front of the windscreen, is free of obstructions
such as leaves and snow. Leaves collec- ted in the air-intake plenum may reduce
air flow and plug the plenum water
drains.
Important operation tips for the air conditioning
7-10OGAE18E1For pleasant driving7
