MITSUBISHI ASX 2020 (in English) User Guide

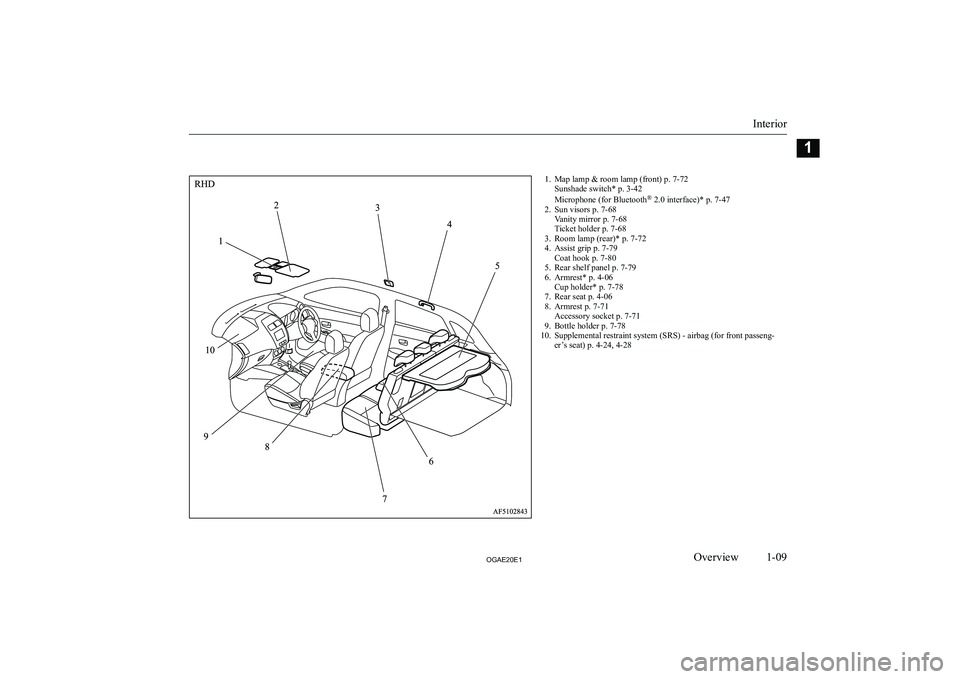

1. Map lamp & room lamp (front) p. 7-72Sunshade switch* p. 3-42
Microphone (for Bluetooth

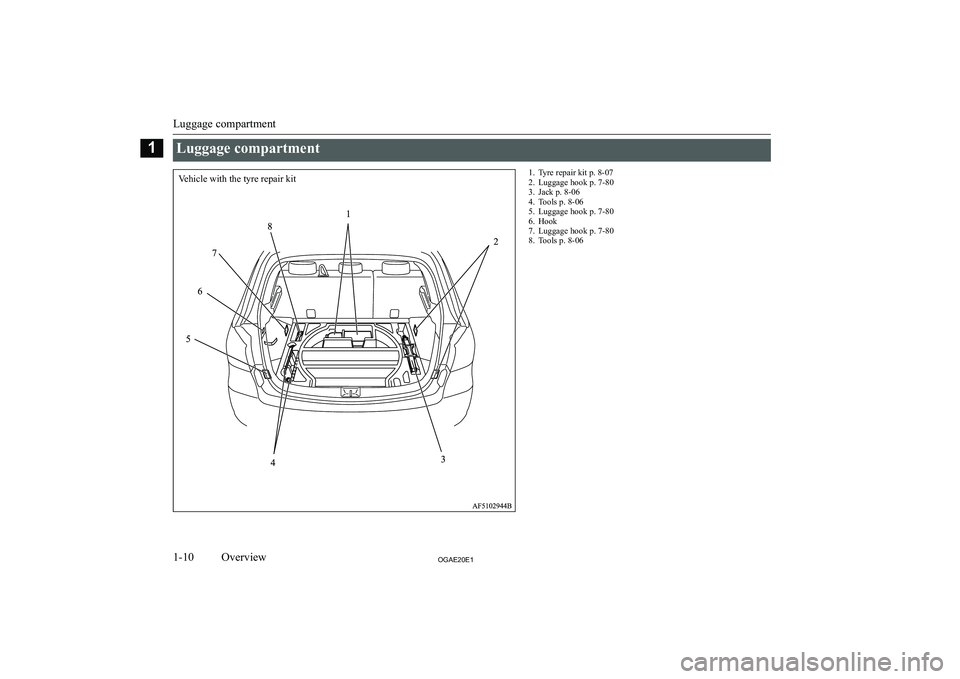

Luggage compartment1. Tyre repair kit p. 8-07
2. Luggage hook p. 7-80
3. Jack p. 8-06
4. Tools p. 8-06
5. Luggage hook p. 7-80
6. Hook
7. Luggage hook p. 7-80
8. Tools p. 8-06
Luggage compartment
1-102*$(20(1Overview1Vehicle with the tyre repair kit

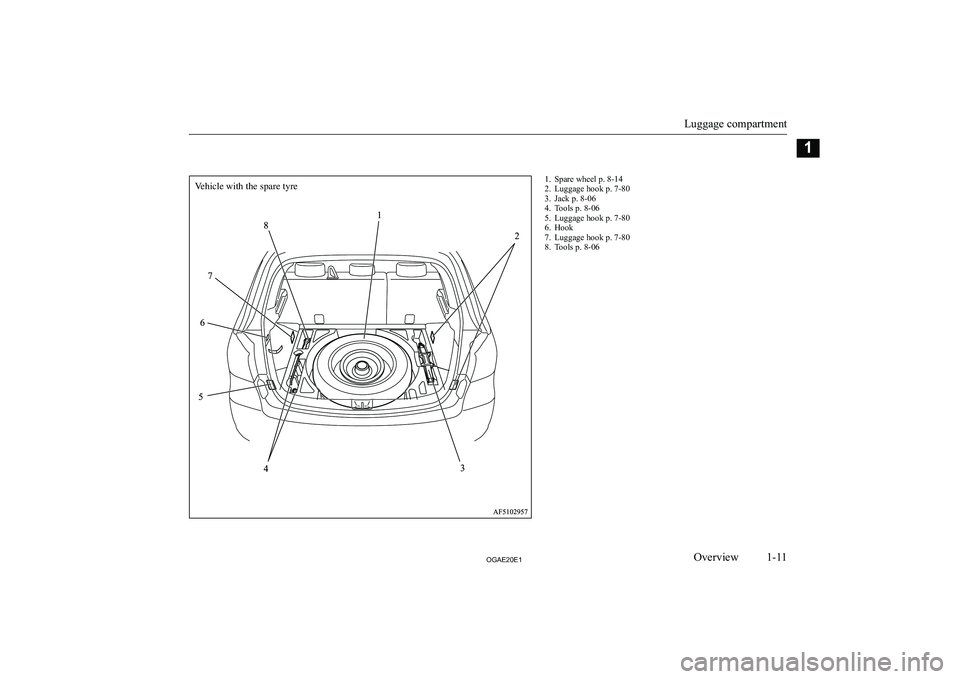

1. Spare wheel p. 8-14
2. Luggage hook p. 7-80
3. Jack p. 8-06
4. Tools p. 8-06
5. Luggage hook p. 7-80
6. Hook
7. Luggage hook p. 7-80
8. Tools p. 8-06
Luggage compartment
1-112*$(20(1Overview1Vehicle with the spare tyre

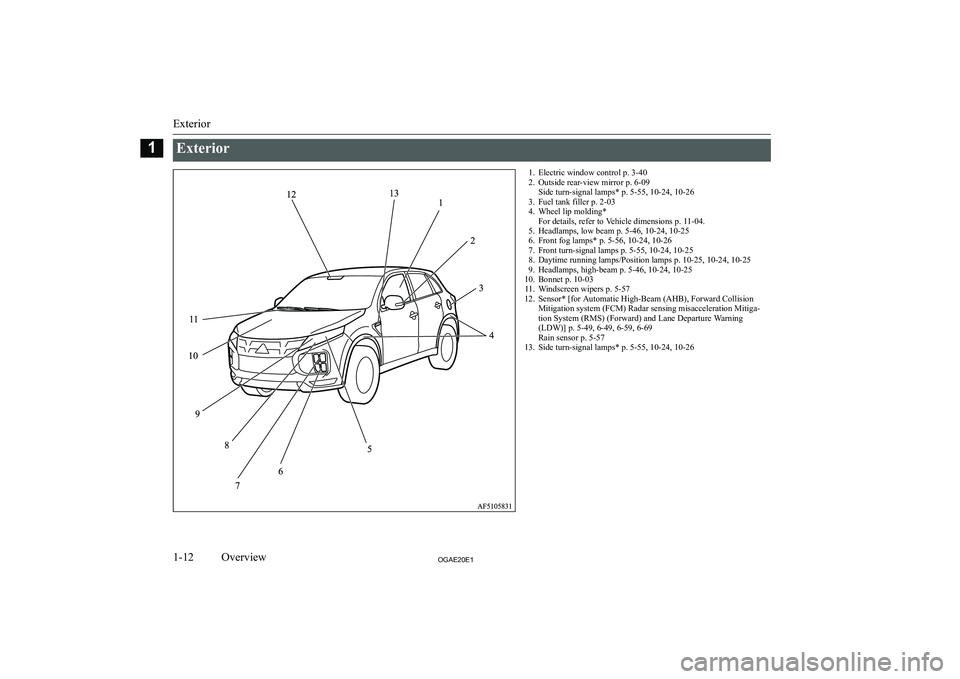

Exterior1. Electric window control p. 3-40
2. Outside rear-view mirror p. 6-09 Side turn-signal lamps* p. 5-55, 10-24, 10-26
3. Fuel tank filler p. 2-03
4. Wheel lip molding* For details, refer to Vehicle dimensions p. 11-04.
5. Headlamps, low beam p. 5-46, 10-24, 10-25
6. Front fog lamps* p. 5-56, 10-24, 10-26
7. Front turn-signal lamps p. 5-55, 10-24, 10-25
8. Daytime running lamps/Position lamps p. 10-25, 10-24, 10-25
9. Headlamps, high-beam p. 5-46, 10-24, 10-25
10. Bonnet p. 10-03 11. Windscreen wipers p. 5-57
12. Sensor* [for Automatic High-Beam (AHB), Forward Collision Mitigation system (FCM) Radar sensing misacceleration Mitiga-
tion System (RMS) (Forward) and Lane Departure Warning
(LDW)@ p. 5-49, 6-49, 6-59, 6-69
Rain sensor p. 5-57
13. Side turn-signal lamps* p. 5-55, 10-24, 10-26
Exterior
1-122*$(20(1Overview1

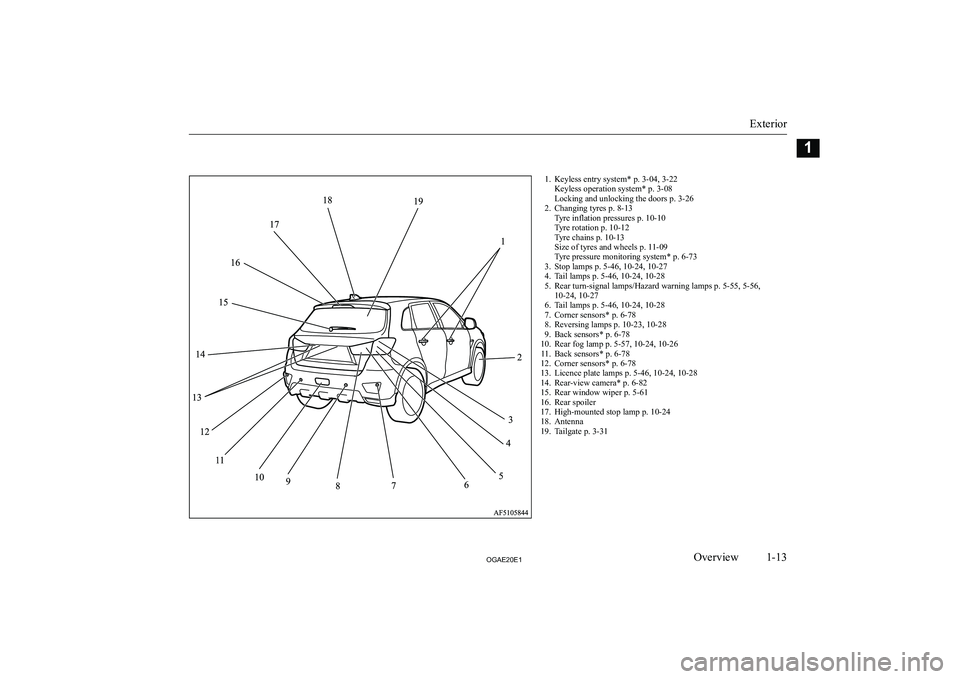

1. Keyless entry system* p. 3-04, 3-22Keyless operation system* p. 3-08
Locking and unlocking the doors p. 3-26
2. Changing tyres p. 8-13 Tyre inflation pressures p. 10-10
Tyre rotation p. 10-12
Tyre chains p. 10-13
Size of tyres and wheels p. 11-09
Tyre pressure monitoring system* p. 6-73
3. Stop lamps p. 5-46, 10-24, 10-27
4. Tail lamps p. 5-46, 10-24, 10-28
5. Rear turn-signal lamps/Hazard warning lamps p. 5-55, 5-56, 10-24, 10-27
6. Tail lamps p. 5-46, 10-24, 10-28
7. Corner sensors* p. 6-78
8. Reversing lamps p. 10-23, 10-28
9. Back sensors* p. 6-78
10. Rear fog lamp p. 5-57, 10-24, 10-26 11. Back sensors* p. 6-78
12. Corner sensors* p. 6-78
13. Licence plate lamps p. 5-46, 10-24, 10-28
14. Rear-view camera* p. 6-82
15. Rear window wiper p. 5-61
16. Rear spoiler
17. High-mounted stop lamp p. 10-24
18. Antenna
19. Tailgate p. 3-31
Exterior
1-132*$(20(1Overview1

2*$(20(1

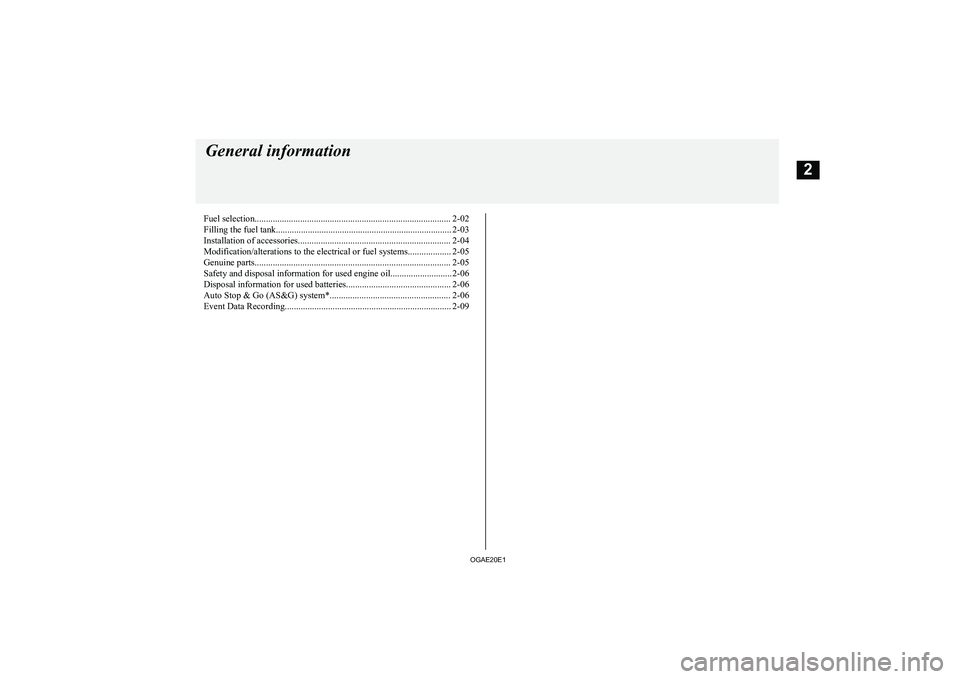

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-03Installation of accessories................................................................... 2-04
Modification/alterations to the electrical or fuel systems................... 2-05
Genuine parts...................................................................................... 2-05 Safety and disposal information for used engine oil........................... 2-06
Disposal information for used batteries.............................................. 2-06
Auto Stop & Go (AS&G) system*..................................................... 2-06
Event Data Recording......................................................................... 2-09Generalinformation
2*$(20(12

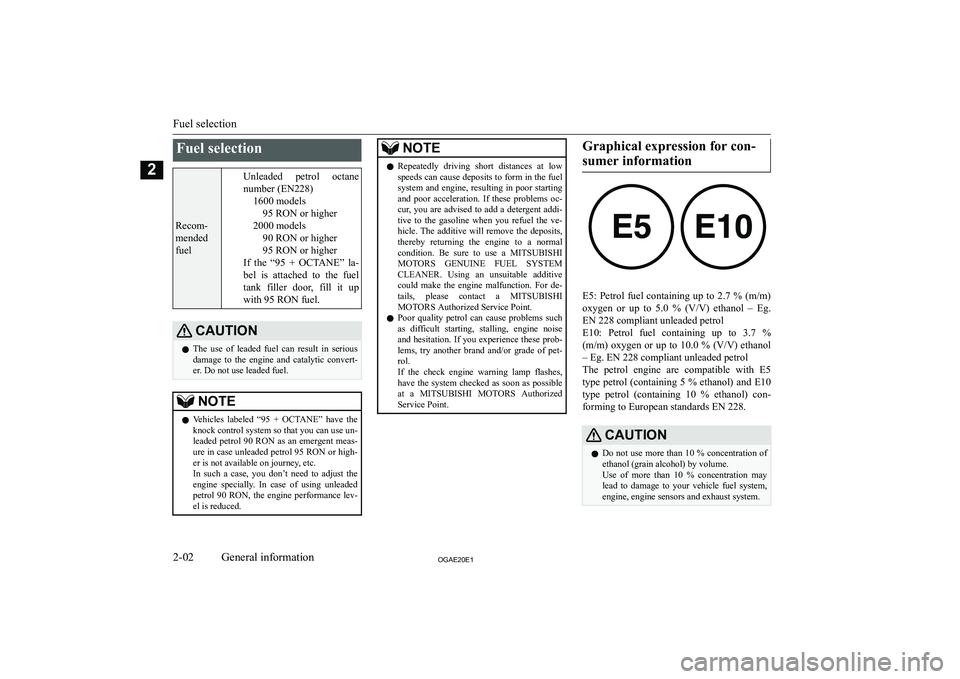

Fuel selection
Recom-
mended
fuel
Unleaded petrol octane number (EN228) 1600 models95 RON or higher
2000 models 90 RON or higher
95 RON or higher
If the “95 + OCTANE” la-
bel is attached to the fuel tank filler door, fill it up
with 95 RON fuel.CAUT,ONz The use of leaded fuel can result in serious
damage to the engine and catalytic convert- er. Do not use leaded fuel.NOTEz Vehicles labeled “95 + OCTANE” have the
knock control system so that you can use un-
leaded petrol 90 RON as an emergent meas- ure in case unleaded petrol 95 RON or high- er is not available on journey, etc.
In such a case, you don

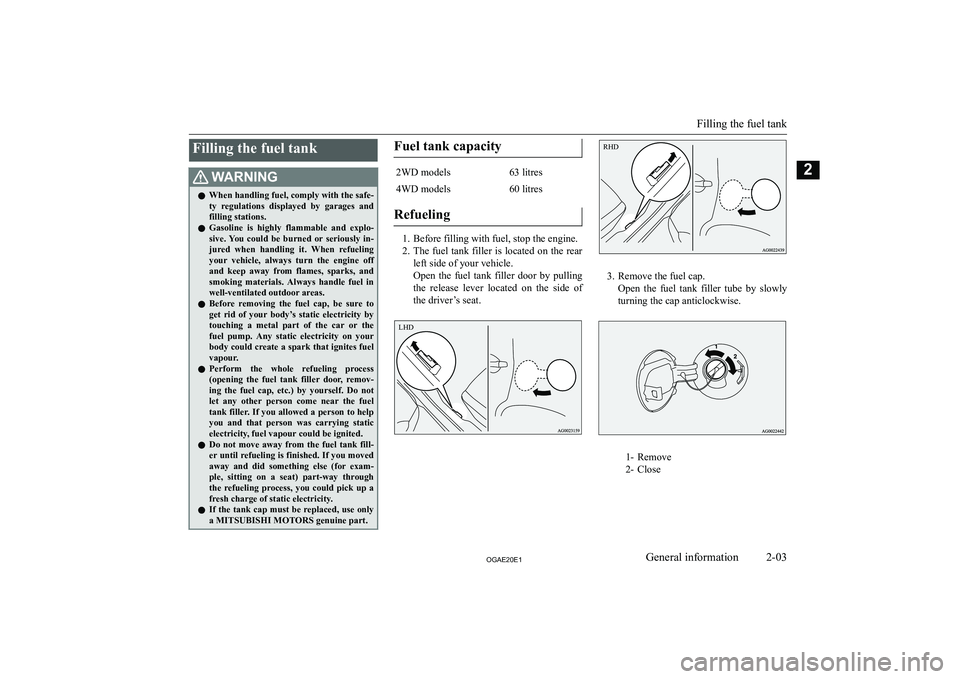

Filling the fuel tank:ARN,NGzWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
z Gasoline is highly flammable and explo-
sive. You could be burned or seriously in- jured when handling it. When refueling
your vehicle, always turn the engine off
and keep away from flames, sparks, and smoking materials. Always handle fuel in
well-ventilated outdoor areas.
z Before removing the fuel cap, be sure to
get rid of your body

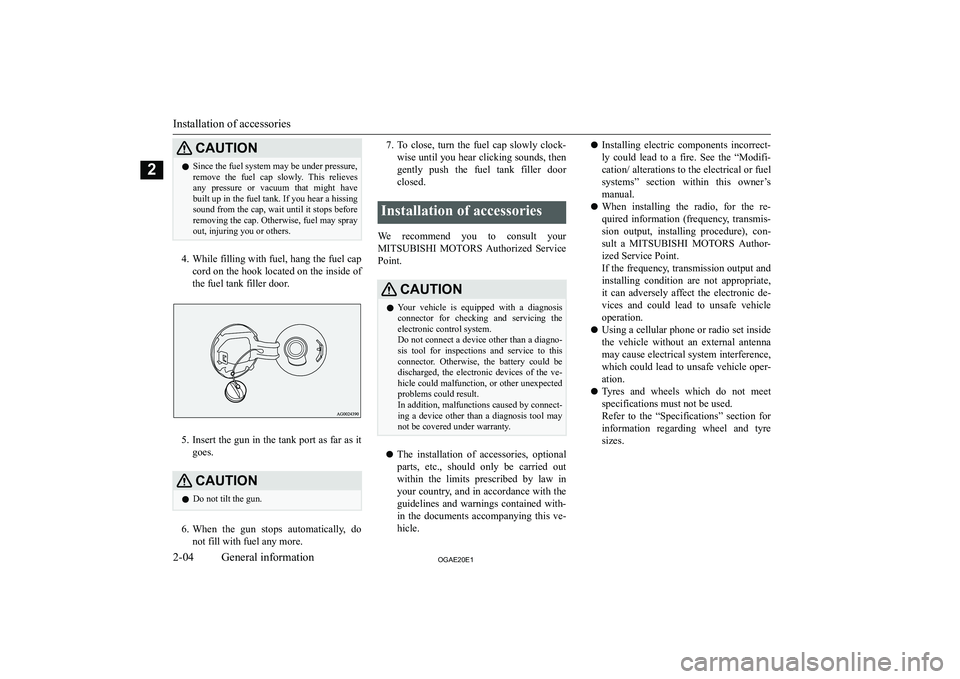

CAUT,ONzSince the fuel system may be under pressure,
remove the fuel cap slowly. This relieves any pressure or vacuum that might have
built up in the fuel tank. If you hear a hissing sound from the cap, wait until it stops before
removing the cap. Otherwise, fuel may spray
out, injuring you or others.
4. While filling with fuel, hang the fuel cap
cord on the hook located on the inside of
the fuel tank filler door.
5. Insert the gun in the tank port as far as it
goes.
CAUT,ONz Do not tilt the gun.
6.
When the gun stops automatically, do
not fill with fuel any more.
7. To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
gently push the fuel tank filler door closed.Installation of accessories
We recommend you to consult yourMITSUBISHI MOTORS Authorized Service
Point.
CAUT,ONz Your vehicle is equipped with a diagnosis
connector for checking and servicing the electronic control system.
Do not connect a device other than a diagno-
sis tool for inspections and service to this connector. Otherwise, the battery could be
discharged, the electronic devices of the ve- hicle could malfunction, or other unexpected
problems could result.
In addition, malfunctions caused by connect-
ing a device other than a diagnosis tool may not be covered under warranty.
z The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in your country, and in accordance with the
guidelines and warnings contained with-
in the documents accompanying this ve- hicle.
z Installing electric components incorrect-
ly could lead to a fire. See the “Modifi- cation/ alterations to the electrical or fuel
systems” section within this owner
