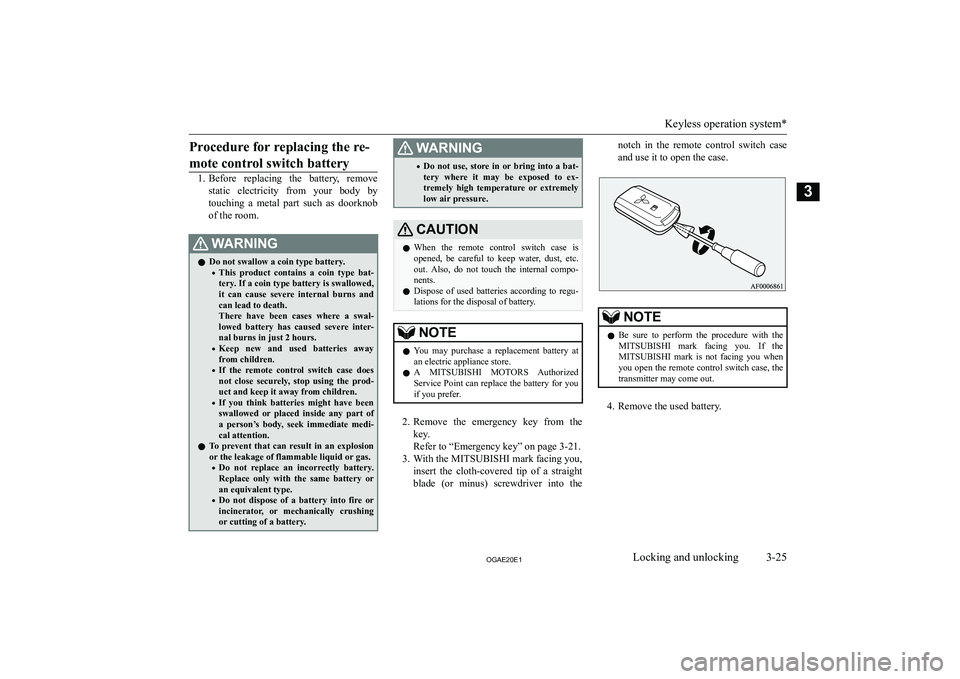

Procedure for replacing the re-mote control switch battery
1. Before replacing the battery, remove
static electricity from your body bytouching a metal part such as doorknob
of the room.
:ARN,NGz Do not swallow a coin type battery.

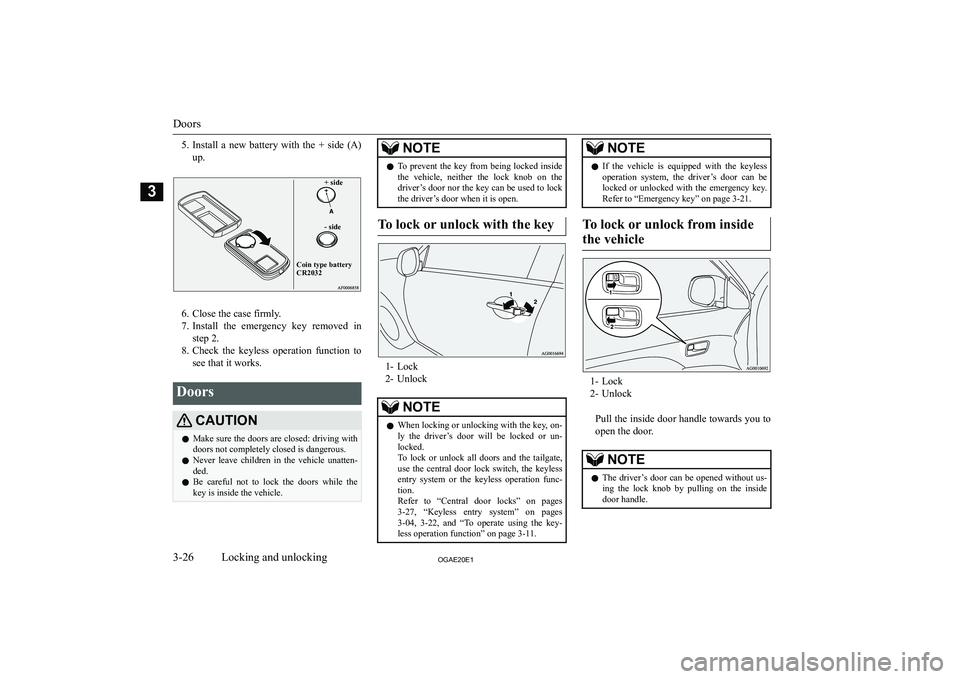

5.Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
6. Close the case firmly.
7. Install the emergency key removed in
step 2.
8. Check the keyless operation function to
see that it works.
DoorsCAUT,ONz Make sure the doors are closed: driving with
doors not completely closed is dangerous.
z Never leave children in the vehicle unatten-
ded.
z Be careful not to lock the doors while the
key is inside the vehicle.NOTEz To prevent the key from being locked inside
the vehicle, neither the lock knob on the driver

NOTEzIn a vehicle that has a Dead Lock System, it
is not possible to unlock the door by pushingthe lock knob to the unlock side while the Dead Lock System is set.
(Refer to “Dead Lock System” on page
3-28.)

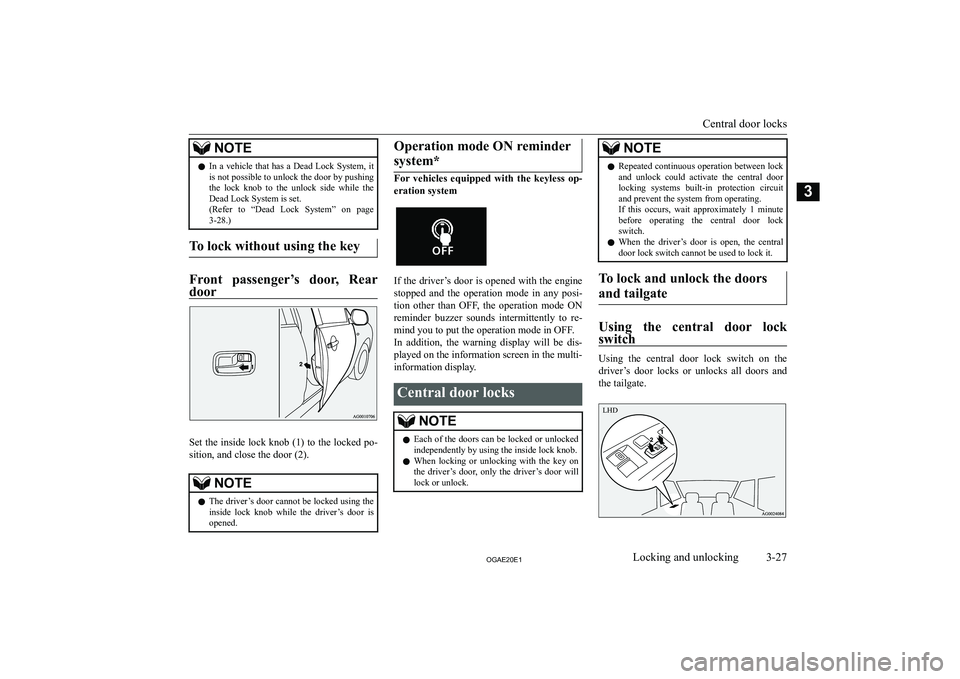

To lock without using the key
Front passenger

1- Lock
2- Unlock
To unlock the doors and tail-
gateYou can select the functions to unlock the doors and tailgate either using the ignition switch or the engine switch, or using the se-lector lever position (CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.
Using the ignition switch or the engine switch
All doors and the tailgate will unlock when-
ever the ignition switch is turned to the
“LOCK” position or the operation mode is
put in OFF.
Using the selector lever position
(CVT)
All doors and the tailgate will unlock when-
ever the selector lever is moved to the “P” (PARK) position with the ignition switch in
the “ON” position or the operation mode in
ON.

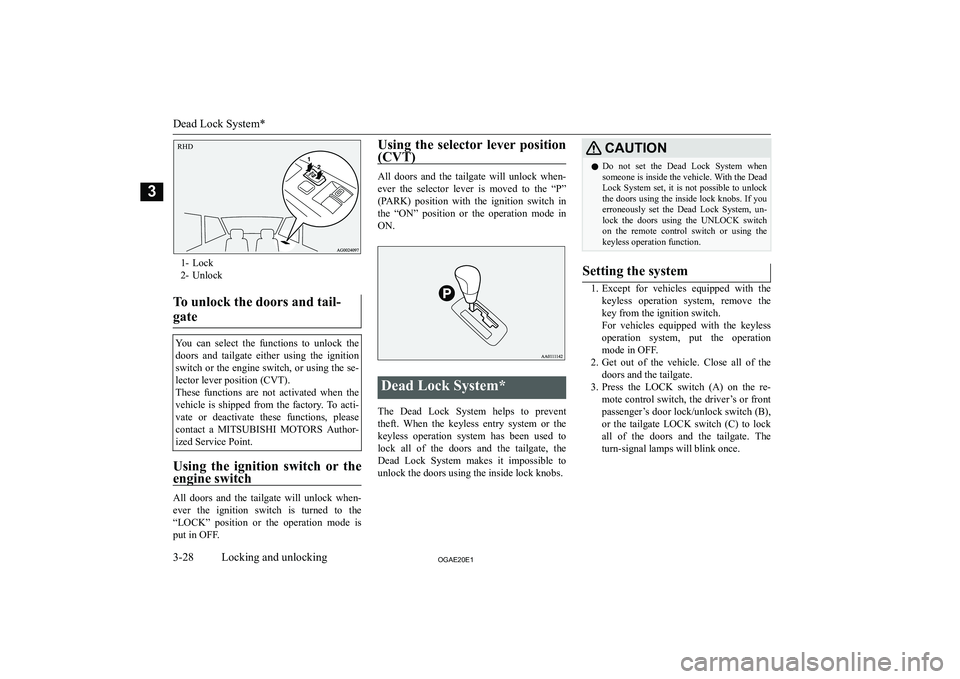

Dead Lock System*
The Dead Lock System helps to prevent theft. When the keyless entry system or the
keyless operation system has been used to lock all of the doors and the tailgate, the
Dead Lock System makes it impossible to
unlock the doors using the inside lock knobs.
CAUT,ONz Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver

4. Press the switch again within 2 seconds.The turn-signal lamps will blink threetimes to show that the Dead Lock Sys-
tem has been set.Vehicles equipped with the keyless operation system
NOTEz Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to

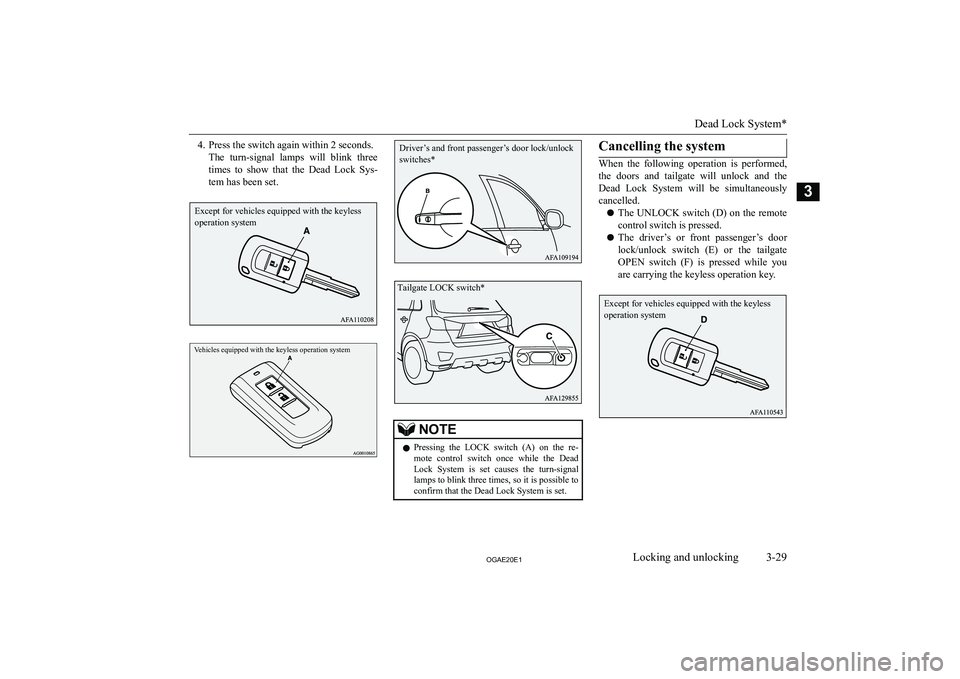

confirm that the Dead Lock System is set.Cancelling the system
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously
cancelled.
z The UNLOCK switch (D) on the remote
control switch is pressed.
z The driver

Vehicles equipped with the keyless operation system

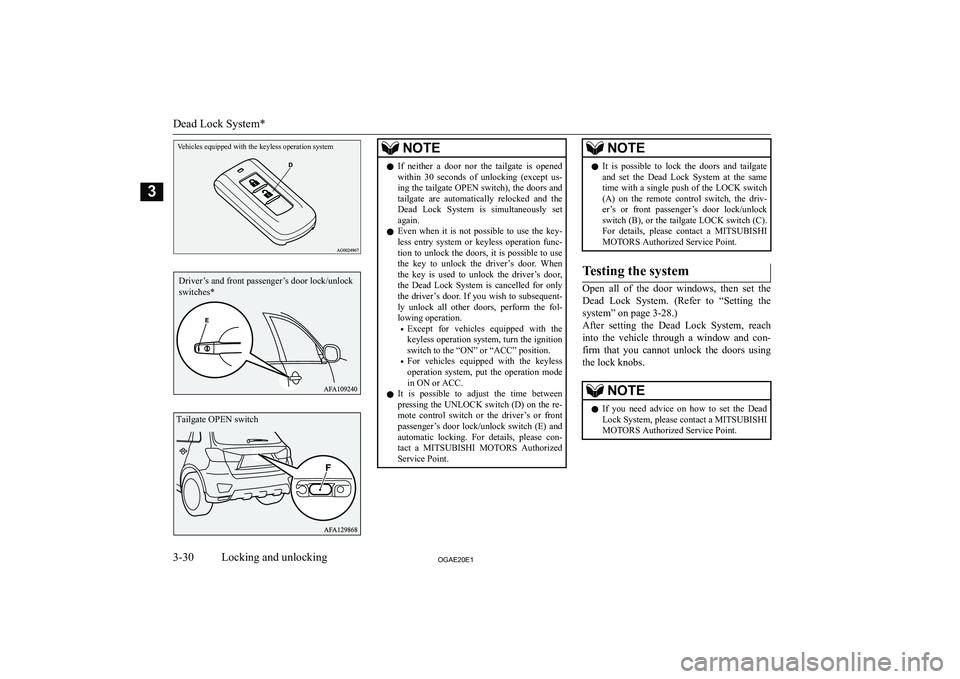

NOTEzIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
z Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver

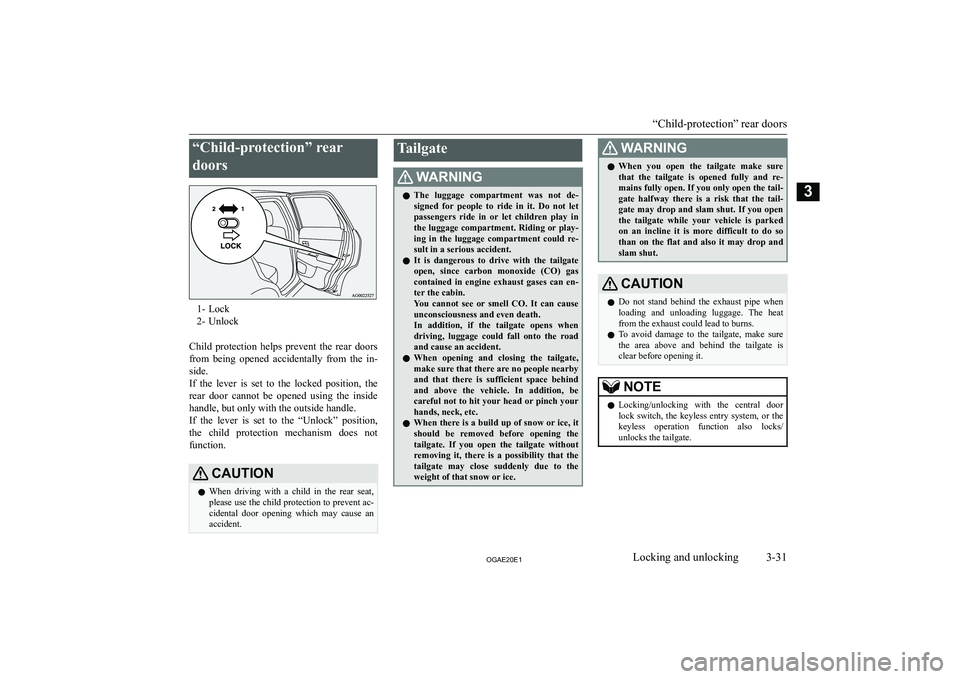

“Child-protection” reardoors
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUT,ONz When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Tailgate:ARN,NGz The luggage compartment was not de-
signed for people to ride in it. Do not let passengers ride in or let children play in
the luggage compartment. Riding or play- ing in the luggage compartment could re-
sult in a serious accident.
z It is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
contained in engine exhaust gases can en-
ter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
In addition, if the tailgate opens when driving, luggage could fall onto the road
and cause an accident.
z When opening and closing the tailgate,
make sure that there are no people nearby and that there is sufficient space behind
and above the vehicle. In addition, be
careful not to hit your head or pinch your hands, neck, etc.
z When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without removing it, there is a possibility that the
tailgate may close suddenly due to the weight of that snow or ice.:ARN,NGz When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate while your vehicle is parked on an incline it is more difficult to do so
than on the flat and also it may drop and slam shut.CAUT,ONz Do not stand behind the exhaust pipe when
loading and unloading luggage. The heat
from the exhaust could lead to burns.
z To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.NOTEz Locking/unlocking with the central door
lock switch, the keyless entry system, or the
keyless operation function also locks/ unlocks the tailgate.
“Child-protection” rear doors
3-312*$(20(1Locking and unlocking3

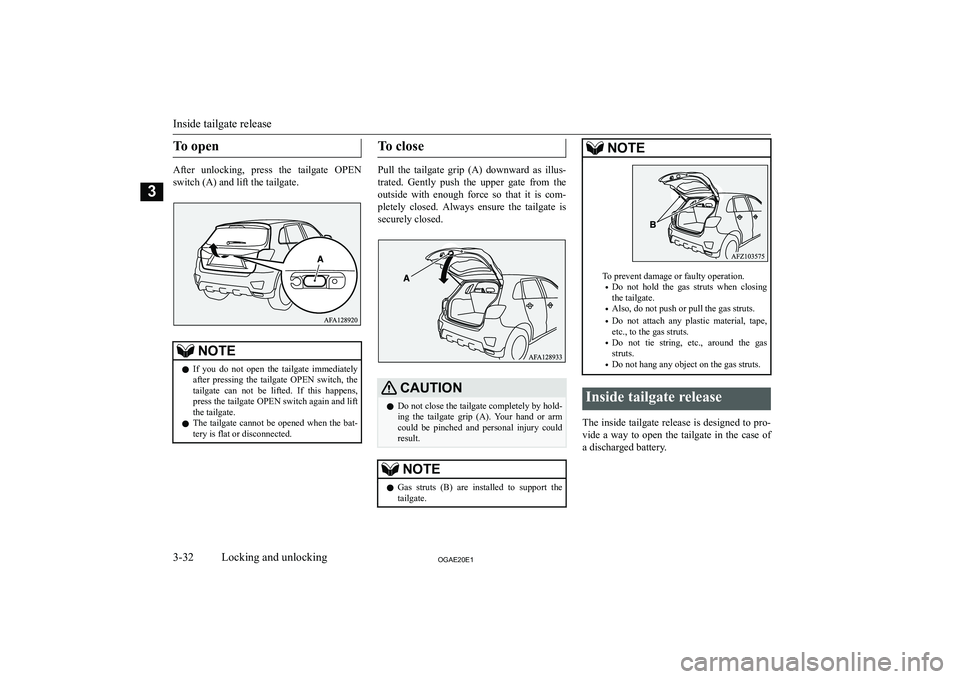

To open
After unlocking, press the tailgate OPENswitch (A) and lift the tailgate.
NOTEz If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
z The tailgate cannot be opened when the bat-
tery is flat or disconnected.To close
Pull the tailgate grip (A) downward as illus-
trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUT,ONz Do not close the tailgate completely by hold-
ing the tailgate grip (A). Your hand or arm
could be pinched and personal injury could result.NOTEz Gas struts (B) are installed to support the
tailgate.NOTE
To prevent damage or faulty operation.

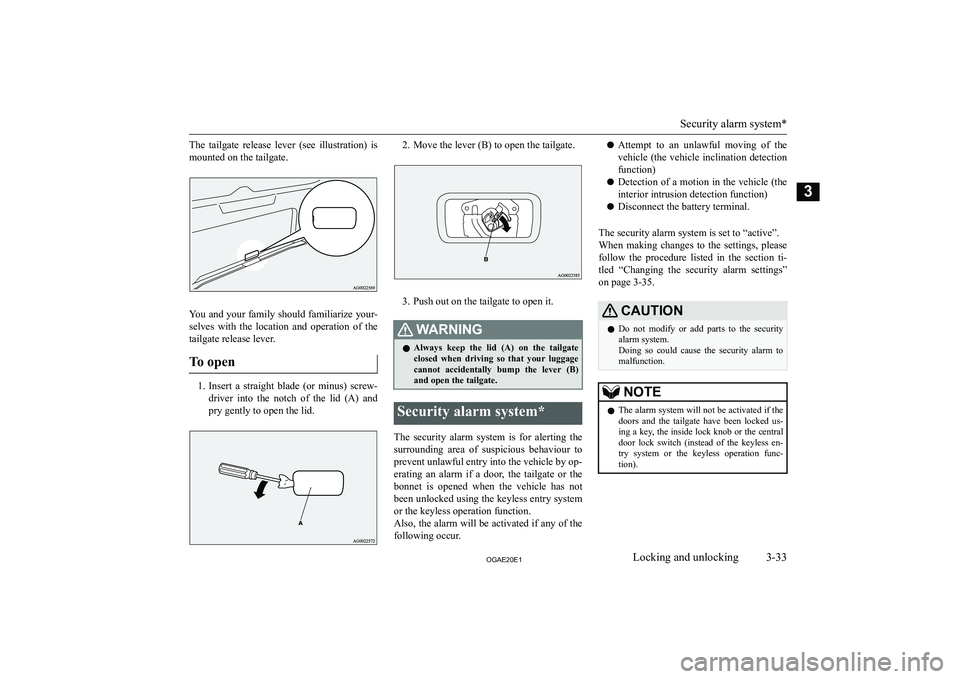

The tailgate release lever (see illustration) ismounted on the tailgate.
You and your family should familiarize your-
selves with the location and operation of the tailgate release lever.
To open
1. Insert a straight blade (or minus) screw-
driver into the notch of the lid (A) and
pry gently to open the lid.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
:ARN,NGz Always keep the lid (A) on the tailgate
closed when driving so that your luggage
cannot accidentally bump the lever (B)

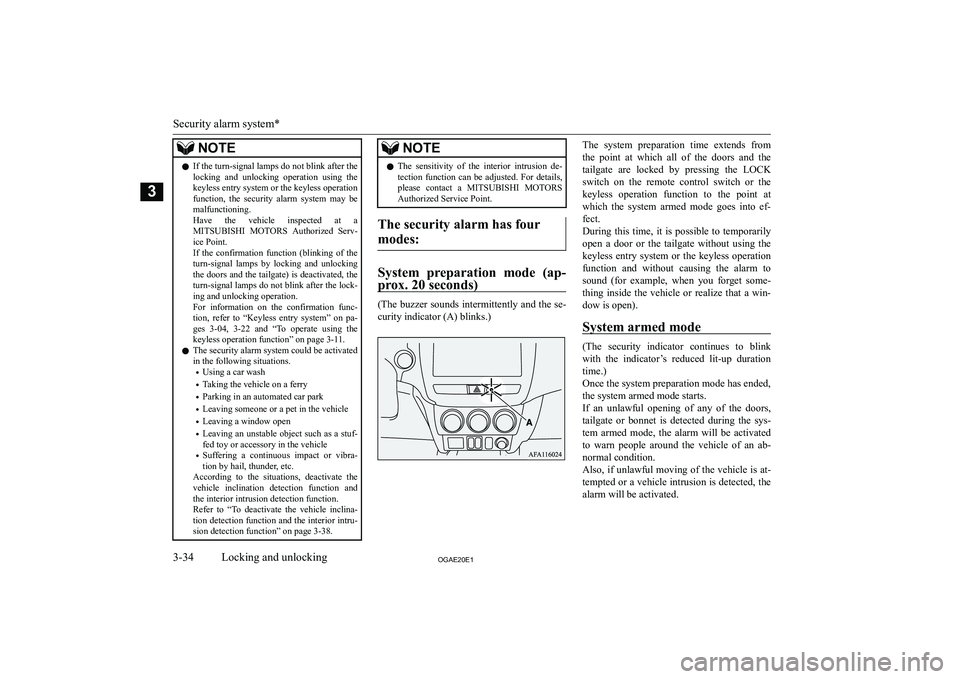

and open the tailgate.Security alarm system*
The security alarm system is for alerting the
surrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op-
erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
z Attempt to an unlawful moving of the
vehicle (the vehicle inclination detection
function)
z Detection of a motion in the vehicle (the
interior intrusion detection function)
z Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please follow the procedure listed in the section ti-
tled “Changing the security alarm settings”
on page 3-35.CAUT,ONz Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEz The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).
Security alarm system*
3-332*$(20(1Locking and unlocking3

NOTEzIf the turn-signal lamps do not blink after the
locking and unlocking operation using thekeyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on pa-
ges 3-04, 3-22 and “To operate using the
keyless operation function” on page 3-11.
z The security alarm system could be activated
