Important points!
Due to large number of accessory and re-
placement parts of different manufactures available in the market, it is not possible, not
only for MITSUBISHI MOTORS , but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach-
ment or installation of such parts affects the overall safety of your vehicle.

Even when such parts are officially author-
ized, for example by a “general operators per-
mit” (an appraisal for the part) or through the execution of the part in an officially approved
manner of construction, or when a single op- eration permit following the attachment or in-stallation of such parts, it cannot be deduced from that alone, that the driving safety of your vehicle has not been affected.

Consider also that there basically exists no li-
ability on the part of the appraiser or the offi- cial. Maximum safety can only be ensured
with parts recommended, sold and fitted or
installed by a MITSUBISHI MOTORS Au-
thorized Service Point ( MITSUBISHI
MOTORS genuine replacement parts and
MITSUBISHI MOTORS accessories). The
same also pertains to modifications of
MITSUBISHI vehicles with respect to the
production specifications. The same also per- tains to modifications of vehicles with re- spect to the production specifications. For
safety reasons, do not attempt any modifica- tions other than those that follow the recom- mendations of a MITSUBISHI MOTORS
Authorized Service Point.Modification/alterations to
the electrical or fuel systems
MITSUBISHI MOTORS CORPORATION
has always manufactured safe, high quality
vehicles. In order to maintain this safety and
quality, it is important that any accessory that
is to be fitted, or any modifications carried out which involve the electrical or fuel sys-tems, should be carried out in accordancewith MITSUBISHI MOTORS guidelines.
CAUT,ONz If the wires interfere with the vehicle body
or improper installation methods are used(protective fuses not included, etc.), elec-
tronic devices may be adversely affected, re-
sulting in a fire or other accident.Genuine parts
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de- pendability.
Use MITSUBISHI MOTORS Genuine Parts,
designed and manufactured to maintain your MITSUBISHI MOTORS automobile at top
performance. MITSUBISHI MOTORS Gen-
uine Parts are identified by this mark and are available at all MITSUBISHI MOTORS Au-
thorized Service Points.
Modification/alterations to the electrical or fuel systems
2-052*$(20(1General information2

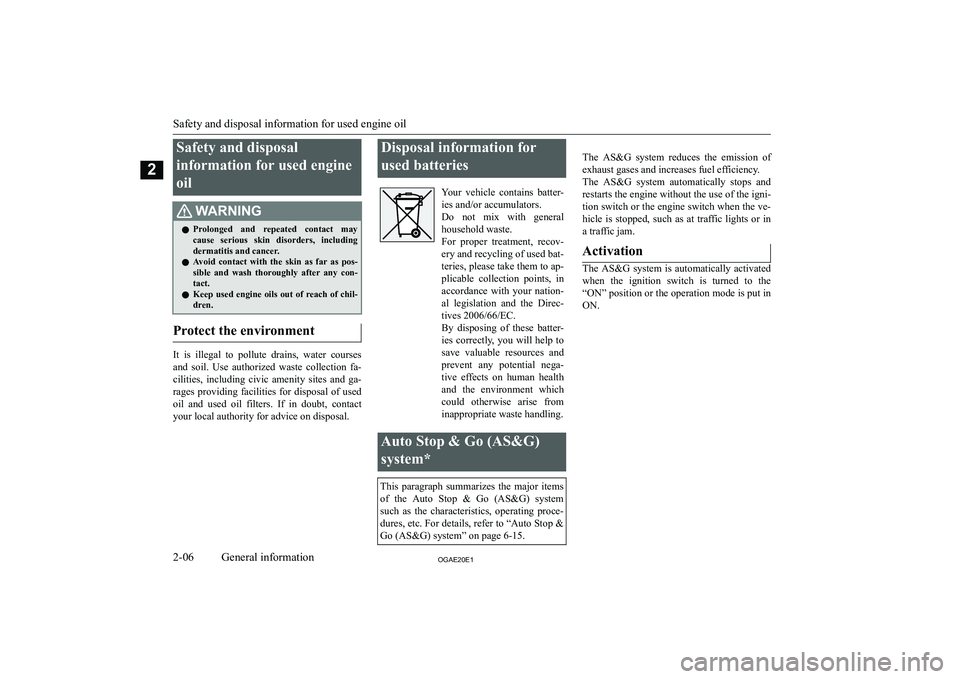

Safety and disposalinformation for used engine
oil:ARN,NGz Prolonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
z Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con- tact.
z Keep used engine oils out of reach of chil-
dren.
Protect the environment
It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-cilities, including civic amenity sites and ga- rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact your local authority for advice on disposal.
Disposal information for
used batteriesYour vehicle contains batter-
ies and/or accumulators.
Do not mix with general household waste.
For proper treatment, recov-
ery and recycling of used bat-
teries, please take them to ap- plicable collection points, in
accordance with your nation- al legislation and the Direc-tives 2006/66/EC.
By disposing of these batter- ies correctly, you will help to
save valuable resources and
prevent any potential nega-
tive effects on human health and the environment which could otherwise arise frominappropriate waste handling.Auto Stop Go (AS G)
system*This paragraph summarizes the major items of the Auto Stop & Go (AS&G) system
such as the characteristics, operating proce- dures, etc. For details, refer to “Auto Stop &
Go (AS&G) system” on page 6-15.
The AS&G system reduces the emission of
exhaust gases and increases fuel efficiency.
The AS&G system automatically stops and restarts the engine without the use of the igni-tion switch or the engine switch when the ve-
hicle is stopped, such as at traffic lights or in a traffic jam.Activation
The AS&G system is automatically activated when the ignition switch is turned to the
“ON” position or the operation mode is put in
ON.
Safety and disposal information for used engine oil
2-062*$(20(1General information2

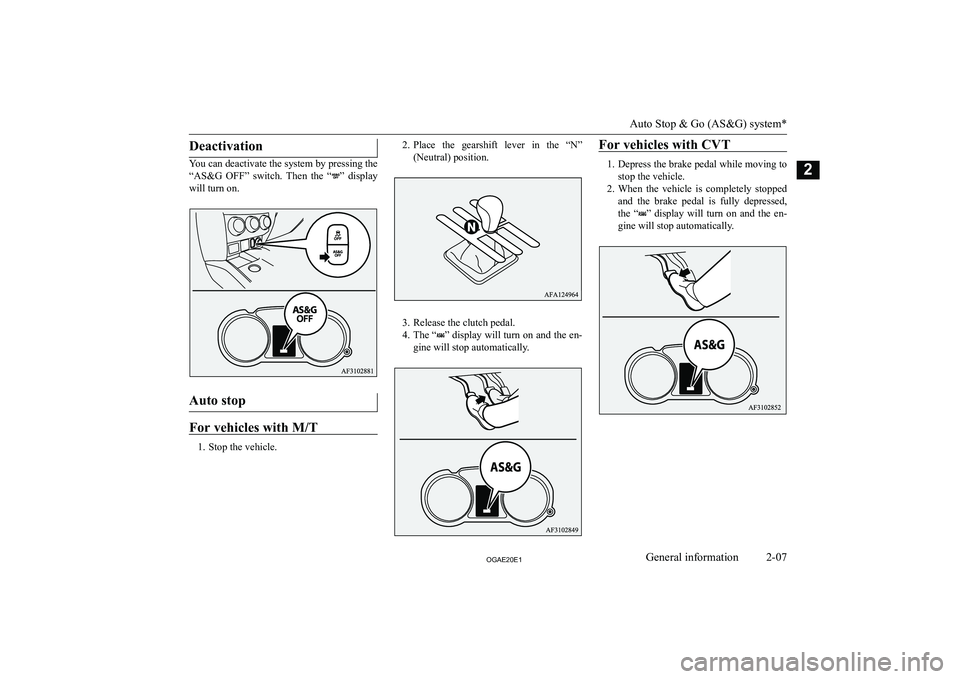

Deactivation
You can deactivate the system by pressing the“AS&G OFF” switch. Then the “
” display
will turn on.
Auto stop
For vehicles with M/T
1. Stop the vehicle.
2. Place the gearshift lever in the “N”
(Neutral) position.
3. Release the clutch pedal.
4. The “
” display will turn on and the en-
gine will stop automatically.
For vehicles with CVT
1. Depress the brake pedal while moving to
stop the vehicle.
2. When the vehicle is completely stopped
and the brake pedal is fully depressed,
the “
” display will turn on and the en-
gine will stop automatically.
Auto Stop & Go (AS&G) system*
2-072*$(20(1General information2

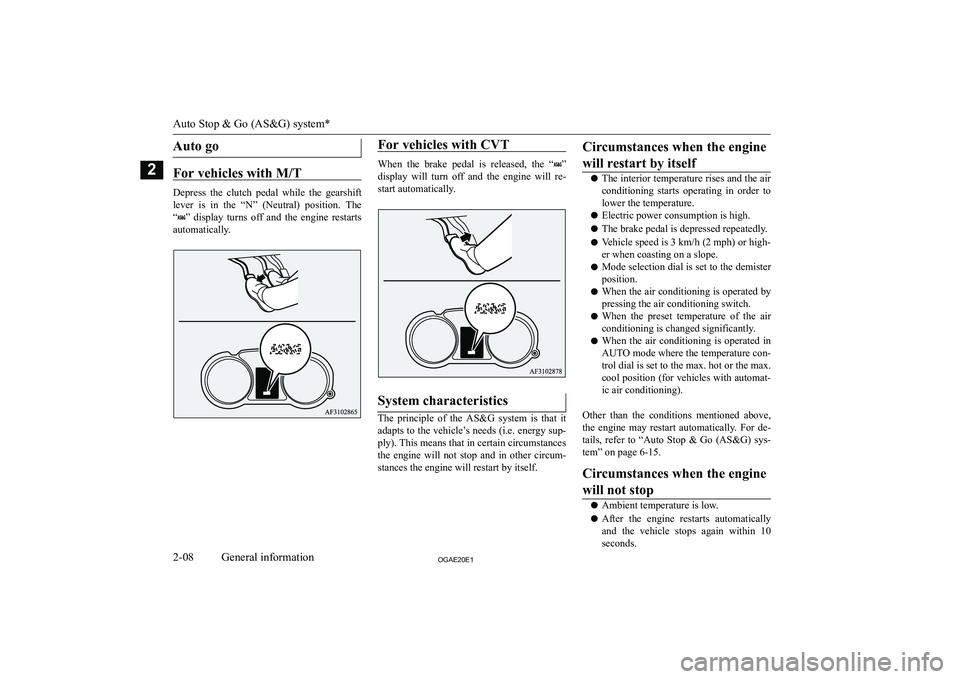

Auto go
For vehicles with M/T
Depress the clutch pedal while the gearshiftlever is in the “N” (Neutral) position. The
“
” display turns off and the engine restarts
automatically.
For vehicles with CVT
When the brake pedal is released, the “”
display will turn off and the engine will re-
start automatically.
System characteristics
The principle of the AS&G system is that it
adapts to the vehicle

zAfter the engine restarts automatically
and the vehicle remains stationary.
z Mode selection dial is set to the demister
position (see illustration below).
z When the air conditioning is operated in
AUTO mode where the temperature con-
trol dial is set to the max. hot or the max. cool position (for vehicles with automat-
ic air conditioning).
Other than the conditions mentioned above,
the engine may not stop automatically. For details, refer to “Auto Stop & Go (AS&G)
system” on page 6-15.

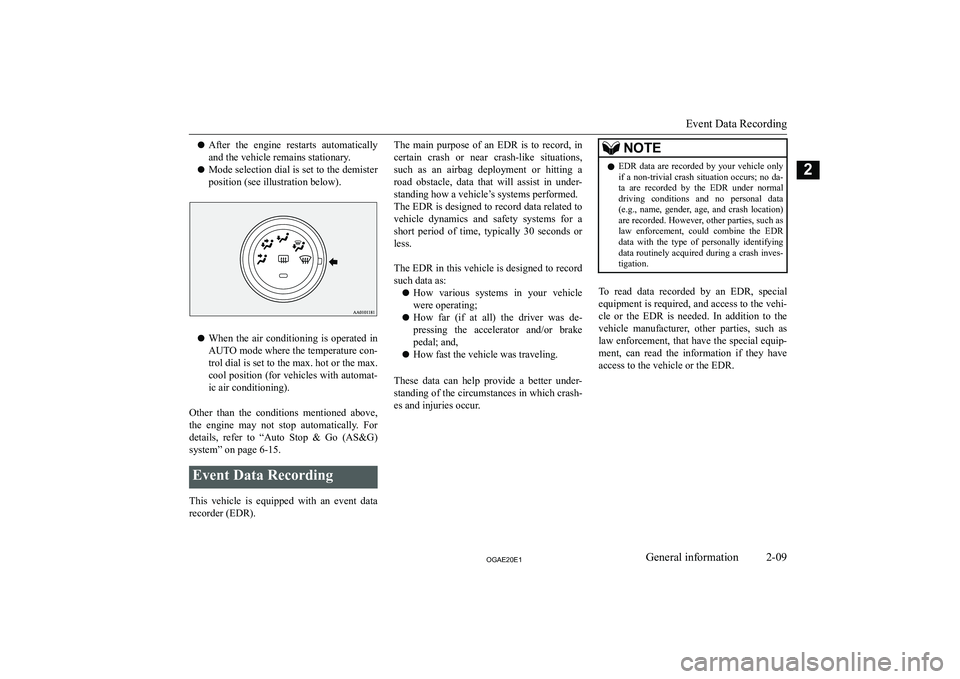

Event Data Recording
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an airbag deployment or hitting a
road obstacle, data that will assist in under- standing how a vehicle

2*$(20(1

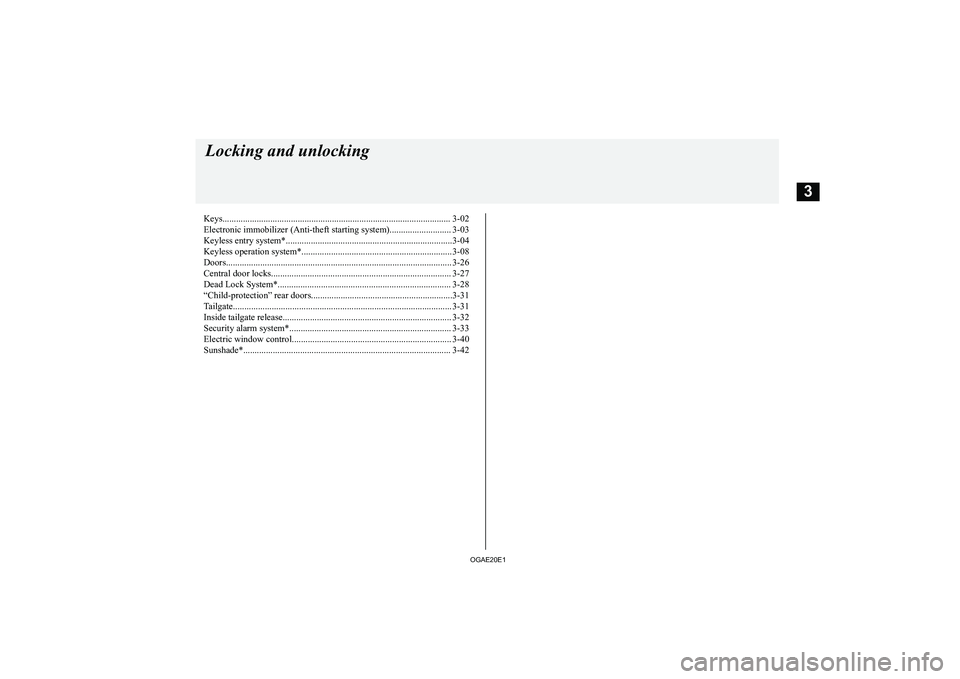

Keys.................................................................................................... 3-02Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Keyless operation system*.................................................................. 3-08
Doors................................................................................................... 3-26
Central door locks............................................................................... 3-27
Dead Lock System*............................................................................ 3-28
“Child-protection” rear doors..............................................................3-31
Tailgate................................................................................................ 3-31
Inside tailgate release.......................................................................... 3-32
Security alarm system*....................................................................... 3-33
Electric window control...................................................................... 3-40
Sunshade*........................................................................................... 3-42Lockingandunlocking
2*$(20(13

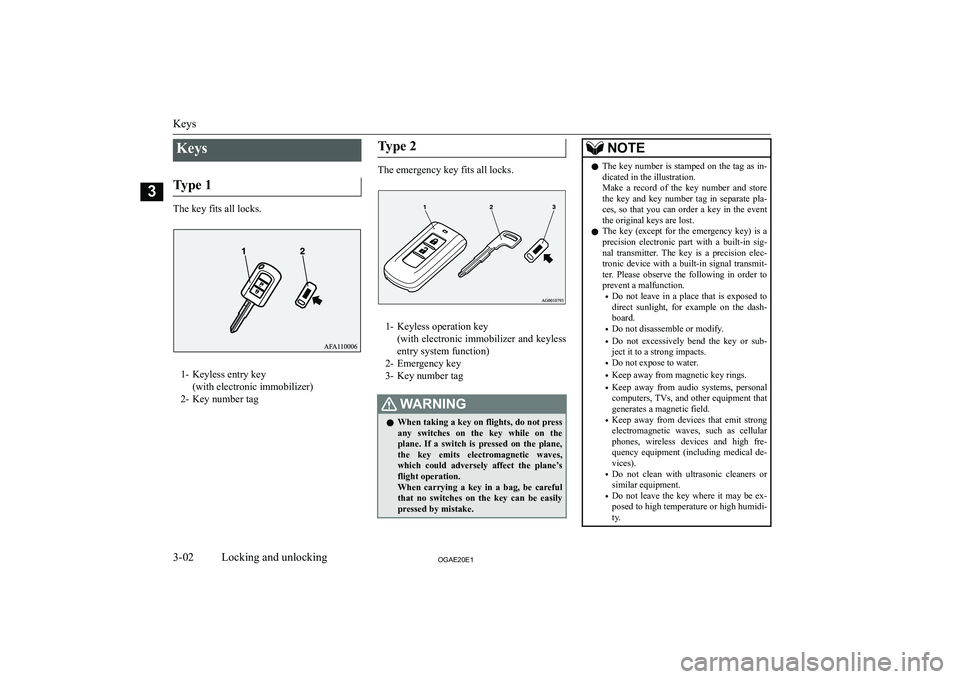

Keys
Type 1
The key fits all locks.
1- Keyless entry key (with electronic immobilizer)
2- Key number tag
Type 2
The emergency key fits all locks.
1- Keyless operation key (with electronic immobilizer and keyless
entry system function)
2- Emergency key
3- Key number tag
:ARN,NGz When taking a key on flights, do not press
any switches on the key while on the
plane. If a switch is pressed on the plane, the key emits electromagnetic waves,which could adversely affect the plane

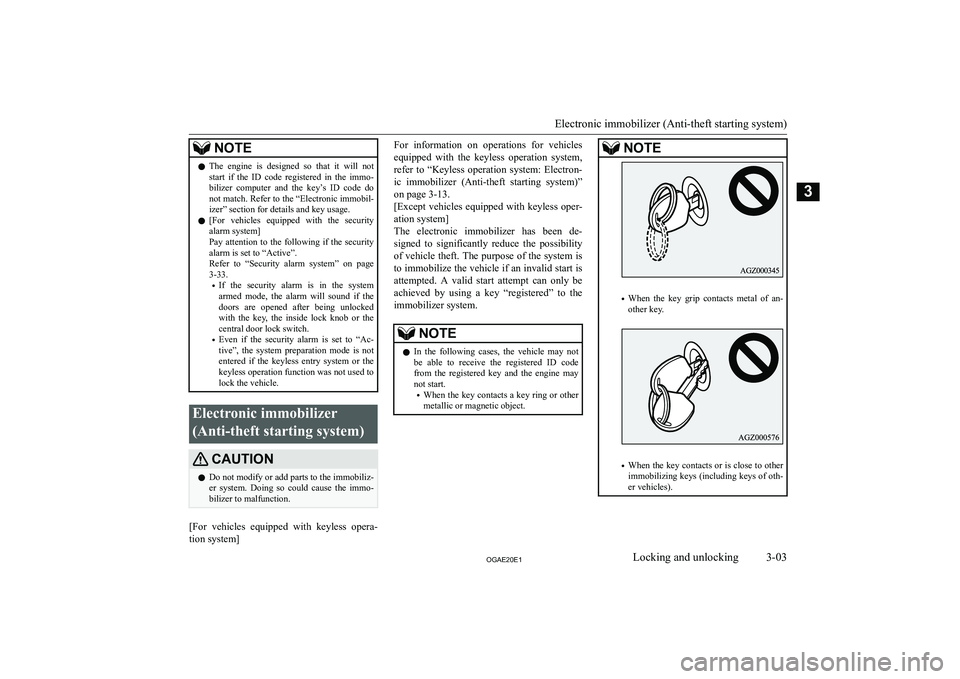

NOTEzThe engine is designed so that it will not
start if the ID code registered in the immo- bilizer computer and the key

NOTE
In cases like these, remove the object oradditional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con- tact your MITSUBISHI MOTORS Au-
thorized Service Point.
z If you lose one of them, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible. To obtain a re- placement or extra spare key, take your vehi-
cle and all remaining keys to your MITSUBISHI MOTORS Authorized Serv-
ice Point. All the keys have to be re-regis- tered in the immobilizer computer unit. The
immobilizer can register up to 8 different
keys.

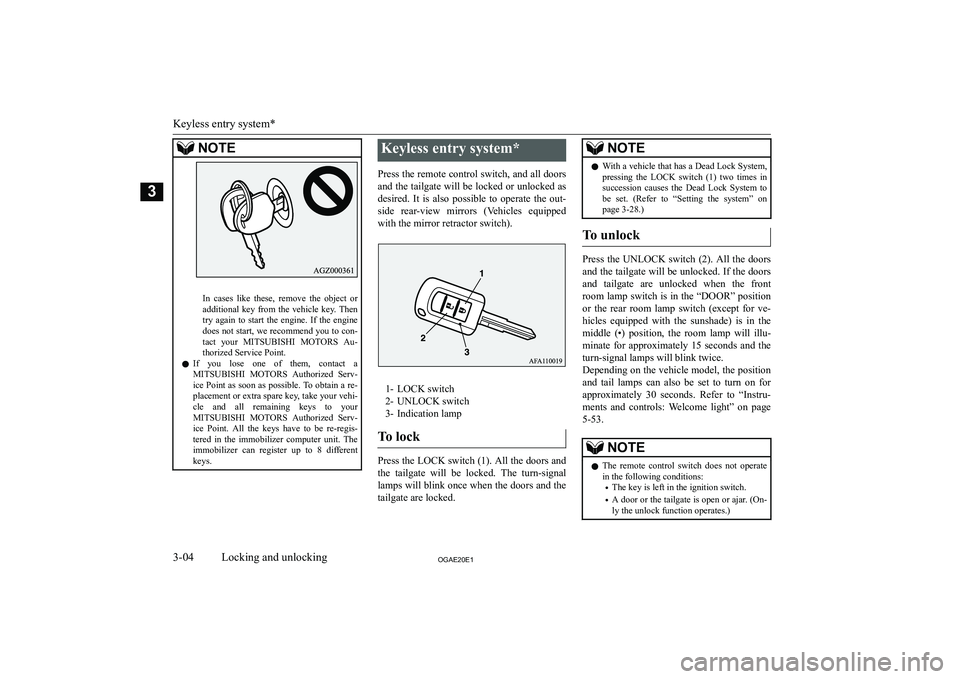

Keyless entry system*
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired. It is also possible to operate the out-
side rear-view mirrors (Vehicles equipped with the mirror retractor switch).
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
To lock
Press the LOCK switch (1). All the doors and the tailgate will be locked. The turn-signal
lamps will blink once when the doors and the tailgate are locked.
NOTEz With a vehicle that has a Dead Lock System,
pressing the LOCK switch (1) two times in
succession causes the Dead Lock System to
be set. (Refer to “Setting the system” on page 3-28.)
To unlock
Press the UNLOCK switch (2). All the doors
and the tailgate will be unlocked. If the doors and tailgate are unlocked when the frontroom lamp switch is in the “DOOR” positionor the rear room lamp switch (except for ve-
hicles equipped with the sunshade) is in the
middle (
