General information5
4. To fill with fuel correctly mainly depends on correct han-dling of the fuel filler gun. Do not tilt the gun. Insert the
gun in the tank port as far as it will go.
5. When the gun stops automatically, withdraw it halfway in the tank port. After the second automatic stop, do not fill
with any more fuel.
6. To close, turn the fuel tank filler tube cap slowly clock-
wise until you hear a clicking sound, then gently push the
fuel tank filler door closed.Installation of accessories
E00200300413
We recommend you to consult your MITSUBISHI MOTORS
Authorized Service Point.
● The installation of accessories, optional parts, should only
be carried out within the limits prescribed by law in your
country, and in accordance wi th the guidelines fitting
instructions and warnings contained within the documents
accompanying the parts or accessories.
● Improper installation of electrical components may cause
an electrical fire if incorrect ly fitted. Please refer to the
“Modification/alterations to th e electrical or fuel systems”
section within this owner’s manual.
● Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
● Tyres and wheels which do no t meet specifications must
not be used.
Refer to the “Specifications ” section for information
regarding wheel and tyre sizes.
CAUTION!
● A label which reads “UNLEADED FUEL ONLY” is
attached to the fuel tank f iller lid of vehicles which
can only operate on unlead ed petrol. Serious engine
and catalytic converter damage will result if leaded
petrol is put into these ve hicles, and this must conse-
quently never be attempted.
CAUTION!
● To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank.
CAUTION!
●If you need to replace the fuel tank filler tube cap,
use only the cap specified for your vehicle model.

3-16 Instruments and controls
3

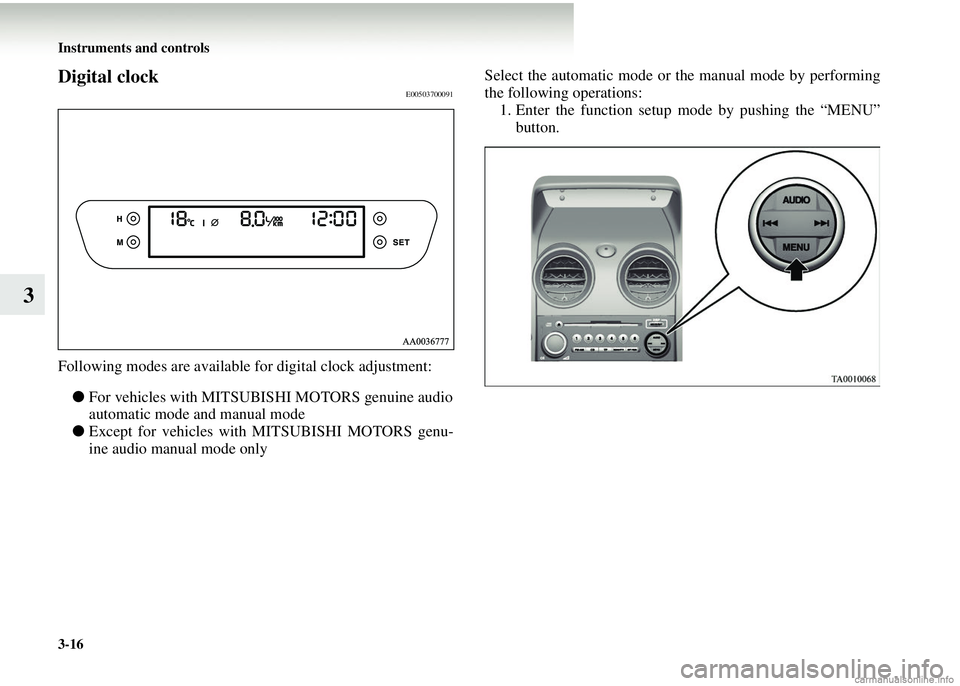

Digital clockE00503700091
Following modes are available for digital clock adjustment:● For vehicles with MITSUBIS HI MOTORS genuine audio
automatic mode and manual mode
● Except for vehicles with MITSUBISHI MOTORS genu-
ine audio manual mode only Select the automatic mode or
the manual mode by performing
the following operations: 1. Enter the function setup mode by pushing the “MENU”
button.

Instruments and controls3-17
3
2. Press the “MENU” button repeatedly to select the CT(Clock Time) mode.
The order is: AF → CT → REG → TP-S → PH → MUTE
(With PH OFF, this mode is not displayed.) → Language
of PTY display → Function setup mode OFF
(Refer to “Function setup mode” on page 5-38, 5-38.)NOTE● Although “PH” and “MUTE” appear on the display, the
PH and MUTE functi ons are inoperative.

3-30 Instruments and controls
3
Use the “H” button (C) or “M” button (B) to choose your
desired time display format, and then press the “SET” but-
ton (D) to enter the setting. 5. The display will return to the original display item.
NOTE●
If you selected the mile unit in step 2, the speed and fuel
consumption units will be as follows.
• Speed: mph (miles per hour)
• Fuel consumption: mpg (miles per gallon)
● To cancel the unit setting procedure before completion,
press the button (A).
● The outside temperature and digital clock are not shown
during the unit selecting procedure.
● If the “SET” button is not pressed for about 15 seconds or
longer in the middle of the selection, the currently
selected unit is set automatical ly. Then, the display returns
to the original display item.
H - 12-hour format
M - 24-hour format

For pleasant driving5-7
5
Heater
*
E00700500090
The heater can only be used
while the engine is running.
Control panelE00700600118
Blower speed selection dialE00700700034
Select the blower speed by turning the blower speed selection
dial clockwise or anticlockwise.
The blower speed will gradually increase as the dial is turned
to the right.
When the blower speed selection dial is set to the “0” position,
all fan-driven airflow will stop.
A- Temperature control dial
B- Blower speed selection dial
C- Mode selection dial
D- Air selection switch

5-10 For pleasant driving
5
Operating the heater systemE00701800104
Heating
Set the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside position.
Turn the temperature control dial clockwise or anticlockwise to
the desired temperature. Sel ect the desired blower speed.
NOTE●For maximum heat, set the blower speed to the 3rd posi-
tion.
Maximum heating (diesel-powered vehicles)E00724600011
Use it when the engine coolant temperature is low and you
wish to increase the heating performance.
1. Set the air selection switch (A) to the outside position.
2. Set the mode selection dial to the “ ” position.
3. Set the temperature control dial to the highest position.
4. Set the blower speed selection dial to the 3rd position.
NOTE● As the engine speed increases, the electric heater in the
heater system will operate to further increase heating per-
formance.

For pleasant driving5-13
5
Introduction of outside airE00702200118
To introduce air into the vehicl e during hot weather, set the air
selection switch (A) to the outside position and set the temper-
ature control dial to the positions shown in the illustration. Be
sure to set the temperature contro l dial all the way to the left.
Select the desired blower speed.
NOTE● Turn the mode selection dial clockwise or anticlockwise
and air will flow to the leg area and the windscreen.
Automatic air conditioning*
E00702400022
The air conditioning can only be used while the engine is run-
ning.
Control panelE00702500081
A- Temperature control dial
B- Blower speed selection dial
C- Mode selection dial
D- Air conditioning switch
E- Air selection switch

5-14 For pleasant driving
5
NOTE●There is a interior air temper ature sensor (A) inside the
vehicle.
Never place anything on top of sensor, since doing so will
prevent it from functioning properly.
Blower speed selection dialE00702800055
Select the blower speed by turn ing the blower speed selection
dial clockwise or anticlockwise.
The blower speed will gradually increase as the dial is turned
to the right.
When the blower speed selection dial is set to the “0” position,
all fan-driven airflow will stop.

For pleasant driving5-17
5

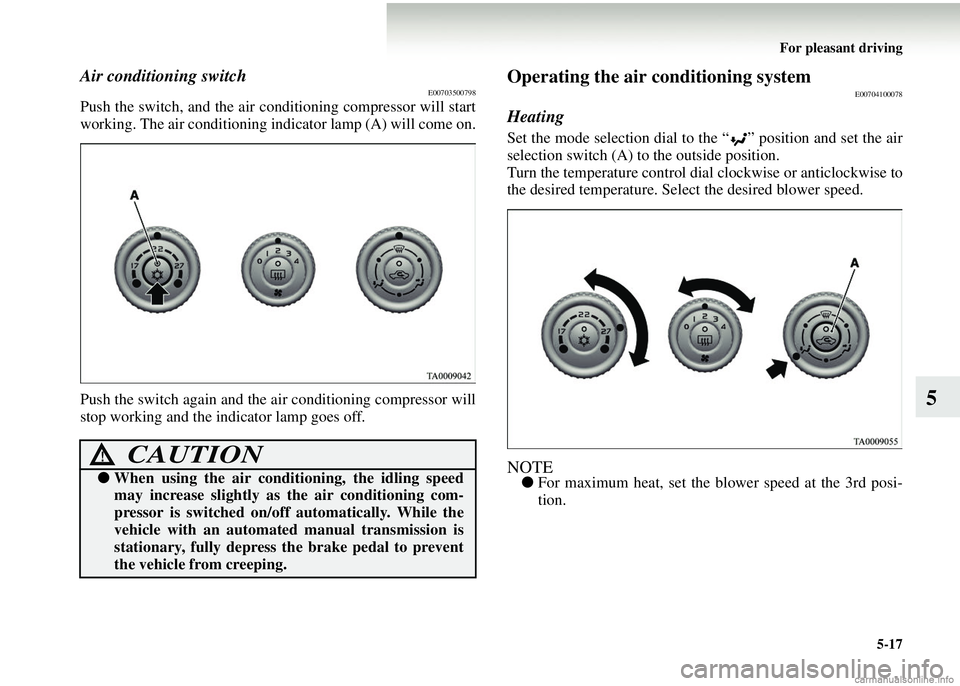

Air conditioning switchE00703500798
Push the switch, and the air conditioning compressor will start
working. The air conditioning indicator lamp (A) will come on.
Push the switch agai n and the air conditioning compressor will
stop working and the indicator lamp goes off.
Operating the air conditioning systemE00704100078
Heating
Set the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside position.
Turn the temperature control dial clockwise or anticlockwise to
the desired temperature. Sel ect the desired blower speed.
NOTE●For maximum heat, set the bl ower speed at the 3rd posi-
tion.
CAUTION!
● When using the air conditi oning, the idling speed
may increase slightly as the air conditioning com-
pressor is switched on/off automatically. While the
vehicle with an automated manual transmission is
stationary, fully depress th e brake pedal to prevent
the vehicle from creeping.

5-18 For pleasant driving
5

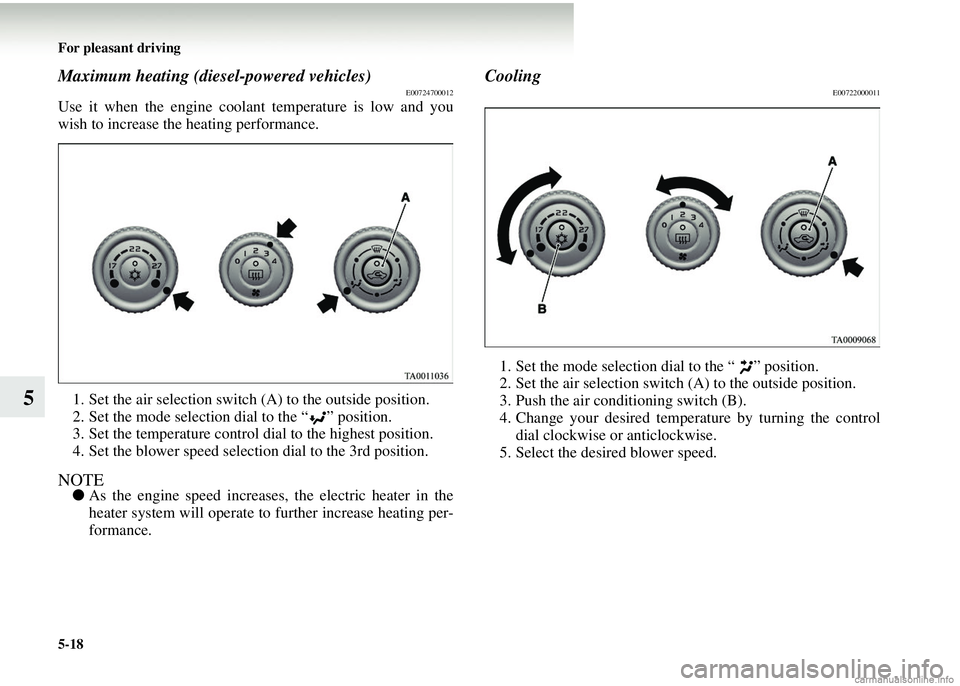

Maximum heating (diesel-powered vehicles)E00724700012
Use it when the engine coolant temperature is low and you
wish to increase the heating performance.1. Set the air selection switch (A) to the outside position.
2. Set the mode selection dial to the “ ” position.
3. Set the temperature control dial to the highest position.
4. Set the blower speed selec tion dial to the 3rd position.
NOTE●As the engine speed increases, the electric heater in the
heater system will operate to further increase heating per-
formance.
CoolingE00722000011
1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change your desired temperature by turning the control dial clockwise or anticlockwise.
5. Select the desired blower speed.
