MITSUBISHI ECLIPSE 2010 4.G Owners Manual

5-40 Comfort controls
5
To adjust the volume
N00712000192
VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (5).NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
BK0098300US.book 40 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-41
5
To adjust the tone
N00712100584

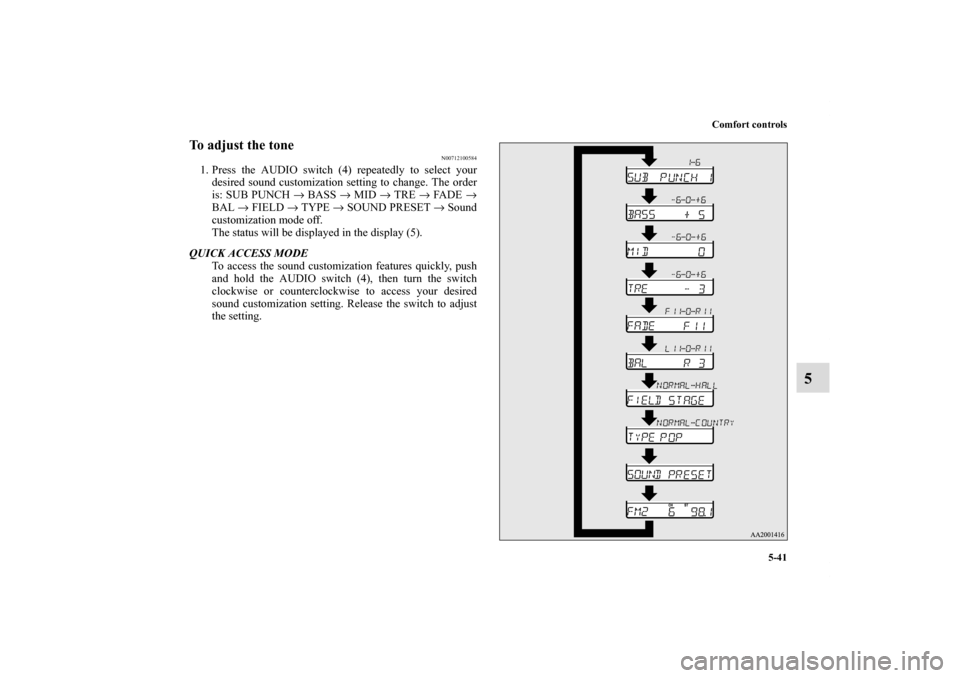

1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB PUNCH → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0098300US.book 41 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-42 Comfort controls
5
2. Turn the AUDIO switch (4) either clockwise or counter-
clockwise to adjust the sound customization features.SUB PUNCH (Subwoofer tone control) To select the desired subwoofer PUNCH level. BASS (Bass tone control) To select the desired bass level. MID (Midrange tone control) To select the desired midrange level.
TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.FIELD (Sound field type select)To select the desired sound field.
Mode
Adjusting operation
Clockwise
Counterclockwise
SUB PUNCH Increase Decrease
BASS Increase Decrease
MID Increase Decrease
TRE Increase Decrease
FA D EMore sound from
the rear speakers More sound from
the front speakers
BAL More sound from
the right speakers More sound from
the left speakers
FIELD NORMAL →
STAGE → LIVE →
HALLHALL → LIVE→
STAGE → NOR-
MAL
TYPENORMAL → POP
→ ROCK → HIP-
HOP → COUNTRYCOUNTRY→ HIP-
HOP → ROCK →
POP → NORMAL
SOUND PRESET — —
Sound field type
Description
NORMALOptimized for the Rockford Fosgate high
bass output.
STAGEPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only).
LIVEFront seat occupants are surrounded by
sound from front and rear speakers.
HALLPlaces the image of a sound stage in front of
the driver with the vocalist in the center (for
driver only). Sound reflections are added to
the rear speakers to simulate the experience
of being at a concert hall. Best with classical
or vocalist music.
BK0098300US.book 42 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-43
5
TYPE (Music type select)To select the desired music type.SOUND PRESETS (sound setting storage)6 different sound settings can be stored into memory in the
“SOUND PRESET” mode. For example:To store your current sound settings into memory, follow these
steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push one of the memory select buttons (3) for more than 2
seconds.
To recall the sound settings that are stored in memory, follow
these steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push your desired memory select button (3) for less than 2
seconds.
NOTE
The sound customization adjust mode will automatically
shut off when either the radio or CD is selected, or if no
adjustment is made within 10 seconds.

If the AUDIO switch (4) is pushed and held for more than
2 seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the AUDIO switch (4) is pushed for more than 2 seconds
again.
Music type
Description
NORMAL Sounds good for all types of music.
POP Tight bass and high frequency sound
ROCKTuned for hard rock and heavy metal with
powerful drums, guitars, and vocals.
HIP-HOP Deep bass punch and well-defined vocals
COUNTRY Enhanced main vocalsSettings
Preset 1
Preset 2
Preset 3
SUB PUNCH Punch 3 Punch 5 Punch 4
BASS +1 0 0
MID 0 0 0
TRE +2 +1 0
FADE 0 0 0
BAL 0 0 0
FIELD Live Normal Stage
TYPE POP HIP-HOP Rock
BK0098300US.book 43 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-44 Comfort controls
5
Speed Compensated Volume function
N00752200082
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TRE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following method:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch for at least about 2 seconds. The
system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to the turn the
function ON. Turn it counterclockwise to turn the function
OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
BK0098300US.book 44 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-45
5
Radio control panel and display-Type 2
N00734900683
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicators
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0098300US.book 45 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-46 Comfort controls
5
To listen to the radio
N00735000740
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorised for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the

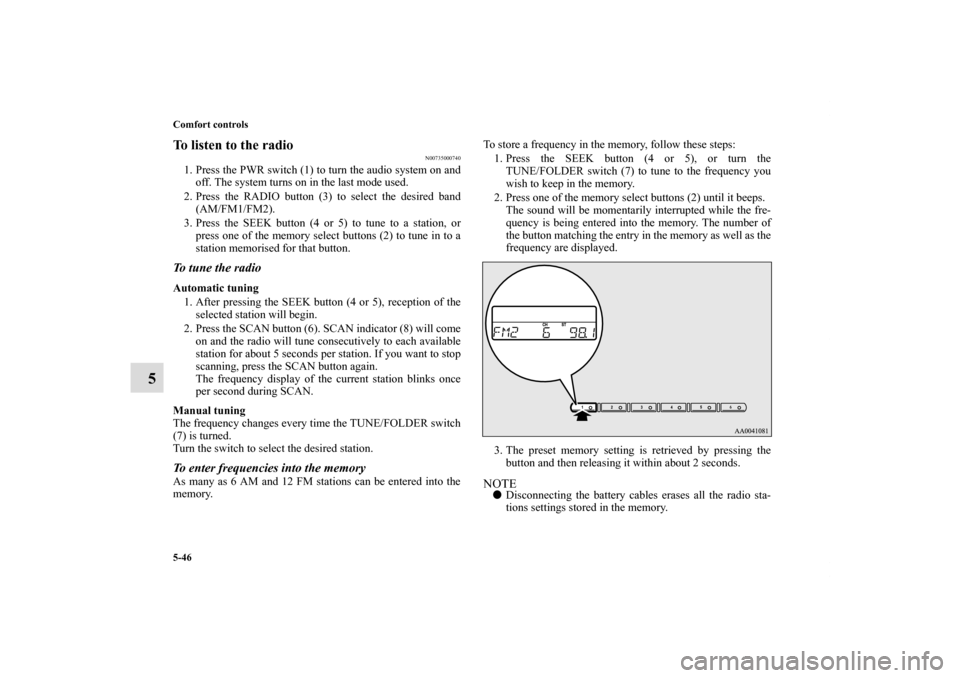

memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tions settings stored in the memory.
BK0098300US.book 46 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-47
5
Radio control panel and display-Type 3
N00734900696
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM/Satellite selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM/SAT (AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4)
indicators
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0098300US.book 47 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-48 Comfort controls
5
To listen to the radio
N00735000753
1. Press the PWR switch (1) to turn the audio system on and
off. The system turns on in the last mode used.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorised for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM, 12 FM and 24 SAT stations can be entered
into the memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tions settings stored in the memory.
BK0098300US.book 48 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-49
5

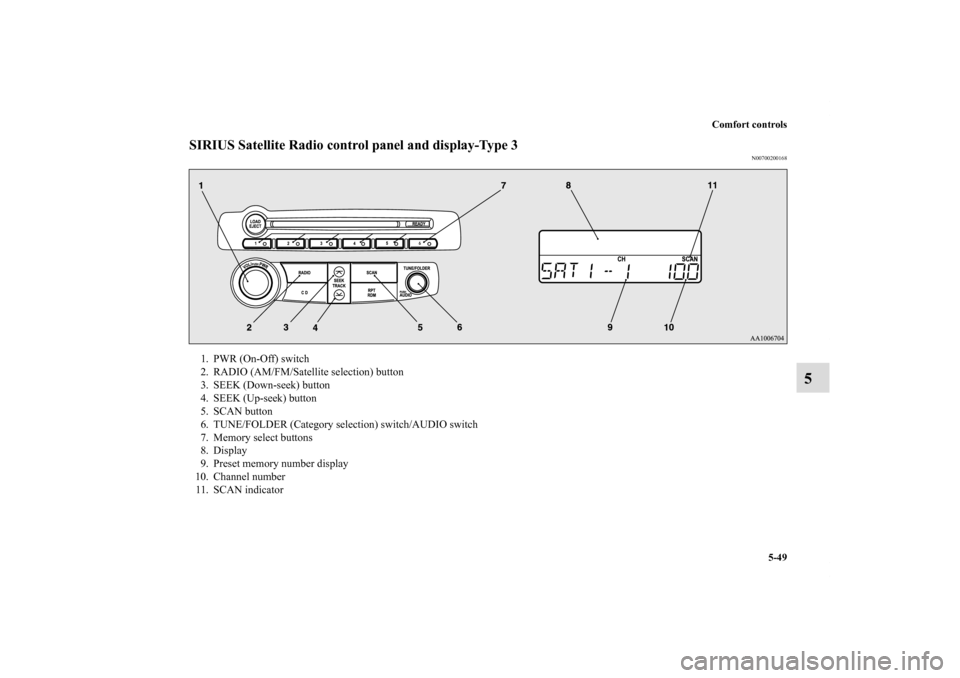

SIRIUS Satellite Radio control panel and display-Type 3
N00700200168
1. PWR (On-Off) switch
2. RADIO (AM/FM/Satellite selection) button
3. SEEK (Down-seek) button
4. SEEK (Up-seek) button
5. SCAN button
6. TUNE/FOLDER (Category selection) switch/AUDIO switch
7. Memory select buttons
8. Display
9. Preset memory number display
10. Channel number
11. SCAN indicator
