5-50 Comfort controls
5
To listen to SIRIUS Satellite Radio
N00760500130
1. If the audio system is OFF, turn it ON by pushing the
PWR switch (1). The audio system will start working in
the previously used mode. Push the RADIO button (2) to
turn ON the radio.
2. Push the RADIO button (2) to select your desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the indication will change to the next one in the fol-
lowing sequence: AM → FM1 → FM2 → SAT1 → SAT2
→ SAT3 → SAT4. When “SIRIUS” has appeared on the
display, the radio will receive satellite radio.Category selection
N00760600030
1. Turn the TUNE/FOLDER switch (6) to activate the cate-
gory selection mode. The category number (CAT1 to
CAT12) of the channel currently being received will be
indicated.
2. Turn the TUNE/FOLDER switch (6) to select your
desired category.NOTE
Even when categories are changed, the currently selected
channel does not change. To select your desired channel,
use the SEEK button (3 or 4).

If you do not operate any switch for 15 seconds, the cate-
gory selection mode will be cancelled.
Channel selection
N00760700028
Push the SEEK button (3 or 4) to select a channel.NOTE
While the system is in category selection mode, only the
channels in the currently selected category can be
selected.Scan function
N00760800016
1. If you push the SCAN button (5), the system will select
receivable channels one by one, receiving each one for
about 7 seconds.
2. To cancel the SCAN mode, push the SCAN button (5)
once more.NOTE
While the system is in category selection mode, only
channels in the currently selected category are scanned.To store a channel in memory
N00760900020
It is possible to store one channel for each memory selection
buttons (7) in memory. (It is possible to store a maximum of 24
channels in memory.) Store a channel in memory using the fol-
lowing procedure:
1. Push the SEEK button (3 or 4) to select the channel you
wish to store in memory.
2. Store the channel in memory by pushing one of the mem-
ory selection buttons (7) until you hear a beep.
BK0098300US.book 50 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-51
5
NOTE
Once you have stored channels in memory, you can
instantly call up a desired channel by just pushing the cor-
responding memory selection buttons (7).SIRIUS ID indication
N00761000031
If you push the SEEK button (3 or 4) to select “CH 0”, the SIR-
IUS ID will be indicated.1. If you select “CH 0”, the first 4 digits of the 12-digit SIR-
IUS ID will be indicated 2 seconds later.
2. Turn the AUDIO switch (6) clockwise to view the next 4
digits. If you turn it clockwise while the last 4 digits are
indicated, the first four digits will be indicated again. If
you turn the AUDIO switch counterclockwise, indications
will be given in the opposite sequence. The indications are
given in the following sequence: first 4 digits ↔ middle 4
digits ↔ last 4 digits.
3. To stop the SIRIUS ID indication, push the SEEK button
(3 or 4) to select a channel other than “CH 0”.
NOTE
If you wait 15 seconds without operating any switch while
the SIRIUS ID is being indicated, the indication will
change to “CH 0”. 2 seconds later, the SIRIUS ID will
again be indicated.
BK0098300US.book 51 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-52 Comfort controls
5
To skip or lock a desired channel using the MENU
mode
N00761100032
It is possible to make a setting to skip or lock a desired channel
during channel selection.
1. If you push the AUDIO switch (6) for at least about 2 sec-
onds while the system is receiving a satellite radio chan-
nel, the system will switch to MENU mode.
2. In the MENU mode, satellite radio channel SKIP setting
and LOCK setting and Speed Compensated Volume func-
tion (refer to “Speed Compensated Volume function” on
page 5-44) is possible.
Each time you push the AUDIO switch (6), the status will
change to the next one in the following sequence: “SCV
Select” (Speed Compensated Volume function) → “SKIP
setting” (the SKIP setting mode) → “LOCK setting” (the
LOCK setting mode) → Menu mode offNOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.

SKIP settings, LOCK settings, and the lock cancellation
code are stored in memory. If a battery cable is discon-
nected, they will be erased. (The code will return to the
“1111” that was set at the factory.)
SKIP setting (SKIP setting mode)
N00761200033
It is possible to set a channel to be skipped during channel
selection. It is also possible to cancel a skip setting.
By turning the AUDIO switch (6), you can select “SKIP” or
“ALL UNSKIP”. These functions are described below.LOCK setting (LOCK setting mode)
N00761300034
It is possible to lock a channel. It is also possible to cancel a
lock setting.
By turning the AUDIO switch (6), you can select “CH LOCK”
(or “UN LOCK”), “UN LOCK AL”, or “CODE EDIT”. These
functions are described below:NOTE
When the channel that is currently being received is not
locked, you can select “CH LOCK”. When the channel
that is currently being received is locked, you can select
“UN LOCK”.SKIP : Sets the channel that is currently being received
to be skipped.
ALL UNSKIP : Cancels all channel skip settings.
CH LOCK : Sets the channel that is currently being received
to be locked.
UN LOCK : Sets the channel that is currently being received
to be unlocked.
UN LOCK AL : Cancels all channel lock settings.
CODE EDIT : Changes the lock cancellation code.
BK0098300US.book 52 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-53
5
To skip a desired channel
N00761400035
It is possible to set a channel to not be received during channel
selection.
1. Select the channel you wish to be skipped.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
3. In the SKIP setting mode, turn the AUDIO switch (6) to
select “SKIP”.
4. Push the AUDIO switch (6) to set the channel that is cur-
rently being received to be skipped. When you have made
the setting, the system will return to the SKIP setting
mode. (The display will show “SKIP setting” after show-
ing “STORED”.)NOTE
Any channel for which a skip setting has been made is
automatically skipped during channel selection.

A channel that is stored in the preset memory is also
skipped during channel selection. If you push the corre-
sponding memory selection buttons (7) to call up the
channel, the display will show “SKIPD” and the audio
will be muted.
To cancel skip settings
N00761500036
It is possible to cancel channel skip settings.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
2. In the SKIP setting mode, turn the AUDIO switch (6) to
select “ALL UNSKIP”.
3. Push the AUDIO switch (6). All channel skip settings will
be cancelled. Then, the system will return to the SKIP set-
ting mode. (The display will show “SKIP setting” after
showing “STORED”.)To lock a desired channel
N00761600037
It is possible to lock a desired channel so that it cannot be
selected.
1. Select the channel you wish to lock.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CH LOCK”.
4. Push the AUDIO switch (6). The channel currently being
received will be locked. Then, the system will return to
the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED”.

Channels stored in the preset memory are also locked.
BK0098300US.book 53 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-54 Comfort controls
5
To unlock locked channels
N00761700041
You can unlock one or all locked channels. Unlocking one or
more channels requires entry of the code.NOTE
The code is set to “1111” at the factory.

It is possible to change the code to any desired number
using “CODE EDIT”.
1. If you wish to unlock a single desired channel, select the
channel you wish to unlock. (If you wish to unlock all
locked channels, it doesn’t matter which channel you
select.)
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “UN LOCK” if you wish to unlock a single desired
channel or “UN LOCK AL” if you wish to unlock all
locked channels.
4. Push the AUDIO switch (6). The code entry window will
display.5. Use the memory selection buttons (7) to enter the code
(1111 to 6666).
6. If you entered the correct code, the channel lock setting
will be cancelled and the system will return to the LOCK
setting mode.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again display. You can retry the code
entry any number of times.
BK0098300US.book 54 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-55
5
To change the lock cancellation code
N00761800042
It is possible to change the code for lock cancellation to any
desired number.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
2. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CODE EDIT”.
3. Push the AUDIO switch (6). The code entry window will
display.
4. Use the memory selection buttons (7) to enter the current
code (the code prior to the change).
5. If you entered the correct code, the code entry window
will again be shown. Enter your desired code.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again be shown. You can retry the code
entry any number of times.
6. After entering the new code, push the AUDIO switch (6).
The code entry window will again be shown for confirma-
tion. Enter the new code again, then push the AUDIO
switch (6).
7. The code will be changed, and the system will return to
the LOCK setting mode.NOTE
The code is stored in memory. If a battery cable is discon-
nected, such settings will be erased. (The code will return
to the “1111” that was set at the factory.)
To reset the lock cancellation code
N00761900030
In case you forget the code, it is possible to reset the code to the
“1111” that was set at the factory.
1. With the audio power OFF, push the PWR switch (1) and
AUDIO switch (6) simultaneously. The display will show
“CODE INITIAL”.
2. Push the AUDIO switch (6). The display will show
“YES”. If you wish to reset the code, push the AUDIO
switch (6) again. If you do not wish to reset the code, turn
the AUDIO switch (6) so the display shows “CANCEL”
and then push the AUDIO switch (6) again.
BK0098300US.book 55 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-56 Comfort controls
5

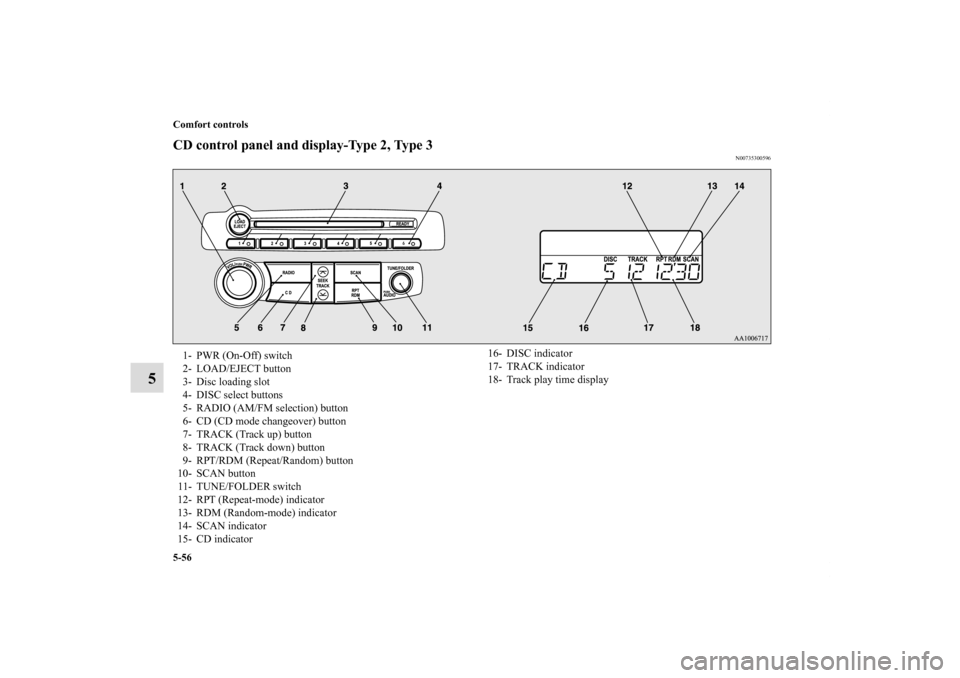

CD control panel and display-Type 2, Type 3
N00735300596
1- PWR (On-Off) switch
2- LOAD/EJECT button
3- Disc loading slot
4- DISC select buttons
5- RADIO (AM/FM selection) button
6- CD (CD mode changeover) button
7- TRACK (Track up) button
8- TRACK (Track down) button
9- RPT/RDM (Repeat/Random) button
10- SCAN button
11- TUNE/FOLDER switch
12- RPT (Repeat-mode) indicator
13- RDM (Random-mode) indicator
14- SCAN indicator
15- CD indicator16- DISC indicator
17- TRACK indicator
18- Track play time display
BK0098300US.book 56 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-57
5
To listen to a CD
N00735500905
1. Press the CD button (6) and the CD mode will be selected,
starting a playback.NOTE
As many as 6 CDs can be inserted into the CD
autochanger.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-40 and “To adjust the tone” on page 5-41.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (5).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-71.
To s e t a d i s cThe indicator light (A) shows the condition of each CD slot.
To set a disc:
1. Press the LOAD/EJECT button (2).
2. Press one of the Disc select buttons (4) to select the CD
which you wish to insert.
3. If there is already a CD loaded in the slot, the CD is auto-
matically ejected. If there is no CD, insert the CD in the
slot (3) after the READY light (B) illuminates.Light off: No disc
Amber: CD is set
Green: CD is played (or selected)
BK0098300US.book 57 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-58 Comfort controls
5
NOTE
When the first CD has played to the end, the second CD
will start to play automatically. When the second, third,
fourth, fifth, and sixth CDs have each played to the end,
the sequence will begin again from the first CD.
To listen an MP3 CDThis autochanger allows you to play MP3 (MPEG Audio
Layer-3) files recorded on CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritable CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have a
maximum of 16 trees, 100 folders, and 255 files per disc.
Push the CD button (6) if MP3 CDs are already in the
autochanger.
The display show “FILE READING”, then playback will
begin. The folder number and the track number will appear on
the display.
BK0098300US.book 58 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-59
5
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA and reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied to this unit.

You may encounter trouble in playing an MP3 recorded
with certain writing software or CD recorders (CD-R/RW
drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-73.Folder selection order/MP3 file playback order (Example)

CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
In the order
File selection
In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0098300US.book 59 ページ ２００８年１２月８日　月曜日　午前１１時３７分
