MITSUBISHI ECLIPSE 2010 4.G Owner's Guide

1-6 General information
1
4. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the tank port as far as it will go.
5. When the nozzle stops automatically, do not try to add
more fuel.
6. To close, turn the fuel tank filler cap slowly clockwise
until you hear clicking sounds, then gently push the fuel
tank filler door closed.
NOTE
If the fuel tank filler cap is not tight while driving, the
engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler cap until you hear click-
ing sounds.
The indicator will go off after driving several times. If the
indicator does not go off, contact your authorized Mitsub-
ishi Motors dealer or a repair facility of your choice as
soon as possible.
CAUTION
!
Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is used.
CAUTION
!
To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.
WA R N I N G
!
Make sure the fuel cap is securely closed. If the fuel
cap is loose, fuel could leak, resulting in a fire.
CAUTION
!
If you need to replace the fuel tank filler cap, use
only the cap specified for your model vehicle.
BK0098300US.book 6 ページ ２００８年１２月８日　月曜日　午前１１時３７分

General information
1-7
1 Modification of your vehicle
N00301600048
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Modification with non-Mitsubishi
Motors genuine parts could affect its performance, safety or
durability, and may even violate regulations. In addition, dam-
age or performance problems resulting from the modification
may not be covered under warranty.
Installation of accessories
N00301700023

The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law in
the driving area and in accordance with the guidelines and
warnings contained within the documents accompanying
this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.

Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.

Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
BK0098300US.book 7 ページ ２００８年１２月８日　月曜日　午前１１時３７分

1-8 General information
1
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts will affect the driving safety of your Mit-
subishi-vehicle.
Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
WA R N I N G
!
If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0098300US.book 8 ページ ２００８年１２月８日　月曜日　午前１１時３７分

General information
1-9
1 Mitsubishi Motors genuine parts
N00301400105
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi vehicle has a
selection of Mitsubishi Motors authorized accessories to
choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.
BK0098300US.book 9 ページ ２００８年１２月８日　月曜日　午前１１時３７分

BK0098300US.book 10 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2

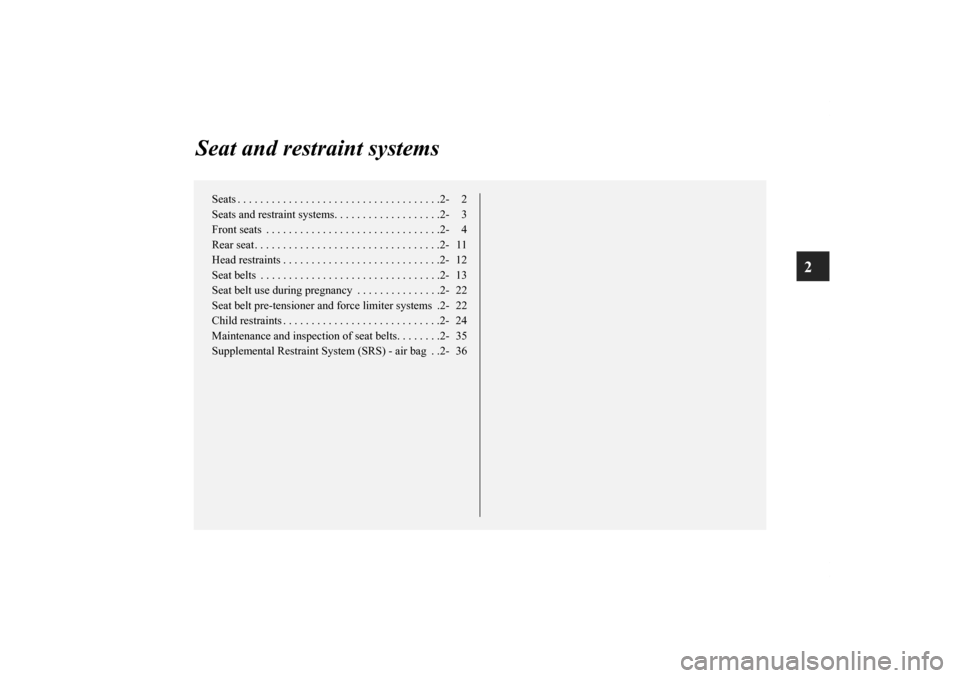

Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 4
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 11
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 13
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 22
Seat belt pre-tensioner and force limiter systems .2- 22
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 24
Maintenance and inspection of seat belts. . . . . . . .2- 35
Supplemental Restraint System (SRS) - air bag . .2- 36
BK0098300US.book 1 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-2 Seat and restraint systems

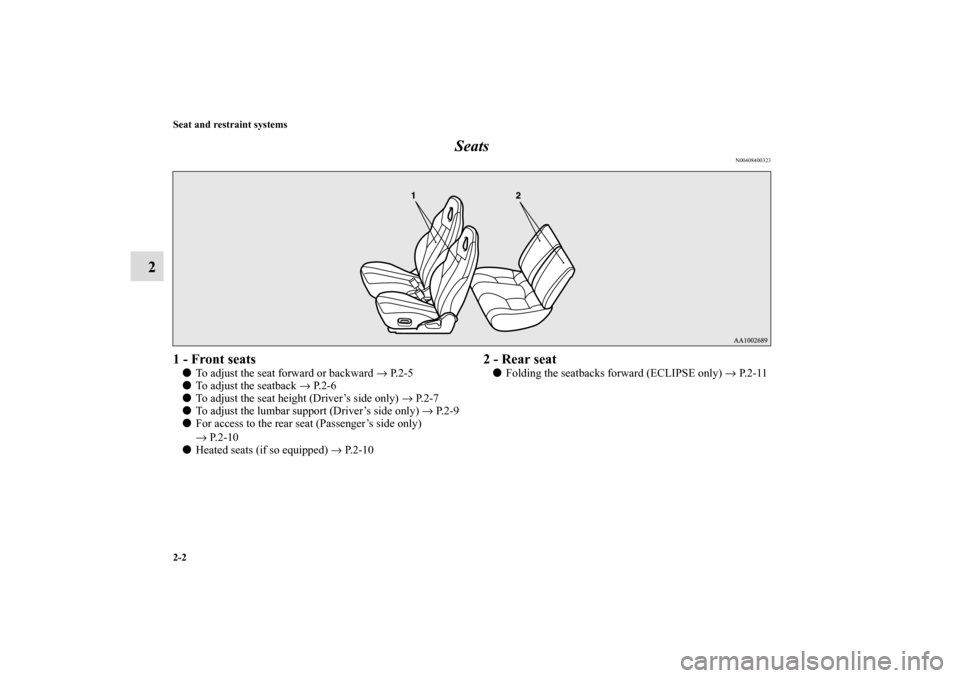

2Seats
N00408400323
1 - Front seats
To adjust the seat forward or backward → P. 2 - 5

To adjust the seatback → P. 2 - 6

To adjust the seat height (Driver’s side only) → P. 2 - 7

To adjust the lumbar support (Driver’s side only) → P. 2 - 9

For access to the rear seat (Passenger’s side only)
→ P. 2 - 1 0

Heated seats (if so equipped) → P.2-10
2 - Rear seat
Folding the seatbacks forward (ECLIPSE only) → P. 2 - 1 1
BK0098300US.book 2 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600195
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with air bags for the driver and front
seat passenger. The seats, head restraints, and door locks also
are safety equipment, which must be used correctly.Always check the following before you drive:

That everyone in your vehicle is properly wearing their
seat belt.

That infants and small children are properly secured in
appropriate child restraints in the rear seat.

That all doors are fully closed and locked.

That seatbacks are upright.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
BK0098300US.book 3 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-4 Seat and restraint systems

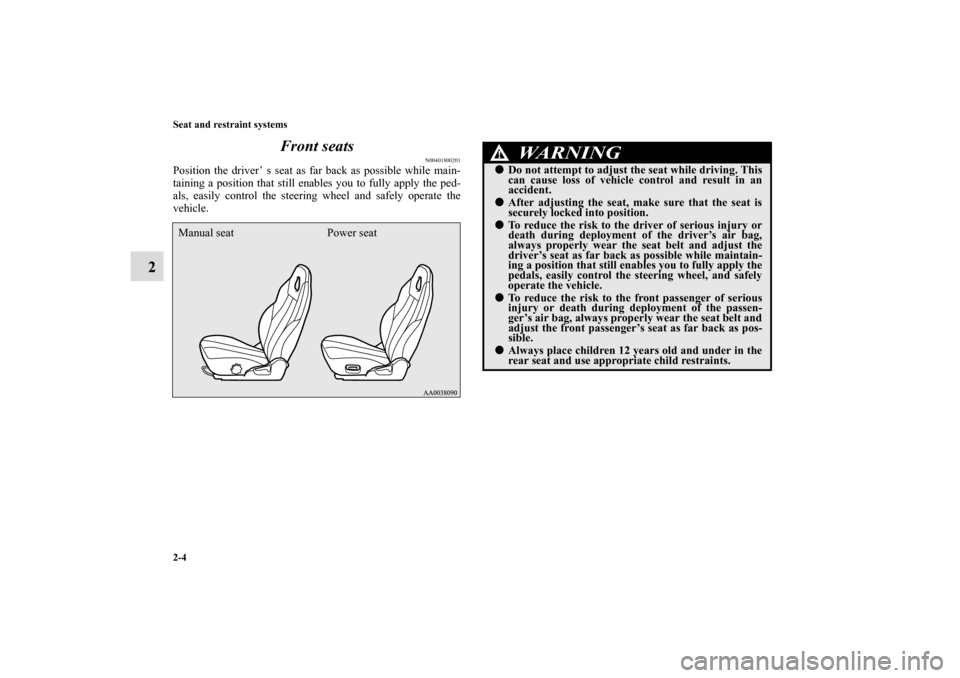

2Front seats
N00401800201
Position the driver’ s seat as far back as possible while main-
taining a position that still enables you to fully apply the ped-
als, easily control the steering wheel and safely operate the
vehicle.Manual seat Power seat
WA R N I N G
!
Do not attempt to adjust the seat while driving. This
can cause loss of vehicle control and result in an
accident.
After adjusting the seat, make sure that the seat is
securely locked into position.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s air bag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
To reduce the risk to the front passenger of serious
injury or death during deployment of the passen-
ger’s air bag, always properly wear the seat belt and
adjust the front passenger’s seat as far back as pos-
sible.
Always place children 12 years old and under in the
rear seat and use appropriate child restraints.
BK0098300US.book 4 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-5
2

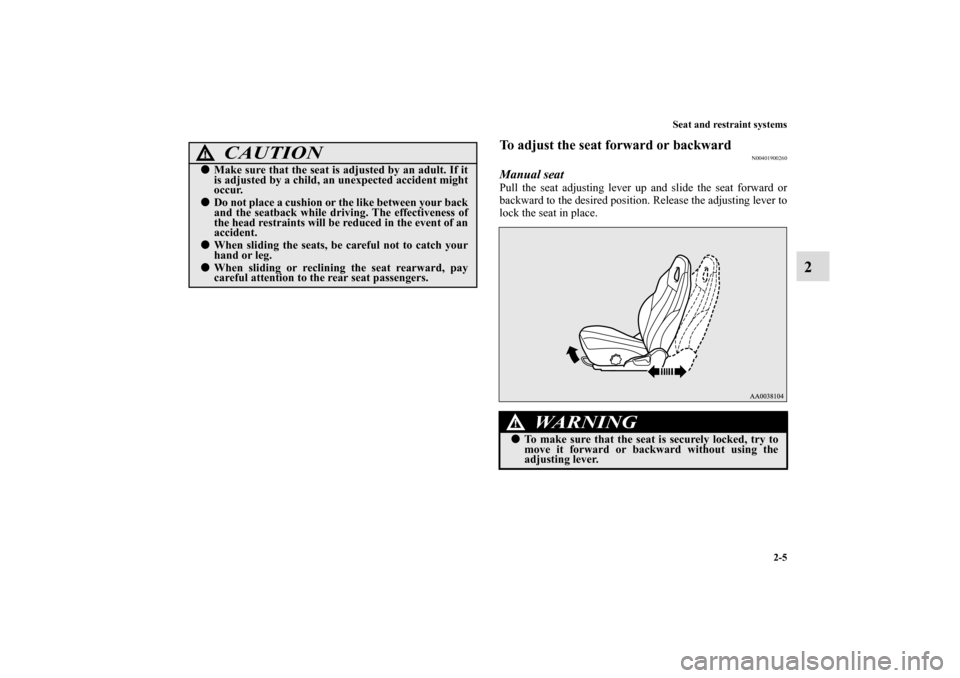

To adjust the seat forward or backward
N00401900260
Manual seatPull the seat adjusting lever up and slide the seat forward or
backward to the desired position. Release the adjusting lever to
lock the seat in place.
CAUTION
!
Make sure that the seat is adjusted by an adult. If it
is adjusted by a child, an unexpected accident might
occur.
Do not place a cushion or the like between your back
and the seatback while driving. The effectiveness of
the head restraints will be reduced in the event of an
accident.
When sliding the seats, be careful not to catch your
hand or leg.
When sliding or reclining the seat rearward, pay
careful attention to the rear seat passengers.
WA R N I N G
!
To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever.
BK0098300US.book 5 ページ ２００８年１２月８日　月曜日　午前１１時３７分
