2-6 Seat and restraint systems
2

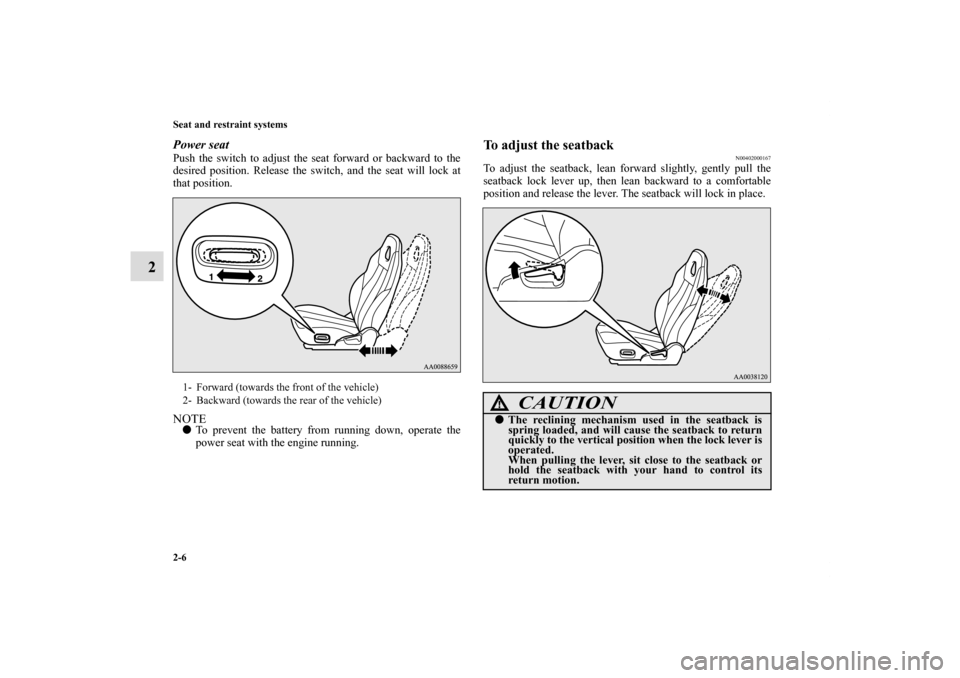

Power seatPush the switch to adjust the seat forward or backward to the
desired position. Release the switch, and the seat will lock at
that position.NOTE
To prevent the battery from running down, operate the
power seat with the engine running.
To adjust the seatback
N00402000167
To adjust the seatback, lean forward slightly, gently pull the
seatback lock lever up, then lean backward to a comfortable
position and release the lever. The seatback will lock in place.
1- Forward (towards the front of the vehicle)
2- Backward (towards the rear of the vehicle)
CAUTION
!
The reclining mechanism used in the seatback is
spring loaded, and will cause the seatback to return
quickly to the vertical position when the lock lever is
operated.
When pulling the lever, sit close to the seatback or
hold the seatback with your hand to control its
return motion.
BK0098300US.book 6 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-7
2

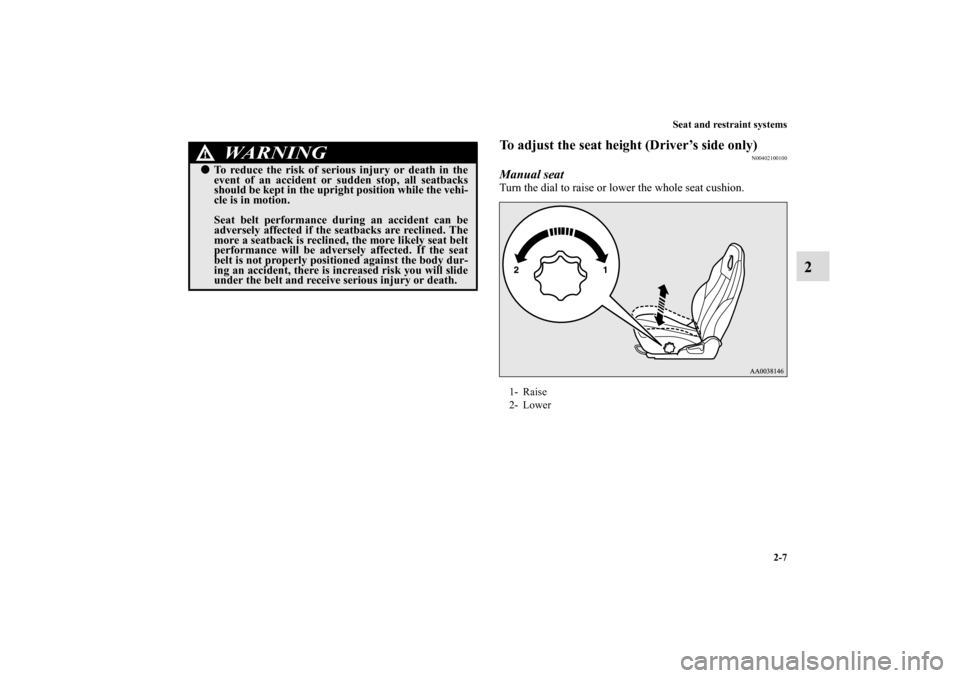

To adjust the seat height (Driver’s side only)
N00402100100
Manual seatTurn the dial to raise or lower the whole seat cushion.
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
1- Raise
2- Lower
BK0098300US.book 7 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-8 Seat and restraint systems
2

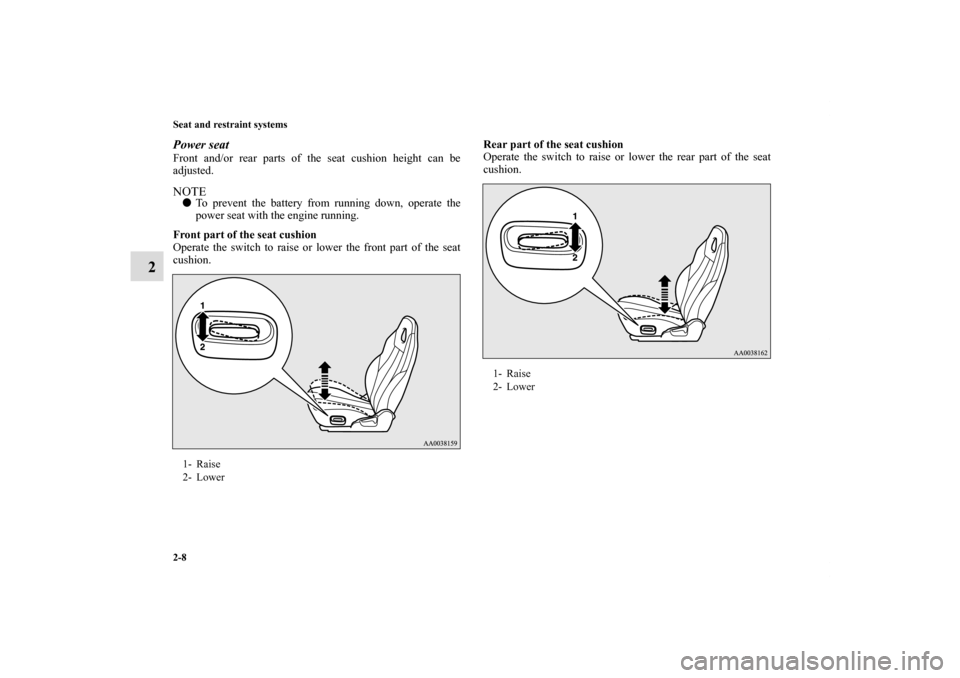

Power seatFront and/or rear parts of the seat cushion height can be
adjusted. NOTE
To prevent the battery from running down, operate the
power seat with the engine running.
Front part of the seat cushion
Operate the switch to raise or lower the front part of the seat
cushion. Rear part of the seat cushion
Operate the switch to raise or lower the rear part of the seat
cushion. 1- Raise
2- Lower
1- Raise
2- Lower
BK0098300US.book 8 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-9
2

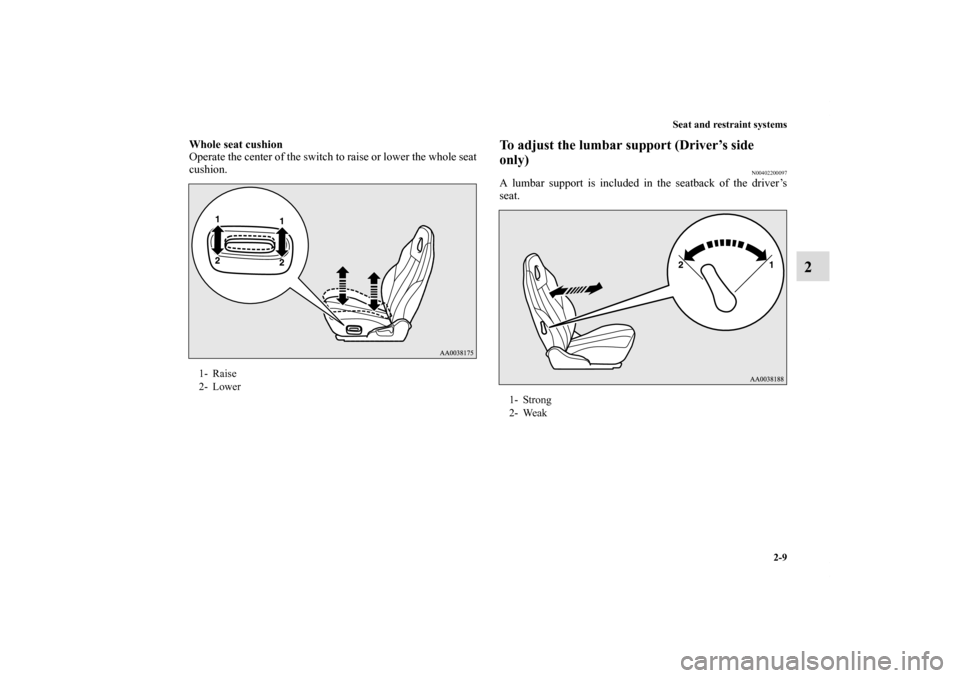

Whole seat cushion
Operate the center of the switch to raise or lower the whole seat
cushion.
To adjust the lumbar support (Driver’s side
only)
N00402200097
A lumbar support is included in the seatback of the driver’s
seat.
1- Raise
2- Lower
1- Strong
2- Weak
BK0098300US.book 9 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-10 Seat and restraint systems
2

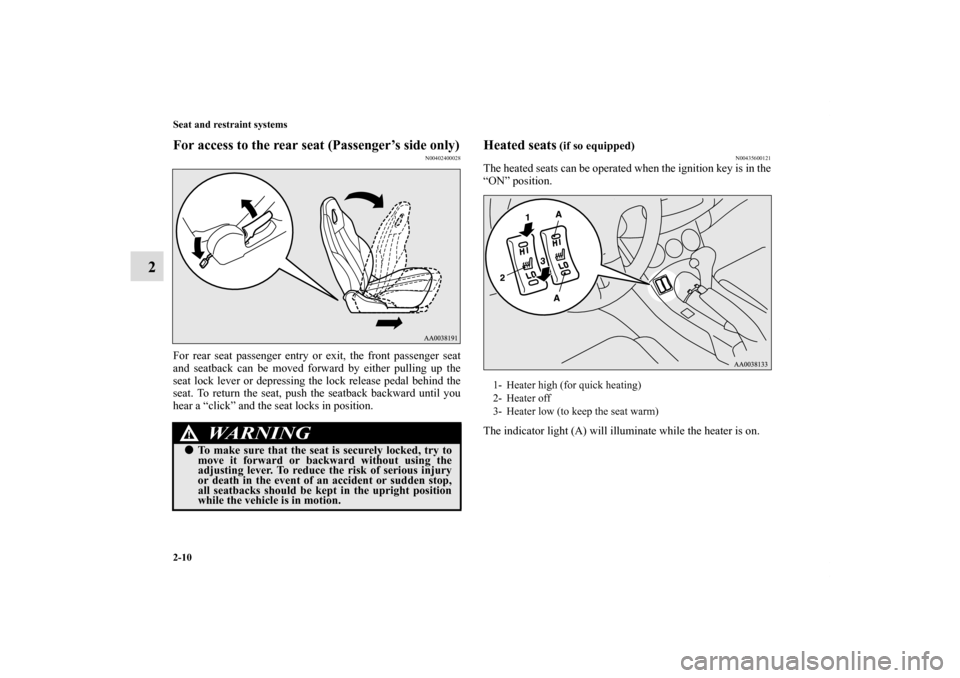

For access to the rear seat (Passenger’s side only)
N00402400028
For rear seat passenger entry or exit, the front passenger seat
and seatback can be moved forward by either pulling up the
seat lock lever or depressing the lock release pedal behind the
seat. To return the seat, push the seatback backward until you
hear a “click” and the seat locks in position.
Heated seats
(if so equipped)
N00435600121
The heated seats can be operated when the ignition key is in the
“ON” position.
The indicator light (A) will illuminate while the heater is on.
WA R N I N G
!
To make sure that the seat is securely locked, try to
move it forward or backward without using the
adjusting lever. To reduce the risk of serious injury
or death in the event of an accident or sudden stop,
all seatbacks should be kept in the upright position
while the vehicle is in motion.
1- Heater high (for quick heating)
2- Heater off
3- Heater low (to keep the seat warm)
BK0098300US.book 10 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-11
2 Rear seat
N00402500074

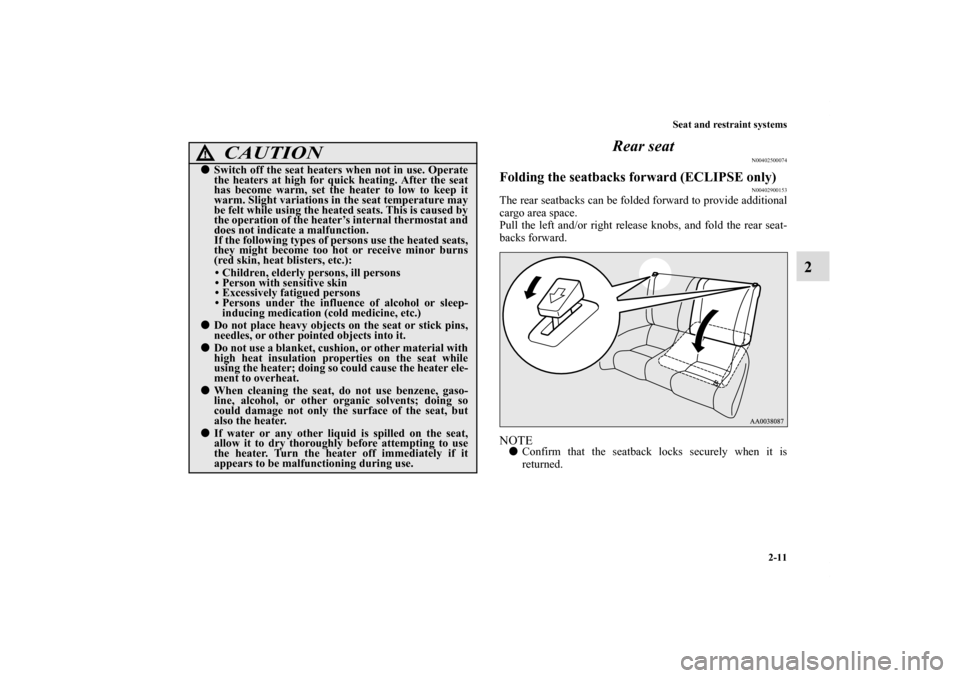

Folding the seatbacks forward (ECLIPSE only)
N00402900153
The rear seatbacks can be folded forward to provide additional
cargo area space.
Pull the left and/or right release knobs, and fold the rear seat-
backs forward.NOTE
Confirm that the seatback locks securely when it is
returned.
CAUTION
!
Switch off the seat heaters when not in use. Operate
the heaters at high for quick heating. After the seat
has become warm, set the heater to low to keep it
warm. Slight variations in the seat temperature may
be felt while using the heated seats. This is caused by
the operation of the heater’s internal thermostat and
does not indicate a malfunction.
If the following types of persons use the heated seats,
they might become too hot or receive minor burns
(red skin, heat blisters, etc.):
• Children, elderly persons, ill persons
• Person with sensitive skin
• Excessively fatigued persons
• Persons under the influence of alcohol or sleep-
inducing medication (cold medicine, etc.)

Do not place heavy objects on the seat or stick pins,
needles, or other pointed objects into it.
Do not use a blanket, cushion, or other material with
high heat insulation properties on the seat while
using the heater; doing so could cause the heater ele-
ment to overheat.
When cleaning the seat, do not use benzene, gaso-
line, alcohol, or other organic solvents; doing so
could damage not only the surface of the seat, but
also the heater.
If water or any other liquid is spilled on the seat,
allow it to dry thoroughly before attempting to use
the heater. Turn the heater off immediately if it
appears to be malfunctioning during use.
BK0098300US.book 11 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-12 Seat and restraint systems
2Head restraints
N00404300454

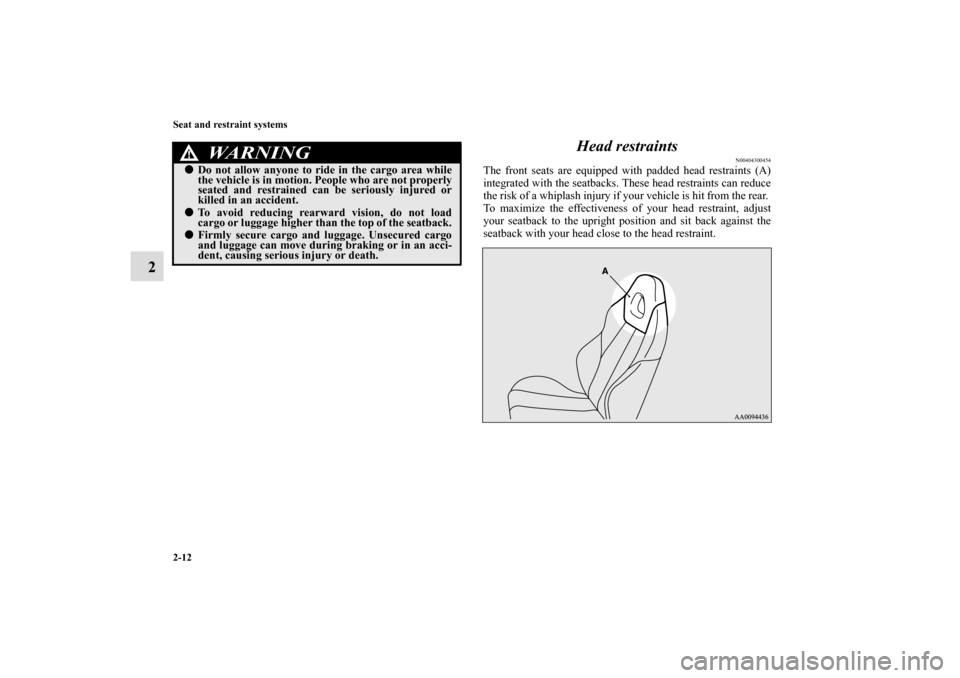

The front seats are equipped with padded head restraints (A)
integrated with the seatbacks. These head restraints can reduce
the risk of a whiplash injury if your vehicle is hit from the rear.
To maximize the effectiveness of your head restraint, adjust
your seatback to the upright position and sit back against the
seatback with your head close to the head restraint.
WA R N I N G
!
Do not allow anyone to ride in the cargo area while
the vehicle is in motion. People who are not properly
seated and restrained can be seriously injured or
killed in an accident.
To avoid reducing rearward vision, do not load
cargo or luggage higher than the top of the seatback.
Firmly secure cargo and luggage. Unsecured cargo
and luggage can move during braking or in an acci-
dent, causing serious injury or death.
BK0098300US.book 12 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-13
2 Seat belts
N00406000282
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
WA R N I N G
!
In order to minimize the risk of a neck injury due to
a rear impact, the driver and front passenger seat-
backs must be adjusted to the upright position
before vehicle operation. The driver should never
adjust the seat while the vehicle is in motion.
Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
WA R N I N G
!
To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraints must always be
used. Refer to “Child restraints” on page 2-24 for
additional information.
Never use one seat belt for more than one person.
Never carry more people in your vehicle than there
are seat belts.
Always adjust the seat belt for a snug fit.
Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm.
Always wear the lap belt as low as possible across
your hips, not around your waist.
Never modify or alter the seat belts in your vehicle.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s air bag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
BK0098300US.book 13 ページ ２００８年１２月８日　月曜日　午前１１時３７分

2-14 Seat and restraint systems
2

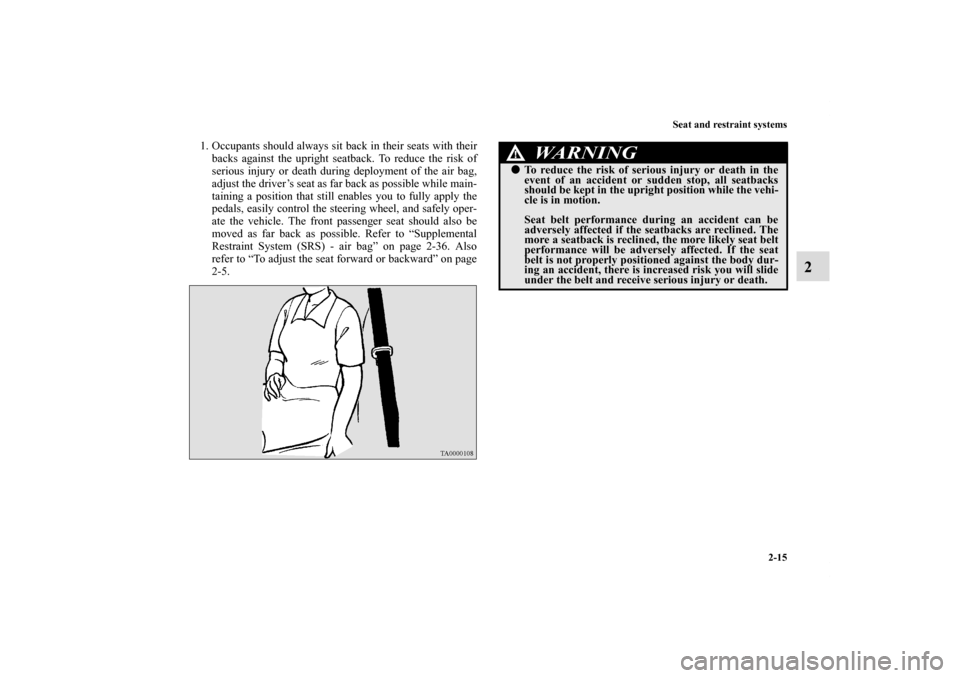

Seat belt instructions
N00406200314
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion.NOTE
For instructions on installing a child restraint system using
a seat belt, refer to “Installing a child restraint system
using the seat belt” on page 2-31.

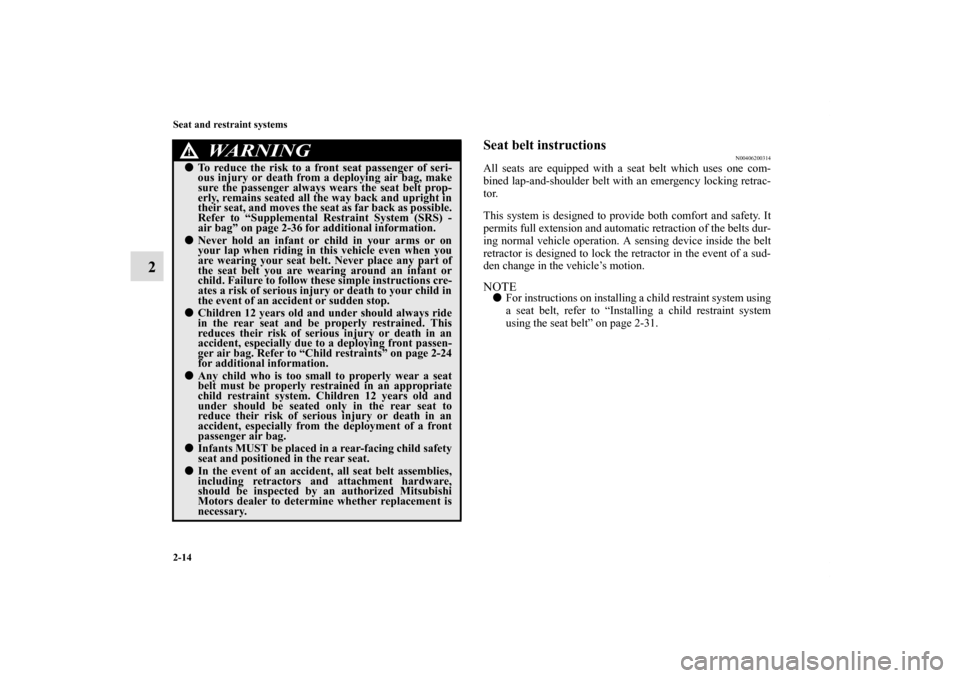

To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying air bag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
air bag” on page 2-36 for additional information.
Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger air bag. Refer to “Child restraints” on page 2-24
for additional information.
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system. Children 12 years old and
under should be seated only in the rear seat to
reduce their risk of serious injury or death in an
accident, especially from the deployment of a front
passenger air bag.
Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.
In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.
WA R N I N G
!
BK0098300US.book 14 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Seat and restraint systems
2-15
2
1. Occupants should always sit back in their seats with their
backs against the upright seatback. To reduce the risk of
serious injury or death during deployment of the air bag,
adjust the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely oper-
ate the vehicle. The front passenger seat should also be
moved as far back as possible. Refer to “Supplemental
Restraint System (SRS) - air bag” on page 2-36. Also
refer to “To adjust the seat forward or backward” on page
2-5.
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0098300US.book 15 ページ ２００８年１２月８日　月曜日　午前１１時３７分
