3-38 Features and controls
3
2. Pull down both sun visors.
3. Firmly return the latch handles (B) until they click and
lock into position. Return the sun visors to their original
positions.NOTE
If you lock the driver’s-side latch handle (B) while listen-
ing to the audio system, an audible beep will sound and
the audio system’s sound equalization will change to set-
tings that are optimized for operation with the electric
convertible top closed.
Part-open warning buzzer
N00505400033
If you start to drive the vehicle with the top partly open, the
operation indicator lamp will flash rapidly (approximately two
flashes per second) and a tone will sound for approximately 5
seconds to indicate that the top is partly open. Stop the vehicle
in a safe place and completely open or close the top.If the electric convertible top malfunctions
N00505500018
If the electric convertible top malfunctions, the operation indi-
cator lamp will flash rapidly (approximately two flashes per
second) and a tone will sound intermittently and slowly
(approximately once per second) to indicate the system fault
when either top switch is operated. If the operation indicator
lamp does not go off when a period of 10 minutes or longer has
elapsed, have the vehicle inspected by an authorized Mitsub-
ishi Motors dealer.
WA R N I N G
!
Make sure the latch handles (B) are securely locked
in place. Driving the vehicle without first locking the
latch handles in position could cause the top to open,
resulting in a serious accident.
B
BK0098300US.book 38 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-40 Features and controls
3
2. While pushing the slide (C) in the direction of the arrow,
install the top and bottom frames, then release the slide
(C). Make sure both of the frames are securely engaged.3. Move the locking pin (D) to the position (2).
C
1- Stowed position
2- Installation position
3- Locked position
1 2 3 D
BK0098300US.book 40 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-41
3
4. From inside the vehicle, insert the two retainer pegs (E)
all the way into mountings provided (F). 5. Align the locking pins (D) with the holes (G) in the vehi-
cle. Slide the locking pins (D) toward the outside and
insert them in the holes to retain the wind deflector. Make
sure that the wind deflector is securely installed in the
vehicle.
EF
D
G
BK0098300US.book 41 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-42 Features and controls
3
NOTE
When you insert the locking pins (D) into the holes (G),
they may be stiff. If this happens, adjust each locking pin
(D) to a length that enables secure retention of the wind
deflector. To adjust the length of each locking pin (D),
turn the end of the locking pin using a screwdriver.6. Raise the top frame to the full upright position as illus-
trated.
BK0098300US.book 42 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-43
3
Removing the wind deflectorTrying to remove the wind deflector improperly will cause
damage or destruction.NOTE
Follow the removal procedure exactly to avoid damage or
destruction of the wind deflector.
1. Fold down the top of the wind deflector.2. Slide the locking pins (D) inward to remove them from
the holes (G) in the vehicle.
3. Slightly slide the wind deflector forward to clear the
upholstery and then lift the deflector out of the vehicle.
D
G
BK0098300US.book 43 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-44 Features and controls
3
4. Slide the slide (C) toward the middle to unlock the bottom
frame (A) and the top frame (B).5. Move the locking pin (D) to the position (1).
C
1- Stowed position
2- Installation position
3- Locked position
D321
BK0098300US.book 44 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-47
3
9. Insert the stamped end of the emergency tool stamped
with a part number into the specified location (C).10. Slowly move the emergency tool in the direction of the
arrow to unlock the tonneau panel.
C
BK0098300US.book 47 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-49
3
13. Slowly close the top until it touches the top edge of the
windshield.14. With the top closed, return the latch handles (E) until they
lock into position. Return the sun visors to their original
positions.
CAUTION
!
Be careful not to trap your hands and fingers when
closing the top.
WA R N I N G
!
Make sure the latch handles (E) are securely locked
in place. Driving the vehicle without first locking the
latch handles in position could cause the top to open,
resulting in a serious accident.
E
BK0098300US.book 49 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-51
3

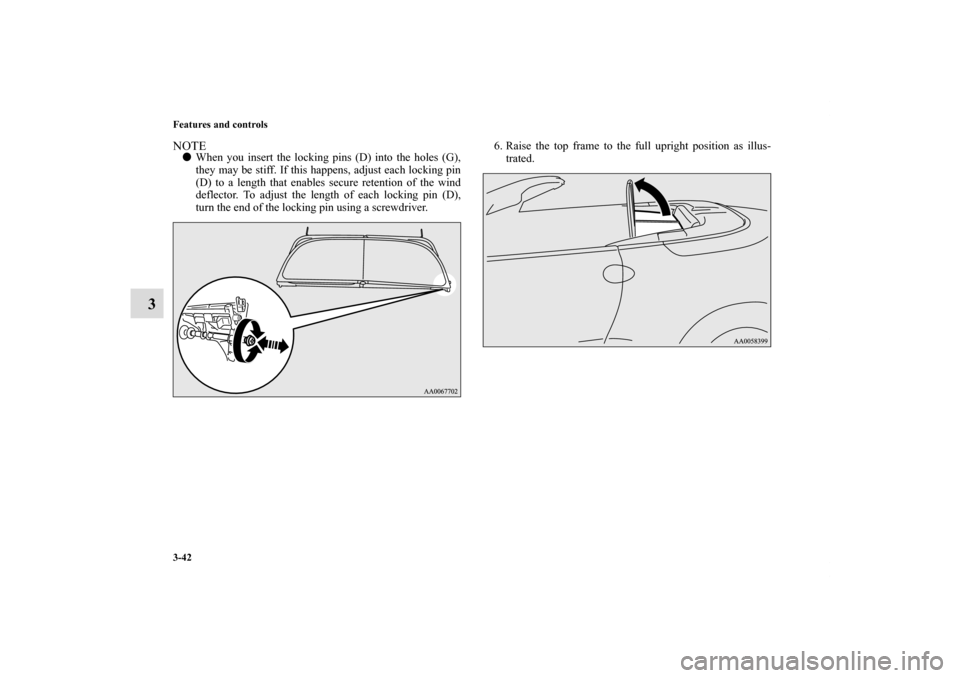

17. While holding the rear window, turn the handle of the
valve (H) counterclockwise to release the pressure in the
valve. At this time, turn the handle until it can be turned
no further.NOTE
Do not operate either top switch after loosening the valve.18. While retaining the tonneau panel and the rear glass,
remove the emergency tool from the specified insertion
location in the tonneau hinge and close the tonneau panel.
NOTE
When you close the tonneau panel, hydraulic pressure
may make it stiff. Slowly press the tonneau panel down-
ward.
CAUTION
!
Be sure to hold the rear window while working. Oth-
erwise, it may, depending on its position, fall down
when you loosen the valve.
H
CAUTION
!
Be sure to hold the rear window while working. Oth-
erwise, it may, depending on its position, fall down.
BK0098300US.book 51 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-52 Features and controls
3
19. Step into the vehicle. Insert the stamped end of the emer-
gency tool into the specified location (C). Slowly move
the emergency tool in the direction of the arrow to lock
the tonneau panel.20. Close the rear window.
21. Pulling up the lining, remove the clips (I).
C
II
