display MITSUBISHI ECLIPSE 2010 4.G Owners Manual

Overview
Instruments and controls (Instrument panel)
N00100201127
Supplemental restraint system - air bag
(for front passenger’s seat) P.2-36
Glove compartment
P.3-177
Audio system
P.5-24, 5-26, 5-39Hazard warning flasher switch
P. 3 - 1 3 2
Vents P.5-2 Multi center display P.3-116
Passenger’s air bag off indicator
P.2-43Front passenger seat belt warning
light P.2-19
Hands-free Bluetooth
®
cellular phone interface
system with voice rec-
ognition (if so equipped)
P. 3 - 1 3 9
BK0098300US.book 2 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Rear hatch (ECLIPSE)/Trunk lid
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 16
Inside rear hatch/trunk lid release . . . . . . . . . . . . .3- 18
Inside emergency trunk lid release
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 20
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 22
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 26
Sunroof (ECLIPSE only, if so equipped). . . . . . . .3- 28
Electric convertible top (ECLIPSE SPYDER) . . .3- 31
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 56
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 59
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 72
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 82
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 85
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 90Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Tire pressure monitoring system . . . . . . . . . . . . . . 3- 97
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 104
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 106
Indicator and warning light package . . . . . . . . . . . 3- 112
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 113
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 113
Multi center display. . . . . . . . . . . . . . . . . . . . . . . . 3- 116
Combination headlights and dimmer switch . . . . . 3- 127
Headlight levelling switch (if so equipped) . . . . . 3- 130
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 132
Front fog light switch (if so equipped) . . . . . . . . . 3- 133
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 134
Electric rear window defogger switch. . . . . . . . . . 3- 137
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 138
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 139
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Vanity mirror (if so equipped) . . . . . . . . . . . . . . . . 3- 169
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 170
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 170
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Floor console box . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 179
Rear shelf panel (ECLIPSE only, if so equipped) . 3- 180
Coat hooks (ECLIPSE only, if so equipped) . . . . . 3- 181
Luggage hooks (ECLIPSE only) . . . . . . . . . . . . . . 3- 182
BK0098300US.book 1 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-104 Features and controls
3Rear-view camera
(if so equipped)
N00546200043
When the gearshift lever (for vehicles with manual transaxle)
or the selector lever (for vehicles with automatic transaxle) is
in the “R” position with the ignition key in the “ON” position,
the rear-view camera image will be displayed on the left por-
tion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view camera image will turn off.

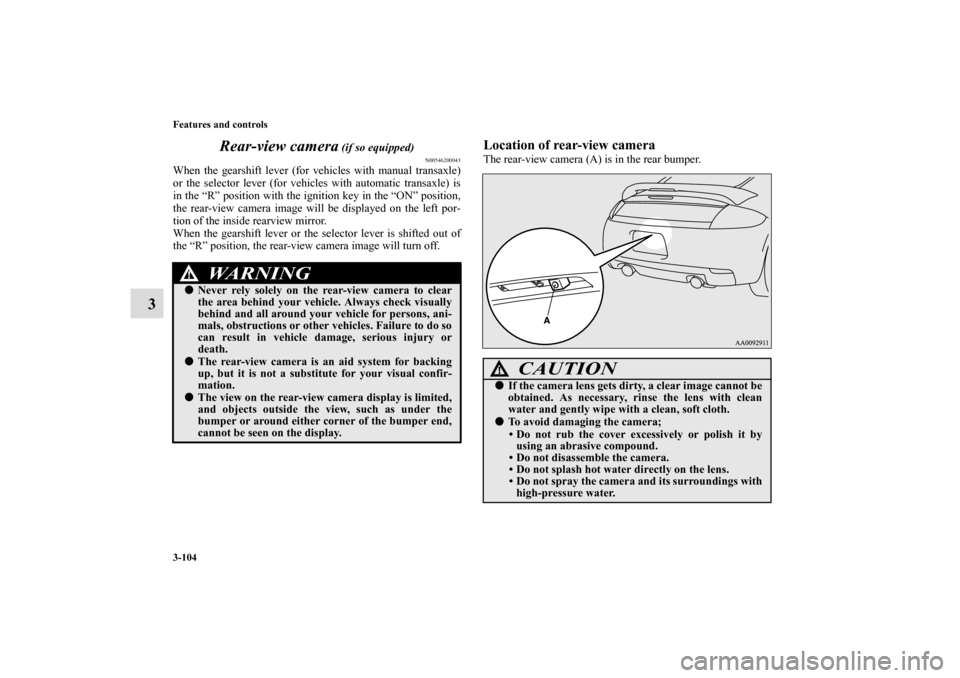

Location of rear-view cameraThe rear-view camera (A) is in the rear bumper.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the rear-view camera display is limited,
and objects outside the view, such as under the
bumper or around either corner of the bumper end,
cannot be seen on the display.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
BK0098300US.book 104 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-105
3

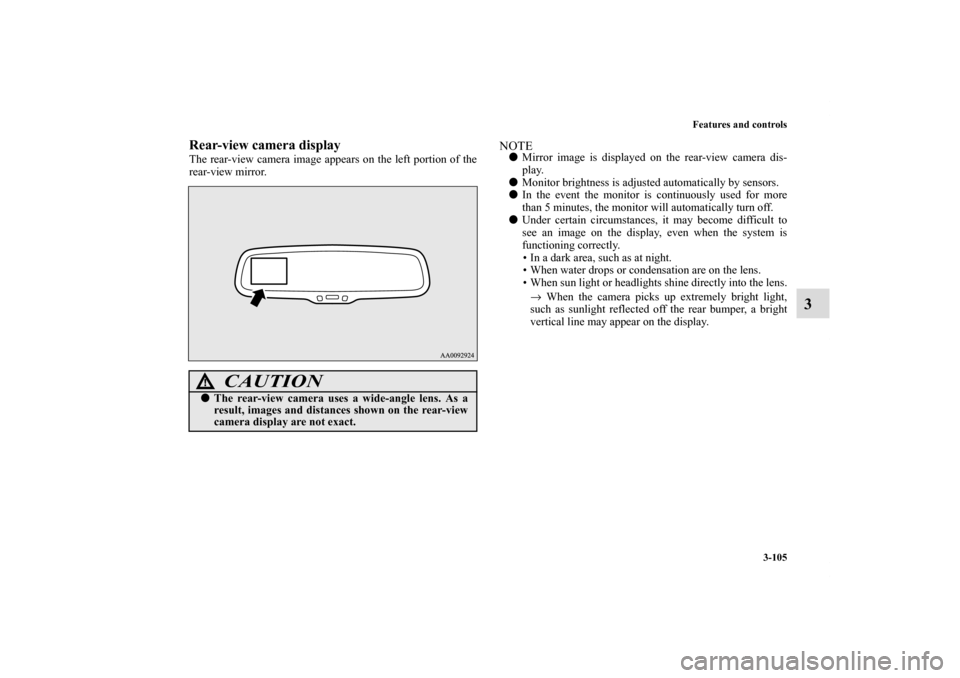

Rear-view camera displayThe rear-view camera image appears on the left portion of the
rear-view mirror.
NOTE
Mirror image is displayed on the rear-view camera dis-
play.

Monitor brightness is adjusted automatically by sensors.

In the event the monitor is continuously used for more
than 5 minutes, the monitor will automatically turn off.

Under certain circumstances, it may become difficult to
see an image on the display, even when the system is
functioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the display.
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the rear-view
camera display are not exact.
BK0098300US.book 105 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-108 Features and controls
3

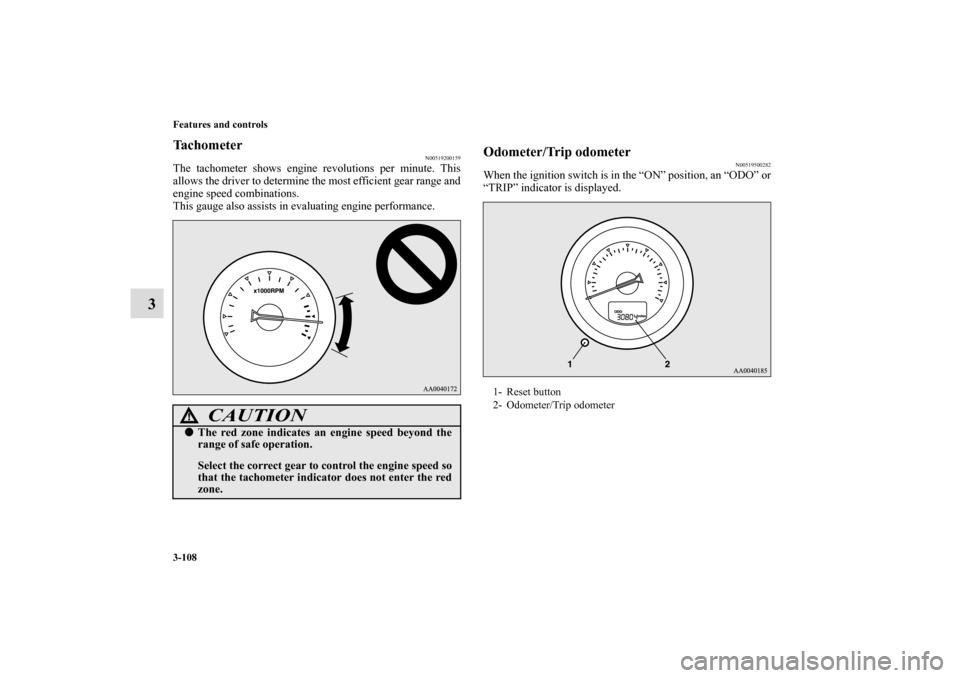

Tachometer
N00519200159
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500282
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Reset button
2- Odometer/Trip odometer
BK0098300US.book 108 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-109
3

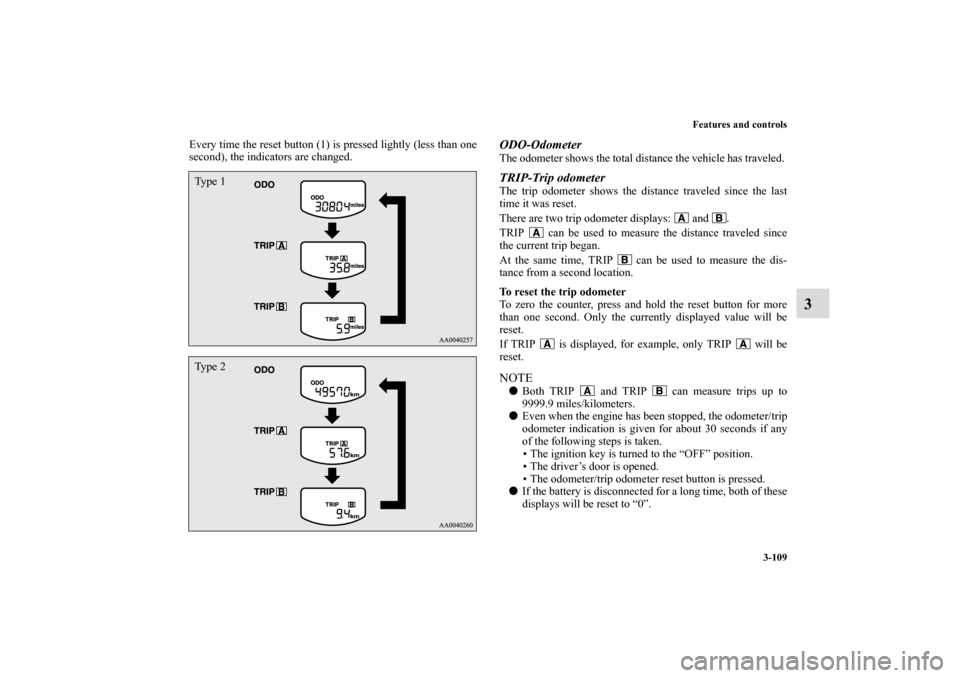

Every time the reset button (1) is pressed lightly (less than one
second), the indicators are changed.
ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.
To reset the trip odometer
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset. NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

Even when the engine has been stopped, the odometer/trip
odometer indication is given for about 30 seconds if any
of the following steps is taken.
• The ignition key is turned to the “OFF” position.
• The driver’s door is opened.
• The odometer/trip odometer reset button is pressed.

If the battery is disconnected for a long time, both of these
displays will be reset to “0”.
Ty p e 1Ty p e 2
BK0098300US.book 109 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-116 Features and controls
3
Door-ajar warning light and buzzer
N00520900231
This light comes on when any door or rear hatch (ECLIPSE) is
open or not completely closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door or rear hatch is open or ajar, a tone will sound 4 times
and the warning light will flash 4 times to inform the driver
that a door or rear hatch is not properly shut.NOTE
The goes out automatically after about 30 minutes to pre-
vent complete discharge of the battery.
Refer to “Interior light auto-cutout function (dome light
and other lights)” on page 3-176.
Multi center display
N00522100080
When the ignition key is in the “ACC” or “ON” position, the
digital clock, the outside temperature (if so equipped) and the
electronic compass (if so equipped) are displayed in the multi
center display. When the ignition key is in the “ACC” or “ON”
position and the audio system is activate, the audio information
is displayed in the multi center display.NOTE
Putting a cellular phone in the monitor’s small storage
compartment may weaken the phone’s reception. This is
typical and does not mean that something is wrong with
the system.

Use of wireless devices such as transceivers near the mon-
itor may make the screen go dark temporarily. This is typ-
ical and does not mean that something is wrong with the
system.
CAUTION
!
Before driving, make sure that the door-ajar warn-
ing light is off.
WA R N I N G
!
When operating the system for a prolonged period,
make sure the vehicle is parked in a well ventilated
area to avoid the accumulation of toxic fumes inside
and outside of the passenger compartment.
CAUTION
!
The driver should not operate the display while the
vehicle is in motion.
When operating the system, stop the vehicle in a safe
area.
BK0098300US.book 116 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-117
3

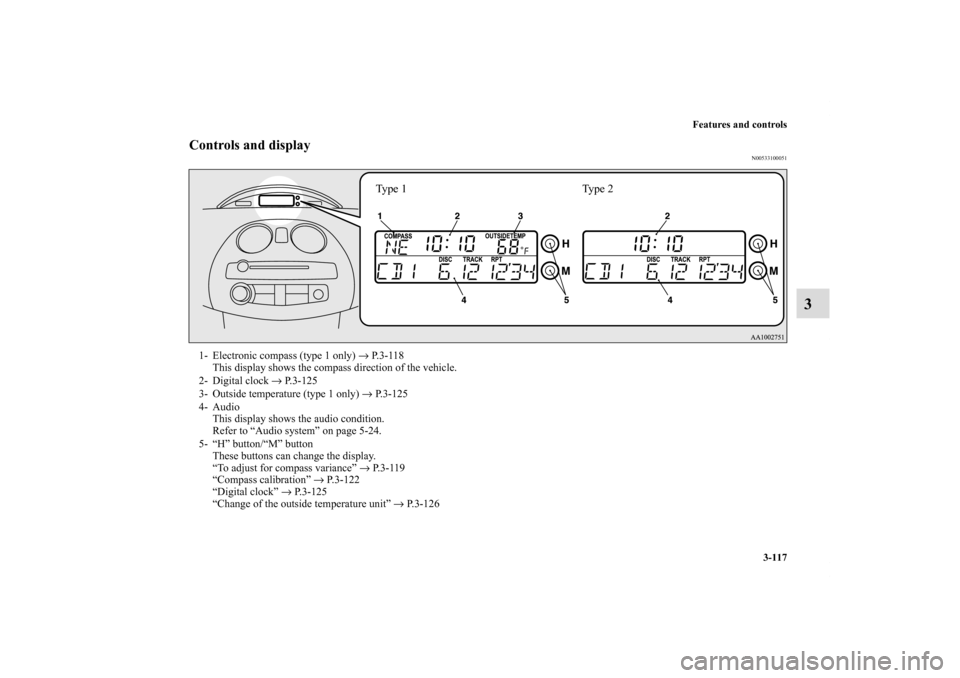

Controls and display
N00533100051
Ty p e 1 Ty p e 2

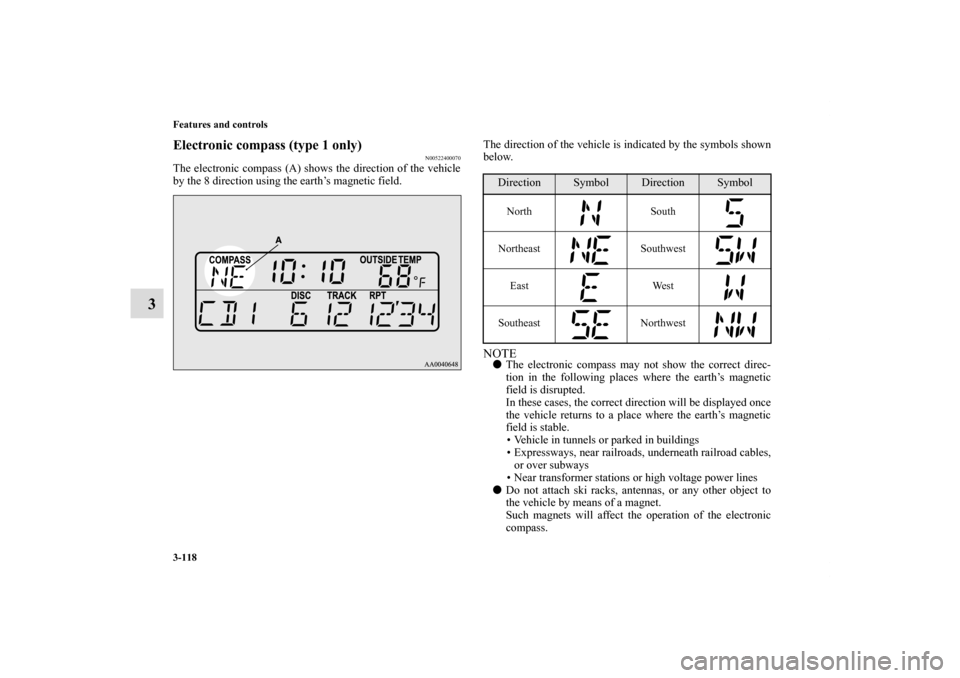

1- Electronic compass (type 1 only) → P. 3 - 1 1 8
This display shows the compass direction of the vehicle.
2- Digital clock → P.3-125
3- Outside temperature (type 1 only) → P.3-125
4- Audio
This display shows the audio condition.
Refer to “Audio system” on page 5-24.
5- “H” button/“M” button
These buttons can change the display.
“To adjust for compass variance” → P. 3 - 1 1 9
“Compass calibration” → P.3-122
“Digital clock” → P. 3 - 1 2 5
“Change of the outside temperature unit” → P.3-126
BK0098300US.book 117 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-118 Features and controls
3
Electronic compass (type 1 only)
N00522400070
The electronic compass (A) shows the direction of the vehicle
by the 8 direction using the earth’s magnetic field.The direction of the vehicle is indicated by the symbols shown
below.
NOTE
The electronic compass may not show the correct direc-
tion in the following places where the earth’s magnetic
field is disrupted.
In these cases, the correct direction will be displayed once
the vehicle returns to a place where the earth’s magnetic
field is stable.
• Vehicle in tunnels or parked in buildings
• Expressways, near railroads, underneath railroad cables,
or over subways
• Near transformer stations or high voltage power lines

Do not attach ski racks, antennas, or any other object to
the vehicle by means of a magnet.
Such magnets will affect the operation of the electronic
compass.Direction
Symbol
Direction
Symbol
North South
Northeast Southwest
East West
Southeast Northwest
BK0098300US.book 118 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-120 Features and controls
3
2. When the ignition key is in the “ON” position, simulta-
neously press the “H” button and “M” button. Release the
“H” button and “M” button within 10 seconds, and the
electronic compass will switch to its compass setting
mode.3. With the electronic compass in its compass setting mode,
press the “M” button to cause the display (A) to show the
zone number that is set.
BK0098300US.book 120 ページ ２００８年１２月８日　月曜日　午前１１時３７分
