3Combination headlights and dimmer switch
N00522500521
Headlights Rotate the switch to operate the lights.
As your vehicle is equipped with daytime running lights, the
combinations of switch operations and illuminated lights differ
in accordance with the following conditions.[When the engine is started and the parking brake is released]
The daytime running lights come on.
*1: Except for vehicles with high intensity discharge headlights
*2: Vehicles with high intensity discharge headlights
NOTE
Once the daytime running lights have been turned on, the
illuminated lights do not go off until the ignition switch is
turned to the “LOCK” or “ACC” position.OFF*1 Headlights illuminate dimly
*2Headlights illuminate, tail, front and rear side-
marker lights, license plate
*1Headlights illuminate dimly and Parking, tail, front
and rear side-marker lights, license plate and instru-
ment panel lights on
*2Headlights illuminate and Parking, tail, front and
rear side-marker lights, license plate and instrument
panel lights on
Headlights and other lights on
BK0115900US.book 126 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-127
3
[The engine is not running, or the engine is running but the
parking brake has not been released]
The engine can be started with the headlights off when the
vehicle is stationary.NOTE
Do not leave the headlights and other lights on for a long
period of time when the engine is not running. The battery
will run down.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes foggy. This is the
same as when window glass mists up on a humid day, and
does not indicate a problem. When the light is switched
on, the heat will dry out the fog. However, if water col-
lects inside the light, have it checked by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice. Light auto-cutout function (headlights and other
lights)
N00532600264

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch and the driver’s
door is opened with the light switch in the “ ” or “ ”
position, the lights automatically turn off.• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched tone will sound to remind you to
remove the key.

If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch with the driver’s
door closed and the light switch in the “ ” or “ ”
position, the lights will stay on for about 3 minutes and
then turn off automatically. OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0115900US.book 127 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-128 Features and controls
3
When you want to keep the lights on: If the light switch is turned to the “ ” or “ ” position again
after the engine is turned off, the 3 minute auto-cutout function
described above will not work. The lights (the parking lights,
tail lights and license plate lights) will stay on and will not turn
off automatically. NOTE
When the driver’s door is opened, a continuous high-
pitched tone will sound if the key has been removed; a
continuous low-pitched tone will sound if the key is in the
ignition switch.
The tone stops sounding when the driver’s door is closed.Headlight reminder buzzer
N00549800138
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights. The lights will turn off automatically and so will the
tone. Or you can turn the light switch to the “OFF” position to
stop the tone.
Dimmer (high/low beam change)
N00549900168
To change the headlights from high beam to low beam and vice
versa, turn the light switch to the “ ” position, then pull the
turn signal lever to fully toward you (1). Switch the headlights
to low beam as a courtesy whenever there are oncoming vehi-
cles, or when there is traffic moving ahead of you. An illumi-
nated blue light in the instrument cluster indicates when the
headlights are on high beam.
BK0115900US.book 128 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-129
3
Headlight flasher
N00550000156
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the light switch is off.

If you turn the lights off with the headlights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.

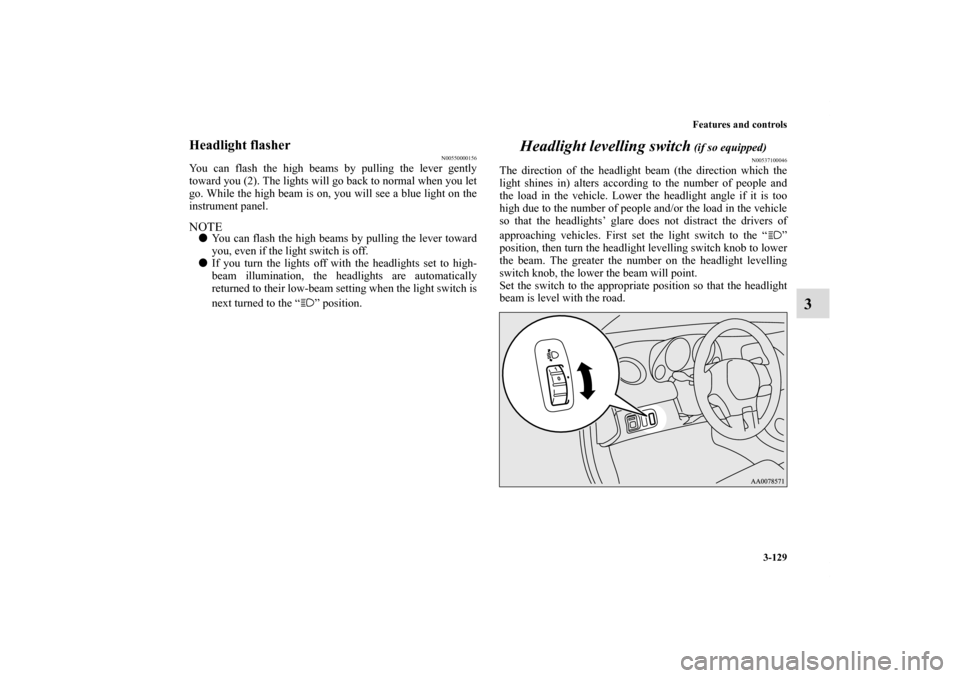

Headlight levelling switch
(if so equipped)
N00537100046
The direction of the headlight beam (the direction which the
light shines in) alters according to the number of people and
the load in the vehicle. Lower the headlight angle if it is too
high due to the number of people and/or the load in the vehicle
so that the headlights’ glare does not distract the drivers of
approaching vehicles. First set the light switch to the “ ”
position, then turn the headlight levelling switch knob to lower
the beam. The greater the number on the headlight levelling
switch knob, the lower the beam will point.
Set the switch to the appropriate position so that the headlight
beam is level with the road.
BK0115900US.book 129 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-130 Features and controls
3
NOTE
Start adjusting when the knob is at the “0” position (when
the beam is at its highest).

Keep the knob in the “0” position except when using the
knob to lower the headlight beam angle.

Always return the knob to the “0” position when the bag-
gage is removed and the people have left the vehicle.
Turn signal lever
N00522600287
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
BK0115900US.book 130 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-131
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0115900US.book 131 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-132 Features and controls
3Front fog light switch
N00522800380
The front fog lights illuminate only when the headlights are on
low beam. Press the switch to illuminate. Press the switch
again to turn the lights off.
The indicator in the instrument cluster will illuminate while the
front fog lights are on.
NOTE
If the daytime running lights are on, the front fog lights
will not illuminate.
The headlights must be on for the front fog lights to illu-
minate.

If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the light switch back to “ ” position, and
pressing the front fog light switch once again.
Ty p e 1
Ty p e 2
BK0115900US.book 132 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-133
3 Wiper and washer switch
N00523000422
Windshield wipersThe windshield wipers wipe when the wiper lever is moved as
shown in the illustration and the ignition key is in the “ON” or
“ACC” position.
To adjust intermittent intervalsWith the lever in the “INT” (speed-sensitive) position, the
intermittent intervals can be adjusted by turning the knob (A).
MIST- Misting function
The wipers will wipe one time.
OFF- Off
INT- Speed sensitive intermittent operation
Interval between wiper sweeps varies in accordance with
vehicle speed.
LO- Slow
HI- Fast
1- Fast
2- SlowType 1 Type 2
BK0115900US.book 133 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-134 Features and controls
3
Misting functionMove the lever in the direction of the arrow and release, and
the wipers will operate once.
Use this function when you are driving in mist or drizzle.
If the lever is held in the upward position (MIST), the wipers
continue operating until the lever is released.
Windshield washer
N00504600096
To turn on the windshield washer, pull the lever toward you
with the ignition key in either the “ON” or “ACC” position.
The wipers will wipe automatically several times when the
washer fluid is sprayed.
To turn off the spray, release the lever.
BK0115900US.book 134 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-135
3
Rear window wiper and washer (ECLIPSE only)
N00523200264
The rear window wiper and washer can be operated when the
ignition key is in the “ON” or “ACC” position.
Turn the knob to operate the rear window wiper.
NOTE
To ensure a clear rearward view, the wiper performs a
number of continuous operations either when the switch is
moved to the “INT” position or when the gearshift lever
(manual transmission) or the selector lever (automatic
transmission) is moved to the “R” (REVERSE) position
while the switch is in the “INT” position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary. (See
“Washer fluid” on page 7-14.)Precautions to observe when using wipers and
washers
N00523500111
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.
OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. In cold weather, heat the glass with the
defroster before using the washer.
BK0115900US.book 135 ページ ２００９年１０月２７日　火曜日　午後１２時１分
