MITSUBISHI ECLIPSE 2011 4.G Owners Manual

3-166 Features and controls
3
Enrollment Commands
N00539500057
JOIN
CALLSEnglish Join Calls -
Spanish Unir Llamadas -
French Intégrer L’appel -
ENGLISHEnglish English -
Spanish Inglés -
French Anglais l’anglais
SPANISHEnglish Spanish -
Spanish Español -
French Espagnol l’espagnol
FRENCHEnglish French -
Spanish Francés -
French Français -Phrase #
English
Spanish
French
1 01-23456789 01-23456789 01-23456789
2 888-555-1212 888-555-1212 888-555-1212
3 Call Llamar Appeler
4 Dial Marcar Composer
5 Setup Configuración Configurer
6 Cancel Cancelar Annuler
Command
Lan-
guage
Primary Command
Alternative
Commands
7 Continue Continuar Continuer
8 Help Ayude Aide
Phrase #
English
Spanish
French
BK0115900US.book 166 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-167
3 Sun visors
N00524600236
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).To block out additional side glare, swing the sun visor side-
ways and slide it backward (if so equipped).
BK0115900US.book 167 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-168 Features and controls
3Vanity mirror
(if so equipped)
N00524700194
The vanity mirrors are located on the back of the sun visors.
Opening the lid (A) of the vanity mirror will automatically turn
on the mirror light (B).
CAUTION
!
If the lid of the lighted vanity mirror is kept open for
prolonged periods of time, the battery may be dis-
charged.Ty p e 1
Ty p e 2
BK0115900US.book 168 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-169
3 Power outlet
N00525000530
Power outlets are located in front of the floor console (Type 1)
and inside of the floor console box (Type 2).
The accessory can be operated when the ignition key is in the
“ON” or “ACC” position.
To use a “plug-in” type accessory, open the cover, then insert
the plug in the socket.
NOTE
The power outlets can be used simultaneously.
Ty p e 1
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two power outlets simultaneously, make
sure that the total power consumption of these does
not exceed 120 W at 12 V.
Be aware that using electronic equipment with the
engine off may run the battery down.
When the power outlet is not in use, be sure to close
the power outlet cover. This will prevent the power
outlet from becoming dirty and possibly short-cir-
cuiting.Ty p e 2
BK0115900US.book 169 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-170 Features and controls
3Interior lights
N00525300517
ECLIPSE
ECLIPSE SPYDER
1- Dome light (Rear) → P.3-174
2- Dome light (Front)/Reading lights-Type 1 (if so equipped)
→ P. 3 - 1 7 1
Dome light (Front)/Reading lights-Type 2 (if so equipped)
→ P. 3 - 1 7 2
3- Cargo area light → P. 3 - 1 7 4
1- Dome light (Front)/Reading lights-Type 2 → P. 3 - 1 7 2
BK0115900US.book 170 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-171
3
Dome light (Front)/Reading lights-Type1
(if so
equipped)
N00525800147
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1 (DOOR) - The dome light comes on when any door or rear
hatch is opened. When all the doors (including the
rear hatch) are closed, the dome light is dimmed
gradually for 30 seconds then goes out. However,
the light goes out immediately without being
dimmed if:

The ignition switch is turned to the “ON” posi-
tion.

All the doors (including the rear hatch) are
locked using the power door lock switch, or
the remote control switch of the keyless entry
system.
NOTE
If the ignition key is removed with the doors
and the rear hatch closed, the dome light
comes on for 30 seconds and then goes out.
2 (OFF) - The dome light goes off.
BK0115900US.book 171 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-172 Features and controls
3
Reading lights
N00553800038
Push the reading light switch (A) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.

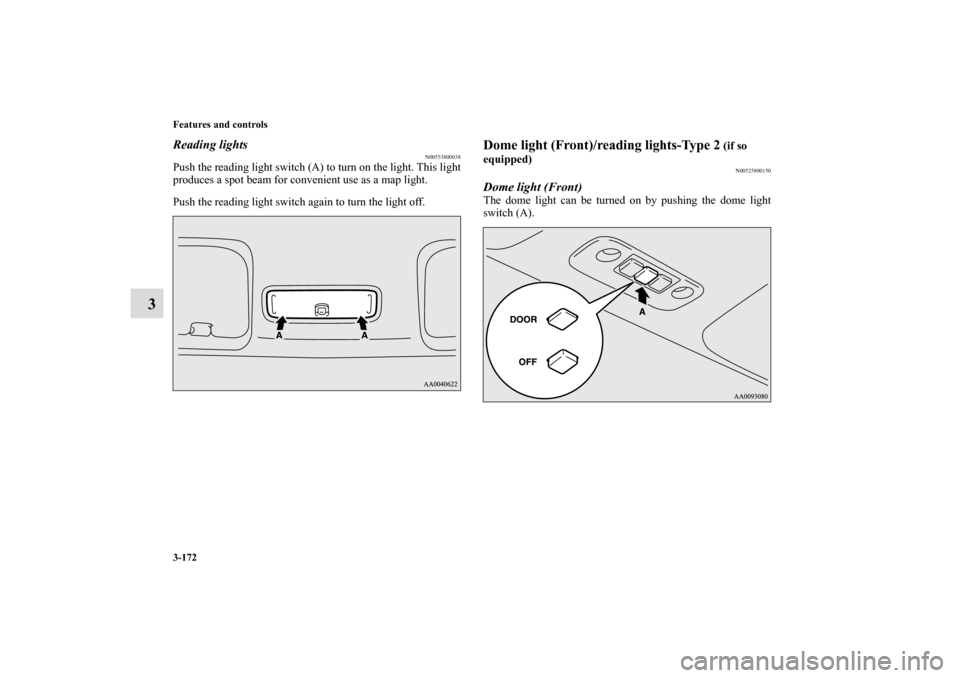

Dome light (Front)/reading lights-Type 2
(if so
equipped)
N00525800150
Dome light (Front)The dome light can be turned on by pushing the dome light
switch (A).
BK0115900US.book 172 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-173
3
Reading lights
N00553800083
Push the reading light switch (B) to turn on the light. This light
produces a spot beam for convenient use as a map light.
Push the reading light switch again to turn the light off.
(DOOR) - The dome light comes on when any door or rear
hatch is opened. When all the doors (including the
rear hatch) are closed, the dome light is dimmed
gradually for 30 seconds then goes out. However,
the light goes out immediately without being
dimmed if:

The ignition switch is turned to the “ON” posi-
tion.

All the doors (including the rear hatch) are
locked using the power door lock switch, or
the remote control switch of the keyless entry
system.
NOTE
If the ignition key is removed with the doors
and the rear hatch closed, the dome light
comes on for 30 seconds and then goes out.
(OFF) - The dome light goes off.
BK0115900US.book 173 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-174 Features and controls
3
Dome light (Rear) (ECLIPSE only)
N00525400417
The dome light can be turned on by sliding the dome light
switch.
Cargo area light (ECLIPSE only)
N00526100150
The cargo area light comes on when the rear hatch is opened.
When the rear hatch is closed, the cargo area light goes off.
1 ( ) -
The dome light comes on.
2 ( ) -The dome light comes on when any door or rear hatch is
opened. When all the doors (including the rear hatch)
are closed, the dome light is dimmed gradually for 30
seconds then goes out. However, the light goes out
immediately without being dimmed if:

The ignition switch is turned to the “ON” position.

All the doors (including the rear hatch) are locked
using the power door lock switch, or the remote
control switch of the keyless entry system.
NOTE
If the ignition key is removed with the doors and
the rear hatch closed, the dome light comes on for
30 seconds and then goes out.
3 ( ) -
The dome light goes off.
BK0115900US.book 174 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-175
3
Interior light auto-cutout function (dome light
and other lights)
N00526300396
If any of the interior lights are left on with the ignition switch
in the “LOCK” position, the lights go out automatically after
about 30 minutes.
The lights come on again if the ignition switch is turned to the
“ON” or “ACC” position, any door or the rear hatch
(ECLIPSE) is opened and closed, or the keyless entry system is
operated.
Glove compartment
N00526500268
Ty p e 1To open, pull the lever (A).
