3-156 Features and controls
3
4. When the deletion of the telephone number is completed,
the voice guide will say “ deleted”
and then the system will return to the main menu.NOTE
If you delete all telephone numbers registered for the 4
locations of an entry, the entry itself will be deleted from
the phonebook.Erasing the Phonebook
N00511800045
You can delete all registered information in the phonebook by
saying “Erase all” on the phonebook main menu.
1. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your Hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
2. The system will confirm one more time. Answer “Yes” to
continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
3. When the deletion of all information in the phonebook is
completed, the voice guide will say “Hands-free system
Phonebook Erased” and then return to the main menu.
General information
N00511900046
MODEL: MMC FCC ID: CB2MBLUEC07 IC: 279B-
MBLUEC07
Your Hands-free Bluetooth
® cellular phone interface system
with voice recognition operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions.

This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115900US.book 156 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-157
3

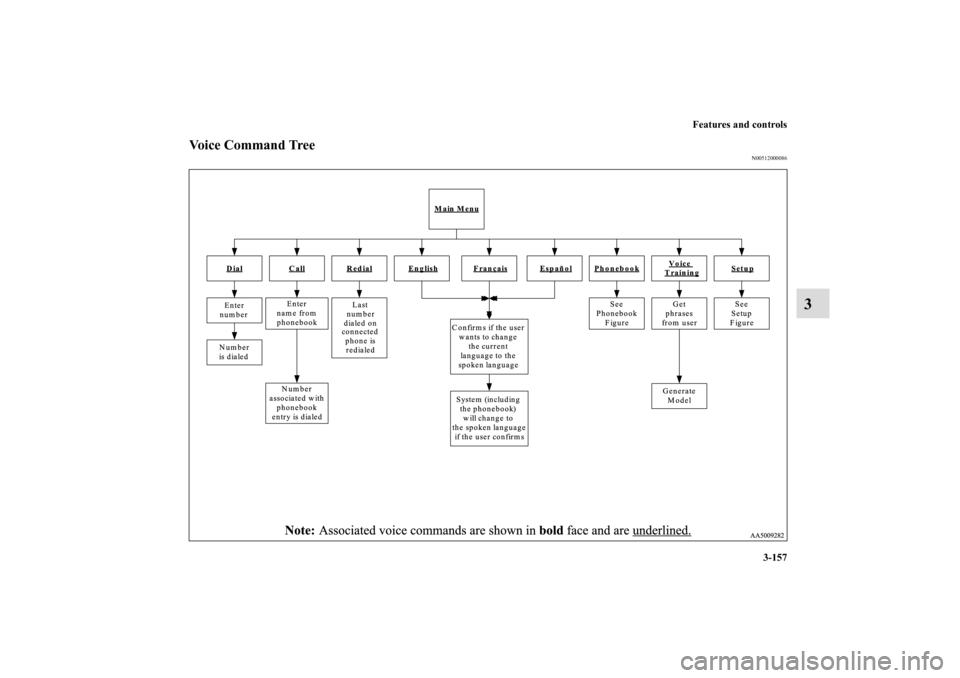

Voice Command Tree
N00512000086
BK0115900US.book 157 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-158 Features and controls
3

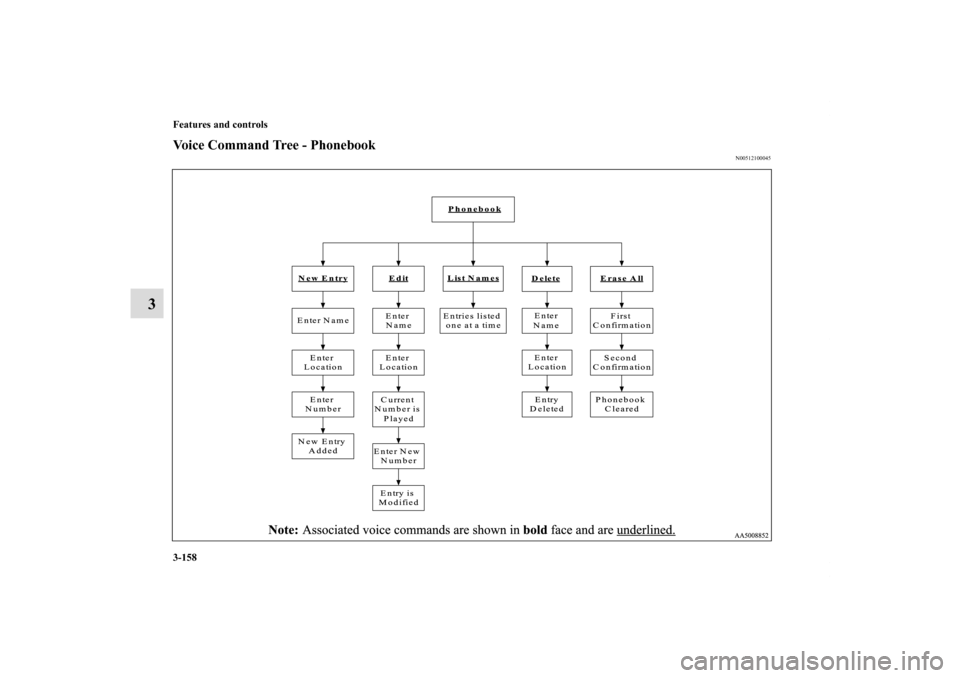

Voice Command Tree - Phonebook
N00512100045
BK0115900US.book 158 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-159
3

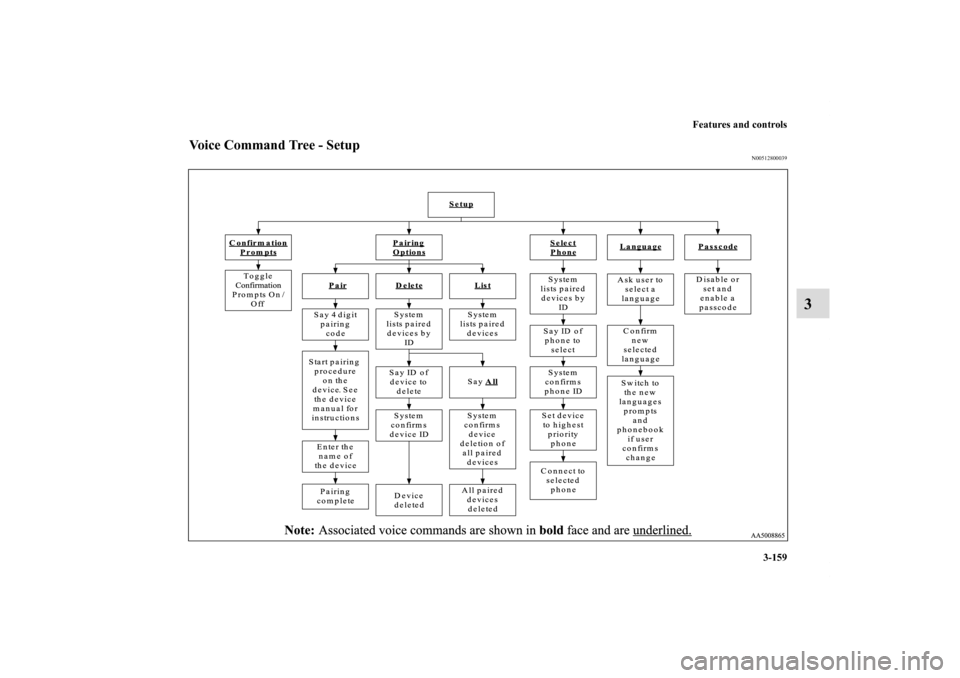

Voice Command Tree - Setup
N00512800039
BK0115900US.book 159 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-160 Features and controls
3
Commands and Alternatives
N00513300073
Command
Lan-
guage
Primary Command
Alternative
Commands
SETUPEnglish Setup -
Spanish Configuración -
French Configurer -
PHONE-
BOOKEnglish Phonebook -
Spanish Agenda -
French Répertoire -
DIALEnglish Dial -
Spanish Marcar -
French Composer -
CALLEnglish Call -
Spanish Llamar -
French Appeler -
REDIALEnglish Redial -
Spanish Volver A Marcar -
French Recomposer -
PA I R I N G
OPTIONSEnglish Pairing Options Pairing
SpanishOpciones De Empa-
rejamientoEmparejamiento
FrenchOptions De Jume-
lageJumelage
PA I REnglish Pair -
Spanish Emparejar -
French Jumeler -
DELETE A
PHONEEnglish Delete A Phone Delete
SpanishEliminar Un Telé-
fonoEliminar
FrenchSupprimer Un Télé-
phoneSupprimer
LISTEnglish List List Phones
Spanish Listar Listar Teléfonos
French ListerListe Des Télé-
phones
SELECT
PHONEEnglish Select Phone -
SpanishSeleccionar Telé-
fono-
FrenchSélectionner Un
Téléphone-
PREVIOUSEnglish Previous -
Spanish Anterior -
French Précédent -
TRANS-
FER CALLEnglish Transfer Call -
Spanish Transferir Llamada -
French Transférer L’appel -Command
Lan-
guage
Primary Command
Alternative
Commands
BK0115900US.book 160 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-161
3
ADD
LOCATIONEnglish Add Location -
SpanishAgregar {Una}
Ubicación-
FrenchAjouter {Un}
Emplacement-
CONFIR-
MATION
PROMPTSEnglishConfirmation
PromptsConfirmations,
Prompts
SpanishMensajes De Con-
firmaciónConfirmaciones,
Mensajes
FrenchInvites De Confir-
mationConfirmations,
Invites
LAN-
GUAGEEnglish Language -
Spanish Idioma -
French Langue -
NEW
ENTRYEnglish New Entry -
Spanish Nueva Entrada -
FrenchNouvelle Inscrip-
tion-
DELETEEnglish Delete -
Spanish Eliminar -
French Supprimer -Command
Lan-
guage
Primary Command
Alternative
Commands
EDITEnglish Edit -
Spanish Editar -
French Modifier -
CALL THIS
NUMBEREnglish Call This Number Call
SpanishLlamar A Este
NúmeroLlamar
French Appeler Ce Numéro Appeler
EDIT ANO-
THER
ENTRYEnglish Edit Another Entry Edit
Spanish Editar Otra Entrada Editar
FrenchModifier Une Autre
InscriptionModifier
TRY
AGAINEnglish Try Again -
Spanish Intentarlo De Nuevo -
French Réessayer -
ERASE
ALLEnglish Erase All -
Spanish Borrar Todo -
French Effacer Tout -
LIST
NAMESEnglish List Names -
Spanish Listar Nombres -
French Liste Des Noms -Command
Lan-
guage
Primary Command
Alternative
Commands
BK0115900US.book 161 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-162 Features and controls
3
HOMEEnglish Home -
Spanish Casa En Su Casa
French Maison À La Maison
WORKEnglish Work -
Spanish Trabajo En Su Trabajo
French Travail Au Travail
MOBILEEnglish Mobile -
Spanish Celular En Su Celular
French Mobile Sur Le Mobile
PA G E REnglish Pager -
Spanish Pager Al Pager
French TéléavertisseurSur Le Téléaver-
tisseur
HELPEnglish Help -
Spanish Ayuda -
French Aide -
CONTI-
NUEEnglish Continue -
Spanish Continuar -
French Continuer -Command
Lan-
guage
Primary Command
Alternative
Commands
ALLEnglish All -
Spanish Todos -
French Tous -
CANCELEnglish Cancel -
Spanish Cancelar -
French Annuler -
MUTEEnglish Mute -
Spanish Silencio -
French Sourdine -
MUTE OFFEnglish Mute Off -
SpanishSilencio Desacti-
vado-
FrenchDésactiver La Sour-
dine-
SENDEnglish Send -
Spanish Enviar -
French Envoyer -
YESEnglish Yes -
Spanish Sí -
French Oui -Command
Lan-
guage
Primary Command
Alternative
Commands
BK0115900US.book 162 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-163
3
NOEnglish No -
Spanish No -
French Non -
ZEROEnglish Zero Oh (letter “O” )
Spanish Cero O
French Zéro O (lettre «o»)
ONEEnglish One -
Spanish Uno Una
French Un Une
TWOEnglish Two -
Spanish Dos -
French Deux -
THREEEnglish Three -
Spanish Tres -
French Trois -
FOUREnglish Four -
Spanish Cuatro -
French Quatre -
FIVEEnglish Five -
Spanish Cinco -
French Cinq -Command
Lan-
guage
Primary Command
Alternative
Commands
SIXEnglish Six -
Spanish Seis -
French Six -
SEVENEnglish Seven -
Spanish Siete -
French Sept -
EIGHTEnglish Eight -
Spanish Ocho -
French Huit -
NINEEnglish Nine -
Spanish Nueve -
French Neuf -
STAREnglish Star (*) -
Spanish Estrella (*) Asterisco (*)
French Étoile (*) -
POUNDEnglish Pound (#) -
Spanish Número (#)Signo De Número
(#)
French Dièse (#) -Command
Lan-
guage
Primary Command
Alternative
Commands
BK0115900US.book 163 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-164 Features and controls
3
Spoken
LanguageEnglish English -
Spanish Español -
French Français -
PHONE-
BOOK
NEW
ENTRYEnglishPhonebook New
Entry-
SpanishAgenda - Nueva
Entrada-
FrenchRépertoire Nou-
velle Inscription-
PHONE-
BOOK
EDITEnglish Phonebook Edit -
Spanish Agenda - Editar -
French Répertoire Modifier -
PHONE-
BOOK
DELETEEnglish Phonebook Delete -
Spanish Agenda - Eliminar -
FrenchRépertoire Suppri-
mer-
PHONE-
BOOK
ERASE
ALLEnglishPhonebook Erase
All-
SpanishAgenda - Borrar
To d o-
FrenchRépertoire Effacer
To u t-Command
Lan-
guage
Primary Command
Alternative
Commands
PHONE-
BOOK
LIST
NAMESEnglishPhonebook List
Names-
SpanishAgenda - Listar
Nombres-
FrenchRépertoire Liste
Des Noms-
SETUP
CONFIR-
MATION
PROMPTSEnglishSetup Confirmation
PromptsSetup Confirma-
tions, Setup
Prompts
SpanishConfiguración Men-
sajes De Confirma-
ciónConfiguración
Confirmaciones,
Configuración
Mensajes
FrenchConfigurer Les
Invites De Confir-
mationConfigurer la
Confirmation,
Configurer les
Invites
SETUP
SELECT
PHONEEnglish Setup Select Phone Setup Select
SpanishConfiguración
Selección De Telé-
fonoConfiguración
Selección
FrenchConfigurer Sélec-
tionner Un Télé-
phoneConfigurer Sélec-
tionnerCommand
Lan-
guage
Primary Command
Alternative
Commands
BK0115900US.book 164 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-165
3
SETUP
PAIRING
OPTIONSEnglishSetup Pairing
OptionsSetup Pairing
SpanishConfiguración
Opciones De Empa-
rejamiento-
FrenchConfigurer Les
Options De Jume-
lageConfigurer le
Jumelage
DELETE A
NAMEEnglish Delete A NameDelete, Delete
Name
SpanishEliminar Un Nom-
breEliminar, Elimi-
nar Nombre
French Supprimer Un NomSupprimer, Sup-
primer Nom
SETUP
LAN-
GUAGEEnglish Setup Language -
SpanishConfiguración
Idioma-
FrenchConfigurer La Lan-
gue-
VOICE
TRAININGEnglish Voice Training -
Spanish Aprendizaje De Voz -
FrenchEntraînement À La
Parole-Command
Lan-
guage
Primary Command
Alternative
Commands
PASSCODEEnglish Passcode -
Spanish Contraseña -
French NIP -
SETUP
PASSCODEEnglish Setup Passcode -
SpanishConfiguración Con-
traseña-
French Configurer Le NIP -
RETRAINEnglish Retrain -
Spanish Volver A Educar -
FrenchRefaire L’entraîne-
ment-
ENABLEEnglish Enable -
Spanish Activar -
French Activer L’activer
DISABLEEnglish Disable -
Spanish Desactivar -
French Désactiver -
SWAP
CALLSEnglish Swap Calls -
SpanishIntercambiar llama-
das-
FrenchPasser à l’autre
appel-Command
Lan-
guage
Primary Command
Alternative
Commands
