3-112 Features and controls
3Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000173
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100060
A blue light comes on when the headlights are on high beam.Front fog light indicator
N00520200218
This indicator comes on while the front fog lights are on.
Warning lights
N00520300062
Brake warning light
N00520400210
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, contact and your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0115900US.book 112 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-48 Vehicle care and maintenance
7
Outside (front)
N00900900037

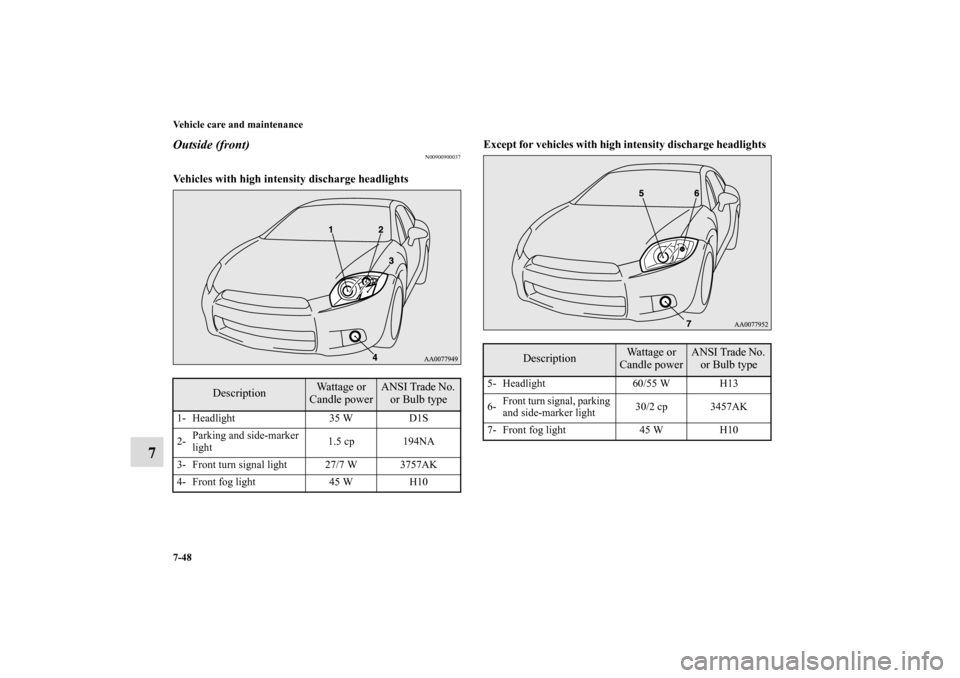

Vehicles with high intensity discharge headlights
Except for vehicles with high intensity discharge headlights

Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
1- Headlight 35 W D1S
2-Parking and side-marker
light1.5 cp 194NA
3- Front turn signal light 27/7 W 3757AK
4- Front fog light 45 W H10
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
5- Headlight 60/55 W H13
6-Front turn signal, parking
and side-marker light30/2 cp 3457AK
7- Front fog light 45 W H10
BK0115900US.book 48 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-51
7
ECLIPSE SPYDER
NOTE
The dome light/reading lights use LEDs rather than bulbs.
For repair and replacement, contact an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Headlights (vehicles with high intensity discharge
headlights)
N00943100159
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.

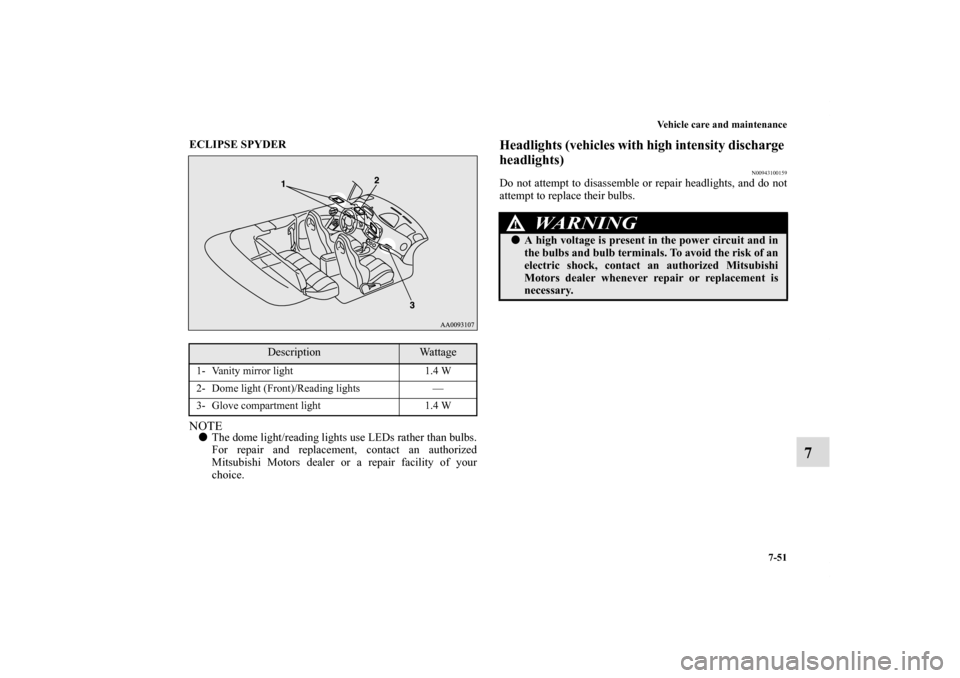

Description
Wattage
1- Vanity mirror light 1.4 W
2- Dome light (Front)/Reading lights —
3- Glove compartment light 1.4 W
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
Motors dealer whenever repair or replacement is
necessary.
BK0115900US.book 51 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-52 Vehicle care and maintenance
7
Headlights (except for vehicles with high inten-
sity discharge headlights)
N00943100162
1. Depress the tab (A) on the harness connector and pull the
harness connector toward you to remove it. 2. Turn the bulb (B) counterclockwise, and then remove the
headlight bulb with holder.
3. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0115900US.book 52 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-53
7
Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.Parking and side-marker lights (vehicles with
high intensity discharge headlights)
N00917300280
1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the headlights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
* - Front of the vehicle
BK0115900US.book 53 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-55
7
Front turn signal lights (vehicles with high inten-
sity discharge headlights)
N00943400022

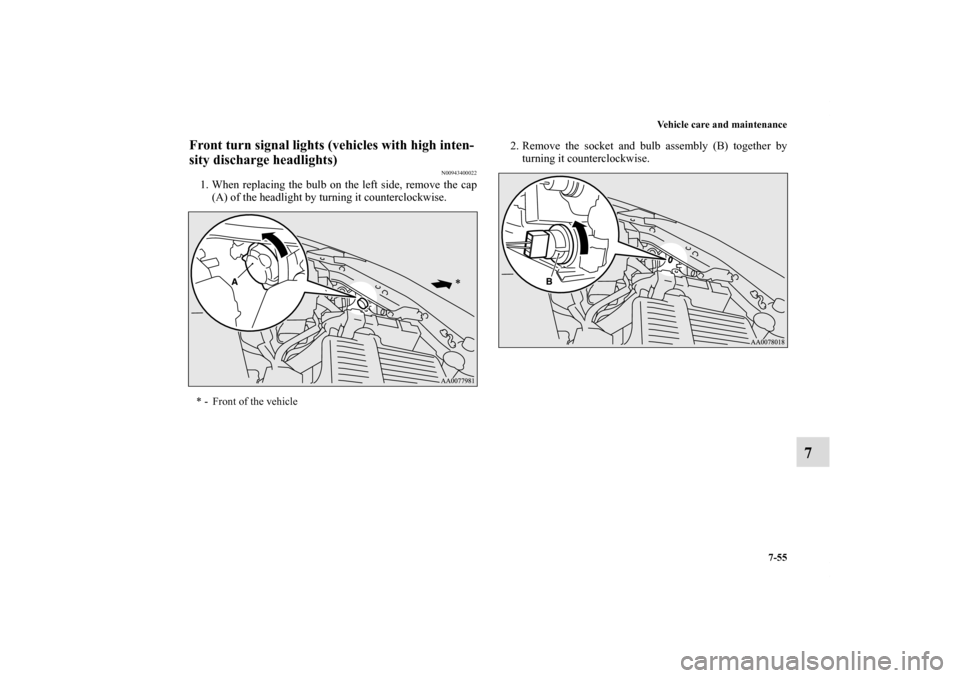

1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.2. Remove the socket and bulb assembly (B) together by
turning it counterclockwise.* - Front of the vehicle
BK0115900US.book 55 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-56 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front turn signal, parking and side-marker lights
(except for vehicles with high intensity discharge
headlights)
N00943400048

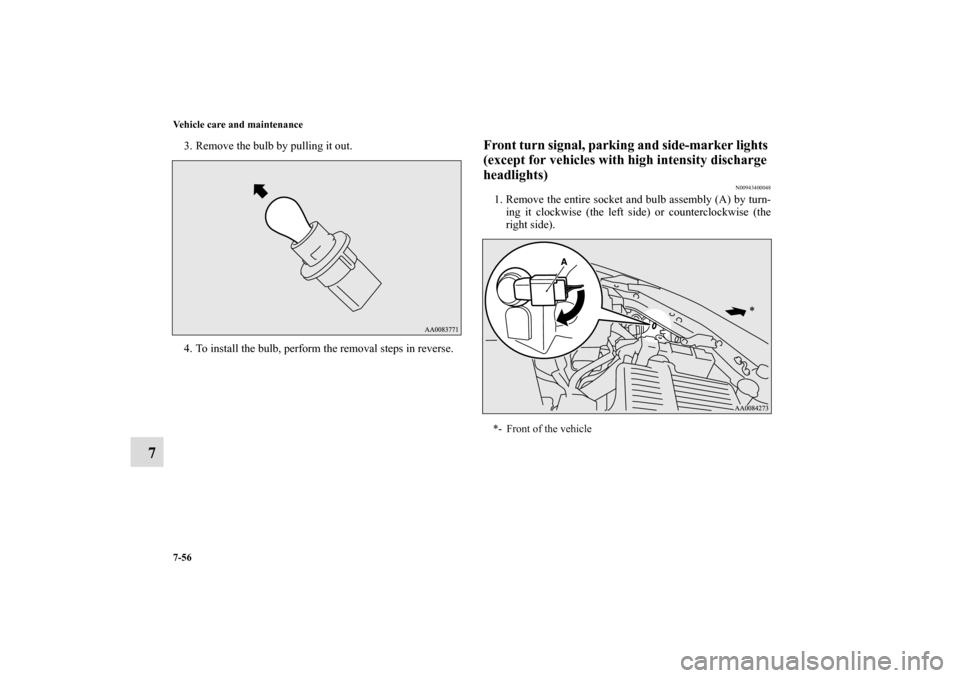

1. Remove the entire socket and bulb assembly (A) by turn-
ing it clockwise (the left side) or counterclockwise (the
right side).*- Front of the vehicle
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分
