For emergencies
6-3
6

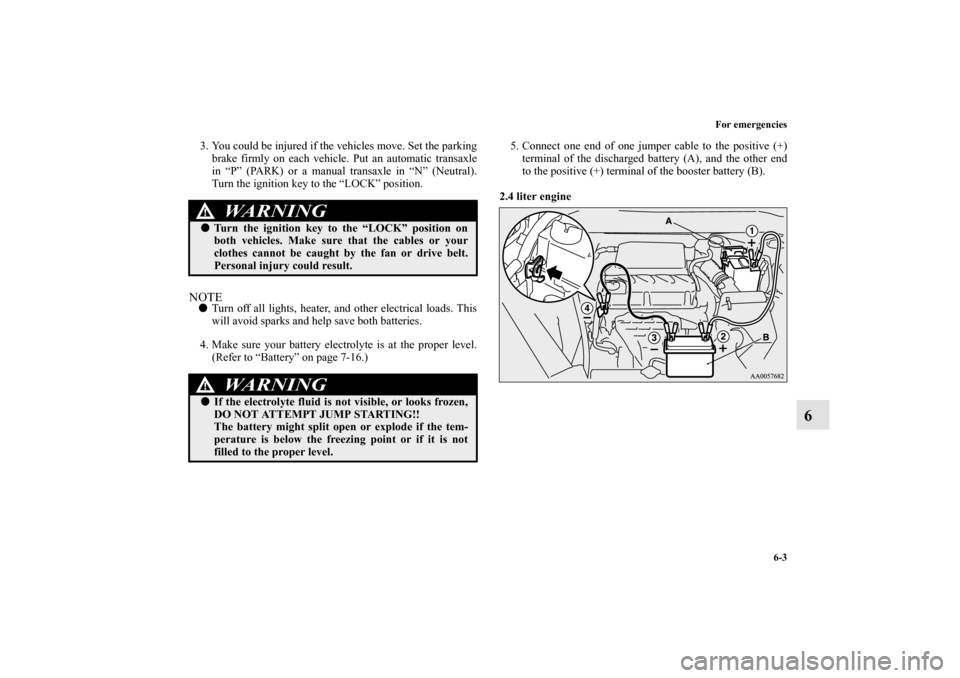

3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle
in “P” (PARK) or a manual transaxle in “N” (Neutral).
Turn the ignition key to the “LOCK” position. NOTE
Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries.
4. Make sure your battery electrolyte is at the proper level.
(Refer to “Battery” on page 7-16.)5. Connect one end of one jumper cable to the positive (+)
terminal of the discharged battery (A), and the other end
to the positive (+) terminal of the booster battery (B).
2.4 liter engine

WA R N I N G
!
Turn the ignition key to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result.
WA R N I N G
!
If the electrolyte fluid is not visible, or looks frozen,
DO NOT ATTEMPT JUMP STARTING!!
The battery might split open or explode if the tem-
perature is below the freezing point or if it is not
filled to the proper level.
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

For emergencies
6-21
6

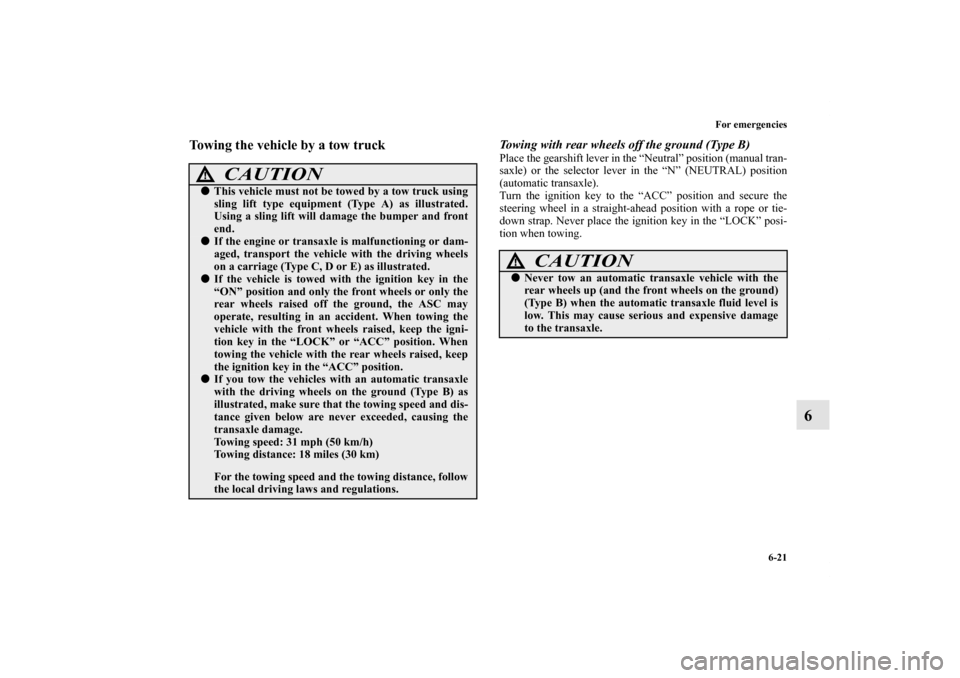

Towing the vehicle by a tow truck
Towing with rear wheels off the ground (Type B)Place the gearshift lever in the “Neutral” position (manual tran-
saxle) or the selector lever in the “N” (NEUTRAL) position
(automatic transaxle).
Turn the ignition key to the “ACC” position and secure the
steering wheel in a straight-ahead position with a rope or tie-
down strap. Never place the ignition key in the “LOCK” posi-
tion when towing.
CAUTION
!
This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
If the engine or transaxle is malfunctioning or dam-
aged, transport the vehicle with the driving wheels
on a carriage (Type C, D or E) as illustrated.
If the vehicle is towed with the ignition key in the
“ON” position and only the front wheels or only the
rear wheels raised off the ground, the ASC may
operate, resulting in an accident. When towing the
vehicle with the front wheels raised, keep the igni-
tion key in the “LOCK” or “ACC” position. When
towing the vehicle with the rear wheels raised, keep
the ignition key in the “ACC” position.
If you tow the vehicles with an automatic transaxle
with the driving wheels on the ground (Type B) as
illustrated, make sure that the towing speed and dis-
tance given below are never exceeded, causing the
transaxle damage.
Towing speed: 31 mph (50 km/h)
Towing distance: 18 miles (30 km)
For the towing speed and the towing distance, follow
the local driving laws and regulations.
CAUTION
!
Never tow an automatic transaxle vehicle with the
rear wheels up (and the front wheels on the ground)
(Type B) when the automatic transaxle fluid level is
low. This may cause serious and expensive damage
to the transaxle.
BK0132701US.book 21 ページ ２０１０年１２月６日　月曜日　午後２時３分

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Automatic transaxle fluid (if so equipped) . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 15
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Clutch pedal free play (if so equipped) . . . . . . . . .7- 29
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 30
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 31
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 37Fuse links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 38
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 47
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 71
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 72
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 73
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-6 Vehicle care and maintenance
7View of the engine compartment
N00937600540
2.4 liter engine
1- Power steering fluid reservoir
2- Brake fluid/Clutch fluid reservoir (if so equipped)
3- Battery
4- Windshield and rear window washer (ECLIPSE only) fluid
reservoir
5- Engine oil level dipstick
6- Engine oil filler cap
7- Radiator cap
8- Automatic transaxle fluid level dipstick (if so equipped)
9- Engine coolant reservoir
10- Air cleaner filter3.8 liter engine
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-12 Vehicle care and maintenance
7
3. Unclamp and take out the air cleaner filter.
After replacing the air cleaner filter, install the resonator by fol-
lowing the removal steps in reverse. Fit the resonator with
careful reference to the alignment position (A), and securely
tighten the bolt.NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.
Automatic transaxle fluid
(if so equipped)
N00938000512
The automatic transaxle should be maintained and serviced by
an authorized Mitsubishi Motors dealer or a repair facility of
your choice to obtain the best performance and longest life. It
is important that the transaxle fluid is kept at the correct level. To check the fluid level The fluid level should be checked when the engine temperature
gauge shows the engine is warmed up and the fluid in the tran-
saxle is heated to its normal working temperature. Driving with
the wrong fluid level will rapidly wear out the transaxle and
destroy the fluid.
CAUTION
!
Take care not to scratch the engine air flow sensor
when removing the air cleaner cover.
BK0132701US.book 12 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-13
7
Procedure for checking the fluid level 1. With the brake pedal fully depressed and the engine
idling, select each gear momentarily, ending with the
selector lever in the “P” (PARK) position.
2. The fluid level should be at the HOT mark, but never
above the HOT mark when the engine is warmed up. Add
or drain fluid to get to the correct level.
3. Make certain that the dipstick cap is installed properly to
keep dirt and water out of the transaxle.
Fluid typeUse only “DIAMOND ATF SP III” transaxle fluid to ensure
optimum transaxle performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transaxle.
WA R N I N G
!
Transaxle fluid is extremely flammable and poison-
ous. Do not spill fluid when adding or draining.
Good (Hot)
BK0132701US.book 13 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-14 Vehicle care and maintenance
7Manual transaxle oil
(if so equipped)
N00938200149
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Wa s h e r f l u i d
N00938600202
The windshield and rear window washer (ECLIPSE only) fluid
reservoir is in the engine compartment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary. During cold weatherWhen freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0132701US.book 14 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-15
7 Brake fluid/Clutch fluid
(if so equipped)
N00938700229
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level is monitored by a float. When the brake fluid
level falls below the “MIN” mark, the brake fluid warning
lamp lights up.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
Fluid typeUse the brake fluid conforming to DOT 3 or DOT 4. The reser-
voir cap must be tightly sealed to keep dirt and water out.
CAUTION
!
Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.
Be careful when handling brake fluid. It can damage
painted surfaces.
Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.
Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
BK0132701US.book 15 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-16 Vehicle care and maintenance
7Power steering fluid
N00939000333
To check the fluid levelCheck the fluid level in the reservoir while the engine is idling.
Check to make certain that the power steering fluid level is
always between the “MAX” and “MIN” level markings on the
fluid reservoir and refill the fluid, if necessary.Fluid type
Battery
N00939100318
The condition of the battery is very important for quick starting
and to keep the vehicle’s electrical system working properly.
Check the battery regularly.
If battery performance is suspect, have the battery and charging
system tested by an authorized Mitsubishi Motors dealer or a
repair facility of your choice.
Lubricant Genuine Mitsubishi Power Steering Fluid
BK0132701US.book 16 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-17
7

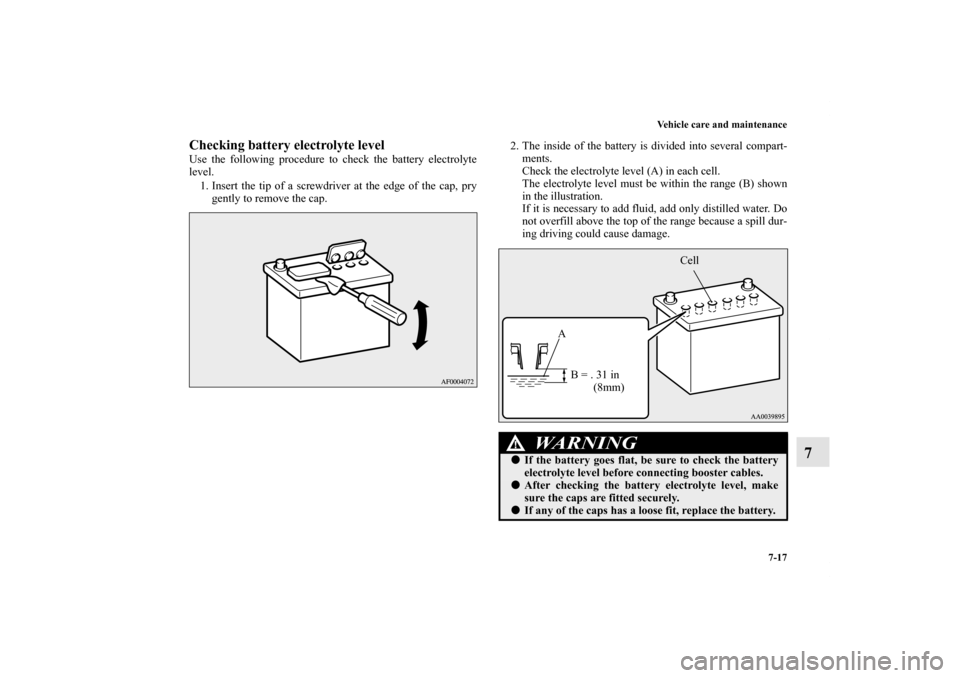

Checking battery electrolyte level Use the following procedure to check the battery electrolyte
level.
1. Insert the tip of a screwdriver at the edge of the cap, pry
gently to remove the cap.2. The inside of the battery is divided into several compart-
ments.
Check the electrolyte level (A) in each cell.
The electrolyte level must be within the range (B) shown
in the illustration.
If it is necessary to add fluid, add only distilled water. Do
not overfill above the top of the range because a spill dur-
ing driving could cause damage.
WA R N I N G
!
If the battery goes flat, be sure to check the battery
electrolyte level before connecting booster cables.
After checking the battery electrolyte level, make
sure the caps are fitted securely.
If any of the caps has a loose fit, replace the battery.
Cell
B = . 31 in
(8mm) A
