fluid MITSUBISHI ECLIPSE 2012 4.G Owner's Manual

Vehicle care and maintenance
7-19
7
NOTE
Check each battery terminal for corrosion. You can stop
more corrosion by washing with a solution of baking soda
and water. Grease the posts and clamps after cleaning or
tightening them.

Check to see that the battery is securely installed and can-
not be moved. Also check each terminal for tightness.

If you will not be driving your vehicle for a long period of
time, remove the battery and store it in a place where the
battery fluid will not freeze. The battery only should be
stored with a full charge.
WA R N I N G
!
Never disconnect the battery while the engine is run-
ning, or you could damage the vehicle’s electrical
parts.
Never short-circuit the battery. This could cause it
to overheat and be damaged.
Keep sparks, cigarettes, and flames away from the
battery because the battery could explode.
Electrolyte (battery acid) is made of corrosive
diluted sulfuric acid. If it spills on nearby parts, it
can crack, stain, or discolor them. And if gets on
your skin or in your eyes, it can cause burns or
blindness. Please observe the following handling
instructions:
• If electrolyte gets on plastic parts or other nearby
parts, wipe it off with a soft cloth or chamois
soaked in a solution of water and neutral detergent
then immediately rinse the affected parts with
plenty of water.
• If electrolyte gets on your hands or clothes, rinse
thoroughly with water. If electrolyte gets in your
eyes, flush them with water immediately and get
immediate medical attention.

Open doors and windows in any closed space where
you may be charging or working with the battery.
Always wear protective clothing and goggles when
working with the battery, or have a skilled automo-
bile technician do it.
If you are quick-charging your battery, first discon-
nect the battery cables.

In order to prevent a short circuit, be sure to discon-
nect the negative (-) terminal first, and reconnect it
last.
If the electrolyte level is very low, have the battery
checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Battery terminals and related accessories contain
lead and lead compounds. Wash hands after han-
dling.
WA R N I N G
!
BK0132701US.book 19 ページ ２０１０年１２月６日　月曜日　午後２時３分

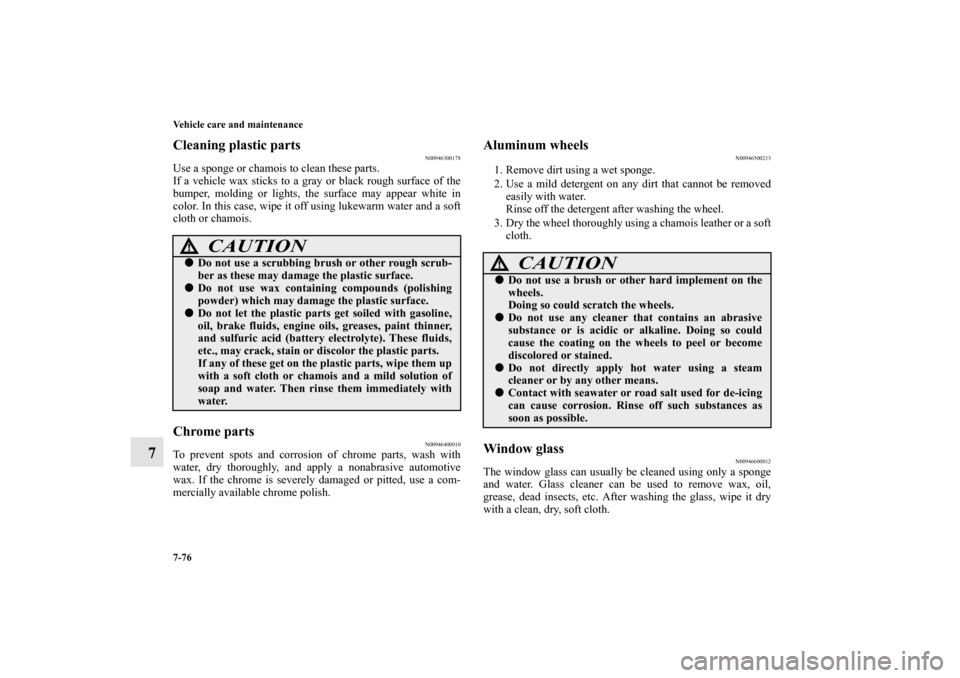

7-76 Vehicle care and maintenance
7
Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400010
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
Aluminum wheels
N00946500213
1. Remove dirt using a wet sponge.
2. Use a mild detergent on any dirt that cannot be removed
easily with water.
Rinse off the detergent after washing the wheel.
3. Dry the wheel thoroughly using a chamois leather or a soft
cloth.Window glass
N00946600012
The window glass can usually be cleaned using only a sponge
and water. Glass cleaner can be used to remove wax, oil,
grease, dead insects, etc. After washing the glass, wipe it dry
with a clean, dry, soft cloth.
CAUTION
!
Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.
Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.
Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
CAUTION
!
Do not use a brush or other hard implement on the
wheels.
Doing so could scratch the wheels.
Do not use any cleaner that contains an abrasive
substance or is acidic or alkaline. Doing so could
cause the coating on the wheels to peel or become
discolored or stained.
Do not directly apply hot water using a steam
cleaner or by any other means.
Contact with seawater or road salt used for de-icing
can cause corrosion. Rinse off such substances as
soon as possible.
BK0132701US.book 76 ページ ２０１０年１２月６日　月曜日　午後２時３分

Specifications
9-9
9 Capacities
N01148000888
Item
Capacity
Lubricants
Fuel (approximate) 17.7 gal (67.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification SM
can be used.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle
4A/T 8.1 qt (7.7 L)
DIAMOND ATF SP III 5A/T 8.9 qt (8.4 L)
Manual transaxle
5M/T 2.3 qt (2.2 L) DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-806M/T 2.1 qt (2.0 L)
Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.6 L) in
reserve tank}
2.4 liter
Manual transaxle 9.3 qt (8.8 L)
Long Life Antifreeze Coolant or an equivalentAutomatic transaxle 9.2 qt (8.7 L)
3.8 liter
Manual transaxle 8.6 qt (8.1 L)Automatic transaxle 8.5 qt (8.0 L)
Washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning label
on page 9-2.HFC-134a
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

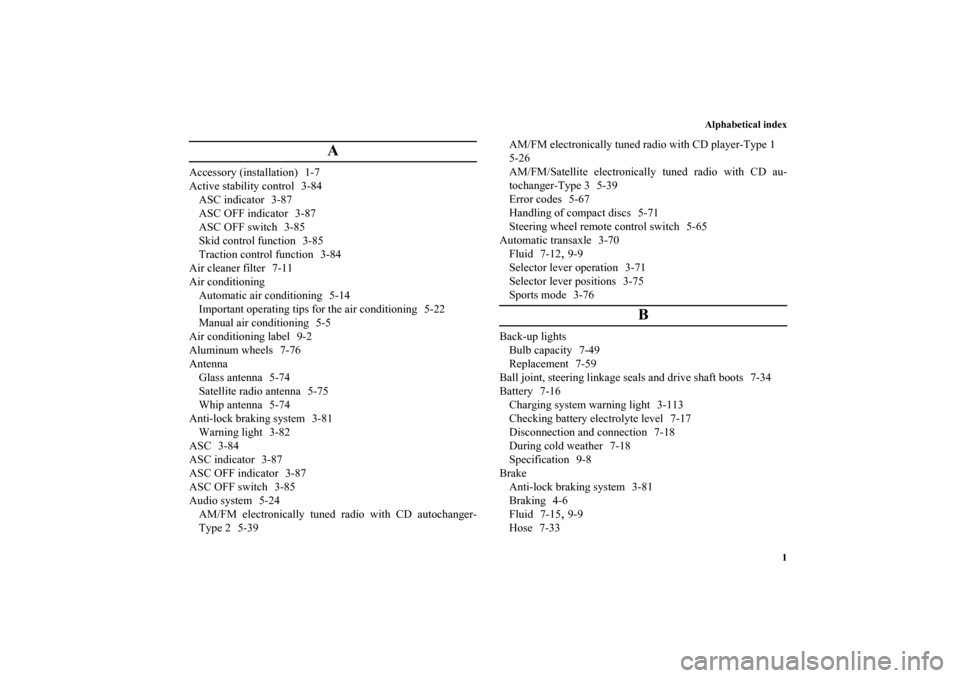

Alphabetical index
1
A
Accessory (installation) 1-7
Active stability control 3-84
ASC indicator 3-87
ASC OFF indicator 3-87
ASC OFF switch 3-85
Skid control function 3-85
Traction control function 3-84
Air cleaner filter 7-11
Air conditioning
Automatic air conditioning 5-14
Important operating tips for the air conditioning 5-22
Manual air conditioning 5-5
Air conditioning label 9-2
Aluminum wheels 7-76
Antenna
Glass antenna 5-74
Satellite radio antenna 5-75
Whip antenna 5-74
Anti-lock braking system 3-81
Warning light 3-82
ASC 3-84
ASC indicator 3-87
ASC OFF indicator 3-87
ASC OFF switch 3-85
Audio system 5-24
AM/FM electronically tuned radio with CD autochanger-
Type 2 5-39AM/FM electronically tuned radio with CD player-Type 1
5-26
AM/FM/Satellite electronically tuned radio with CD au-
tochanger-Type 3 5-39
Error codes 5-67
Handling of compact discs 5-71
Steering wheel remote control switch 5-65
Automatic transaxle 3-70
Fluid 7-12
,9-9
Selector lever operation 3-71
Selector lever positions 3-75
Sports mode 3-76
B
Back-up lights
Bulb capacity 7-49
Replacement 7-59
Ball joint, steering linkage seals and drive shaft boots 7-34
Battery 7-16
Charging system warning light 3-113
Checking battery electrolyte level 7-17
Disconnection and connection 7-18
During cold weather 7-18
Specification 9-8
Brake
Anti-lock braking system 3-81
Braking 4-6
Fluid 7-15
,9-9
Hose 7-33
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
2Parking brake 3-54
Parking brake lever stroke 7-30
Pedal 3-79
Pedal free play 7-30
Power brakes 3-80
Service brake 3-79
Warning light 3-111
Break-in recommendations 3-2
Bulb capacity 7-47
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
Cargo area light 3-174
Bulb capacity 7-50
Replacement 7-69
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-113
Child restraints 2-24
Cleaning
Inside of your vehicle 7-72
Outside of your vehicle 7-73
Clutch
Fluid 7-15
Pedal free play 7-29
Coat hooks 3-180
Coin holder 3-177Combination headlights and dimmer switch 3-125
Consumer information 8-2
Convertible top 3-31
,7-77
Coolant (engine) 7-10,9-9
Cruise control 3-89
Indicator 3-90
Cup holder 3-178
D
Defogger (rear window) 3-135
Dimensions 9-5
Dimmer (high/low beam change) 3-127
Disc brake pads 7-33
Dome light
Bulb capacity 7-50
Replacement 7-68
Switch 3-174
Dome light/Reading lights
Bulb capacity 7-50
Replacement 7-68
Switch 3-170
,3-171
Door-ajar warning buzzer 3-114
Doors
Lock 3-13
Power door locks 3-15
Drive belt 7-34
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
BK0132701US.book 2 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
3
E
Electric convertible top 3-31
Electric rear window defogger switch 3-135
Electronic immobilizer (Anti-theft starting system) 3-3
Emission-control system maintenance 7-31
Engine
Compartment 7-6
Coolant 7-10
,9-9
Coolant temperature gauge 3-109
Hood 7-4
Malfunction indicator 3-112
Oil and oil filter 7-7
,9-9
Overheating 6-6
Serial number 9-3
Specifications 9-7
Error codes 5-67
,5-69
Exhaust system 7-36
F
Filling the fuel tank 1-4
Floor console box 3-176
Fluid
Automatic transaxle fluid 7-12
,9-9
Brake fluid 7-15
,9-9
Clutch fluid 7-15
Engine coolant 7-10,9-9
Manual transaxle fluid 9-9
Power steering fluid 7-16
,9-9Washer fluid 7-14
,9-9
Fluid capacities and lubricants 9-9
Fog lights
Bulb capacity 7-48
Indicator 3-111
Replacement 7-57
Switch 3-131
For cold and snowy weather 7-37
Front seats 2-4
Front turn signal lights
Bulb capacity 7-48
Replacement 7-55
Front turn signal, parking and side-marker lights
Bulb capacity 7-48
Replacement 7-56
Fuel
Fuel economy 4-2
Fuel gauge 3-108
Fuel hoses 7-32
Low-fuel warning light 3-108
Modification/alterations to the electrical or fuel systems 1-8
Tank capacity 1-5,9-9
Fuel selection 1-2
Fuse links 7-37
Fuses 7-38
Block location 7-38
Identification 7-44
Load capacities 7-40
Replacement 7-45
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
5
Replacement 7-66
Light dimmer control 3-109
Loading information 4-7
Low-fuel warning light 3-108
Lubricants 9-9
Luggage hooks 3-180
M
Manual transaxle 3-66
Fluid 9-9
Oil 7-14
Shift points (recommended speed) 3-68
Mirror
Inside rearview mirror 3-56
Outside rearview mirrors 3-58
Modifications to and racing of your vehicle 1-7
Multi center display 3-114
N
Notepad holder 3-177
O
Octane requirement 1-2
Odometer 3-106
Oil
Engine oil 7-7
Manual transaxle oil 7-14
Oil pressure warning light 3-113
Operation under adverse driving conditions 6-22Outside rearview mirrors 3-58
Overheating 6-6
P
Parking 4-6
Parking brake 3-54
Parking brake lever stroke 7-30
Parking and side-marker lights
Bulb capacity 7-48
Replacement 7-53
Pen holder 3-177
Polishing 7-75
Power brakes 3-80
Power door locks 3-15
Power outlet 3-168
Power steering
Fluid 7-16
,9-9
System 3-89
Power windows 3-26
Puncture (Tire changing) 6-9
R
Radiator cap 7-11
Radio
AM/FM electronically tuned radio with CD autochanger-
Type 2 5-39
AM/FM electronically tuned radio with CD player-Type 1
5-26
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
6AM/FM/Satellite electronically tuned radio with CD
autochanger-Type 3 5-39
General information about your radio 5-76
Reading lights on an inside rearview mirror
Bulb capacity 7-51
Replacement 7-69
Switch 3-173
Rear combination lights 7-59
Rear hatch 3-16
Rear seat 2-11
Rear shelf panel 3-178
Rear side-marker lights
Bulb capacity 7-49
Replacement 7-59
Rear turn signal lights
Bulb capacity 7-49
Replacement 7-59
Rear window defogger switch 3-135
Rear-view camera 3-101
Rearview mirror
Inside 3-56
Outside 3-58
Refrigerant (air conditioning) 9-9
Replacement of light bulbs 7-47
Replacing tires and wheels 7-25
Reporting Safety Defects 8-3
S
Safe driving techniques 4-4Seat 2-2
Front seats 2-4
Heated seats 2-10
Rear seat 2-11
Seats and restraint systems 2-3
Seat belt 2-13
Adjustable seat belt shoulder anchor 2-19
Child restraints 2-24
Driver’s seat belt reminder/warning light 2-18
Front passenger seat belt warning light 2-19
Maintenance and inspection 2-35
Pre-tensioner 2-22
Seat belt extender 2-21
Seat belt guide 2-20
Seat belt use during pregnancy 2-22
Service brake 3-79
Service precautions 7-2
Skid control function 3-85
Snow tires 7-28
Spark plugs 7-32
Speedometer 3-105
Steering
Power steering fluid 7-16
,9-9
Tilt lock lever 3-55
Wheel lock 3-63
Steering wheel remote control switch 5-65
Stop and tail light
Bulb capacity 7-49
Sun visors 3-166
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

Alphabetical index
7
Sunroof 3-28
Supplemental Restraint System 2-36
How the Supplement Restraint System works 2-39
Servicing 2-57
Warning light 2-44
T
Tachometer 3-106
Tank capacity 1-5
,9-9
Theft-alarm system 3-22
Timing belt 7-36
Tire pressure monitoring system 3-96
Tires 7-20
How to change a tire 6-9
Inflation pressure 7-23
Maintenance 7-25
Quality grading 8-2
Replacing tires and wheels 7-25
Rotation 7-26
Size (tire and wheel) 9-8
Snow tires 7-28
Tire and loading information placard 4-8
,9-4
Tire chains 7-29
Tread wear indicators 7-26
Tools 6-8
Storage 6-8
Top stack 3-31
Towing 6-20
Traction control function 3-84Trailer towing 4-13
Trip odometer 3-106
Trunk lid 3-16
Turn signal lights
Bulb capacity 7-48
Indicators 3-111
Lever 3-129
Replacement 7-55
,7-56
,7-59V
Vanity mirror 3-167
Vanity mirror lights
Bulb capacity 7-50
,7-51
Replacement 7-70
Vehicle care precautions 7-71
Vehicle dimensions 9-5
Vehicle emission control information label 9-2
Vehicle identification number plate 9-2
Vehicle information code plate 9-2
Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-6
Vents 5-2
W
Warning lights 3-111
Washer
Fluid 7-14
,9-9
Rear window washer 3-134
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分
