Features and controls
3-127
3
When you want to keep the lights on: If the light switch is turned to the “ ” or “ ” position again
after the engine is turned off, the 3 minute auto-cutout function
described above will not work. The lights (the parking lights,
tail lights and license plate lights) will stay on and will not turn
off automatically. NOTE
When the driver’s door is opened, a continuous high-
pitched tone will sound if the key has been removed; a
continuous low-pitched tone will sound if the key is in the
ignition switch.
The tone stops sounding when the driver’s door is closed.Headlight reminder buzzer
N00549800138
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights. The lights will turn off automatically and so will the
tone. Or you can turn the light switch to the “OFF” position to
stop the tone.
Dimmer (high/low beam change)
N00549900168
To change the headlights from high beam to low beam and vice
versa, turn the light switch to the “ ” position, then pull the
turn signal lever to fully toward you (1). Switch the headlights
to low beam as a courtesy whenever there are oncoming vehi-
cles, or when there is traffic moving ahead of you. An illumi-
nated blue light in the instrument cluster indicates when the
headlights are on high beam.
BK0132701US.book 127 ページ ２０１０年１２月６日　月曜日　午後２時３分

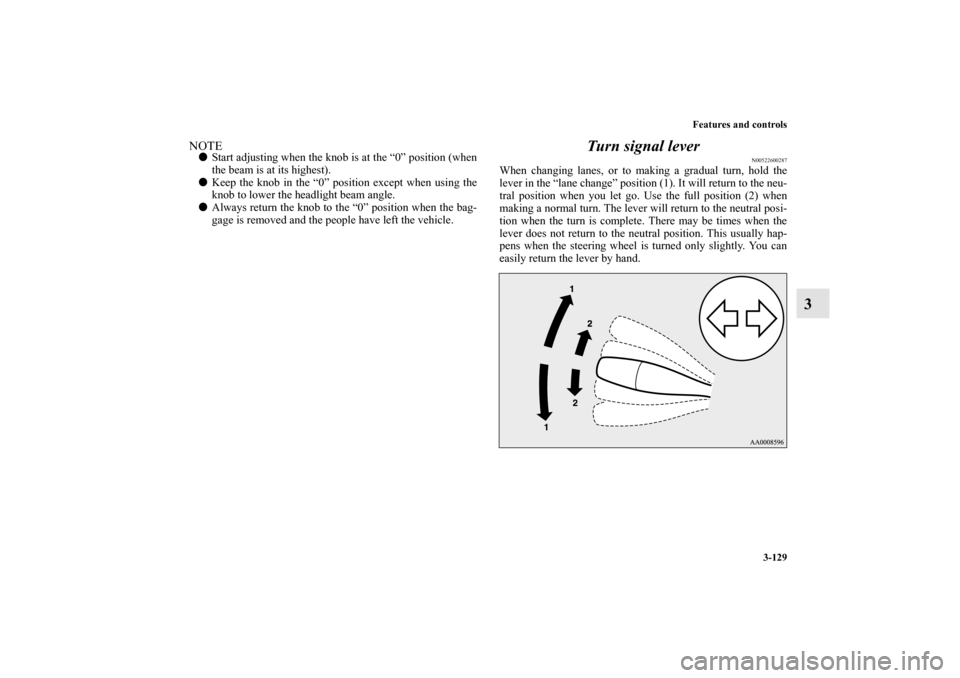

Features and controls
3-129
3
NOTE
Start adjusting when the knob is at the “0” position (when
the beam is at its highest).

Keep the knob in the “0” position except when using the
knob to lower the headlight beam angle.

Always return the knob to the “0” position when the bag-
gage is removed and the people have left the vehicle.
Turn signal lever
N00522600287
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
BK0132701US.book 129 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-130 Features and controls
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0132701US.book 130 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-137
3 Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped)
N00506400069
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition (Bluetooth
® HFP) uses a wireless com-
munication technology known as Bluetooth
® to allow you to
make hands-free calls in your vehicle using your Bluetooth
®
compatible cellular phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Bluetooth
® HFP can be used when the ignition switch is in
the “ON” or “ACC” position.
To use the Bluetooth
® HFP, you should first connect your
Bluetooth
® compatible cellular phone to the Bluetooth
® HFP.
Refer to “Pairing a cellular phone” on page 3-145.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
You cannot use the Bluetooth
® HFP if your cellular phone
has a dead battery or is turned off.

Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!
Although the Bluetooth
® HFP allows you to make
hands-free calls, if you choose to use the cellular
phone while driving, you must not allow that usage
to distract you in the safe operation of your vehicle.
Anything, including cellular phone usage, that dis-
tracts you from the safe operation of your vehicle
increases your risk of an accident. Refer to and fol-
low all state and local laws in your area regarding
cellular phone usage while driving.
BK0132701US.book 137 ページ ２０１０年１２月６日　月曜日　午後２時３分

4-4 Driving safety
4
DefrostersCheck these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-12, 5-20.)TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
Safe driving techniques
N00629200078
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

For emergencies
6-9
6
Jack
N00832700109
Before removing the jack, lift up the luggage floor board.1-To removeTurn the shaft end so that the jack contracts, then remove it
from the storage bracket (A).2-To storeTurn the shaft end by hand to expand the jack until it is held
firmly in position.
How to change a tire
N00836900721
Before changing a tire, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles with manual transaxle, turn the ignition key
to the “LOCK” position, then move the gearshift lever to
the “R” (Reverse) position.
On vehicles with automatic transaxle, move the selector
lever to the “P” (PARK) position, then turn the ignition
key to the “LOCK” position.
4. Turn on the hazard flashers and set up a warning triangle,
flashing signal light, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle.
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-48 Vehicle care and maintenance
7
Outside (front)
N00900900040
Vehicles with high intensity discharge headlights
Except for vehicles with high intensity discharge headlights

Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
1- Headlight 35 W D1S
2-Parking and side-marker
light1.5 cp 194NA
3- Front turn signal light 27/7 W 3757AK
4- Front fog light 45 W H10
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
5- Headlight 60/55 W H13
6-Front turn signal, parking
and side-marker light30/2.2 cp 3457AK
7-Front fog light
(if so equipped)45 W H10
BK0132701US.book 48 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-49
7
Outside (rear)
N00900800052
NOTE
The high-mounted stop light and the stop and tail lights
use LEDs rather than bulbs. For repair and replacement,
contact an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
Description
Wattage or
Candle power
ANSI Trade No.
or Bulb type
8- High-mounted stop light — —
9- Stop and tail light — —
10- Back-up light 32 cp 3156K
11- Rear turn signal light 30 cp 3457AK
12- Rear side-marker light 3 cp 168
13- License plate light 5 W W5W
BK0132701US.book 49 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-55
7
Front turn signal lights (vehicles with high inten-
sity discharge headlights)
N00943400022
1. When replacing the bulb on the left side, remove the cap
(A) of the headlight by turning it counterclockwise.2. Remove the socket and bulb assembly (B) together by
turning it counterclockwise.* - Front of the vehicle
BK0132701US.book 55 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-56 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front turn signal, parking and side-marker lights
(except for vehicles with high intensity discharge
headlights)
N00943400048
1. Remove the entire socket and bulb assembly (A) by turn-
ing it clockwise (the left side) or counterclockwise (the
right side).*- Front of the vehicle
