turn signal MITSUBISHI ECLIPSE 2012 4.G Owners Manual

Overview
Instruments and controls (Driver’s area)
N00100201114
Combination headlights and
dimmer switch P.3-125
Turn signal lever P.3-129
Supplemental restraint system
- air bag (for driver’s seat)
P. 2 - 3 6
Horn switch P.3-136
Electric remote-controlled
outside mirror switch
P.3-58
Front fog light switch
(if so equipped)
P. 3 - 1 3 1Steering wheel audio
remote control switch
(if so equipped) P.5-65 Instrument cluster P.3-104
Cruise control lever
P. 3 - 8 9 Ignition switch P.3-60 Wiper and washer
switch P.3-132
Fuses P.7-38
ASC off switch (if so equipped) P.3-85 Engine hood release lever
P. 7 - 4Steering wheel tilt lock
lever P.3-55
Front fog light switch
(if so equipped)
P. 3 - 1 3 1 Headlights leveling switch
(if so equipped) P.3-128
ASC off switch
(if so equipped) P.3-85
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

Overview
Outside (Front)
N00100601134
Sunroof (if so equipped)
P. 3 - 2 8 ECLIPSE
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7 Front fog lights
(if so equipped)
P.3-131, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4 Windshield wiper and washer P.3-132
Headlight
P.3-125, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-125,3-129, 7-48, 7-56Headlight
P.3-125, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-125, 7-48, 7-53
Front turn signal light
P.3-129, 7-48, 7-55
BK0132701US.book 7 ページ ２０１０年１２月６日　月曜日　午後２時３分

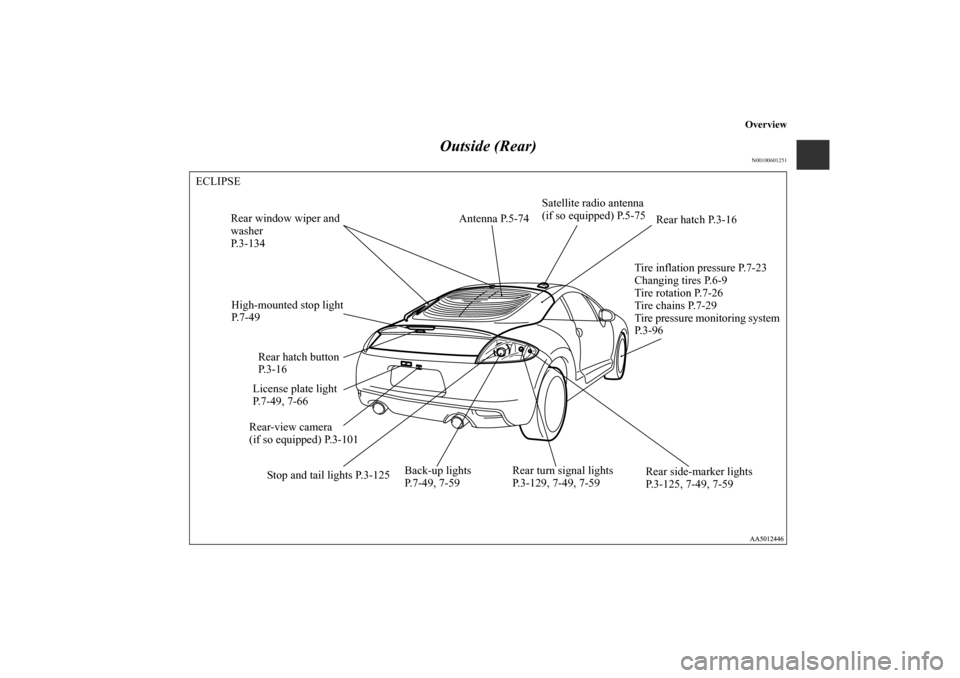

Overview
Outside (Rear)
N00100601251
Antenna P.5-74
Rear hatch P.3-16
License plate light
P.7-49, 7-66
Back-up lights
P.7-49, 7-59Tire inflation pressure P.7-23
Changing tires P.6-9
Tire rotation P.7-26
Tire chains P.7-29
Tire pressure monitoring system
P. 3 - 9 6
Rear turn signal lights
P.3-129, 7-49, 7-59Rear side-marker lights
P.3-125, 7-49, 7-59 Stop and tail lights P.3-125 Rear window wiper and
washer
P. 3 - 1 3 4
Rear hatch button
P. 3 - 1 6 ECLIPSE
Satellite radio antenna
(if so equipped) P.5-75
High-mounted stop light
P. 7 - 4 9
Rear-view camera
(if so equipped) P.3-101
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

Overview
Outside (Front)
N00100601150
ECLIPSE SPYDER
Outside rearview mirrors
P. 3 - 5 8
Fuel tank filler door P.1-4
Locking and unlocking
P. 3 - 1 3
Keyless entry system
P. 3 - 7
Front fog lights
P.3-131, 7-48, 7-57Engine compartment P.7-6
Engine hood P.7-4Windshield wiper and washer P.3-132
Headlight
P.3-125, 7-48, 7-51
Front turn-signal, parking and side-marker lights
P.3-125,3-129, 7-48, 7-56Headlight
P.3-125, 7-48, 7-52Vehicles with high intensity discharge (HID)
type headlights Except for vehicles with high intensity
discharge (HID) type headlights
Parking and side-marker
light P.3-125, 7-48, 7-53
Front turn signal light
P.3-129, 7-48, 7-55BK0132701US.book 11 ページ ２０１０年１２月６日　月曜日　午後２時３分

Overview
Outside (Rear)
N00100601248
Antenna P.5-74
Trunk lid P.3-16
License plate light
P.7-49, 7-66
Back-up lights
P.7-49, 7-59Tire inflation pressure P.7-23
Changing tires P.6-9
Tire rotation P.7-26
Tire chains P.7-29
Tire pressure monitoring sys-
tem P.3-96
Rear turn signal lights
P.3-129, 7-49, 7-59Rear side-marker lights
P.3-125, 7-49, 7-59 Stop and tail lights P.3-125Trunk lid button
P. 3 - 1 6 ECLIPSE SPYDER
Satellite radio antenna
(if so equipped) P.5-75
High-mounted stop light
P. 7 - 4 9
Rear-view camera
(if so equipped)
P. 3 - 1 0 1
BK0132701US.book 12 ページ ２０１０年１２月６日　月曜日　午後２時３分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Rear hatch (ECLIPSE)/
Trunk lid (ECLIPSE SPYDER) . . . . . . . . . . . . .3- 16
Inside rear hatch/trunk lid release . . . . . . . . . . . . .3- 18
Inside emergency trunk lid release
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 20
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 22
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 26
Sunroof (ECLIPSE only, if so equipped). . . . . . . .3- 28
Electric convertible top (ECLIPSE SPYDER) . . .3- 31
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 56
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 58
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 70
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 79
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 81
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 84
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 89Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 89
Tire pressure monitoring system . . . . . . . . . . . . . . 3- 96
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 101
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 104
Indicator and warning light package . . . . . . . . . . . 3- 110
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 111
Multi center display. . . . . . . . . . . . . . . . . . . . . . . . 3- 114
Combination headlights and dimmer switch . . . . . 3- 125
Headlight levelling switch (if so equipped) . . . . . 3- 128
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 130
Front fog light switch (if so equipped) . . . . . . . . . 3- 131
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 132
Electric rear window defogger switch. . . . . . . . . . 3- 135
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 136
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 137
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Vanity mirror (if so equipped) . . . . . . . . . . . . . . . . 3- 167
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 168
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 175
Floor console box . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Rear shelf panel (ECLIPSE only) . . . . . . . . . . . . . 3- 178
Coat hooks (ECLIPSE only, if so equipped) . . . . . 3- 180
Luggage hooks (ECLIPSE only) . . . . . . . . . . . . . . 3- 180
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-8 Features and controls
3
To l o c k Press the LOCK button (1) to lock all the doors and the rear
hatch or trunk lid.
If the dome light switch is in the door position, the dome light
will blink once. The turn signal lights will also blink once. NOTE
If you press the LOCK button (1) after locking the doors
and the rear hatch or trunk lid, the horn will sound once to
confirm that they are locked.To unlock Press the UNLOCK button (2) to unlock the driver’s door only.
Press the UNLOCK button one more time to unlock all the
doors and the rear hatch or trunk lid.
If the dome light switch is in the door position, the dome light
will turn on for 15 seconds. The turn signal lights will also
blink twice.
To open the rear hatch (ECLIPSE) or trunk lid
(ECLIPSE SPYDER)Press the rear hatch or trunk button (3) twice within 5 seconds
and the rear hatch or trunk lid will be opened. The rear hatch or
trunk lid must be closed manually after it has been opened.Answerback function The keyless entry system answerback functions from the horn
and turn signal lights can each be turned on or off as desired.
This is done with the key removed from the ignition switch. NOTE
The answerback function will not operate when the key is
in the ignition switch.
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-9
3
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the rear hatch or trunk lid are locked or
unlocked can be turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.To deactivate/reactivate the answerback function for lock-
ing of the doors and rear hatch or trunk lid, take the fol-
lowing steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and rear hatch or trunk lid, take the
following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.
Using the panic alarmIf you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
One chime: The horn will sound if the doors and the rear
hatch or trunk lid are locked with the keyless
entry system.
Two chimes: The horn will not sound, even if the doors and
the rear hatch or trunk lid are locked with the
keyless entry system.
Three chimes: The horn will sound if the doors and the rear
hatch or trunk lid are already locked and the key-
less entry system is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the rear hatch or
trunk lid are locked.
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-110 Features and controls
3Indicator and warning light package
N00519800810
1- ASC OFF indicator → P.3-87
2- ASC indicator → P.3-87
3- Anti-lock braking system warning light
→ P. 3 - 8 2
4- Cruise control indicator → P.3-90
5- Door-ajar warning light → P. 3 - 1 1 4
6- Turn signal indicators/Hazard warning lights → P. 3 - 1 1 1
7- Charging system warning light → P. 3 - 1 1 3
8- Brake warning light → P.3-111
9- Supplemental Restraint System (SRS) warning light
→ P.2-44
10- Tire pressure monitoring system warning light → P.3-97
11- Oil pressure warning light → P. 3 - 1 1 3
12- Low-fuel warning light → P.3-10813- Driver’s seat belt reminder/warning light
→ P.2-18
14- Selector lever position indicator (if so equipped)
→ P.3-73
15- High beam indicator → P. 3 - 1 1 1
16- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 1 1 2
17- Immobilizer indicator → P. 3 - 3
18- Front fog light indicator (if so equipped) → P. 3 - 1 1 1
BK0132701US.book 110 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-111
3 Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000173
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100060
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200218
This indicator comes on while the front fog lights are on.
Warning lights
N00520300062
Brake warning light
N00520400210
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, contact and your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0132701US.book 111 ページ ２０１０年１２月６日　月曜日　午後２時３分
