Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4
bag control unit controls deployment of the passenger’s front airbag in accordance with the information it receives from this system. The passenger’s front airbag will not deployin an impact when the
system senses no occu-
pant on the front passenger’s seat or a child in a child restraint system. In this case, the pas-senger airbag off indicator will come on. Refer to “Passenger’s airbag off indicator” on page 4-35.If there is a problem involving the passen-ger’s seat occupant classification sensor sys- tem, the SRS warning light in the instrument panel will come on. Refer to “SRS warninglight/display” on page 4-36.
N00418101375
The passenger’s airbag off indicator islocated in the instrument panel. The indicator normally comes on when the ignition switch is turned to the “ON” position or the operation mode is put in ON, and goes out a few seconds later. In the following situ-ations, the indicator will stay on to show that the passenger front airbag is not operational.  The front passenger’s seat is not occupied.
WA R N I N GIf any of the following conditions occur, you should immediately have your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The SRS warning light does not initiallycome on when the ignition switch or theoperation mode is under the following conditions. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch is in the “ON” or“START” position. [Vehicles equipped with the F.A.S.T.-key] The operation mode is in ON.• The SRS warning light does not go outafter several seconds.
• The SRS warning light comes on while you are driving.
 To ensure that the passenger’s seat occu- pant classification sensor system can sensecorrectly, observe the following instruc- tions. Failure to follow these instructions can adversely affect the performance ofthe passenger’s airbag system.• Adjust the seat to the correct position,and sit well back against the seatback. Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary.• Never have more than one person (adultor child) sitting on the seat.• Do not place anything between the seatand the floor console.• When attaching a child restraint system,secure it firmly.• Do not place luggage or other objects onthe seat.• Do not use a seat cover or a cushion.• Do not modify or replace the seat and seat belt.• Do not place luggage or other objectsunder the seat.• Do not place and use an electronic device such as a computer on the seat.• Do not place heavy objects on the seat orstick pins, needles, or other objects into it.• Do not remove the seat cushion skin.WA R N I N G
• If any liquid is spilled on the seat, wipe it and dry the seat immediately.
 If the vehicle is involved in a severe impact, have the SRS sensors inspected byan authorized Mitsubishi Motors dealer as soon as possible.
Passenger’s airbag off indicator
WA R N I N G
BK0252700US.bo
ok 35 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
 The system senses that a child is using a child restraint system on the front passen- ger’s seat.
When the passenger’s seat occupant classifi- cation sensor system sense there is a personseated in the front pass
enger’s seat, the indi-
cator goes out to show that the passenger’s front airbag is operational.
N00408301651
There is a Supplemental Restraint System (SRS) warning light on the instrument panel. The system checks itself every time the igni- tion switch is turned to the “ON” position or the operation mode is put in ON. The SRSwarning light will come on for several sec- onds and then go out. This is normal and means the system is working properly.If there is a problem involving one or more of the SRS components, the warning light will
come on and stay on. At the same time, the warning display will appear on the informa- tion screen in the multi-information display. The SRS warning light/display is shared bythe SRS airbag and the seat belt pre-tensioner system.
WA R N I N G If any of the following conditions occur, you should immediately have the airbagsystem in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The passenger’s airbag off indicatorcomes on when an adult is sitting on thefront passenger seat.• The passenger’s airbag off indicator doesnot come on when the front passenger seat is not occupied.• The passenger’s airbag off indicator doesnot come on when the ignition switch is turned to the “ON” position or the oper-ation mode is put in ON.• The passenger’s airbag off indicator does not come on when a child is in a child restraint system on the front passenger’sseat.• The passenger’s airbag off indicatorcomes on and goes out repeatedly.
 Do not attach any accessory to your vehi- cle that makes the passenger’s airbag off indicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the statusof the passenger’s airbag system.
SRS warning light/display
WA R N I N G
WA R N I N G  If any of the following conditions occur, there may be a problem with the SRS air- bags and/or seat belt pre-tensioners, and they may not function properly in a colli-sion or may suddenly activate without a collision:• Even when the ignition switch or theoperation mode is in ON, the SRS warn- ing light does not come on or it remainson.• The SRS warning light and/or the warn-ing display comes on while driving.The SRS airbags and seat belt pre-ten-sioners are designed to help reduce the risk of serious injury or death in certain collisions. If either of the above conditionsoccurs, immediately have your vehicle checked by an authorized Mitsubishi Motors dealer.
BK0252700US.bo
ok 36 ページ ２０１７年１０月４日　水曜日　午後４時５４分

5
Features and controlsKeys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................5-12
Door locks .......................
...............................................................5-32
Power door locks ............
...............................................................5-34
Child safety locks for r
ear door .....................................................5-35
Liftgate ......................................
.....................................................5-36
Theft-alarm system
................................................
........................5-38
Power window control
...........................................
........................5-40
Power panoramic sunroof (if
so equipped).....................................5-43
Parking brake ..................
...............................................................5-46
Steering wheel height and reach adjustment ..................................5-50 Inside rearview mirro
r ...........................................
........................5-51
Outside rearview mirr
ors ...............................................................5-53
Ignition switch ......
.................................................
........................5-57
Starting the engine
.................................................
........................5-58
Turbocharger operation
..........................................
........................5-60
Continuously variable trans
mission (CVT) ...................................5-60
S-AWC (Super-All Wheel Control) (if so equipped) .....................5-67 4-wheel drive operation
.........................................
........................5-70
Inspection and maintenance following rough road operation ........5-72Cautions on the handling of 4-wheel drive vehicles ......................5-72 Service brake ..................
...............................................................5-73
Brake auto hold (if so
equipped) ....................................................5-74
Hill start assist .......
.................................................
........................5-77
Brake assist system
................................................
........................5-78
Anti-lock braking syst
em .....................................
......................... 5-78
Electric power steering syst
em (EPS) ........................................... 5-80
Active stability control
(ASC) ....................
................................... 5-81
Cruise control ................
.................................................
............... 5-84
Adaptive Cruise Control System (ACC) (if so equipped) .............. 5-88 Forward Collision Mitigation system (FCM) (if so equipped) .... 5-100 Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped) ..........
.................................................
............. 5-108
Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-112 Lane Departure Warning (LDW) (if so equipped) ....................... 5-115Tire pressure monitoring system (TPMS) ................................... 5-118 Parking sensors (Front/Rear)
(if so equipped).............................. 5-123
Rear-view camera ..........
.................................................
............. 5-127
Multi Around Monitor (if so
equipped)........................................ 5-129
Instrument cluster
.................................................
....................... 5-139
Multi-information disp
lay ....................................
....................... 5-140
Indicator light, warning light, and information screen display list
..............................................
....................... 5-160
Indicators .................................
.................................................... 5-180
Warning lights ................
.................................................
............. 5-181
Information screen disp
lay ........................
................................. 5-183
Head Up Display (HUD) (if
so equipped).................................... 5-184
Combination headlights and dimmer switch ............................... 5-188Headlight leveling switch (if
so equipped)................................... 5-196
Turn signal lever ..
.................................................
....................... 5-196
Hazard warning flasher
switch .................................................... 5-197
ECO mode switch ..........
.................................................
............. 5-198
Front fog light switch
...........................................
....................... 5-198
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed. Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed.
To add a key, you must already have two reg- istered keys. You need to register the ID codeto the vehicle. Registering the ID code can be done by your- self (except for vehicles sold in Canada), orby your authorized Mitsubishi Motors dealer. For you to register the ID code yourself, fol- low the “Customer key programming” proce-dure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remainingkeys to your authorized Mitsubishi Motors dealer.
N00562201208
You can program new keys to the system if you have two valid (already registered) keysand blank immobilizer key (specially cut for
your vehicle at your Mitsubishi Motors dealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds.2. Turn the key to the “OFF” position and remove the first key. 3. Within 30 seconds of removing the firstkey, insert the second valid key into the ignition and turn it to the “ON” position. Approximately 10 seconds later, theimmobilizer display will start to blink.4. When the immobilizer display starts blinking, turn the second valid key to the “OFF” position and remove it. Within30 seconds after doing so, insert a blank immobilizer key into the ignition switch and turn it to the “ON” position. Performthis operation no more than 30 seconds after the immobilizer display starts blink- ing. When registration of the ID code iscomplete, the immobilizer display will come on for 30 seconds then go off. If an error occurs, the blinking immobilizer dis-play will go off during the procedure.
 Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehicle starting problems and a loss of security pro-tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such a case, contact an authorized MitsubishiMotors dealer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with two keys, but you may register up to eight keys.
Customer key programming (Except for vehicles sold in Canada)
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped) 5-6 Features and controls
5

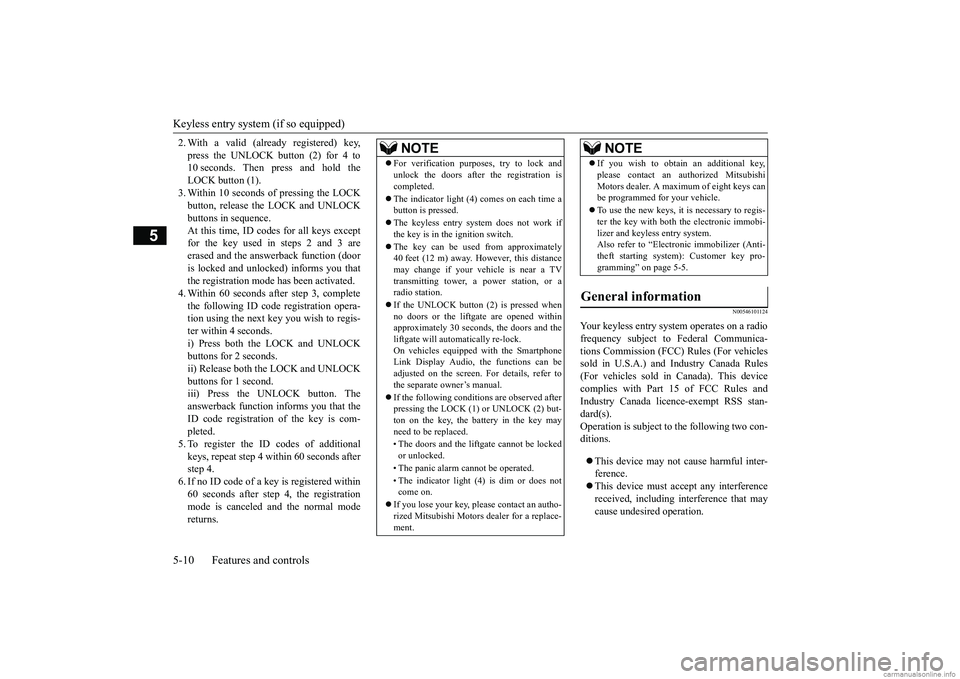

5. If you wish to register another key, per- form the process again from step 1.
N00562301094
Your electronic immobilizer operates on aradio frequency subject to Federal Communi-cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). Thisdevice complies with part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two con-ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00509002060

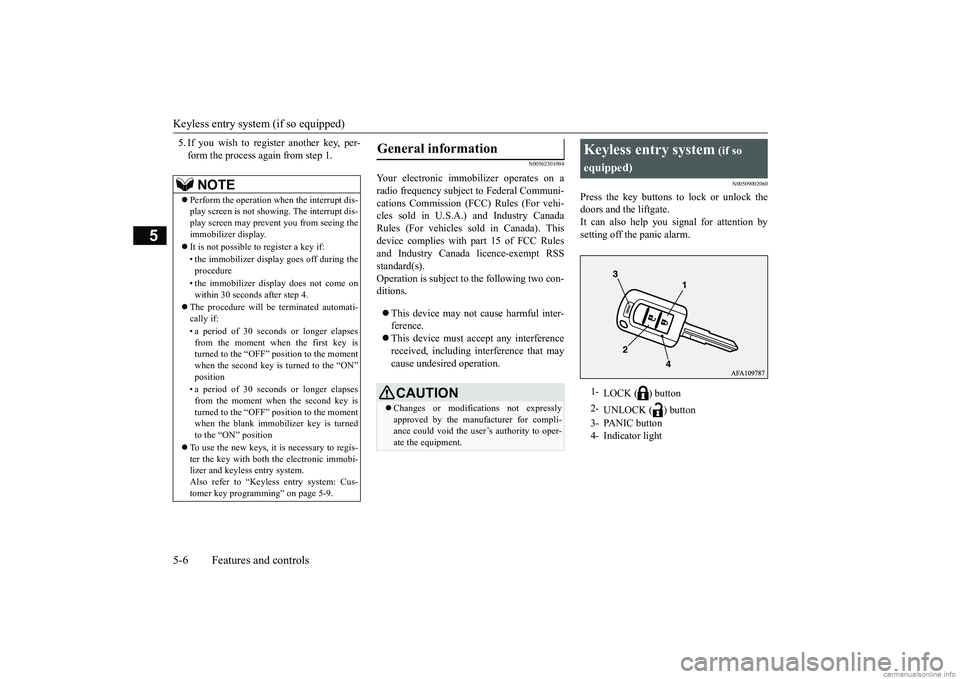

Press the key buttons to lock or unlock the doors and the liftgate.It can also help you signal for attention by setting off the panic alarm.
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing theimmobilizer display.  It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after step 4.
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “OFF” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “OFF” position to the moment when the blank immobilizer key is turned to the “ON” position
 To use the new keys, it is necessary to regis- ter the key with both the electronic immobi- lizer and keyless entry system. Also refer to “Keyless entry system: Cus-tomer key programming” on page 5-9.
General information
CAUTION Changes or modifications not expressly approved by the manufacturer for compli-ance could void the user’s authority to oper- ate the equipment.
Keyless entry system
(if so
equipped)1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator light
BK0252700US.bo
ok 6 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped)
Features and controls 5-7
5

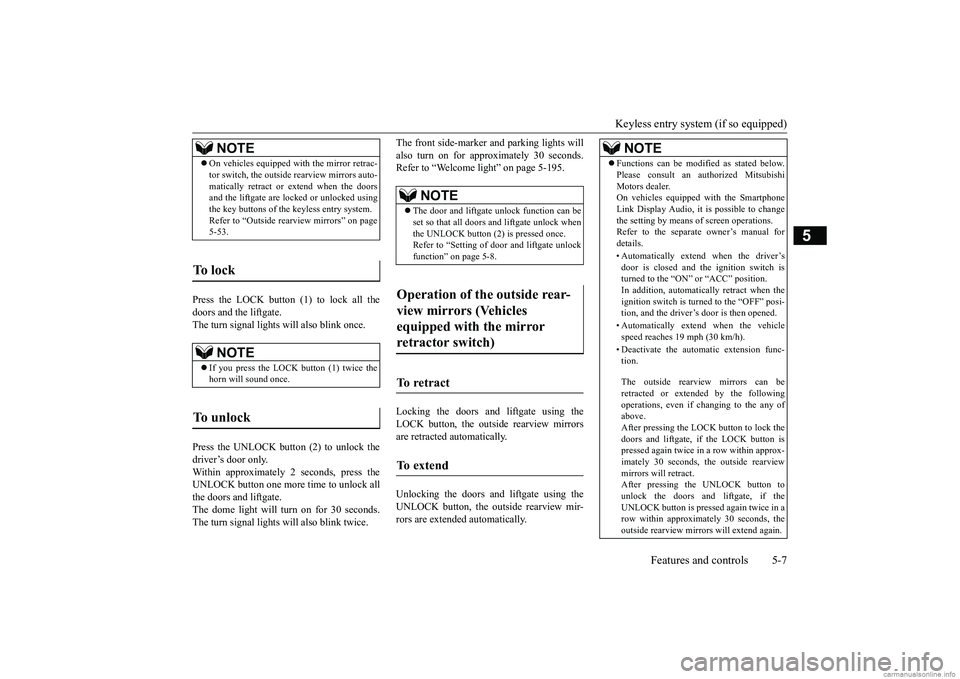

Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once. Press the UNLOCK button (2) to unlock the driver’s door only. Within approximately 2 seconds, press theUNLOCK button one more time to unlock all the doors and liftgate. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.
The front side-marker and parking lights will also turn on for approximately 30 seconds. Refer to “Welcome light” on page 5-195. Locking the doors and liftgate using the LOCK button, the outside rearview mirrorsare retracted automatically. Unlocking the doors and liftgate using the UNLOCK button, the outs
ide rearview mir-
rors are extended automatically.
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors auto- matically retract or extend when the doors and the liftgate are lock
ed or unlocked using
the key buttons of the keyless entry system.Refer to “Outside rearview mirrors” on page 5-53.
To l o c k

NOTE
 If you press the LOCK button (1) twice the horn will sound once.
To u n l o c k

NOTE
 The door and liftgate unlock function can be set so that all doors and liftgate unlock when the UNLOCK button (2) is pressed once. Refer to “Setting of door and liftgate unlockfunction” on page 5-8.
Operation of the outside rear- view mirrors (Vehicles equipped with the mirror retractor switch)

To retract

To e x t e n d

NOTE
 Functions can be modified as stated below. Please consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, it is possible to changethe setting by means of screen operations. Refer to the separate owner’s manual for details. • Automatically extend when the driver’s door is closed and the ignition switch isturned to the “ON” or “ACC” position. In addition, automatically retract when the ignition switch is turned to the “OFF” posi-tion, and the driver’s door is then opened. • Automatically extend when the vehicle speed reaches 19 mph (30 km/h). • Deactivate the automatic extension func- tion. The outside rearview mirrors can be retracted or extended by the following operations, even if changing to the any of above.After pressing the LOCK button to lock the doors and liftgate, if the LOCK button is pressed again twice in a row within approx-imately 30 seconds, the outside rearview mirrors will retract. After pressing the UNLOCK button to unlock the doors and liftgate, if the UNLOCK button is pressed again twice in arow within approximate
ly 30 seconds, the
outside rearview mirrors will extend again.
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped) 5-8 Features and controls
5
The horn and turn signal lights of the keyless entry system answerback function can bechanged as required. This is done with the key removed from the ignition switch. The answerback function can be set in the following three ways.Each time the answerback function is set, a chime will sound to tell
you the condition of
the answerback function. One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The horn will sound if the LOCK button is pressed twice within 1 sec-ond. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position.
3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press- ing the UNLOCK button in step 3.
The answerback function can be turned ON or OFF separately. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the UNLOCK button (2) for 4 to10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press- ing the LOCK button in step 3.
N00543601186
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func- tion is set, a chime will sound to tell you thecondition of the door and liftgate unlock function.
Answerback function

NOTE
 The answerback function will not operate if any of the doors are open.
Horn deactivation/reactivation

NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.
Turn signal lights deactiva- tion/reactivation

Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.
Setting of door and liftgate unlock function

BK0252700US.bo
ok 8 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped)
Features and controls 5-9
5
1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543701086
If you are near your vehicle and feel threat- ened, you may activate the alarm to call atten-tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off andthe horn will sound intermittently forapproximately 3 minutes. 3. To turn off the alarm, press any button on the key.
N00543801104
Only keys programmed with the vehicle’selectronics can lock
or unlock all doors and
the liftgate. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer by referring to the key number.To prevent vehicle theft, the ID code for the key must be changed. Take your vehicle and all keys to your autho-rized Mitsubishi Motors dealer to have your ID code changed.
N00543901075
To add a key, you must already have one reg- istered key.Registering the ID code can be done by your- self or by your authorized Mitsubishi Motors dealer. For you to register the ID code your-self, follow the “Customer key program- ming” procedure below. If you choose to have your authorizedMitsubishi Motors dealer register the IDcode, take your vehicle and any remaining keys to your authorized Mitsubishi Motors dealer.
N00544001217
You can program new keys to the system ifyou have one valid (already registered) key by doing the following: 1. Have available all (current and new) keys you wish to register.
Number of chimes
Condition
One chime
When the UNLOCK button is pressed one time, all doors and the liftgate unlock.
Two chimes
When the UNLOCK button is pressed one time, only the driver's door unlocks. Within approximately 2 seconds, press the UNLOCK button one more time to unlock all the doors and the liftgate. [Factory setting]
NOTE
 On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer to the separate owner’s manual.
Using the panic alarm

Replacement keys

Additional keys

NOTE
 You are provided with two keys, but you may register up to eight keys.
Customer key programming (Except for vehicles sold in Canada)

BK0252700US.bo
ok 9 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped) 5-10 Features and controls
5
2. With a valid (already registered) key, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.At this time, ID codes for all keys except for the key used in steps 2 and 3 are erased and the answerback function (dooris locked and unlocked) informs you thatthe registration mode has been activated. 4. Within 60 seconds after step 3, complete the following ID code registration opera-tion using the next key you wish to regis- ter within 4 seconds. i) Press both the LOCK and UNLOCKbuttons for 2 seconds. ii) Release both the LOCK and UNLOCK buttons for 1 second.iii) Press the UNLOCK button. The answerback function informs you that the ID code registration of the key is com-pleted. 5. To register the ID codes of additional keys, repeat step 4 within 60 seconds afterstep 4. 6. If no ID code of a key is registered within 60 seconds after step 4, the registrationmode is canceled and the normal mode returns.
N00546101124
Your keyless entry system operates on a radio frequency subject to Federal Communica-tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s).Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference. This device must accept any interference received, including interference that may cause undesired operation.
NOTE
 For verification purposes, try to lock and unlock the doors after the registration is completed.  The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The key can be used from approximately 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power station, or aradio station.  If the UNLOCK button (2) is pressed when no doors or the liftgate are opened within approximately 30 seconds, the doors and the liftgate will automatically re-lock.On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the key, the battery in the key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated.• The indicator light (4) is dim or does not come on.
 If you lose your key, please contact an autho- rized Mitsubishi Motors dealer for a replace-ment.
 If you wish to obtain an additional key, please contact an authorized Mitsubishi Motors dealer. A maximum of eight keys can be programmed for your vehicle.  To use the new keys, it is necessary to regis- ter the key with both the electronic immobi- lizer and keyless entry system.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-5.
General information

NOTE
BK0252700US.bo
ok 10 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5

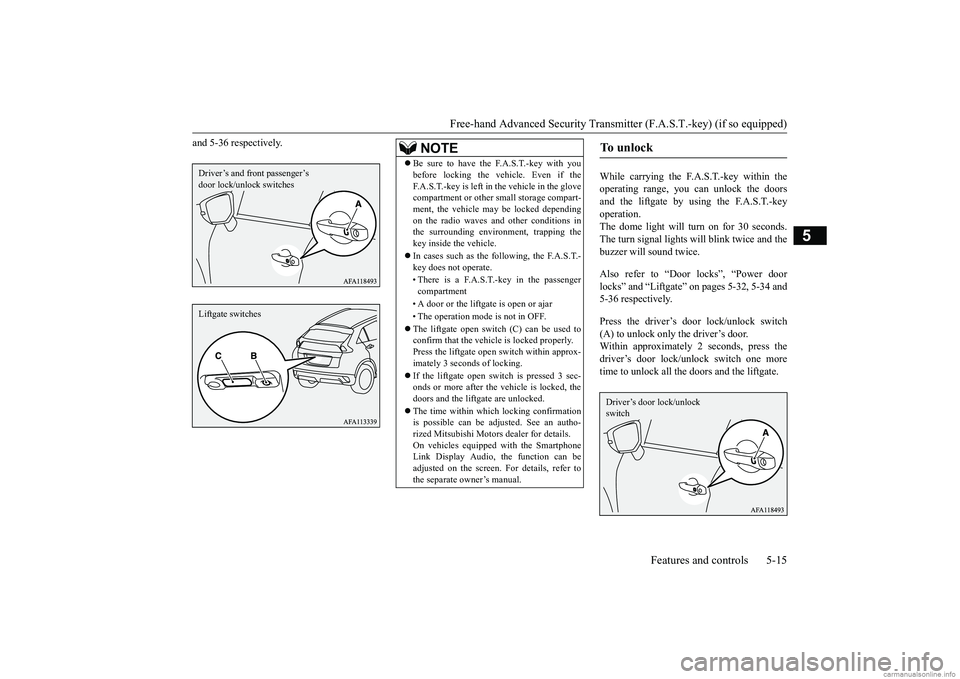

and 5-36 respectively. While carrying the F.A.S.T.-key within the
operating range, you can unlock the doors
and the liftgate by using the F.A.S.T.-key
operation.
The dome light will turn on for 30 seconds.
The turn signal lights will blink twice and the
buzzer will sound twice.
Also refer to “Door locks”, “Power door
locks” and “Liftgate” on pages 5-32, 5-34 and
5-36 respectively.
Press the driver’s door lock/unlock switch
(A) to unlock only the driver’s door.
Within approximately 2 seconds, press the
driver’s door lock/unlock switch one more
time to unlock all the doors and the liftgate.Driver’s and front passenger’s
door lock/unlock switchesLiftgate switches
NOTE
Be sure to have the F.A.S.T.-key with you
before locking the vehicle. Even if the
F.A.S.T.-key is left in the vehicle in the glove
compartment or other small storage compart-
ment, the vehicle may be locked depending
on the radio waves and other conditions in
the surrounding environment, trapping the
key inside the vehicle.
 In cases such as the following, the F.A.S.T.-
key does not operate.
• There is a F.A.S.T.-key in the passenger compartment
• A door or the lift gate is open or ajar
• The operation mode is not in OFF.
 The liftgate open switch (C) can be used to
confirm that the vehicle is locked properly.
Press the liftgate open switch within approx-
imately 3 seconds of locking.
 If the liftgate open switch is pressed 3 sec-
onds or more after the vehicle is locked, the
doors and the liftgate are unlocked.
 The time within which locking confirmation
is possible can be adjusted. See an autho-
rized Mitsubishi Motors dealer for details.
On vehicles equipped with the Smartphone
Link Display Audio, the function can be
adjusted on the screen. For details, refer to
the separate owner’s manual.
To u n l o c k

Driver’s door lock/unlock
switch
BK0252700US.bo ok 15 ページ ２０１７年１０月５日　木曜日　午後６時４９分
