Outside rearview mirrors
Features and controls 5-55
5
[For vehicles equipped with the keyless entry system]The mirrors automatically retract or extend when the doors are locked or unlocked using the key of the keyless entry system.Refer to “Keyless entry system” on page 5-6.[For vehicles equipped with the F.A.S.T.-key] The mirrors automatically retract or extend when the doors are locked or unlocked usingthe key or the F.A.S.T.-key. Refer to “Keyless entry system” on page 5-28 or “To operate using the F.A.S.T.-key” onpage 5-14.

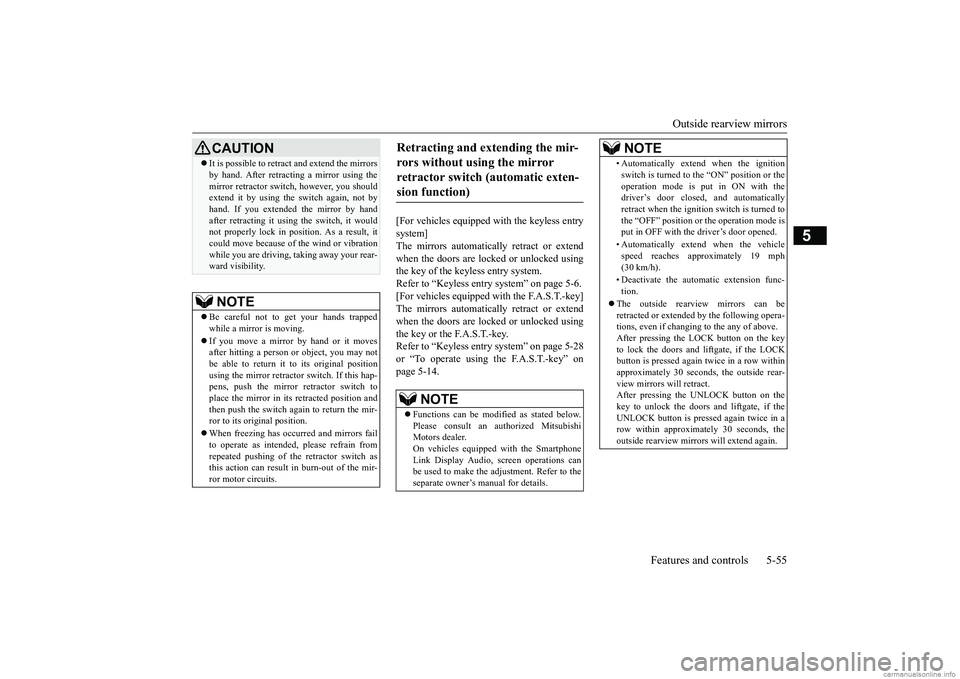

CAUTION It is possible to retract and extend the mirrors by hand. After retracting a mirror using the mirror retractor switch, however, you should extend it by using the switch again, not by hand. If you extended the mirror by handafter retracting it using the switch, it would not properly lock in position. As a result, it could move because of the wind or vibrationwhile you are driving, taking away your rear- ward visibility.NOTE
 Be careful not to get your hands trapped while a mirror is moving.  If you move a mirror by hand or it moves after hitting a person or object, you may not be able to return it to its original position using the mirror retractor
switch. If this hap-
pens, push the mirror retractor switch to place the mirror in its retracted position and then push the switch again to return the mir-ror to its original position.  When freezing has occurred and mirrors fail to operate as intended, please refrain from repeated pushing of the retractor switch as this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the mir- rors without using the mirror retractor switch (automatic exten- sion function)
NOTE
 Functions can be modified as stated below. Please consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, screen operations can be used to make the adjustment. Refer to theseparate owner’s manual for details.
• Automatically extend when the ignition switch is turned to the “ON” position or the operation mode is put in ON with the driver’s door closed, and automatically retract when the ignition switch is turned tothe “OFF” position or the operation mode is put in OFF with the driver’s door opened. • Automatically extend when the vehicle speed reaches approximately 19 mph (30 km/h). • Deactivate the automatic extension func- tion.
 The outside rearview mirrors can be retracted or extended by the following opera-tions, even if changing to the any of above. After pressing the LOCK button on the key to lock the doors and liftgate, if the LOCKbutton is pressed again
twice in a row within
approximately 30 seconds, the outside rear- view mirrors will retract.After pressing the UN
LOCK button on the
key to unlock the doors and liftgate, if the UNLOCK button is pressed again twice in arow within approximately 30 seconds, the outside rearview mirrors will extend again.NOTE
BK0252700US.bo
ok 55 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Ignition switch
Features and controls 5-57
5
N00549301303

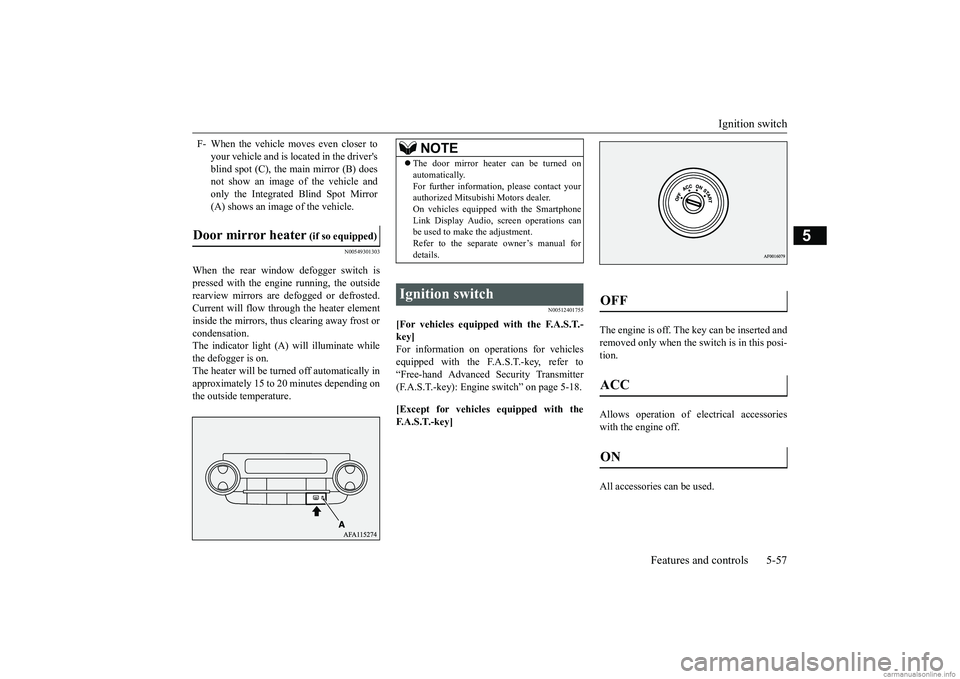

When the rear window defogger switch is pressed with the engine running, the outsiderearview mirrors are defogged or defrosted.Current will flow through the heater element inside the mirrors, thus clearing away frost or condensation.The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically inapproximately 15 to 20 minutes depending on the outside temperature.
N00512401755
[For vehicles equipped with the F.A.S.T.- key]For information on operations for vehicles equipped with the F.A.S.T.-key, refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Engine switch” on page 5-18. [Except for vehicles equipped with the F. A . S . T. - k e y ]
The engine is off. The key can be inserted and removed only when the switch is in this posi- tion. Allows operation of electrical accessories with the engine off. All accessories can be used.
F- When the vehicle moves even closer to
your vehicle and is lo
cated in the driver's
blind spot (C), the main mirror (B) does not show an image of the vehicle and only the Integrated Blind Spot Mirror(A) shows an image of the vehicle.
Door mirror heater
(if so equipped)
NOTE
 The door mirror heater can be turned on automatically. For further information, please contact your authorized Mitsubishi Motors dealer. On vehicles equipped with the SmartphoneLink Display Audio, screen operations can be used to make the adjustment. Refer to the separate owner’s manual fordetails.
Ignition switch
OFF ACC ON
BK0252700US.bo
ok 57 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Starting the engine 5-58 Features and controls
5
Engages the starter. Release the key when the engine starts.It will automatically return tothe “ON” position.
N00539601130
After approximately 30 minutes has elapsed with the ignition switch in the “ACC” posi- tion, the function automatically cuts out thepower for the audio system and other electric devices that can be operated with that posi- tion.When the ignition switch is turned from the “ACC” position, the power is supplied again to those devices.
N00550901253
When removing the key, first set the selectorlever to the “P” (PARK) position, and thenturn the key to the “OFF” position and remove it.
N00512601874
[For vehicles equipped with the F.A.S.T.- key]For information on operation for vehicles equipped with the F.A.S.T.-key, refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Starting” on page 5-12.
START
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the transponder inside the key sendsmust match the one registered to the immobi- lizer computer. (Refer to “Electronic immo- bilizer” on page 5-4.)
ACC power auto-cutout func- tion
NOTE
 It is possible to modify functions as follows:
• The time until the power cuts out can be changed to approximately 60 minutes. • The ACC power auto-cutout function can be deactivated. For details, we recommend you to consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, screen operations canbe used to make the adjustment. Refer to the separate owner’s manual for details.
To remove the key
NOTE
NOTE
 The key cannot be removed unless the selec- tor lever is set to the “P” (PARK) position, which allows the ignition switch to turn to the “OFF” position.CAUTION If the engine is stopped while driving, the power brake booster will stop functioning and greater effort for braking will be required. Also, the power steering systemwill not function and it will require greater effort to manually steer the vehicle. Do not leave the key in the “ON” position for a long time when the engine is not running. This will cause the battery to run down. Do not turn the key to the “START” position when the engine is running. It will damagethe starter motor.
Starting the engine
BK0252700US.bo
ok 58 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Starting the engine
Features and controls 5-59
5

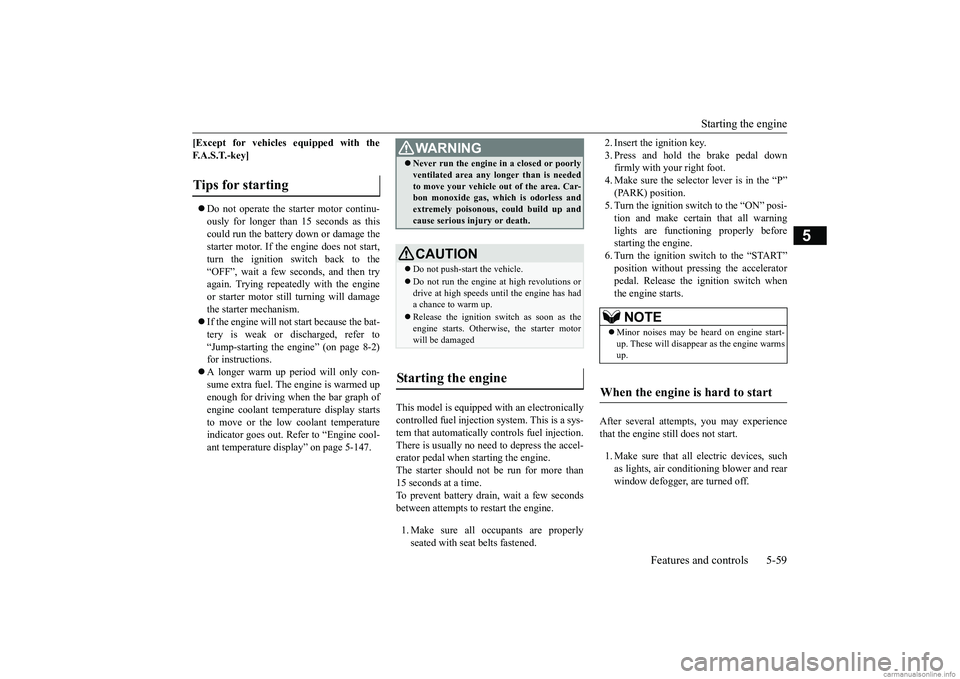

[Except for vehicles equipped with the F. A . S . T. - k e y ]  Do not operate the starter motor continu- ously for longer than
15 seconds as this
could run the battery down or damage the starter motor. If the engine does not start, turn the ignition switch back to the“OFF”, wait a few seconds, and then tryagain. Trying repeatedly with the engine or starter motor still
turning will damage
the starter mechanism. If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” (on page 8-2)for instructions.  A longer warm up period will only con- sume extra fuel. The engine is warmed upenough for driving when the bar graph of engine coolant temperature display starts to move or the low coolant temperatureindicator goes out. Refer to “Engine cool- ant temperature display” on page 5-147.
This model is equipped with an electronically controlled fuel injection system. This is a sys- tem that automatically controls fuel injection.There is usually no need to depress the accel- erator pedal when starting the engine. The starter should not be run for more than15 seconds at a time. To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened.
2. Insert the ignition key. 3. Press and hold the brake pedal down firmly with your right foot. 4. Make sure the selector lever is in the “P”(PARK) position. 5. Turn the ignition switch to the “ON” posi- tion and make certain that all warninglights are functioning properly before starting the engine. 6. Turn the ignition switch to the “START”position without pressing the acceleratorpedal. Release the ignition switch when the engine starts.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off.
Tips for starting
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car- bon monoxide gas, which is odorless and extremely poisonous, could build up andcause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high revolutions or drive at high speeds until the engine has hada chance to warm up. Release the ignition switch as soon as the engine starts. Otherwise, the starter motor will be damaged
Starting the engine
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0252700US.bo
ok 59 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT) 5-62 Features and controls
5
N00563301075

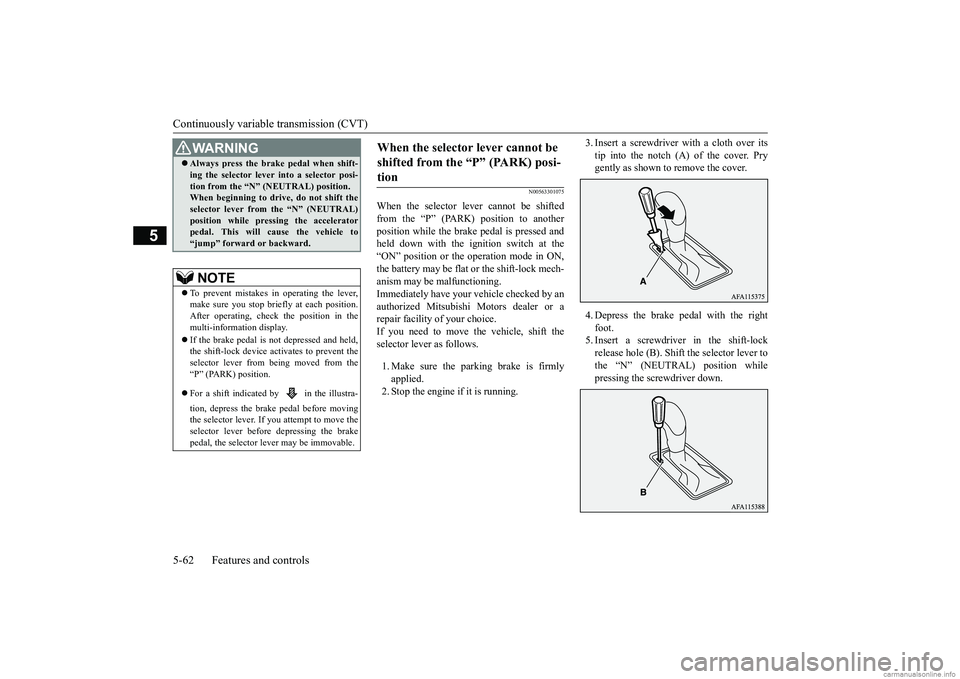

When the selector lever cannot be shifted from the “P” (PARK) position to another position while the brake pedal is pressed and held down with the ignition switch at the“ON” position or the operation mode in ON, the battery may be flat or the shift-lock mech- anism may be malfunctioning.Immediately have your vehicle checked by anauthorized Mitsubishi Motors dealer or a repair facility of your choice. If you need to move the vehicle, shift theselector lever as follows. 1. Make sure the parking brake is firmly applied. 2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch (A) of the cover. Pry gently as shown to remove the cover. 4. Depress the brake pedal with the right foot. 5. Insert a screwdriver in the shift-lockrelease hole (B). Shift the selector lever to the “N” (NEUTRAL) position while pressing the screwdriver down.
 Always press the brake pedal when shift- ing the selector lever into a selector posi- tion from the “N” (NEUTRAL) position. When beginning to driv
e, do not shift the
selector lever from the “N” (NEUTRAL)position while pressing the accelerator pedal. This will cause the vehicle to “jump” forward or backward.NOTE
 To prevent mistakes in operating the lever, make sure you stop briefly at each position. After operating, check the position in the multi-information display.  If the brake pedal is not depressed and held, the shift-lock device activates to prevent theselector lever from being moved from the “P” (PARK) position.  For a shift indicated by in the illustra- tion, depress the brake pedal before moving the selector lever. If you attempt to move the selector lever before depressing the brake pedal, the selector lever may be immovable.WA R N I N G
When the selector lever cannot be shifted from the “P” (PARK) posi- tion
BK0252700US.bo
ok 62 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT)
Features and controls 5-63
5
N00560401105
When the ignition switch is turned to the “ON” position or the operation mode is put inON, the selector lever position is shown on the multi-information display.
N00582900044
If the ambient temperature is low, the selector lever position display on the multi-informa- tion display may blink when the selector lever is placed in the “D” (DRIVE), or “R”(REVERSE) position immediately after the engine has been started. This indicates that the transmission requires warming up. Whilethe display is blinking, the vehicle will not move, because the transmission keeps disen- gaging until the warm up is completed even ifthe selector lever is placed in the “D” or “R”position. When the selector lever position display is blinking, perform the following procedure: 1. Depress the brake pedal with your right foot and place the selector lever in the“N” (NEUTRAL) position for several seconds. 2. Keep depressing the brake pedal and thenplace the selector lever in the “D” (DRIVE), or “R” (REVERSE) position. If the selector lever position display stopsblinking, the warm up is completed and the transmission will function normally. 3. If the display is sti
ll blinking, repeat steps
1 and 2 above.
N00560501106

or When the warning display or the warn- ing display appears on the information screen in the multi-information display while you are driving, there could be a malfunction inthe CVT.
Selector lever position display When the selector lever position display blinks
WA R N I N G To avoid unintended vehicle movement, keep brake pedal applied with your rightfoot and do not depress the accelerator pedal, while the selector lever position dis- play is blinking.
NOTE
 While the selector lever position display is blinking, a buzzer will sound intermittently.
Warning display
BK0252700US.bo
ok 63 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT) 5-64 Features and controls
5
N00560601110
This position locks the transmission to pre- vent the vehicle from moving. The engine canbe started in the “P” (PARK) position. Move the lever to this position only after the vehicle has come to a complete stop. At this position, the transmission is disen- gaged. It is the same as the neutral position on a manual transaxle and should be used when the vehicle is not moving for an extendedlength of time during driving, such as in a traffic jam.
This position is used for most city and high- way driving. The transmission will automati- cally and continuously change its gear ratiodepending on road and driving conditions.
CAUTION If a malfunction occurs in the CVT while driving, the warning display or the warning display will appear on the informa- tion screen in the multi-information display. In this case, follow these procedures: [When warning display is showing] The CVT fluid is overheating. The engine control may activate to lower the CVT fluid temperature, causing the engine revolutionsand vehicle speed to decrease, In this case, take one of the following procedures.• Slow down your vehicle.• Stop your vehicle in a safe place, put the selector lever in the “P” (PARK) position, and open the engine hood with the engine running to allow the engine to cool down.After a while, confirm that the warning display is no longer showing. It is safe to continue driving if the display is no longer showing. If the warning display remains orflashes frequently, have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice. [When warning display is showing] It may be that there is something unusual happening in the CVT, causing a safetydevice to activate. Have your vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of yourchoice immediately.
Selector lever positions “P” PARK “R” REVERSE
CAUTION Never shift into the “P” (PARK) or “R” (REVERSE) position while
the vehicle is in
motion. If the lever is shifted into the “P”(PARK) or “R” (REVERSE) position while the vehicle is in motion, the transmission may be damaged.
“N” NEUTRAL
WA R N I N G Never move the selector lever to the “N” (NEUTRAL) position while driving since you could accidentally slip it into the “P” (PARK) or “R” (REVERSE) position, damaging the transmission. To prevent the vehicle from rolling when stopped on a slope, the engine should bestarted in the “P” (PARK) position, not in “N” (NEUTRAL) position. To prevent rolling, always keep your foot on the brake pedal when the vehicle is in “N” (NEUTRAL) position, or when shift-ing into or out of “N” (NEUTRAL) posi- tion.
“D” DRIVE
CAUTION To prevent transmission damage, never shift into the “D” (DRIVE) position from the “R” (REVERSE) position whil
e the vehicle is in
motion.
BK0252700US.bo
ok 64 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT)
Features and controls 5-65
5
N00560701108

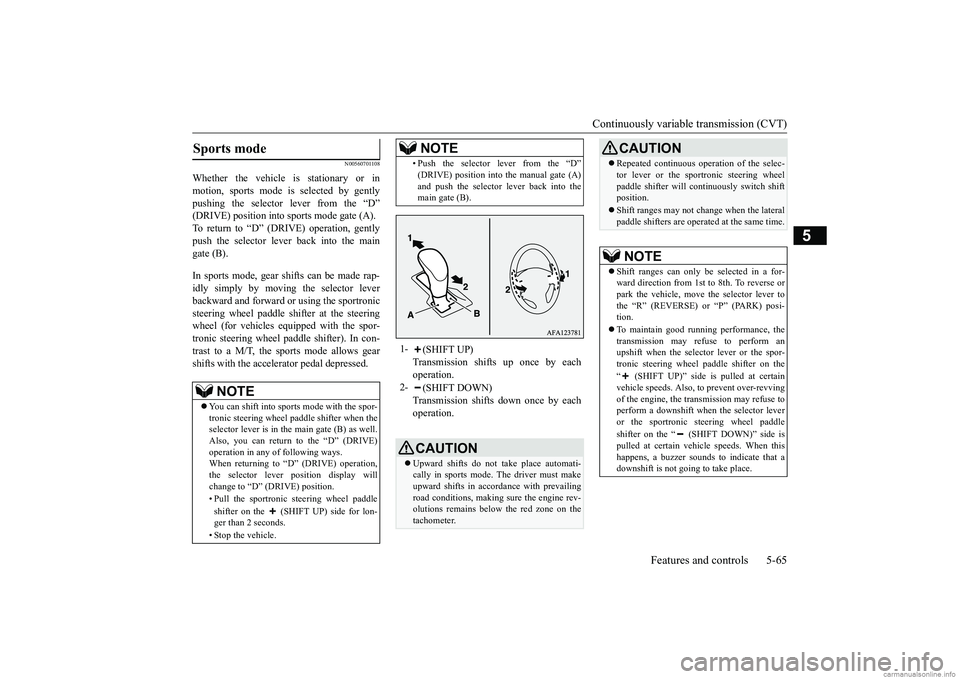

Whether the vehicle is stationary or in motion, sports mode is selected by gentlypushing the selector lever from the “D” (DRIVE) position into sports mode gate (A). To return to “D” (DRIVE) operation, gentlypush the selector lever back into the main gate (B). In sports mode, gear shifts can be made rap- idly simply by moving the selector lever backward and forward or using the sportronicsteering wheel paddle shifter at the steering wheel (for vehicles equipped with the spor- tronic steering wheel paddle shifter). In con-trast to a M/T, the sports mode allows gear shifts with the accelerator pedal depressed.Sports mode
NOTE
 You can shift into sports mode with the spor- tronic steering wheel paddle shifter when theselector lever is in the main gate (B) as well. Also, you can return to the “D” (DRIVE) operation in any of following ways. When returning to “D” (DRIVE) operation, the selector lever position display willchange to “D” (DRIVE) position. • Pull the sportronic steering wheel paddle shifter on the (SHIFT UP) side for lon- ger than 2 seconds. • Stop the vehicle.
• Push the selector lever from the “D” (DRIVE) position into the manual gate (A) and push the selector lever back into the main gate (B).
1-
(SHIFT UP) Transmission shifts up once by eachoperation.
2-
(SHIFT DOWN) Transmission shifts down once by eachoperation.CAUTION Upward shifts do not take place automati- cally in sports mode. The driver must make upward shifts in accordance with prevailing road conditions, making sure the engine rev-olutions remains below the red zone on the tachometer.NOTE
 Repeated continuous operation of the selec- tor lever or the sportronic steering wheel paddle shifter will continuously switch shift position. Shift ranges may not change when the lateral paddle shifters are operated at the same time.NOTE
 Shift ranges can only be selected in a for- ward direction from 1st to 8th. To reverse orpark the vehicle, move the selector lever to the “R” (REVERSE) or “P” (PARK) posi- tion.  To maintain good running performance, the transmission may refuse to perform anupshift when the selector lever or the spor- tronic steering wheel paddle shifter on the “ (SHIFT UP)” side is pulled at certain vehicle speeds. Also, to prevent over-revving of the engine, the transmission may refuse toperform a downshift when the selector lever or the sportronic steering wheel paddle shifter on the “ (SHIFT DOWN)” side is pulled at certain vehicle speeds. When this happens, a buzzer sounds to indicate that adownshift is not going to take place.CAUTION
BK0252700US.bo
ok 65 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT) 5-66 Features and controls
5
N00560901083

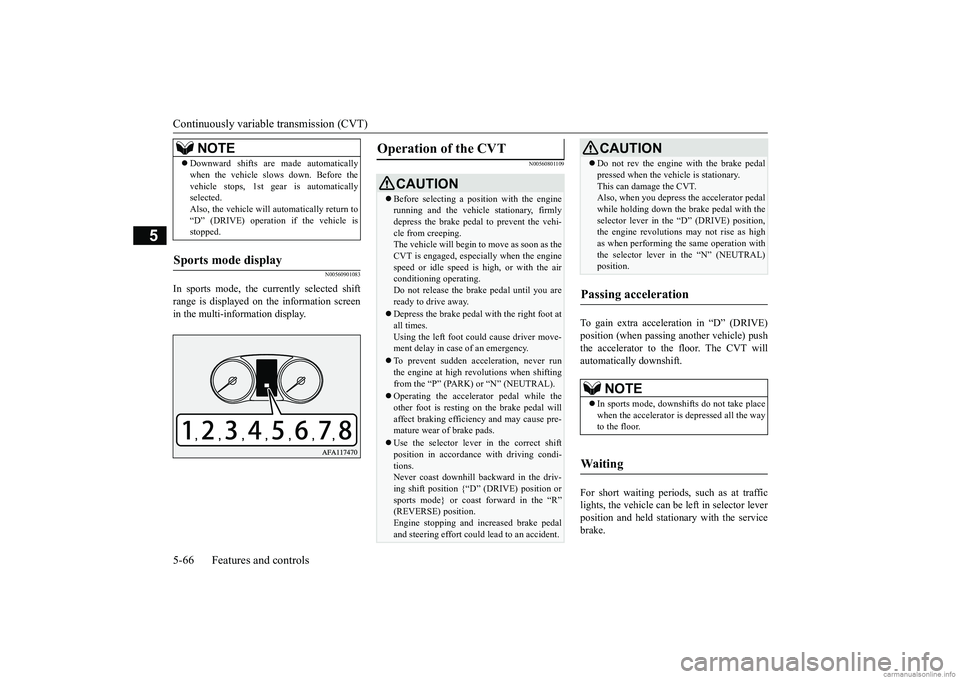

In sports mode, the currently selected shift range is displayed on the information screen in the multi-information display.
N00560801109
To gain extra acceleration in “D” (DRIVE) position (when passing another vehicle) push the accelerator to the floor. The CVT will automatically downshift. For short waiting periods, such as at traffic lights, the vehicle can be left in selector lever position and held stationary with the service brake.
 Downward shifts are made automatically when the vehicle slows down. Before the vehicle stops, 1st gear is automatically selected. Also, the vehicle will automatically return to“D” (DRIVE) operation if the vehicle is stopped.
Sports mode display
NOTE
Operation of the CVT
CAUTION Before selecting a position with the engine running and the vehicle stationary, firmly depress the brake pedal to prevent the vehi- cle from creeping.The vehicle will begin to move as soon as the CVT is engaged, especially when the engine speed or idle speed is high, or with the airconditioning operating. Do not release the brake pedal until you are ready to drive away. Depress the brake pedal
with the right foot at
all times.Using the left foot could cause driver move- ment delay in case of an emergency. To prevent sudden acceleration, never run the engine at high revolutions when shifting from the “P” (PARK) or “N” (NEUTRAL). Operating the accelerator pedal while the other foot is resting on the brake pedal willaffect braking efficiency and may cause pre- mature wear of brake pads. Use the selector lever in the correct shift position in accordance with driving condi- tions. Never coast downhill backward in the driv- ing shift position {“D” (DRIVE) position orsports mode} or coast forward in the “R” (REVERSE) position. Engine stopping and increased brake pedaland steering effort could lead to an accident.
 Do not rev the engine with the brake pedal pressed when the vehicle is stationary. This can damage the CVT. Also, when you depress the accelerator pedal while holding down the brake pedal with theselector lever in the “D” (DRIVE) position, the engine revolutions may not rise as high as when performing the same operation withthe selector lever in the “N” (NEUTRAL) position.
Passing acceleration
NOTE
 In sports mode, downshifts do not take place when the accelerator is depressed all the way to the floor.
Wa i t i n g
CAUTION
BK0252700US.bo
ok 66 ページ ２０１７年１０月４日　水曜日　午後４時５４分

S-AWC (Super-All Wheel Control) (if so equipped)
Features and controls 5-67
5
For longer waiting periods with the engine running, place the selector lever in the “N” (NEUTRAL) position and apply the parking brake, while holding the vehicle stationarywith the service brake. Prior to moving off after having stopped the vehicle, make sure that the selector lever is in“D” (DRIVE) position or Sports mode posi- tion. To park the vehicle, first bring it to a com- plete stop, firmly apply the parking brake, and then move the selector lever to the “P” (PARK) position.
If the CVT does not shift while driving, or your vehicle does not pick up enough speed when starting on an uphill slope, it may bethat there is something unusual happening in the transmission, causing a safety device to activate. Immediately have your vehiclechecked at an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00541301091
S-AWC is an integrated vehicle dynamics control system that helps enhance driving performance, cornering performance, andvehicle stability over a wide range of driving
conditions through integrated management of the electronically controlled 4WD, the AYC (Active Yaw Control), the ABS and the ASC. The electronically controlled 4WD is a sys- tem that improves acceleration performance and stability performance by controlling front-rear distribution of driving torque withoperating the electronic control coupling arranged in the rear differential assembly.
CAUTION To avoid transmission overheating, never try to keep your vehicle stationary on a hill by using the accelerator pedal. Always apply the parking brake and/or service brake. Do not rev the engine unnecessarily while the vehicle is stationary. Unexpected acceler-ation may occur if the selector lever is in a position other than “P” (PARK) or “N” (NEUTRAL).
Parking
When the CVT makes no speed change
NOTE
 When the warning display and “SLOW DOWN” or the warning display and “SERVICE REQUIRED” appear on the information screen in the multi-information display, there could be a malfunction in theCVT. Refer to “Continuously variable trans- mission (CVT): Warning display” on page 5-63.
S-AWC (Super-All Wheel Control)
(if so equipped)
CAUTION Do not over-rely on the S-AWC. Even the S- AWC cannot prevent the natural laws of physics from acting on the vehicle. This sys- tem, like any other system, has limits andcannot help you to maintain traction and con- trol of the vehicle in all circumstances. Reck- less driving can lead to accidents. It is thedriver’s responsibility to drive carefully. This means taking into account the traffic, road and environmental conditions.
Electronically Controlled 4WD

BK0252700US.bo
