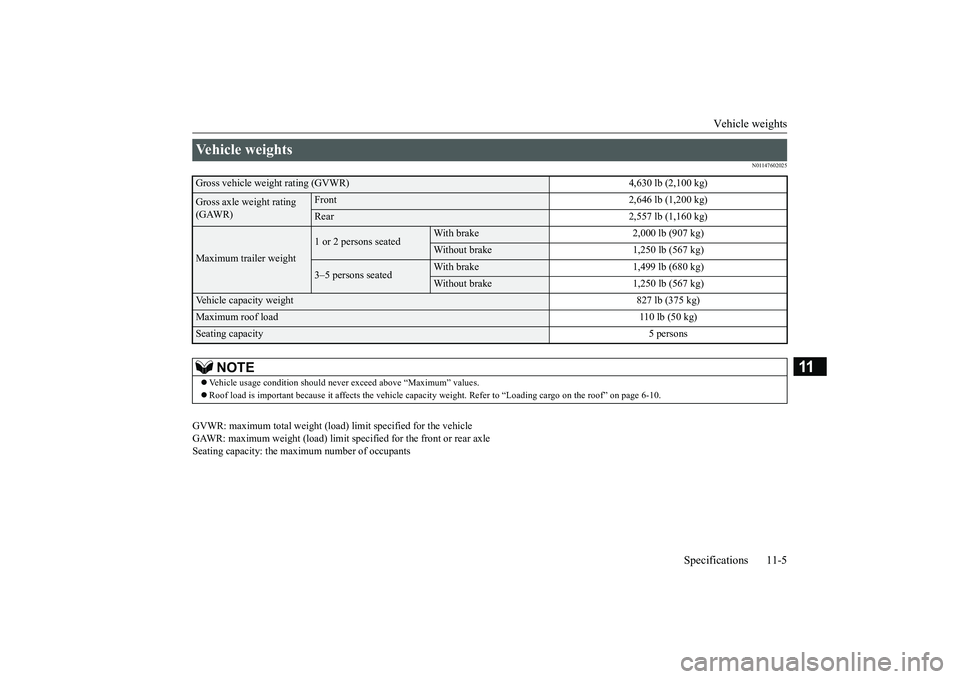

Vehicle weights
Specifications 11-5
11
N01147602025
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maximum number of occupantsVehicle weights Gross vehicle weight rating (GVWR) 4,630 lb (2,100 kg)Gross axle weight rating (GAWR)
Front 2,646 lb (1,200 kg)Rear 2,557 lb (1,160 kg)
Maximum trailer weight
1 or 2 persons seated
With brake 2,000 lb (907 kg)Without brake 1,250 lb (567 kg)
3–5 persons seated
With brake 1,499 lb (680 kg)Without brake 1,250 lb (567 kg)
Vehicle capacity weight
827 lb (375 kg)
Maximum roof load
110 lb (50 kg)
Seating capacity
5 persons
NOTE
Vehicle usage condition should neve
r exceed above “Maximum” values.
 Roof load is important because it affects the vehicle capac
ity weight. Refer to “Loading
cargo on the roof” on page 6-10.
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Tires and wheels
Specifications 11-7
11
N01147901874
PCD: Pitch Circle Diameter (installation holes)
N01148002260
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset (Inset) 1.5 in (38 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer
for details on the combination used on your vehicle.
 These tires satisfy vehicle loading cond
itions described in this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“star- burst” symbol) on the container.
Oil filter .21 qt (0.2 L)Oil cooler .11 qt (0.1 L)
Continuously variable transmission (CVT) 8.2 qt (7.8 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-8.
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API GL-5 SAE 80
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index
12-1
12
Numerics
12 V power outlets
............................
5-208
4-wheel drive operation
.......................
5-70
A
Accessory (installation)
.......................
3-12
Active stability control (ASC)
..............
5-81
Adaptive Cruise Control System (ACC) 5-88 Air cleaner filter
...................
................
9-8
Air conditioning
Automatic air conditioning
................
7-6
Dual-zone automatic climate control airconditioning
................
.................
7-15
Important air conditioning operating tips
..
7-2
Air purifier
....................
.....................
7-23
Airbag
.......................
........................
4-30
All-wheel drive operation
....................
5-70
Aluminum wheels
...............................
9-39
Anti-lock braking system
.....................
5-78
Arm rest
.....................
...................
4-6
, 4-8
Assist grip
.....................
...................
5-222
Automatic air conditioning
....................
7-6
Automatic High Beam (AHB)
............
5-191
B
Back-up light
Bulb location and capacity
..............
9-28
Replacement
...................
...............
9-33
Ball joint, steering linkage seals, drive shaft boots
.........................
......................
9-22
Battery
........................
......................
9-10
Charging system warning light
.......
5-183
Checking battery electrolyte level
....
9-10
Disconnection and connection
.........
9-11
During cold weather
.......................
9-11
Specification
...................
...............
11-6
Blind Spot Warning (BSW)
................
5-108
Bottle holders
...................
.................
5-220
Brake
Fluid
....................
...................
9-9
, 11-7
Brake assist
......................
..................
5-78
Braking
Anti-lock braking system
................
5-78
Braking
.......................
....................
6-5
Hose
.......................
......................
9-21
Pad wear alarm
...............
...............
5-74
Parking brake
..................
...............
5-46
Pedal
.......................
......................
5-73
Pedal free play
................
...............
9-19
Power brakes
..................
...............
5-74
Service brake
..................
...............
5-73
Warning lights and buzzer
..............
5-181
Bulb location and capacity
..................
9-27
C
California Perchlorate Materials Requirements
..................
.................
3-13
Capacities
.....................
.....................
11-7
Card holder
............................
5-208
, 5-218
Cargo area cover
................
...............
5-220
Cargo loads
...................
.....................
6-10
Cargo room light
................
...............
5-216
Bulb location and capacity
...............
9-29
Catalytic converter
................
................
9-2
Cautions on the handling of all-wheel drive vehicles
.......................
.....................
5-72
Certification label
...............................
11-3
Charging system warning light
...........
5-183
Child restraint systems
........................
4-22
Child safety locks for rear door
............
5-35
Cleaning
Inside of your vehicle
......................
9-35
Outside of your vehicle
...................
9-36
Coat hook
......................
...................
5-222
Consumer information
.........................
10-2
Continuously variable transmission (CVT)
...
5-60 Fluid
..................
.....................
9-8
, 11-7
Selector lever operation
...................
5-61
Selector lever positions
....................
5-64
Sports mode
..................
.................
5-65
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index
12-3
12
Fuses
.........................
........................
9-23
Fusible links
..................
.....................
9-23
G
General maintenance
...........................
9-21
General vehicle data
............................
11-4
Genuine parts
....................
.................
3-13
Glove compartment
...........................
5-218
H
Hazard warning flasher switch
...........
5-197
Hazard warning lights
.......................
5-180
Head restraints
...................
...................
4-9
Head Up Display (HUD)
...................
5-184
Headlight leveling switch
..................
5-196
Headlights
Bulb location and capacity
...............
9-28
Dimmer
....................
...................
5-191
Headlight flasher
..........................
5-191
Replacement
.................
.................
9-29
Switch
......................
...................
5-188
Heated steering wheel switch
.............
5-205
High beam indicator
..........................
5-180
High-mounted stop light
Bulb location and capacity
...............
9-28
Hill start assist
...................
.................
5-77
HomeLink® Wireless Control System 5-209
Hood lock release mechanism and safety catch
.........................
......................
9-22
Horn switch
.....................
.................
5-206
I
If the vehicle breaks down
.....................
8-2
Ignition switch
....................
...............
5-57
Important facts to know in case of an accident 10-4 Indicators
..............................
5-160
, 5-180
Information screen display
.................
5-161
Inside rearview mirror
.........................
5-51
Inspection and maintenance following rough road operation
...................
...............
5-72
Instrument cluster
..............................
5-139
Interior lights
...................
.................
5-214
J
Jack
............................
........................
8-5
Storage
........................
....................
8-5
Jump-starting the engine
.......................
8-2
K
Keyless entry system
....................
5-6
, 5-28
Keys
...........................
........................
5-3
L
Labeling
........................
.....................
11-2
Lane Departure Warning (LDW)
........
5-115
License plate light
Bulb location and capacity
...............
9-28
Replacement
..................
.................
9-34
Liftgate
......................
........................
5-36
Loading information
..............................
6-6
Lubricants
.....................
.....................
11-7
Luggage floor board
..........................
5-223
Luggage hooks
..................
...............
5-223
M
Modification of your vehicle
................
3-12
Multi Around Monitor
.......................
5-129
Multi-information display
..................
5-140
O
Octane number
.....................
................
3-2
Oil
Engine oil
.....................
.................
11-7
Rear axle oil
..................
.................
11-7
Transfer oil
...................
.................
11-7
Operation under adverse driving conditions
..
8-12 Outside rearview mirrors
.....................
5-53
BK0252700US.bo
ok 3 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index
12-5
12
T
Tail light
Bulb location and capacity
...............
9-28
Tank capacity
....................
.................
11-7
Theft-alarm system
.............................
5-38
Tire
...........................
........................
9-12
Inflation pressure
............................
9-15
Maintenance
..................
.................
9-17
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-16
Rotation
....................
.....................
9-17
Size (tire and wheel)
.......................
11-7
Snow tires
.....................
.................
9-18
Tire and loading information placard 11-3 Tire chains
....................
.................
9-18
To change a tire
................
................
8-6
Tread wear indicator
.......................
9-17
Tire pressure monitoring system (TPMS)
.....
5-118 Tools
.........................
..........................
8-5
Storage
.........................
...................
8-5
Towing
......................
........................
8-11
Trailer towing
....................
.................
6-11
Transfer oil
................
.................
9-9
, 11-7
Turbocharger operation
.......................
5-60
Turn signal light
Indicators
..................
...................
5-180
Lever
........................
...................
5-196
U
USB input terminal
............................
5-206
How to connect a USB memory device
....
5-206 How to connect an iPod
.................
5-206
V
Vanity mirror
...................
.................
5-207
Vanity mirror lights
Bulb location and capacity
..............
9-29
Vehicle care precautions
.....................
9-35
Vehicle dimensions
............................
11-4
Vehicle labeling
..................
...............
11-2
Vehicle preparation before driving
.........
6-4
Vehicle weights
...................
...............
11-5
Vents
..........................
........................
7-2
W
Warning lights
.................
.................
5-181
Washer
Fluid
....................
...................
9-9
, 11-7
Rear window washer
.....................
5-203
Switch
.....................
.....................
5-202
Washing
......................
......................
9-37
Waxing
.......................
......................
9-38
Weights
.......................
......................
11-5
Wheel
Specification
.................
.................
11-7
Wiper
Rear window wiper
.......................
5-203
Switch
......................
...................
5-199
Wiper blades
.................
.................
9-19
