Power panoramic sunroof (if so equipped)
Features and controls 5-43
5
N00551400043
Wind buffeting can be described as the per- ception of pressure on
the ears or a booming
or rumbling sound. Your vehicle may exhibit wind buffeting when driving with one or bothrear door windows down or partially opened. This is a normal occurrence that can be mini- mized. If the buffeting occurs with the reardoor windows open, open the front door win-dows as well as the rear door windows to minimize the condition.
N00594700023
The front sunroof & front shade can be opened or closed with the ignition switch in the “ON” position or the operation mode in ON.
What to do if you hear wind buffeting when driving Power panoramic sunroof
(if
so equipped)
WA R N I N G Do not put head, hands or anything else out of the front sunroof opening whiledriving the vehicle. Never leave children or unreliable adults unattended inside the vehicle. Never leave the vehicle without carrying the key. Before operating the front sunroof, front shade, or rear shade, make sure that noth- ing is capable of being trapped (head,hands, fingers, etc.) in the front sunroof, front shade, or rear shade.
 Because the front sunroof opens to the outside of the vehicle, do not open the sun- roof when cleaning th
e top of the roof, etc.
Your hands or arms could be trapped.NOTE
 When leaving the vehicle unattended, be sure to close the front sunroof and carry thekey.  Do not try to operate the front sunroof if it is frozen closed (after snow fall or during extreme cold).  Do not sit or place heavy luggage on the front sunroof or roof opening edge.  Do not apply any force that may cause dam- age to the sunroof.  Release the switch when the front sunroof, front shade, or rear shade starts to move.  If the front sunroof, front shade, or rear shade does not operate when the switch is operated, release the switch and checkwhether something is trapped by the sunroof or shade. If nothing is trapped, we recom- mend you to have the sunroof or shade checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting up the front sunroof if a ski carrier or a roof carrier is installed.Depending on the model of ski carrier or roof carrier, the front sunroof may contact the car- rier when the front sunroof is tilted up.WA R N I N G
 Be sure to close the front sunroof completely when washing the vehicle or when leaving the vehicle.  After washing the vehicle or after rain be sure to wipe off any water that is on the front sunroof before operating it.  Operating the front sunroof, front shade, or rear shade repeatedly with the engine turned off will run down the
battery. Operate the
front sunroof, front shade, and rear shade only while the engine is running.
Front sunroof & front shade

NOTE
BK0252700US.bo
ok 43 ページ ２０１７年１０月４日　水曜日　午後４時５４分

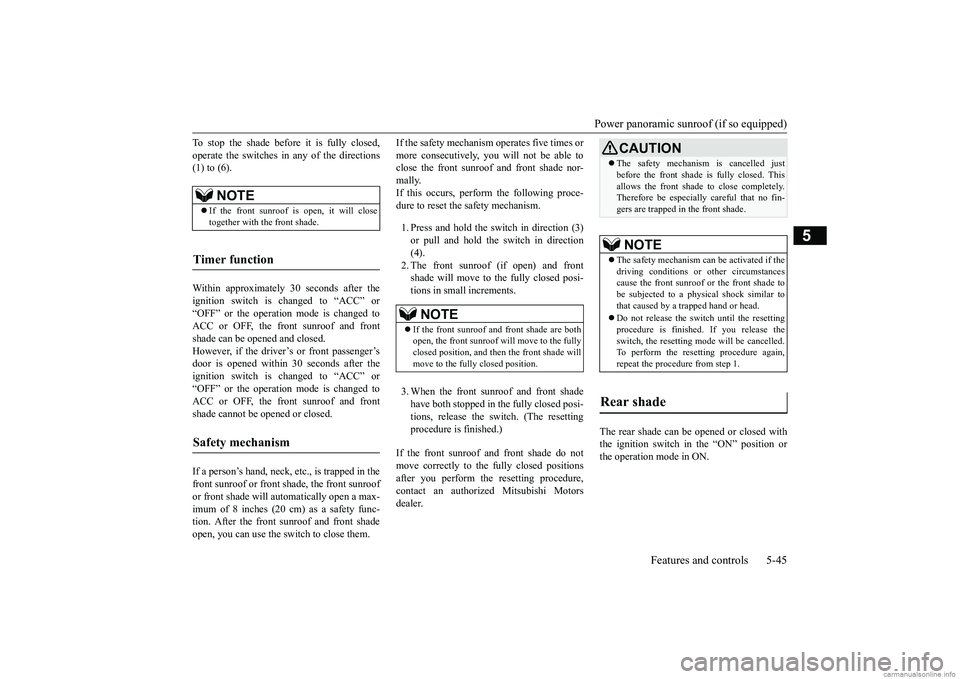

Power panoramic sunroof (if so equipped)
Features and controls 5-45
5
To stop the shade before it is fully closed, operate the switches in any of the directions (1) to (6). Within approximately 30 seconds after the ignition switch is changed to “ACC” or“OFF” or the operatio
n mode is changed to
ACC or OFF, the front sunroof and front shade can be opened and closed.However, if the driver’s or front passenger’s door is opened within 30 seconds after the ignition switch is changed to “ACC” or“OFF” or the operatio
n mode is changed to
ACC or OFF, the front sunroof and front shade cannot be opened or closed. If a person’s hand, neck, etc., is trapped in the front sunroof or front sh
ade, the front sunroof
or front shade will au
tomatically open a max-
imum of 8 inches (20 cm) as a safety func- tion. After the front sunroof and front shadeopen, you can use the switch to close them.
If the safety mechanism operates five times or more consecutively, you will not be able to close the front sunroof and front shade nor- mally.If this occurs, perform the following proce- dure to reset the safety mechanism. 1. Press and hold the switch in direction (3) or pull and hold the switch in direction(4). 2. The front sunroof (if open) and front shade will move to the fully closed posi-tions in small increments. 3. When the front sunroof and front shade have both stopped in the fully closed posi- tions, release the switch. (The resetting procedure is finished.)
If the front sunroof and front shade do not move correctly to the fully closed positions after you perform the resetting procedure, contact an authorized Mitsubishi Motorsdealer.
The rear shade can be opened or closed with the ignition switch in the “ON” position or the operation mode in ON.
NOTE
 If the front sunroof is open, it will close together with the front shade.
Timer function

Safety mechanism

NOTE
 If the front sunroof and front shade are both open, the front sunroof will move to the fullyclosed position, and then the front shade will move to the fully closed position.
CAUTION The safety mechanism is cancelled just before the front shade is fully closed. This allows the front shade to close completely. Therefore be especially careful that no fin- gers are trapped in the front shade.NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the front sunroof or the front shade tobe subjected to a physical shock similar to that caused by a trapped hand or head.  Do not release the switch until the resetting procedure is finished. If you release the switch, the resetting mode will be cancelled.To perform the resetting procedure again, repeat the procedure from step 1.
Rear shade

BK0252700US.bo
ok 45 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Parking brake 5-48 Features and controls
5
When the Electric parking brake is applied, the brake warning light (red) in the instru- ment cluster and the indicator light (A) on the Electric parking brake switch will come on. When parking on a hill, set the parking brake, and turn the front wheels toward the curb on a downhill, or away from the curb on an uphill.
NOTE
 You may hear an operation noise from the vehicle body when operating the Electric parking brake. This does not indicate a mal- function and the Electric parking brake is operating normally.  When the battery is weak or dead, the Elec- tric parking brake cannot be applied orreleased. Refer to “Jump-starting the engine” on page 8-2.  You may feel the brake pedal moving when operating the Electric parking brake. This does not indicate a malfunction.
To apply

1. Stop the vehicle completely. 2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTION While the vehicle is in motion, do not apply the Electric parking brake. Doing so may cause overheating and/or premature wear of brake parts, reducing brake performance. NOTE
 In the following conditions, the brake warn- ing light (red) will illuminate for approxi- mately 15 seconds and then go off. • While the Electric parking brake is applied, the ignition switch is turned to the “OFF”position or the operation mode is put in OFF. • While the ignition switch is in the “OFF” position or the operation mode is in OFF, the Electric parking brake switch is pulled up.
 If the Electric parking brake must be applied in an emergency situation, pull and hold the Electric parking brake switch to apply the Electric parking brake. At that time, the fol- lowing warning display will appear in themulti-information display and a buzzer will sound, however you should continue to pull and hold the Electric parking brake switch.  While the Electric parking brake is applied, the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  The ignition switch is in the “OFF” position or the operation mode is in OFF.  When the Electric parking brake switch is operated in the following conditions, thebrake warning light (red) will illuminate for approximately 15 seconds and then go off.  When parking on steep grades, pull up the Electric parking brake switch twice (once more after the operation is completed once).The maximum effect of the parking brake will be obtained.  If the parking brake does not hold the vehicle stationary after the foot brake is released,contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
BK0252700US.bo
ok 48 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Steering wheel height and reach adjustment 5-50 Features and controls
5
Warning light (yellow) Warning display If there is a malfunction in the system, the warning light will come on. In addition, thewarning display appears on the informationscreen in the multi-information display.
Under normal conditions, the warning light only comes on when the ignition switch is turned to the “ON” position or the operation mode is put in ON and goes off a few secondslater.
N00511501241
To adjust the steering wheel to the desiredposition, move the lever upward or down-
 If the acceleration of the vehicle seems abnormally slow after the vehicle has been parked with the Electric parking brake applied in cold weather, stop the vehicle in a safe place, then apply and release the Elec-tric parking brake. If the vehicle acceleration is still slow, contact the nearest authorized Mitsubishi Motors dealer or a repair facilityof your choice.NOTE
 When the ignition switch or the operation mode is other than ON, the parking brake cannot be released.  If the Electric parking brake does not auto- matically release, it may be released by man-ual operation.  When the selector lever is other than “P” (PARK) position, if you try to release the Electric parking brake without depressing the brake pedal, the warning display willappear.CAUTION
 If you start driving without releasing the Electric parking brake, the warning display will appear.  If the driver’s foot contacts the accelerator pedal in the condition that the Electric park-ing brake can release by an automatic opera- tion, the Electric parking brake may be released automatically.
Warning light/display

NOTE
CAUTION When the Electric parking brake warning light (yellow) does not illuminate or remains illuminated when the ignition switch isturned to the “ON” position or the operation mode is put in ON, or comes on while driv- ing, the Electric parking brake may not beapplied or released. Immediately contact the nearest authorized Mitsubishi Motors dealer or a repair facilityof your choice. For details, refer to “Electric parking brake warning light (yellow)” on page 5-181.When parking your vehicle while the Elec- tric parking brake warning light (yellow) is illuminated, park the vehicle on level andstable ground, move the selector lever to the “P” (PARK) position and place chocks, blocks, stones behind and in front of the tiresto prevent the vehicle from moving.
Steering wheel height and reach adjustment
BK0252700US.bo
ok 50 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Outside rearview mirrors 5-54 Features and controls
5
N00549101196
The outside rearview mirrors can be adjusted when the ignition switch is in the “ON” or“ACC” position or the operation mode is put in ON or ACC. Push the switch (A) to the same side as themirror you wish to adjust. Press the switch (B) to adjust the mirror posi- tion.
N00549201171
The outside mirror can be retracted towards the side window to prevent damage whenparking in tight locations. Push the mirror towards the back of the vehi- cle with your hand to retract it in. Whenextending the mirror, pull it out towards the front of the vehicle until it clicks to lock in place.
With the ignition switch in the “ON” or “ACC” position or the
operation mode in ON
or ACC, push the mirror retractor switch toretract the mirrors. Push it again to extend themirrors to their original positions. After placing the ignition switch in the “OFF” position or the operation mode inOFF, it is possible to retract and extend the mirrors using the mirror retractor switch for approximately 30 seconds.
To adjust the mirror position L- Left outside mirror adjustment R- Right outside mirror adjustment 1- Up 2- Down 3- RightType 1 Type 2
4- Left
NOTE
 After completing the adjustment, return the switch (A) to the center position.
To retract the mirror Except for vehicles equipped with the mirror retractor switch
For vehicles equipped with the mirrorretractor switchRetracting and extending the mir- rors using the mirror retractor switch
BK0252700US.bo
ok 54 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Outside rearview mirrors
Features and controls 5-55
5
[For vehicles equipped with the keyless entry system]The mirrors automatically retract or extend when the doors are locked or unlocked using the key of the keyless entry system.Refer to “Keyless entry system” on page 5-6.[For vehicles equipped with the F.A.S.T.-key] The mirrors automatically retract or extend when the doors are locked or unlocked usingthe key or the F.A.S.T.-key. Refer to “Keyless entry system” on page 5-28 or “To operate using the F.A.S.T.-key” onpage 5-14.
CAUTION It is possible to retract and extend the mirrors by hand. After retracting a mirror using the mirror retractor switch, however, you should extend it by using the switch again, not by hand. If you extended the mirror by handafter retracting it using the switch, it would not properly lock in position. As a result, it could move because of the wind or vibrationwhile you are driving, taking away your rear- ward visibility.NOTE
 Be careful not to get your hands trapped while a mirror is moving.  If you move a mirror by hand or it moves after hitting a person or object, you may not be able to return it to its original position using the mirror retractor
switch. If this hap-
pens, push the mirror retractor switch to place the mirror in its retracted position and then push the switch again to return the mir-ror to its original position.  When freezing has occurred and mirrors fail to operate as intended, please refrain from repeated pushing of the retractor switch as this action can result in burn-out of the mir- ror motor circuits.
Retracting and extending the mir- rors without using the mirror retractor switch (automatic exten- sion function)
NOTE
 Functions can be modified as stated below. Please consult an authorized Mitsubishi Motors dealer. On vehicles equipped with the Smartphone Link Display Audio, screen operations can be used to make the adjustment. Refer to theseparate owner’s manual for details.
• Automatically extend when the ignition switch is turned to the “ON” position or the operation mode is put in ON with the driver’s door closed, and automatically retract when the ignition switch is turned tothe “OFF” position or the operation mode is put in OFF with the driver’s door opened. • Automatically extend when the vehicle speed reaches approximately 19 mph (30 km/h). • Deactivate the automatic extension func- tion.
 The outside rearview mirrors can be retracted or extended by the following opera-tions, even if changing to the any of above. After pressing the LOCK button on the key to lock the doors and liftgate, if the LOCKbutton is pressed again
twice in a row within
approximately 30 seconds, the outside rear- view mirrors will retract.After pressing the UN
LOCK button on the
key to unlock the doors and liftgate, if the UNLOCK button is pressed again twice in arow within approximately 30 seconds, the outside rearview mirrors will extend again.NOTE
BK0252700US.bo
ok 55 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Starting the engine
Features and controls 5-59
5
[Except for vehicles equipped with the F. A . S . T. - k e y ]  Do not operate the starter motor continu- ously for longer than
15 seconds as this
could run the battery down or damage the starter motor. If the engine does not start, turn the ignition switch back to the“OFF”, wait a few seconds, and then tryagain. Trying repeatedly with the engine or starter motor still
turning will damage
the starter mechanism. If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” (on page 8-2)for instructions.  A longer warm up period will only con- sume extra fuel. The engine is warmed upenough for driving when the bar graph of engine coolant temperature display starts to move or the low coolant temperatureindicator goes out. Refer to “Engine cool- ant temperature display” on page 5-147.
This model is equipped with an electronically controlled fuel injection system. This is a sys- tem that automatically controls fuel injection.There is usually no need to depress the accel- erator pedal when starting the engine. The starter should not be run for more than15 seconds at a time. To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened.
2. Insert the ignition key. 3. Press and hold the brake pedal down firmly with your right foot. 4. Make sure the selector lever is in the “P”(PARK) position. 5. Turn the ignition switch to the “ON” posi- tion and make certain that all warninglights are functioning properly before starting the engine. 6. Turn the ignition switch to the “START”position without pressing the acceleratorpedal. Release the ignition switch when the engine starts.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off.
Tips for starting
WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car- bon monoxide gas, which is odorless and extremely poisonous, could build up andcause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high revolutions or drive at high speeds until the engine has hada chance to warm up. Release the ignition switch as soon as the engine starts. Otherwise, the starter motor will be damaged
Starting the engine
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
BK0252700US.bo
ok 59 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT)
Features and controls 5-63
5
N00560401105
When the ignition switch is turned to the “ON” position or the operation mode is put inON, the selector lever position is shown on the multi-information display.
N00582900044
If the ambient temperature is low, the selector lever position display on the multi-informa- tion display may blink when the selector lever is placed in the “D” (DRIVE), or “R”(REVERSE) position immediately after the engine has been started. This indicates that the transmission requires warming up. Whilethe display is blinking, the vehicle will not move, because the transmission keeps disen- gaging until the warm up is completed even ifthe selector lever is placed in the “D” or “R”position. When the selector lever position display is blinking, perform the following procedure: 1. Depress the brake pedal with your right foot and place the selector lever in the“N” (NEUTRAL) position for several seconds. 2. Keep depressing the brake pedal and thenplace the selector lever in the “D” (DRIVE), or “R” (REVERSE) position. If the selector lever position display stopsblinking, the warm up is completed and the transmission will function normally. 3. If the display is sti
ll blinking, repeat steps
1 and 2 above.
N00560501106

or When the warning display or the warn- ing display appears on the information screen in the multi-information display while you are driving, there could be a malfunction inthe CVT.
Selector lever position display When the selector lever position display blinks
WA R N I N G To avoid unintended vehicle movement, keep brake pedal applied with your rightfoot and do not depress the accelerator pedal, while the selector lever position dis- play is blinking.
NOTE
 While the selector lever position display is blinking, a buzzer will sound intermittently.
Warning display
BK0252700US.bo
ok 63 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Continuously variable transmission (CVT)
Features and controls 5-65
5
N00560701108
Whether the vehicle is stationary or in motion, sports mode is selected by gentlypushing the selector lever from the “D” (DRIVE) position into sports mode gate (A). To return to “D” (DRIVE) operation, gentlypush the selector lever back into the main gate (B). In sports mode, gear shifts can be made rap- idly simply by moving the selector lever backward and forward or using the sportronicsteering wheel paddle shifter at the steering wheel (for vehicles equipped with the spor- tronic steering wheel paddle shifter). In con-trast to a M/T, the sports mode allows gear shifts with the accelerator pedal depressed.Sports mode
NOTE
 You can shift into sports mode with the spor- tronic steering wheel paddle shifter when theselector lever is in the main gate (B) as well. Also, you can return to the “D” (DRIVE) operation in any of following ways. When returning to “D” (DRIVE) operation, the selector lever position display willchange to “D” (DRIVE) position. • Pull the sportronic steering wheel paddle shifter on the (SHIFT UP) side for lon- ger than 2 seconds. • Stop the vehicle.
• Push the selector lever from the “D” (DRIVE) position into the manual gate (A) and push the selector lever back into the main gate (B).
1-
(SHIFT UP) Transmission shifts up once by eachoperation.
2-
(SHIFT DOWN) Transmission shifts down once by eachoperation.CAUTION Upward shifts do not take place automati- cally in sports mode. The driver must make upward shifts in accordance with prevailing road conditions, making sure the engine rev-olutions remains below the red zone on the tachometer.NOTE
 Repeated continuous operation of the selec- tor lever or the sportronic steering wheel paddle shifter will continuously switch shift position. Shift ranges may not change when the lateral paddle shifters are operated at the same time.NOTE
 Shift ranges can only be selected in a for- ward direction from 1st to 8th. To reverse orpark the vehicle, move the selector lever to the “R” (REVERSE) or “P” (PARK) posi- tion.  To maintain good running performance, the transmission may refuse to perform anupshift when the selector lever or the spor- tronic steering wheel paddle shifter on the “ (SHIFT UP)” side is pulled at certain vehicle speeds. Also, to prevent over-revving of the engine, the transmission may refuse toperform a downshift when the selector lever or the sportronic steering wheel paddle shifter on the “ (SHIFT DOWN)” side is pulled at certain vehicle speeds. When this happens, a buzzer sounds to indicate that adownshift is not going to take place.CAUTION
BK0252700US.bo
ok 65 ページ ２０１７年１０月４日　水曜日　午後４時５４分

S-AWC (Super-All Wheel Control) (if so equipped)
Features and controls 5-69
5
N00583100043
The currently selected drive mode is dis- played on the multi-information display. In addition, when the drive mode is changed, the selected mode appears on the interruptdisplay screen of the information screen in the multi-information display. The drive mode display will appear on theinformation screen for a few seconds, and then the original screen will return.
N00542501087
The S-AWC operation status can be displayed on the information screen in the multi-infor-mation display. To display the status, press the multi-informa- tion meter switch to change the informationscreen. Refer to “Information screen (With the igni- tion switch or the operation mode in ON)” onpage 5-145. The S-AWC operation status is displayed.
 Driving on dry, paved roads in “GRAVEL” and “SNOW” mode causes increased fuel consumption and noise and vibration.NOTE
 The drive mode can be switched while driv- ing or stopped.
S-AWC drive mode display

Example: “AUTO” mode is selected.
CAUTION
CAUTION If the selected drive mode indicator begins blinking, the drive mode will automatically switch to protect the drive-system compo- nents. A warning will also be displayed in the information screen in the multi-informa-tion display. Reduce speed and, if the indicator stops blinking, you may resume normal driving. If the drive mode indicator is blinking, a problem has occurred with the S-AWC. A warning will also be displayed in the infor-mation screen in the multi-information dis- play. Have your vehicle inspected immediately by an authorized Mitsubishi Motors dealer. Make sure that all four tires are the same specified size, type, and brand, and have no significant difference in the amount of wear for all four wheels. Otherwise, the S-AWCsystem may not work properly may be dis- played.
S-AWC operation display

Display example

Yaw control function display The amount of the yaw
moment is displayed
as a bar graph. A, D- Clockwise yaw moment about the
vehicle’s center of gravity
