Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-95
5
When the accelerator pedal is depressed while driving with the ACC control working,you can accelerate the vehicle beyond the presently set speed.
When the vehicle speed reaches your desired speed, push down and release the “SET -” switch and release the accelerator pedal; the new speed is then set in the system.
N00581600044

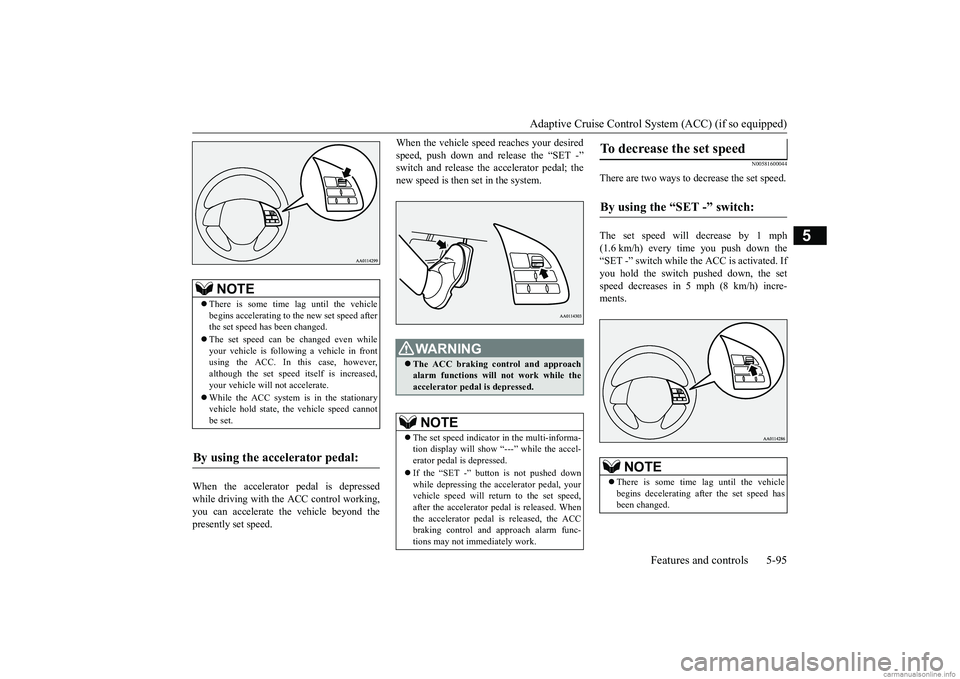

There are two ways to decrease the set speed. The set speed will decrease by 1 mph (1.6 km/h) every time you push down the “SET -” switch while the ACC is activated. Ifyou hold the switch pushed down, the setspeed decreases in 5 mph (8 km/h) incre- ments.
NOTE
 There is some time lag until the vehicle begins accelerating to the new set speed after the set speed has been changed.  The set speed can be changed even while your vehicle is following a vehicle in frontusing the ACC. In this case, however, although the set speed itself is increased, your vehicle will not accelerate.  While the ACC system is in the stationary vehicle hold state, the vehicle speed cannotbe set.
By using the accelerator pedal:

WA R N I N G The ACC braking control and approach alarm functions will not work while the accelerator pedal is depressed.NOTE
 The set speed indicator in the multi-informa- tion display will show “---” while the accel- erator pedal is depressed.  If the “SET -” button is not pushed down while depressing the accelerator pedal, yourvehicle speed will return to the set speed, after the accelerator pedal is released. When the accelerator pedal is released, the ACCbraking control and approach alarm func- tions may not immediately work.
To decrease the set speed

By using the “SET -” switch:

NOTE
 There is some time lag until the vehicle begins decelerating after the set speed has been changed.
BK0252700US.bo
ok 95 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped) 5-96 Features and controls
5

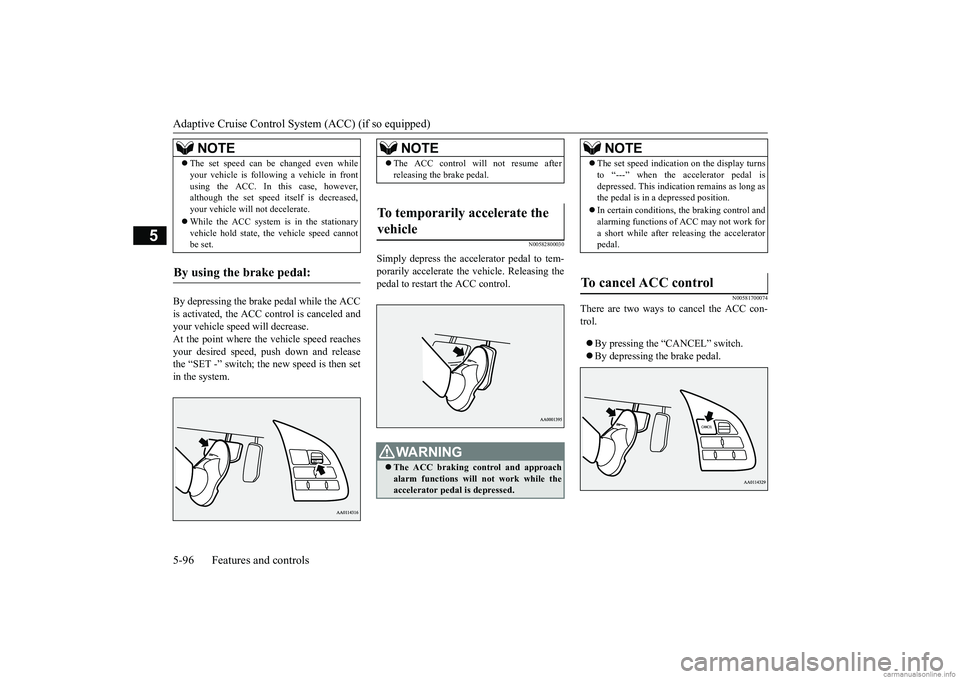

By depressing the brake pedal while the ACC is activated, the ACC control is canceled and your vehicle speed will decrease.At the point where the vehicle speed reaches your desired speed, push down and release the “SET -” switch; the new speed is then setin the system.
N00582800030
Simply depress the accelerator pedal to tem-porarily accelerate the vehicle. Releasing thepedal to restart the ACC control.
N00581700074
There are two ways to cancel the ACC con-trol.  By pressing the “CANCEL” switch.  By depressing the brake pedal.
The set speed can be changed even while your vehicle is following a vehicle in front using the ACC. In this case, however, although the set speed itself is decreased, your vehicle will not decelerate.  While the ACC system is in the stationary vehicle hold state, the vehicle speed cannotbe set.
By using the brake pedal:

NOTE
NOTE
 The ACC control will not resume after releasing the brake pedal.
To temporarily accelerate the vehicle

WA R N I N G The ACC braking control and approach alarm functions will not work while the accelerator pedal is depressed.
NOTE
 The set speed indication on the display turns to “---” when the accelerator pedal is depressed. This indication remains as long as the pedal is in a depressed position.  In certain conditions, the braking control and alarming functions of ACC may not work for a short while after releasing the acceleratorpedal.
To cancel ACC control

BK0252700US.bo
ok 96 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-97
5
When the ACC is canceled, the “SET” indi- cator goes off and the following distance indi-cator turns to the standby display. The front vehicle indicator also turns to the standby dis- play when a front vehicle is detected.
In any of the situations listed below, the ACC control is automatically canceled, a buzzer sounds and a message is shown in informa- tion screen of the multi-information display. If the ACC system is in the stationary vehicle hold state, it will also be automatically can- celed and the Electric parking brake will operate.  When the ASC is turned off.  While ABS, ASC or TCL is activated.  When the selector lever is in a position other than “D” (DRIVE).  When the parking brake is applied.  When the driver’s seat belt is unfastened.  When the driver’s door is opened.  When the ACC no longer detects any vehicle in front while it is in the stationaryvehicle hold state.  When the vehicle is in the stationary vehi- cle hold state for 10 minutes or more.
 When the system detects the vehicle mov- ing down a slope while the vehicle is in the stationary vehicle hold state.
If the ACC system judges that the stationary vehicle hold state can no longer be main-tained on a steep slope after your vehicle stops when the vehicle in front stops, the sta- tionary vehicle hold state is cancelled and awarning appears on the information screen of the multi-information display. Depress the brake pedal. If the detection performance of the ACC sys- tem has degraded, such as in the following situations, or if the ACC system judges that it can temporarily not operate, the ACC systemoperation will be cancelled automatically, and then a buzzer will sound and a message will appear to inform the driver. This can occur when
NOTE
 You can also cancel the ACC control by pressing the ACC ON/OFF switch. If this switch is pressed while the ACC is ON, the ACC will be turned off.  If you press the “CANCEL” switch or ACC ON/OFF switch to cancel the stationary vehicle hold state, the vehicle will startcreeping.
BK0252700US.bo
ok 97 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped) 5-98 Features and controls
5
 The brake system is overheating due to continuous brake control on long down- hill slope.
This can occur when  In adverse weather conditions, such as rain, snow or sand storms, etc. Foreign objects, such as dirt, snow or ice, adhere to the surface of the sensor.  A front vehicle or an oncoming vehicle is splashing water, snow or dirt.  Driving on a nonbusy road with a few vehicles and obstacles in front.
If the display keeps showing the message, there is a possibility that the ACC has a mal- function. Contact your authorized Mitsubishi Motors dealer. When the ACC system detects an abnormal- ity in the system, the ACC system will beturned off, a buzzer will sound and a message will be displayed in the multi-information display.If the message remains after the operation mode is put in OFF, and then turned back to
ON, contact your authorized Mitsubishi Motors dealer.
N00581800062
After the ACC control has been canceled withthe ACC turned on, the ACC control can be resumed by pushing up and releasing the “RES +” switch. While the ACC system is in the stationary vehicle hold state, if it is possible to resume following the vehicle in front because it hasstarted moving, “ACC READY TO RESUME” will appear on the meter. To start
moving again, push up the “RES +” switch or depress the accelerator pedal.
To resume the control

NOTE
 When any of the following conditions are present, the ACC control cannot be resumed. • When your vehicle speed is more than 110 mph (180 km/h). • When your vehicle is driven at speeds between approximately 0 to 20 mph (0 to 30 km/h) and the ACC is not detecting avehicle in front. • When ASC is in the OFF position.• While ABS, ASC or TCL is activated. • When the selector lever is in positions other than “D” (DRIVE). • While the brake pedal is depressed. • While the parking brake is applied.• When the ACC system has judged that the performance for detecting a front vehicle isdegraded. • When an abnormality in the ACC system has been detected. • While the brake pedal is depressed, the vehicle will not start moving again even if the driver operates the switches.
BK0252700US.bo
ok 98 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Adaptive Cruise Control System (ACC) (if so equipped)
Features and controls 5-99
5
N00581900047

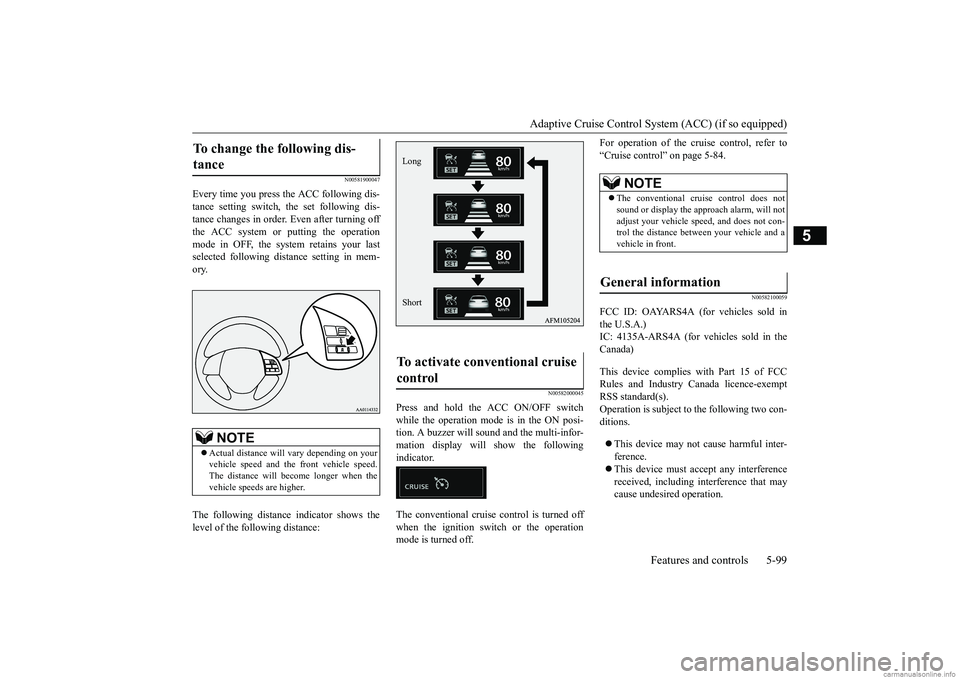

Every time you press the ACC following dis- tance setting switch, the set following dis- tance changes in order. Even after turning off the ACC system or putting the operationmode in OFF, the system retains your last selected following distance setting in mem- ory. The following distance indicator shows the level of the following distance:
N00582000045
Press and hold the ACC ON/OFF switch while the operation mode is in the ON posi-tion. A buzzer will sound and the multi-infor- mation display will show the following indicator. The conventional cruise control is turned off when the ignition switch or the operationmode is turned off.
For operation of the cruise control, refer to “Cruise control” on page 5-84.
N00582100059
FCC ID: OAYARS4A (for vehicles sold in the U.S.A.) IC: 4135A-ARS4A (for vehicles sold in theCanada) This device complies
with Part 15 of FCC
Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to
the following two con-
ditions.  This device may not cause harmful inter- ference. This device must accept any interference received, including interference that may cause undesired operation.
To change the following dis- tance
NOTE
 Actual distance will vary depending on your vehicle speed and the front vehicle speed. The distance will become longer when thevehicle speeds are higher.
To activate conventional cruise control

Long Short
NOTE
 The conventional cruise control does not sound or display the approach alarm, will not adjust your vehicle speed, and does not con-trol the distance between your vehicle and a vehicle in front.
General information

BK0252700US.bo
ok 99 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped) Features and controls 5-101
5
N00577400054
If the system judges th
at there is a risk of
your vehicle colliding with a vehicle or the pedestrian in front, this function warns you of the potential hazard with visual and audiblealarms. When this function is triggered, a buzzer sounds and, at the same time, a “BRAKE”message appears on the information screen ofthe multi-information display. The FCM will also prepare to provide quick brake response and greater brake force whenyou apply the brakes. The forward collision warning function oper- ates at the following vehicle speeds:  Against a vehicle: Approximately 10 to 112 mph (15 to 180 km/h).  Against a pedestrian: Approximately 5 to 40 mph (7 to 65 km/h).
N00577700086
When the FCM judges that a collision withthe vehicle or the pedestrian straight-ahead isimminent, the FCM will automatically apply moderate braking to warn the driver to apply the brakes immediately.If the FCM judges that the collision is highly unavoidable, it will automatically apply emergency braking to reduce the severity ofthe collision and, if possible, to avoid the col-lision. While the FCM applies emergency braking, a buzzer sounds and “BRAKE!” message isdisplayed in the information screen of the multi-information display. Once the FCM braking has activated, the fol-lowing message will appear on the informa- tion screen of the multi-information display. The FCM braking function operates at the following vehicle speeds:  Against a vehicle: Approximately 3 to 112 mph (5 to 180 km/h).  Against a pedestrian: Approximately 3 to 40 mph (5 to 65 km/h).

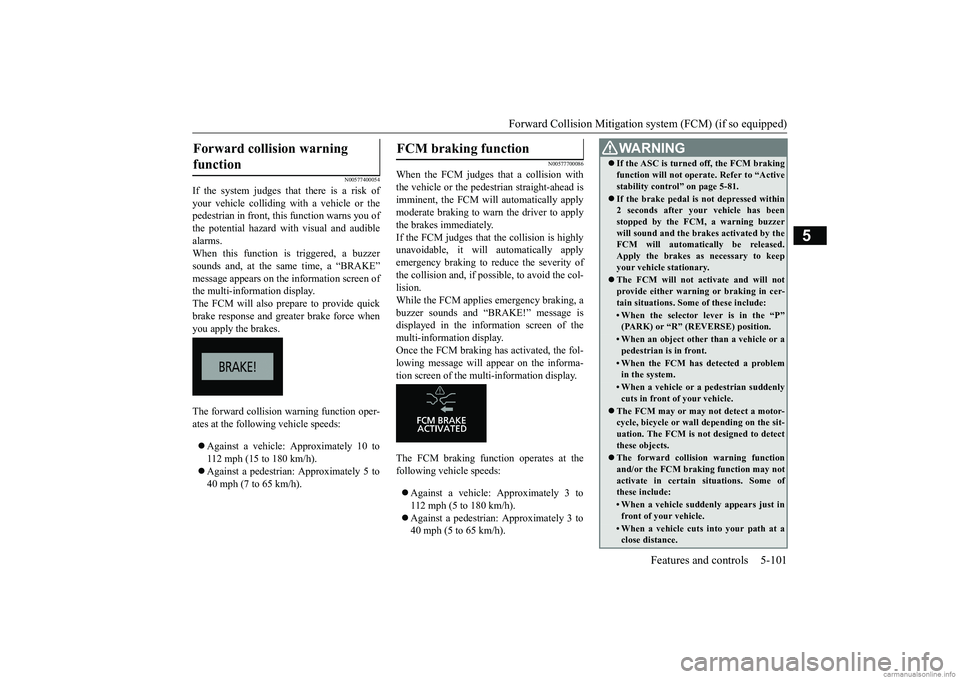

Forward collision warning function

FCM braking function

WA R N I N G If the ASC is turned off, the FCM braking function will not operate. Refer to “Active stability control” on page 5-81. If the brake pedal is not depressed within 2 seconds after your vehicle has been stopped by the FCM, a warning buzzer will sound and the brakes activated by theFCM will automatically be released. Apply the brakes as necessary to keep your vehicle stationary. The FCM will not activate and will not provide either warning or braking in cer-tain situations. Some of these include:• When the selector lever is in the “P”(PARK) or “R” (REVERSE) position.• When an object other than a vehicle or apedestrian is in front.• When the FCM has detected a problemin the system.• When a vehicle or a pedestrian suddenlycuts in front of your vehicle.
 The FCM may or may not detect a motor- cycle, bicycle or wall depending on the sit- uation. The FCM is not designed to detect these objects. The forward collision warning function and/or the FCM braking function may not activate in certain situations. Some of these include:• When a vehicle suddenly appears just infront of your vehicle.• When a vehicle cuts into your path at aclose distance.
BK0252700US.book
101 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-104 Features and controls
5
N00577800074

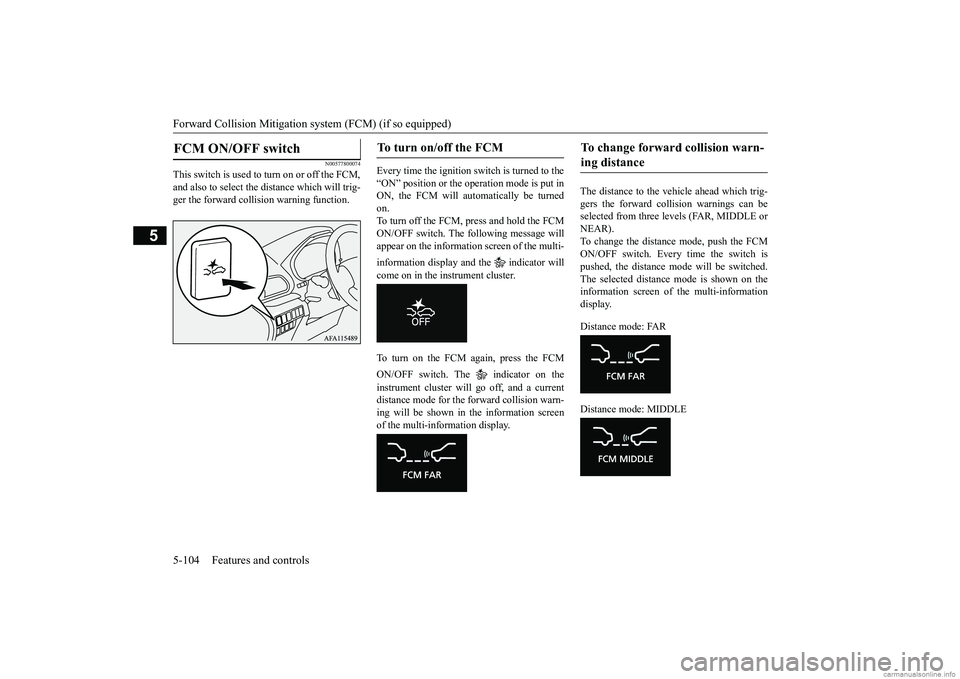

This switch is used to turn on or off the FCM, and also to select the
distance which will trig-
ger the forward collision warning function.
Every time the ignition switch is turned to the “ON” position or the operation mode is put in ON, the FCM will automatically be turnedon. To turn off the FCM, press and hold the FCM ON/OFF switch. The following message willappear on the information screen of the multi- information display and the indicator will come on in the instrument cluster. To turn on the FCM again, press the FCM ON/OFF switch. The indicator on the instrument cluster will go off, and a current distance mode for the fo
rward collision warn-
ing will be shown in the information screenof the multi-information display.
The distance to the vehicle ahead which trig- gers the forward collision warnings can be selected from three levels (FAR, MIDDLE orNEAR). To change the distance mode, push the FCM ON/OFF switch. Every time the switch ispushed, the distance mode will be switched.The selected distance mode is shown on the information screen of the multi-information display. Distance mode: FAR Distance mode: MIDDLE
FCM ON/OFF switch

To turn on/off the FCM

To change forward collision warn- ing distance

BK0252700US.book
104 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped) Features and controls 5-105
5
Distance mode: NEAR
N00594800024
If there is a malfunction in the system, a warning will appear on the information screen of the multi-information displaydepending on the situation.
N00594900025
When the FCM system determines that it can-not detect objects properly, the FCM willbecome inoperative. This can occur when:
 Foreign objects, such as dirt, snow, ice, mist or dew condensation adhere to the windshield of the sensor portion.  In adverse weather
conditions, such as
rain, snow, sand storms, etc.  A front vehicle or an oncoming vehicle is splashing water, snow or dirt. Driving on a nonbusy road with a few vehicles and obstacles in front.
The following message will appear on the information screen of the multi-information display and the indicator will come on in the instrument cluster. or When the sensor performance returns, the FCM functions will resume operation. If the message continues showing, there is a possibility that the sensor has a malfunction.Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595100024
If the system becomes temporarily unavail-able for some reason, the following messagewill appear on the information screen of the multi-information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the system.
NOTE
 Actual distance which triggers the forward collision warnings will vary depending on your vehicle speed and the front vehiclespeed. The distance will become longer when the vehicle speeds are higher.  The distance which will trigger the FCM braking function cannot be adjusted.
System problem warning

When the camera and radar can- not detect accurately

NOTE
 The “DRIVER ASSISTANCE CAMERA BLOCKED” message may temporarily appear on the information screen when the sensor cannot detect a vehicle, a pedestrian or an object within range. This is not a mal-function. When a vehicle or an object comes within range, the FCM function will resume and the message will go off.
When the system cannot operate temporarily

BK0252700US.book
105 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Forward Collision Mitigation sy
stem (FCM) (if so equipped)
5-106 Features and controls
5
N00595200025
If the system becomes temporarily unavail- able due to the high or
low temperature of the
sensor, the following message will appear on the information screen of the multi-informa- tion display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. After the temperature of the sensor has been in range, the system will automatically returnto operation. If the message continues showing, there is a possibility that the FCM has a malfunction. Contact an authorized Mitsubishi Motorsdealer for inspection of the sensor.
N00595300026
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear on the information screen of the multi- information display, the indicator will come on in the instrument cluster, and the FCM will automatically be turned off. If the message remains even after the ignition switch is turned to the “OFF” position and then turned back to “ON” position or the operation mode is put in OFF, and then turnedback to “ON”, please contact your authorized Mitsubishi Motors dealer. If the display keeps showing the message, there is a possibility that the FCM has a mal-function. Contact an authorized Mitsubishi Motors dealer.
N00593400052
The sensor (A) is located inside the wind- shield and front bumper
as shown in the illus-
tration.The sensor is shared in the following sys- tems:  Forward Collision Mitigation system (FCM)
*
 Lane Departure Warning (LDW)
*
 Automatic High Beam (AHB)
*
 Adaptive Cruise Control System (ACC)
*
* : if so equipped
Sensor is too hot or cold

FCM deactivation due to fault

NOTE
If the sensor or its surrounding area becomes extremely hot (after prolonged exposure to direct sunlight, for example), the “FCM SERVICE REQUIRED” message may appear.After the temperature of the sensor or its sur- rounding area has been in range, if the mes- sage remains even after restarting the engine,please contact an authorized Mitsubishi Motors dealer.
Handling of the sensor

BK0252700US.book
106 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-110 Features and controls
5
ON and “ON” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster comes on and the BSW enters the standby state.When “OFF” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster goes off and the BSWturns off. To turn the BSW ON/OFF, follow the proce- dure below. 1. Switch to the function setting screen. Refer to “Multi-information displayswitches” on page 5-142. Refer to “Changing the function settings” on page 5-152. 2. Press the switch or switch several times to switch to the “BSW” screen. Then, press the switch to the setting selection screen. 3. Press the switch or switch to select “ON” or “OFF”, and then press the
switch to confirm the setting.
Indicator light
If you turn the BSW ON/
OFF, the Rear Cross
Traffic Alert (RCTA) also turns ON/OFF at the same time.
When the BSW indicator light in the instru- ment cluster is on, if a vehicle is approaching your vehicle in the detection area, the Blind Spot Warning light in the outside rearviewmirror illuminates. If the turn signal lever is operated to the side where the Blind Spot Warning light is illumi-nated, the Blind Spot Warning light will blinkand the system will beep three times to alert the driver.
NOTE
 When the operation mode is set to OFF, the selected condition just before setting to OFFis retained.  The BSW operates when all of the following conditions are met. • The ignition switch is turned to the “ON” position or the operation mode is put in ON. • The selector lever is in positions other than “P” (PARK) and “R” (REVERSE). • The speed of your vehicle is approximately 6 mph (10 km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
 The Blind Spot Warning light in the outside rearview mirror may come on or blink in the following conditions. • When driving very near the guardrail or the concrete wall.
