steering MITSUBISHI ECLIPSE CROSS 2018 (in English) Workshop Manual

For cold and snowy weather 9-22 Vehicle care and maintenance
9
N00941800093
Check the following parts for damage and grease leaks:  Ball joint boots of the suspension and steering linkage  Bellows on both ends of the drive shaft
N00942201118
The best way to keep carbon monoxide gas from entering inside your vehicle is to have the engine exhaust system properly serviced. Have a competent mechanic inspect the com-plete exhaust system and nearby body areas for broken, damaged, deteriorated, or mispo- sitioned parts if you notice any of the follow-ing:  A change in the sound of the exhaust sys- tem  The smell of exhaust fumes inside the vehicle
 The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised for lubrication, oil changes, or required service. Any open seams or looseconnections could let dangerous exhaust fumes seep into the luggage and passenger compartments.  Check for holes or exhaust gas leaks caused by corrosion or damage. Check the joints and connections for looseness or exhaust gas leaks.  Check the rubber hangers and brackets for damage.
N00942501124
The hood lock release mechanism and hood safety catch should be checked, cleaned, and oiled when needed for easy movement and toprevent rust and wear. Use Multipurpose Grease NLGI Grade 2 spar
ingly for all sliding
parts of the hood latch and release lever.Work the grease into the hood lock mecha-
nism until all the movable surfaces are cov- ered. Also, put a light coat of the same grease on the safety catch wherever moving parts touch.
N00942601141
The ventilation slots in front of the wind- shield should be brushed clear after a heavy snowfall so that the operation of the heatingand ventilation systems will not be impaired. To prevent freezing of the weatherstripping on the doors, engine hood, etc., they should be treated with silicone grease. It is a good idea to carry a shovel or a short- handled spade in the vehicle during the win- ter so that you can clear away snow if you get stranded. A small hand-brush for sweeping
Ball joint, steering linkage seals, drive shaft boots Exhaust system
WA R N I N G Carbon monoxide gas from your vehicle’s exhaust is poisonous. Breathing these fumes can cause unconsciousness or death.
Check for any of the following conditions: Hood lock release mechanism and safety catch
For cold and snowy weather Ventilation slots Weatherstripping Additional equipment (For regions where snow is encoun-tered)
BK0252700US.bo
ok 22 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Fuses
Vehicle care and maintenance 9-25
9
* : Fusible link  Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications. The table above shows the main equip- ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A, 25 A or 30 A fuses. If one of these fusesburns out, substitute with the following fuse.7.5 A: 10 A spare fuse 25 A: 20 A spare fuse 30 A: 30 A audio system amplifier fuseWhen using a substitute fuse, replace with a fuse of the correct capacity as soon as possi- ble.
No.
Sym- bol
Electrical system
Capac-ity
1
Electric parking
brake
30 A
*
2
Electric parking
brake
30 A
*
3
Anti-lock braking
system
40 A
*
4
Anti-lock braking
system
30 A
*
5 Power seat 30 A
*
6 Heated seats 30 A 7Starter30 A
*
8
Heated steering
wheel
15 A
9 Headlight washer 20 A 10 Security horn 20 A 11 Automatic transaxle 20 A 12 Horn 10 A 13 Sunshade 20 A14 Front fog lights 15 A 15
Daytime running
lights
10 A
16 Air conditioner 10 A
17 Engine control unit 7.5 A 18 Alternator 7.5 A 19 Radiator fan motor 40 A
*
20
Audio system ampli-
fier
30 A
21 — — — 22 IOD IOD 30 A 23
Air conditioning condenser fan motor
30 A
*
24
Battery current sen-
sor
7.5 A
25
/
Electric parking brake/Adaptive Cruise Control
(ACC)
7.5 A
26
Headlight (high beam) (right)
10 A
27
Headlight (high beam) (left)
10 A
28 Turbo actuator 20 A 29 ENG/POWER 20 A 30 Fuel pump 15 A31 Ignition coil 10 ANo.
Sym- bol
Electrical system
Capac-ity
32 Injector 20 A 33 ETV 15 A #1 — Spare fuse 10 A #2 — Spare fuse 15 A#3 — Spare fuse 20 ANo.
Sym- bol
Electrical system
Capac-ity
BK0252700US.bo
ok 25 ページ ２０１７年１０月４日　水曜日　午後４時５４分

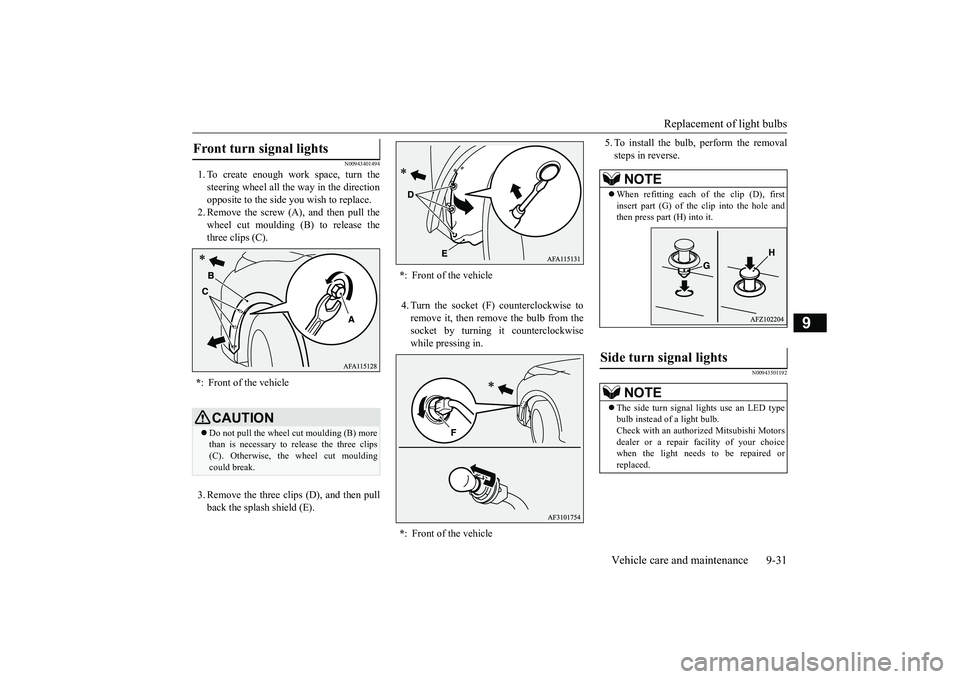

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943401494
1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) to release thethree clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. Turn the socket (F) counterclockwise to remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
5. To install the bulb, perform the removal steps in reverse.
N00943501192
Front turn signal lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (G) of the clip into the hole andthen press part (H) into it.
Side turn signal lights
NOTE
 The side turn signal lights use an LED type bulb instead of a light bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired or replaced.
BK0252700US.bo
ok 31 ページ ２０１７年１０月４日　水曜日　午後４時５４分

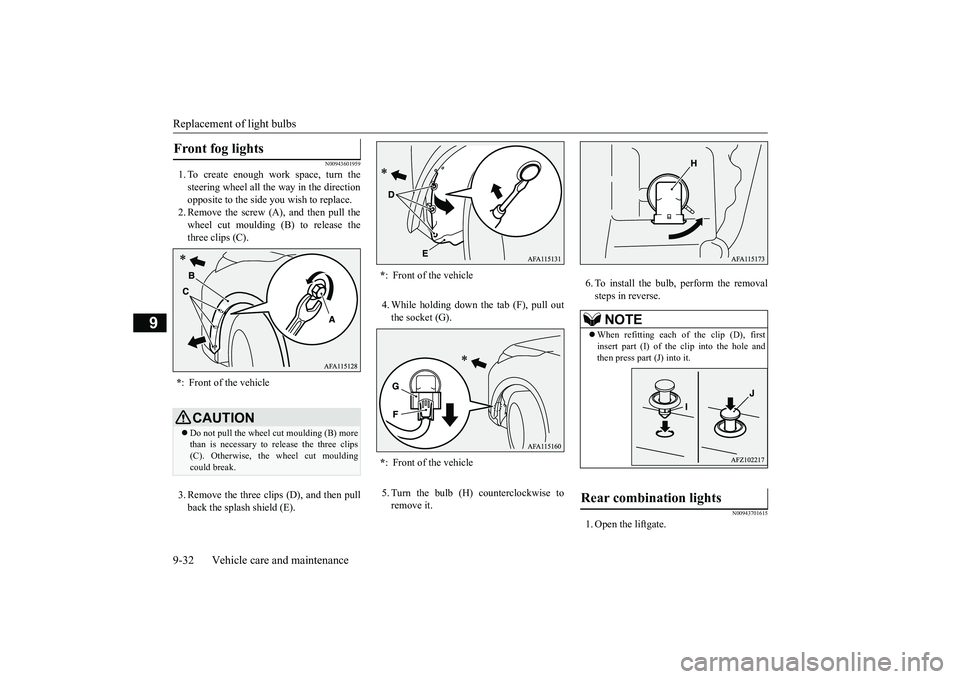

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00943601959
1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) to release thethree clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. While holding down the tab (F), pull out the socket (G). 5. Turn the bulb (H) counterclockwise to remove it.
6. To install the bulb, perform the removal steps in reverse.
N00943701615
1. Open the liftgate.
Front fog lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (I) of the clip into the hole and then press part (J) into it.
Rear combination lights
BK0252700US.bo
ok 32 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index
12-1
12
Numerics
12 V power outlets
............................
5-208
4-wheel drive operation
.......................
5-70
A
Accessory (installation)
.......................
3-12
Active stability control (ASC)
..............
5-81
Adaptive Cruise Control System (ACC) 5-88 Air cleaner filter
...................
................
9-8
Air conditioning
Automatic air conditioning
................
7-6
Dual-zone automatic climate control airconditioning
................
.................
7-15
Important air conditioning operating tips
..
7-2
Air purifier
....................
.....................
7-23
Airbag
.......................
........................
4-30
All-wheel drive operation
....................
5-70
Aluminum wheels
...............................
9-39
Anti-lock braking system
.....................
5-78
Arm rest
.....................
...................
4-6
, 4-8
Assist grip
.....................
...................
5-222
Automatic air conditioning
....................
7-6
Automatic High Beam (AHB)
............
5-191
B
Back-up light
Bulb location and capacity
..............
9-28
Replacement
...................
...............
9-33
Ball joint, steering linkage seals, drive shaft boots
.........................
......................
9-22
Battery
........................
......................
9-10
Charging system warning light
.......
5-183
Checking battery electrolyte level
....
9-10
Disconnection and connection
.........
9-11
During cold weather
.......................
9-11
Specification
...................
...............
11-6
Blind Spot Warning (BSW)
................
5-108
Bottle holders
...................
.................
5-220
Brake
Fluid
....................
...................
9-9
, 11-7
Brake assist
......................
..................
5-78
Braking
Anti-lock braking system
................
5-78
Braking
.......................
....................
6-5
Hose
.......................
......................
9-21
Pad wear alarm
...............
...............
5-74
Parking brake
..................
...............
5-46
Pedal
.......................
......................
5-73
Pedal free play
................
...............
9-19
Power brakes
..................
...............
5-74
Service brake
..................
...............
5-73
Warning lights and buzzer
..............
5-181
Bulb location and capacity
..................
9-27
C
California Perchlorate Materials Requirements
..................
.................
3-13
Capacities
.....................
.....................
11-7
Card holder
............................
5-208
, 5-218
Cargo area cover
................
...............
5-220
Cargo loads
...................
.....................
6-10
Cargo room light
................
...............
5-216
Bulb location and capacity
...............
9-29
Catalytic converter
................
................
9-2
Cautions on the handling of all-wheel drive vehicles
.......................
.....................
5-72
Certification label
...............................
11-3
Charging system warning light
...........
5-183
Child restraint systems
........................
4-22
Child safety locks for rear door
............
5-35
Cleaning
Inside of your vehicle
......................
9-35
Outside of your vehicle
...................
9-36
Coat hook
......................
...................
5-222
Consumer information
.........................
10-2
Continuously variable transmission (CVT)
...
5-60 Fluid
..................
.....................
9-8
, 11-7
Selector lever operation
...................
5-61
Selector lever positions
....................
5-64
Sports mode
..................
.................
5-65
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index 12-2
12
Convenient hook
...............
...............
5-223
Coolant (engine)
..........................
9-7
, 11-7
Cruise control
....................
.................
5-84
Cup holder
....................
...................
5-219
D
Daytime running lights
Bulb location and capacity
...............
9-28
Replacement
.................
.................
9-30
Defogger (rear window)
....................
5-204
Defrosting or defogging (windshield, door windows)
.................
7-9
, 7-13
, 7-18
, 7-22
Dimensions
...................
.....................
11-4
Dimmer (high/low beam change)
.......
5-191
Disc brake pads
.................
.................
9-21
Dome light (front)/Reading lights
.......
5-215
Bulb location and capacity
...............
9-29
Dome light (rear)
...............
...............
5-216
Bulb location and capacity
...............
9-29
Doors
Lock
......................
........................
5-32
Power door locks
............................
5-34
Driving during cold weather
..................
6-5
Driving precaution
................
................
6-2
Driving, alcohol and drugs
.....................
6-2
Dual-zone automatic climate control air conditioning
....................
.................
7-15
E
ECO mode switch
.............................
5-198
Electric parking brake
..........................
5-47
Electric power steering system (EPS)
....
5-80
Electric rear window defogger switch
..5-204
Electronic immobilizer (Anti-theft starting system)
.....................
................
5-4
, 5-27
Emission-control system maintenance
...
9-20
Engine
Compartment
..................
.................
9-5
Coolant
...................
................
9-7
, 11-7
Hood
.......................
........................
9-3
Malfunction indicator light
.............
5-182
Oil and oil filter
.......................
9-5
, 11-7
Overheating
....................
.................
8-4
Serial number
.................
................
11-2
Specification
...................
................
11-6
Engine hood
....................
....................
9-3
Engine switch
.....................
................
5-18
Exhaust system
...................
................
9-22
F
Floor console box
..............................
5-219
Floor mat
.........................
....................
6-3
Fluid
Brake fluid
..............................
9-9
, 11-7
Continuously variable transmission (CVT)
fluid
....................
.................
9-8
, 11-7
Engine coolant
........................
9-7
, 11-7
Engine oil
...............................
9-5
, 11-7
Rear axle oil
............................
9-9
, 11-7
Transfer oil
.............................
9-9
, 11-7
Washer fluid
...........................
9-9
, 11-7
Fluid capacities and lubricants
.............
11-7
Forward Collision Mitigation system (FCM)
.
5-100 Free-hand advanced security transmitter (F.A.S.T.-key)
.................
.................
5-12
Front fog lights
Bulb location and capacity
...............
9-28
Indicators
..................
...................
5-180
Replacement
.................
.................
9-32
Switch
......................
...................
5-198
Front seat adjustment
............................
4-3
Front side-marker lights
Bulb location and capacity
...............
9-28
Replacement
.................
.................
9-30
Front turn signal light
Bulb location and capacity
...............
9-28
Replacement
.................
.................
9-31
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................
................
6-2
Fuel hoses
.....................
.................
9-21
Fuel selection
...................
................
3-2
Tank capacity
................
.................
11-7
Fuel Pump Shut-off System
.................
8-13
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index
12-3
12
Fuses
.........................
........................
9-23
Fusible links
..................
.....................
9-23
G
General maintenance
...........................
9-21
General vehicle data
............................
11-4
Genuine parts
....................
.................
3-13
Glove compartment
...........................
5-218
H
Hazard warning flasher switch
...........
5-197
Hazard warning lights
.......................
5-180
Head restraints
...................
...................
4-9
Head Up Display (HUD)
...................
5-184
Headlight leveling switch
..................
5-196
Headlights
Bulb location and capacity
...............
9-28
Dimmer
....................
...................
5-191
Headlight flasher
..........................
5-191
Replacement
.................
.................
9-29
Switch
......................
...................
5-188
Heated steering wheel switch
.............
5-205
High beam indicator
..........................
5-180
High-mounted stop light
Bulb location and capacity
...............
9-28
Hill start assist
...................
.................
5-77
HomeLink® Wireless Control System 5-209
Hood lock release mechanism and safety catch
.........................
......................
9-22
Horn switch
.....................
.................
5-206
I
If the vehicle breaks down
.....................
8-2
Ignition switch
....................
...............
5-57
Important facts to know in case of an accident 10-4 Indicators
..............................
5-160
, 5-180
Information screen display
.................
5-161
Inside rearview mirror
.........................
5-51
Inspection and maintenance following rough road operation
...................
...............
5-72
Instrument cluster
..............................
5-139
Interior lights
...................
.................
5-214
J
Jack
............................
........................
8-5
Storage
........................
....................
8-5
Jump-starting the engine
.......................
8-2
K
Keyless entry system
....................
5-6
, 5-28
Keys
...........................
........................
5-3
L
Labeling
........................
.....................
11-2
Lane Departure Warning (LDW)
........
5-115
License plate light
Bulb location and capacity
...............
9-28
Replacement
..................
.................
9-34
Liftgate
......................
........................
5-36
Loading information
..............................
6-6
Lubricants
.....................
.....................
11-7
Luggage floor board
..........................
5-223
Luggage hooks
..................
...............
5-223
M
Modification of your vehicle
................
3-12
Multi Around Monitor
.......................
5-129
Multi-information display
..................
5-140
O
Octane number
.....................
................
3-2
Oil
Engine oil
.....................
.................
11-7
Rear axle oil
..................
.................
11-7
Transfer oil
...................
.................
11-7
Operation under adverse driving conditions
..
8-12 Outside rearview mirrors
.....................
5-53
BK0252700US.bo
ok 3 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Alphabetical index 12-4
12
Overheating
......................
...................
8-4
P
Parking
.........................
.......................
6-6
Parking brake
................
.................
5-46
Parking brake lever stroke
...................
9-19
Parking lights
Bulb location and capacity
...............
9-28
Replacement
.................
.................
9-30
Parking sensors
.................
...............
5-123
Polishing
.......................
.....................
9-38
Power brakes
.....................
.................
5-74
Power outlet
..................
...................
5-208
Power panoramic sunroof
....................
5-43
Power windows
.................
.................
5-40
Puncture (Tire changing)
.......................
8-6
R
Radiator cap
......................
...................
9-8
Reading lights
Bulb location and capacity
...............
9-29
Rear axle oil
...............
.................
9-9
, 11-7
Rear combination lights
Bulb location and capacity
...............
9-28
Replacement
.................
.................
9-32
Rear Cross Traffic Alert
....................
5-112
Rear seat adjustment
.............................
4-6
Rear side-marker lights
Bulb location and capacity
...............
9-28
Rear turn signal light
Bulb location and capacity
...............
9-28
Replacement
...................
................
9-32
Rear-view camera
.............................
5-127
Rearview mirror
Inside rearview mirror
.....................
5-51
Outside rearview mirrors
.................
5-53
Replacement of light bulbs
...................
9-27
Replacing tires and wheels
...................
9-16
Reporting Safety Defects
.....................
10-2
S
Safe driving techniques
.........................
6-4
S-AWC (Super-All Wheel Control)
......
5-67
Seat belt
......................
.......................
4-13
Adjustable seat belt shoulder anchor
.4-19
Child restraint systems
.....................
4-22
Front passenger seat belt warning light
.....
4-19 Maintenance and inspection
.............
4-30
Seat belt extender
............................
4-20
Seat belt force limitter
.....................
4-22
Seat belt pre-tensioners
....................
4-21
Seat belt use during pregnancy
.........
4-21
Seats
...........................
........................
4-2
Arm rest
..................
..................
4-6
, 4-8
Front seats
...................
....................
4-3
Head restraints
.................
................
4-9
Making a cargo area
........................
4-12
Rear seats
.....................
...................
4-6
Seats and restraint systems
................
4-3
Service brake
.....................
.................
5-73
Service precautions
...............
................
9-2
Side turn signal light
Bulb location and capacity
...............
9-28
Snow tires
.....................
.....................
9-18
Spark plugs
...................
.....................
9-20
Starting the engine
.....................
5-24
, 5-58
Steering
Steering wheel height and reach adjustment 5-50
Stop lights
Bulb location and capacity
...............
9-28
Storage spaces
...................
...............
5-217
Sun visors
.....................
...................
5-207
Super-all wheel control (S-AWC)
S-AWC drive mode display
.............
5-69
S-AWC drive mode-selector
............
5-68
S-AWC operation display
................
5-69
Supplemental Restraint System
............
4-30
How the Supplemental Restraint System works
.....................
.....................
4-33
Maintenance service
.......................
4-45
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分
