page 92 MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702322
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display” on page 5-140
.
 These warning lights will come on for a few seconds for a bulb check
when the ignition switch is first turned to “ON” or the op
eration mode is put in ON.
Wa r n i n g l i g h t s
Do this
Ref. Page
Charging system warning light
 Park your vehicle in a safe place and stop the engine. Contact your Mitsubishi Motors dealer or
a repair facility of your choice for assis-
tance.
P. 5-183
or
Brake warning light (red)
 If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, immediately stop and check the brake fluid level.  If the brake fluid level is correct, there may be a system malfunction. Avoid hard braking and high speed, and contact an aut
horized Mitsubishi Mo
tors dealer or a
repair facility of your choice for assistance.
P. 5-181
Electric parking brake warning light
(yellow) (if so equipped)
 If the warning light comes on during driving, th
ere is the possibility that the parking
brake cannot be operated or released. Immediately stop the vehicle in a safe place, and contact an authorized Mitsubishi Moto
rs dealer or a repair facility of your
choice for assistance.
P. 5-181
BK0252700US.bo
ok 1 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
 Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as po
ssible. If the vehicle is not
drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an author
ized Mitsubishi Motors dealer, or local
towing company for assistance.
P. 5-182
Electric power steering system (EPS)
warning light
 If this light comes on while the engine is
running, it may become harder to turn the
steering wheel. Have your vehicle inspected at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-80
Anti-lock braking system warning
light
 When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning.  Park your vehicle in a safe place and stop the engine. Test the system as described on page 5-79.  If the light does not go out after the test, or if it comes on again, we recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-79
SRS warning light
 Immediately have the airbag and the pre-te
nsioner seat belt system checked at an
authorized Mitsubishi Motors dealer.
P. 4-36
Warning lights
Do this
Ref. Page
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
and
ASC indicator and ASC OFF indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the active
stability control is not functioning and
normal operation of the vehicle will not be affected.
P. 5-83
ASC indicator
 Park your vehicle in a safe place and stop the engine. Restart the engine and check whether the indicator goes out.  If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.  When this indicator comes on, the hi
ll start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-77
Tire pressure monitoring system warn-
ing light
 If the warning light comes on, you should stop and adjust the tires to the proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-15.)Once adjustments have been made, the warning light will go off after a few minutes of driving.  If the warning light blinks for approxim
ately 1 minute and then remains continu-
ously illuminated, the system is not operatin
g properly. If the system returns to nor-
mal, the warning light will go off. If
the warning light does not go off, have the
vehicle inspected at an authori
zed Mitsubishi Motors dealer.
P. 5-118
LED headlight warning light
 If the warning light comes on, there may be
a malfunction in the LED headlight
unit. Have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
P. 5-190
Wa r n i n g l i g h t s
Do this
Ref. Page
BK0252700US.bo
ok 3 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs... 2-4 Quick index
2
N00200902034
If this problem occurs...
Problem
Do this
Ref. Page
Unable to turn the key. (except for vehicles equipped with the F.A.S.T.-key)
Will not turn from “ACC” to “OFF”. Check the position of the selector lever. The key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
P. 5-58
The engine does not start when the engine switch is pressed.(for vehicles equipped with the F. A . S . T. - k e y )
Make sure the F.A.S.T.-key is in the vehicle. Make sure the selector lever is in the “P” (PAR
K) position, and then press the engine switch
while depressing the brake pedal.
P. 5-23
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs...
Quick index 2-5
2
The engine does not start and the operation mode cannot be changed to OFF. (for vehicles equipped with the F.A.S.T.-key)
1. Move the selector lever to the “P” (PARK)
position, and then change the operation mode
to OFF. 2. One of the other causes could be low battery
voltage. If this occurs, the keyless entry sys-
tem and the F.A.S.T.-key operation will also no
t operate. Contact an authorized Mitsubishi
Motors dealer.
P. 5-19
The F.A.S.T.-key does not oper- ate.(for vehicles equipped with the F. A . S . T. - k e y )
Touch the portion of the F.A.S.T.-key to the engine
switch, and then start the engine or change
the operation mode. Use the emergency key to lock and unlock the driver’s door.
P. 5-25, 5-26
Cannot shift the selector lever from the “P” (PARK) position.
Shift the selector lever while pressing the brake pedal. Check that the ignition switch or the operation mode is in ON.
P. 5-60
The windows are fogged up.
Push the defogger switch to
change to the “ ” position.
P. 7-3, 7-13, 7-18, 7-22
The engine does not start. The lights do not come on. The lights are dim.The horn does not honk. The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P. 8-2, 9-10
Problem
Do this
Ref. Page
BK0252700US.bo
ok 5 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs... 2-6 Quick index
2
Problem
Do this
Ref. Page
The information screen in the multi-information display will be interrupted and the engine coolant temperature warning display will appear. Also “ ” will blink. Steam comes out of the engine compartment.
The engine is overheated. Carefully stop the vehicle in a safe place.
P. 8-4
If your vehicle becomes stuck in sand, mud or snow.
1. Slowly press down on the accelerator pedal to
get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-sel
ector to the “SNOW” or “GRAVEL” position
and then slowly press down on the accelerat
or pedal to get your vehicle moving.
2. If there is nothing to stop your tires from sli
pping, rock your vehicle out of the stuck posi-
tion.
P. 8-12
BK0252700US.bo
ok 6 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs...
Quick index 2-7
2
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that no one is
near the vehicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spinning the
wheels. Prolonged efforts to free a stuck ve
hicle may result in overheating and transa
xle failure.
If the vehicle remains stuck after several rocking at
tempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly while lightly pressing the brake pedal.
P. 5-72, 6-5
The continuously variable trans- mission (CVT) makes no shift change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.
There may be a problem in the CVT. If the or warning lights on the multi-information display will not turn off, or if they come on frequently, please have the vehicle check
ed at your nearest Mitsubishi Motors dealer.
P. 5-66
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level. 2. Replace the flat tire with the spare tire.
P. 8-6
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Break-in recommendations 3-14 General information
3
However, you can add to the future perfor- mance and economy of your vehicle by observing the follow
ing precautions during
the first 300 miles (500 km).Drive your vehicle at moderate speeds during the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high- speed driving and sudden braking. These actions would have a detrimental effect onthe engine and lead to increased fuel andoil consumption; this could ultimately result in the malfunction of engine com- ponents. Be particularly careful to avoidfull acceleration while in low shift posi- tion (low gears).  Do not overload the vehicle. Stay within the seating capacity. Refer to “Cargo load precautions” on page 6-10. Refrain from towing a trailer or other vehicle. Refer to “Trailer towing” on page 6-11.
BK0252700US.bo
ok 14 ページ ２０１７年１０月４日　水曜日　午後４時５４分

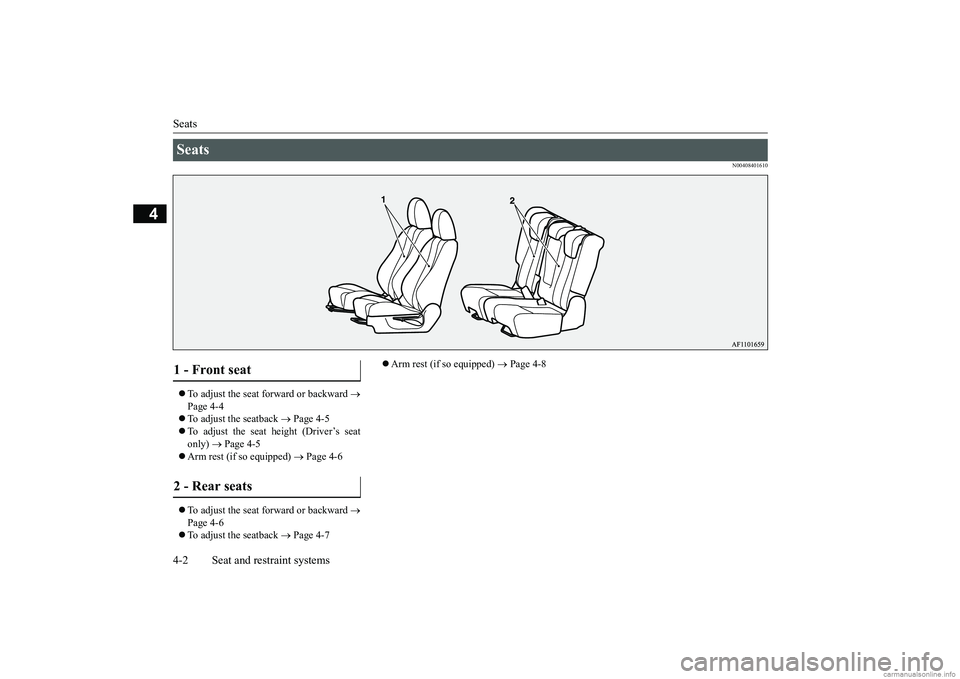

Seats 4-2 Seat and restraint systems
4
N00408401610
 To adjust the seat forward or backward

Page 4-4  To adjust the seatback
 Page 4-5
 To adjust the seat height (Driver’s seat only)
 Page 4-5
 Arm rest (if so equipped)
 Page 4-6
 To adjust the seat forward or backward

Page 4-6 To adjust the seatback
 Page 4-7
 Arm rest (if so equipped)
 Page 4-8
Seats 1 - Front seat 2 - Rear seats BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Rear seats 4-6 Seat and restraint systems
4
Operate the switch in the direction of the arrows to raise or lower the seat.
N00402301095
The lid on the floor console box can bemoved forward and backward and used as an arm rest.
N00402501273
When sitting in the rear seat, adjust the headrestraints to an appropriate height where they lock in position. Refer to “Head restraints” onpage 4-9.
1- Raise 2- LowerPower seat adjustment
NOTE
 To prevent the battery from completely dis- charging, operate the power seat with theengine running.
1- Raise or lower the front end of the seat
cushion
2- Raise or lower the seat
Arm rest
(if so equipped)
Rear seats
BK0252700US.bo
