tow MITSUBISHI ECLIPSE CROSS 2018 Owner's Manual (in English)

If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
 Although your vehicle will usually be drivable and not need towing, have the engine system checked at an authorized Mits
ubishi Motors dealer or a repair facility
of your choice as soon as po
ssible. If the vehicle is not
drivable, contact emergency
roadside assistance at 1-888-648-7820 (for ve
hicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an author
ized Mitsubishi Motors dealer, or local
towing company for assistance.
P. 5-182
Electric power steering system (EPS)
warning light
 If this light comes on while the engine is
running, it may become harder to turn the
steering wheel. Have your vehicle inspected at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-80
Anti-lock braking system warning
light
 When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning.  Park your vehicle in a safe place and stop the engine. Test the system as described on page 5-79.  If the light does not go out after the test, or if it comes on again, we recommend that you have the system checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible.
P. 5-79
SRS warning light
 Immediately have the airbag and the pre-te
nsioner seat belt system checked at an
authorized Mitsubishi Motors dealer.
P. 4-36
Warning lights
Do this
Ref. Page
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

If this problem occurs...
Quick index 2-7
2
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that no one is
near the vehicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spinning the
wheels. Prolonged efforts to free a stuck ve
hicle may result in overheating and transa
xle failure.
If the vehicle remains stuck after several rocking at
tempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly while lightly pressing the brake pedal.
P. 5-72, 6-5
The continuously variable trans- mission (CVT) makes no shift change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.
There may be a problem in the CVT. If the or warning lights on the multi-information display will not turn off, or if they come on frequently, please have the vehicle check
ed at your nearest Mitsubishi Motors dealer.
P. 5-66
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level. 2. Replace the flat tire with the spare tire.
P. 8-6
BK0252700US.bo
ok 7 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Fuel selection 3-2 General information
3
N00301002004
Your vehicle is designed to use unleaded gas- oline only. It is equipped with a fuel tankfiller pipe specifically designed to accept only a small diameter unleaded gasoline dispens- ing nozzle. In the United States, fuel suppliers are required by law to add detergents to their gas-
oline to minimize fuel-injector clogging and minimize intake-valve deposits. Detergent gasoline helps keep your engine in tune and your emission-control system working prop-erly. Your vehicle is designed to operate on unleaded gasoline having a minimum octanenumber of 87 [(MON+RON)/2] or 91 RON. Gasoline sold at some service stations con- tains oxygenates such as ethanol, although the oxygenates may not be identified by thosenames. Oxygenates are required in some areas of the country. Oxygenated fuel can be used in your vehicle.
A mixture of up to 10 % ethanol (grain alco- hol) and 90 % unleaded gasoline may be usedin your vehicle, provided the octane number is at least as high as that recommended for unleaded gasoline. Do not operate your vehicle on gasoline con- taining methanol (wood alcohol). Using this type of alcohol could adversely affect thevehicle’s performance and damage critical parts of the vehicle’s fuel system. Many areas of the country require the use of cleaner burning fuel referred to as “Reformu- lated Gasoline”.Reformulated gasoline contains oxygenates and is specially blended to reduce vehicle emissions and improve air quality.Mitsubishi Motors Cor
poration strongly sup-
ports the use of reformulated gasoline. Prop- erly blended reformulated gasoline has noadverse effect on vehicle performance or the durability of the engine and the fuel system.
Fuel selection
WA R N I N G Gasoline is highly flammable and explo- sive. You could be burned, seriouslyinjured or killed when handling it. When- ever you refuel your vehicle, stop the engine and keep flames, sparks, andsmoking materials away from the vehicle. Always handle fuel in well-ventilated out- door areas.CAUTION Using leaded gasoline in your vehicle will damage the engine, catalytic converter, and the oxygen sensors. Also, using leaded gaso-line is illegal, and will void your warranty coverage of the engine, catalytic converter, and oxygen sensors.
Gasoline detergent additives
Octane requirement
NOTE
 Premium fuel is recommended to improve the performance under severe conditions such as hot w
eather or towing.
Oxygenated gasoline
Ethanol (Gasohol) Methanol Reformulated gasoline
BK0252700US.bo
ok 2 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Break-in recommendations 3-14 General information
3
However, you can add to the future perfor- mance and economy of your vehicle by observing the follow
ing precautions during
the first 300 miles (500 km).Drive your vehicle at moderate speeds during the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high- speed driving and sudden braking. These actions would have a detrimental effect onthe engine and lead to increased fuel andoil consumption; this could ultimately result in the malfunction of engine com- ponents. Be particularly careful to avoidfull acceleration while in low shift posi- tion (low gears).  Do not overload the vehicle. Stay within the seating capacity. Refer to “Cargo load precautions” on page 6-10. Refrain from towing a trailer or other vehicle. Refer to “Trailer towing” on page 6-11.
BK0252700US.bo
ok 14 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Front seats 4-4 Seat and restraint systems
4
N00401901397
Pull the seat adjusting lever up and slide the seat forward or backward to the desired posi- tion. Release the adjusting lever to lock the seat in place.
Operate the switch forward or backward to move the seat to the desired position. Release the switch to lock the seat in place.
 When sliding or reclining the seat rearward, pay careful attention to the rear seat passen- gers.CAUTION
To adjust the seat forward or backward Manual seat adjustment
WA R N I N G To make sure that the seat is securely locked, try to move it forward or back- ward without using the adjusting lever.
Power seat adjustment (Driver’s seat only) 1- Forward (toward the front of the vehicle) 2- Backward (toward the rear of the vehi-
cle)NOTE
 To prevent the battery from completely dis- charging, operate the power seat with theengine running.
BK0252700US.bo
ok 4 ページ ２０１７年１０月４日　水曜日　午後４時５４分

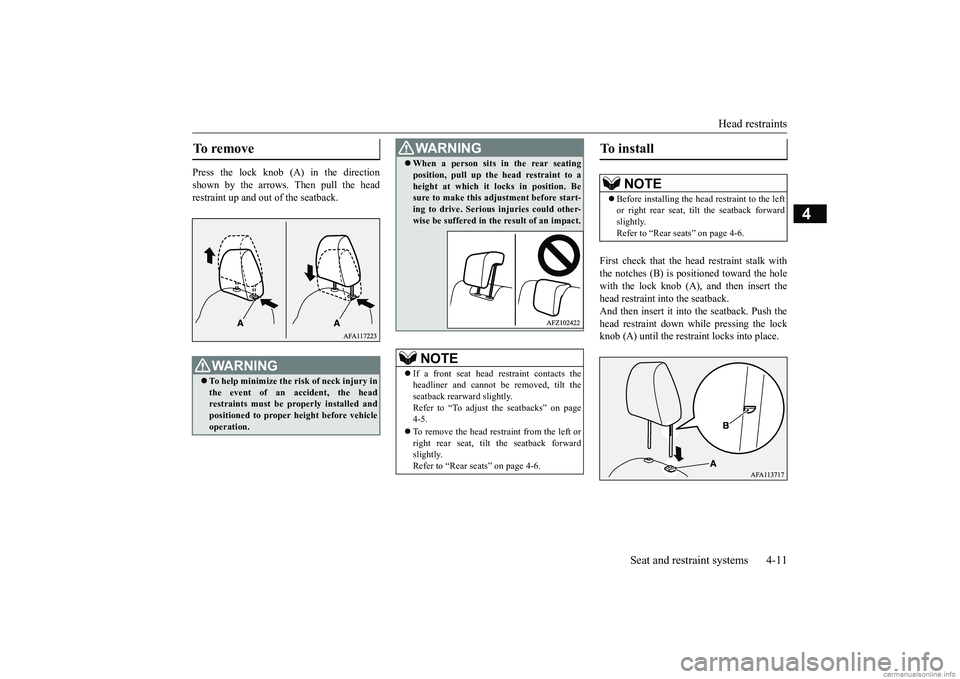

Head restraints
Seat and restraint systems 4-11
4
Press the lock knob (A) in the direction shown by the arrows. Then pull the head restraint up and out of the seatback.
First check that the head restraint stalk with the notches (B) is positioned toward the holewith the lock knob (A), and then insert the head restraint into the seatback. And then insert it into the seatback. Push thehead restraint down while pressing the lock knob (A) until the restraint locks into place.
To remove
WA R N I N G To help minimize the risk of neck injury in the event of an accident, the head restraints must be properly installed and positioned to proper height before vehicleoperation.
WA R N I N G When a person sits in the rear seating position, pull up the head restraint to a height at which it locks in position. Be sure to make this adjustment before start- ing to drive. Serious injuries could other-wise be suffered in th
e result of an impact.
NOTE
If a front seat head restraint contacts the headliner and cannot be removed, tilt the seatback rearward slightly.Refer to “To adjust the seatbacks” on page 4-5.  To remove the head restraint from the left or right rear seat, tilt the seatback forward slightly. Refer to “Rear seats” on page 4-6.
To install
NOTE
 Before installing the head restraint to the left or right rear seat, tilt the seatback forward slightly. Refer to “Rear seats” on page 4-6.
BK0252700US.bo
ok 11 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Seat belts 4-18 Seat and restraint systems
4
1. While holding the center seat belt, insert the latch plate (A) into the slot (F) in the detachable anchor (C) to release the seatbelt from the detachable anchor. 2. Pass the seat belt through the seat belt guide (E) and retract it completely toward the rear trim.
3. After the seat belt is retracted completely, insert the small latch plate (B) into theupper slit (G) and the latch plate (A) into the lower slit (H).
4. Store the detachable anchor between the seatback and the seat cushion.
N00418401411
A tone and warning light are used to remind the driver to fasten the seat belt.
 The seat belt can be buckled up by inserting the latch plate (A) into the buckle (D) like other seat belts.  If the seat belt switches to the Automatic Locking Retractor (ALR) child restraint installation function and cannot be pulled out, detach the latch plate (A) and move therear seat fully backward. Refer to “Installing a child restraint system using the seat belt” on page 4-27.
To d e t a c h
NOTE
Driver’s seat belt reminder/warning light and display
BK0252700US.bo
ok 18 ページ ２０１７年１０月４日　水曜日　午後４時５４分

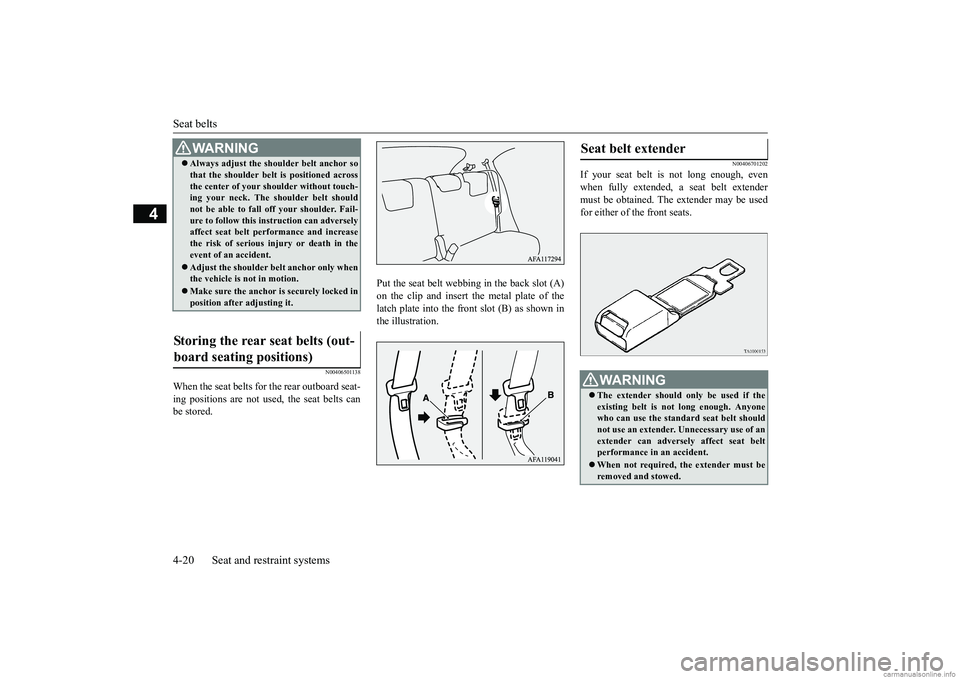

Seat belts 4-20 Seat and restraint systems
4
N00406501138
When the seat belts for the rear outboard seat- ing positions are not used, the seat belts can be stored.
Put the seat belt webbing in the back slot (A) on the clip and insert the metal plate of thelatch plate into the front slot (B) as shown in the illustration.
N00406701202
If your seat belt is not long enough, even when fully extended, a seat belt extendermust be obtained. The extender may be used for either of the front seats.
WA R N I N G Always adjust the shoulder belt anchor so that the shoulder belt is positioned across the center of your shoulder without touch- ing your neck. The shoulder belt should not be able to fall off your shoulder. Fail-ure to follow this instruction can adversely affect seat belt performance and increase the risk of serious injury or death in theevent of an accident. Adjust the shoulder belt anchor only when the vehicle is not in motion. Make sure the anchor is securely locked in position after adjusting it.
Storing the rear seat belts (out- board seating positions)
Seat belt extender
WA R N I N G The extender should only be used if the existing belt is not long enough. Anyonewho can use the standard seat belt should not use an extender. Unnecessary use of an extender can adversely affect seat beltperformance in an accident. When not required, the extender must be removed and stowed.
BK0252700US.bo
ok 20 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Keyless entry system (if so equipped) 5-10 Features and controls
5
2. With a valid (already registered) key, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.At this time, ID codes for all keys except for the key used in steps 2 and 3 are erased and the answerback function (dooris locked and unlocked) informs you thatthe registration mode has been activated. 4. Within 60 seconds after step 3, complete the following ID code registration opera-tion using the next key you wish to regis- ter within 4 seconds. i) Press both the LOCK and UNLOCKbuttons for 2 seconds. ii) Release both the LOCK and UNLOCK buttons for 1 second.iii) Press the UNLOCK button. The answerback function informs you that the ID code registration of the key is com-pleted. 5. To register the ID codes of additional keys, repeat step 4 within 60 seconds afterstep 4. 6. If no ID code of a key is registered within 60 seconds after step 4, the registrationmode is canceled and the normal mode returns.
N00546101124
Your keyless entry system operates on a radio frequency subject to Federal Communica-tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s).Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference. This device must accept any interference received, including interference that may cause undesired operation.
NOTE
 For verification purposes, try to lock and unlock the doors after the registration is completed.  The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The key can be used from approximately 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power station, or aradio station.  If the UNLOCK button (2) is pressed when no doors or the liftgate are opened within approximately 30 seconds, the doors and the liftgate will automatically re-lock.On vehicles equipped with the Smartphone Link Display Audio, the functions can be adjusted on the screen. For details, refer tothe separate owner’s manual.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the key, the battery in the key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated.• The indicator light (4) is dim or does not come on.
 If you lose your key, please contact an autho- rized Mitsubishi Motors dealer for a replace-ment.
 If you wish to obtain an additional key, please contact an authorized Mitsubishi Motors dealer. A maximum of eight keys can be programmed for your vehicle.  To use the new keys, it is necessary to regis- ter the key with both the electronic immobi- lizer and keyless entry system.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-5.
General information

NOTE
BK0252700US.bo
ok 10 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorizedMitsubishi Motors dealer. • Enabling only the locking and unlocking of the doors and the liftgate• Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
N00503201236
When a person enters the operating range ofthe F.A.S.T.-key while carrying the F.A.S.T.- key and presses the driver’s or front passen-ger’s door lock/unlock switch, the liftgate lock switch or the liftgate open switch, verifi- cation of the ID code is performed.The doors and the liftgate can be locked and unlocked and the engine can be started only when the ID codes of the vehicle andF.A.S.T.-key match.
The operating range is within approximately 2.3 feet (70 cm) of the driver’s and front pas- senger’s door lock/unlock switches, the lift- gate lock switch and the liftgate open switch.
NOTE
 The F.A.S.T.-key uses weak electromagnetic waves. In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic waves, such as a TVtransmitting tower, a power station, a radio station or an airport • The key is carried together with other com- munication devices such as cellular phones or radios, or electrical appliances such ascomputers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down • The vehicle is in a location with strong electromagnetic waves or noise
Use the emergency key in such circum- stances. Refer to “To operate without using the F.A.S.T.-key” on page 5-26.  The F.A.S.T.-key is constantly performing reception operations in its communication with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is approximately 1 to 2 years, dependingon the usage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operations, the reception of strong electromagnetic waves can accelerate the running down of the battery. Do not placenear to electrical appliances such as televi- sions or computers.
Operating range of the F. A . S . T. - k e y

NOTE
NOTE
 When the battery of the F.A.S.T.-key has run down or there are strong electromagnetic waves or noise in the area, the operating range could decrease or operations couldbecome unstable.
Operating range for locking and unlocking the doors and the lift- gate

BK0252700US.bo
ok 13 ページ ２０１７年１０月４日　水曜日　午後４時５４分
