MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

Multi-information display 5-148 Features and controls
5
N00578400048
When the ignition switch is turned to the “ON” position or the operation mode is put in ON, the system check screen is displayed forapproximately 4 seconds. If there is no fault, the information screen is displayed. If there is a fault, the screen changes to warn-ing display.
Refer to “Warning display list” on page 5-160.
N00575201026
Shows the approximate driving range (how many more miles or kilometers you can drive). When this driving range falls below30 miles (50 km), “---” is displayed. Refuel as soon as possible.
N00575301027
This displays the average fuel consumptionfrom the last reset to the present. There are 2 types of mode settings of manualreset and automatic reset. Refer to “Changing the reset mode for aver- age fuel consumption and average speed” onpage 5-152. For information on how to change the aver- age fuel consumption display setting, refer to“Changing the function settings” on page 5-150.
CAUTION The customer is responsible for making sure that regular inspections and maintenance and periodic inspections and maintenance are performed. Inspections and maintenance must be per-formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot be reset while the ignition switch or the operation mode is in ON.  When “---” is displayed, after a certain dis- tance and a certain period of time, the dis- play is reset and the time until the nextperiodic inspection is displayed.  If you accidentally reset the display, consult an authorized Mitsubishi Motors dealer for assistance.
System check screen
Driving range display
NOTE
 The driving range is determined based on the fuel consumption data. This may vary depending on the driving conditions and hab- its. Treat the distance displayed as just arough guideline.  When you refuel, the driving range display is updated. However, if you only add a small amount of fuel, the correct value will not be displayed.Fill to a full tank whenever possible.  When your vehicle is stopped on an extremely steep hill, the driving range value may, change. This is due to the movement of fuel in the tank and does not indicate anybreakdown.
 The display setting can be changed to the preferred units (miles or km). Refer to “Changing the function settings” on page 5-150.
Average fuel consumption dis- play
NOTE
 The average fuel consumption display can be reset separately in both auto reset mode and manual reset mode.  “---” is displayed when the average fuel con- sumption cannot be measured.  The initial (default) setting is “Auto reset mode”.NOTE
BK0266800US.book
148 ページ ２０１８年６月２７日　水曜日　午後５時６分

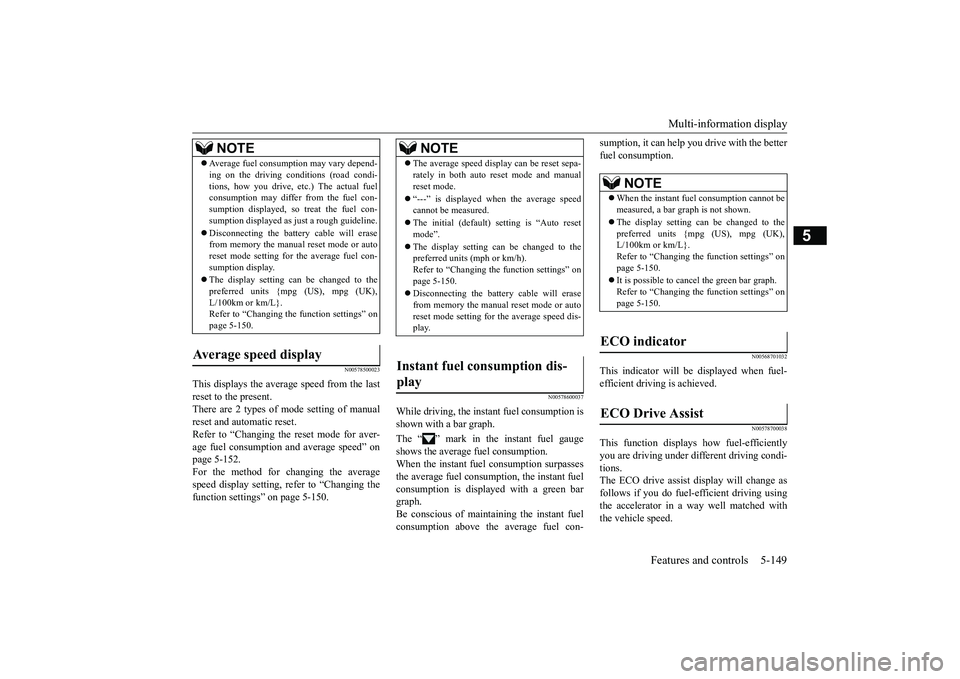

Multi-information display
Features and controls 5-149
5
N00578500023
This displays the average speed from the last reset to the present.There are 2 types of mode setting of manual reset and automatic reset. Refer to “Changing the reset mode for aver-age fuel consumption and average speed” on page 5-152. For the method for changing the averagespeed display setting, refer to “Changing the function settings” on page 5-150.
N00578600037
While driving, the instant fuel consumption is shown with a bar graph. The “ ” mark in the instant fuel gauge shows the average fuel consumption. When the instant fuel consumption surpassesthe average fuel consumption, the instant fuel consumption is displayed with a green bar graph.Be conscious of maintaining the instant fuel consumption above the average fuel con-
sumption, it can help you drive with the better fuel consumption.
N00568701032
This indicator will be displayed when fuel-efficient driving is achieved.
N00578700038
This function displays how fuel-efficientlyyou are driving under different driving condi- tions. The ECO drive assist display will change asfollows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
 Average fuel consumption may vary depend- ing on the driving conditions (road condi- tions, how you drive, etc.) The actual fuel consumption may differ from the fuel con- sumption displayed, so treat the fuel con-sumption displayed as just a rough guideline.  Disconnecting the battery cable will erase from memory the manual reset mode or auto reset mode setting for the average fuel con- sumption display.  The display setting can be changed to the preferred units {mpg (US), mpg (UK),L/100km or km/L}. Refer to “Changing the function settings” on page 5-150.
Average speed display
NOTE
NOTE
 The average speed display can be reset sepa- rately in both auto reset mode and manual reset mode.  “---” is displayed when the average speed cannot be measured.  The initial (default) setting is “Auto reset mode”.  The display setting can be changed to the preferred units (mph or km/h). Refer to “Changing the function settings” on page 5-150.  Disconnecting the battery cable will erase from memory the manual reset mode or autoreset mode setting for the average speed dis- play.
Instant fuel consumption dis- play
NOTE
 When the instant fuel consumption cannot be measured, a bar graph is not shown.  The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100km or km/L}.Refer to “Changing the function settings” on page 5-150.  It is possible to cancel the green bar graph. Refer to “Changing the function settings” on page 5-150.
ECO indicator ECO Drive Assist
BK0266800US.book
149 ページ ２０１８年６月２７日　水曜日　午後５時６分

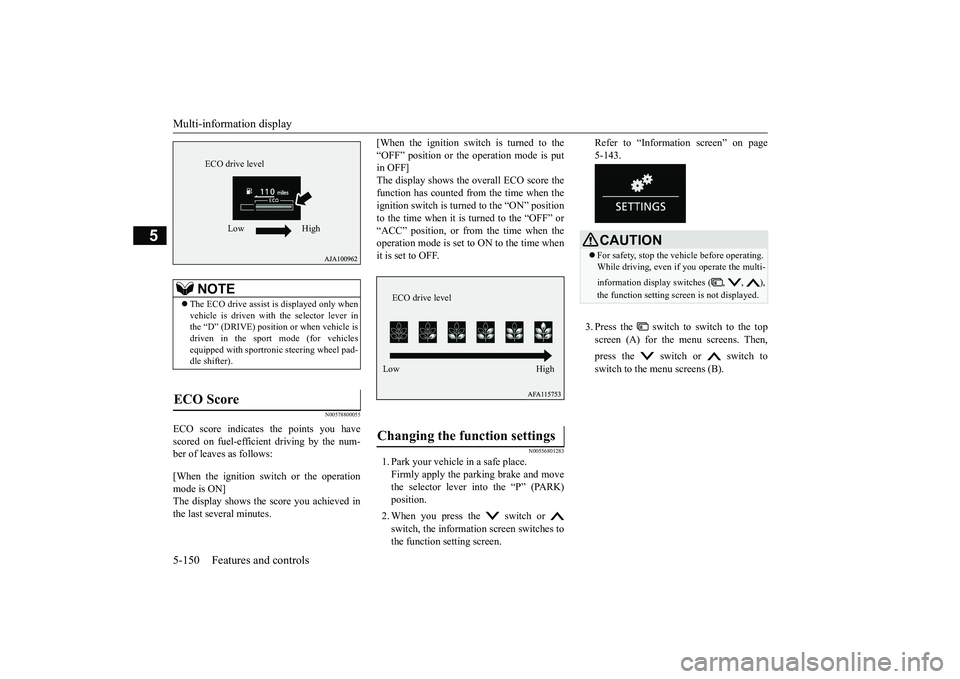

Multi-information display 5-150 Features and controls
5
N00578800055
ECO score indicates the points you have scored on fuel-efficient driving by the num- ber of leaves as follows: [When the ignition switch or the operation mode is ON]The display shows the score you achieved in the last several minutes.
[When the ignition switch is turned to the “OFF” position or the operation mode is put in OFF] The display shows the overall ECO score thefunction has counted from the time when the ignition switch is turned to the “ON” position to the time when it is turned to the “OFF” or“ACC” position, or from the time when the operation mode is set to ON to the time when it is set to OFF.
N00556801283
1. Park your vehicle in a safe place.Firmly apply the parking brake and movethe selector lever into the “P” (PARK) position. 2. When you press
the switch or
switch, the information screen switches to the function setting screen.
Refer to “Information screen” on page 5-143. 3. Press the switch to switch to the top screen (A) for the menu screens. Then, press the switch or switch to switch to the menu screens (B).
NOTE
 The ECO drive assist is displayed only when vehicle is driven with the selector lever in the “D” (DRIVE) position or when vehicle isdriven in the sport mode (for vehicles equipped with sportronic steering wheel pad- dle shifter).
ECO Score
ECO drive level
Low High
Changing the function settings
ECO drive level Low High
CAUTION  For safety, stop the vehicle before operating. While driving, even if you operate the multi- information display switches ( , , ), the function setting scr
een is not displayed.
BK0266800US.book
150 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-151
5
: switch : switch or switch
1- Changing the reset mode for average
fuel consumption and average speed

P.5-152
2- Changing the fuel consumption display
unit
 P.5-153
3- Changing the temperature unit

P.5-153
4- Changing the display language

P.5-154
5- Changing the language on other system
to match the multi-information display (if so equipped)
 P.5-154
6- Operation sound setting
 P.5-155
7- Changing the time until “REST
REMINDER” is displayed
 P.5-156
8- Changing the turn signal sound

P.5-156
9- Changing the instant fuel consumption
display
 P.5-156
10- Blind Spot Warning (BSW): To operate
(if so equipped)
 P.5-108
11- Tire ID set change
 P.5-124
12- Returning to the factory settings

P.5-157NOTE
 If no operations are made within approxi- mately 30 seconds of the menu screen beingdisplayed, the display returns to the function setting screen.
BK0266800US.book
151 ページ ２０１８年６月２７日　水曜日　午後５時６分

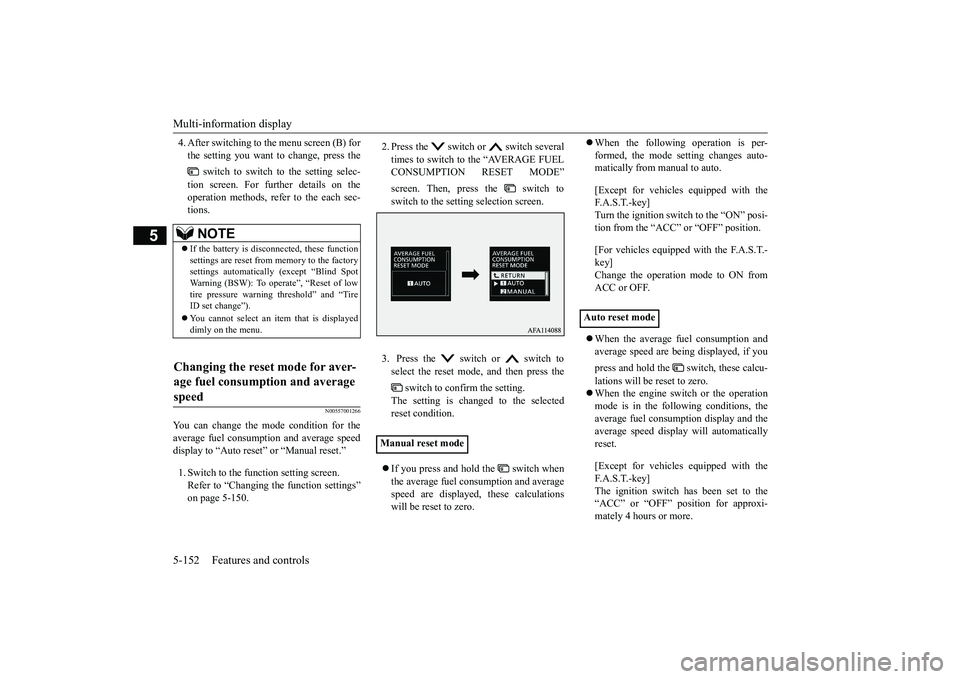

Multi-information display 5-152 Features and controls
5
4. After switching to the menu screen (B) for the setting you want to change, press the
switch to switch to the setting selec-
tion screen. For further details on the operation methods, refer to the each sec-tions.
N00557001266
You can change the mode condition for theaverage fuel consumption and average speed display to “Auto reset” or “Manual reset.” 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “AVERAGE FUEL CONSUMPTION RESET MODE” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the reset mode, and then press the
switch to confirm the setting.
The setting is changed to the selected reset condition.  If you press and hold the switch when the average fuel consumption and average speed are displayed, these calculationswill be reset to zero.
 When the following operation is per- formed, the mode setting changes auto- matically from manual to auto. [Except for vehicles equipped with the F. A . S . T. - k e y ]Turn the ignition switch to the “ON” posi- tion from the “ACC” or “OFF” position. [For vehicles equipped with the F.A.S.T.- key]Change the operation mode to ON fromACC or OFF.  When the average fuel consumption and average speed are being displayed, if you press and hold the switch, these calcu- lations will be reset to zero.  When the engine switch or the operation mode is in the following conditions, the average fuel consumption display and theaverage speed display will automatically reset. [Except for vehicles equipped with the F. A . S . T. - k e y ]The ignition switch has been set to the “ACC” or “OFF” position for approxi- mately 4 hours or more.
NOTE
 If the battery is disconnected, these function settings are reset from memory to the factory settings automatically (except “Blind SpotWarning (BSW): To operate”, “Reset of low tire pressure warning threshold” and “Tire ID set change”).  You cannot select an item that is displayed dimly on the menu.
Changing the reset mode for aver- age fuel consumption and average speed
Manual reset mode
Auto reset mode
BK0266800US.book
152 ページ ２０１８年６月２７日　水曜日　午後５時６分

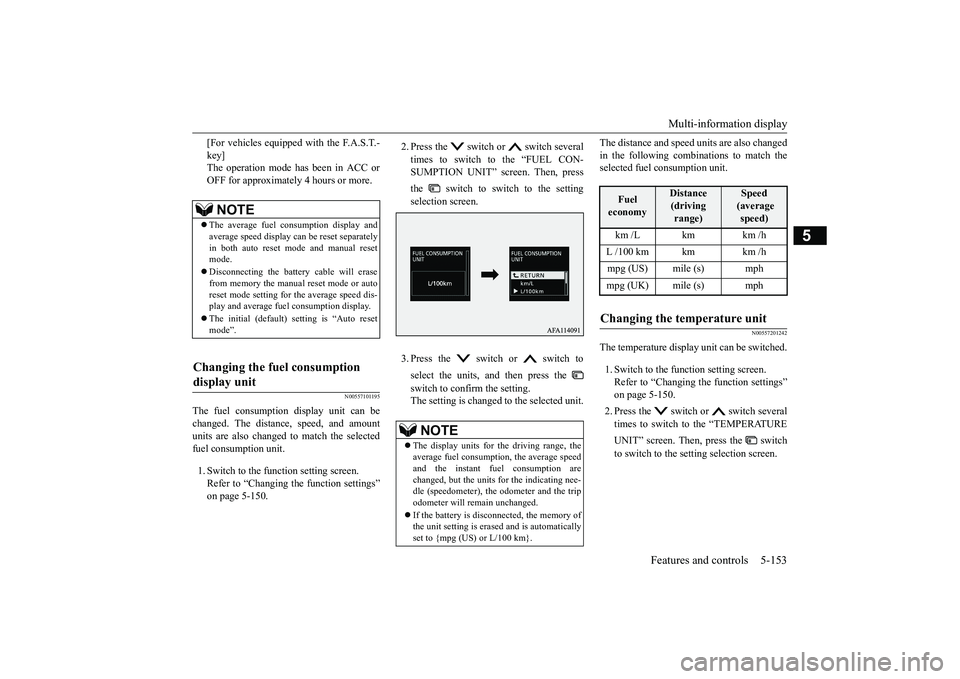

Multi-information display
Features and controls 5-153
5
[For vehicles equipped with the F.A.S.T.- key] The operation mode has been in ACC or OFF for approximately 4 hours or more.
N00557101195
The fuel consumption display unit can be changed. The distance, speed, and amount units are also changed to match the selectedfuel consumption unit. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150.
2. Press the switch or switch several times to switch to the “FUEL CON- SUMPTION UNIT” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the units, and then press the switch to confirm the setting. The setting is changed to the selected unit.
The distance and speed units are also changed in the following combinations to match the selected fuel consumption unit.
N00557201242
The temperature display unit can be switched. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150. 2. Press the switch or switch several times to switch to the “TEMPERATURE UNIT” screen. Then, press the switch to switch to the setting selection screen.
NOTE
 The average fuel consumption display and average speed display can be reset separatelyin both auto reset mode and manual reset mode.  Disconnecting the battery cable will erase from memory the manual reset mode or auto reset mode setting for the average speed dis-play and average fuel consumption display.  The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
NOTE
 The display units for the driving range, the average fuel consumption, the average speed and the instant fuel consumption are changed, but the units for the indicating nee- dle (speedometer), the odometer and the trip odometer will remain unchanged.  If the battery is disconnected, the memory of the unit setting is erased and is automaticallyset to {mpg (US) or L/100 km}.
Fuel economy
Distance (driving range)
Speed (average speed)
km /L km km /hL /100 km km km /hmpg (US) mile (s) mphmpg (UK) mile (s) mphChanging the temperature unit
BK0266800US.book
153 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-154 Features and controls
5
3. Press the switch or switch to select the units, and then press the switch to confirm the setting. The setting is changed to the selected tem-perature unit.
N00557301201
The language of the multi-information dis-play can be changed. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150. 2. Press the switch or switch several times to switch to the “LANGUAGE” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the desired language, and then press the switch to confirm the setting. The setting is changed to the selected lan- guage.
N00529801360
The language used in Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) can be changed automatically to the same language as that shown in themulti-information display. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150.
NOTE
 The temperature value on air conditioning panel is switched in conjunction with outside temperature display unit of the multi-infor-mation display. However, “°F” or “°C” are not shown to tem- perature display of an air conditioning.  If the battery is disconnected, the memory of the unit setting is erased and is automaticallyset to °F (°C).
Changing the display language
NOTE
 If the battery is disconnected, the memory of the language setting is erased and is automat- ically set to ENGLISH.  If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.
Changing the language on other system to match the multi-infor- mation display
(if so equipped)
BK0266800US.book
154 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-155
5
2. Press the switch or switch several times to switch to the “LANGUAGE SYNC” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting.
N00557401172
You can change the operation sounds of the multi-information display switches and rheo- stat illumination button. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “OPERATION SOUND” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting is changed to the selected con- dition.
NOTE
 If the battery is disconnected, the language cooperative control is automatically set to “ON” (language cooperation: enabled).  The language cooperation setting can be switched in the following manner.
• When “ON” (language cooperation:enabled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) is automatically changed to the languageselected for the multi-information display. However, this changing function may not work depending on the language selectedfor the multi-information display. • When “OFF” (language cooperation: dis- abled) has been selected, the language for Multi Around Monitor (if so equipped) or Head Up Display (HUD) (if so equipped) isnot automatically changed to match the lan- guage selected for the multi-information display.
 The language on the audio system’s display does not automatically change when youselect “ON” (language cooperation: enabled) in the language cooperation control.
Operation sound setting
NOTE
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and is automatically set to ON (operation sound on).
BK0266800US.book
155 ページ ２０１８年６月２７日　水曜日　午後５時６分

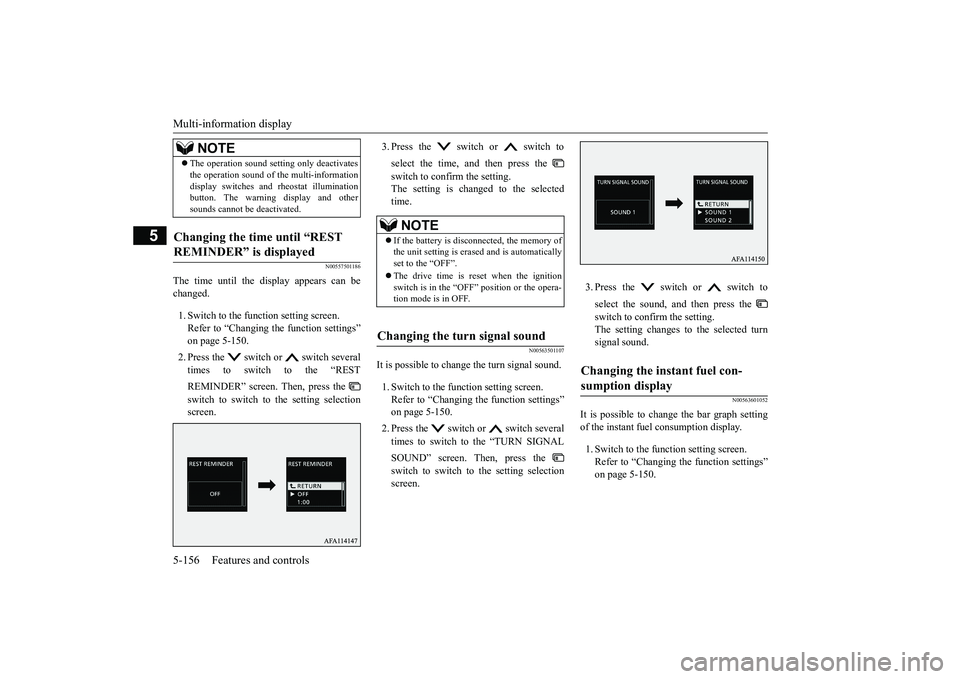

Multi-information display 5-156 Features and controls
5
N00557501186
The time until the display appears can be changed. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150. 2. Press the switch or switch several times to switch to the “REST REMINDER” screen. Then, press the switch to switch to the setting selection screen.
3. Press the switch or switch to select the time, and then press the switch to confirm the setting. The setting is changed to the selected time.
N00563501107
It is possible to change the turn signal sound. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150. 2. Press the switch or switch several times to switch to the “TURN SIGNAL SOUND” screen. Then, press the switch to switch to the setting selection screen.
3. Press the switch or switch to select the sound, and then press the switch to confirm the setting. The setting changes to the selected turnsignal sound.
N00563601052
It is possible to change the bar graph settingof the instant fuel consumption display. 1. Switch to the function setting screen. Refer to “Changing the function settings” on page 5-150.
 The operation sound setting only deactivates the operation sound of the multi-information display switches and rheostat illumination button. The warning display and other sounds cannot be deactivated.
Changing the time until “REST REMINDER” is displayed
NOTE
NOTE
 If the battery is disconnected, the memory of the unit setting is erased and is automatically set to the “OFF”.  The drive time is reset when the ignition switch is in the “OFF” position or the opera- tion mode is in OFF.
Changing the turn signal sound
Changing the instant fuel con- sumption display
BK0266800US.book
156 ページ ２０１８年６月２７日　水曜日　午後５時６分

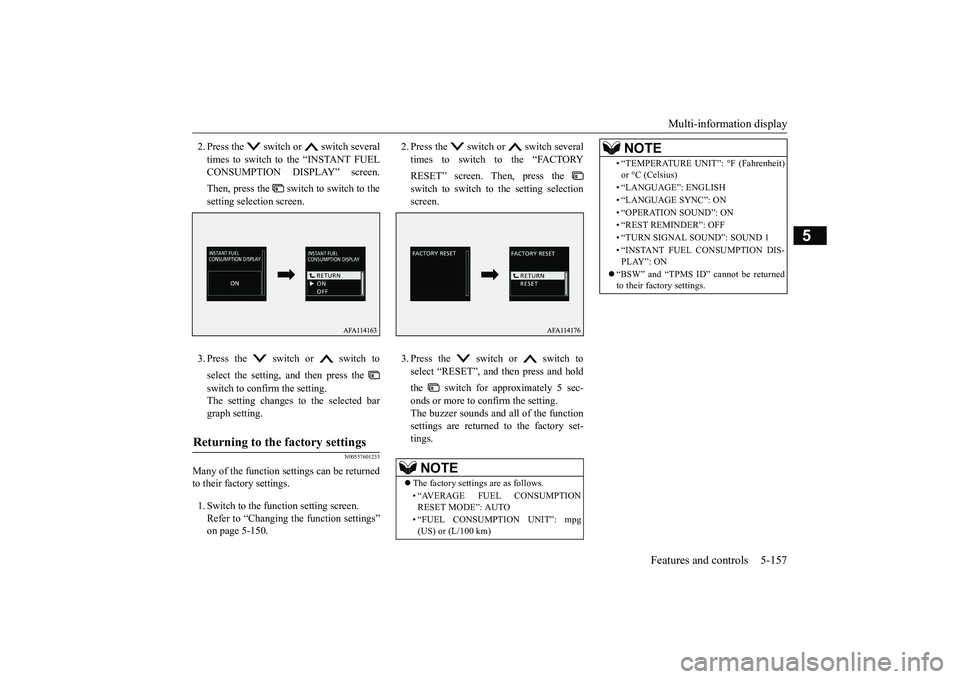

Multi-information display
Features and controls 5-157
5
2. Press the switch or switch several times to switch to the “INSTANT FUEL CONSUMPTION DISPLAY” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select the setting, and then press the switch to confirm the setting. The setting changes to the selected bar graph setting.
N00557601233
Many of the function settings can be returnedto their factory settings. 1. Switch to the function setting screen. Refer to “Changing the function settings”on page 5-150.
2. Press the switch or switch several times to switch to the “FACTORY RESET” screen. Then, press the switch to switch to the setting selection screen. 3. Press the switch or switch to select “RESET”, and then press and hold the switch for approximately 5 sec- onds or more to confirm the setting. The buzzer sounds and all of the function settings are returned to the factory set-tings.
Returning to the factory settings
NOTE
 The factory settings are as follows. • “AVERAGE FUEL CONSUMPTION RESET MODE”: AUTO • “FUEL CONSUMPTION UNIT”: mpg (US) or (L/100 km)
• “TEMPERATURE UNIT”: °F (Fahrenheit) or °C (Celsius) • “LANGUAGE”: ENGLISH • “LANGUAGE SYNC”: ON • “OPERATION SOUND”: ON• “REST REMINDER”: OFF • “TURN SIGNAL SOUND”: SOUND 1 • “INSTANT FUEL CONSUMPTION DIS- PLAY”: ON
 “BSW” and “TPMS ID” cannot be returned to their factory settings.NOTE
