MITSUBISHI ECLIPSE CROSS 2019 Owner's Manual (in English)

Indicator light, warning light, an
d information screen display list
5-158 Features and controls
5
N00557701090 N00557801352
Indicator light, warning light, and information screen display list Indicator and warning light list 1- Position indicator
 P.5-178
2- Turn signal indicators/hazard warning
lights
 P.5-178
3- Front fog light indicator
 P.5-178
4- High beam indicator
 P.5-178
5- Automatic High Beam (AHB) indicator
(if so equipped)
 P.5-189
6- LED headlight warning light (if so
equipped)
 P.5-188
7- Forward Collision Mitigation system
(FCM) OFF indicator (if so equipped)  P.5-103
8- Charging system warning light
 P.5-181
9- Electric power steering system (EPS)
warning light
 P.5-79
10- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-107
11- Information screen display
 P.5-159
12- Electric parking brake warning light
(yellow) (if so equipped)
 P.5-179
13- Active stability control (ASC) indicator
 P.5-81
14- Active stability control (ASC) OFF
indicator
 P.5-81
15- Anti-lock braking system warning light
 P.5-77
16- Supplemental Restraint System (SRS)
warning light
 P. 4-36
BK0266800US.book
158 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list Features and controls 5-159
5
N00557901122
When there is information to be announced, such as light reminder,
the tone sounds and the screen switches to the displays show
n below.
Refer to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to Warning display list on page 5-160. Refer to Other interrupt displays on page 5-175. 17- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-180
18- Seat belt reminder/warning light
 P.4-18
19- Tire pressure monitoring system warn-
ing light
 P.5-121
20- Brake auto hold indicator (if so
equipped)
 P.5-73
21- Brake warning light (red)
 P.5-179
Information screen display
NOTE
In the following cases, a warning may be displayed on the informa
tion screen and the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
BK0266800US.book
159 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list
5-160 Features and controls
5
N00558001351
Warning display list
Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the igni- tion switch.
 Remove the key. Refer to “Key reminder system” on page 5-32.
 You have forgotten to turn off the lights. Refer
to “Light auto-cutout function (headlights and
other lights)” on page 5-188.
 The washer fluid is running low.
Replenish the container with washer fluid. Refer to “Washer fluid” on page 9-9. Refer to “Capacity” on page 11-7.
 There is a malfunction in the LED headlights.
Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system. Refer to “LED headlight warning light” on page 5-188.
 The system has received the customer key program- ming request correctly and is currently processing the registration request.
Refer to “Customer key programming (Except for vehi- cles sold in Canada)” on page 5-5.Refer to “Customer F.A.S.T.-key programming (Except for vehicles sold in Canada)” on page 5-26.
BK0266800US.book
160 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list Features and controls 5-161
5

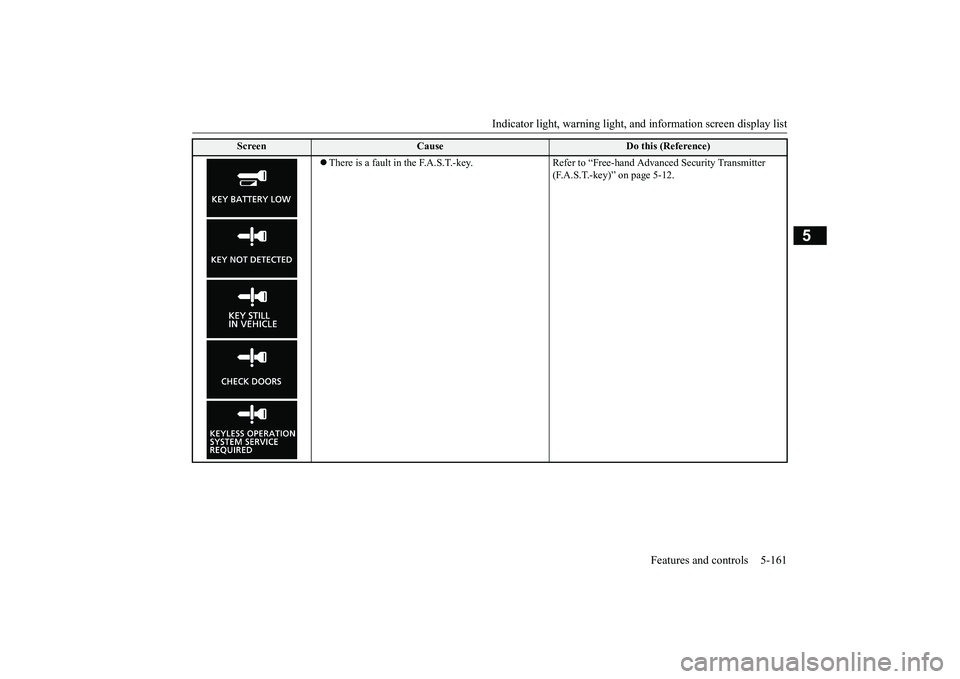

 There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page 5-12.
Screen
Cause
Do this (Reference)
BK0266800US.book
161 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list
5-162 Features and controls
5
Engine switch is pressed
one time
Engine switch is pressed
two times or more
 Although the engine switch was pressed, the F.A.S.T.-key could not be detected.
 Touch the F.A.S.T.-key to the engine switch. Refer to “If the F.A.S.T.-key is not operating prop- erly” on page 5-24.
 The engine switch is pressed to stop the engine while the selector lever is in a position other than the “P” (PARK) position.
 Place the selector lever in the “P” (PARK) position to put the operation mode in OFF.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power
steering system (EPS)” on
page 5-79.
 There is a fault in the Anti-lock braking system.
Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock braking system warning lights/display” on page 5-77.
Screen
Cause
Do this (Reference)
BK0266800US.book
162 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list Features and controls 5-163
5
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-121.
 There is a fault in the tire pressure monitoring sys- tem.
Refer to “Tire Pressure Monitoring System” on page 5-121.
 One of the doors or the liftgate is not completely closed. The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warning display screen” on page 5-145.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancelled, please contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice.
Screen
Cause
Do this (Reference)
BK0266800US.book
163 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list
5-164 Features and controls
5
 The driver’s door is open when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode ON reminder system” on page 5-33.
 An attempt was made to lock all the doors and the liftgate when the operation mode is in any mode other than OFF.
 Put the operation mode in OFF. Refer to “Operation mode OFF reminder system” on page 5-19.
 There is a fault in the electrical system.
Park your vehicle in a safe
place as soon as possible
and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The automatic transaxle or CVT fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable transmission (CVT)” on page 5-59.
 The seat belt is not fastened when the ignition switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-18.
Screen
Cause
Do this (Reference)
BK0266800US.book
164 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list Features and controls 5-165
5

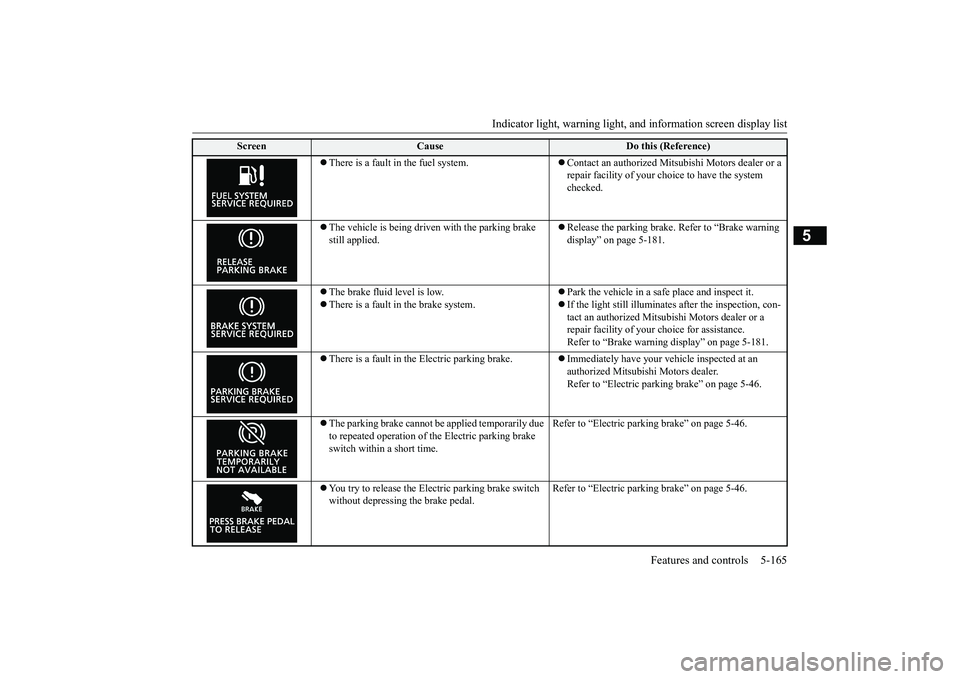

 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the parking brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-181.
 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and inspect it.  If the light still illuminates after the inspection, con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Refer to “Brake warning display” on page 5-181.
 There is a fault in the Electric parking brake.
Immediately have your vehicle inspected at an authorized Mitsubishi Motors dealer.Refer to “Electric parking brake” on page 5-46.
 The parking brake cannot be
applied temporarily due
to repeated operation of the Electric parking brake switch within a short time.
Refer to “Electric parking brake” on page 5-46.
 You try to release the Electric parking brake switch without depressing the brake pedal.
Refer to “Electric parking brake” on page 5-46.
Screen
Cause
Do this (Reference)
BK0266800US.book
165 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list
5-166 Features and controls
5
 The Electric parking brake has been automatically applied.
Refer to “Brake auto hold” on page 5-73.
 The brake auto hold is automatically cancelled. Refer to “Brake auto hold” on page 5-73.  There is a fault in the Electric parking brake system or the brake auto hold system. The brake auto hold cannot be used.
 Contact an authorized Mits
ubishi Motors dealer to
have the system checked.Refer to “Brake auto hold” on page 5-73.
 The Electric parking brake is not automatically applied because there is a fault in the Electric park- ing brake system.
 When the ignition switch is turned to the “OFF” position or the operation mode is put in OFF, place the selector lever in the “P” (PARK) position and depress the brake pedal more firmly than usual with the right foot. Then, operate the ignition switch or the engine switch. Contact an authorized Mitsub
ishi Motors dealer or a
repair facility of your choice to have the system checked.Refer to “Brake auto hold” on page 5-73.
Screen
Cause
Do this (Reference)
BK0266800US.book
166 ページ ２０１８年６月２７日　水曜日　午後５時６分

Indicator light, warning light, an
d information screen display list Features and controls 5-167
5
 The brake auto hold system does not turn on because the driver’s seat belt is not fastened.
 Press the brake auto hold switch after fastening the driver’s seat belt. Refer to “Brake auto hold” on page 5-73.
 The brake auto hold system does not turn off because the brake pedal is not pressed.
 Depress the brake pedal more firmly than usual with the right foot. Then, press
the brake auto hold switch.
Refer to “Brake auto hold” on page 5-73.
 There is a fault in the engine oil circulation system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-182.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Charging system warning display” on page 5-182.
 There is a fault in the SRS airbag or the pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately. Refer to “SRS warning light/display” on page 4-36.
Screen
Cause
Do this (Reference)
BK0266800US.book
167 ページ ２０１８年６月２７日　水曜日　午後５時６分
