Multi-information display 5-138 Features and controls
5
N00519201303
The tachometer shows engine revolutions per minute. This allows the driver to determinethe most efficient selector position and engine speed combinations. This gauge also assist
s in evaluating engine
performance.
N00554901293
Each time you press this button, there is asound and the brightness of the instrumentschanges.
N00555001419
The multi-information display displays warn- ings, the odometer, trip odometer, service reminder, engine coolant temperature, fuelremaining, outside temperature, selector lever position, average and instant fuel consump- tion, driving range, average speed, etc. It is also possible to change elements such as the language and units used on the multi- information display.
Tachometer
CAUTION The red zone indicates an engine speed beyond the range of safe operation. Select the correct selector position to control the engine speed so that the tachometer indi- cator does not enter the red zone.
Meter illumination control 1- Brightness level 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels for when the front side-marker lights are illuminatedand when they are not.  If the vehicle is equipped with the automatic light control, the light switch is in a position other than the “OFF” position and it is suffi- ciently dark outside the vehicle, the meterillumination switches automatically to the adjusted brightness.
 The brightness level of the instruments is stored when the ignition switch is turned to the “OFF” position or the operation mode is put in OFF.  If you press and hold the button for longer than approximately 2 second when the front side-marker lights are illuminated, thebrightness level changes to the maximum level. Pressing and holding the button for longer than approximately 2 second againreturns the brightness level to the previous level. On vehicles equipped with Smartphone LinkDisplay Audio, the map screen color may not be switched to nighttime setting when the meter illumination brightness level is at themaximum.
Multi-information display
NOTE
BK0266800US.book
138 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-139
5
[With ignition switch or operation mode in OFF] 1-
Warning display screen
 P.5-144
2- Information screen
 P.5-141
Interrupt display screen
 P.5-144
3- Door ajar warning display screen
 P.5-145
4- Odometer
 P.5-146
5-
“ ” mark indicator
 P.5-144
BK0266800US.book
139 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-140 Features and controls
5
[With ignition switch or operation mode in ON]
N00555101234
Each time the multi-information display switches are operated, the buzzer sounds andthe multi-information display changes
1- S-AWC drive mode display screen (if
so equipped)
 P.5-67
2-
Warning display screen
 P.5-144
3- Lane Departure Warning (LDW) dis-
play screen (if so equipped)
P.5-117
4- ECO mode indicator display screen
 P.5-196
5- Information screen
 P.5-141
6- Selector lever position display
 P.5-61
7- Engine coolant temperature display
 P.5-145
8- Odometer
 P.5-146
9- Cruise control display screen
 P.5-82
10- Adaptive Cruise Control System (ACC)
display screen (if so equipped)  P.5-87
11- ECO indicator
 P.5-149
12-
“ ” mark indicator
 P.5-144
13- Fuel remaining display screen
 P.5-145
14- Outside temperature display screen
 P.5-146
NOTE
The fuel units, outside temperature units, display language, and other settings can be changed. Refer to “Changing the function settings” on page 5-150.
Multi-information display switches
BK0266800US.book
140 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display

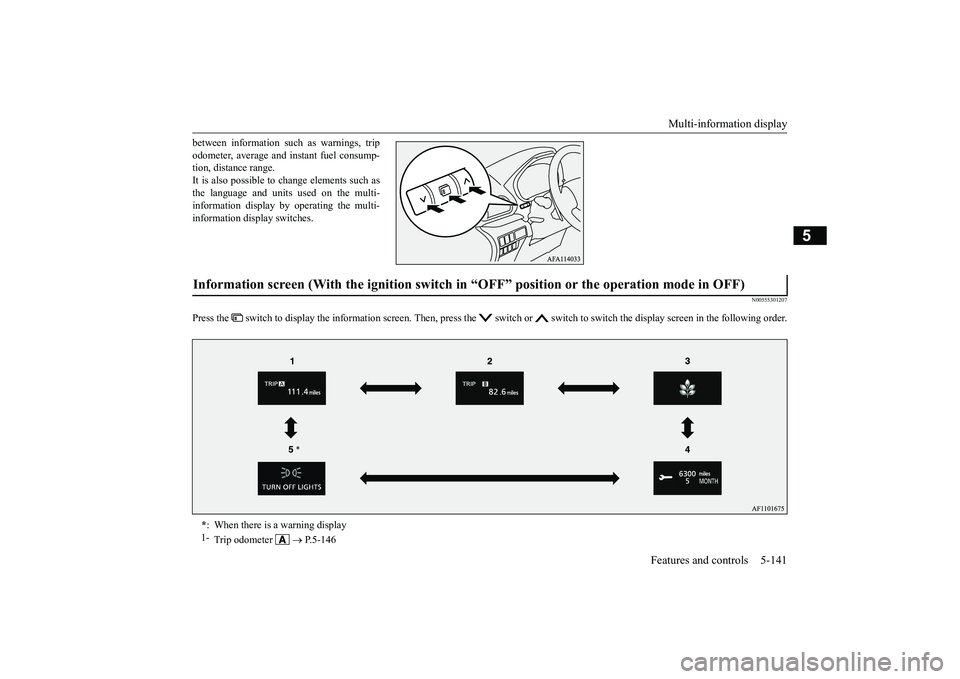

Features and controls 5-141
5
between information such as warnings, trip odometer, average and instant fuel consump- tion, distance range. It is also possible to
change elements such as
the language and units used on the multi- information display by operating the multi- information display switches.
N00555301207
Press the switch to display the information screen. Then, press the switch or switch to switch the display screen in the fol
lowing order.
Information screen (With the ignition switch in “OFF” position or the operation mode in OFF) *: When there is a warning display 1-
Trip odometer
 P.5-146
BK0266800US.book
141 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-142 Features and controls
5
N00555801260
When the ignition switch is turned to the
“ON” position or the operation mode is put
in ON, the display screen switches in the
following order.
2-
Trip odometer
 P.5-146
3- ECO score display
 P.5-150
4- Service reminder
 P.5-146
5- Redisplay of a warning display screen
 P.5-144
Information screen (With the ignition switch is turned from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON) * : When the inspection time has arrived 1- Screen when the ignition switch or the operation mode is OFF 2- System check screen
 P.5-148
3- Screen when the ignition switch or the operation mode is ON4- Service reminder
 P.5-146
BK0266800US.book
142 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display

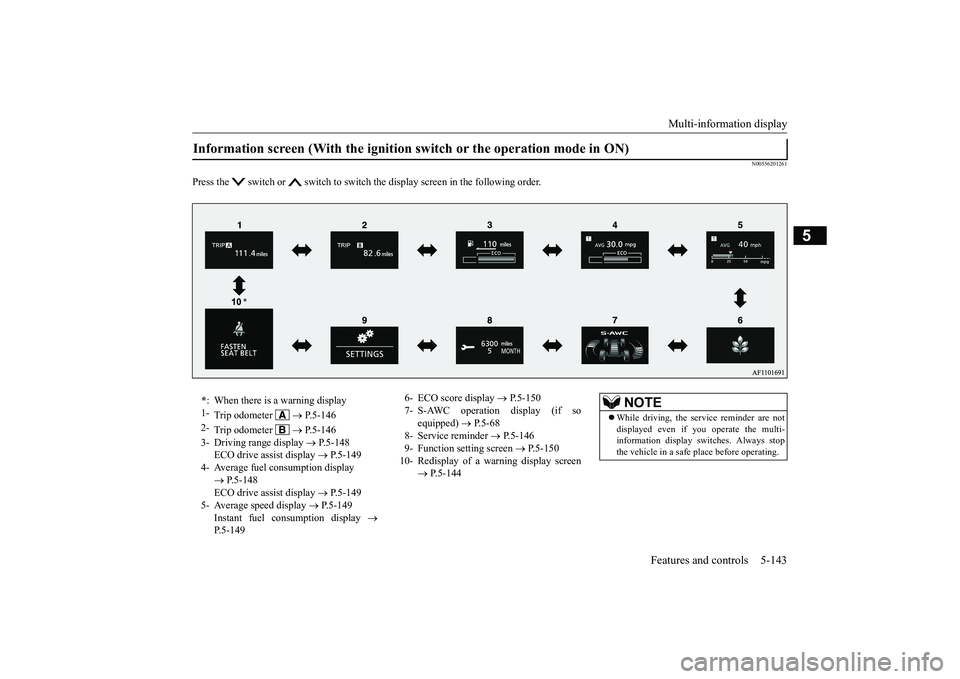

Features and controls 5-143
5
N00556201261
Press the switch or switch to switch the display screen in the following order.Information screen (With the ignition switch or the operation mode in ON) * : When there is a warning display 1-
Trip odometer
 P.5-146
2-
Trip odometer
 P.5-146
3- Driving range display
 P.5-148
ECO drive assist display
 P.5-149
4- Average fuel consumption display
 P.5-148 ECO drive assist display
 P.5-149
5- Average speed display
 P.5-149
Instant fuel consumption display

P.5-149
6- ECO score display
 P.5-150
7- S-AWC operation display (if so
equipped)
 P.5-68
8- Service reminder
 P.5-146
9- Function setting screen
 P.5-150
10- Redisplay of a warning display screen
 P.5-144
NOTE
While driving, the service reminder are not displayed even if you operate the multi-information display switches. Always stop the vehicle in a safe place before operating.
BK0266800US.book
143 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-144 Features and controls
5
N00556301246
When there is information to be announced, such as a system fault, the tone sounds and the information screen is switched to thewarning display screen. Refer to the warning list and take the neces- sary measures. Refer to “Warning display list” on page 5-160. When the cause of the warning display iseliminated, the warning display goes out automatically.
Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning dis-play. If you press the switch, the display screen switches to the screen display from before the warning and the warning (A) is also dis- played. Warning display screens with the “ ” mark displayed in the upper right of the screen can be switched. If you want to switch the dis- play, press the switch for approximately 2 seconds or more.
N00579600034
When the warning is displayed, if you press the switch or switch a few times, the warning display screen you switched from is redisplayed.
N00579700022
The operation status of each system is dis- played on the information screen. For further details, refer to the appropriatepage in the warning display list. Refer to “Other interrupt displays” on page 5-175.
N00555201248
This is displayed when you press the switch and return from the warning display screen to the previous screen.This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the warning goes out automat- ically.
 While driving, the function setting screen is not displayed even if you operate the multi- information display switches. Always park the vehicle in a safe place, firmly apply the parking brake and put theselector lever into the “P” (PARK) position before operating the function setting screen. Refer to “Changing the function settings” onpage 5-150.  When there is information to be announced, such as a system fault, the tone sounds and the screen display is switched. Refer to “Interrupt display screen” on page5-144.
Interrupt display screen Warning display
NOTE
Returning to the display screen from before the warning display If you want to switch the display
Redisplay of a warning display screen Other interrupt displays warning display screen
BK0266800US.book
144 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-145
5
N00529700043
If any of the doors or the liftgate is not com- pletely closed, this displays the open door orliftgate. If the speed increases to approximately 5 mph (8 km/h) or higher with a door ajar, a tonewill sound four times to inform you that a door is ajar.
N00578200020
Shows the engine coolant temperature. If the coolant becomes hot, “ ” will blink. Pay careful attention to the engine coolant temperature display while you are driving.
N00556601210
Shows the amount of fuel remaining.
NOTE
 When the warning is displayed, the warn- ing display screen can be redisplayed on the information screen. Refer to “Information screen (with the igni-tion switch in “OFF” position or the opera- tion mode in OFF)” on page 5-141. Refer to “Information screen (with the igni-tion switch or the operation mode in ON)” on page 5-143.
Door ajar warning display screen
CAUTION Always make sure that the warning display goes out before beginning to drive.
Engine coolant temperature display
CAUTION If the engine is overheating, “ ” will blink. In this case, the bar graph is on the red zone. Immediately park the vehicle in a safe placeand take the required measures. Refer to “Engine overheating” on page 8-4.
Fuel remaining display screen
F- Full E- Empty
CAUTION Running out of gas could damage the cata- lytic converter. If the warning display appears, refuel as soon as possible.NOTE
 It may take several seconds to stabilize the display after refilling the tank.  If fuel is added with the ignition switch or the operation mode in ON, the remaining fuel display may incorrectly indicate the fuel level.  The arrow (A) indicates that the fuel tank filler door is located
on the left side of the
vehicle. (Refer to “Filling the fuel tank” on page 3-3.)
BK0266800US.book
145 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display 5-146 Features and controls

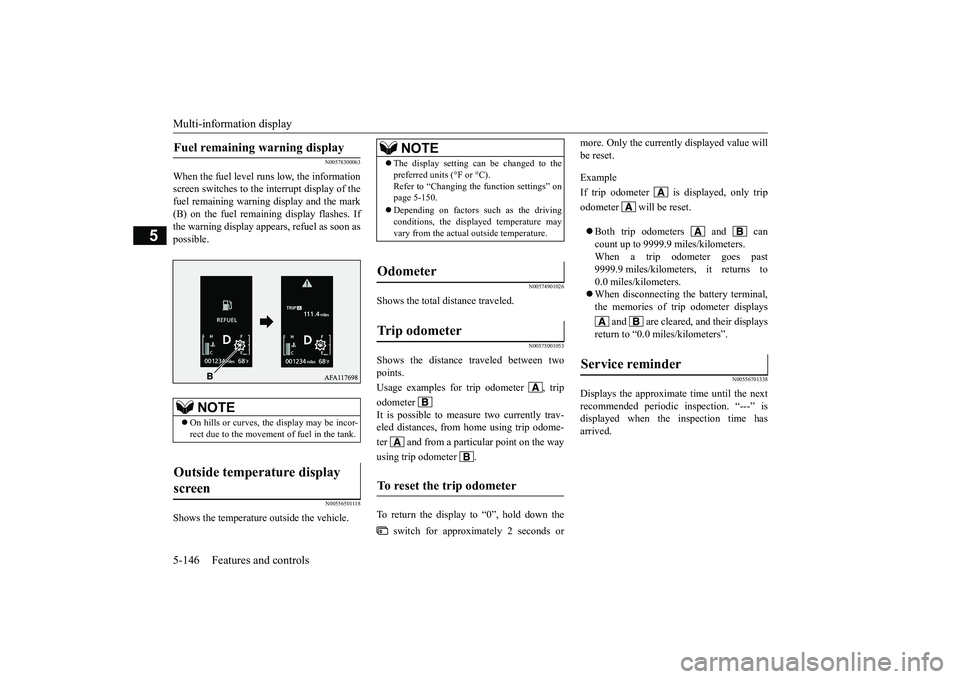

5
N00578300063
When the fuel level runs low, the information screen switches to the interrupt display of thefuel remaining warning display and the mark (B) on the fuel remaining display flashes. If the warning display appears, refuel as soon aspossible.
N00556501118
Shows the temperature outside the vehicle.
N00574901026
Shows the total distance traveled.
N00575001053
Shows the distance traveled between twopoints. Usage examples for trip odometer , tripodometer It is possible to meas
ure two currently trav-
eled distances, from home using trip odome- ter and from a particular point on the wayusing trip odometer . To return the display
to “0”, hold down the
switch for approximately 2 seconds or
more. Only the currently displayed value will be reset. Example If trip odometer is displayed, only tripodometer will be reset.  Both trip odometers and can count up to 9999.9 miles/kilometers.When a trip odometer goes past 9999.9 miles/kilometers, it returns to 0.0 miles/kilometers. When disconnecting the battery terminal, the memories of trip odometer displays
and are cleared, and their displays
return to “0.0 miles/kilometers”.
N00556701338
Displays the approximate time until the nextrecommended periodic inspection. “---” isdisplayed when the inspection time has arrived.
Fuel remaining warning display
NOTE
 On hills or curves, the display may be incor- rect due to the movement of fuel in the tank.
Outside temperature display screen
NOTE
 The display setting can be changed to the preferred units (°F or °C). Refer to “Changing the function settings” on page 5-150.  Depending on factors such as the driving conditions, the displayed temperature may vary from the actual outside temperature.
Odometer Trip odometer To reset the trip odometer
Service reminder
BK0266800US.book
146 ページ ２０１８年６月２７日　水曜日　午後５時６分

Multi-information display
Features and controls 5-147
5
1. Shows the time until the next periodic inspection. 2. This informs you that a periodic inspec- tion is due. Contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice to have the system checked.
At that time, when the ignition switch is switched from the “OFF” position to the “ON” position or the operation mode ischanged from OFF to ON, the warning display is displayed for a few seconds on the information screen. 3. After your vehicle is inspected at an authorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.
The “---” display can be reset while the igni- tion switch or the operation mode is in OFF.When the display is reset, the time until the next periodic inspection is displayed and the warning display is no longer displayed whenthe ignition switch is switched from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON. 1. When you press the switch or switch, the information screen switches to the service reminder display screen.
2. Press and hold the switch (for approxi- mately 2 seconds or
more) to display “ ”
and make it flash. (If there is no operation for approximately 10 seconds with this indicator flashing, the display returns tothe previous screen.) 3. With this indicator flashing, if you press the switch, the screen switches from “- --” to “CLEAR”. After that, the time until the next periodic inspection is shown.
NOTE
 The service reminder time can be modified by an authorized Mitsubishi Motors dealer, to adjust for severe usage, etc. Refer to “Severe maintenance schedule” in your vehi- cle’s Warranty and Maintenance Manual. Forfurther information, please contact your authorized Mitsubishi Motors dealer.NOTE
 Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.
To r e s e t
